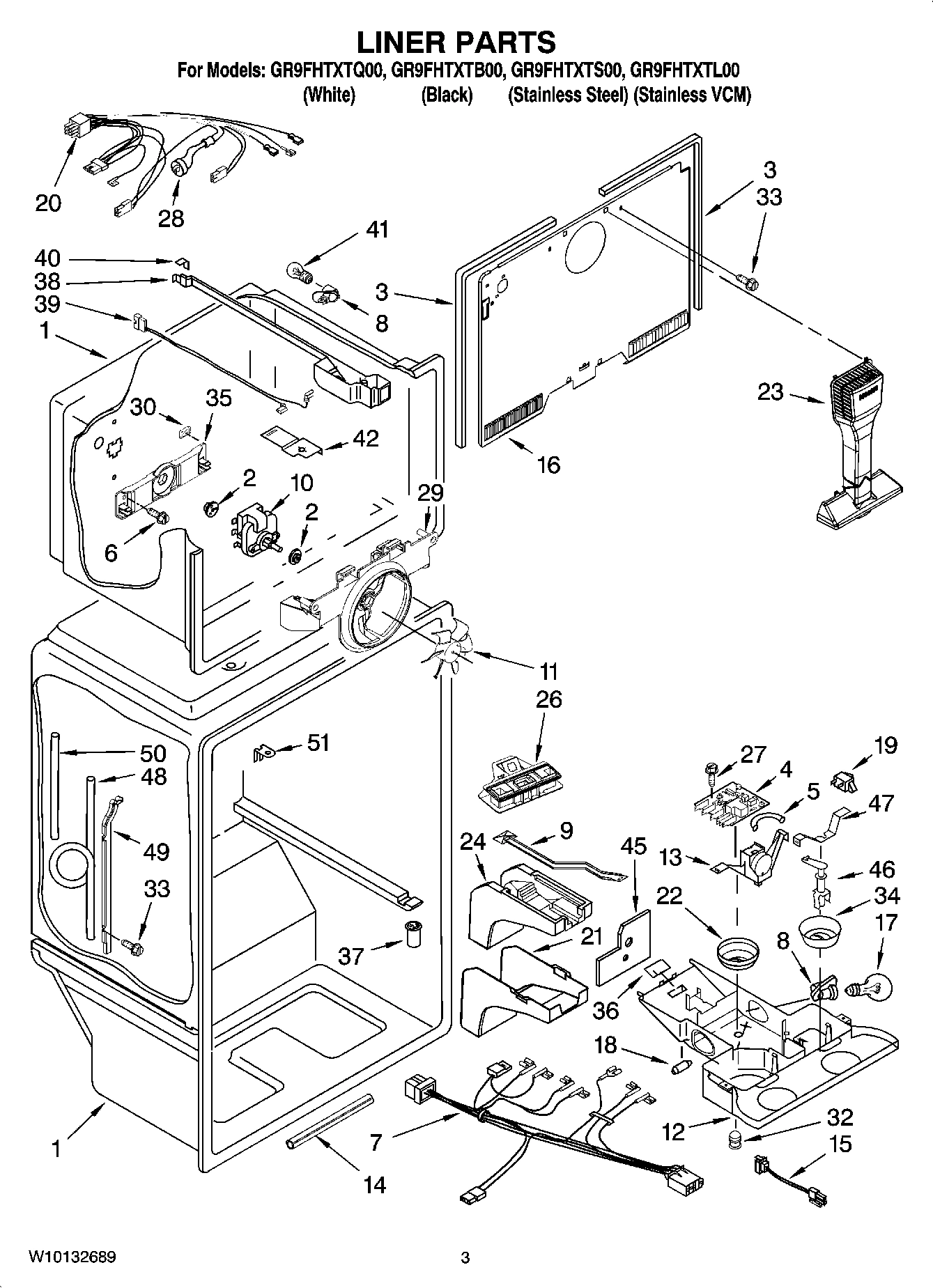

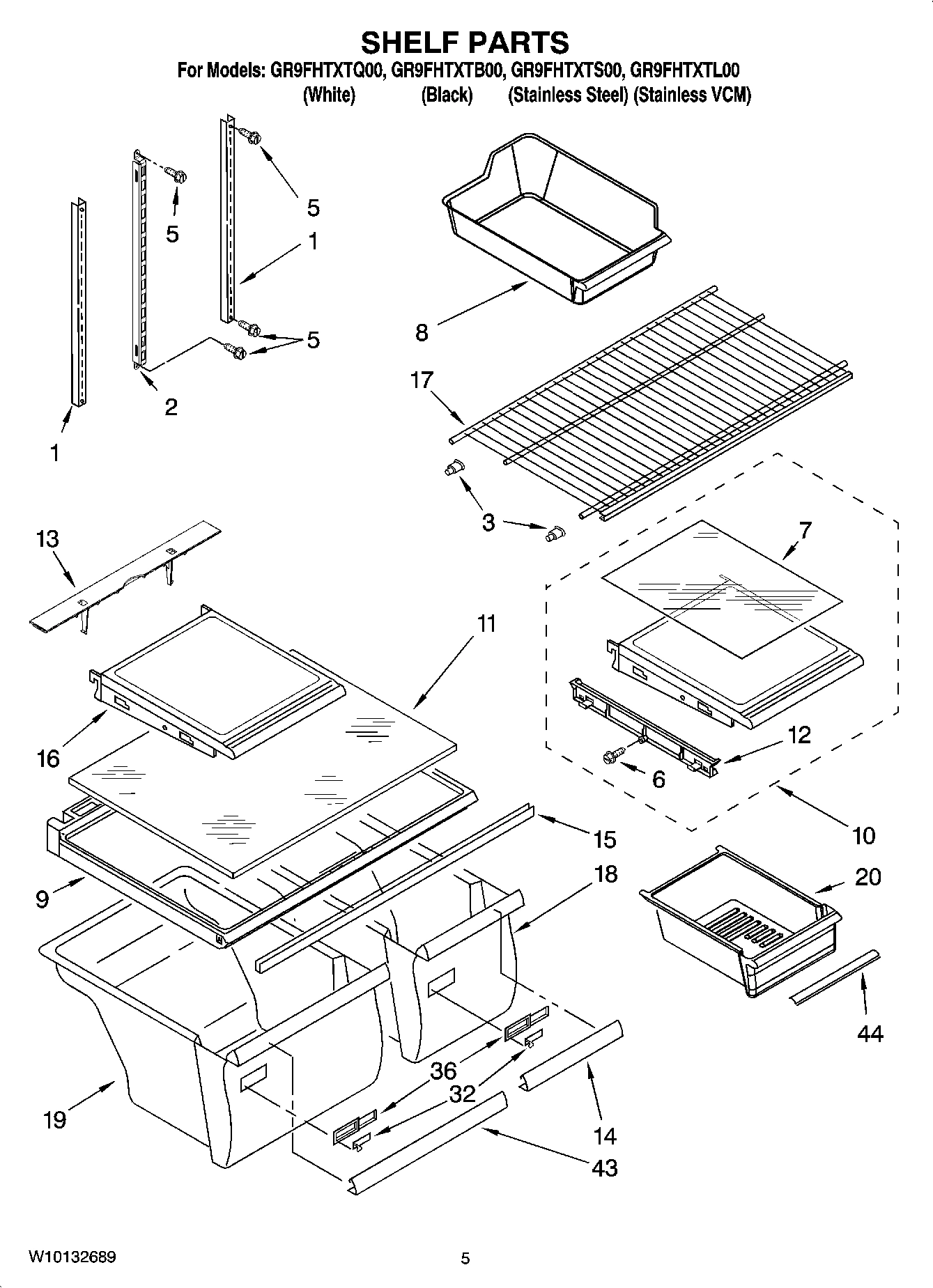

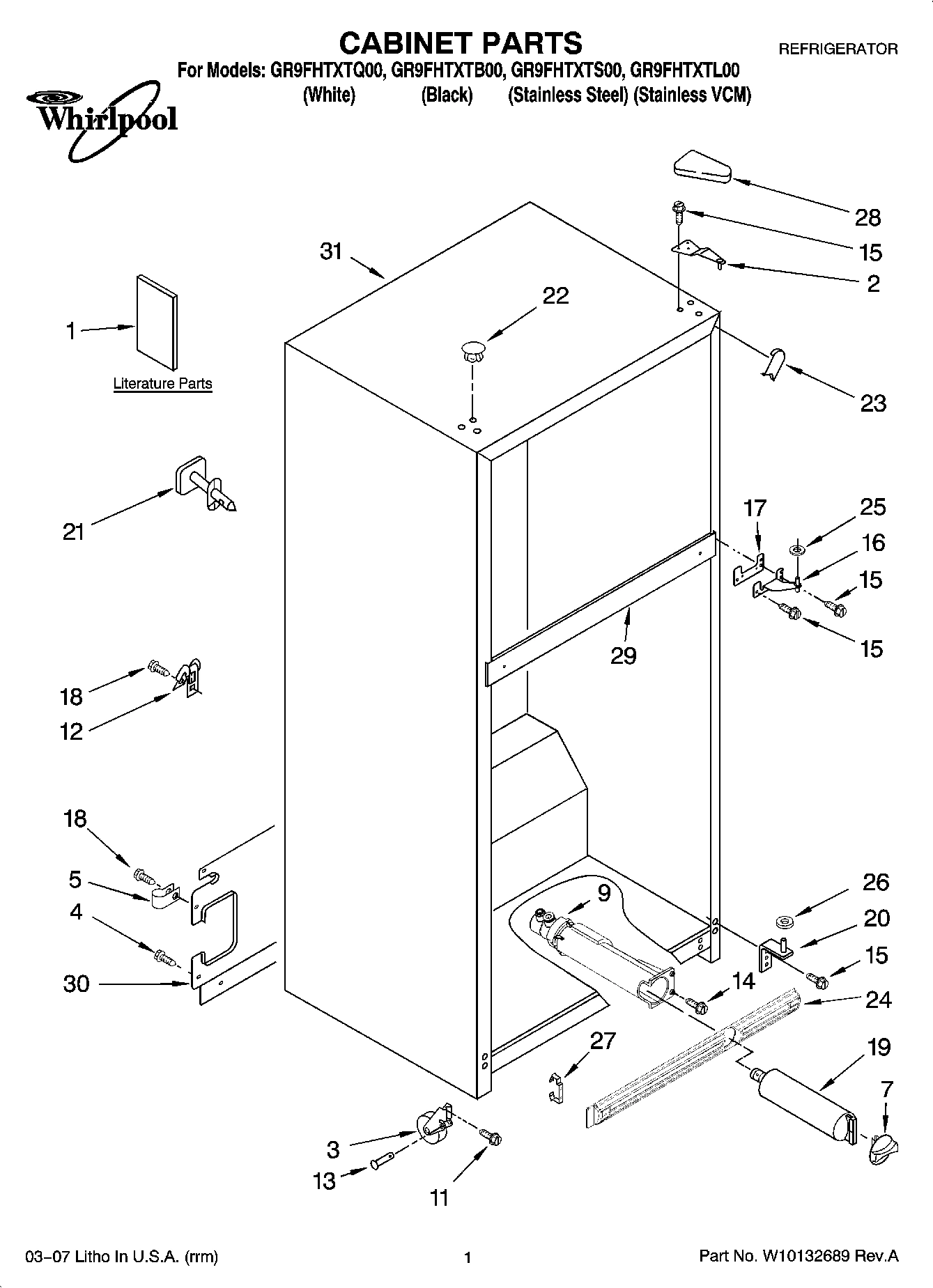

Model Whirlpool GR9FHTXTL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

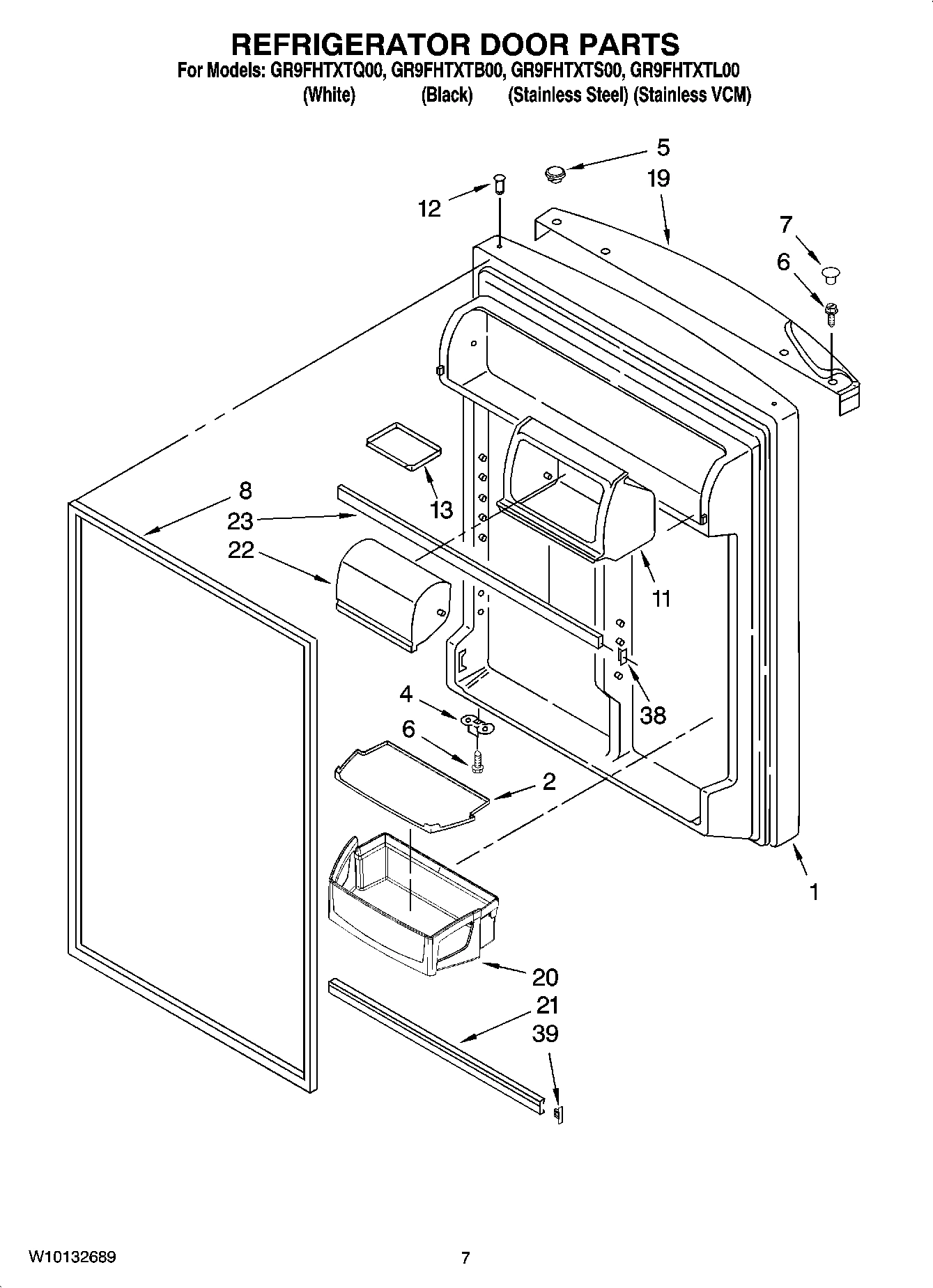

Refrigerator Door (Includes Illus. 8 & 12) (W WPL 2205395 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 8 & 12) (B WPL 2205398 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 8 & 12) (S WPL 2218280 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 8 & 12) (S WPL 2218506 Contact Us For Availability

1

Plate, Unit Mounting WPL 2320188 Contact Us For Availability

1

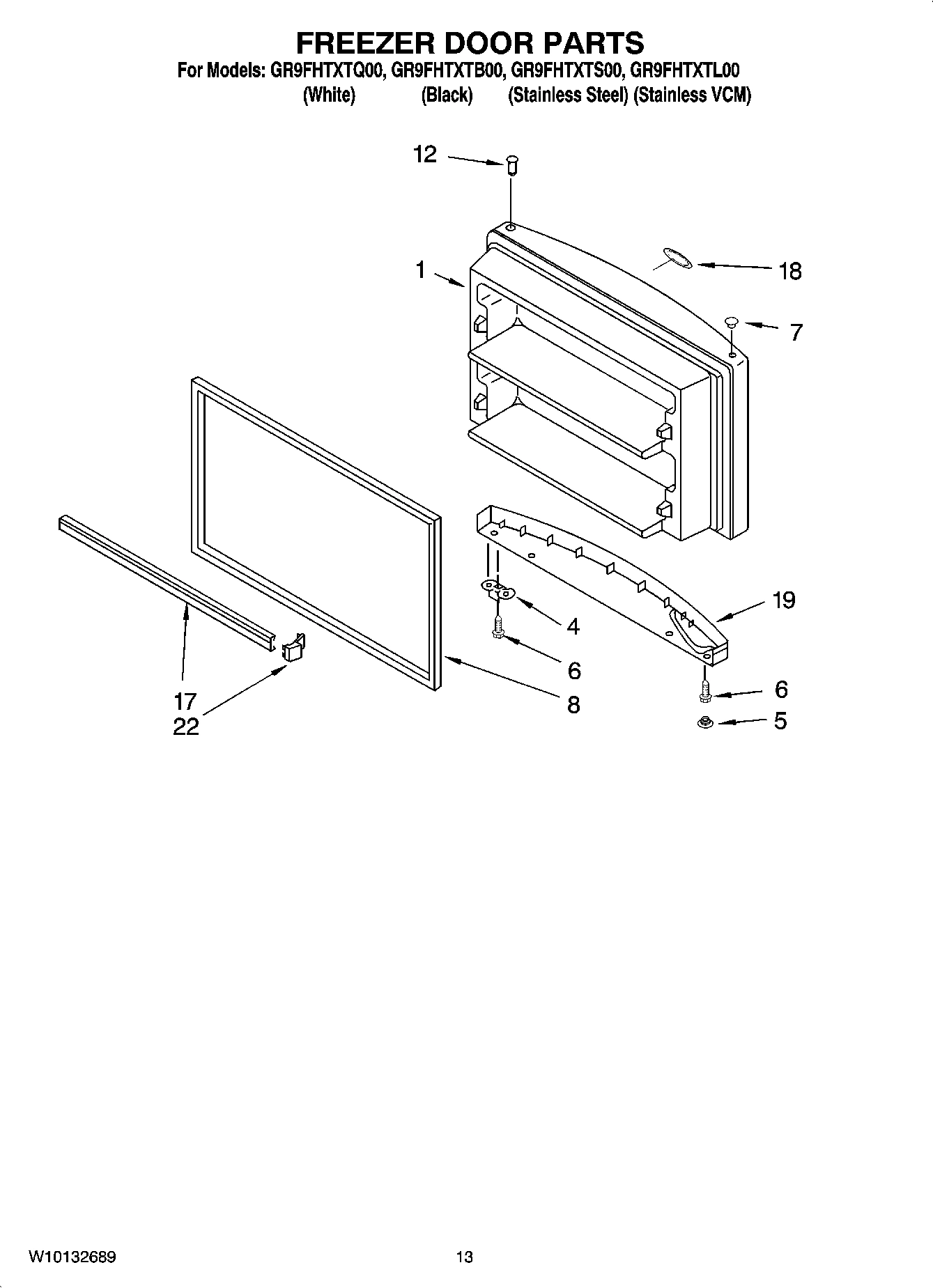

Freezer Door (Includes Illus. 8 & 12) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 8 & 12) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 8 & 12) (Stainl WPL 2212495 Contact Us For Availability

1

Freezer Door (Includes Illus. 8 & 12) (Stainl WPL 2218507 Contact Us For Availability

2

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

2

Mat, Rubber (Door Bin) WPL 2300430 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

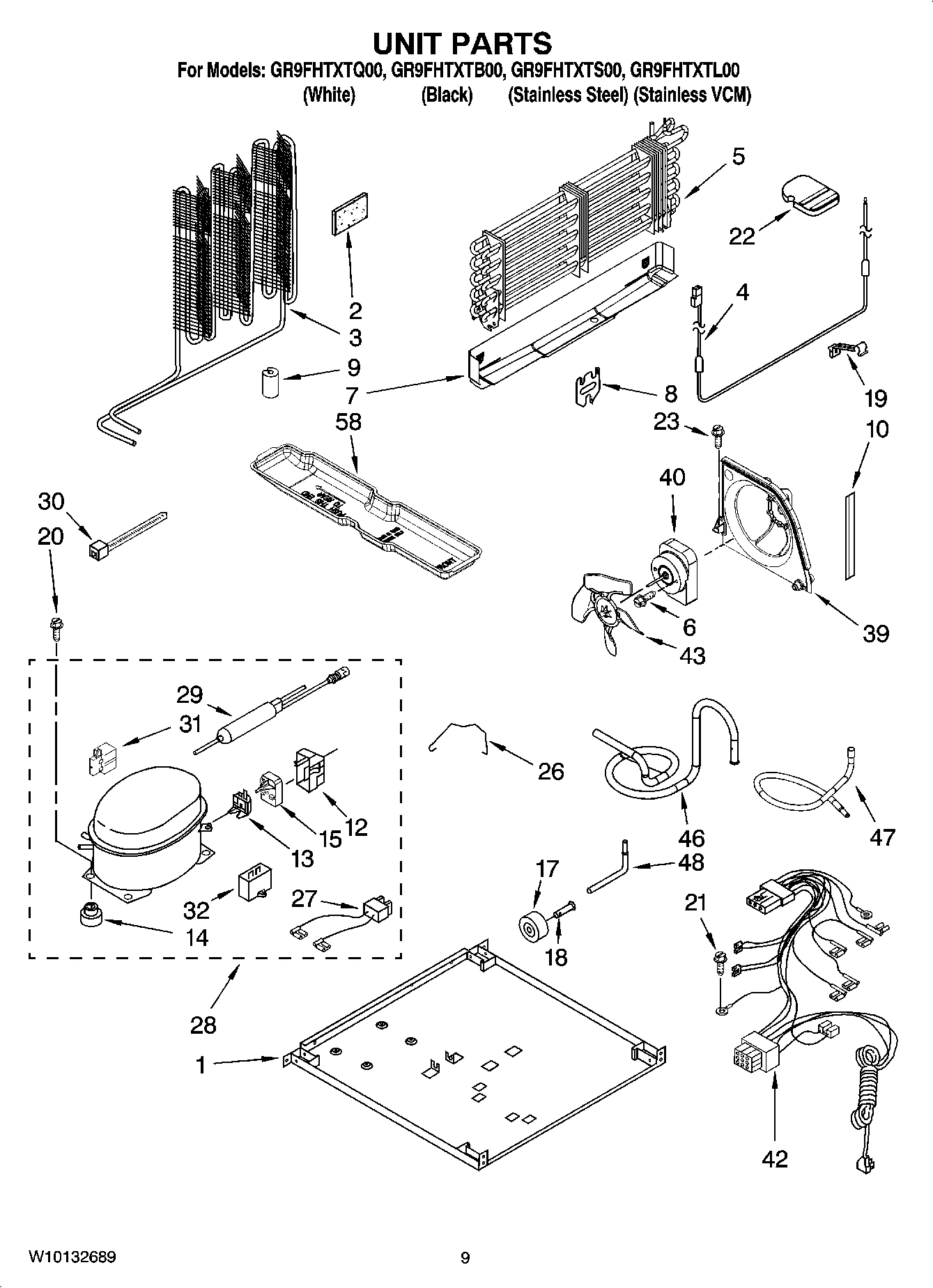

Condenser WPL 2214960 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $105.74

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

4

Adaptive Defrost Control WPL 2304093 Contact Us For Availability

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $176.73

5

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

5

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

6

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

6

WPW10171469 Whirlpool Refrigerator Screw Backorder WPL WPW10171469 $6.84

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Drain Pan WPL 2254294 Contact Us For Availability

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $136.79

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $92.99

8

2177304 Whirlpool Refrigerator FIP Gasket In Stock WPL 2177304 $200.34

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $230.67

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $114.99

10

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

Housing Compartment WPL 2210566 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $90.86

13

Tray, Door WPL 2159302 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Trim-Crisper Pan (10 Inch) (Crisper Cover) WPL 2195340 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $49.58

16

Cover, Evaporator WPL 2320191 Contact Us For Availability

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $86.42

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability

18

Nameplate WPL 2220214 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap, Handle (White) WPL 2212689 Contact Us For Availability

Endcap, Handle (Black) WPL 2221652 Contact Us For Availability

Endcap, Handle (White) WPL 2225090 Contact Us For Availability

Endcap, Handle (Black) WPL 2225158 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

Bin, Door Shelf (3) WPL 2300447 Contact Us For Availability

21

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

21

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $61.90

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

24

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

26

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

26

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

27

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

28

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

29

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Cover, Unit WPL 2254578 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI68814A8 Contact Us For Availability

31

Relay (Service Only) WPL 2183454 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $51.32

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

38

Housing Base WPL 2300417 Contact Us For Availability

38

Endcap, Door Trim WPL 2177340 Contact Us For Availability

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

39

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $52.87

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

42

2187916 Whirlpool Refrigerator Wire Harness Backorder WPL 2187916 $157.11

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

50

Tube, Water Filter WPL 2301621 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP2254574 Whirlpool Refrigerator Evaporator T Backorder WPL WP2254574 $103.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI68816A7 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI68817A7 Contact Us For Availability
