Model Whirlpool GLHA7900W1 – Common Parts & Diagrams
04 - TOP AND CONSOLE
06 - WATER SYSTEM

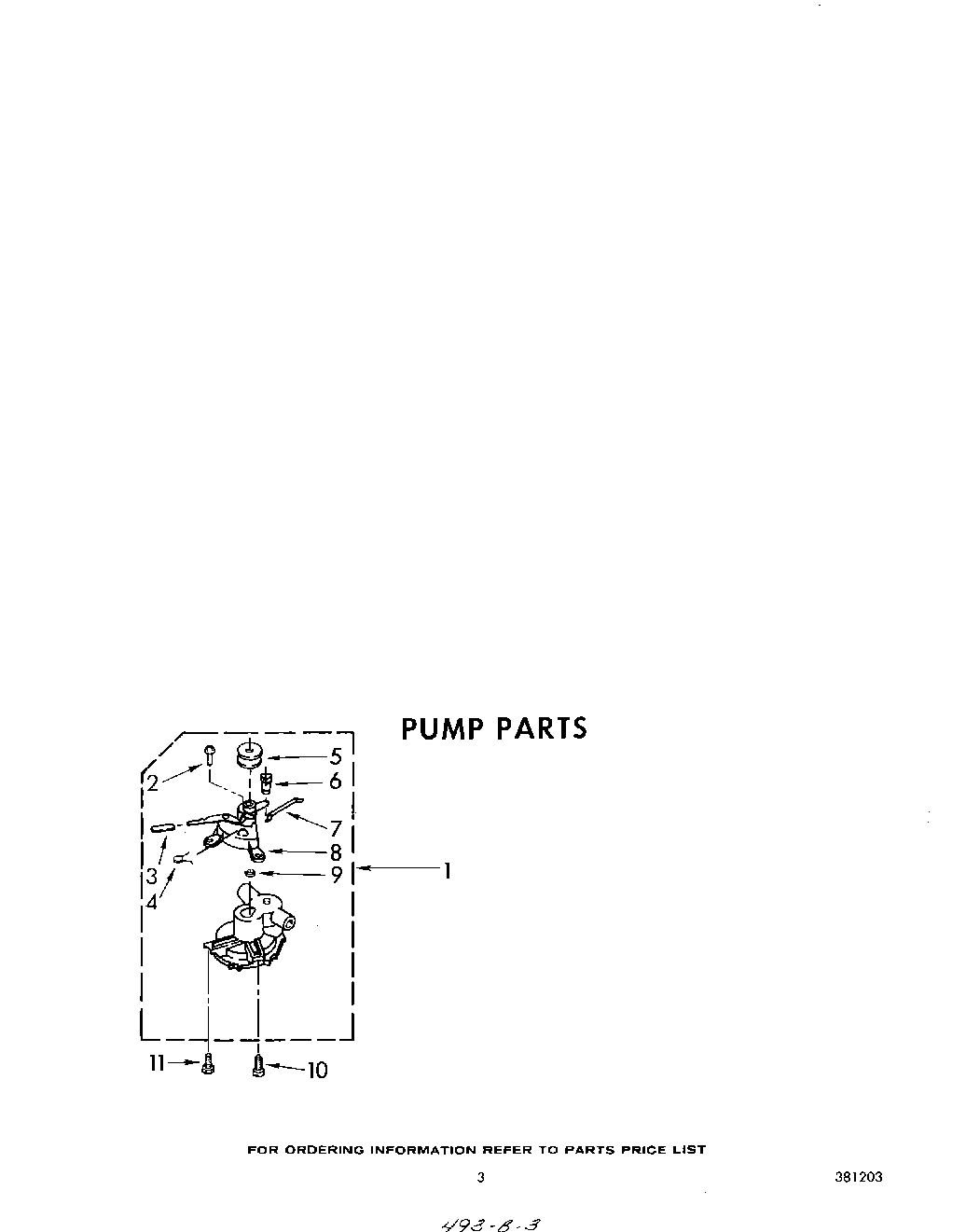

03 - PUMP

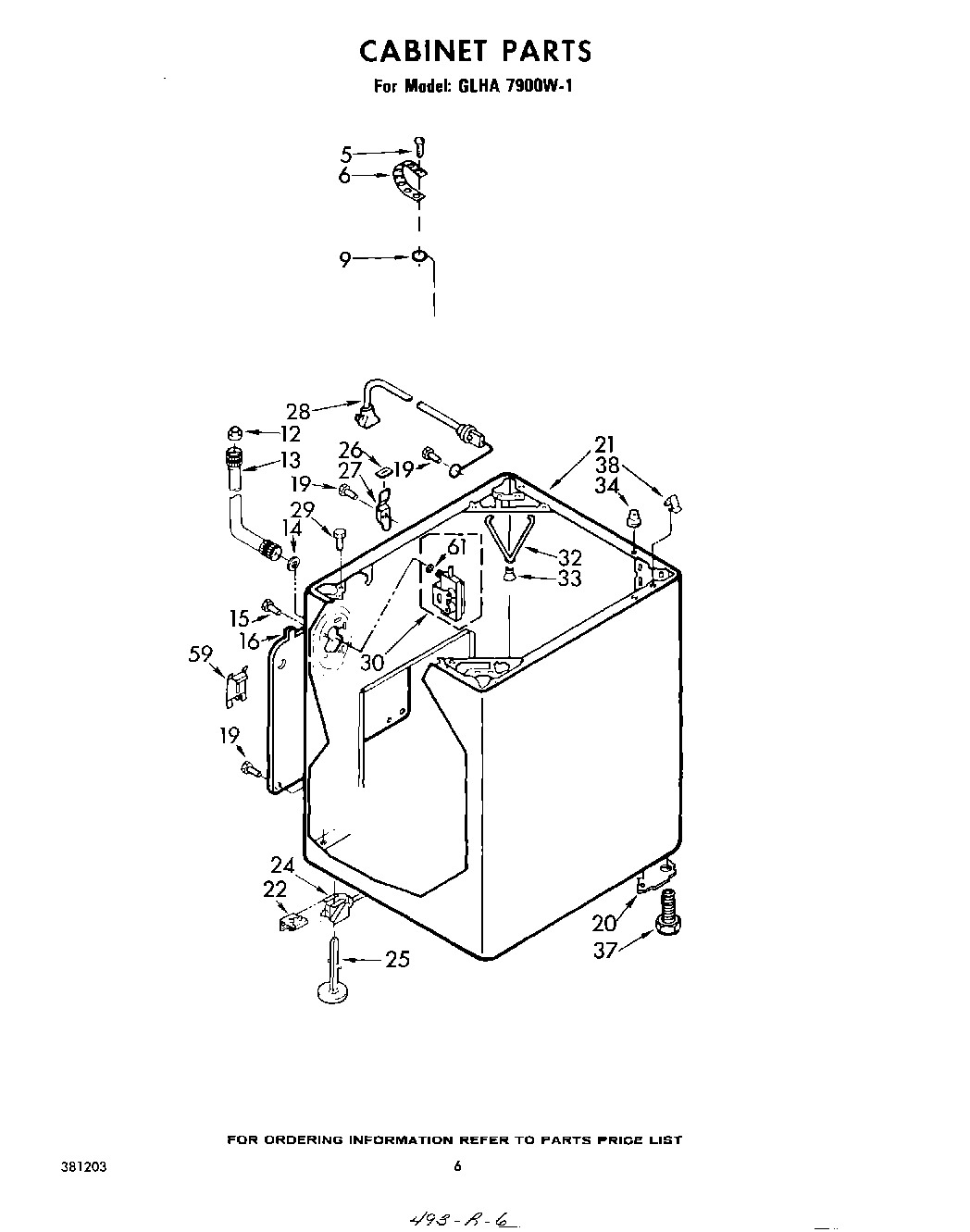

05 - CABINET

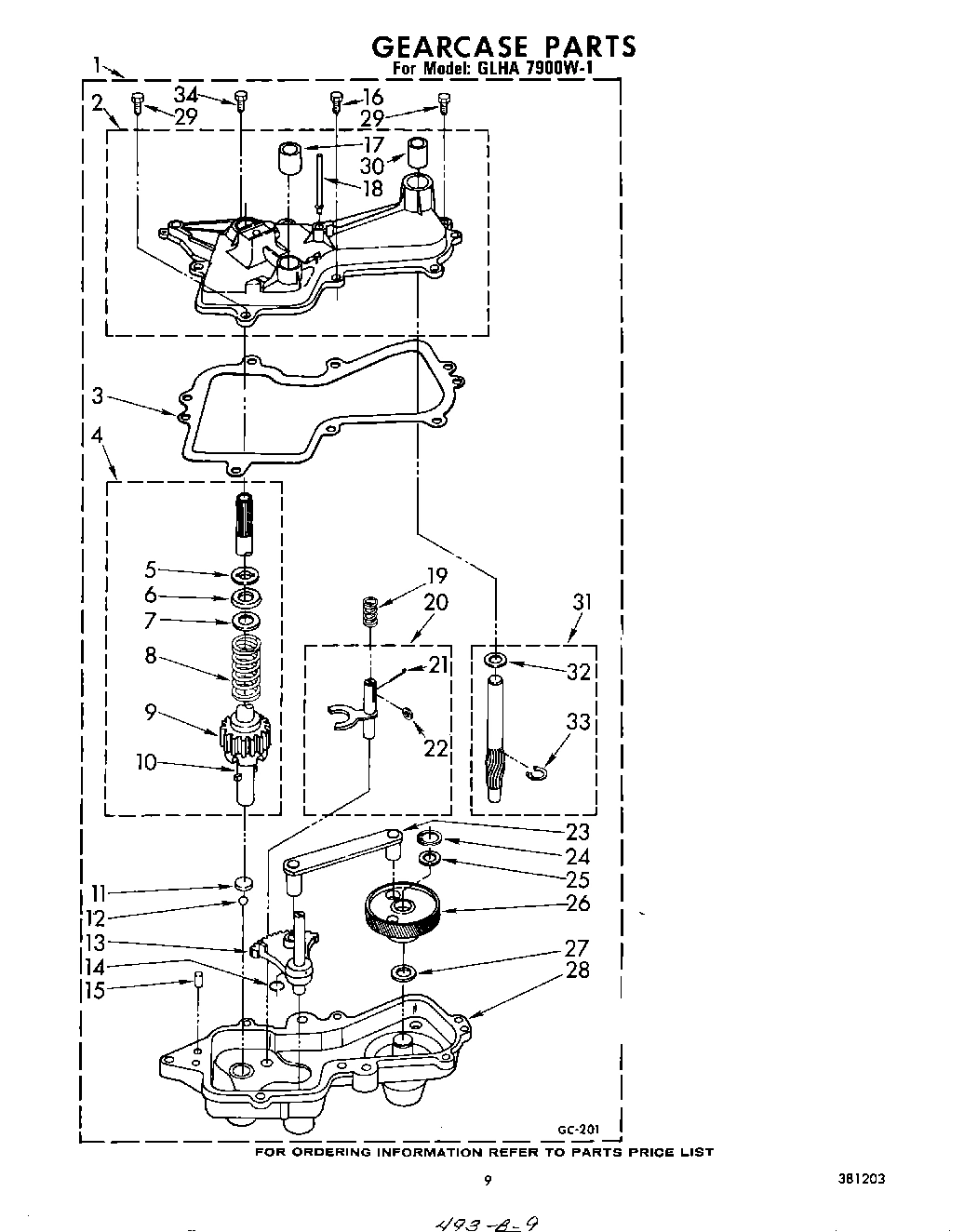

07 - GEARCASE

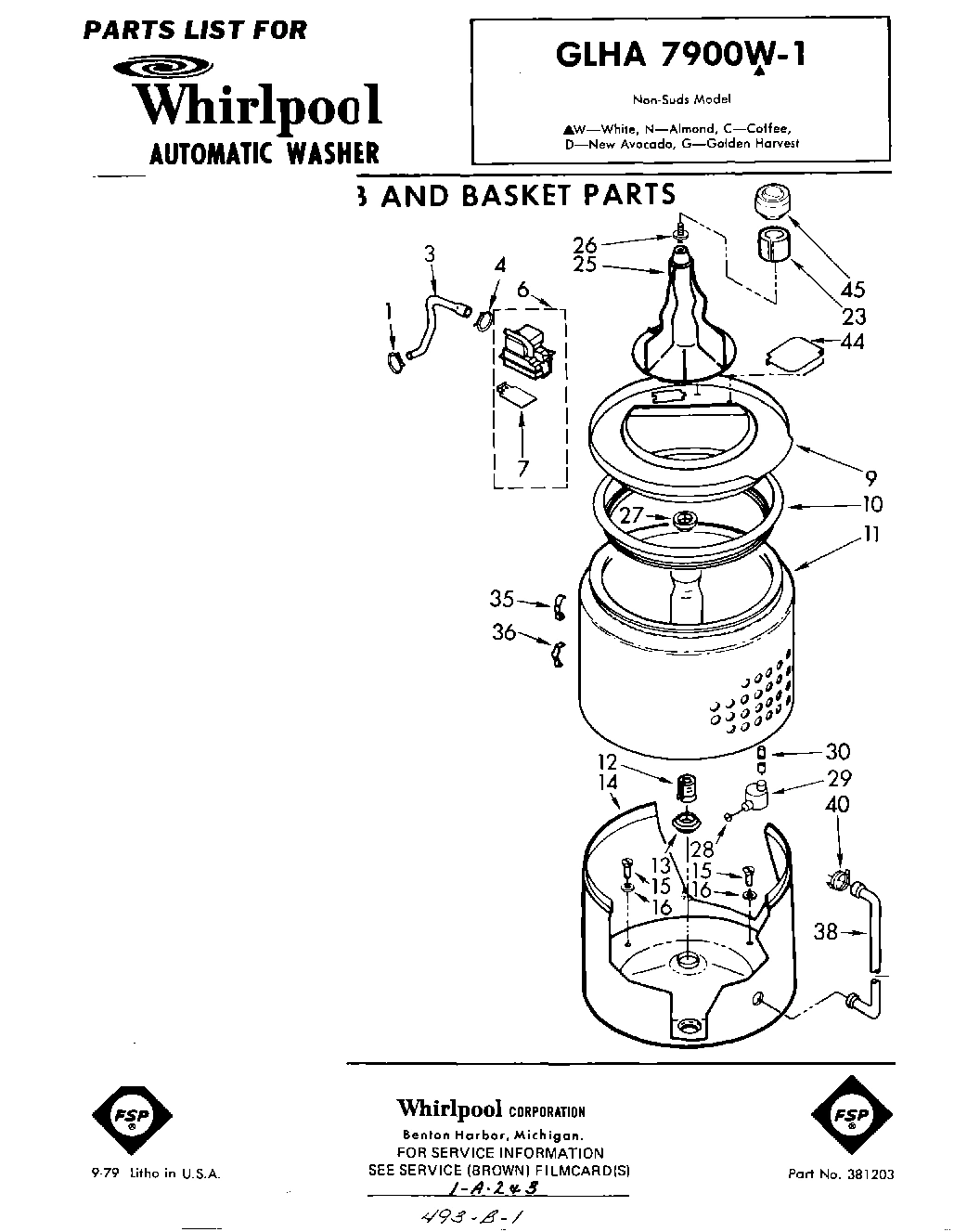

01 - TUB AND BASKET , LIT/OPTIONAL

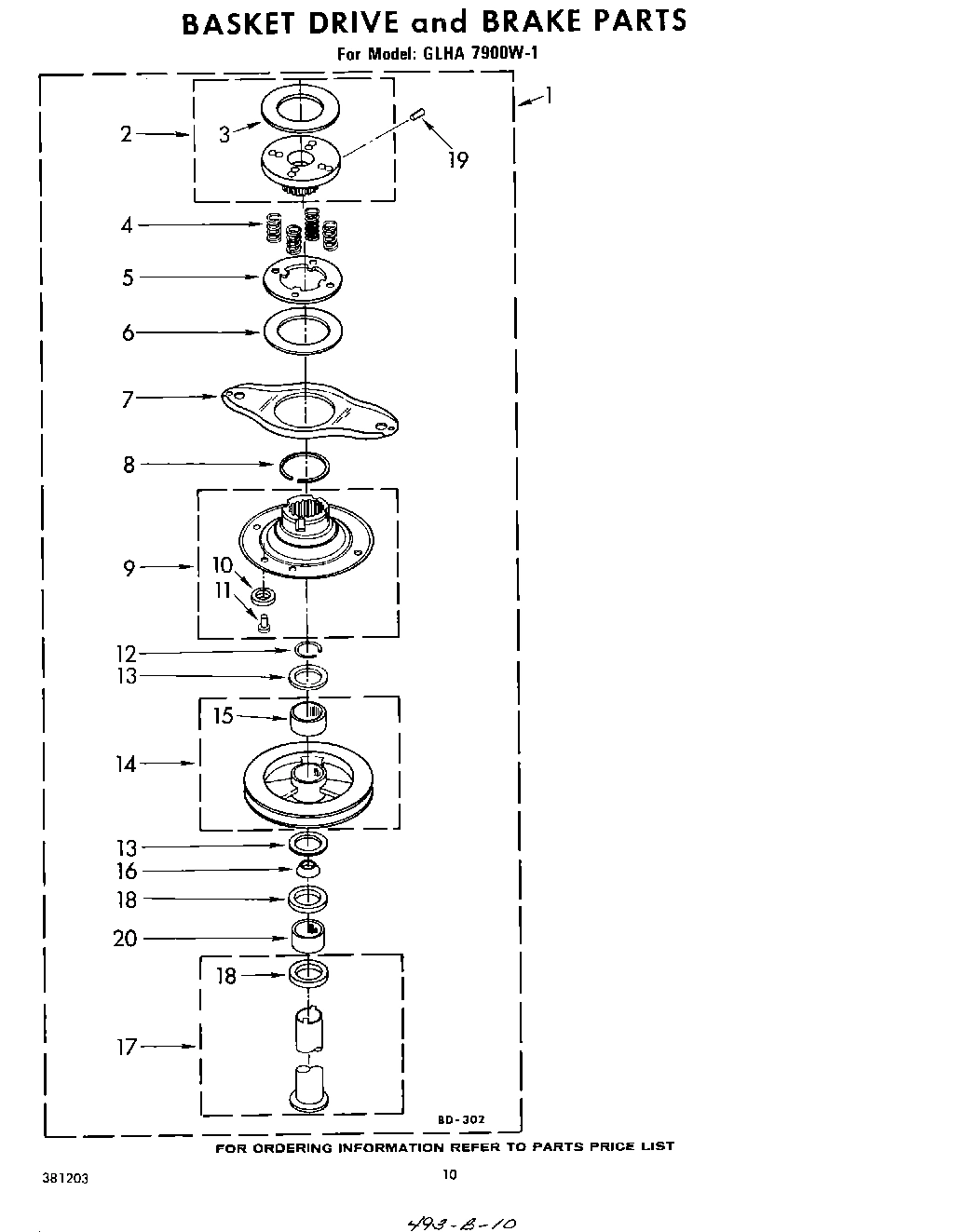

08 - BASKET DRIVE AND BRAKE

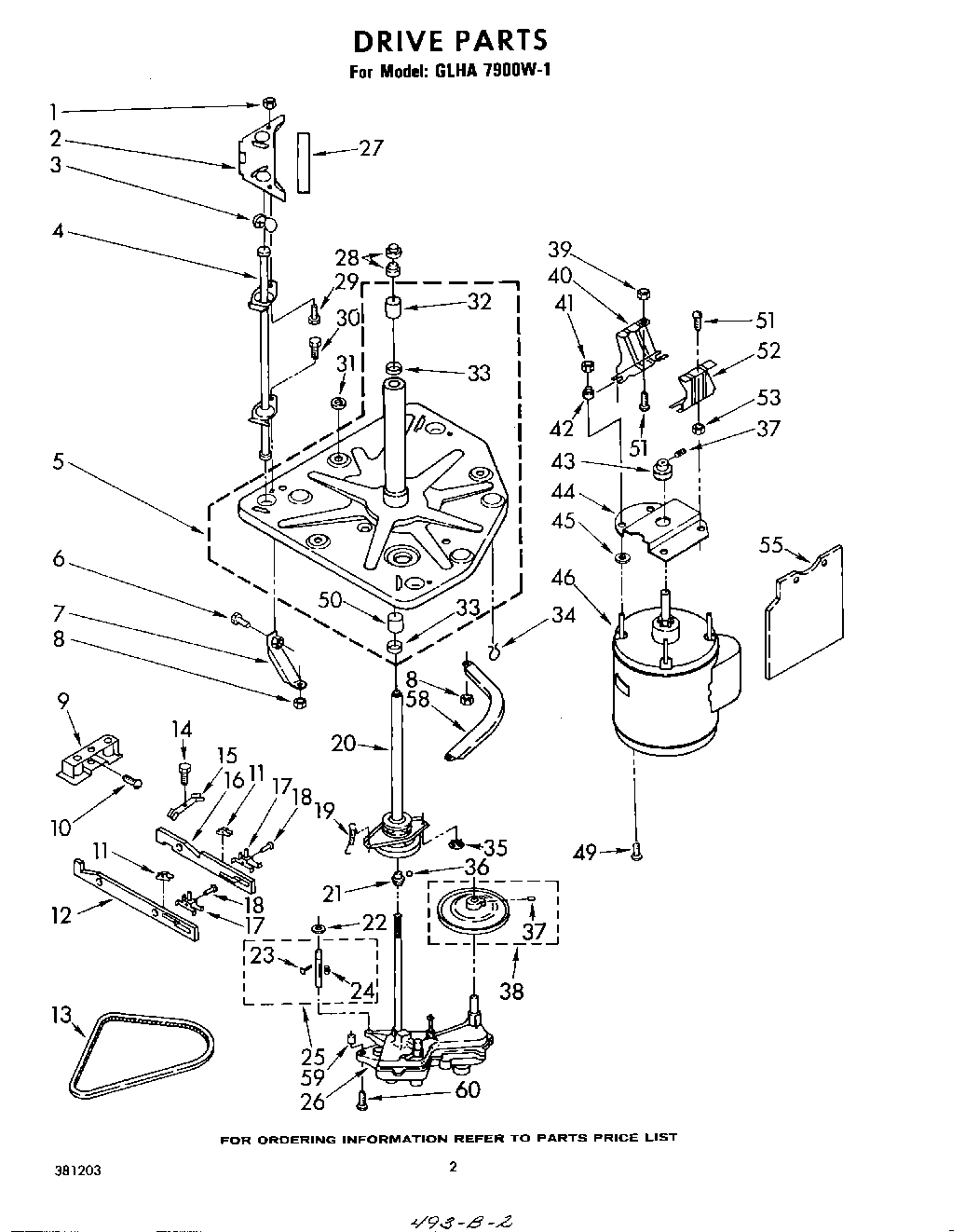

02 - DRIVE
Common parts from model Whirlpool GLHA7900W1
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
xCoffee (Uncut) WPL 261887 Contact Us For Availability
xNew Avocado (Uncut) WPL 261889 Contact Us For Availability
xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability
Almond WPL 978883 Contact Us For Availability
Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability
1
Hose, Gooseneck WPL 96865 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability
2
Cover, Gusset (L.R.) WPL 353230 Contact Us For Availability
2
COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability
3
Connector, Hose WPL 95440 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability
4
Rod, Suspension (3) WPL 82584 Contact Us For Availability
5
Hose, Side Check to Drain WPL 96125 Contact Us For Availability
5
Pulley WPL 16113 Contact Us For Availability
5
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Baseplate & Centerpost WPL 358949 Contact Us For Availability
6
Lever, Valve WPL 355538 Contact Us For Availability
6
Strap, Ground WPL 22965 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Inlet, Water WPL 366072 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
7
Valve, Side Check WPL 88677 Contact Us For Availability
7
Rod, Connecting WPL 96264 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
8
Washer, Rubber WPL 92235 Contact Us For Availability
8
Bearing Block Assembly WPL 87290 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Washer, Fiber WPL 92232 Contact Us For Availability
9
Wick, Oil WPL 96265 Contact Us For Availability
9
Wire, Ground WPL 364089 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Ring, Tub WPL 356039 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Magnet WPL 365998 Contact Us For Availability
10
Nut, Spanner WPL 92229 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Seal, Tub Ring WPL 355850 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
11
Screw, Pump To Gearcase WPL 355612 Contact Us For Availability
11
Basket WPL 358404 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
12
Block, Drive WPL 96384 Contact Us For Availability
12
Hose WPL 355152 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
13
Clamp, Hose (Alternate) WPL 272857 Contact Us For Availability
13
Clamp, Hose (Alternate) WPL 353096 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
14
Hose, Pump To Filter WPL 356167 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Tub WPL 360784 Contact Us For Availability
14
Pulley, Basket Drive WPL 364032 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Screw, Tub WPL 356973 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
16
Panel, Rear WPL 85279 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
17
Hose, Side Check To Filter WPL 355151 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
20
Plate, Gusset (2) WPL 356459 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Basket Drive & Brake (Refer To Page 9 For Fur WPL 358364 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Cabinet (White) WPL 379101 Contact Us For Availability
21
Cabinet (Almond) WPL 379102 Contact Us For Availability
21
Cabinet (Coffee) WPL 379103 Contact Us For Availability
21
Cabinet (New Avocado) WPL 379104 Contact Us For Availability
21
Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
23
Pin, Roll WPL 90532 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Cap, Agitator WPL 358431 Contact Us For Availability
24
Link, Leveling WPL 359059 Contact Us For Availability
24
Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Agitator Assembly WPL 363633 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
26
Gearcase (Refer To Page 8 For Further Breakdo WPL 362901 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
26
Stud, Agitator Shaft WPL 358440 Contact Us For Availability
27
Hinge, R.H. WPL 18775 Contact Us For Availability
27
Hinge, L.H. WPL 92657 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
27
Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
28
Cord, Power WPL 92667 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability
29
Air Dome Assembly WPL 360804 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
30
Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability
30
Valve, Mixing (Alternate) (Serviced Only as C WPL 358971 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
32
Spring, Snubber WPL 357977 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
33
Snubber WPL 358336 Contact Us For Availability
33
Cap, Terminal WPL 96895 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
34
Plug, Terminal WPL 96894 Contact Us For Availability
34
Hose, Tub Outlet WPL 93553 Contact Us For Availability
34
Locator, Top WPL 98669 Contact Us For Availability
34
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
35
Clamp, Hose WPL 9421321 Contact Us For Availability
35
Clip, Tub Ring (3) WPL 356701 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Clip, Tub Ring (1) WPL 356700 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Hose, Pump To Manifold WPL 92231 Contact Us For Availability
38
Hose, Dispenser WPL 352818 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Manifold & Filter Assembly WPL 363358 Contact Us For Availability
40
Timer Assembly, 50 Hz. WPL 380278 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
41
Motor Timer (50 Hz.) WPL 362682 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Knob Assembly, Water WPL 690300 Contact Us For Availability
43
Pulley, Motor (50 Hz.) WPL 93219 Contact Us For Availability
44
Plate, Snubber WPL 355852 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
45
Harness, Cabinet WPL 358125 Contact Us For Availability
45
Guide, Laundry WPL 358770 Contact Us For Availability
45
Harness, Console WPL 359370 Contact Us For Availability
45
Bag, Miscellaneous Parts WPL 375962 Contact Us For Availability
45
Instructions, Installation WPL 378942 Contact Us For Availability
45
Instructions, Operating WPL 380473 Contact Us For Availability
45
List, Repair Parts WPL 381203 Contact Us For Availability
45
Dispenser, Rinse WPL 88932 Contact Us For Availability
45
Washer, Motor Mounting WPL 92217 Contact Us For Availability
46
Motor, 50/60 Hz. (General Electric) (Start Sw WPL 82053 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
50
Bearing, WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 380116 WPL 380116 Contact Us For Availability
55
WPL 357395 WPL 357395 Contact Us For Availability
57
WPL 359254 WPL 359254 Contact Us For Availability
58
WPL 359206 WPL 359206 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
Plug, Cabinet WPL 354179 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 690297 WPL 690297 Contact Us For Availability
61
Coffee WPL 261886 Contact Us For Availability
61
New Avocado WPL 261888 Contact Us For Availability
61
Golden Harvest WPL 261890 Contact Us For Availability
61
Leveler (Thinner) WPL 350941 Contact Us For Availability
61
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
61
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
67
WPL 98084 WPL 98084 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
77
WPL 352821 WPL 352821 Contact Us For Availability
80
WPL 352827 WPL 352827 Contact Us For Availability
81
WPL 357535 WPL 357535 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
94
WPL 357633 WPL 357633 Contact Us For Availability
95
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 357645 WPL 357645 Contact Us For Availability
× ![]()
