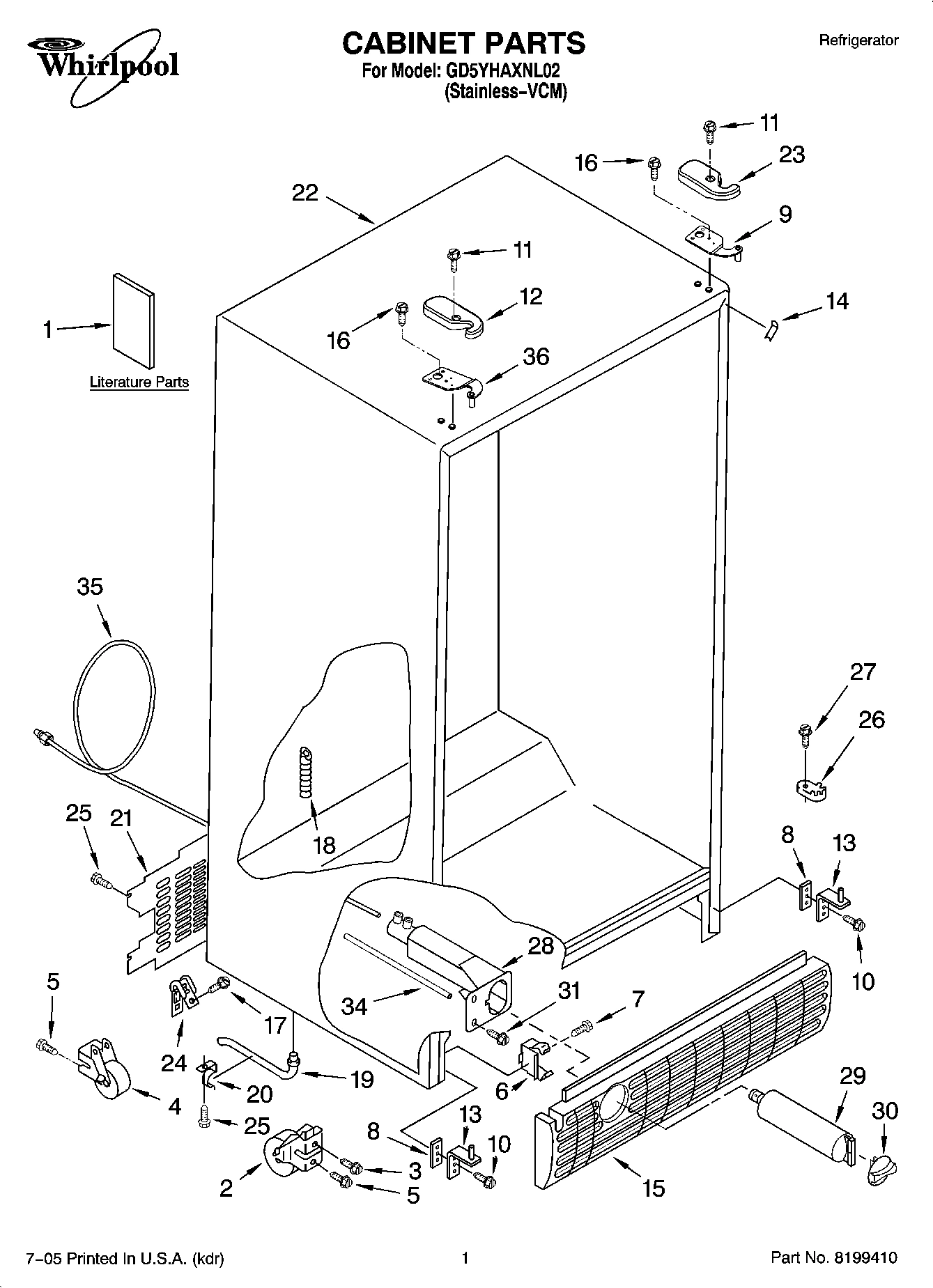

Model Whirlpool GD5YHAXNL02 Refrigerator – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $237.28

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

Brus WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

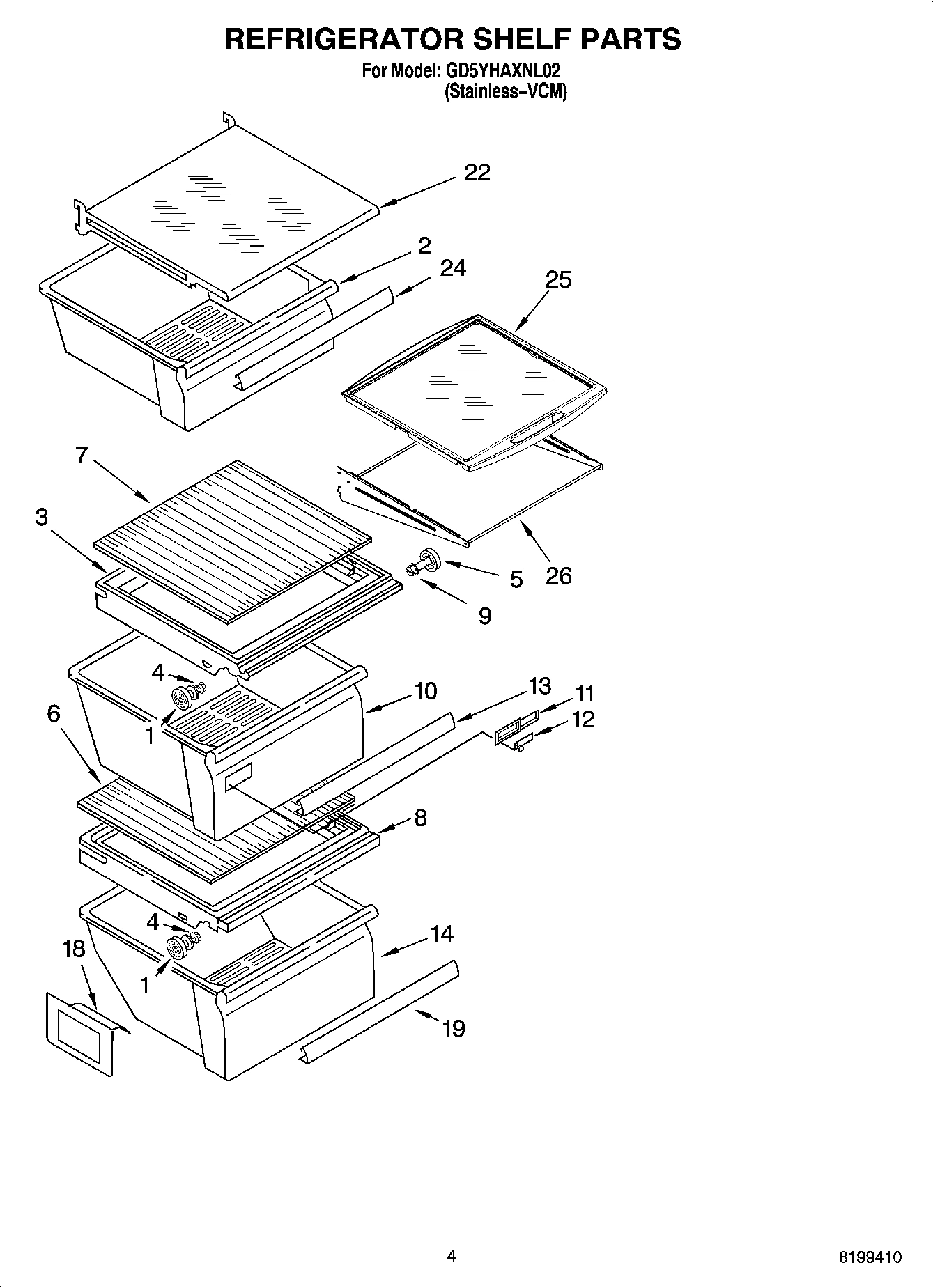

1

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

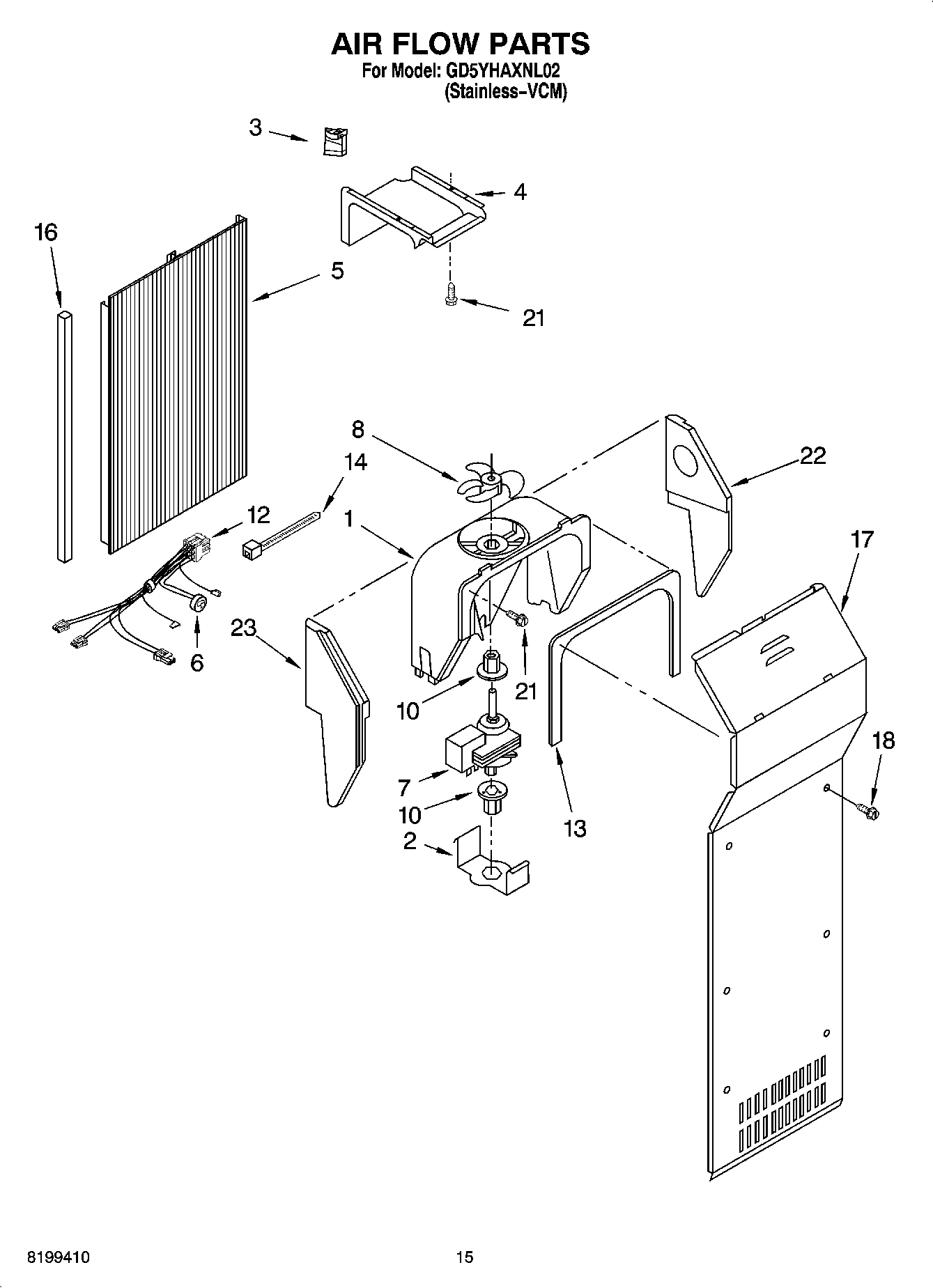

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

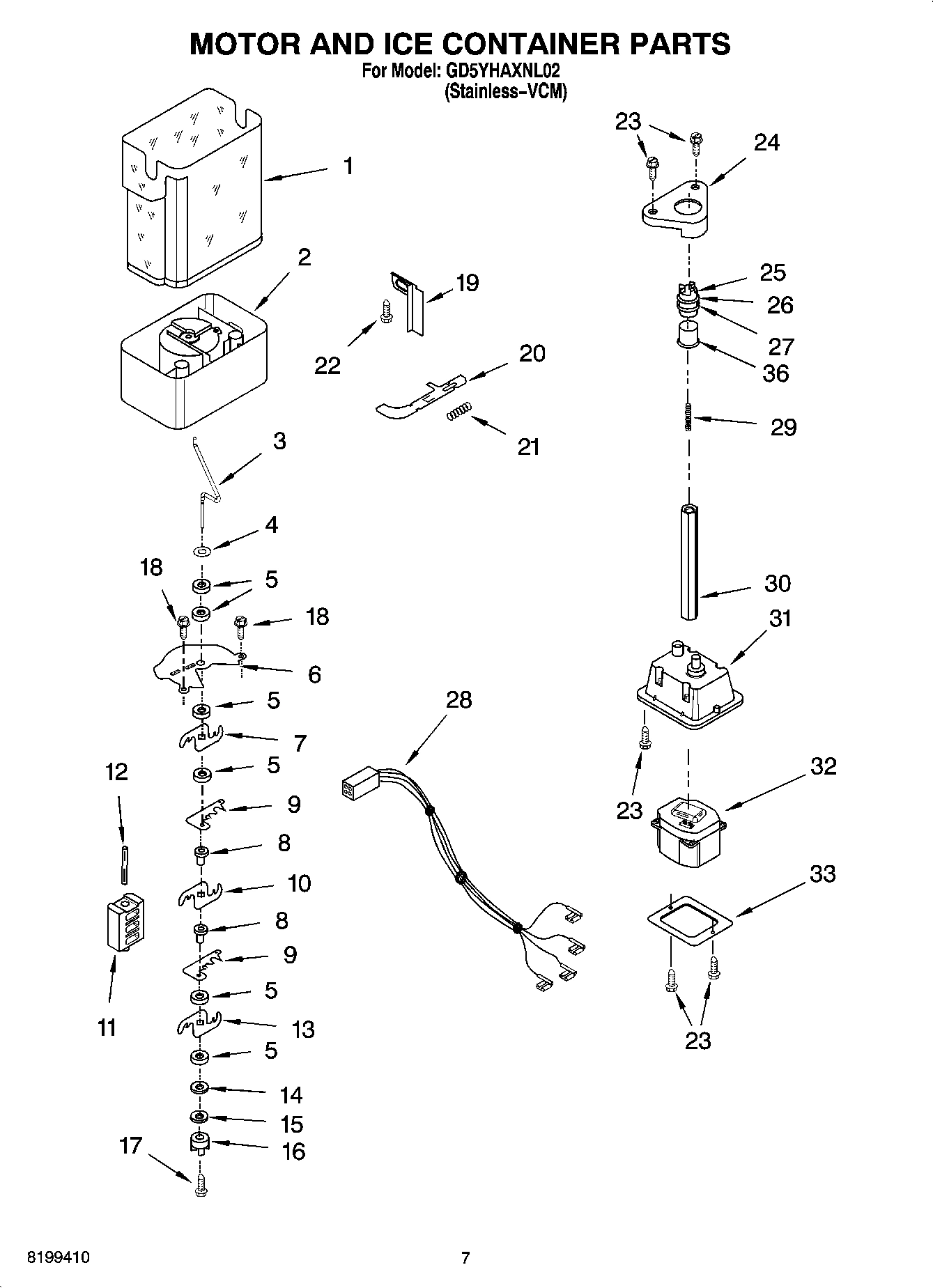

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

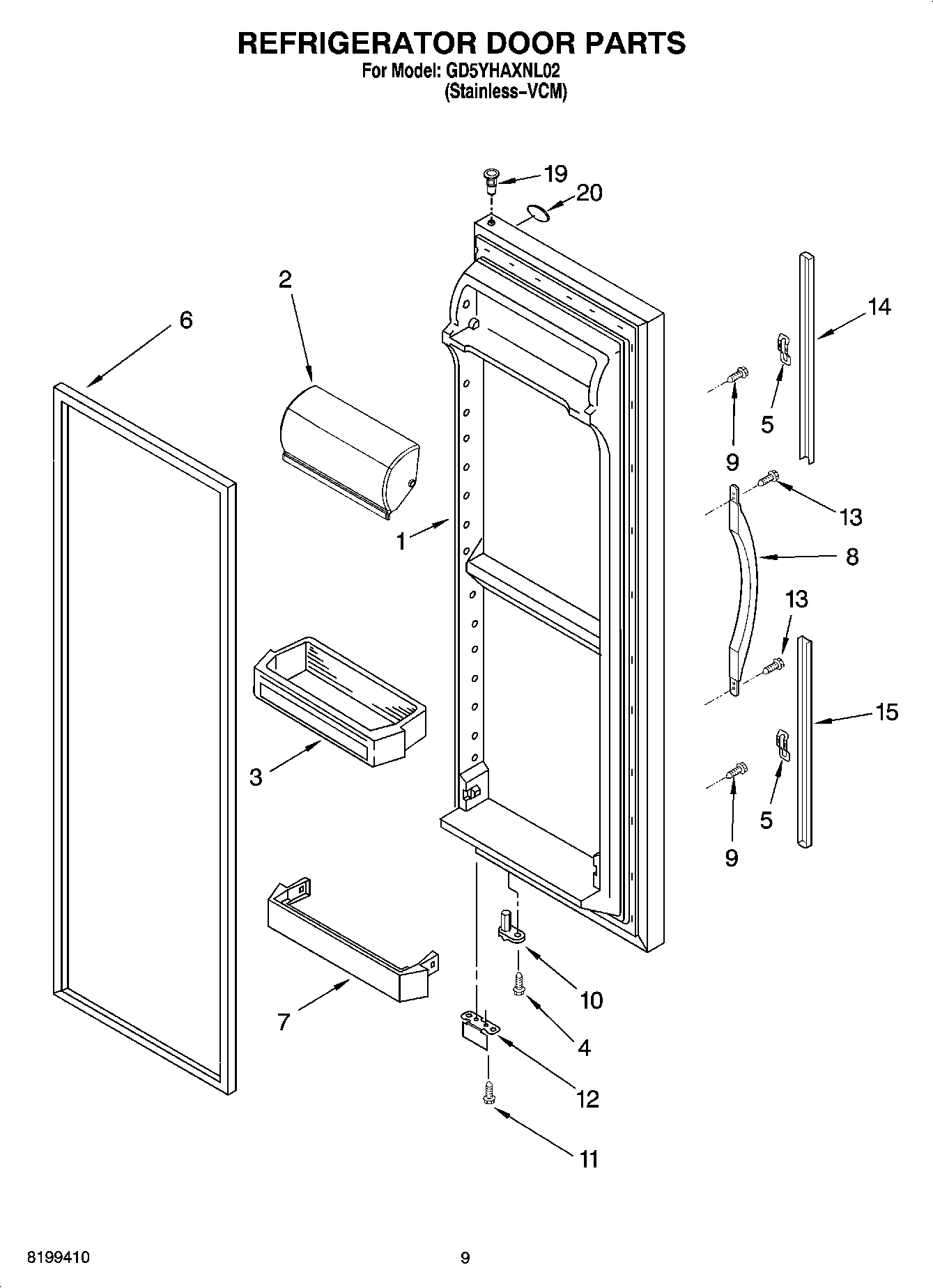

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206682LG Contact Us For Availability

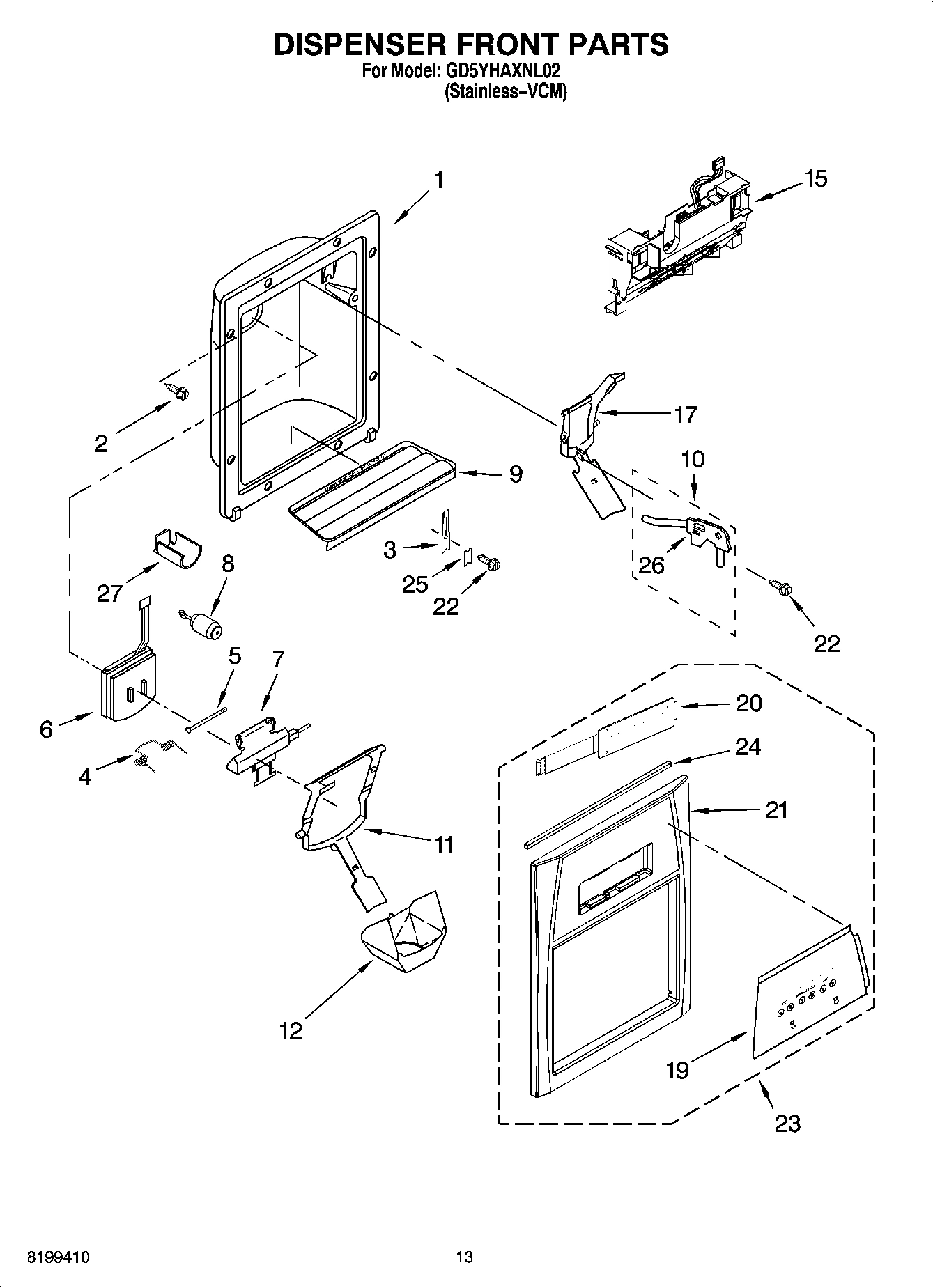

1

Housing, Dispenser (Not Serviced) WPL ARI64602A9 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

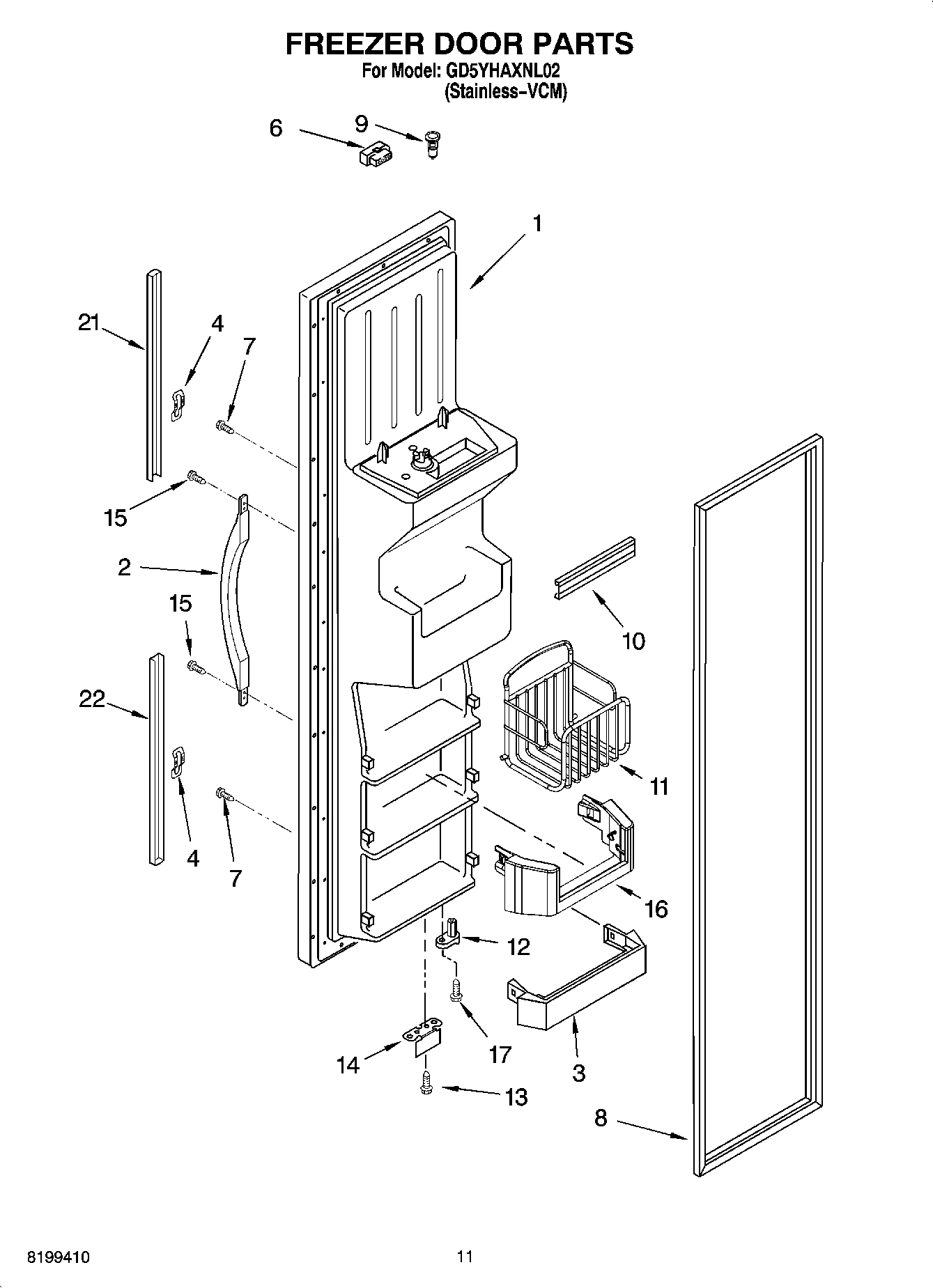

2

Handle (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

Blade, Fixed WPL 2257020 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Block, Blade WPL 2198602 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

13

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

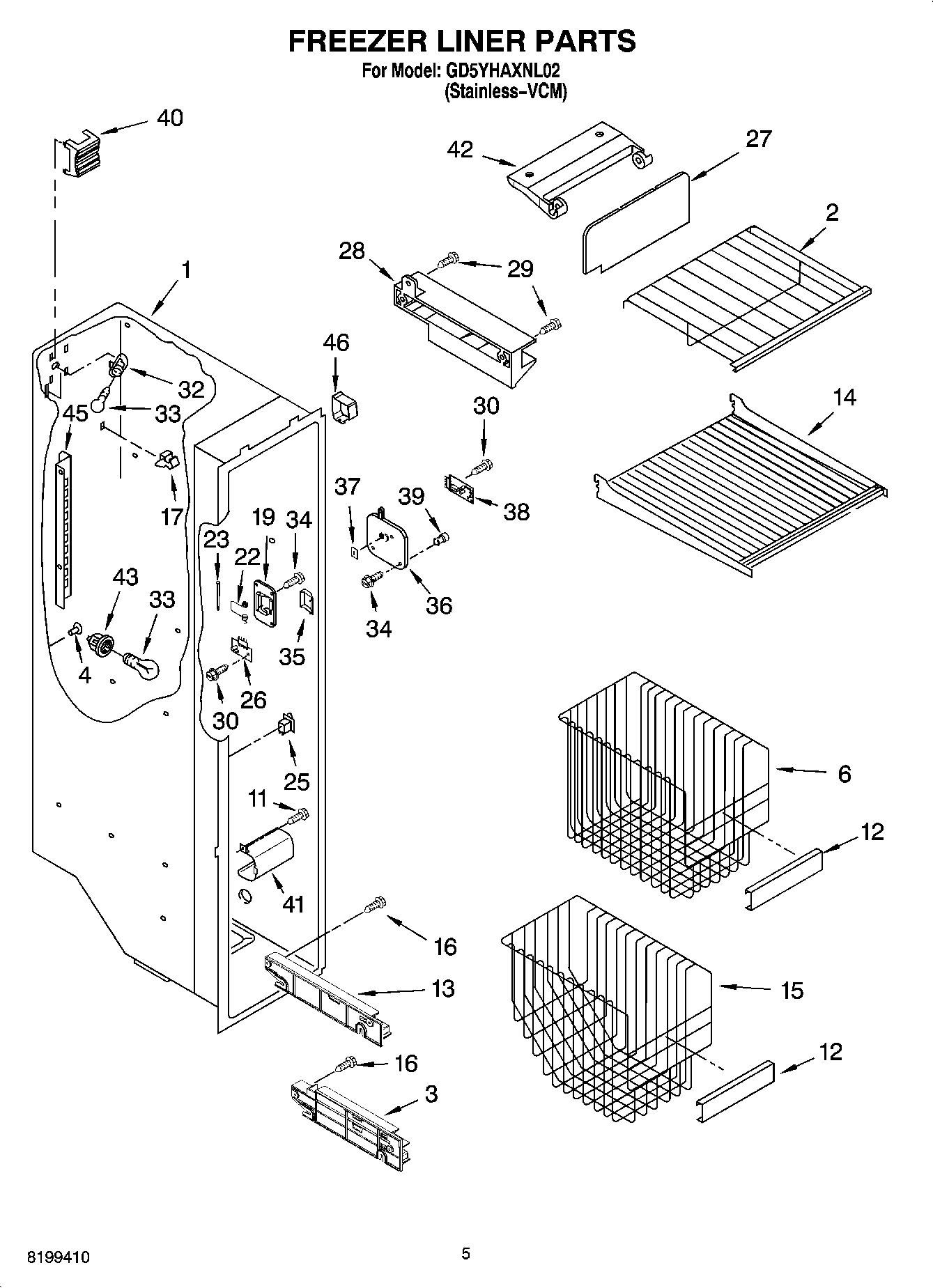

13

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

13

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

14

Trim, Door-Top (Black) WPL 2194973B Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Pivot Arm WPL 1110559 Contact Us For Availability

Bracket, Control WPL 2303942 Contact Us For Availability

16

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

19

Overlay, Front Cover (Not Available, Order 23 WPL ARI64603A3 Contact Us For Availability

20

Nameplate WPL 2220214 Contact Us For Availability

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

20

LED Display (Not Available, Order 23) WPL ARI64604A1 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

21

Front Cover, Housing (Not Available, Order 23 WPL ARI64605A7 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

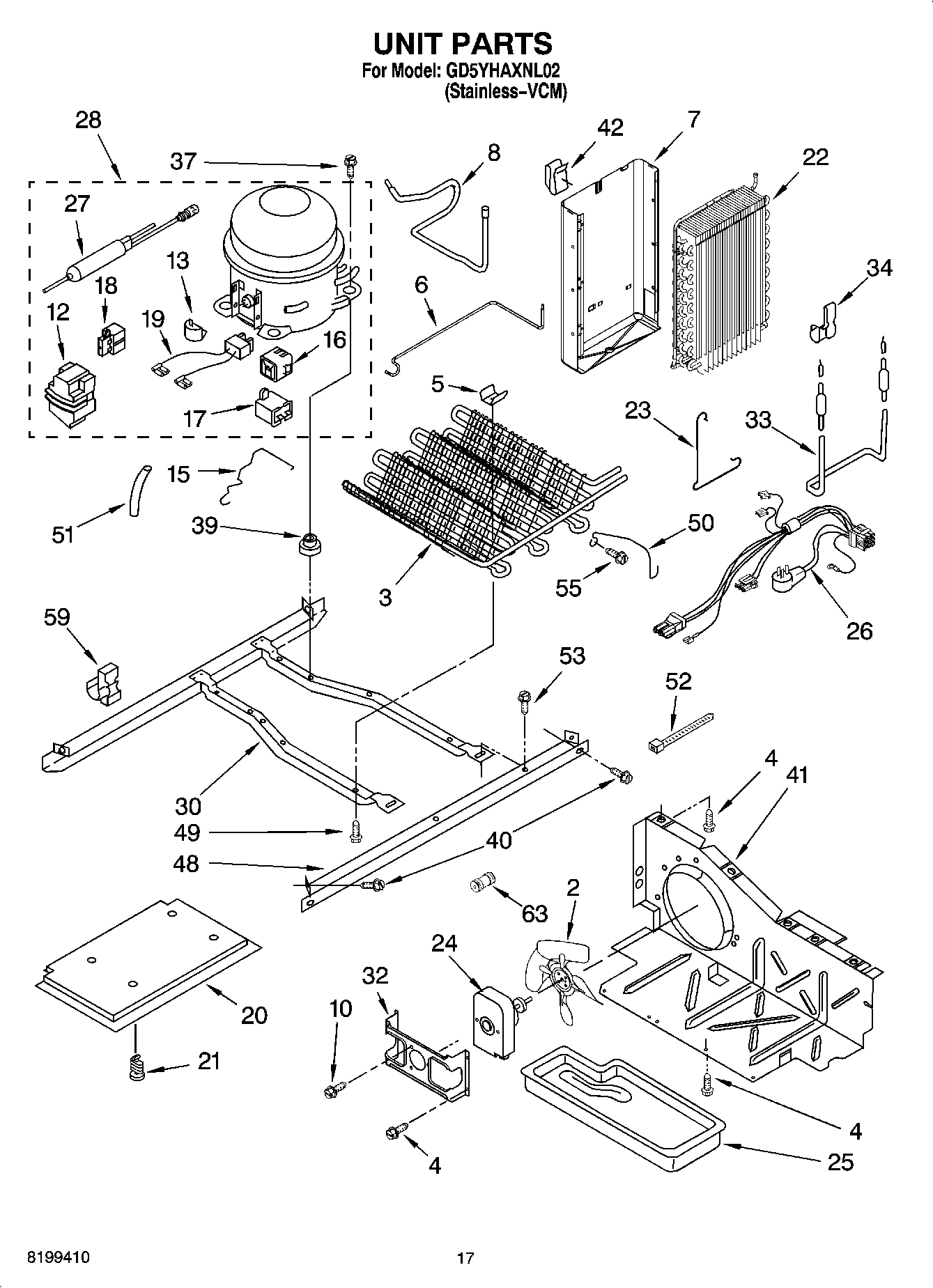

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20, WPL 2301325B Contact Us For Availability

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $17.07

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Shelf WPL 2255160 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $209.77

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Knob, Air Control WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

30

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $177.51

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI64606A5 Contact Us For Availability

WPL ARI64607A6 WPL ARI64607A6 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
