Model Whirlpool GD27DFXFN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

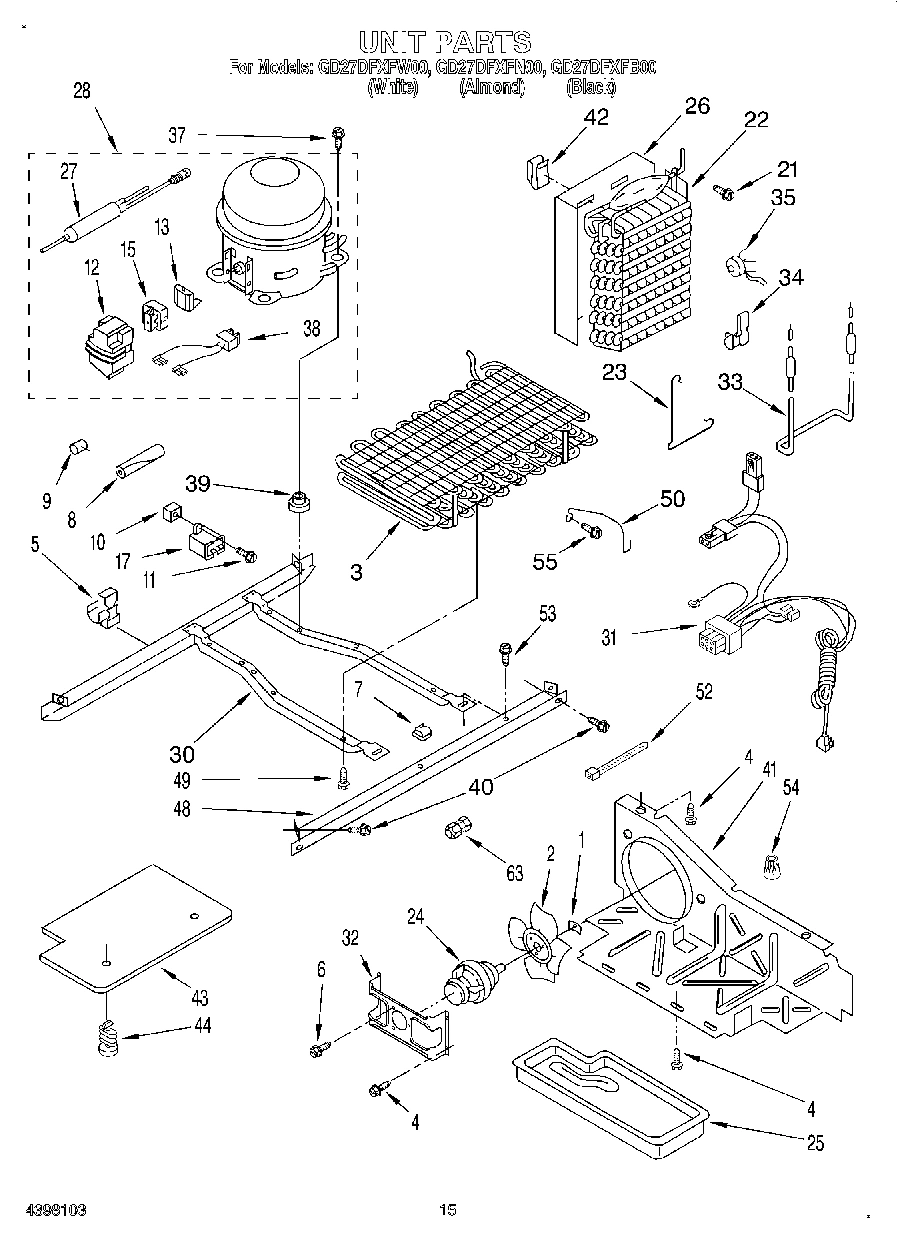

09 - UNIT

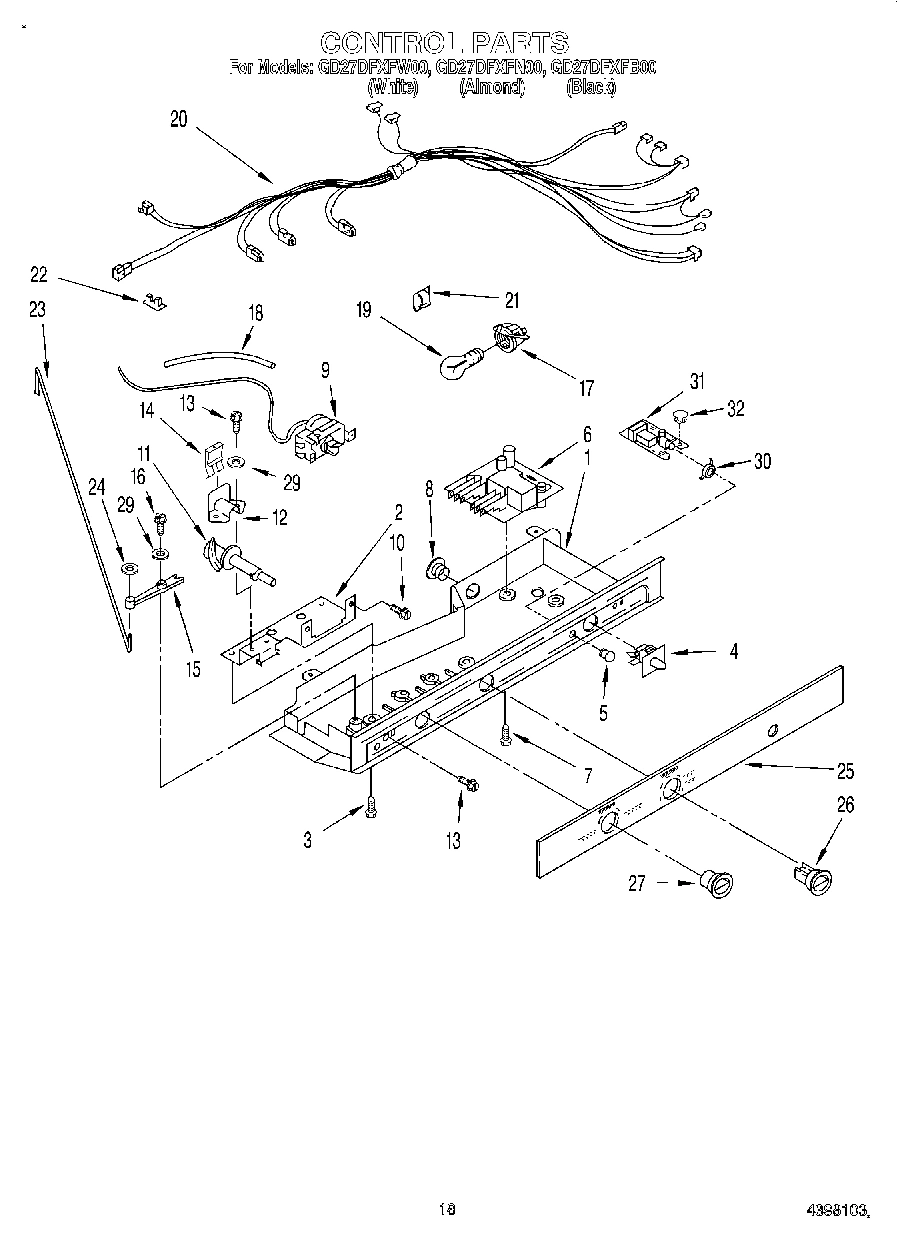

11 - CONTROL

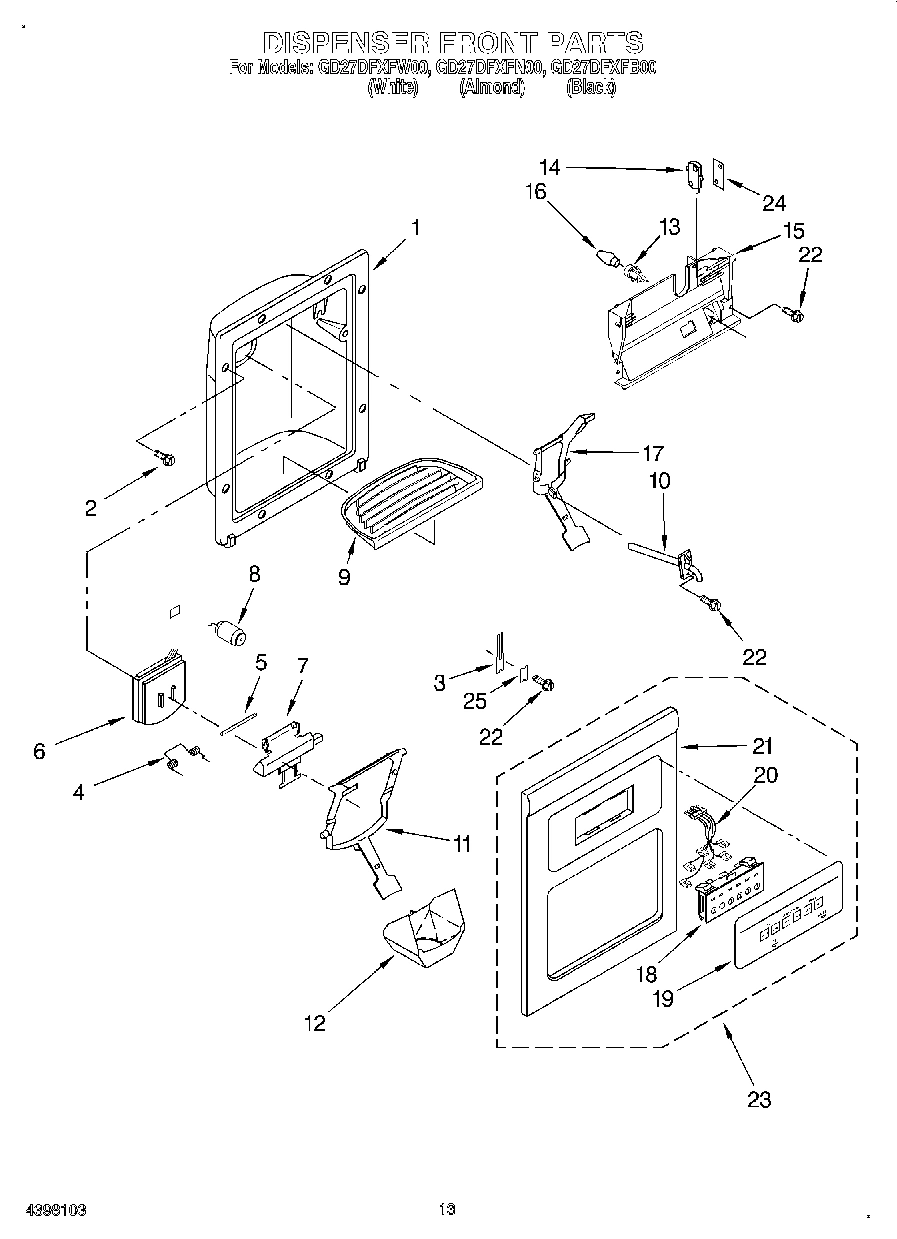

08 - DISPENSER FRONT

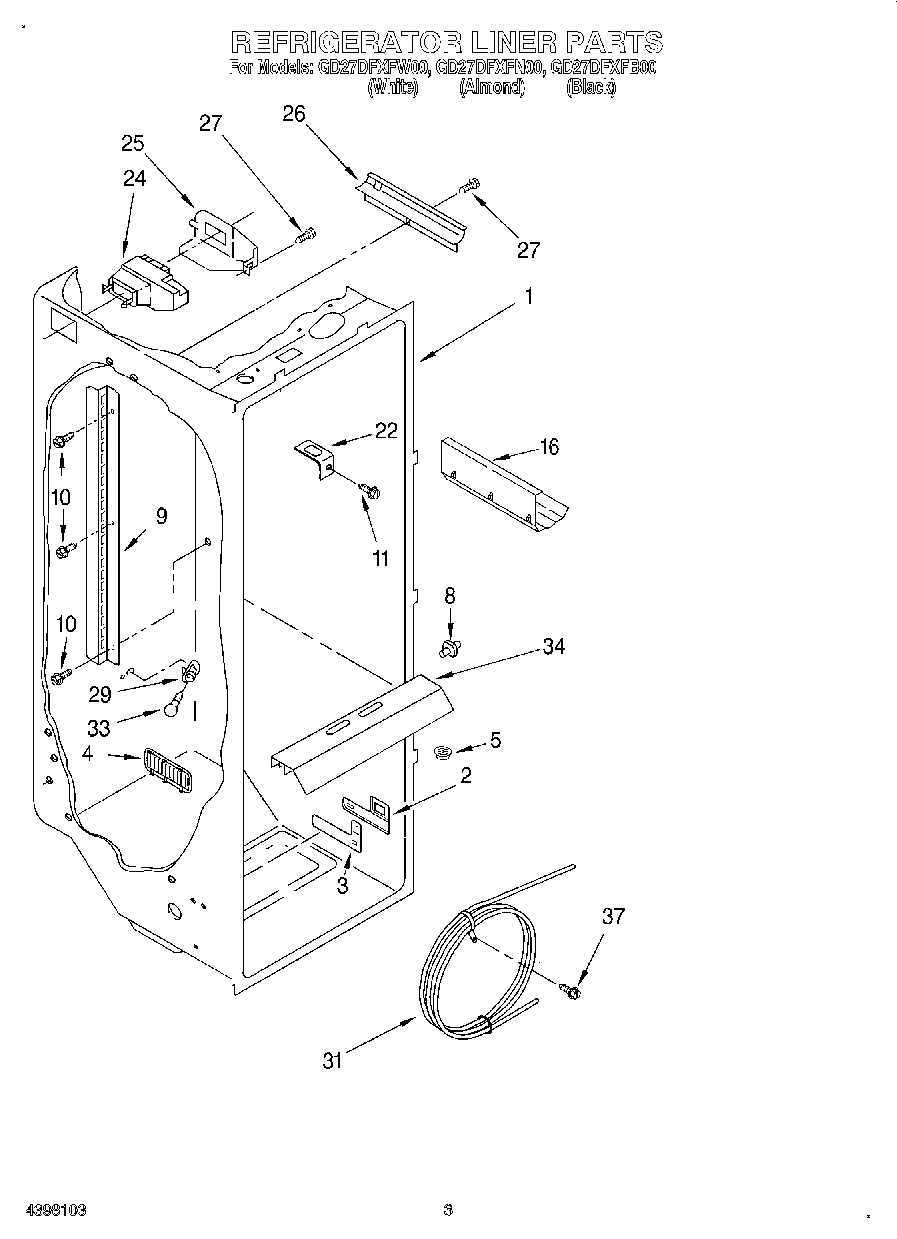

02 - REFRIGERATOR LINER

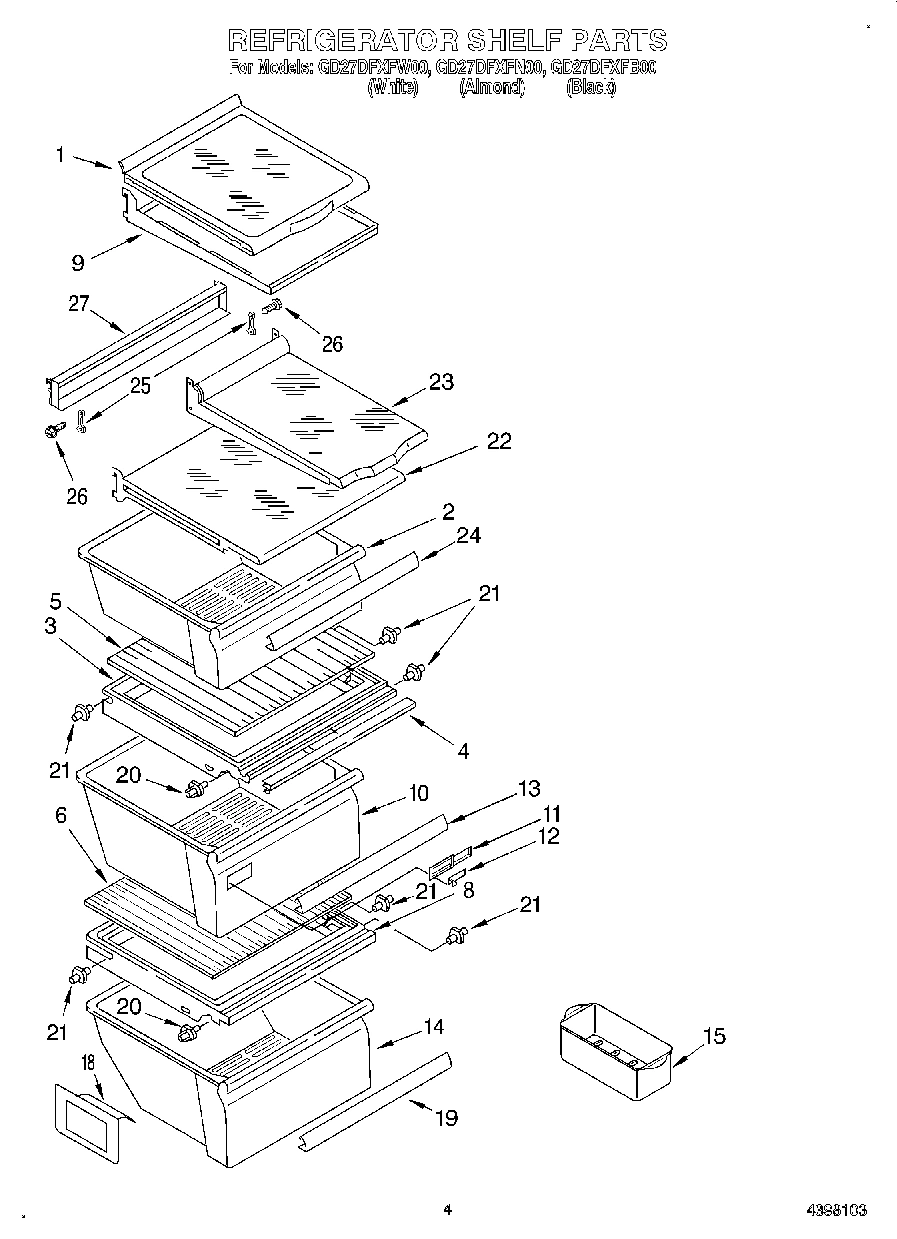

03 - REFRIGERATOR SHELF

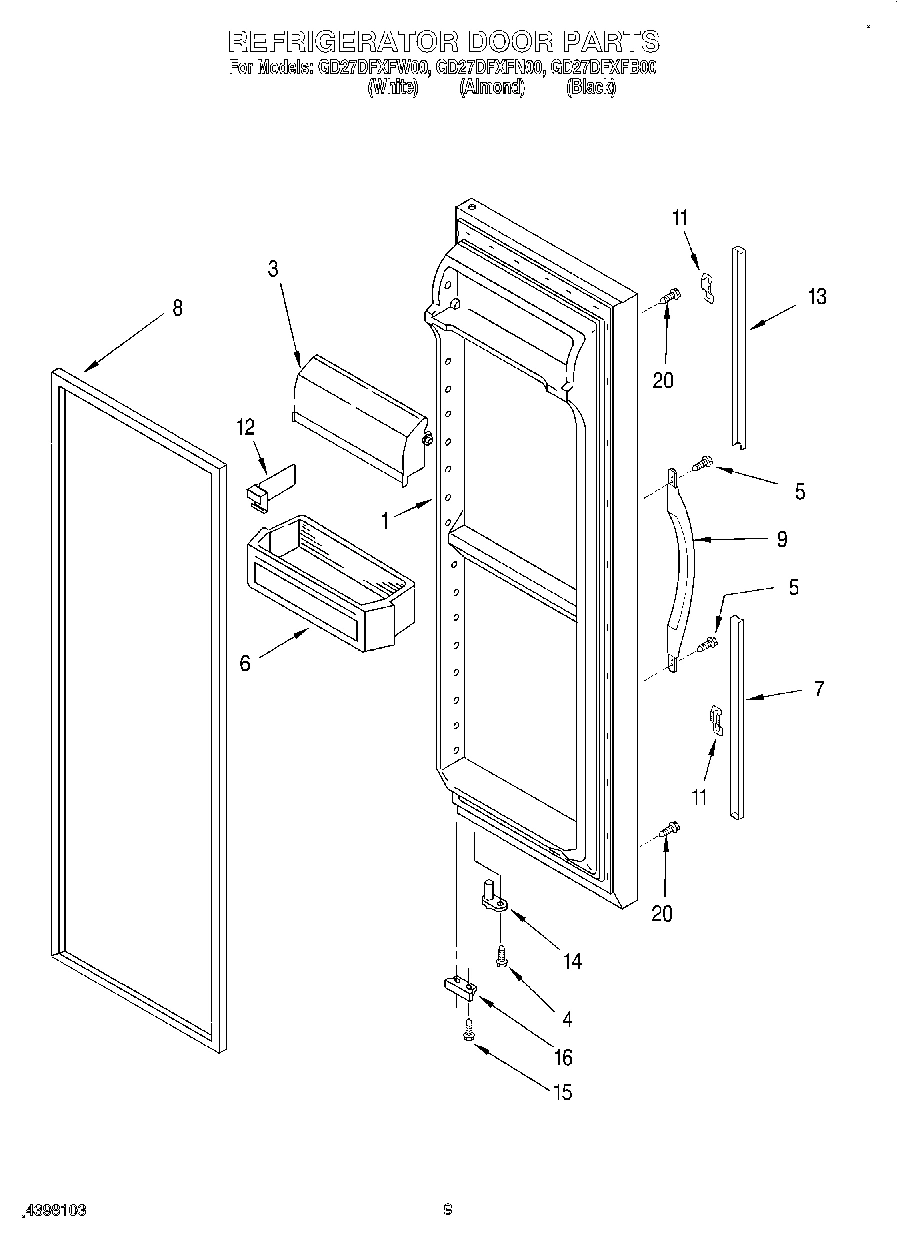

06 - REFRIGERATOR DOOR

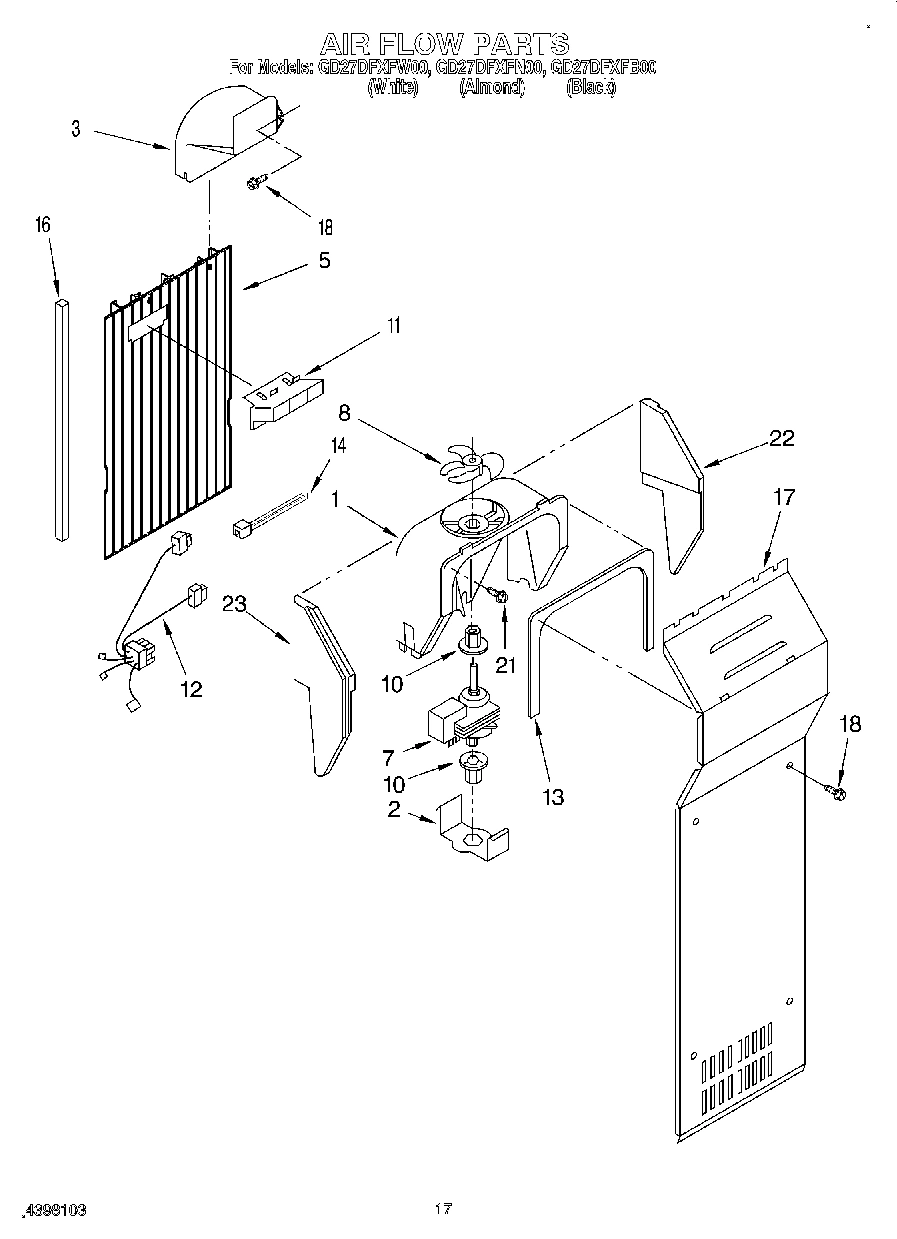

10 - AIR FLOW

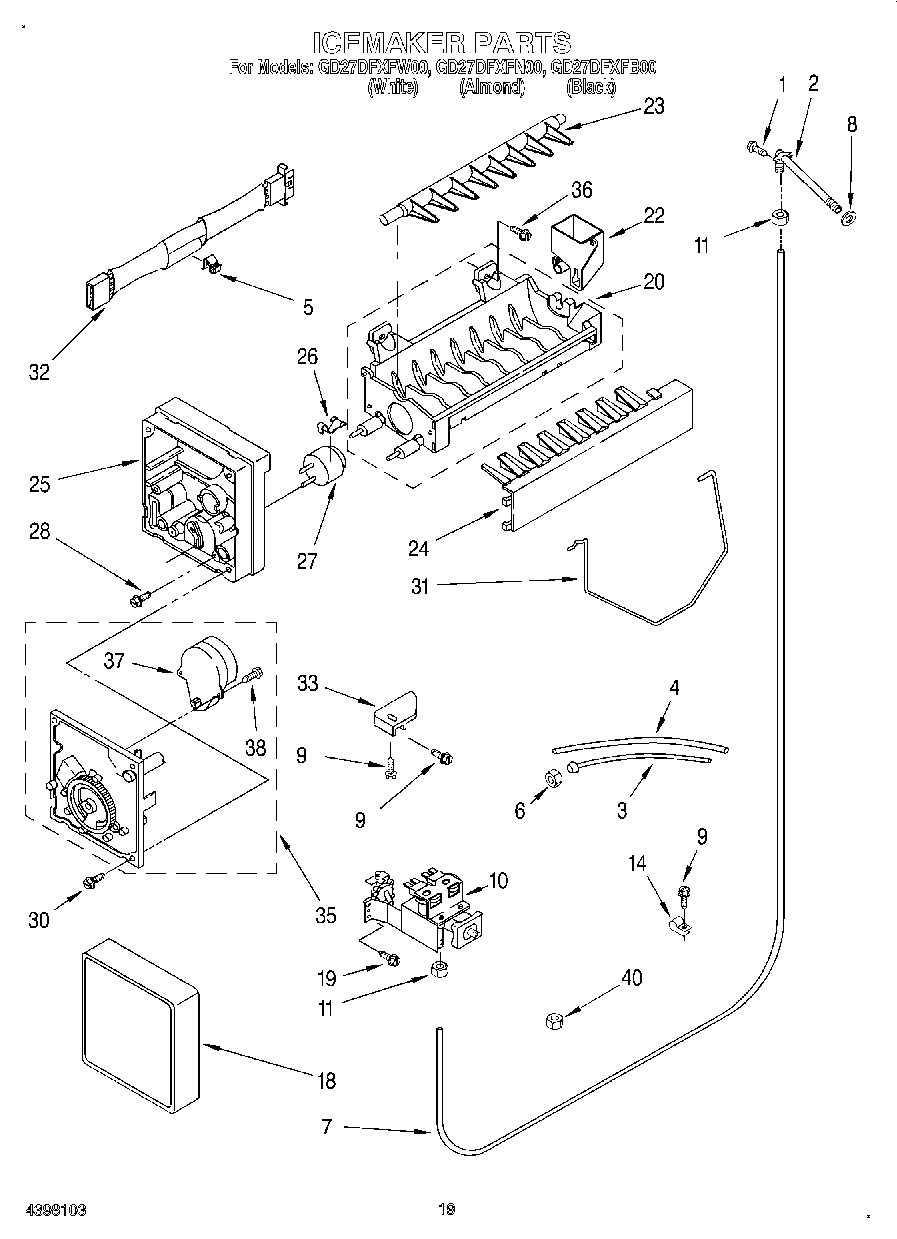

12 - ICEMAKER

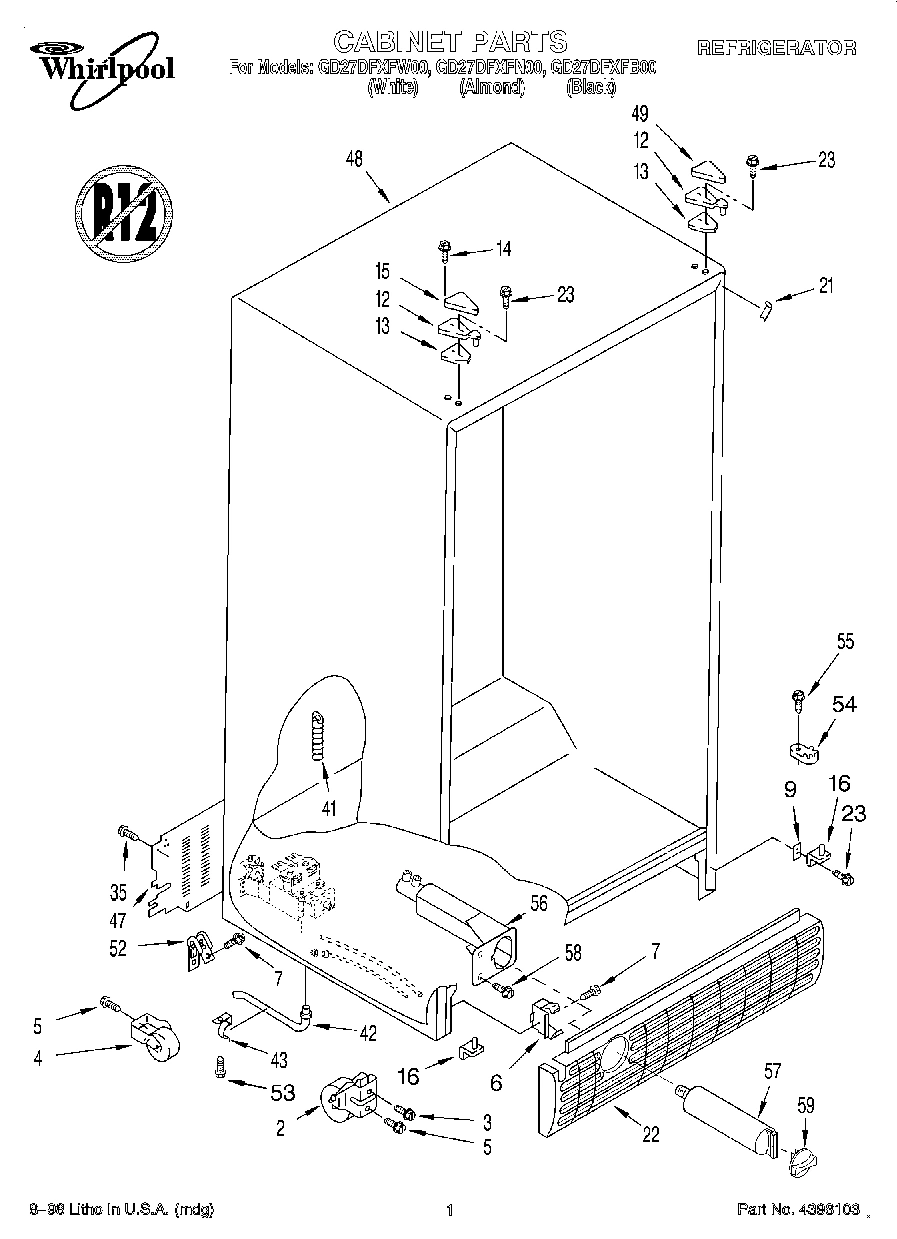

01 - CABINET

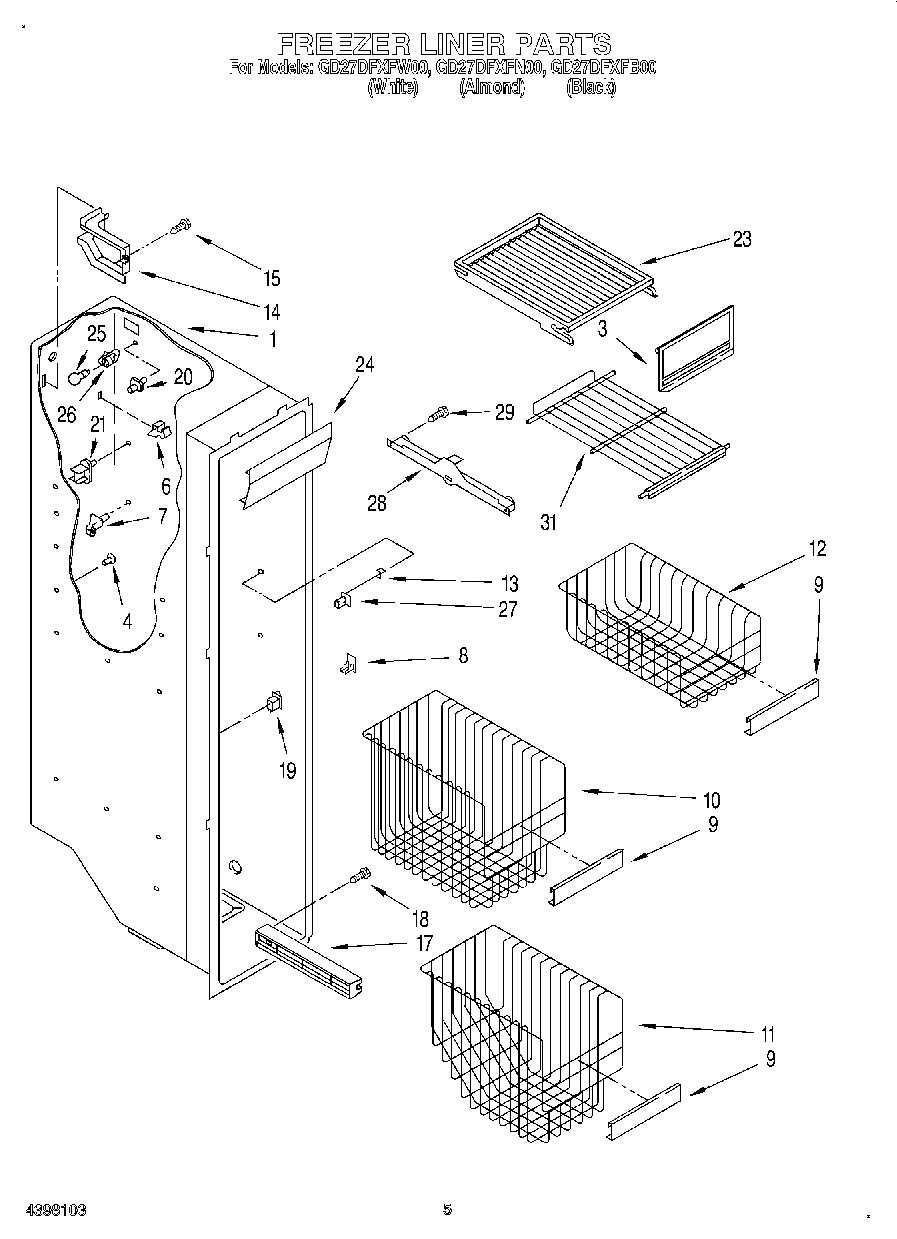

04 - FREEZER LINER

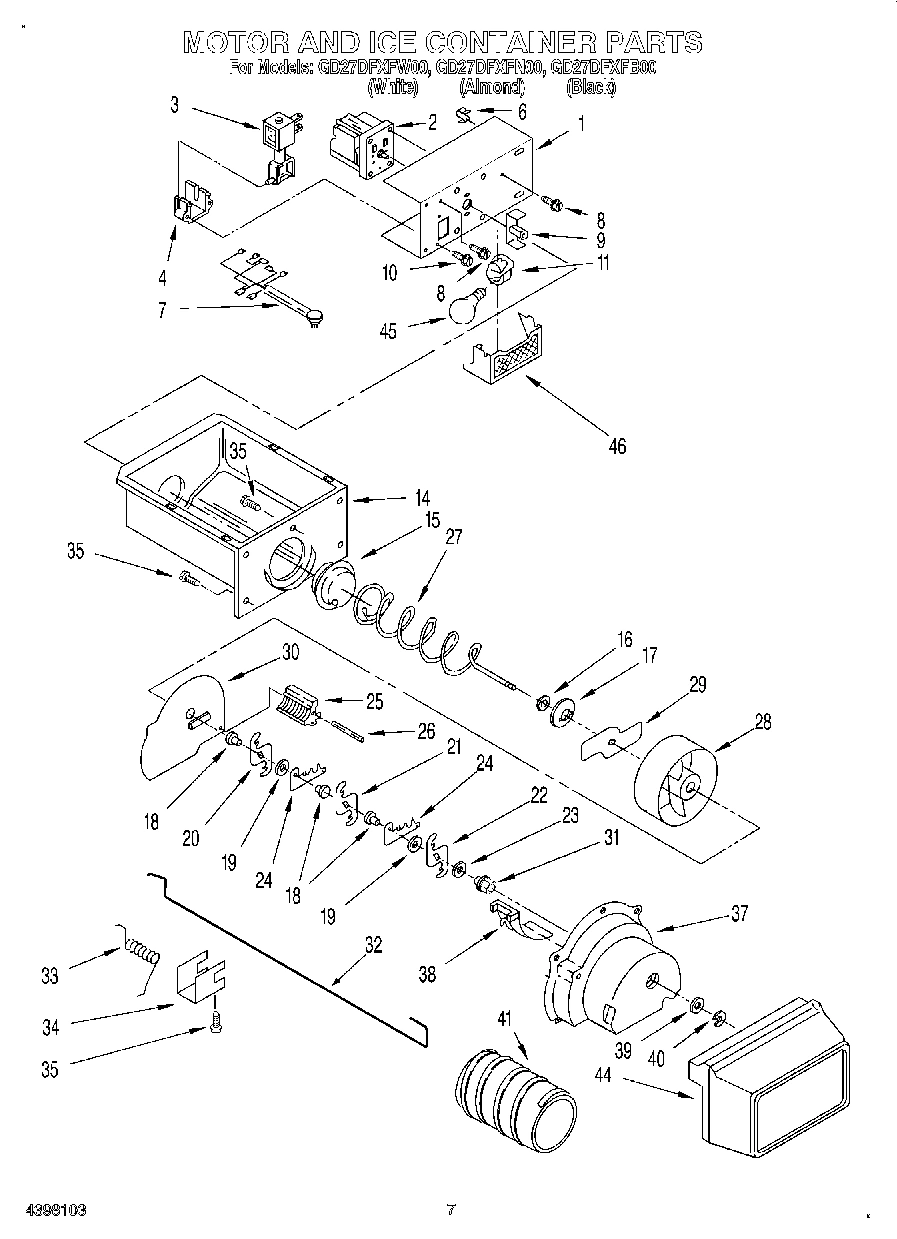

05 - MOTOR AND ICE CONTAINER

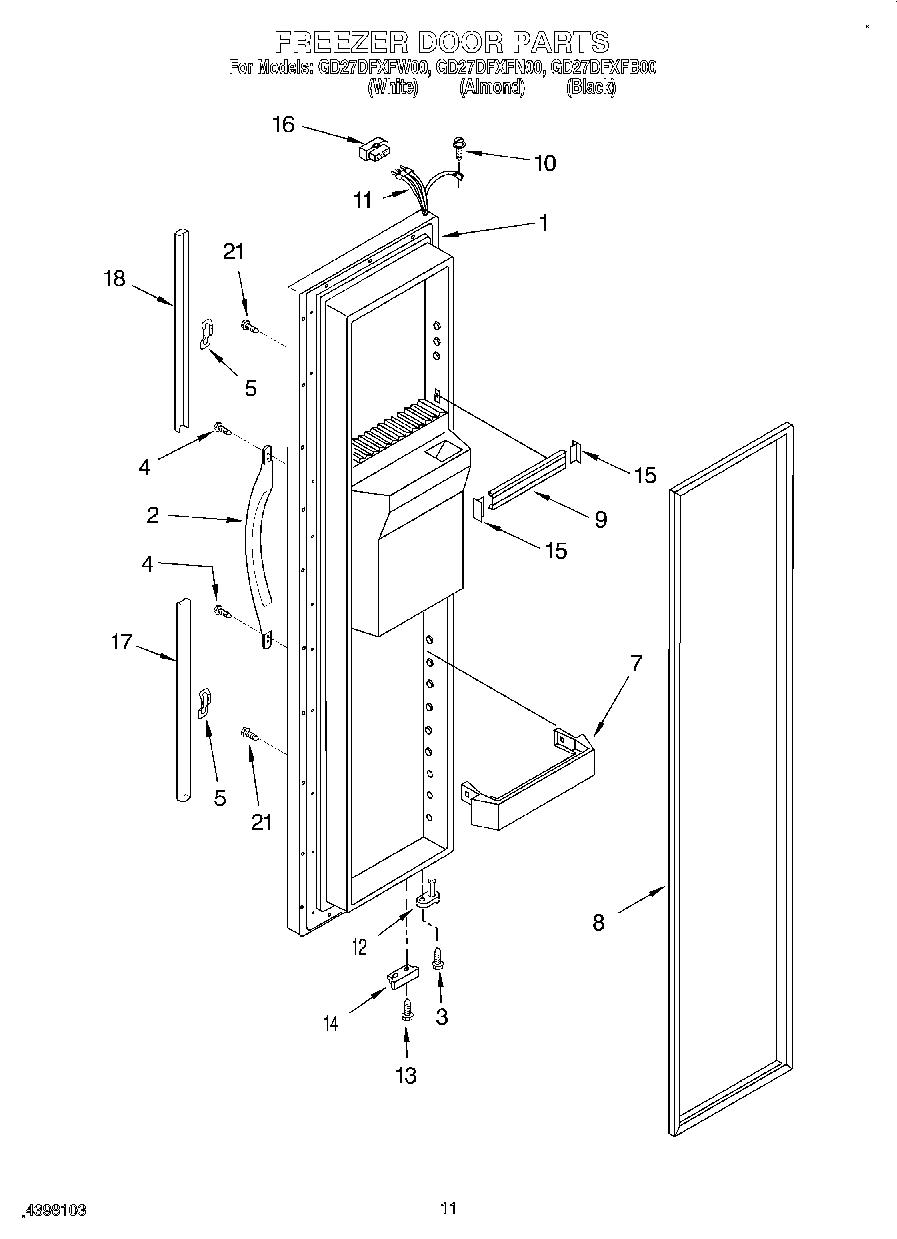

07 - FREEZER DOOR
Common parts from model Whirlpool GD27DFXFN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI62074A8 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2186559B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2186559N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2186559W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
9
Handle, Center (Black) WPL 2186649B Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Wire Harness WPL 2183713 Contact Us For Availability
12
Basket WPL 2181763 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
18
Extension, Top (Black) WPL 2194973B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Almond) WPL 2198468N Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI62072A7 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
59
Cap, Water Filter (Almond) WPL 2186494N Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Bla WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
