Model Whirlpool GCRE700 ELECTRIC RANGE – Common Parts & Diagrams

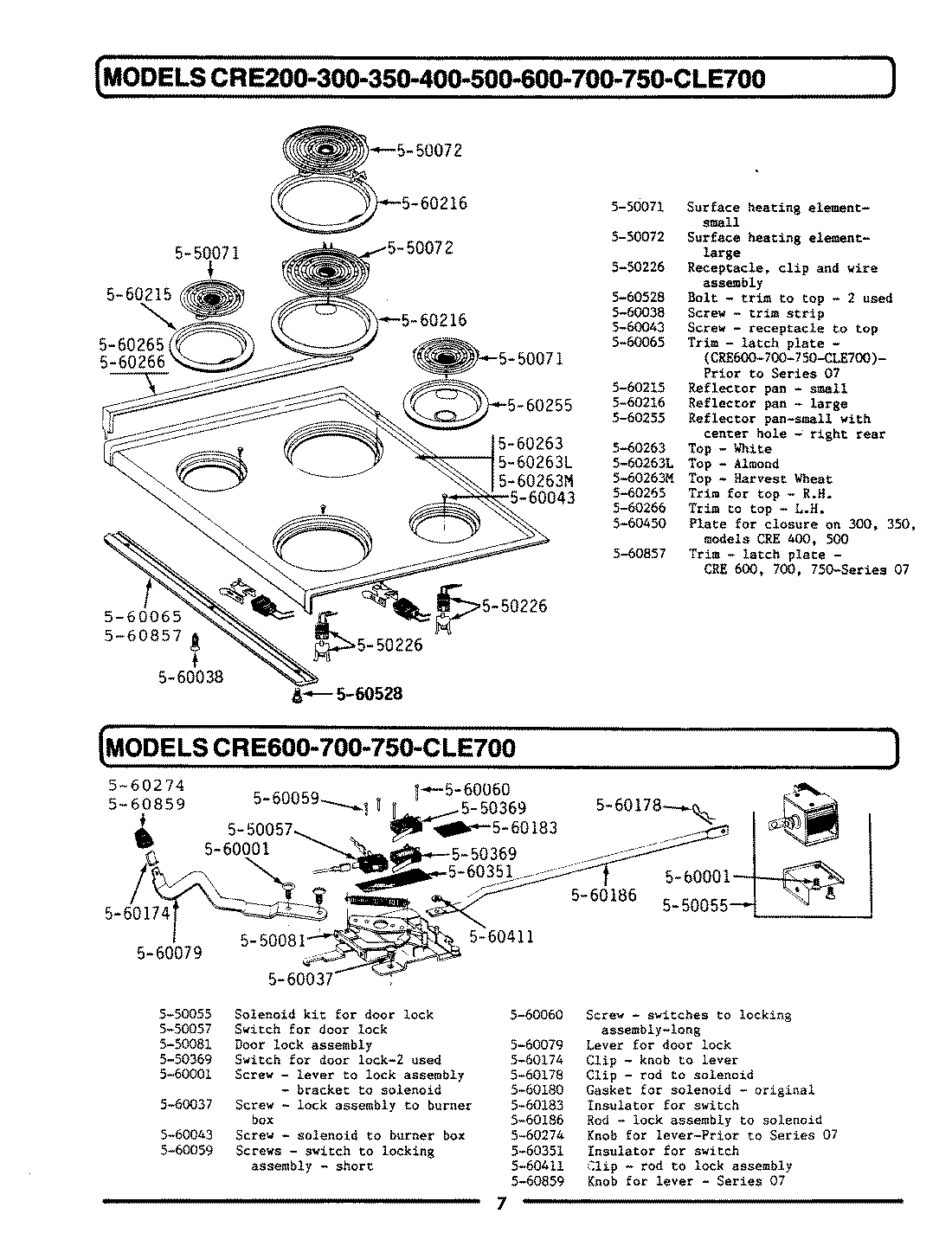

05 - LATCH ASSEMBLY

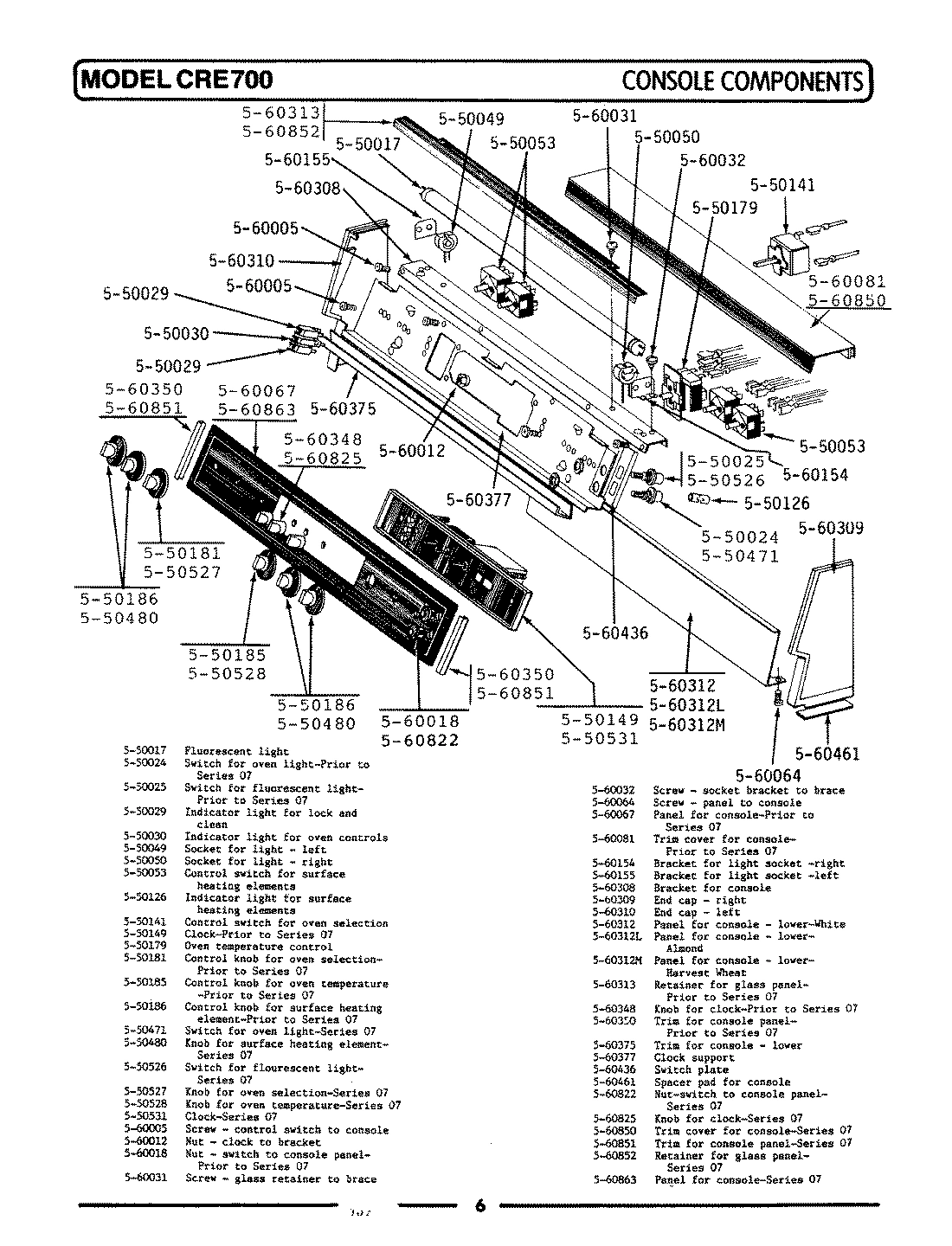

01 - CONTROL PANEL

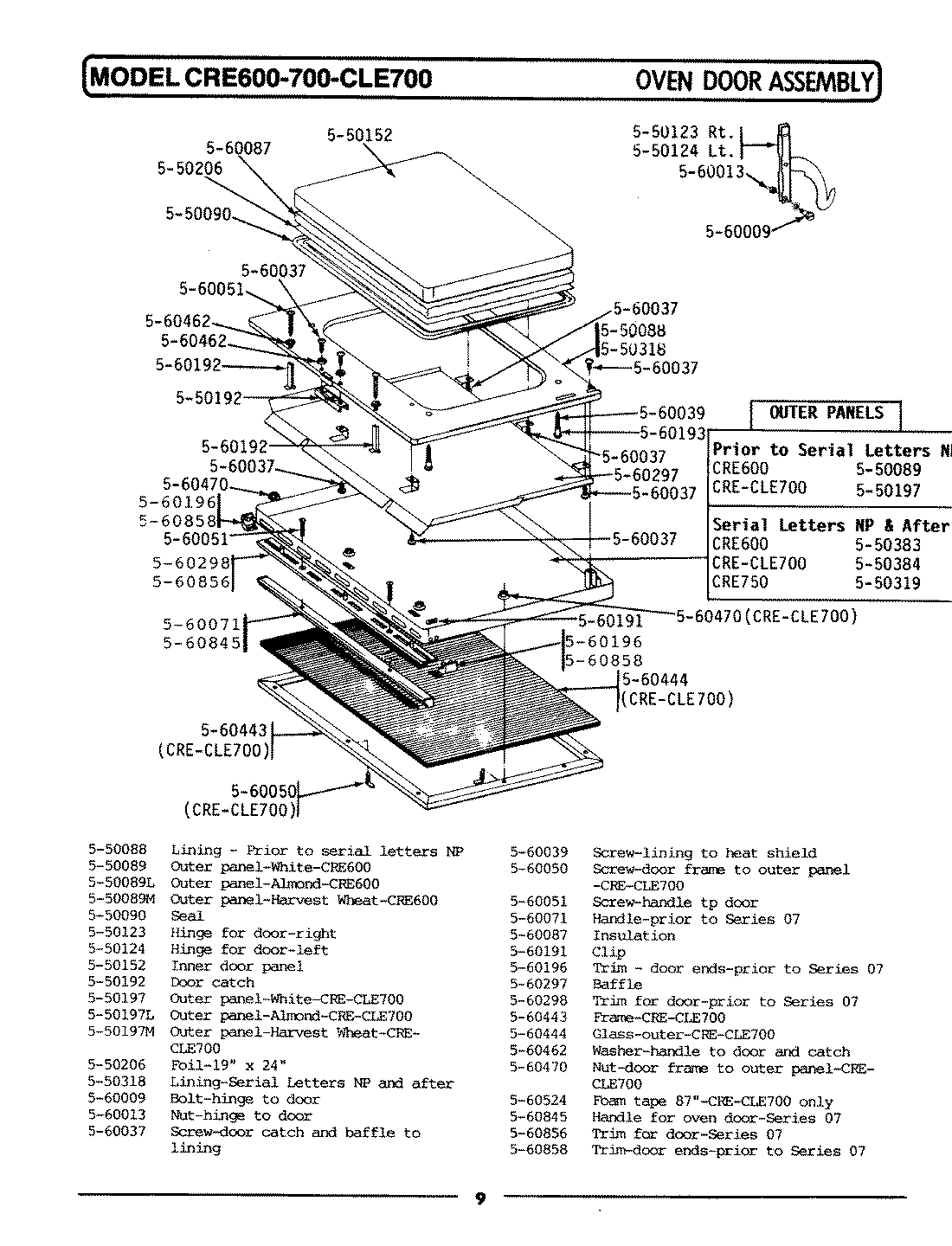

02 - DOOR ASSEMBLY

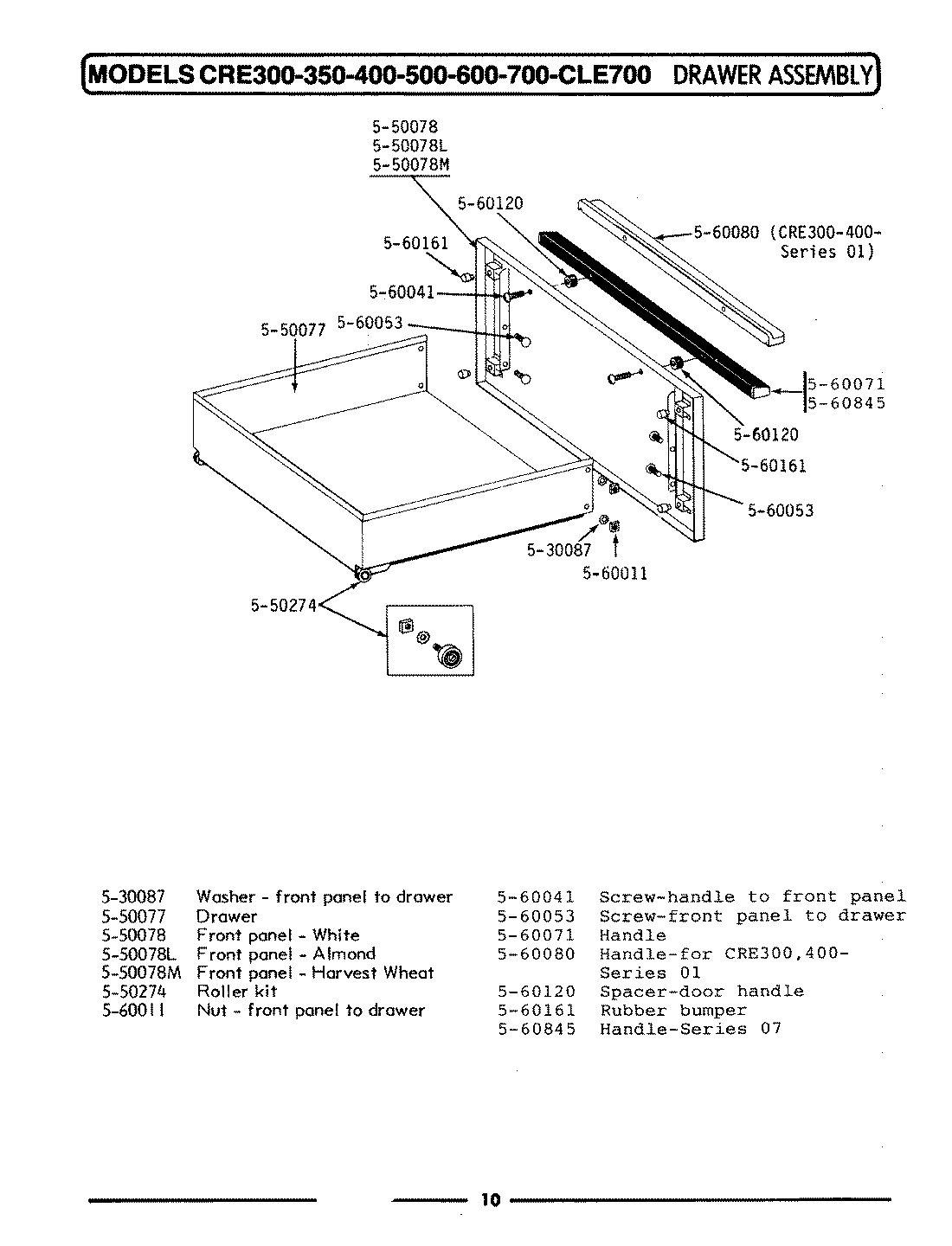

03 - DRAWER ASSEMBLY

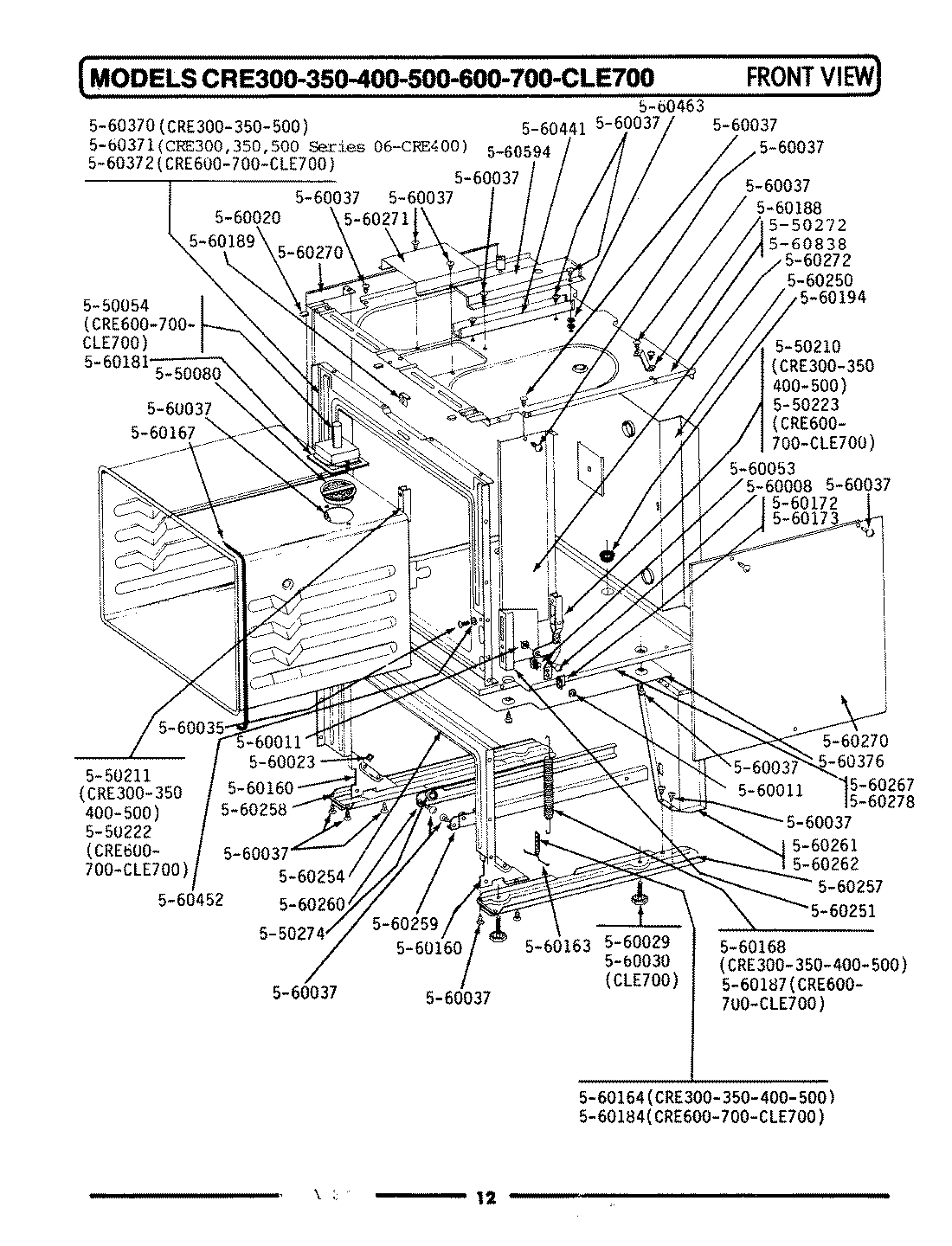

04 - FRONT VIEW

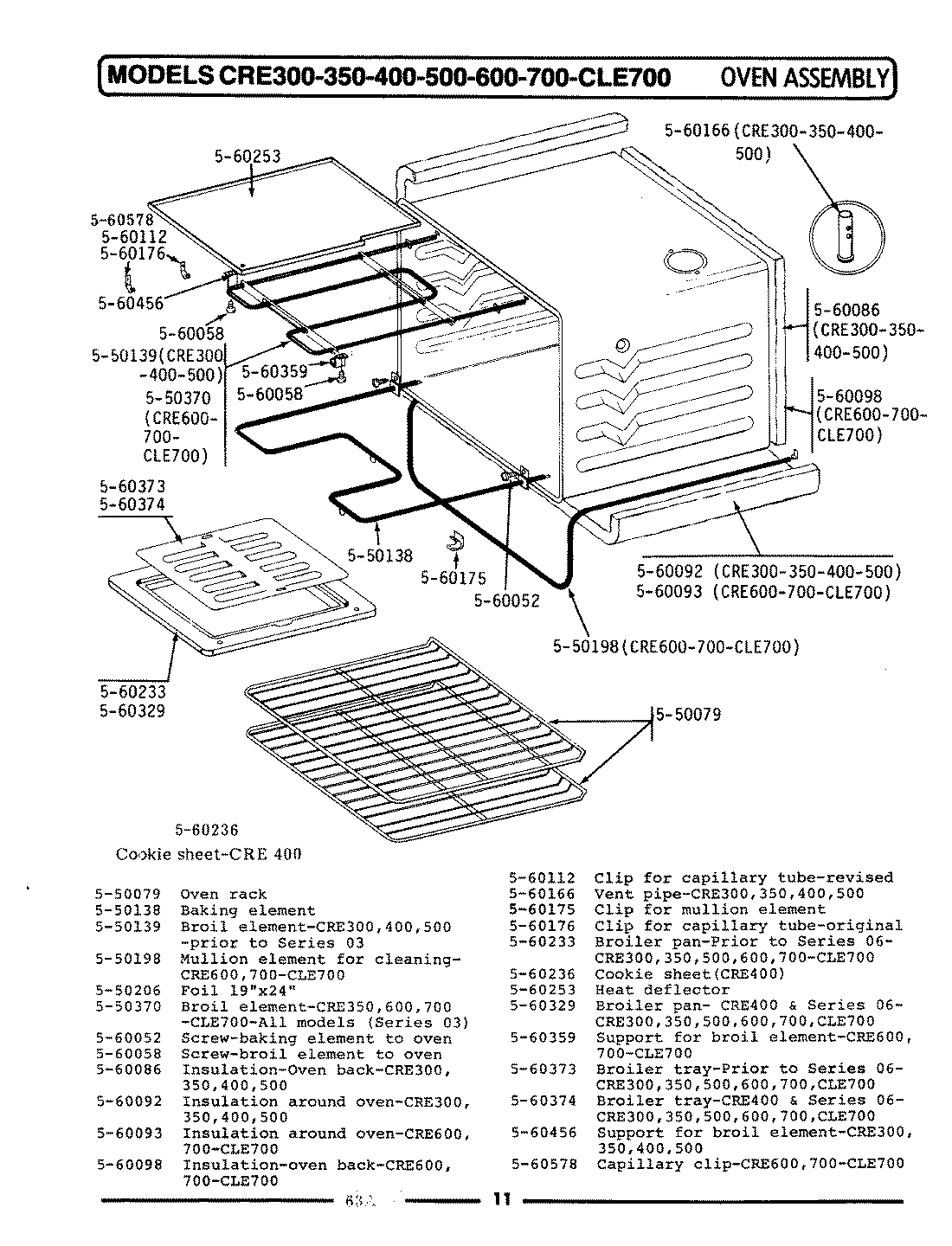

06 - OVEN ASSEMBLY
08 - TOP ASSEMBLY

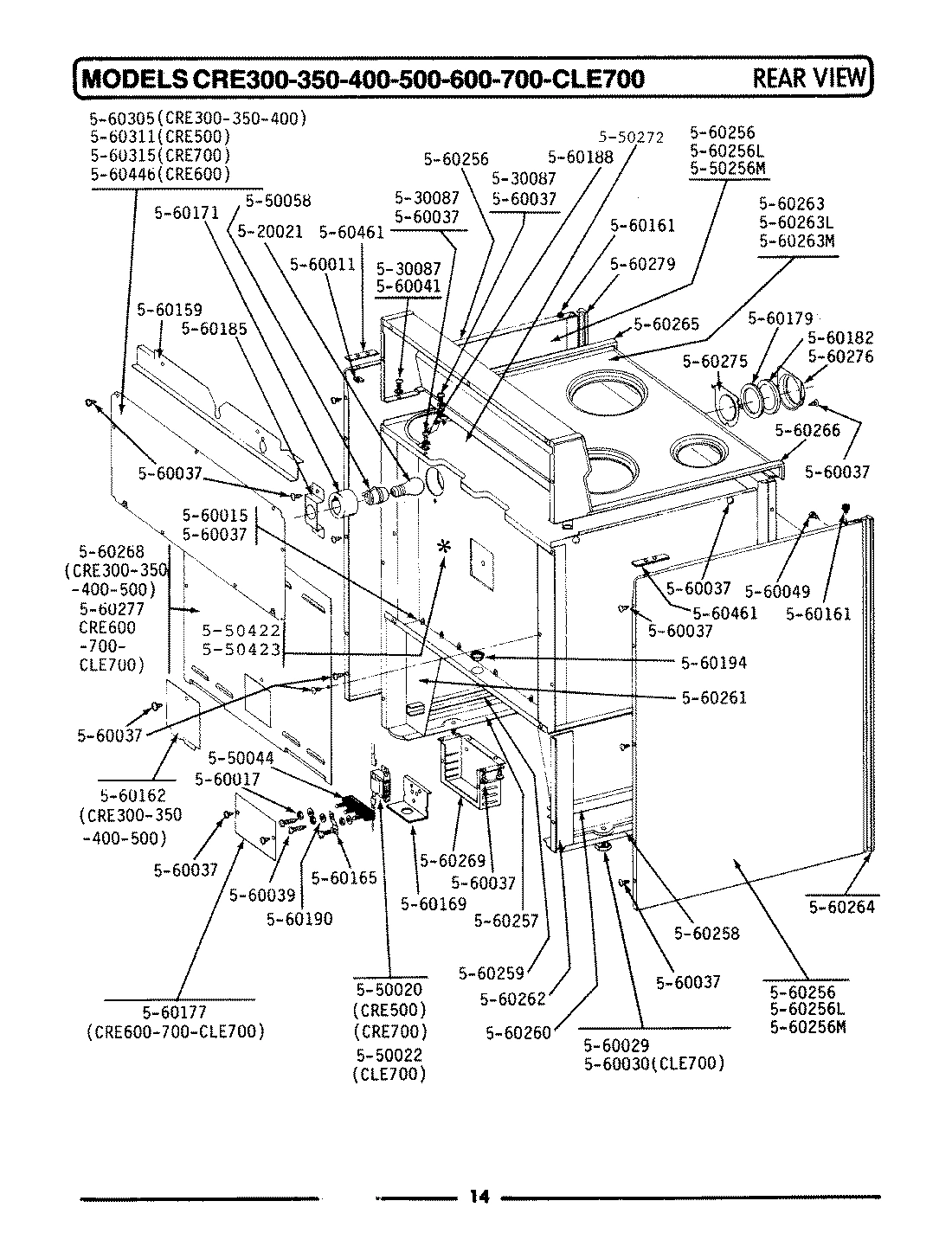

07 - REAR VIEW
Common parts from model Whirlpool GCRE700 ELECTRIC RANGE
1
SOLENOID FOR DOOR LOCK KIT WPL 550055 Contact Us For Availability
1
INNER DOOR LINER WPL 550088 Contact Us For Availability
1
VENT ASSEMBLY WPL 550054 Contact Us For Availability
2
SWITCH FOR DOOR LOCK WPL 550057 Contact Us For Availability
2
SWITCH FOR OVEN LIGHT WPL 550024 Contact Us For Availability
2
SEAL FOR DOOR WPL 550090 Contact Us For Availability
2
LOCK WASHER WPL 530087 Contact Us For Availability
2
DRAWER WPL 550077 Contact Us For Availability
2
CATALYTIC BURNER WPL 550080 Contact Us For Availability
3
DOOR LOCK ASSEMBLY WPL 550081 Contact Us For Availability
3
HINGE FOR DOOR-RIGHT WPL 550123 Contact Us For Availability
3
DRAWER PANEL-WHITE WPL 550078 Contact Us For Availability
3
HINGE SUPPORT-LEFT WPL 550222 Contact Us For Availability
3
MULLION ELEMENT WPL 550198 Contact Us For Availability
3
BALLAST WPL 550020 Contact Us For Availability
4
SWITCH FOR DOOR LOCK WPL 550369 Contact Us For Availability
4
INDICATOR LIGHT WPL 550029 Contact Us For Availability
4
HINGE FOR DOOR-LEFT WPL 550124 Contact Us For Availability
4
DRAWER PANEL-ALMOND WPL 550078L Contact Us For Availability
4
HINGE SUPPORT-RIGHT WPL 550223 Contact Us For Availability
4
ELEMENT KIT, BROIL WPL 550370 Contact Us For Availability
4
SCREW WPL 560528 Contact Us For Availability
5
INDICATOR LIGHT WPL 550030 Contact Us For Availability
5
INNER DOOR PANEL WPL 550152 Contact Us For Availability
5
DRAWER PANEL-HARVEST WHEAT WPL 550078M Contact Us For Availability
5
SCREW WPL 560052 Contact Us For Availability
5
SCREW WPL 560038 Contact Us For Availability
5
SOCKET FOR OVEN LIGHT WPL 550058 Contact Us For Availability
6
SOCKET FOR LIGHT-LEFT WPL 550049 Contact Us For Availability
6
DOOR CATCH WPL 550192 Contact Us For Availability
6
SCREW WPL 560058 Contact Us For Availability
7
SOCKET FOR LIGHT-RIGHT WPL 550050 Contact Us For Availability
7
DOOR PANEL-WHITE WPL 550197 Contact Us For Availability
7
ROLLER REPAIR KIT WPL 550274 Contact Us For Availability
7
INSULATION WPL 560093 Contact Us For Availability
7
TRIM-LATCH PLATE WPL 560065 Contact Us For Availability
8
SCREW WPL 560059 Contact Us For Availability
8
CONTROL SWITCH-HEAT ELEMENT WPL 550053 Contact Us For Availability
8
DOOR PANEL-ALMOND WPL 550197L Contact Us For Availability
8
POWER CORD - 5 FT. WPL 550248 Contact Us For Availability
8
BOLT WPL 560008 Contact Us For Availability
8
INSULATION WPL 560098 Contact Us For Availability
9
SCREW WPL 560060 Contact Us For Availability
9
INDICATOR LIGHT-125 VOLT WPL 550126 Contact Us For Availability
9
DOOR PANEL-HARVEST WHEAT WPL 550197M Contact Us For Availability
9
CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability
10
LEVER FOR DOOR LOCK WPL 560079 Contact Us For Availability
10
CONTROL SWITCH-OVEN SELECTO WPL 550141 Contact Us For Availability
10
FOIL WPL 550206 Contact Us For Availability
10
HANDLE FOR DOOR WPL 560071 Contact Us For Availability
10
NUT-BURNER BOX WPL 560020 Contact Us For Availability
10
CLIP-MULLION ELEMENT WPL 560175 Contact Us For Availability
10
NUT WPL 560015 Contact Us For Availability
11
CLIP-KNOB TO LEVER WPL 560174 Contact Us For Availability
11
CLOCK ASSEMBLY WPL 550149 Contact Us For Availability
11
INNER DOOR LINER WPL 550318 Contact Us For Availability
11
SPACER WPL 560120 Contact Us For Availability
11
NUT-BRACE WPL 560023 Contact Us For Availability
11
CLIP-CAPILLARY TUBE WPL 560176 Contact Us For Availability
11
NUT WPL 560017 Contact Us For Availability
12
CLIP-ROD TO SOLENOID WPL 560178 Contact Us For Availability
12
CONTROL SWITCH-OVEN TEMP WPL 550179 Contact Us For Availability
12
BOLT WPL 560009 Contact Us For Availability
12
ADJUSTABLE LEG WPL 560029 Contact Us For Availability
13
GASKET FOR SOLENOID WPL 560180 Contact Us For Availability
13
KNOB FOR OVEN TEMPERATURE WPL 550181 Contact Us For Availability
13
NUT WPL 560013 Contact Us For Availability
13
DOOR HANDLE WPL 560845 Contact Us For Availability
13
SCREW-FRAME TO INNER DOOR WPL 560035 Contact Us For Availability
13
HEAT DEFLECTOR WPL 560253 Contact Us For Availability
14
INSULATOR FOR SWITCH WPL 560183 Contact Us For Availability
14
KNOB FOR OVEN SELECTOR WPL 550185 Contact Us For Availability
14
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
15
ROD-LOCK ASSM TO SOLENOID WPL 560186 Contact Us For Availability
15
KNOB FOR SURFACE ELEMENT WPL 550186 Contact Us For Availability
15
SCREW WPL 560041 Contact Us For Availability
15
SCREW WPL 560053 Contact Us For Availability
15
SUPPORT-BROIL ELEMENT WPL 560359 Contact Us For Availability
16
KNOB FOR LEVER WPL 560274 Contact Us For Availability
16
SWITCH FOR OVEN LIGHT WPL 550471 Contact Us For Availability
16
SCREW WPL 560050 Contact Us For Availability
16
BRACE-MAIN FRONT WPL 560160 Contact Us For Availability
16
LATCH PLATE (TRIM FRONT) WPL 560857 Contact Us For Availability
16
SCREW WPL 560049 Contact Us For Availability
17
INSULATOR FOR SWITCH WPL 560351 Contact Us For Availability
17
CONTROL KNOB WPL 550480 Contact Us For Availability
17
SCREW WPL 560051 Contact Us For Availability
17
LINK FOR DOOR SPRING WPL 560163 Contact Us For Availability
17
CAPILLARY CLIP WPL 560578 Contact Us For Availability
17
BRACKET FOR BURNER BOX WPL 560159 Contact Us For Availability
18
CLIP-ROD TO LOCK ASSEMBLY WPL 560411 Contact Us For Availability
18
SWITCH, FLUORESCENT LIGHT WPL 550526 Contact Us For Availability
18
RUBBER BUMPER WPL 560161 Contact Us For Availability
18
BRACKET FOR HINGE-RIGHT WPL 560172 Contact Us For Availability
19
KNOB, DOOR LOCK WPL 560859 Contact Us For Availability
19
KNOB, SELECTOR SWITCH WPL 550527 Contact Us For Availability
19
INSULATION WPL 560087 Contact Us For Availability
19
BRACKET FOR HINGE-LEFT WPL 560173 Contact Us For Availability
19
GROUND LUG WPL 560165 Contact Us For Availability
20
OVEN CONTROL KNOB WPL 550528 Contact Us For Availability
20
CLIP WPL 560191 Contact Us For Availability
20
GASKET FOR VENT BOX WPL 560181 Contact Us For Availability
20
BRACKET-TERMINAL BLOCK WPL 560169 Contact Us For Availability
21
CLOCK-AUTOMATIC WPL 550531 Contact Us For Availability
21
TRIM-DOOR ENDS WPL 560196 Contact Us For Availability
21
BRACKET FOR DOOR SPRING WPL 560184 Contact Us For Availability
21
COVER FOR LIGHT SOCKET WPL 560171 Contact Us For Availability
22
BAFFLE WPL 560297 Contact Us For Availability
22
SPRING FOR OVEN DOOR WPL 560187 Contact Us For Availability
22
COVER-TERMINAL BLOCK WPL 560177 Contact Us For Availability
23
NUT-CLOCK TO SUPPORT WPL 560012 Contact Us For Availability
23
TRIM FOR DOOR WPL 560298 Contact Us For Availability
23
GASKET FOR OVEN LIGHT WPL 560179 Contact Us For Availability
24
NUT-SWITCH TO CONSOLE WPL 560018 Contact Us For Availability
24
FRAME WPL 560443 Contact Us For Availability
24
TRIM FOR OVEN WPL 560189 Contact Us For Availability
24
GLASS LENS FOR OVEN LIGHT WPL 560182 Contact Us For Availability
25
SCREW WPL 560031 Contact Us For Availability
25
GLASS-OUTER WPL 560444 Contact Us For Availability
25
BRACKET FOR OVEN LIGHT WPL 560185 Contact Us For Availability
26
WASHER WPL 560462 Contact Us For Availability
26
BRACKET FOR TOP WPL 560188 Contact Us For Availability
26
BACK PANEL WPL 560250 Contact Us For Availability
27
SCREW WPL 560064 Contact Us For Availability
27
NUT WPL 560470 Contact Us For Availability
27
FRAME FOR DRAWER WPL 560254 Contact Us For Availability
27
WASHER WPL 560190 Contact Us For Availability
28
PANEL FOR CONSOLE WPL 560067 Contact Us For Availability
28
FOAM TAPE - 87 INCHES WPL 560524 Contact Us For Availability
28
BURNER BOX KIT WPL 550272 Contact Us For Availability
29
TRIM COVER FOR CONSOLE WPL 560081 Contact Us For Availability
29
BUSHING - WIRE HARNESS WPL 560194 Contact Us For Availability
30
BRACKET, LIGHT SOCKET-RIGHT WPL 560154 Contact Us For Availability
30
TRIM, DOOR WPL 560856 Contact Us For Availability
30
SIDE PANEL-WHITE WPL 560256 Contact Us For Availability
31
BRACKET, LIGHT SOCKET-LEFT WPL 560155 Contact Us For Availability
31
END, DOOR TRIM WPL 560858 Contact Us For Availability
31
SIDE PANEL-ALMOND WPL 560256L Contact Us For Availability
32
BRACKET FOR CONSOLE WPL 560308 Contact Us For Availability
32
SIDE PANEL-HARVEST WHEAT WPL 560256M Contact Us For Availability
33
END CAP-RIGHT WPL 560309 Contact Us For Availability
33
BASE SUPPORT-RIGHT WPL 560257 Contact Us For Availability
34
END CAP-LEFT WPL 560310 Contact Us For Availability
34
BASE SUPPORT-LEFT WPL 560258 Contact Us For Availability
34
COVER FOR INSULATION WPL 560270 Contact Us For Availability
35
CONSOLE PANEL-WHITE WPL 560312 Contact Us For Availability
35
TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability
35
COVER FOR DOOR LOCK WPL 560271 Contact Us For Availability
36
CONSOLE PANEL-ALMOND WPL 560312L Contact Us For Availability
36
TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability
36
COVER FOR DOOR HINGE WPL 560272 Contact Us For Availability
37
CONSOLE PANEL-HARVEST WHEAT WPL 560312M Contact Us For Availability
37
SUPPORT BRACKET-RIGHT WPL 560261 Contact Us For Availability
37
COVER FOR WIRE WPL 560594 Contact Us For Availability
38
RETAINER FOR GLASS PANEL WPL 560313 Contact Us For Availability
38
SUPPORT BRACKET-LEFT WPL 560262 Contact Us For Availability
38
SUPPORT FOR INSULATION WPL 560278 Contact Us For Availability
39
KNOB FOR CLOCK WPL 560348 Contact Us For Availability
39
FRAME FOR OVEN WPL 560372 Contact Us For Availability
39
TOP-WHITE WPL 560263 Contact Us For Availability
40
TRIM FOR CONSOLE PANEL WPL 560350 Contact Us For Availability
40
SHIELD-OVEN BOTTOM WPL 560376 Contact Us For Availability
40
TOP-ALMOND WPL 560263L Contact Us For Availability
41
TRIM FOR CONSOLE-LOWER WPL 560375 Contact Us For Availability
41
BRACKET-WIRE HARNESS WPL 560441 Contact Us For Availability
41
TOP-HARVEST WHEAT WPL 560263M Contact Us For Availability
42
CLOCK SUPPORT WPL 560377 Contact Us For Availability
42
PACKING-MAIN TOP WPL 560452 Contact Us For Availability
42
TRIM FOR END PANEL WPL 560264 Contact Us For Availability
43
SWITCH PLATE WPL 560436 Contact Us For Availability
43
WASHER WPL 560463 Contact Us For Availability
43
TRIM FOR TOP-RIGHT WPL 560265 Contact Us For Availability
44
BOTTOM, BURNER BOX WPL 560838 Contact Us For Availability
44
TRIM FOR TOP-LEFT WPL 560266 Contact Us For Availability
45
NUT, SWITCH WPL 560822 Contact Us For Availability
45
TERMINAL BOX WPL 560269 Contact Us For Availability
46
KNOB, CLOCK WPL 560825 Contact Us For Availability
46
RETAINER FOR OVEN LIGHT WPL 560275 Contact Us For Availability
47
TRIM BACKGUARD, TOP WPL 560850 Contact Us For Availability
47
RETAINER FOR OVEN LIGHT WPL 560276 Contact Us For Availability
48
TRIM, BACKGUARD GLASS WPL 560851 Contact Us For Availability
48
BACK PANEL WPL 560277 Contact Us For Availability
49
RETAINER, GLASS WPL 560852 Contact Us For Availability
49
BACK PANEL WPL 560315 Contact Us For Availability
50
BACKGUARD, GLASS WPL 560863 Contact Us For Availability
50
WIRE CONNECTOR WPL 560460 Contact Us For Availability
52
THERMOSTAT WPL 550423 Contact Us For Availability
NI
SPACER PAD FOR CONSOLE WPL 560461 Contact Us For Availability
NI
POWER CORD - 4 FT. WPL 550246 Contact Us For Availability
NI
RESISTOR WPL 550130 Contact Us For Availability
× ![]()
Login and Registration Form
