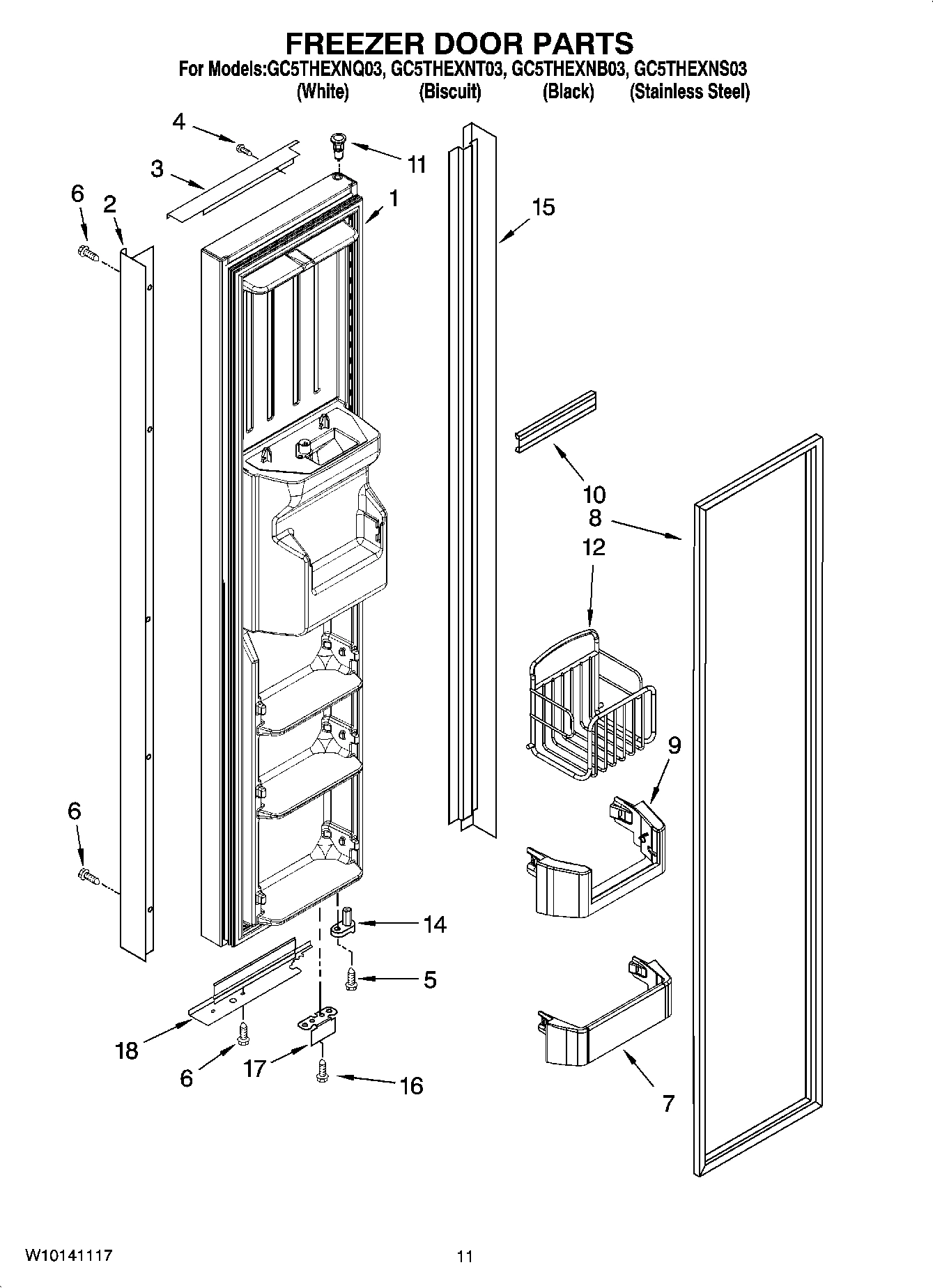

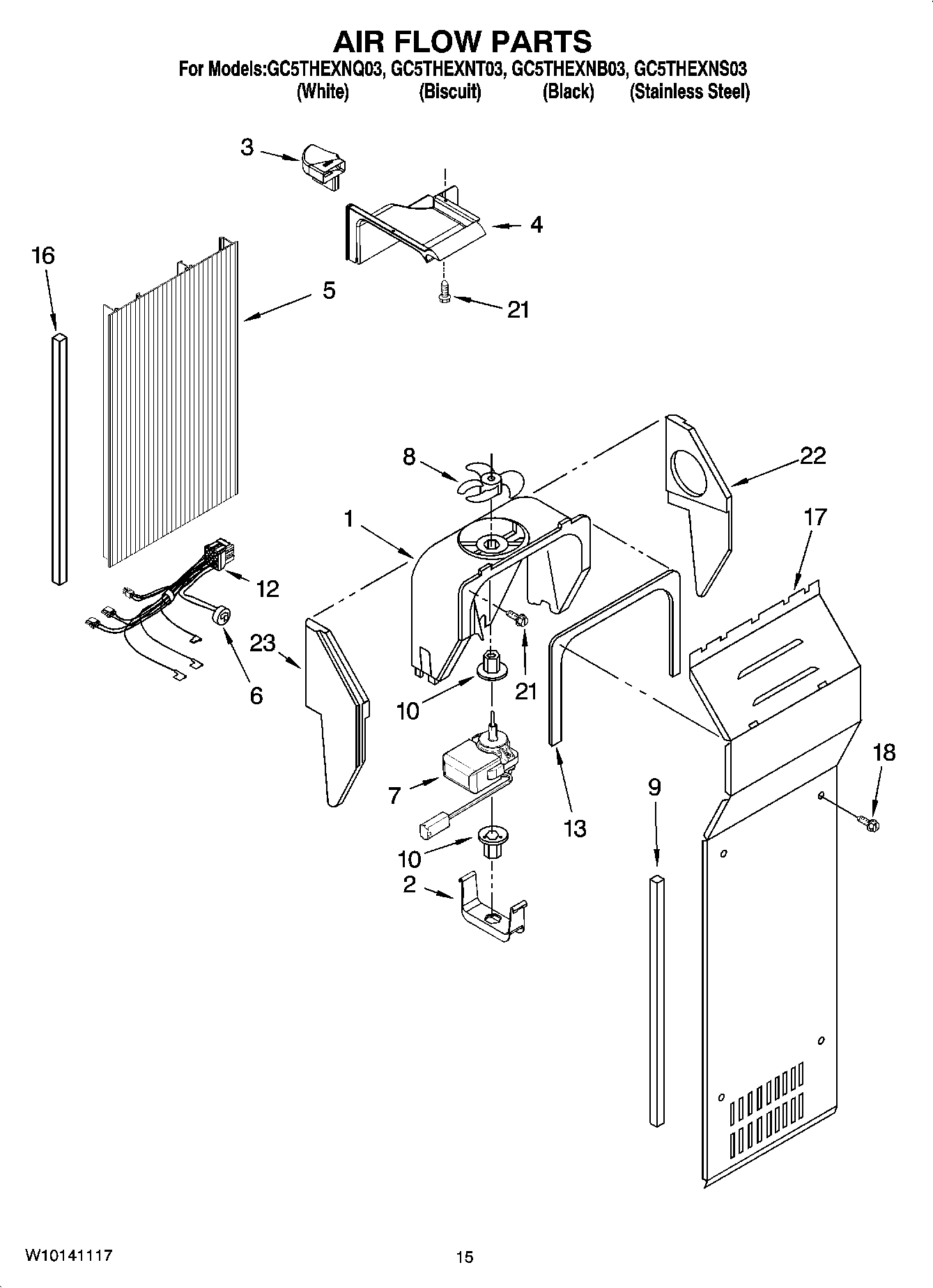

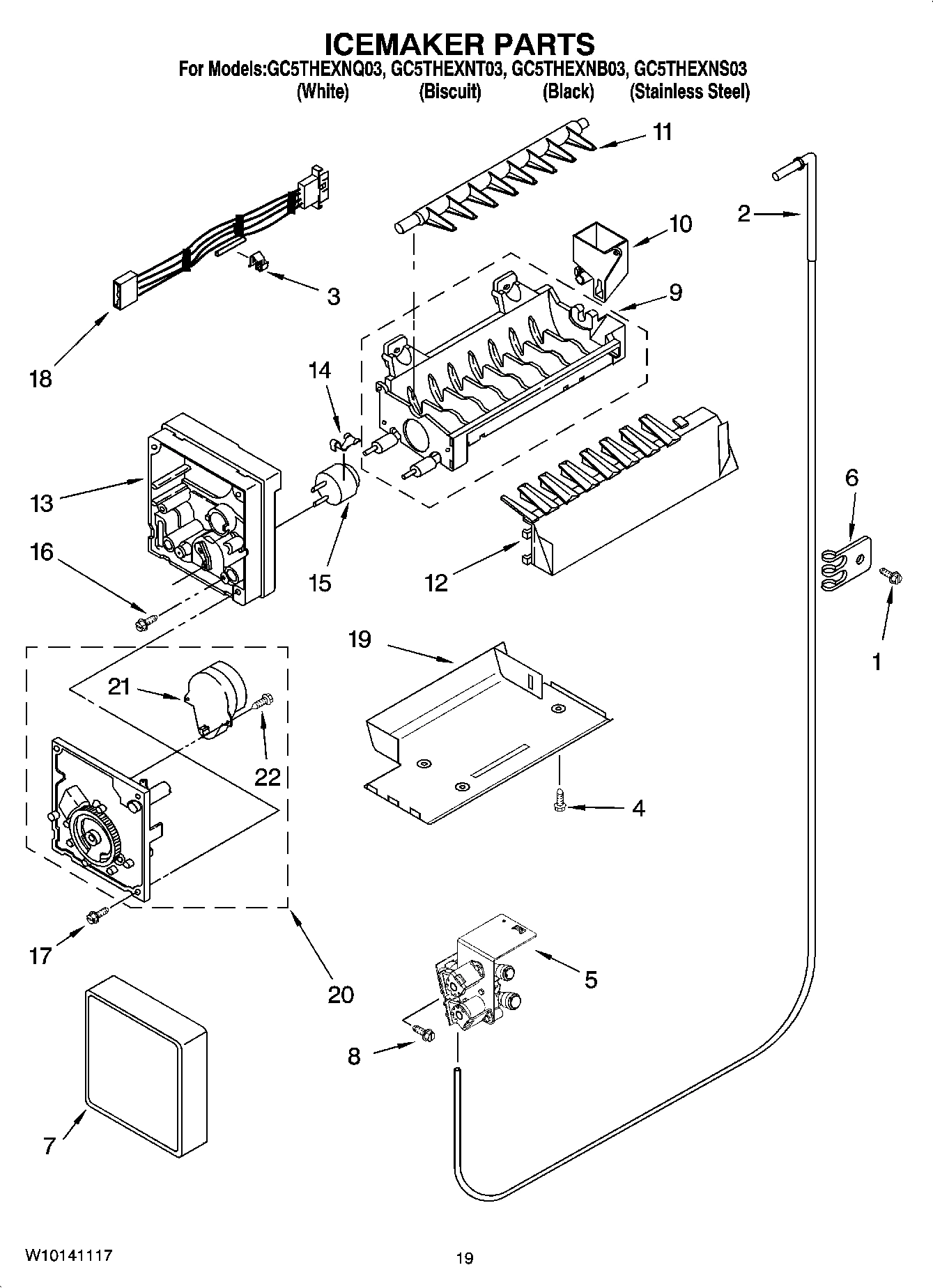

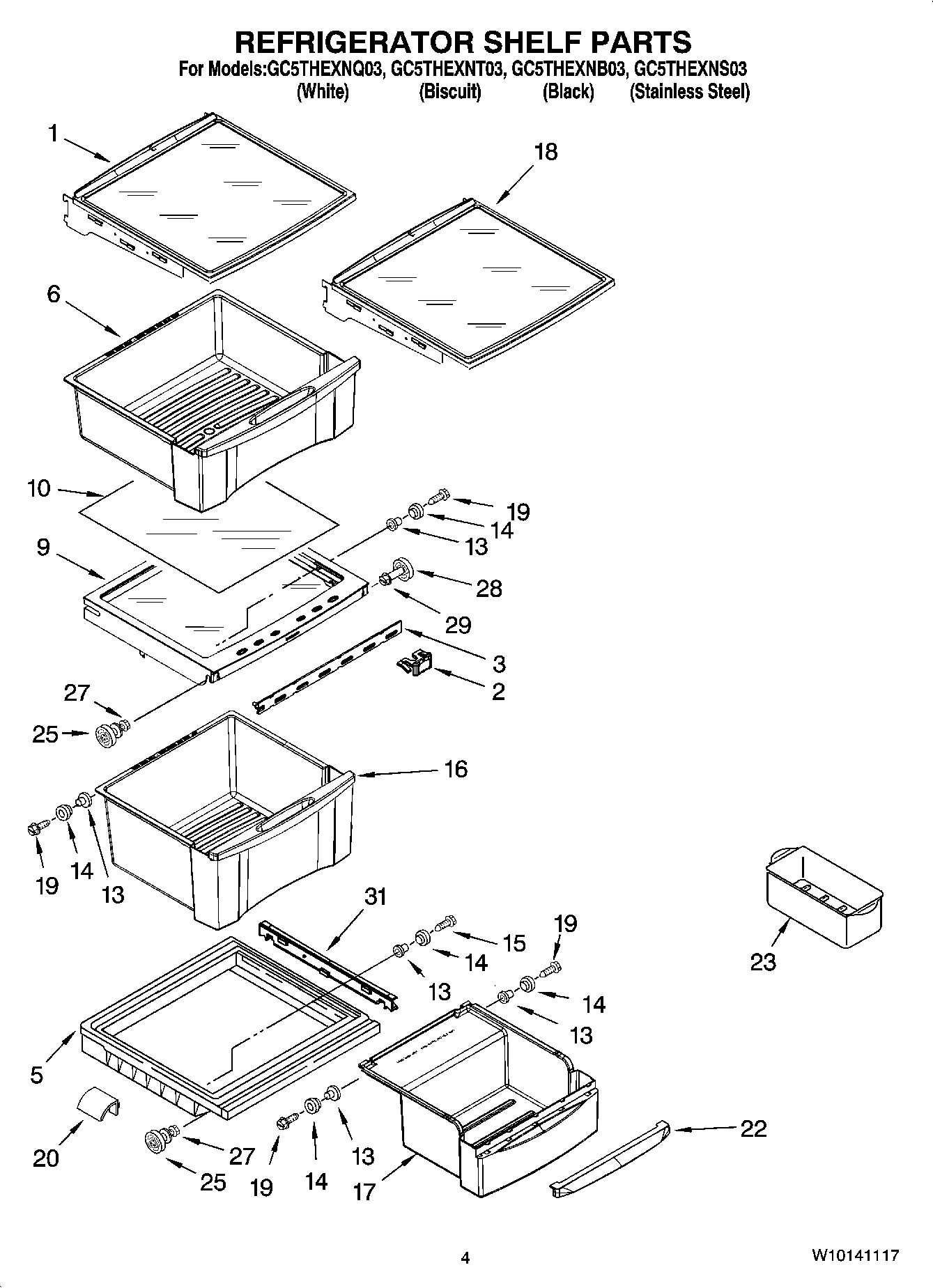

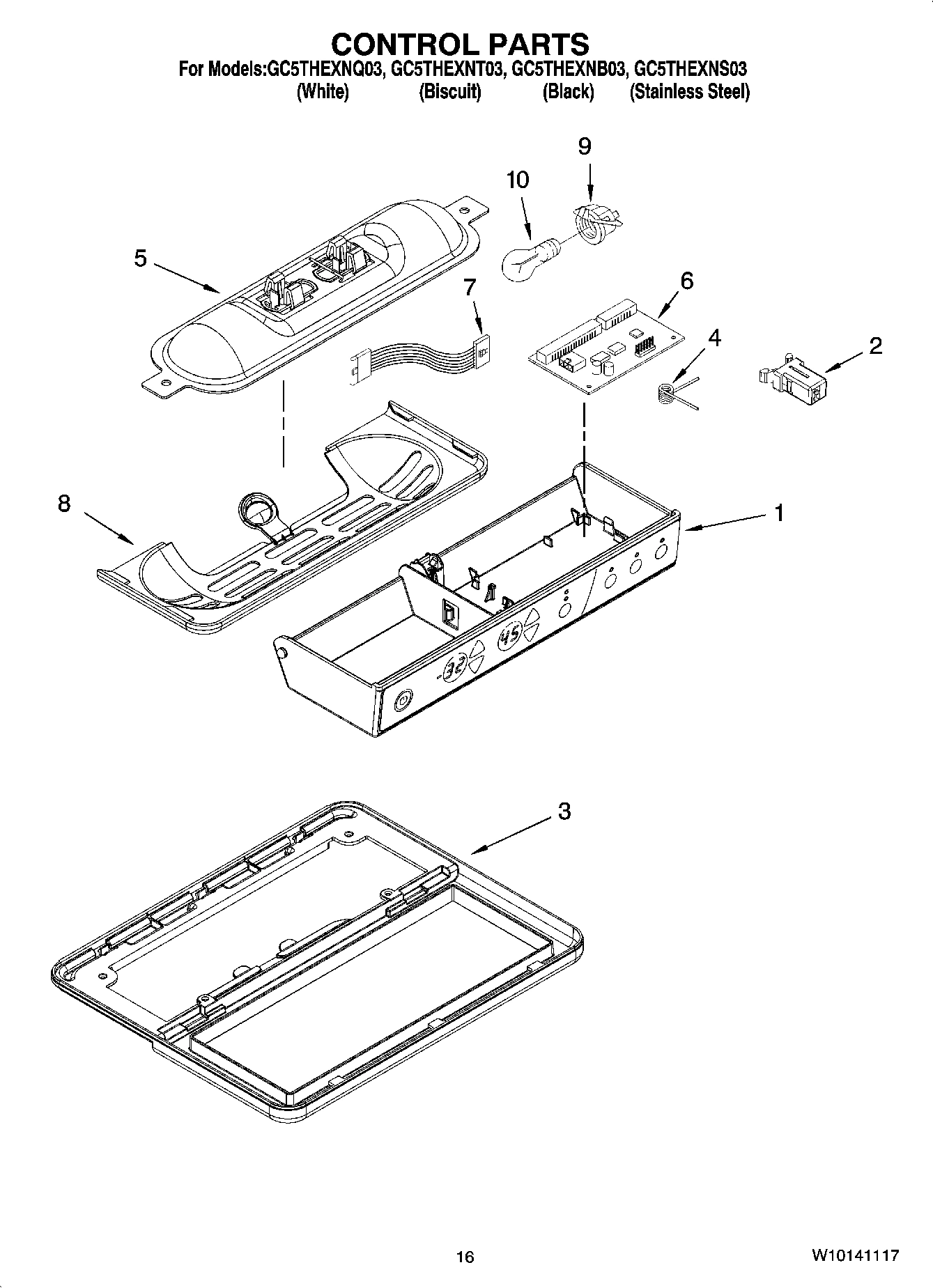

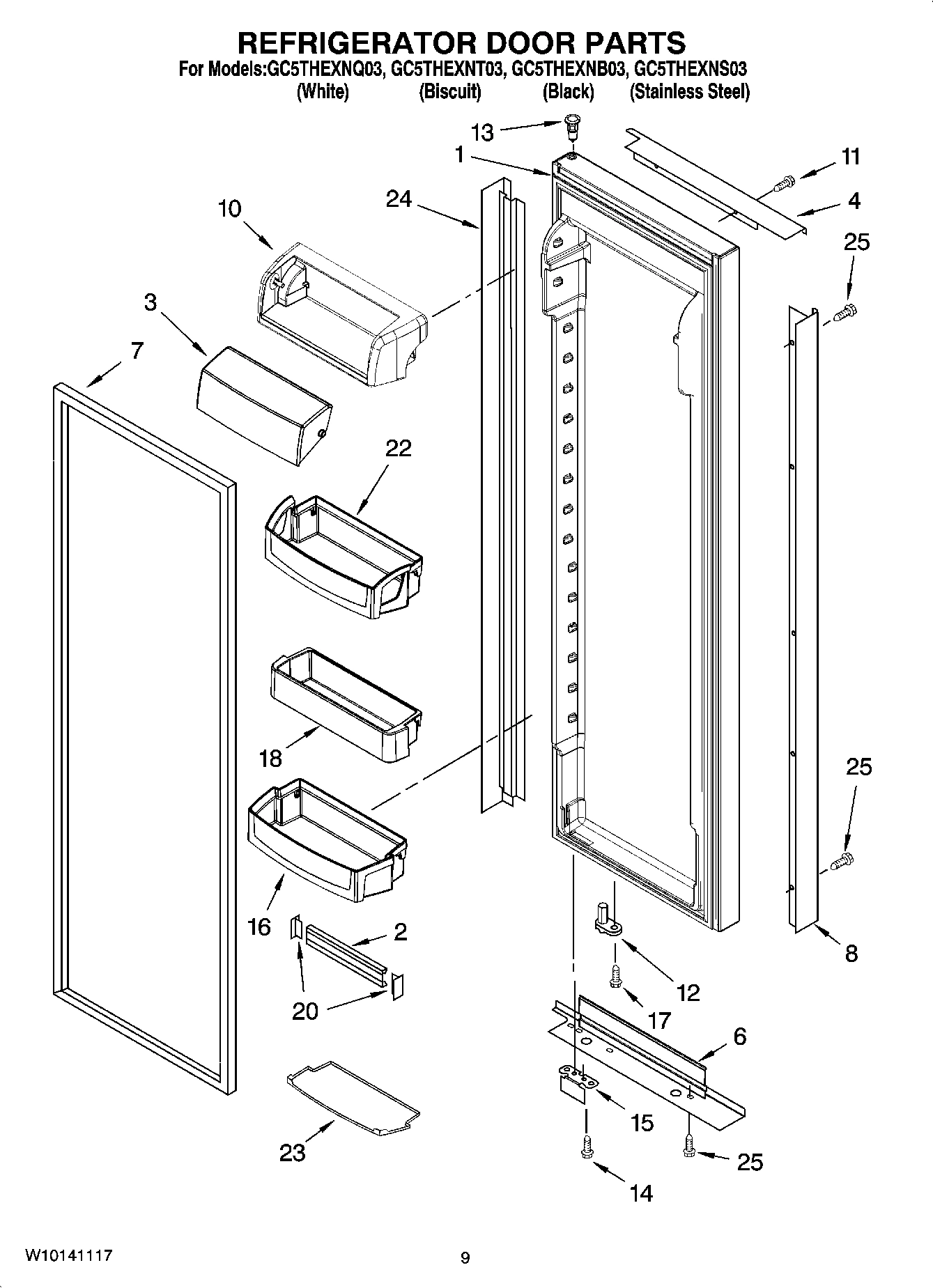

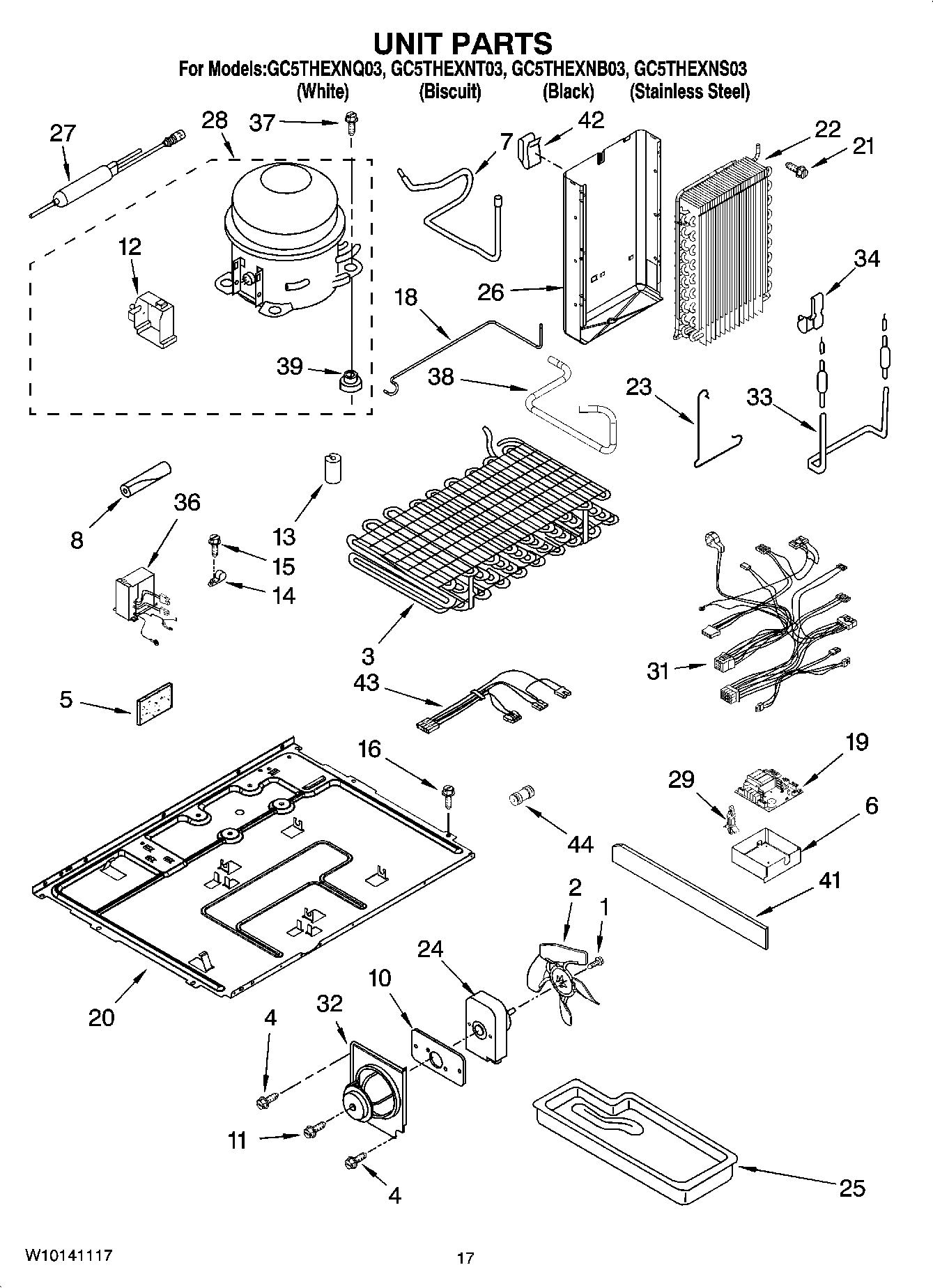

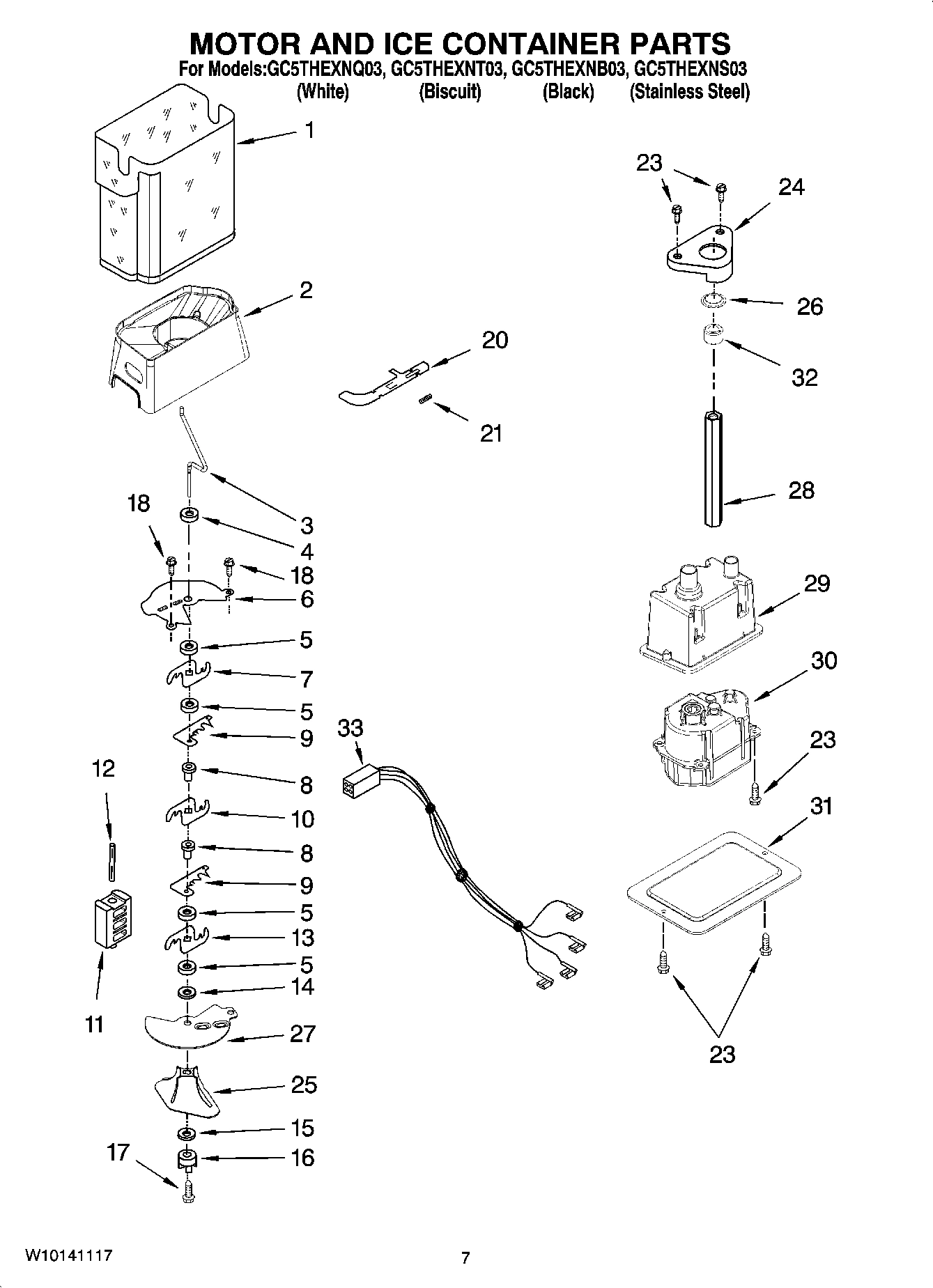

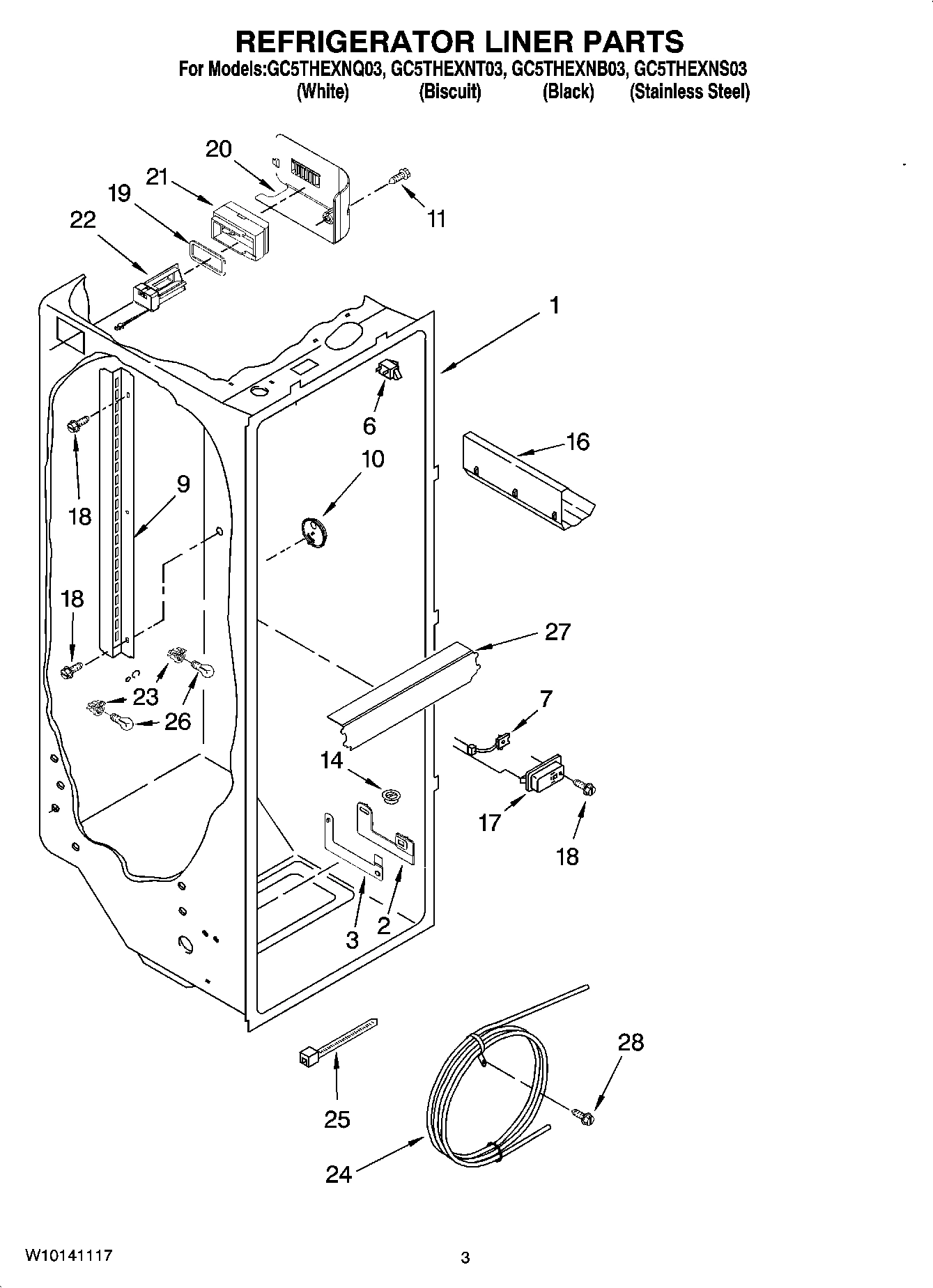

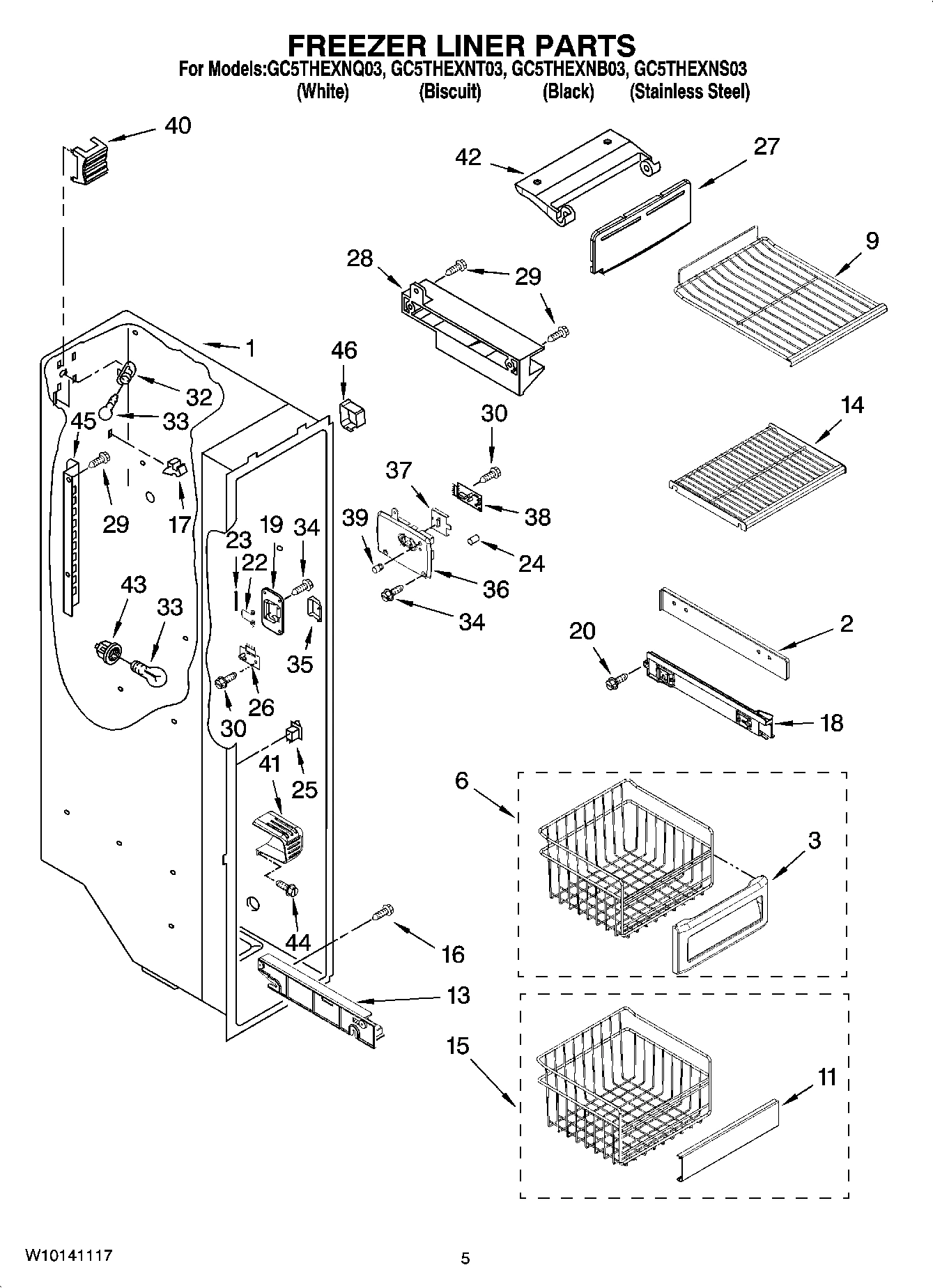

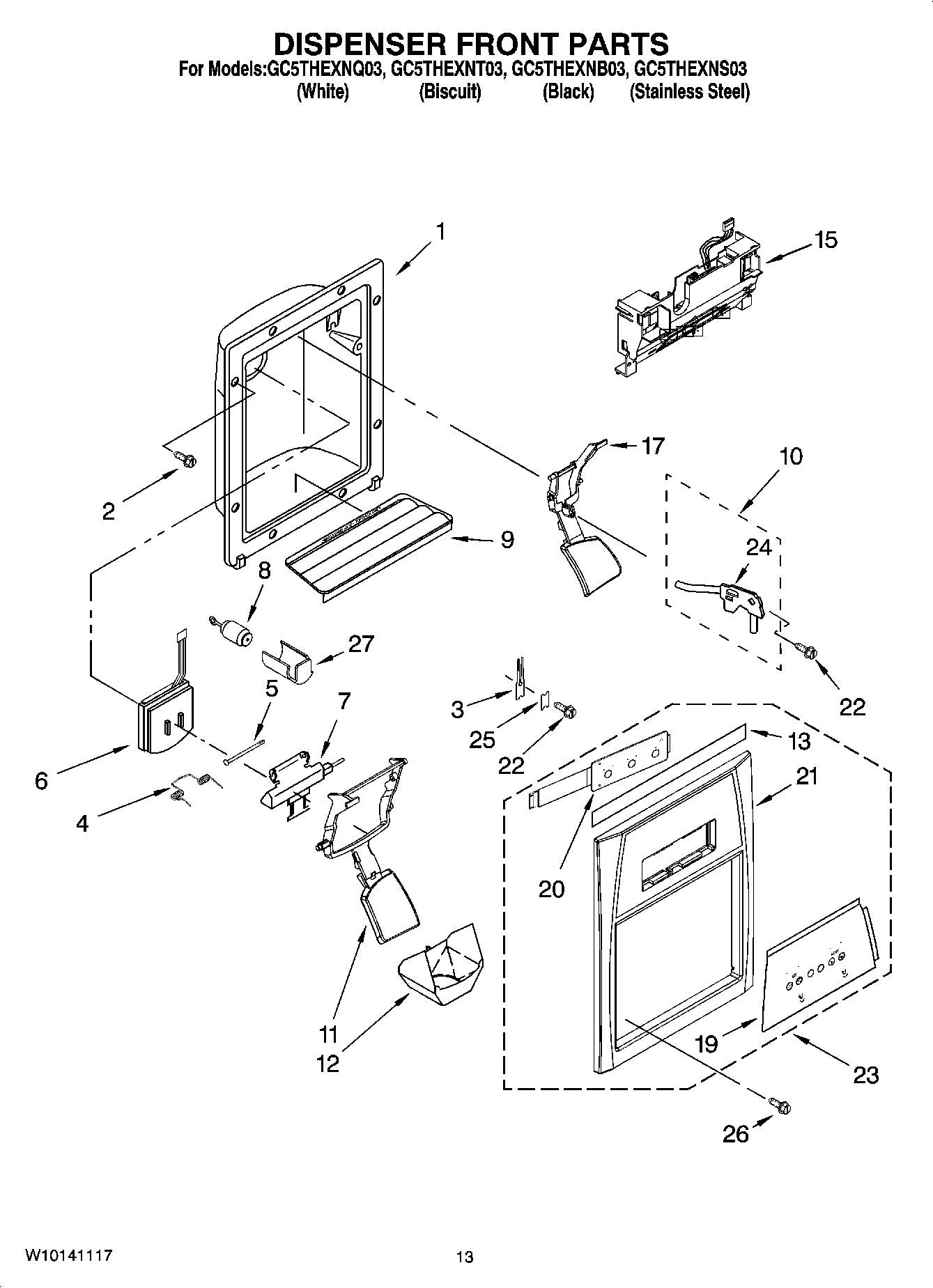

Model Whirlpool GC5THEXNS03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI61226A5 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI61227A5 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

1

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Control Box (Includes 6) WPL 2319752 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI61220A8 Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $80.99

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

Escutcheon, Meat Pan Control WPL 2223524 Contact Us For Availability

3

2223339 Whirlpool Slide Backorder WPL 2223339 $71.27

3

W10193018 Whirlpool Refrigerator Condenser Backorder WPL W10193018 $220.30

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $130.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Front, Basket WPL 2224053 Contact Us For Availability

3

Trim, Control Box WPL 2306952 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

4

Washer WPL 2258220 Contact Us For Availability

4

Trim, Top (Black) WPL 2224096B Contact Us For Availability

4

Trim, Top (Stainless Steel) WPL 2224096S Contact Us For Availability

4

Trim, Top (Biscuit) WPL 2224096T Contact Us For Availability

4

Trim, Top (White) WPL 2224096W Contact Us For Availability

4

Spring, Torsion WPL 2223512 Contact Us For Availability

5

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $48.27

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $7.27

5

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Trim, Bottom (Black) WPL 2223823B Contact Us For Availability

6

Trim, Bottom (Stainless Steel) WPL 2223823S Contact Us For Availability

6

Trim, Bottom (Biscuit) WPL 2223823T Contact Us For Availability

6

Trim, Bottom (White) WPL 2223823W Contact Us For Availability

7

2306996 Whirlpool Refrigerator Door Gasket In Stock WPL 2306996 $224.92

7

W10528579 Whirlpool Refrigerator Tube Backorder WPL W10528579 $210.88

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

7

Jumper-Wire Assy. WPL 2187585 Contact Us For Availability

7

Door Gasket, Magnetic (Mist Beige) WPL 2223326 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $64.02

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $61.50

8

Handle (Black) WPL 2223821B Contact Us For Availability

8

Handle (Stainless Steel) WPL 2223821S Contact Us For Availability

8

Handle (Biscuit) WPL 2223821T Contact Us For Availability

8

Handle (White) WPL 2223821W Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $30.22

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $90.68

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $7.99

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 13, 14 & 19) WPL 2223307 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2223456 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

Water Fitting Assembly (Includes Water Tube) WPL 2221562 Contact Us For Availability

Dairy Compartment WPL 2223879 Contact Us For Availability

Glass, Cover WPL 2223591 Contact Us For Availability

Plate, Mounting WPL 2301979 Contact Us For Availability

Housing, Door Control WPL 2261601 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Screw WPL 3196180 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

Door Closer, Upper Cam WPL 2307048 Contact Us For Availability

13

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

13

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $16.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $90.68

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $8.37

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

Door Bin (2) WPL 2223239K Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $65.50

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.26

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $7.52

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $52.75

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2223353 Contact Us For Availability

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $284.04

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

20

Cover, Air Baffle WPL 2223403 Contact Us For Availability

20

Baseplate WPL 2306932 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

21

Cover, Unit WPL 2223409 Contact Us For Availability

21

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $245.99

Handle WPL 2203029 Contact Us For Availability

Door Bin WPL 2223463K Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clamp WPL 2161324 Contact Us For Availability

Mat (3) WPL 2223464K Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.99

Trim, Hinge Side (Black) WPL 2223824B Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2223824S Contact Us For Availability

Trim, Hinge Side (Biscuit) WPL 2223824T Contact Us For Availability

Trim, Hinge Side (White) WPL 2223824W Contact Us For Availability

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

Tray, Evaporator WPL 2223398 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Heat Shield WPL 2224022 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

Light Lens WPL 2223663 Contact Us For Availability

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $407.52

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

29

2223800 Whirlpool Refrigerator Spacer Backorder WPL 2223800 $11.64

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

30

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.99

30

Cap, Water Filter (Biscuit) WPL 2260518T Contact Us For Availability

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.99

31

Harness, Main Control WPL 2187849 Contact Us For Availability

32

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

32

Door Closer (RC) WPL 2307049 Contact Us For Availability

32

Fan, Motor Bracket WPL 2224024 Contact Us For Availability

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $112.09

33

Door Closer, FC WPL 2307051 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $293.54

37

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

41

2223394 Whirlpool Extension Backorder WPL 2223394 $65.59

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $112.14

44

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
