Model Whirlpool FES310BL1 ELECTRIC RANGE – Common Parts & Diagrams

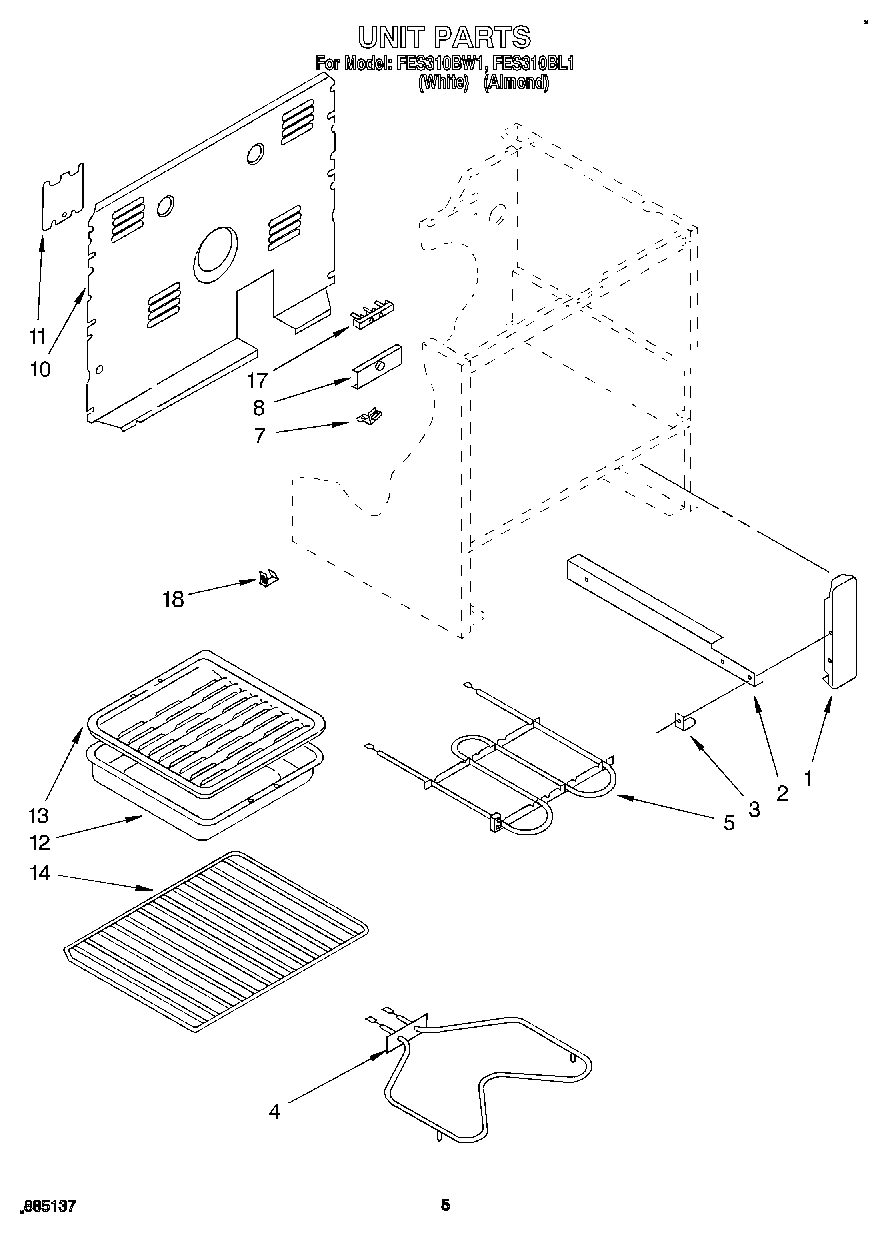

04 - UNIT

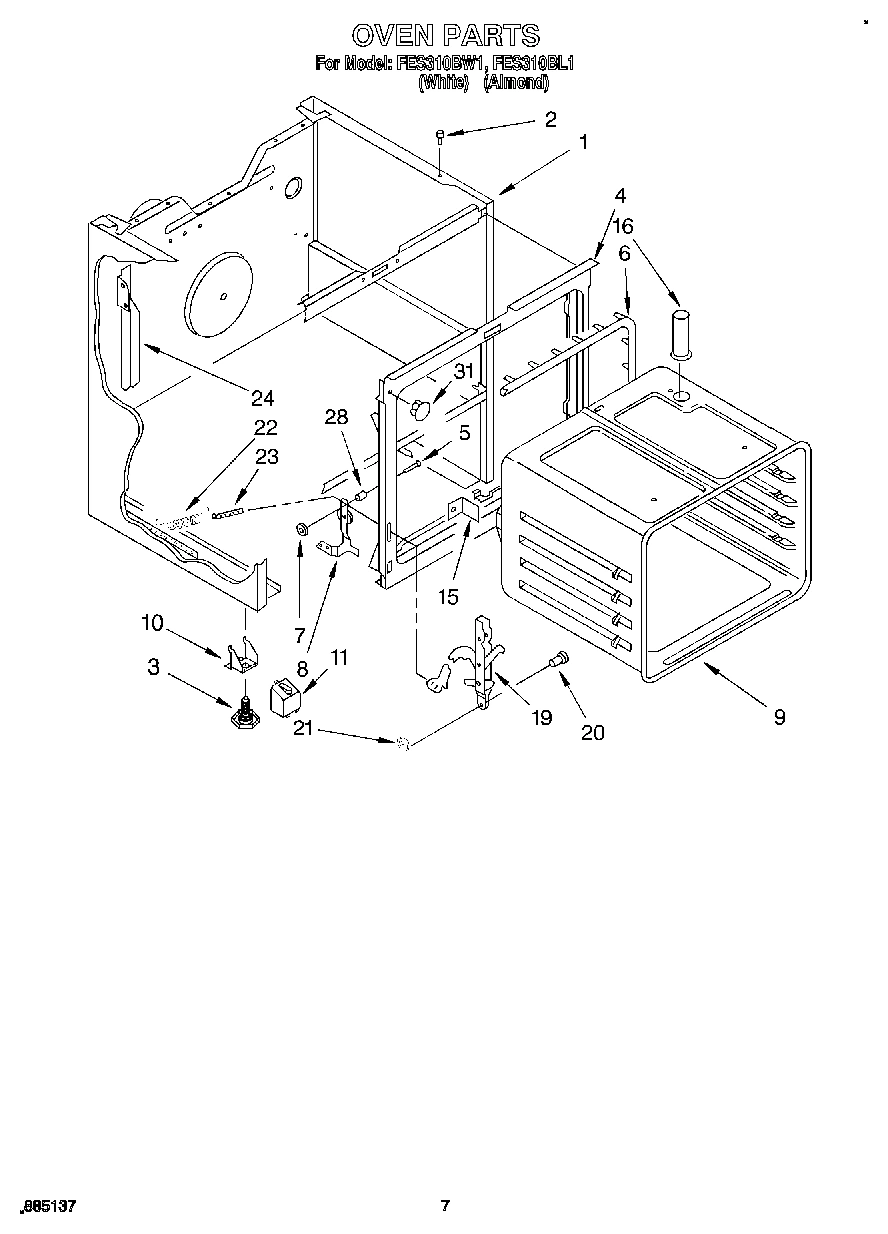

05 - OVEN

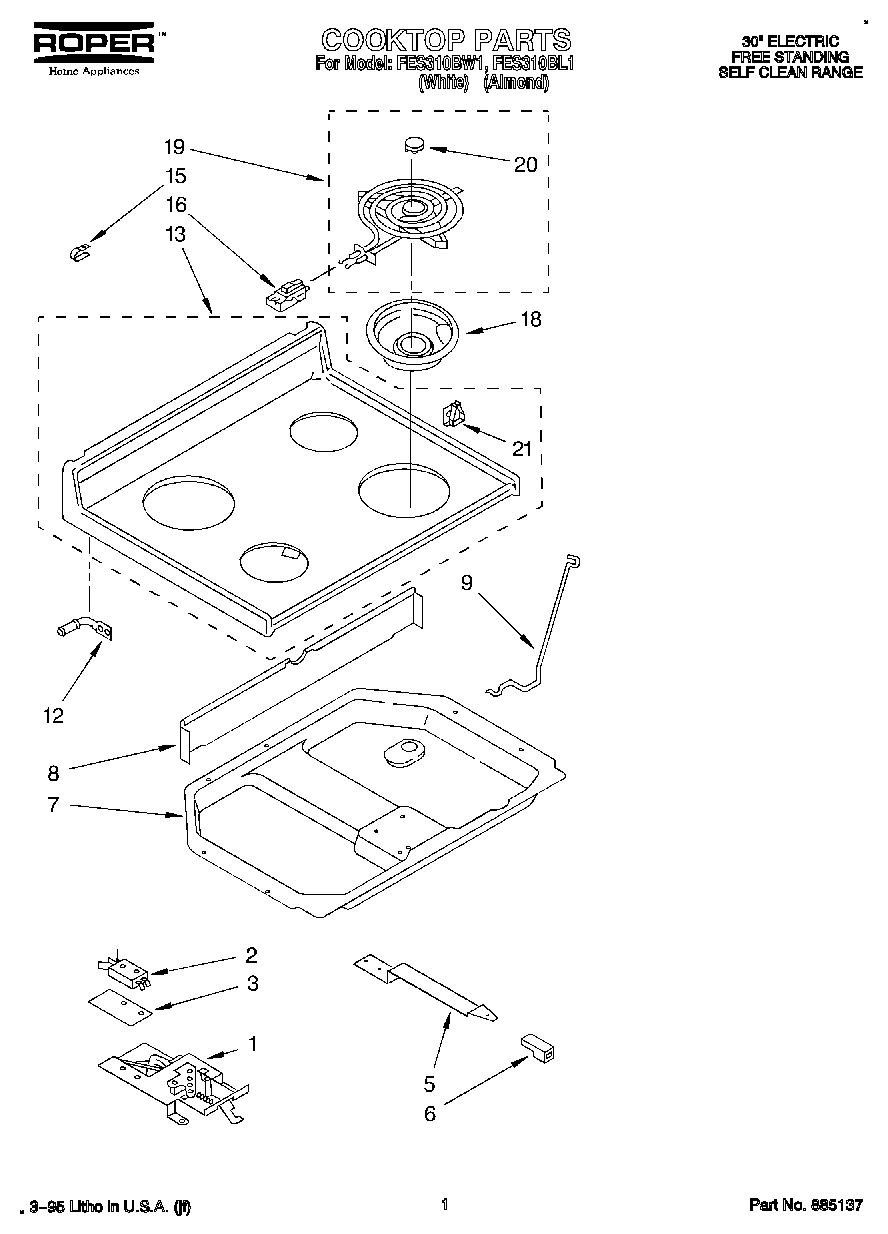

01 - COOKTOP

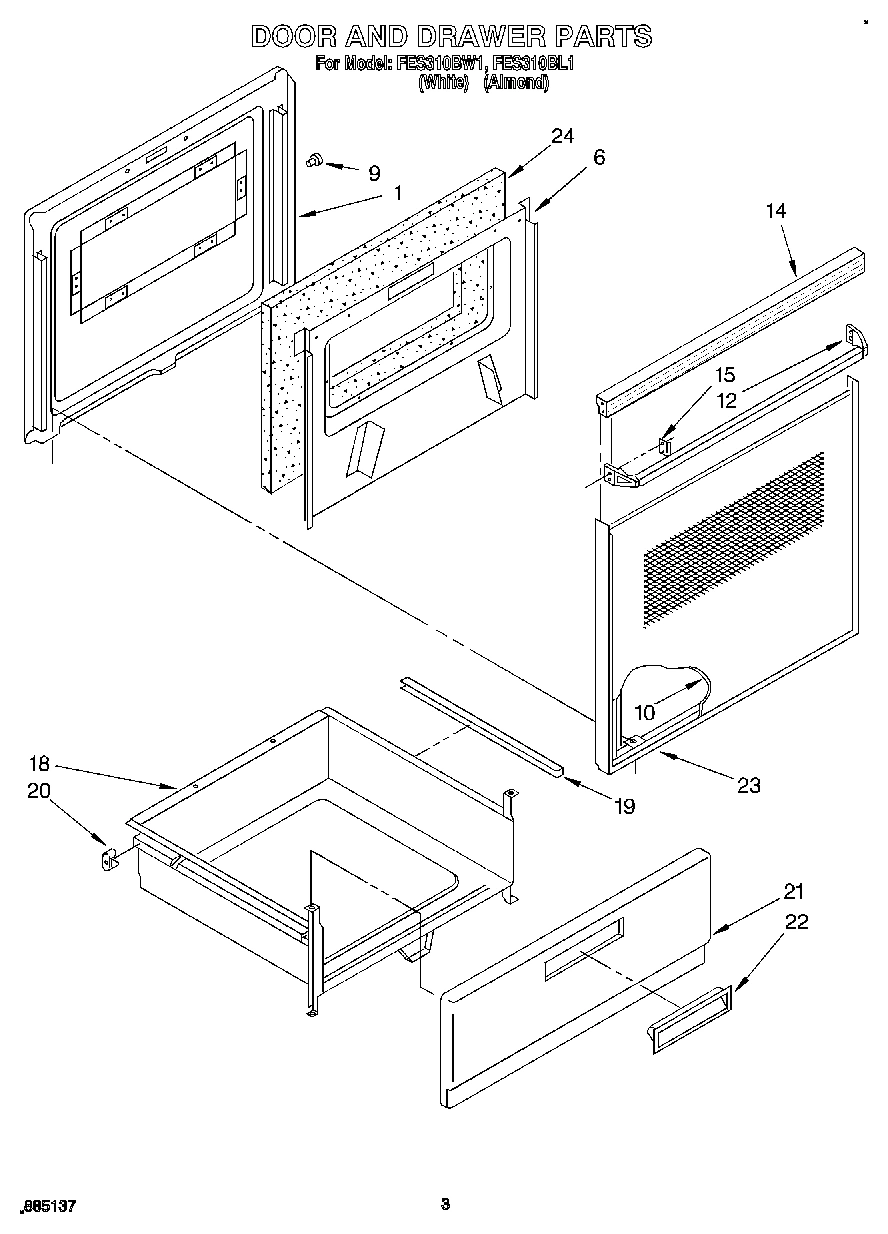

03 - DOOR AND DRAWER

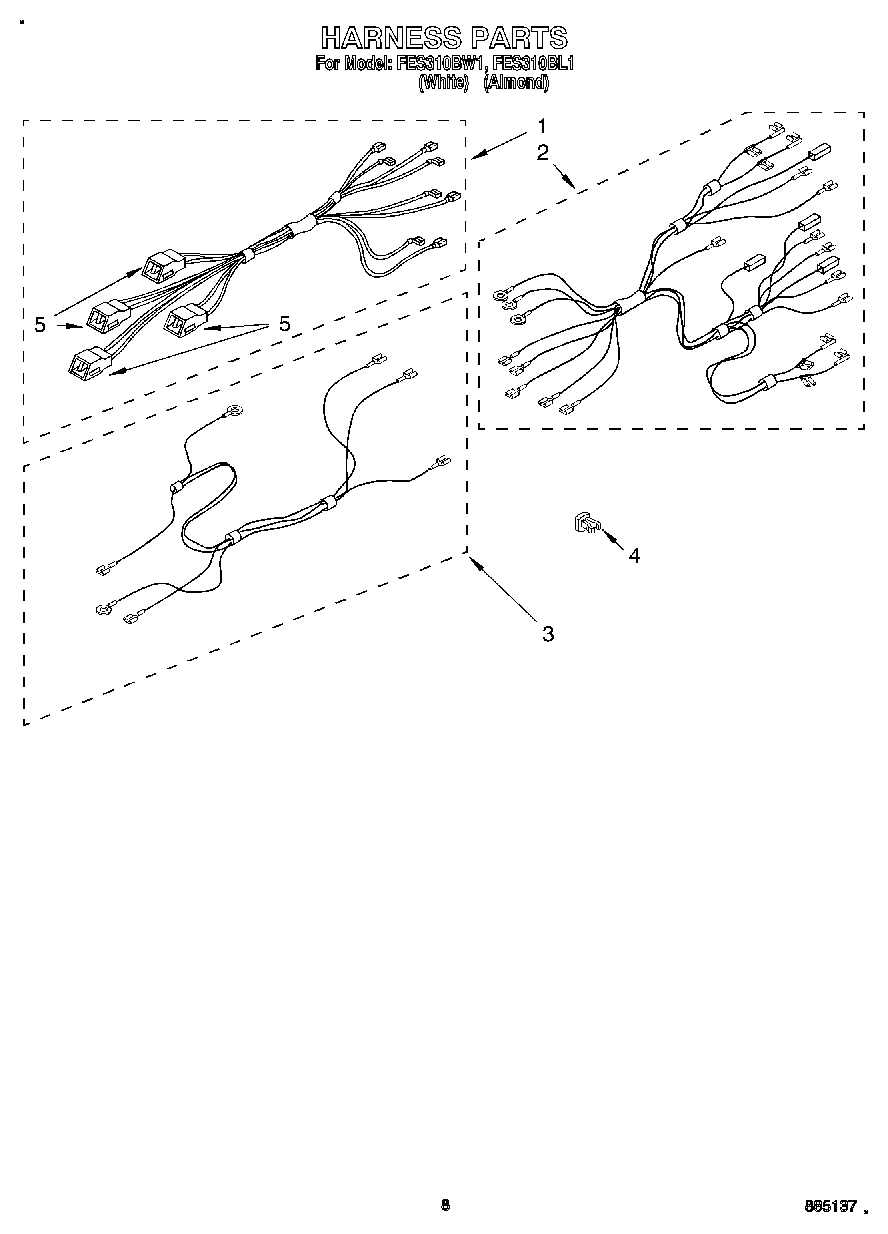

06 - HARNESS, LIT/OPTIONAL

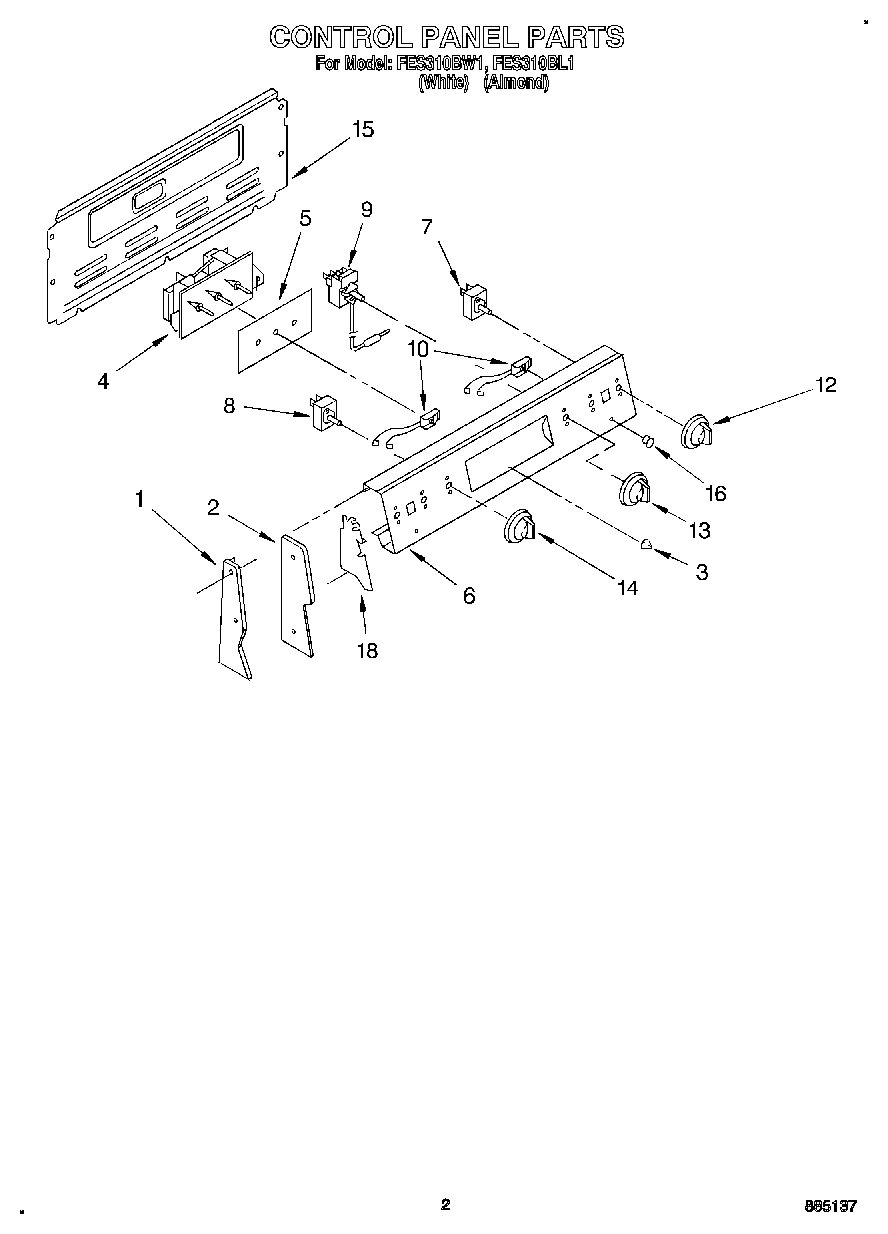

02 - CONTROL PANEL
Common parts from model Whirlpool FES310BL1 ELECTRIC RANGE
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3169454 WPL LIT3169454 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187693 WPL LIT3187693 Contact Us For Availability
1
Latch Mechanism WPL 3148668 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
End Trim (Screw, 8 x 5/8 (2)) WPL 3169366 Contact Us For Availability
1
End Trim (Right) WPL 3187671 Contact Us For Availability
1
End Trim (Left) WPL 3187672 Contact Us For Availability
2
Screw (2) WPL 312717 Contact Us For Availability
2
Safety Switch WPL 3169497 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169486 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Insulator, Switch WPL 3169498 Contact Us For Availability
3
Harness, Wire (Latch Lock) WPL 3169450 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Clip, Snap-In WPL 3169449 Contact Us For Availability
4
Control, Oven Assembly WPL 661458 Contact Us For Availability
5
PAI WPL 799344 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Screw 6-32x.28 WPL 3185059 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Insulation Pyro-Wrap WPL 310433 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Screw (4) WPL 3185647 Contact Us For Availability
6
Panel, Control WPL 3169530 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Switch, Infinite (Screw, (8) 8-32 x 1/4) WPL 308119 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Switch, Selector WPL 3169310 Contact Us For Availability
9
Screw (3) WPL 3150537 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176612 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Thermostat, Oven WPL 3169526 Contact Us For Availability
10
Light, Indicator (250V) WPL 314031 Contact Us For Availability
10
Support, Foot (2) WPL 3169418 Contact Us For Availability
10
Glass, Panel WPL 3148186 Contact Us For Availability
10
Light, Indicator (125V) (Includes No.16) WPL 3150662 Contact Us For Availability
11
Cover, Foot (2) WPL 3169448 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Handle, Door WPL 3184128 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Knob, Thermostat WPL 3149988 Contact Us For Availability
14
Knob, Selector WPL 3149986 Contact Us For Availability
14
Top, Door Vent WPL 3169515 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
16
Lens, Amber (2) WPL 313101 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Shield, R or L WPL 313608 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
21
Panel, Drawer (Black) WPL 3169432 Contact Us For Availability
22
Handle, Drawer WPL 3150615 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Screw (2) 8Ax5/8 WPL 309029 Contact Us For Availability
23
screw (3) WPL 307748 Contact Us For Availability
23
Screw (4) WPL 3149253 Contact Us For Availability
23
Frame, Door WPL 3188997 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
28
Snubber, Door (2) WPL 309111 Contact Us For Availability
28
Anchor (4) WPL 3148605 Contact Us For Availability
31
Button, Plug WPL 308535 Contact Us For Availability
× ![]()
