Model Whirlpool ET9AHTXMQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI55099A3 Contact Us For Availability

WPL ARI55100A5 WPL ARI55100A5 Contact Us For Availability

WPL ARI55101A9 WPL ARI55101A9 Contact Us For Availability

WPL ARI55102A5 WPL ARI55102A5 Contact Us For Availability

WPL ARI55103A6 WPL ARI55103A6 Contact Us For Availability

1

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.97

1

Housing, Dispenser WPL 2219617 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

2

Shelf Assembly, Cantilever (Includes 20, 26, WPL 2201107K Contact Us For Availability

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $177.47

3

Tray, Door WPL 2159302 Contact Us For Availability

3

Condenser WPL 2214960 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $134.62

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $105.74

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

5

Shelf, Ladder WPL 2202821 Contact Us For Availability

6

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

6

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.52

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $14.99

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Drain Pan WPL 2254294 Contact Us For Availability

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $86.42

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $4.99

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $128.99

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $114.99

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $196.71

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $51.60

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

Support Block WPL 2201184 Contact Us For Availability

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

13

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $90.86

13

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $120.99

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

15

8201647 Whirlpool Refrigerator Start Device Backorder WPL 8201647 $121.51

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

15

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

16

WP2301684 Whirlpool Retainer Backorder WPL WP2301684 $49.33

16

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

16

Trim, Meat Pan WPL 2176356 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

18

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

18

Door Bin (3) WPL 2204811 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

Slide, Humidity Control WPL 2176222 Contact Us For Availability

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

20

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

20

Glass, Half Shelf WPL 2200985 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

22

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

22

Shelf Assembly, Cantilever (Includes 29, 30, WPL 2201109 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

24

Relay WPL 2183454 Contact Us For Availability

25

Shelf Assembly, Meat Pan (Includes 20, 26, 27 WPL 2201111 Contact Us For Availability

26

Trim, Shelf Front WPL 2188684 Contact Us For Availability

27

WP2188689 Whirlpool Refrigerator Shelf Trim Backorder WPL WP2188689 $77.73

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

27

Thermostat (Also Order 542369 Cement Alumilas WPL 2210489 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

Trim, Shelf Side WPL 2188711 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

Trim, Shelf (Front) WPL 2188690 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

31

Compartment Door WPL 2218109 Contact Us For Availability

31

Glass, Cantilever WPL 2200986 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

37

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

38

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

39

Air Baffle WPL 2198921 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

40

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

41

Plate WPL 2210750 Contact Us For Availability

42

CLIP, GRILLE WPL 2189356 Contact Us For Availability

42

Wire Assembly Unit WPL 2187756 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $62.23

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $70.20

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

54

Tube, Water WPL 2301621 Contact Us For Availability

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $100.75

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI55097A9 Contact Us For Availability

REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI55098A4 Contact Us For Availability

99

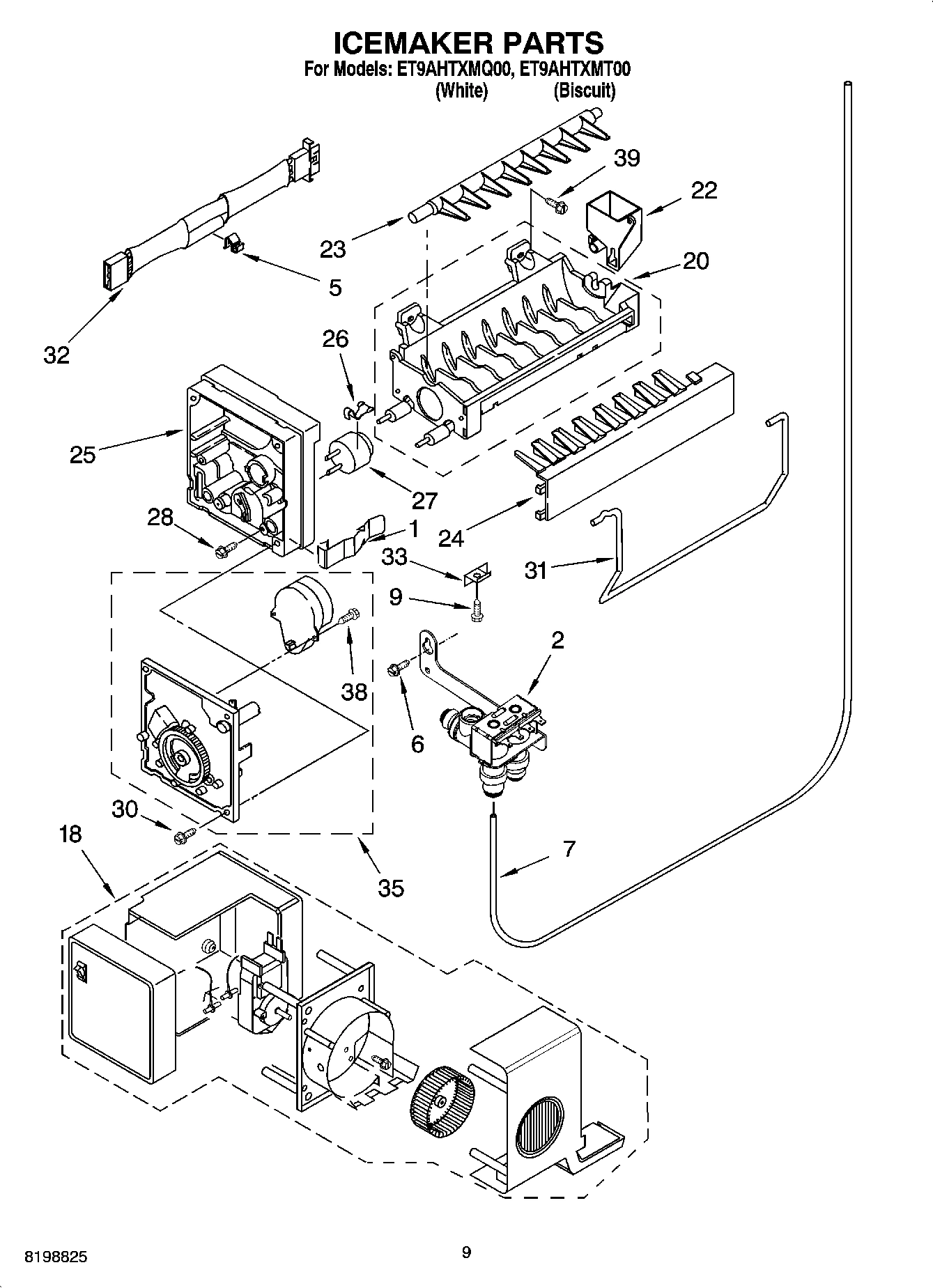

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
