Model Whirlpool ET22DQRBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

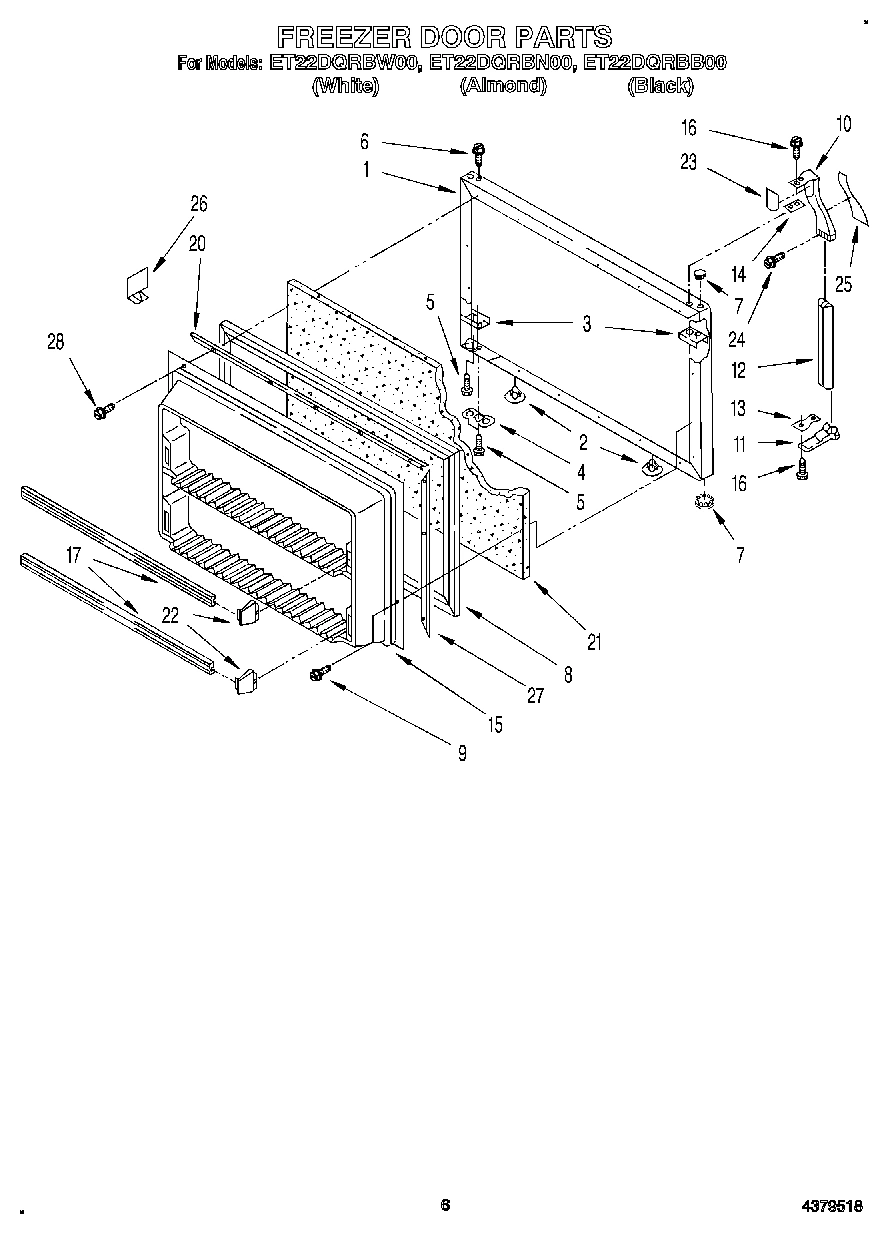

04 - FREEZER DOOR

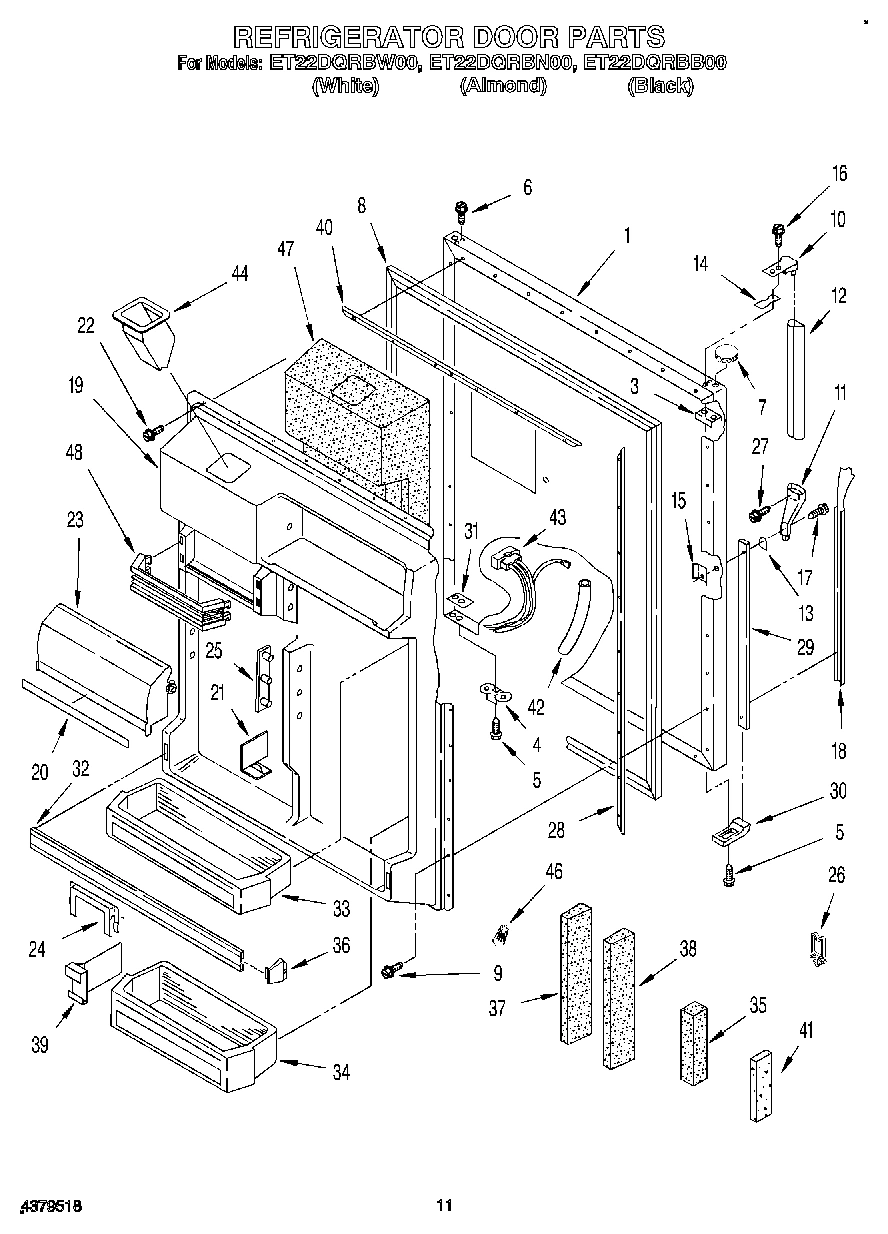

07 - REFRIGERATOR DOOR

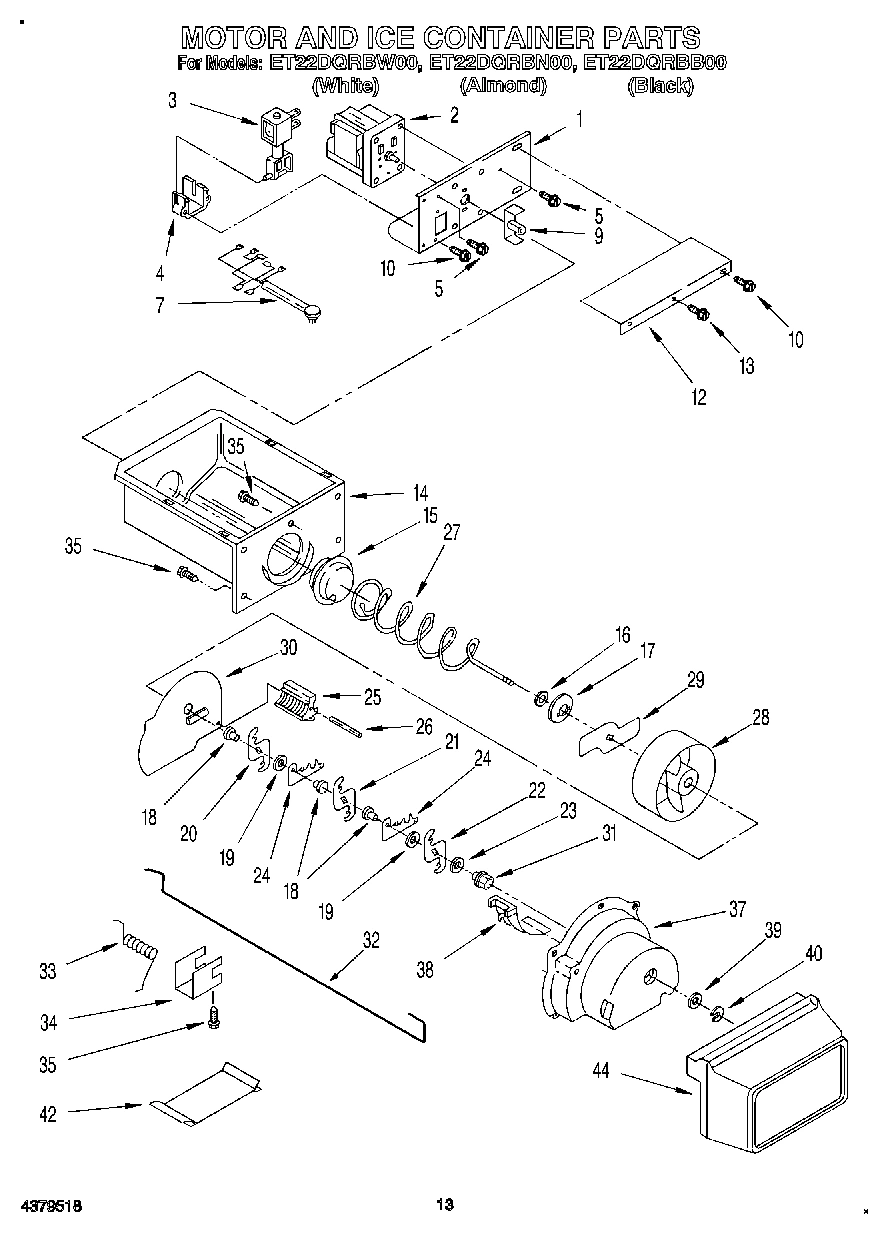

08 - MOTOR AND ICE CONTAINER

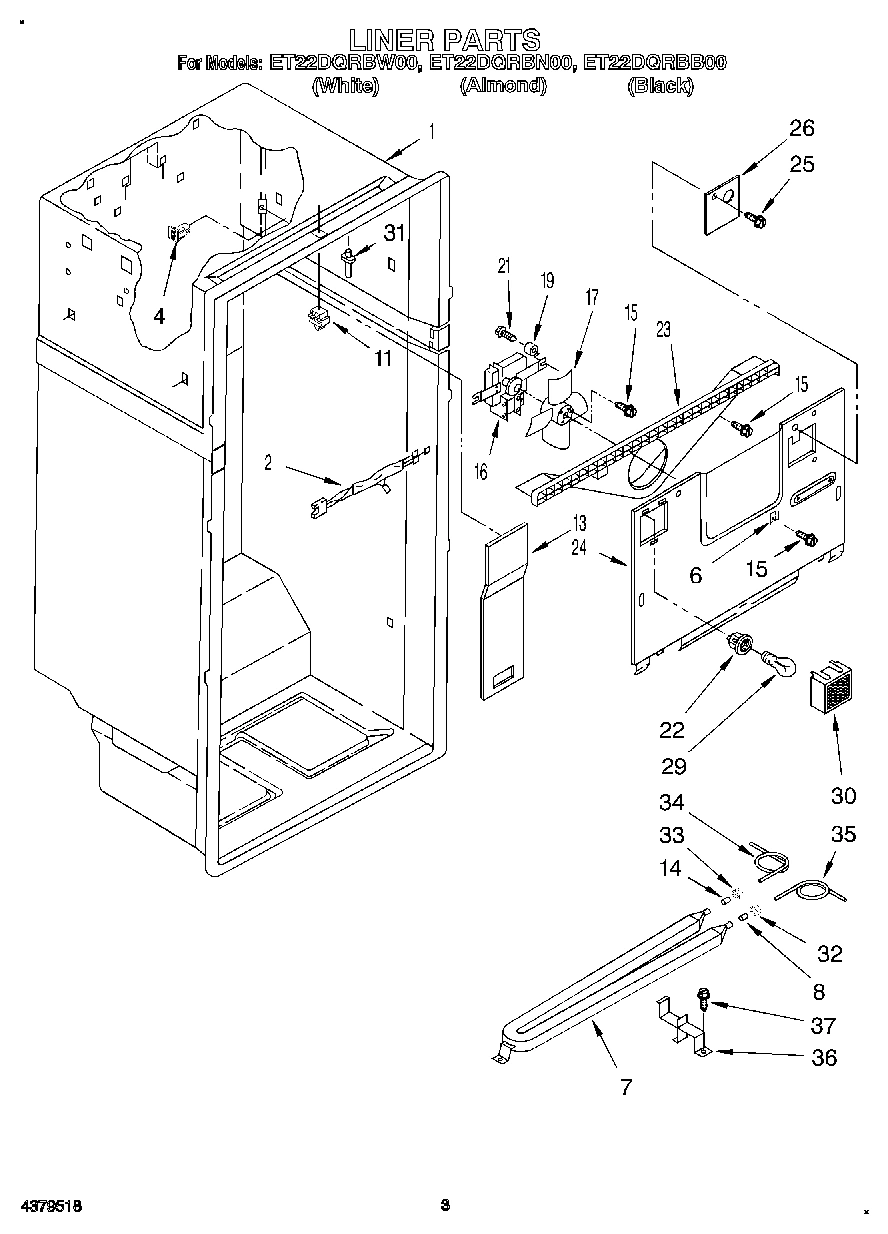

02 - LINER

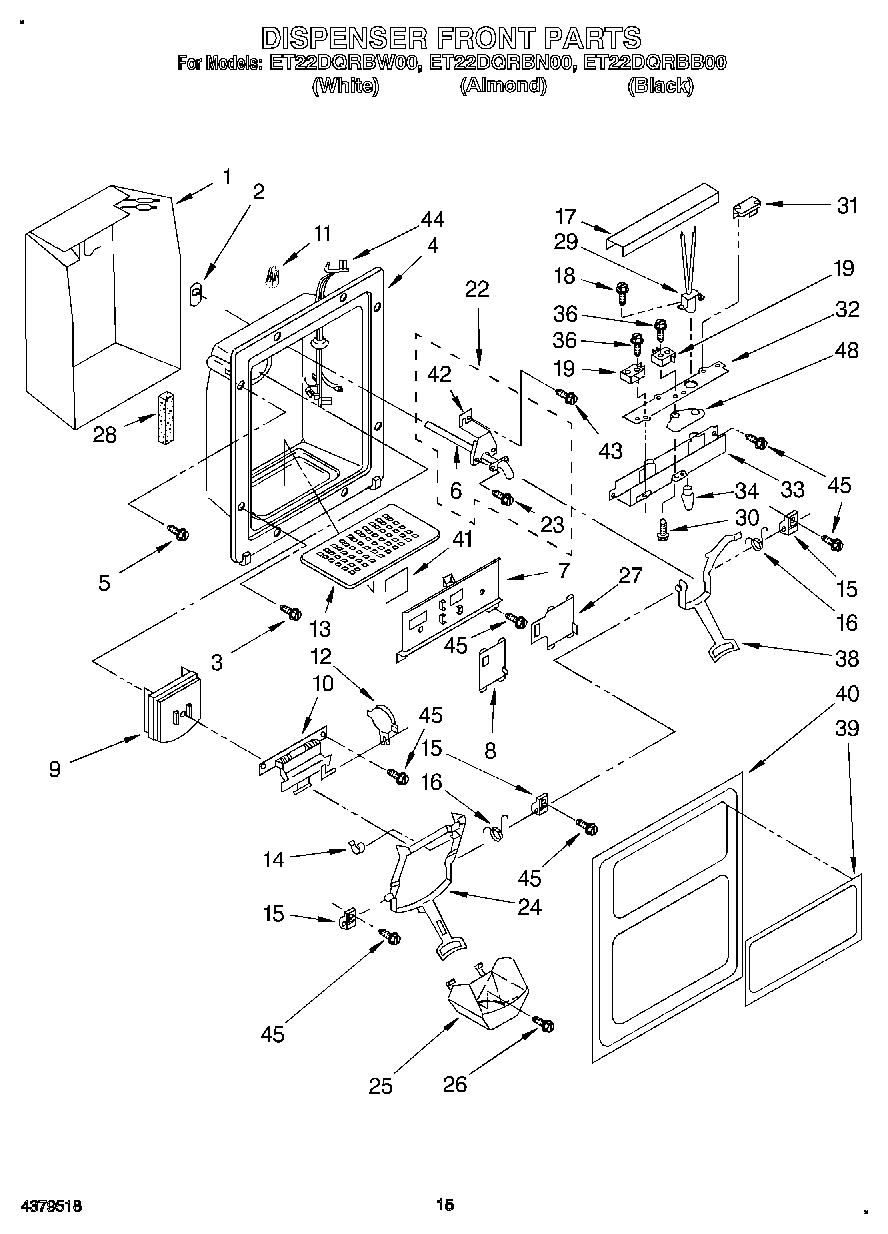

09 - DISPENSER FRONT

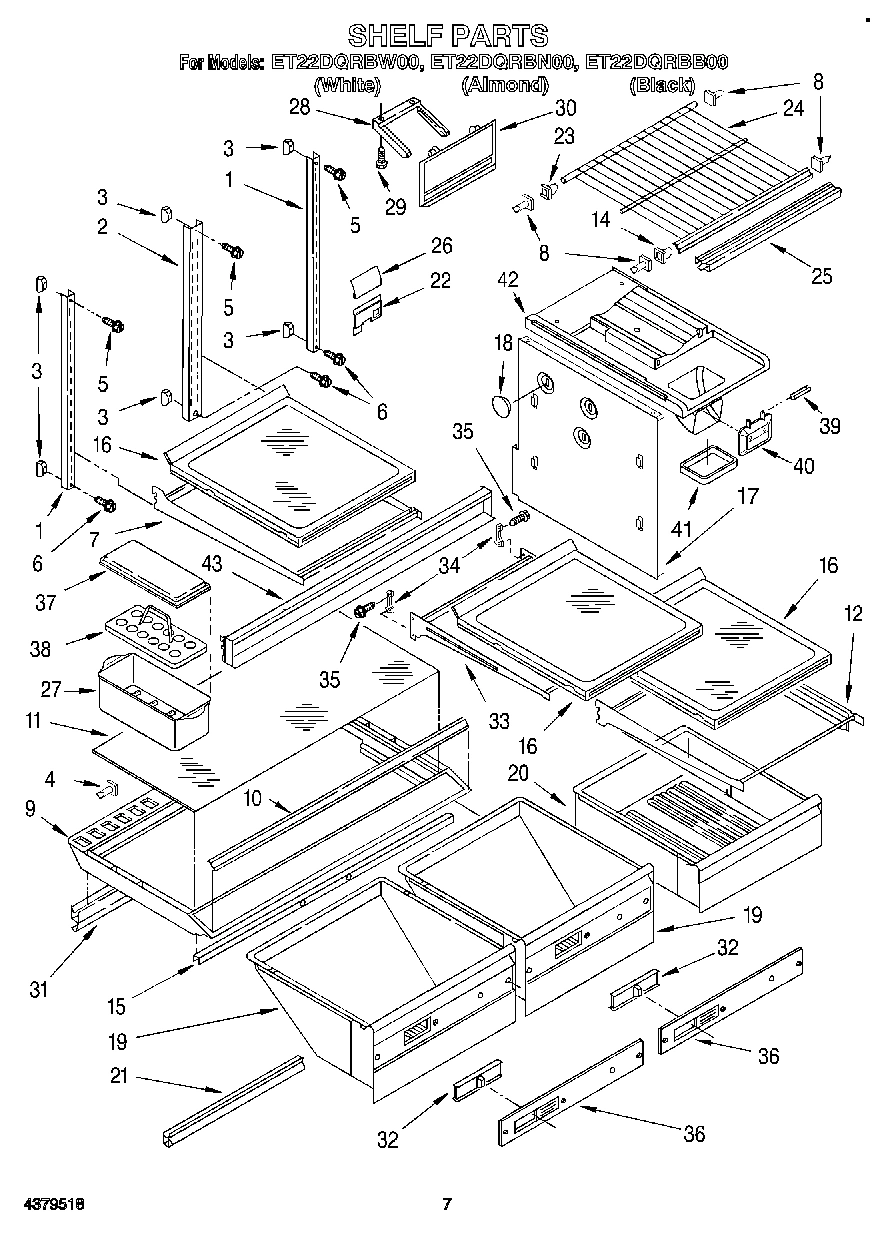

05 - SHELF, LIT/OPTIONAL

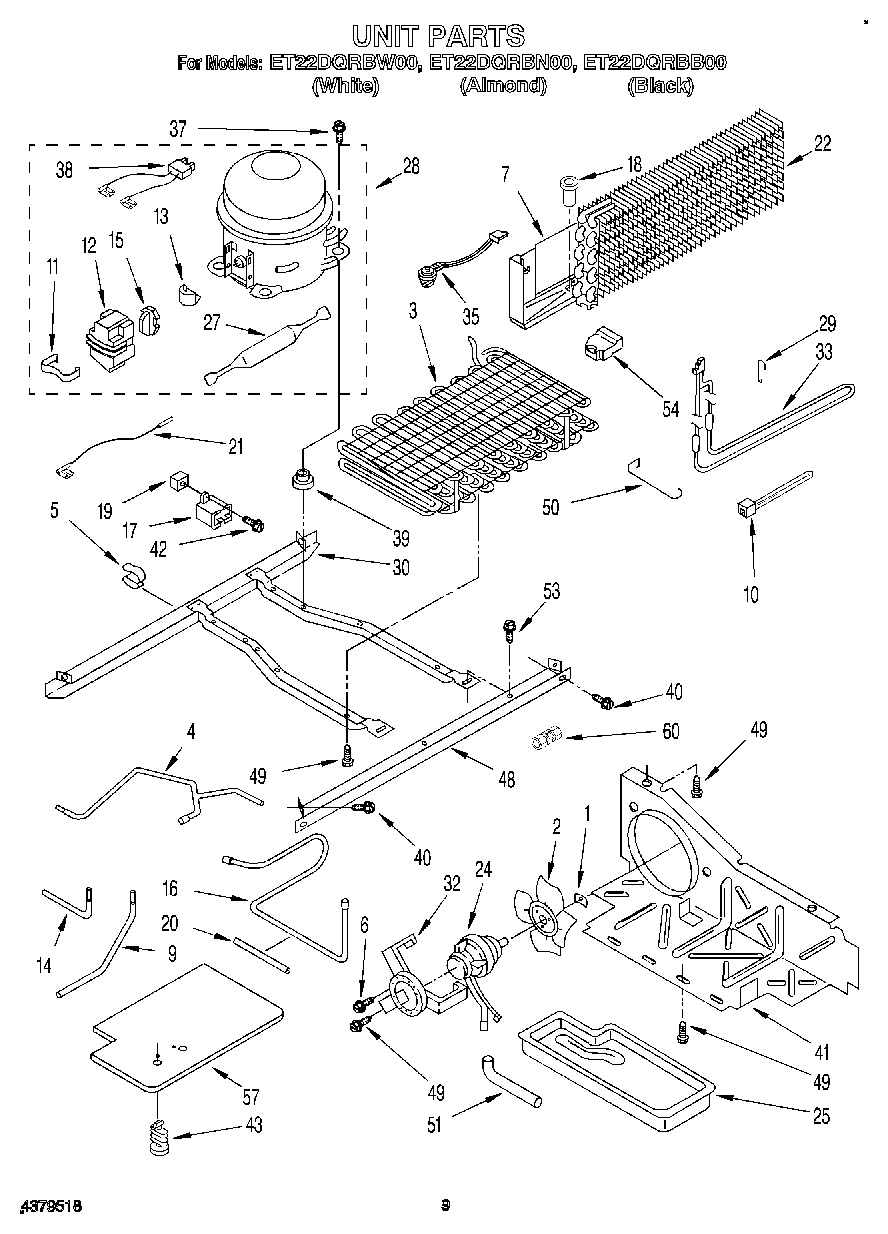

06 - UNIT

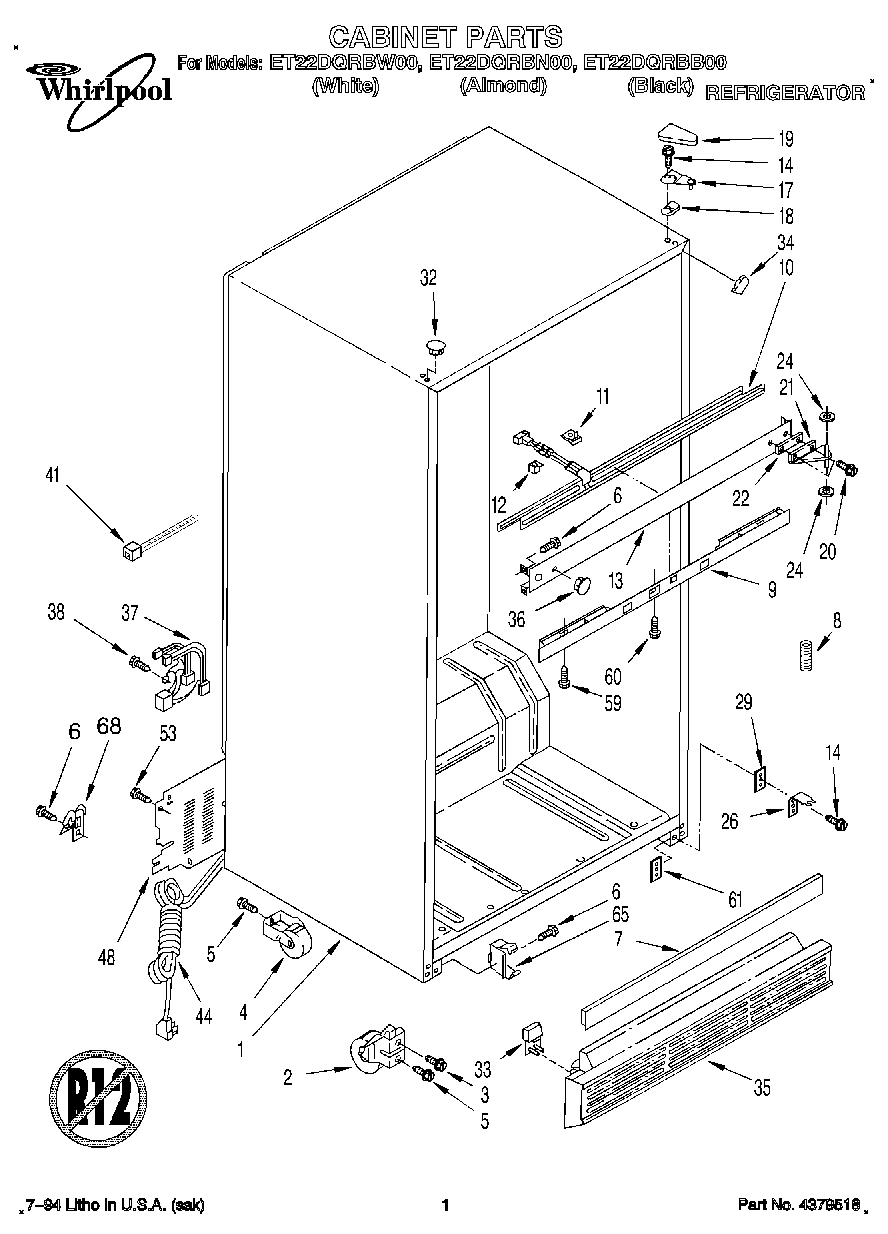

01 - CABINET

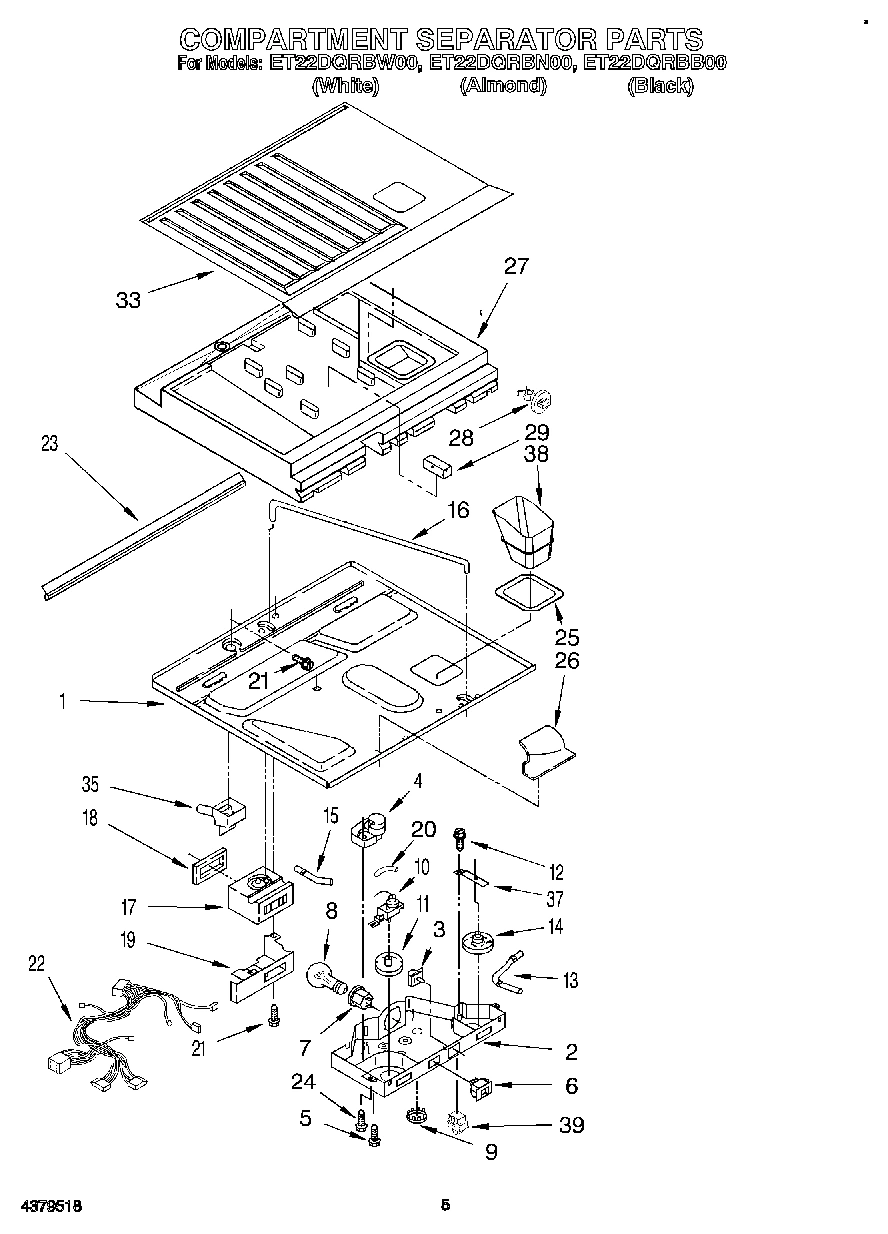

03 - COMPARTMENT SEPARATOR

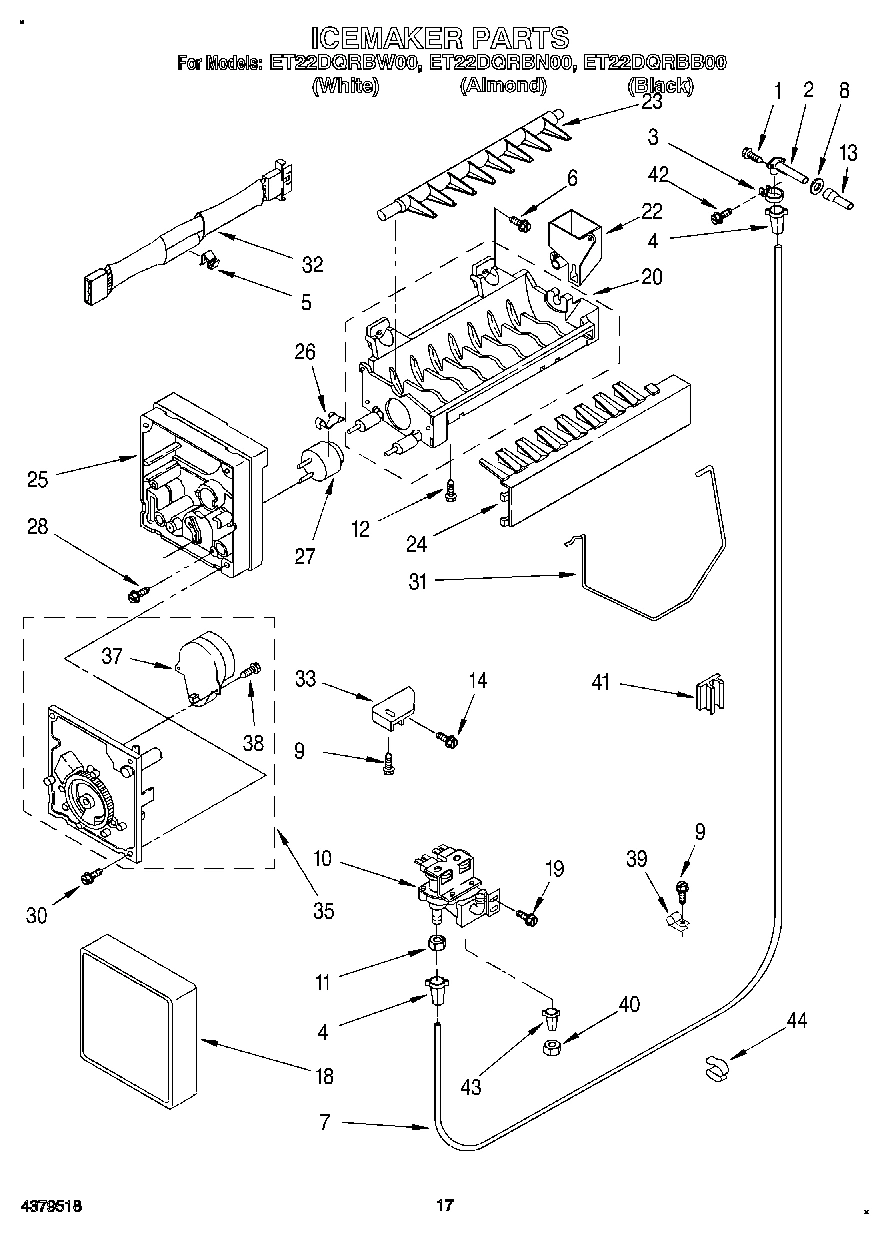

10 - ICEMAKER
Common parts from model Whirlpool ET22DQRBN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169248 WPL LIT2169248 Contact Us For Availability
WPL LIT2170501 WPL LIT2170501 Contact Us For Availability
WPL LIT2170982 WPL LIT2170982 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146802A Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146801A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172824 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2160635 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Tube, Water (Not a Serviceable Part) WPL ARI146804A Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2160306 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162846 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162981 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Shelf Assembly, Cantilever WPL 2166327 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Shelf Stud WPL 946356 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI146803A Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability
16
Tube, Suction WPL 2162472 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Support Wall I/M WPL 2160619 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162856 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Pan, Meat WPL 2162930 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Wire, Assembly Overload WPL 2159678 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Baffle-Air, I/M WPL 2157452 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160693 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Trim, Shelf WPL 2170854 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
26
Screw (White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (Black Model) WPL 489197 Contact Us For Availability
26
Gasket, Baffle I/M WPL 2160729 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2172897 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
WPL 2147164 WPL 2147164 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
WPL 2147163 WPL 2147163 Contact Us For Availability
33
Slide Shelf Frame, Cantilever WPL 2169603 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2160624 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
35
Grille (Black) WPL 2160686 Contact Us For Availability
35
Grille (Almond) WPL 2160757 Contact Us For Availability
35
Grille (White) WPL 2168621 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
WPL 489155 WPL 489155 Contact Us For Availability
36
Crisper, Pan Front WPL 2162851 Contact Us For Availability
36
Hole Plug (White) WPL 1129062 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Cover, Egg Bin WPL 2164374 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2149199 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162923 WPL 2162923 Contact Us For Availability
39
WPL 2162924 WPL 2162924 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
WPL 2148705 WPL 2148705 Contact Us For Availability
40
WPL 2162925 WPL 2162925 Contact Us For Availability
40
WPL 2162927 WPL 2162927 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Door Removal Instructions WPL 2168575 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
43
WPL 542639 WPL 542639 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
46
WPL 227991 WPL 227991 Contact Us For Availability
47
WPL 2160683 WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 2170851 WPL 2170851 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
