Model Whirlpool ET20GKXZN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR

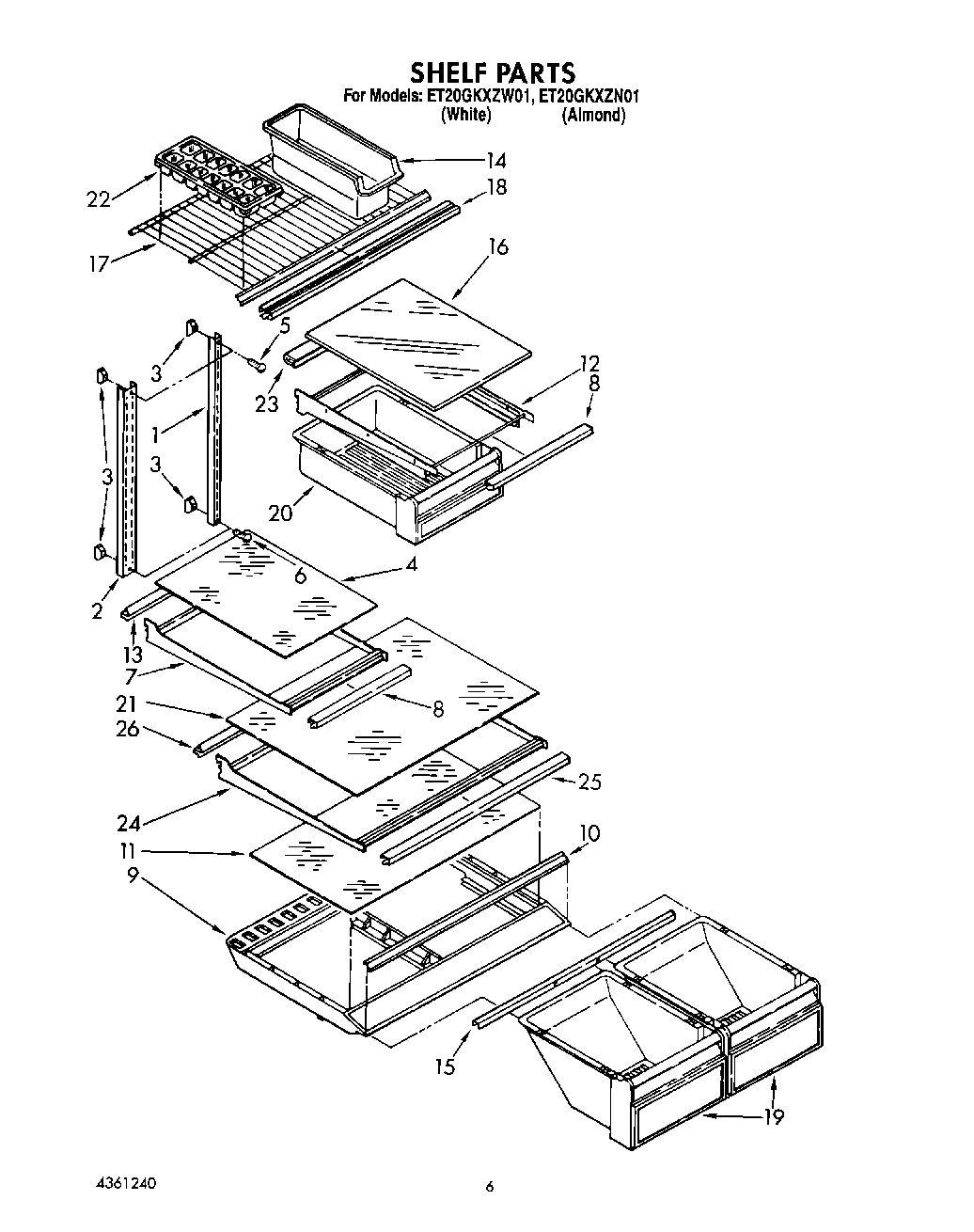

05 - SHELF

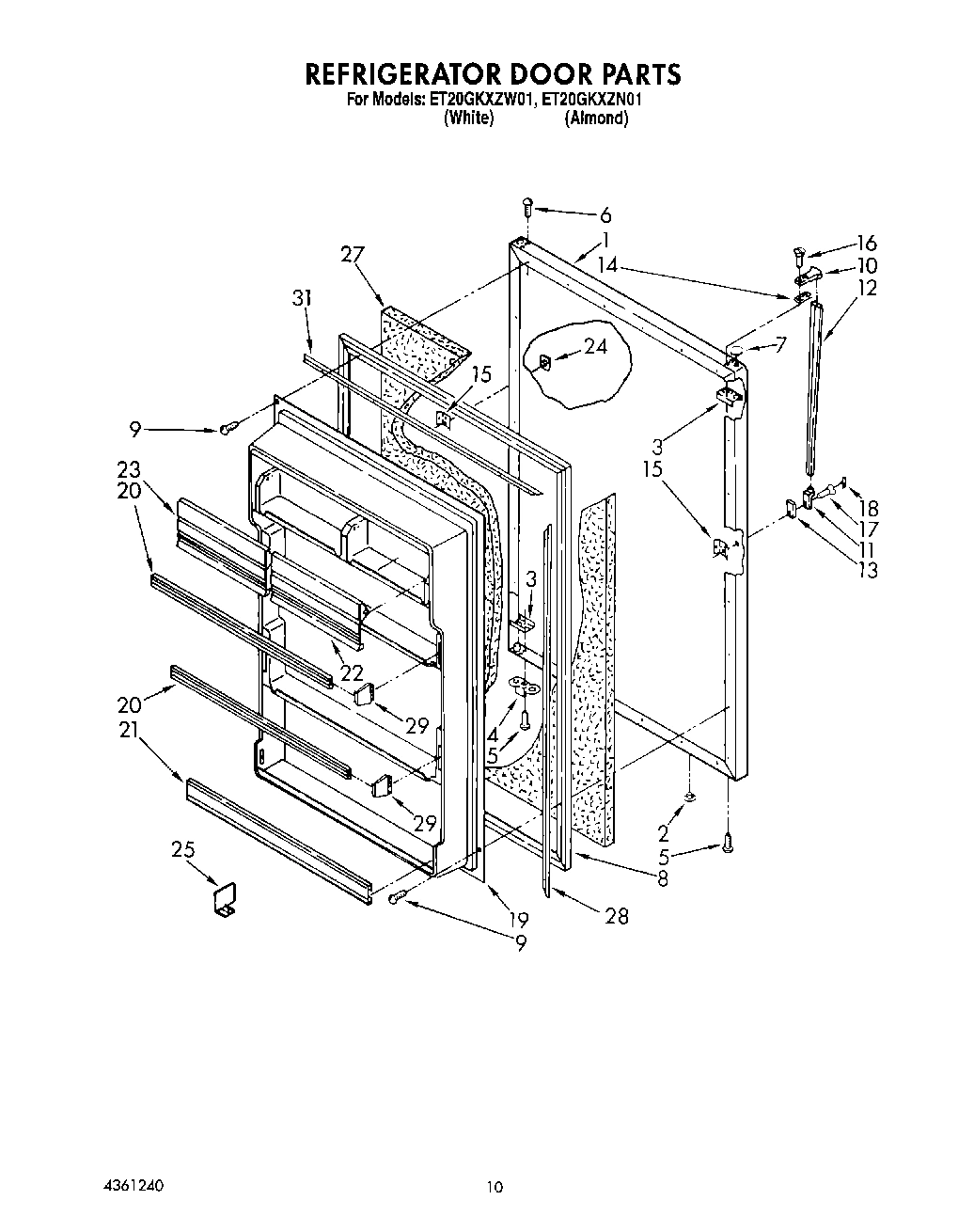

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

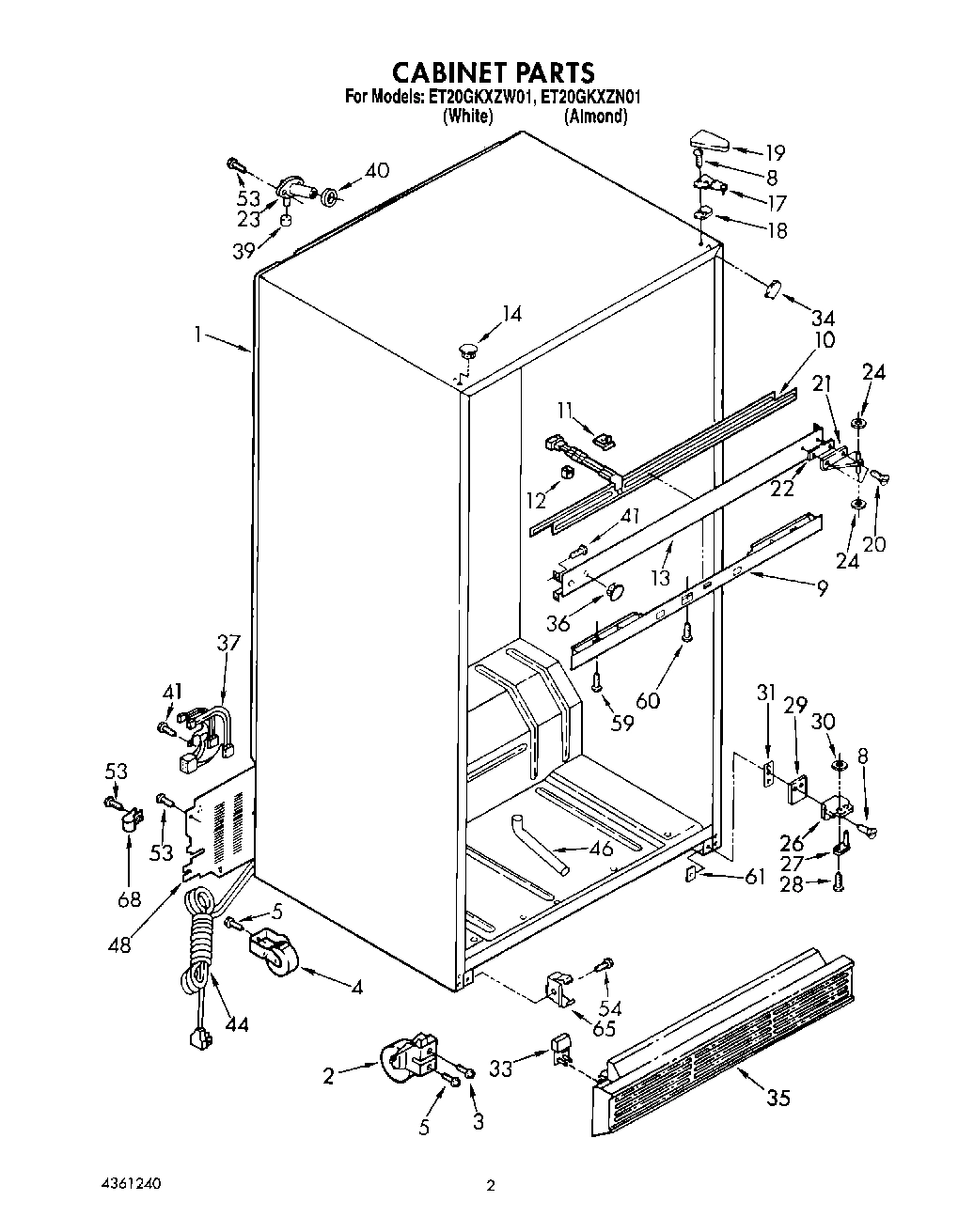

02 - CABINET

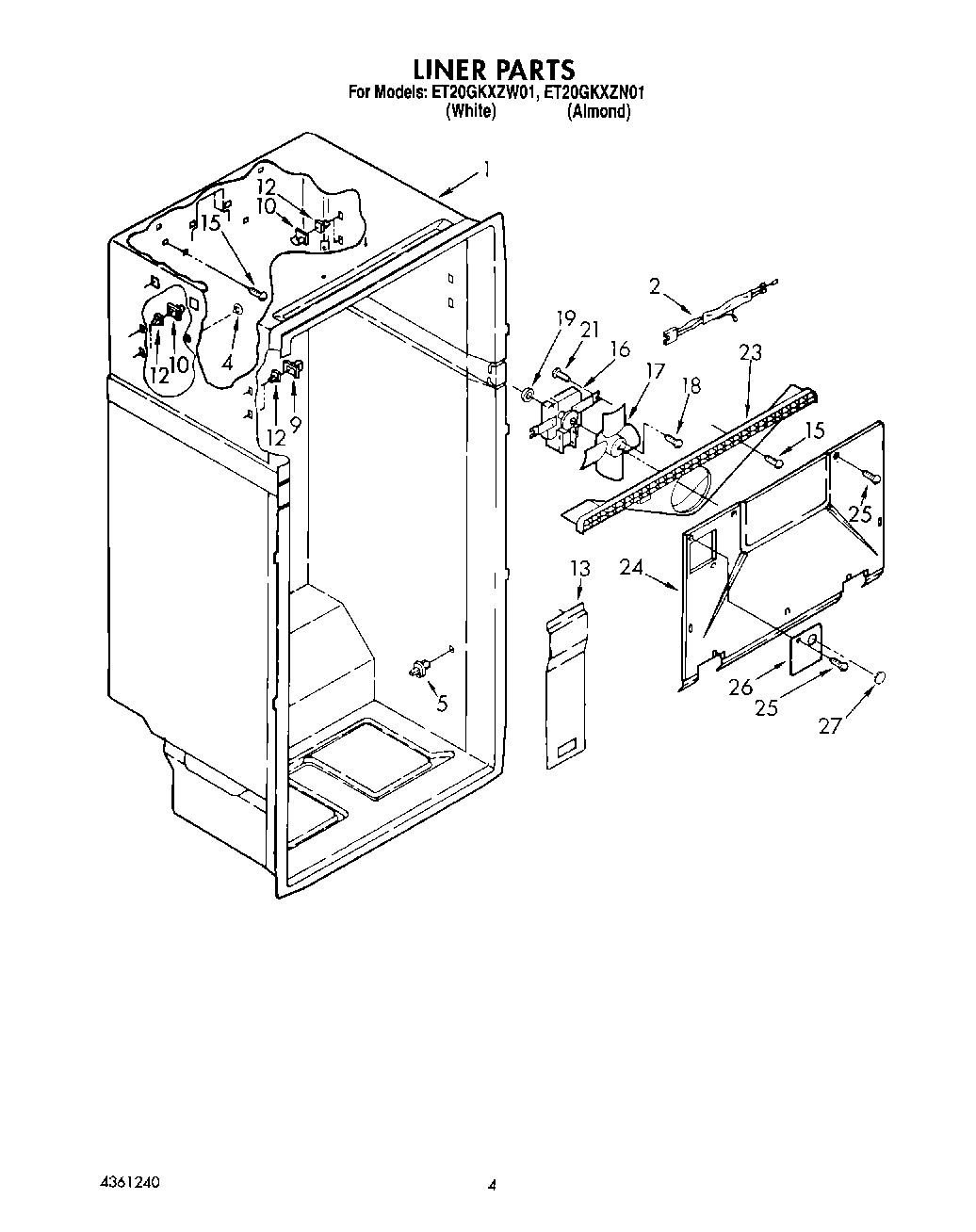

03 - LINER

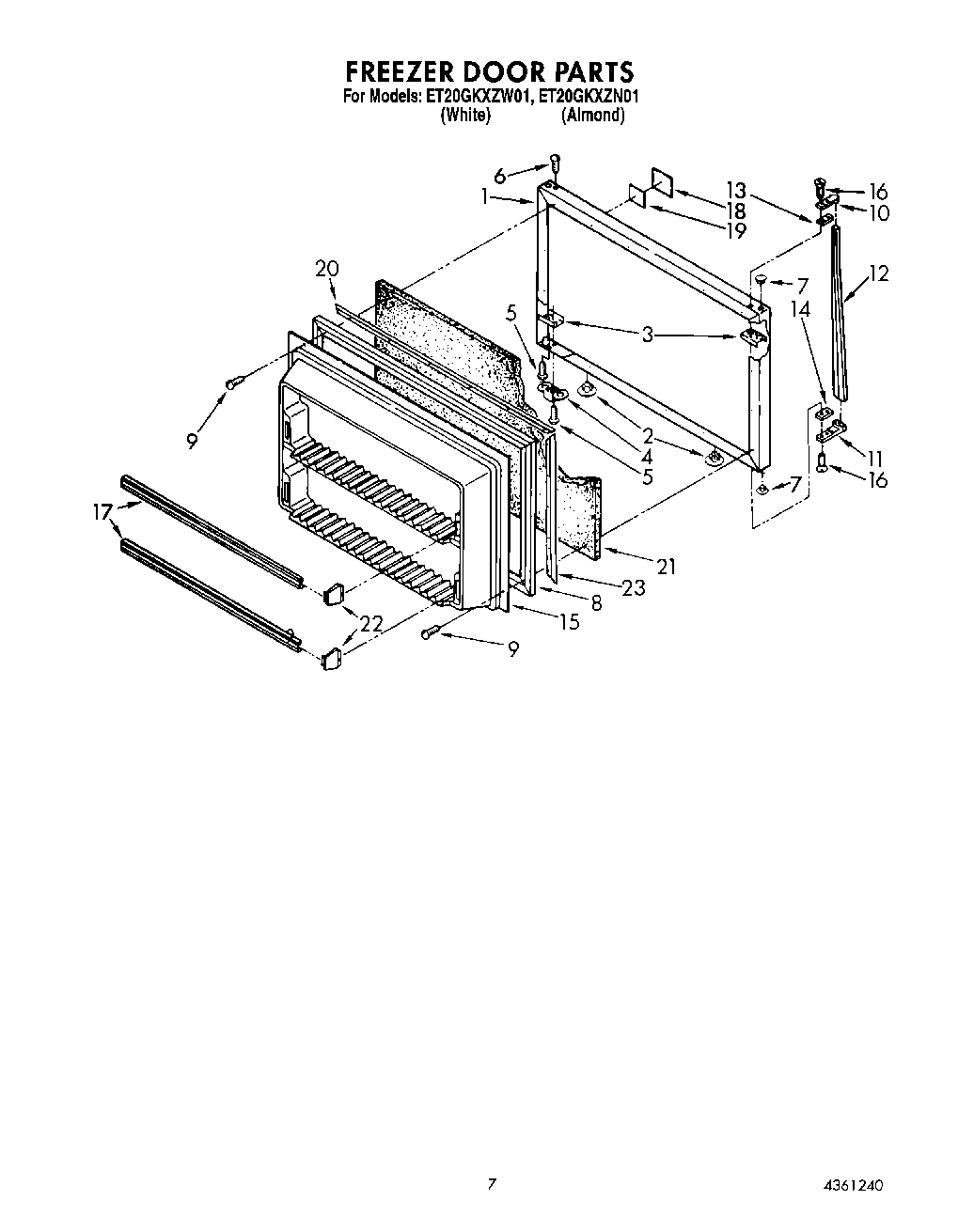

06 - FREEZER DOOR

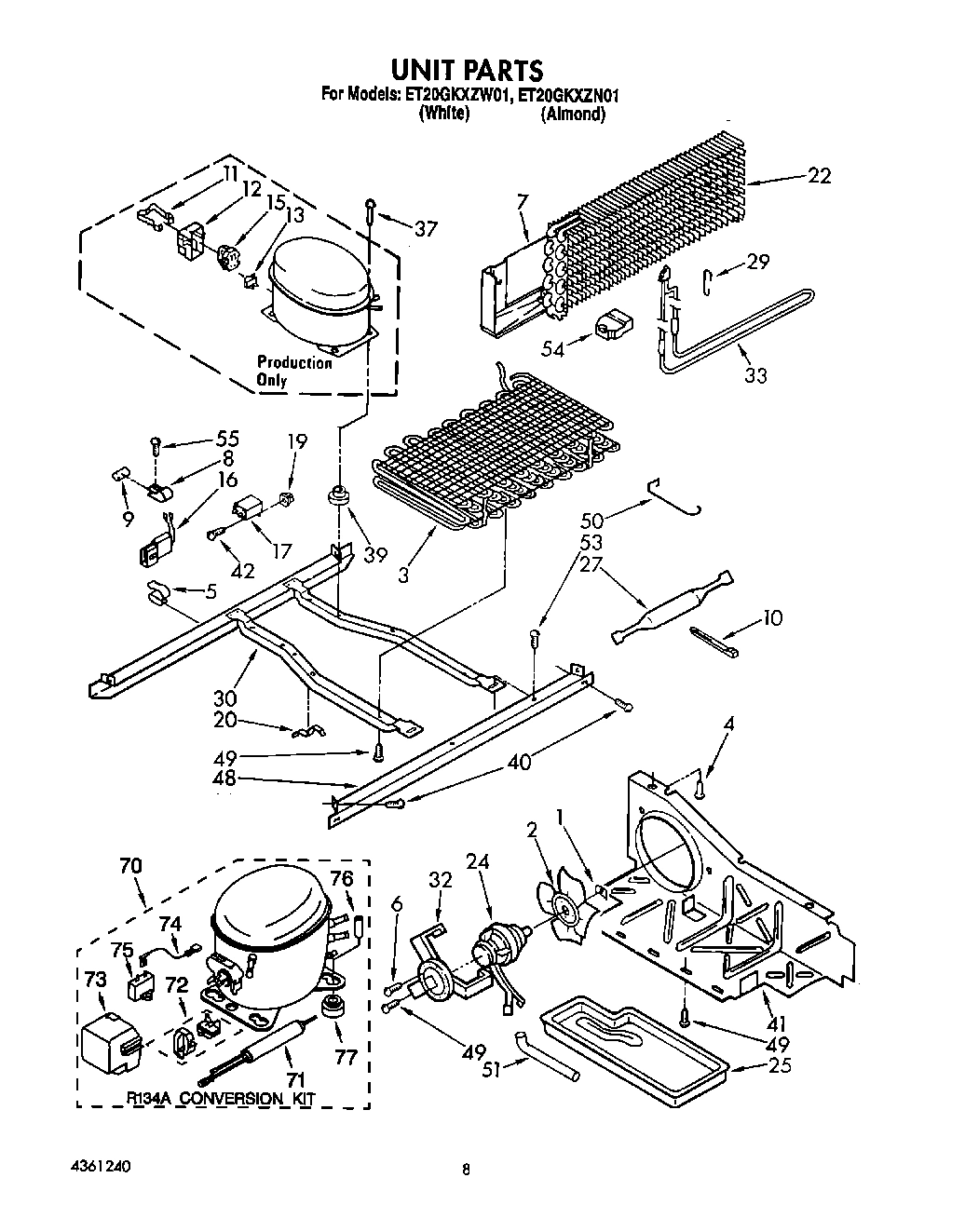

07 - UNIT
Common parts from model Whirlpool ET20GKXZN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48766A5 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48767A7 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Control, Front Cover WPL 2148146 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Handle, Center WPL 1111547 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 836194 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
13
Overload WPL 2154140 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148169 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
19
Interior Door Panel WPL 2156205 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Trim, Door (2) WPL 2148750 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Clip, Unit Cover WPL 548744 Contact Us For Availability
21
Trim, Door WPL 2148170 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Compartment Door (R.S.) WPL 2148167 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Compartment Door (L.S.) WPL 2148168 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157426 Contact Us For Availability
25
Divider, Door Shelf WPL 1114380 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Heater, Defrost WPL 2154736 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support, Evaporator (L.S.) WPL 1118806 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388006 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
