Model Whirlpool ET19RKXFW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER

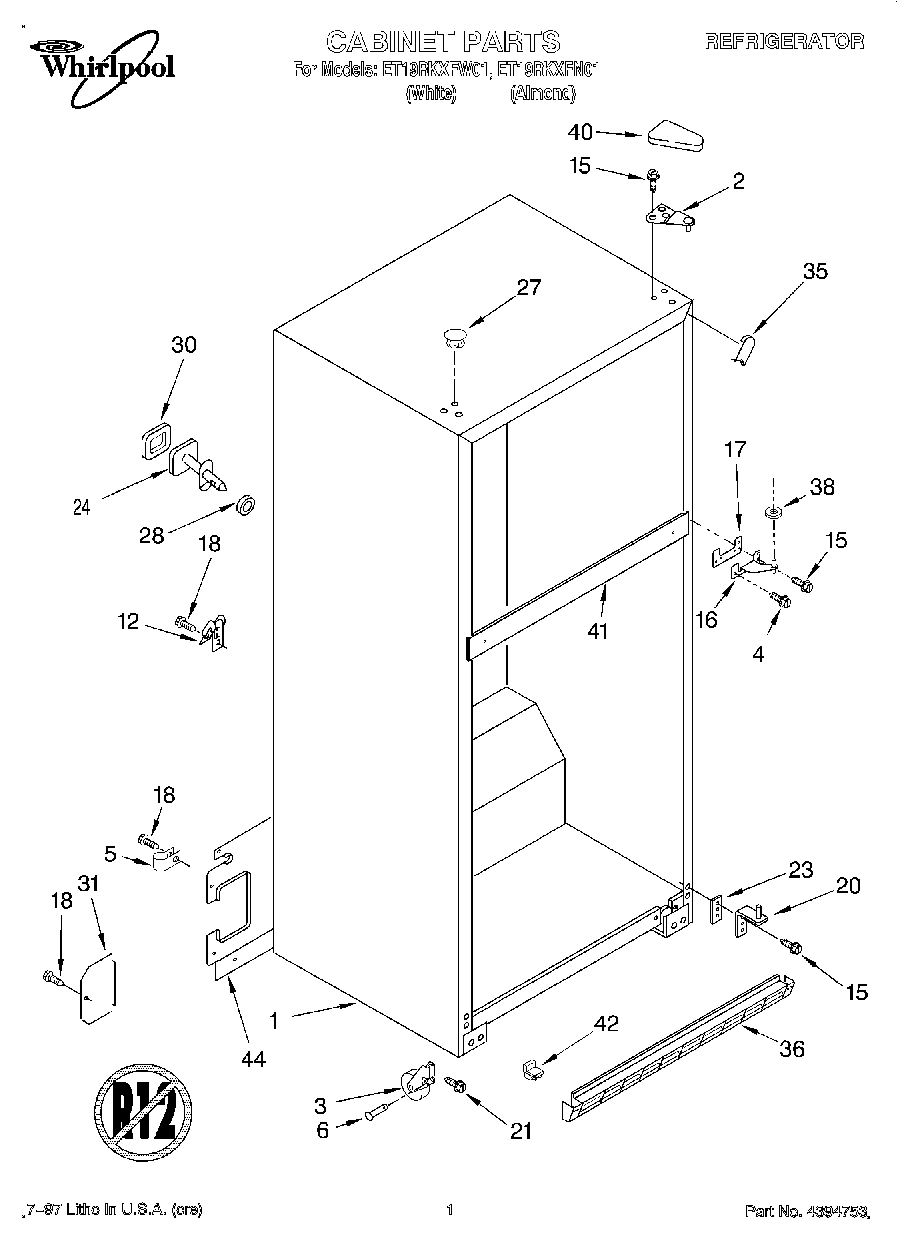

01 - CABINET

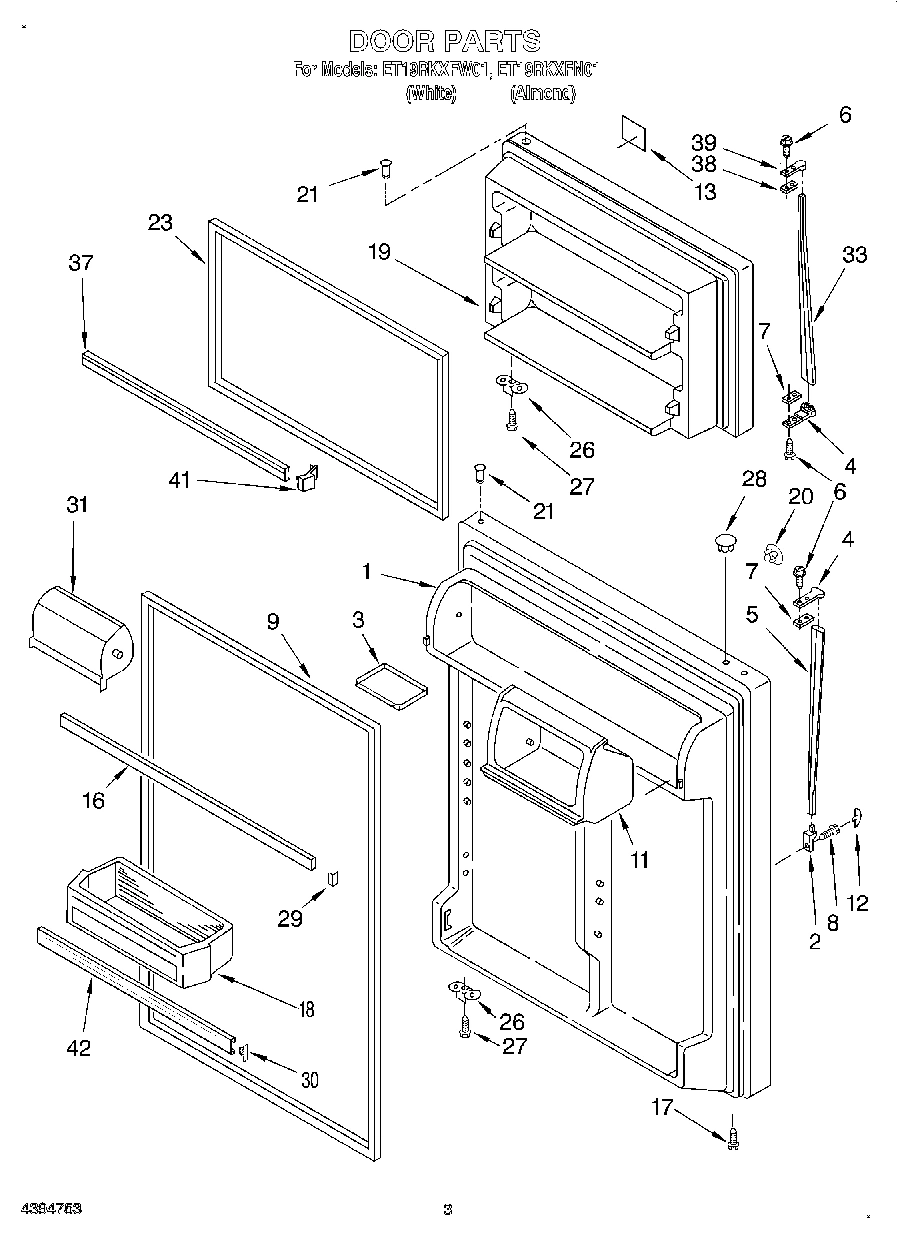

02 - DOOR

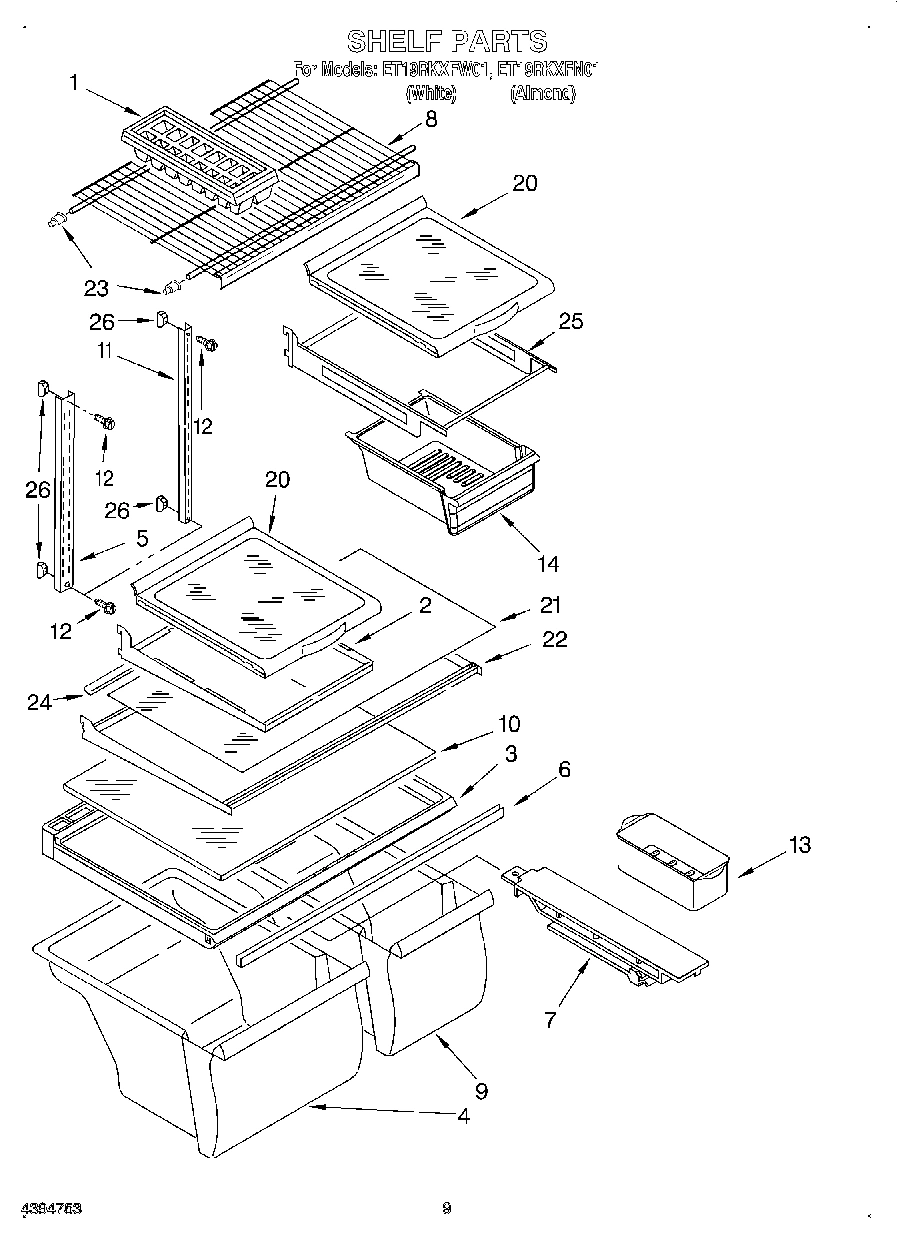

05 - SHELF, LIT/OPTIONAL

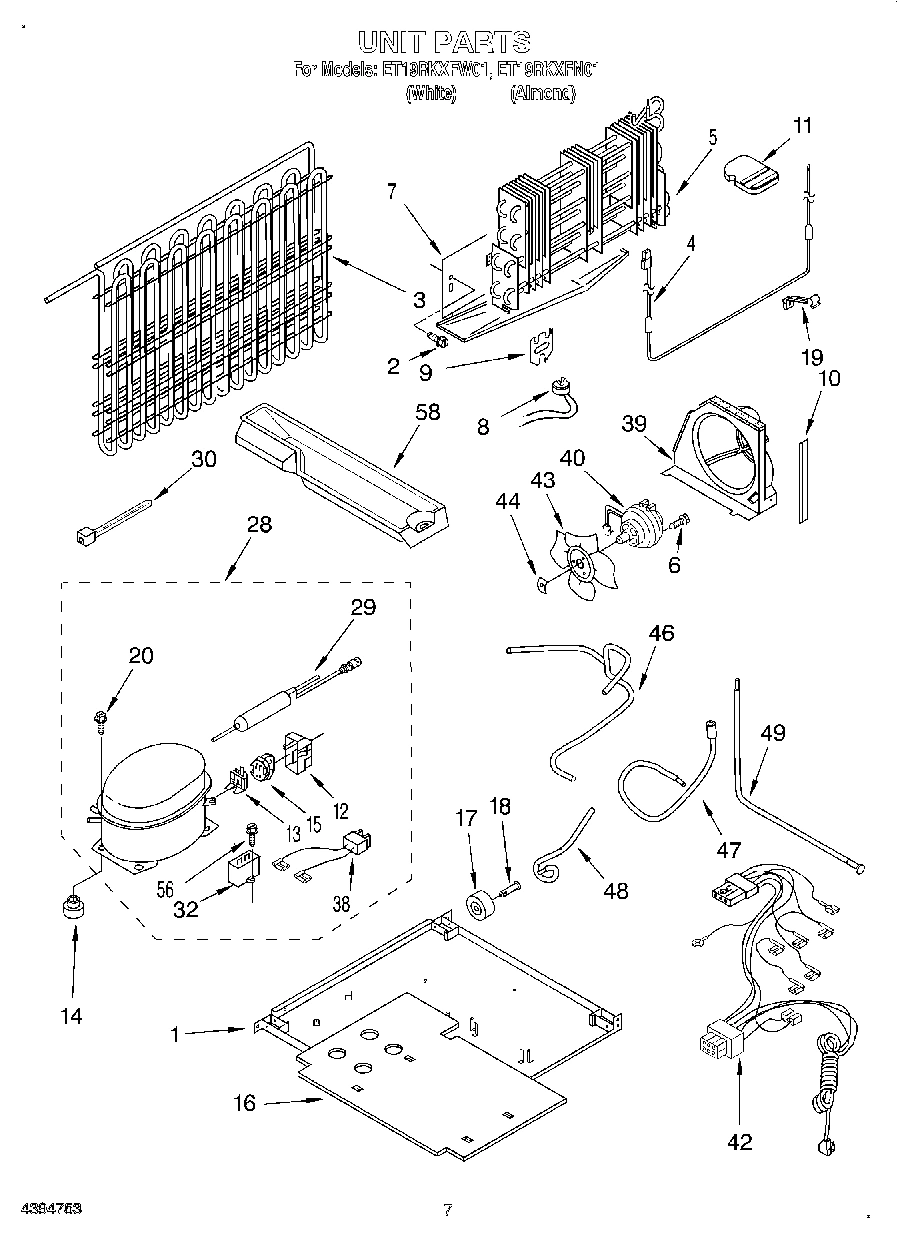

04 - UNIT
Common parts from model Whirlpool ET19RKXFW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195369 WPL LIT2195369 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2195605 WPL LIT2195605 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
2
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Shelf Ladder, WPL 2163826 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
11
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
11
Support Block WPL 2176302 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
15
Relay (See Overload) WPL ARI45595A7 Contact Us For Availability
16
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
18
Door Bin (3) WPL 2179590 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2183860 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2183861 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
20
Shelf Assembly, Spillguard WPL 2195500 Contact Us For Availability
20
Screw, Compressor WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Glass, Full Shelf WPL 2177824 Contact Us For Availability
22
Shelf, Cantilever WPL 2163862 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Trim, Shelf Rear WPL 2193394 Contact Us For Availability
25
Pan Shelf, Cantilever WPL 2179716 Contact Us For Availability
26
Screw Support WPL 2189314 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Plug-Trim WPL 2177340 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
37
Trim-Door (2) WPL 2171282 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2189161 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SL WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 2,13,14, 20, & 25) Also WPL 2182573 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
