Model Whirlpool ET18HTXBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

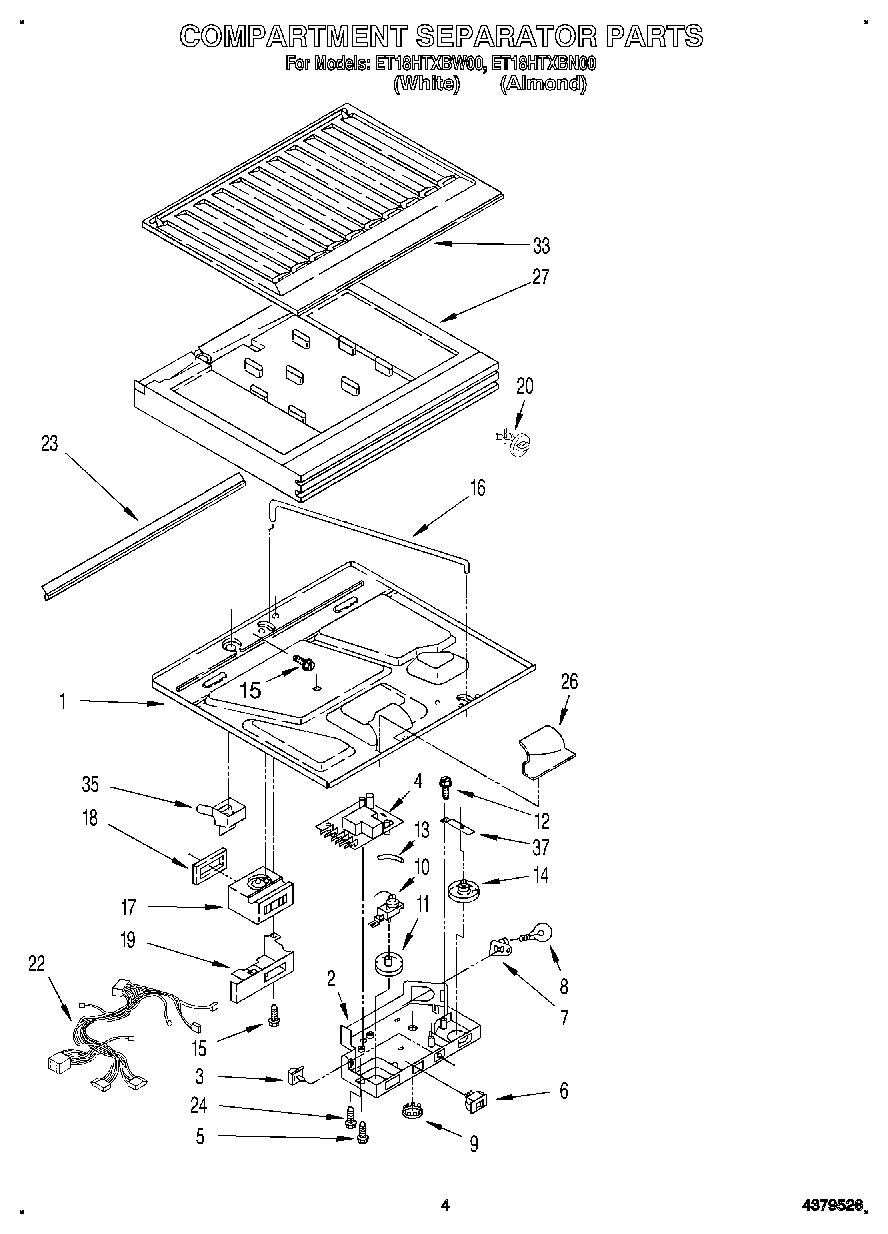

03 - COMPARTMENT SEPARATOR

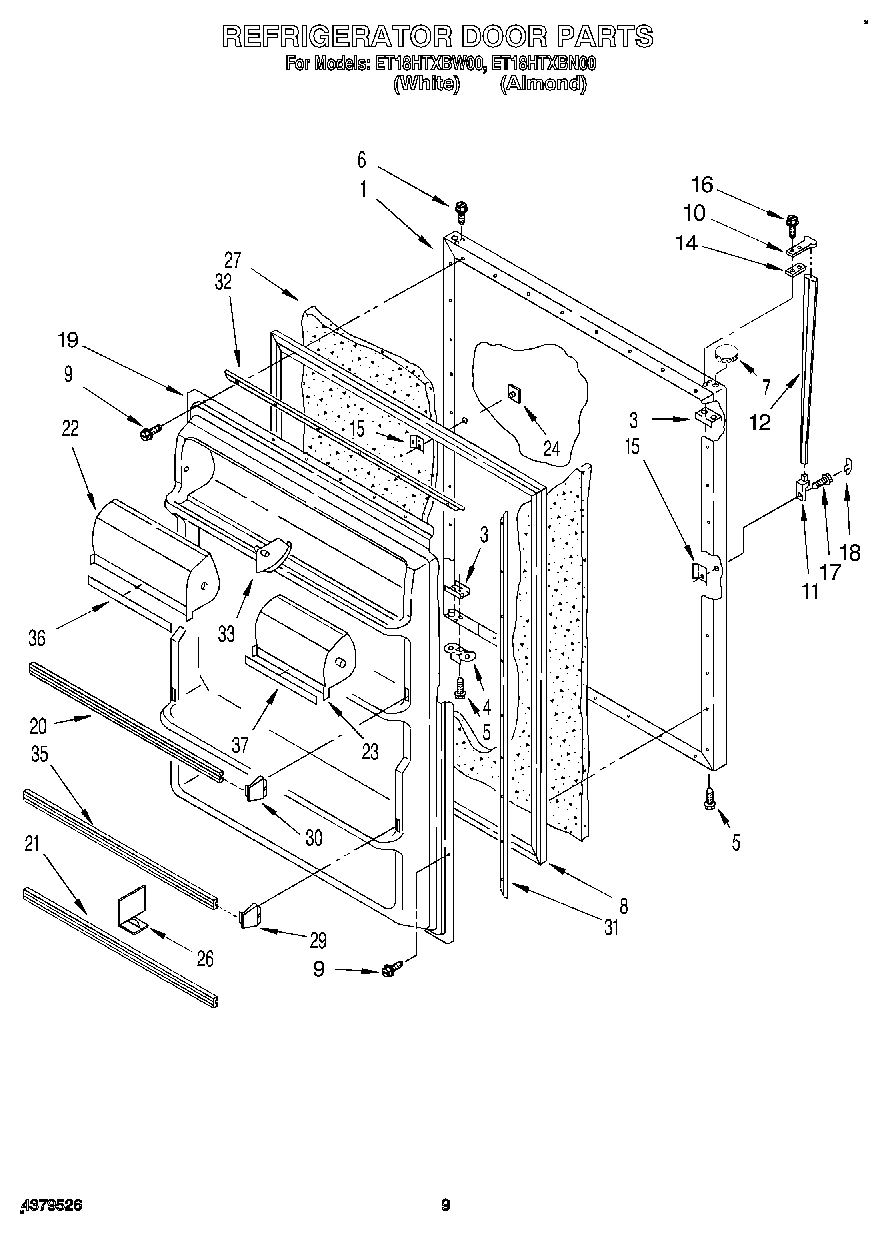

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

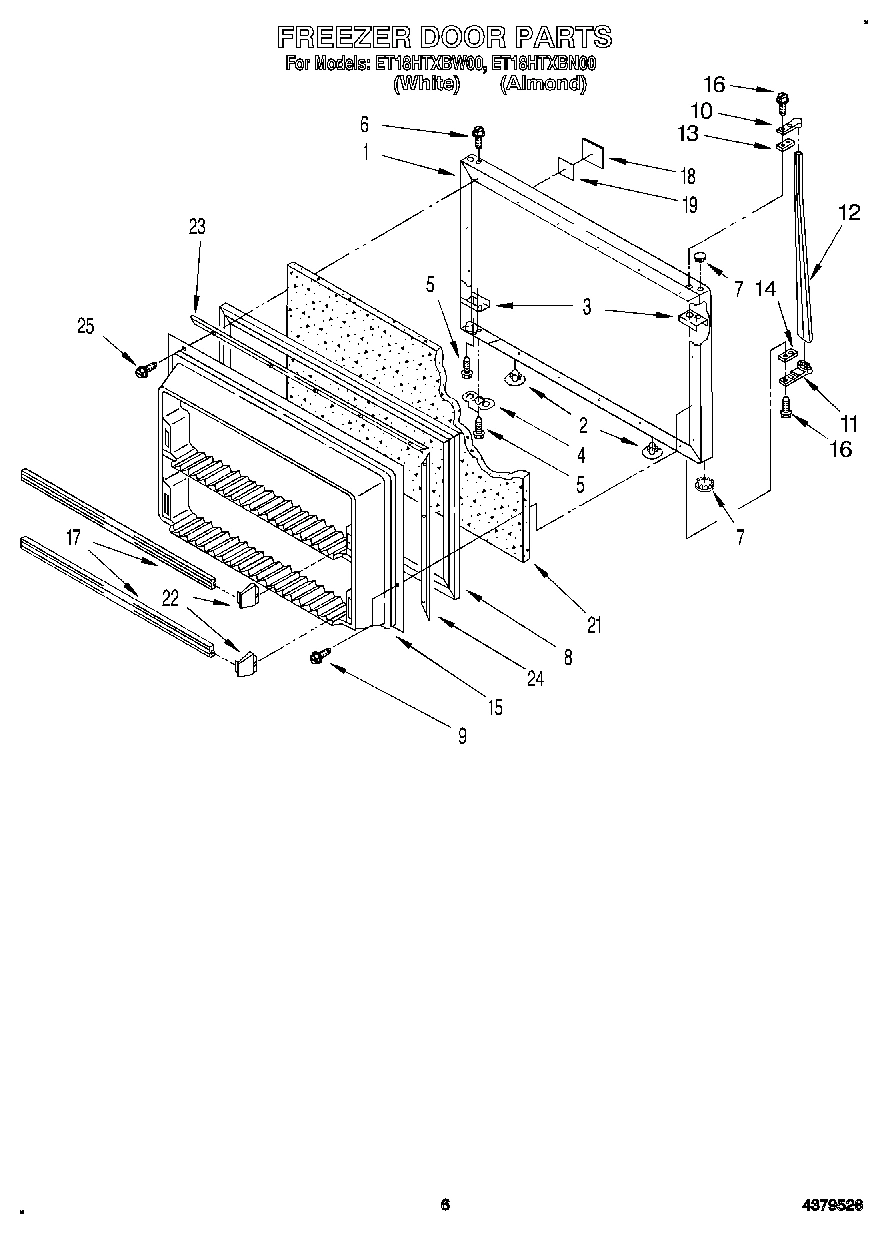

05 - FREEZER DOOR

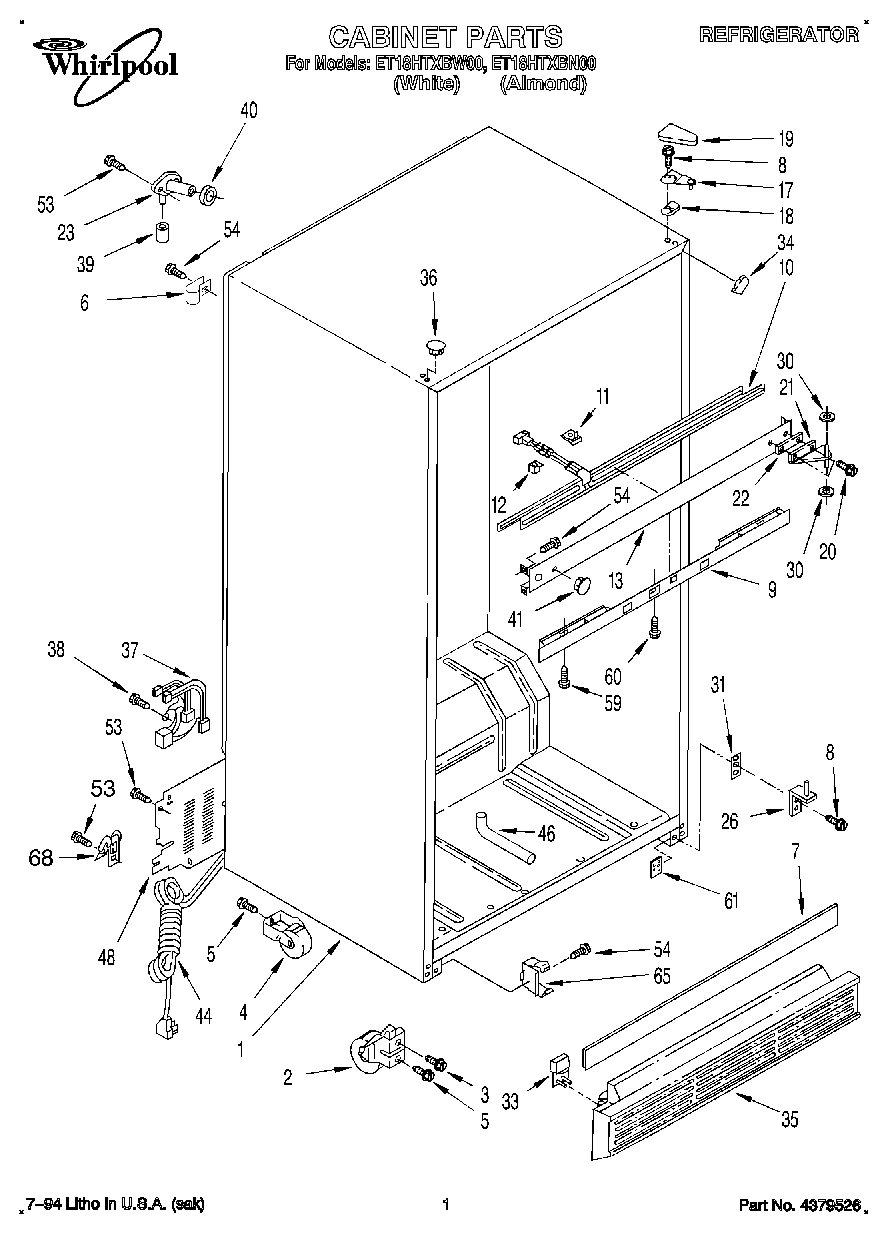

01 - CABINET

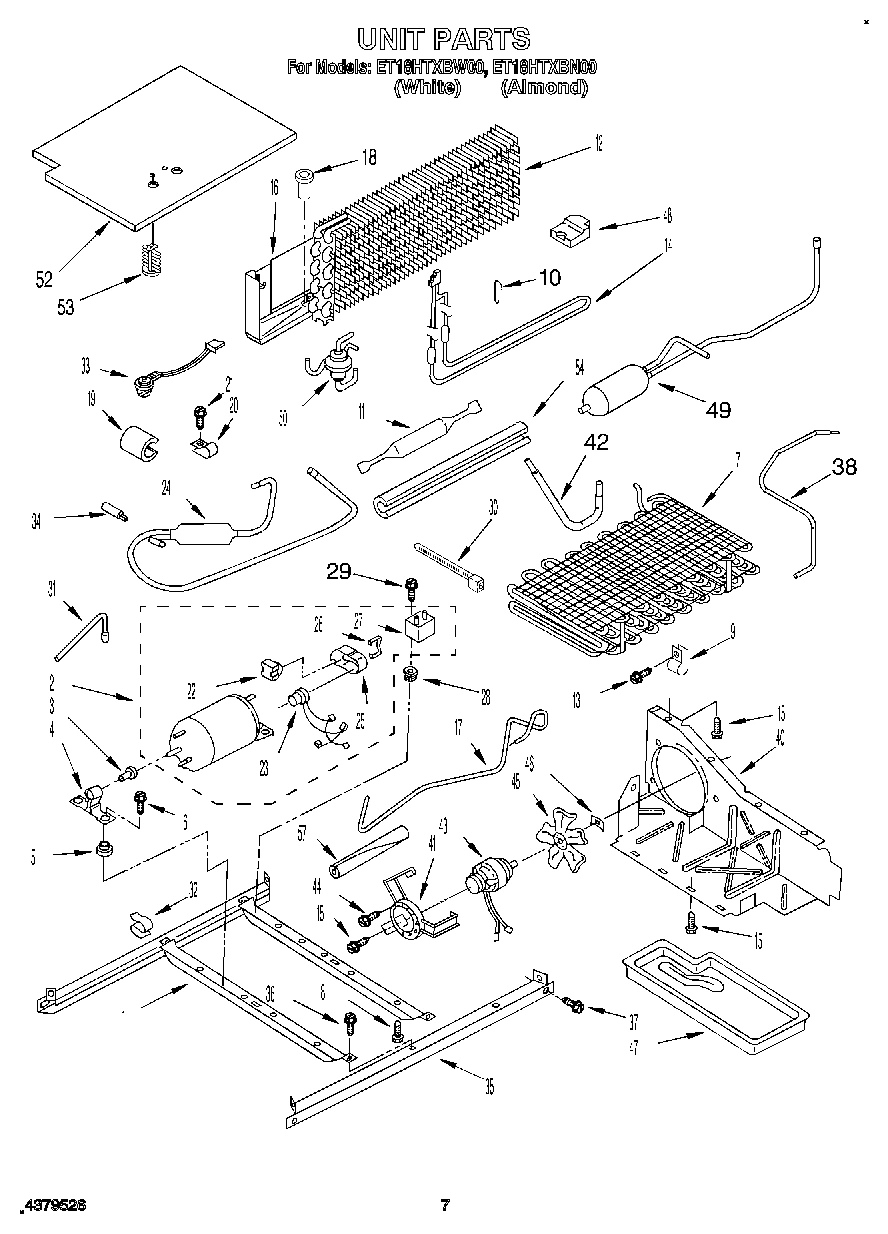

06 - UNIT

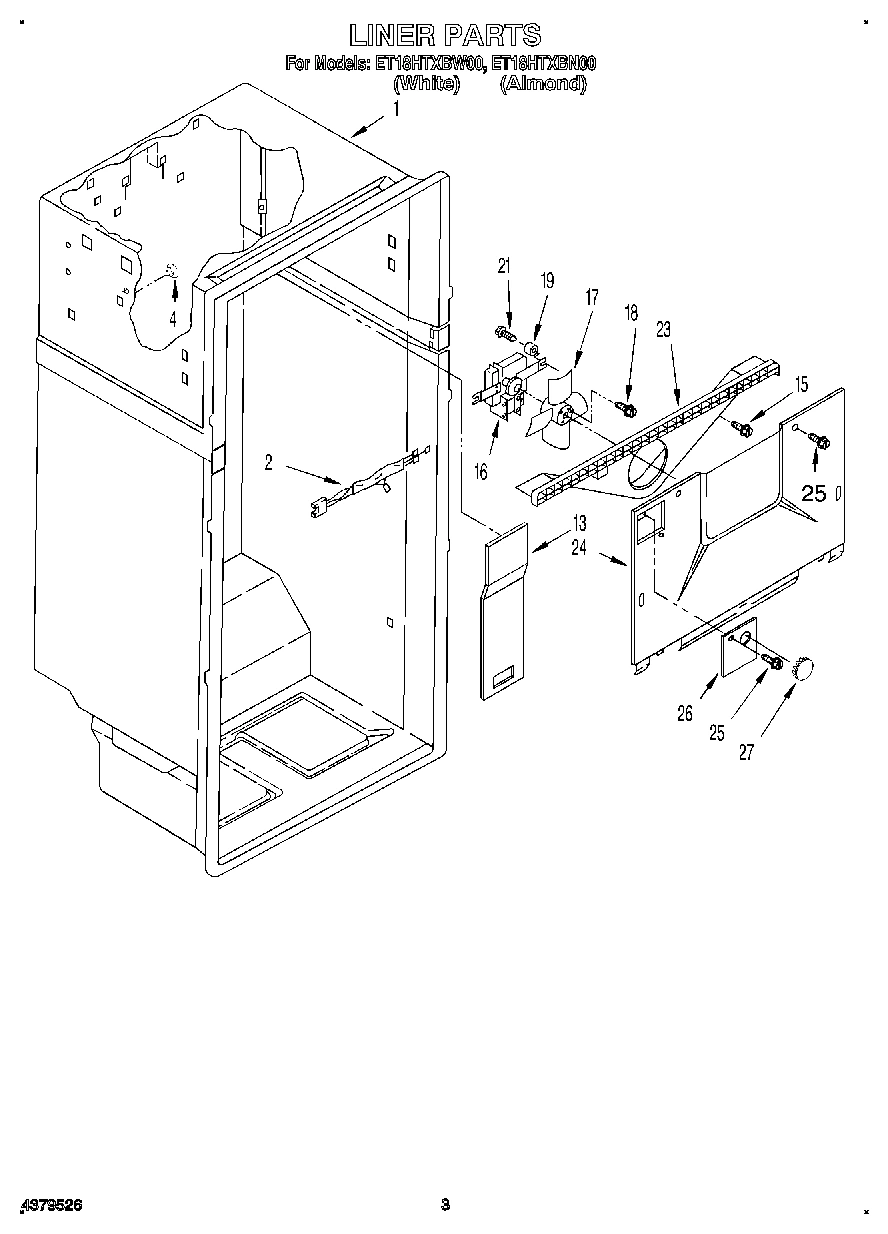

02 - LINER

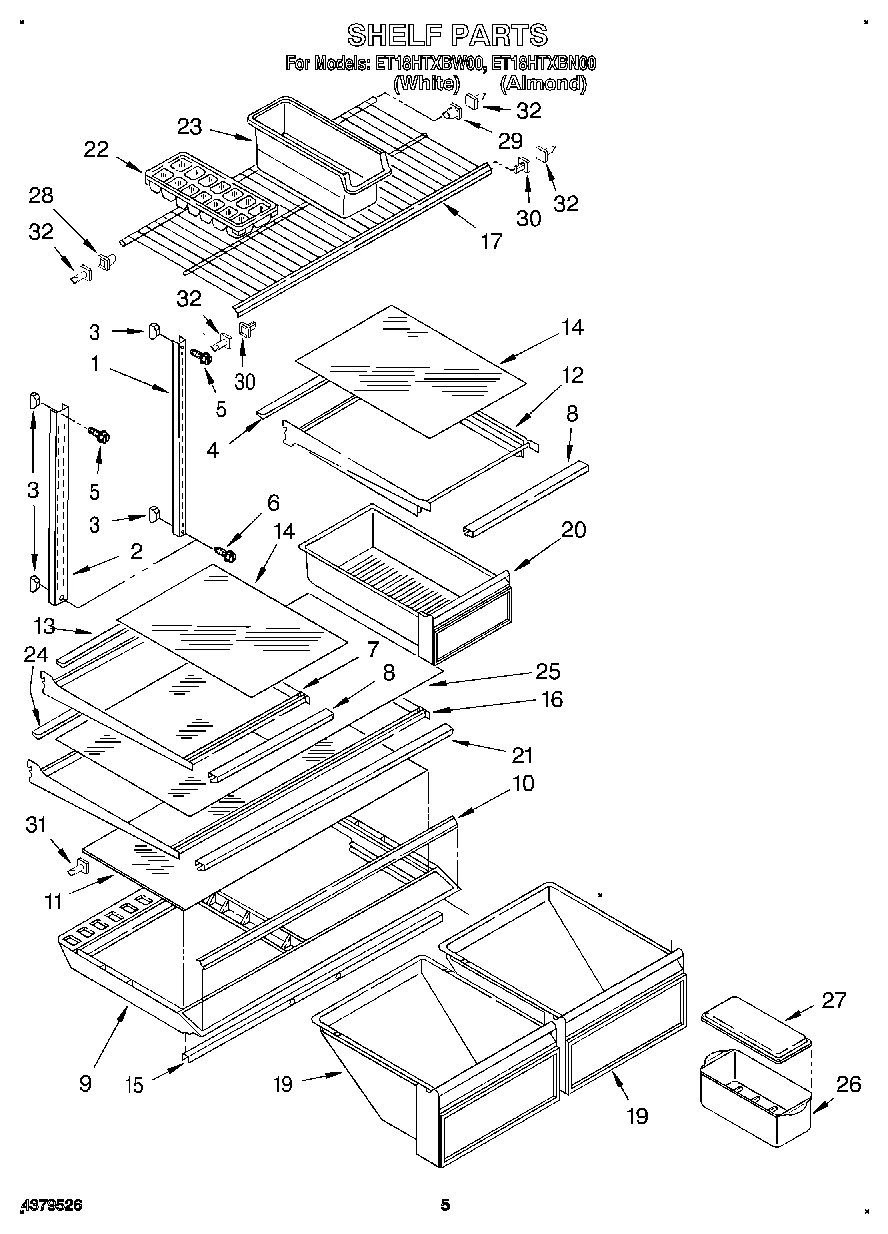

04 - SHELF
Common parts from model Whirlpool ET18HTXBW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43834A7 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43835A7 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Retainer, Shelf WPL 1118119 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Shelf, Cantilever WPL 1116693 Contact Us For Availability
8
Door Gasket Magnetic WPL 1116735 Contact Us For Availability
8
Trim, Shelf WPL 2162940 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Clamp WPL 1108033 Contact Us For Availability
9
Crisper Cover WPL 2170652 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Trim, Crisper Cover WPL 2170832 Contact Us For Availability
11
Clip, Mullion (6) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Evaporator Assembly WPL 2153977 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Reflector, Shelf WPL 2162942 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Shelf, Full Cantilever WPL 1116688 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2170590 Contact Us For Availability
17
Tube, Discharge WPL 2154028 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
18
Nameplate (White) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond) WPL 2162782 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Drain Fitting Heat Shield WPL 2172811 Contact Us For Availability
18
Trim, Shelf Front WPL 2162933 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2170934 Contact Us For Availability
20
Tube Clamp WPL 510716 Contact Us For Availability
20
Pan, Meat WPL 2170929 Contact Us For Availability
21
Trim, Door Shelf WPL 2170583 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Shelf Front WPL 2170595 Contact Us For Availability
22
Compartment Door (L.S.) WPL 2170941 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Relay (See Overload) WPL ARI43836A8 Contact Us For Availability
23
Compartment, Door (R.S.) WPL 2170942 Contact Us For Availability
23
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Muffler & Tube Assembly WPL 2169366 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Reflector, Shelf WPL 2163585 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
25
Glass, Shelf-Full WPL 1116690 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Cover, Bin WPL 2170949 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
30
Shelf Stud WPL 946356 Contact Us For Availability
31
Shelf Stud WPL 1106612 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
31
Tube, Process WPL 2154090 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
32
Support, Stud WPL 946355 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Capacitor, Start WPL 1108065 Contact Us For Availability
35
Trim, Door Shelf WPL 2170591 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Trim, Compartment Door WPL 2157839 Contact Us For Availability
36
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Trim, Compartment Door WPL 2157836 Contact Us For Availability
37
Door Reversal Instructions WPL 2172761 Contact Us For Availability
37
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
37
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
38
Tube-Condenser To Valve WPL 2159635 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
42
Tube-Heat Loop To Valve WPL 2159636 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Reservoir Assembly WPL 2169353 Contact Us For Availability
50
Valve, Fluid WPL 2169345 Contact Us For Availability
52
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Sleeve WPL 2159751 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
