Model Whirlpool ET18DKXAB11 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2159549 WPL LIT2159549 Contact Us For Availability

WPL LIT2160152 WPL LIT2160152 Contact Us For Availability

WPL LIT2162872 WPL LIT2162872 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

1

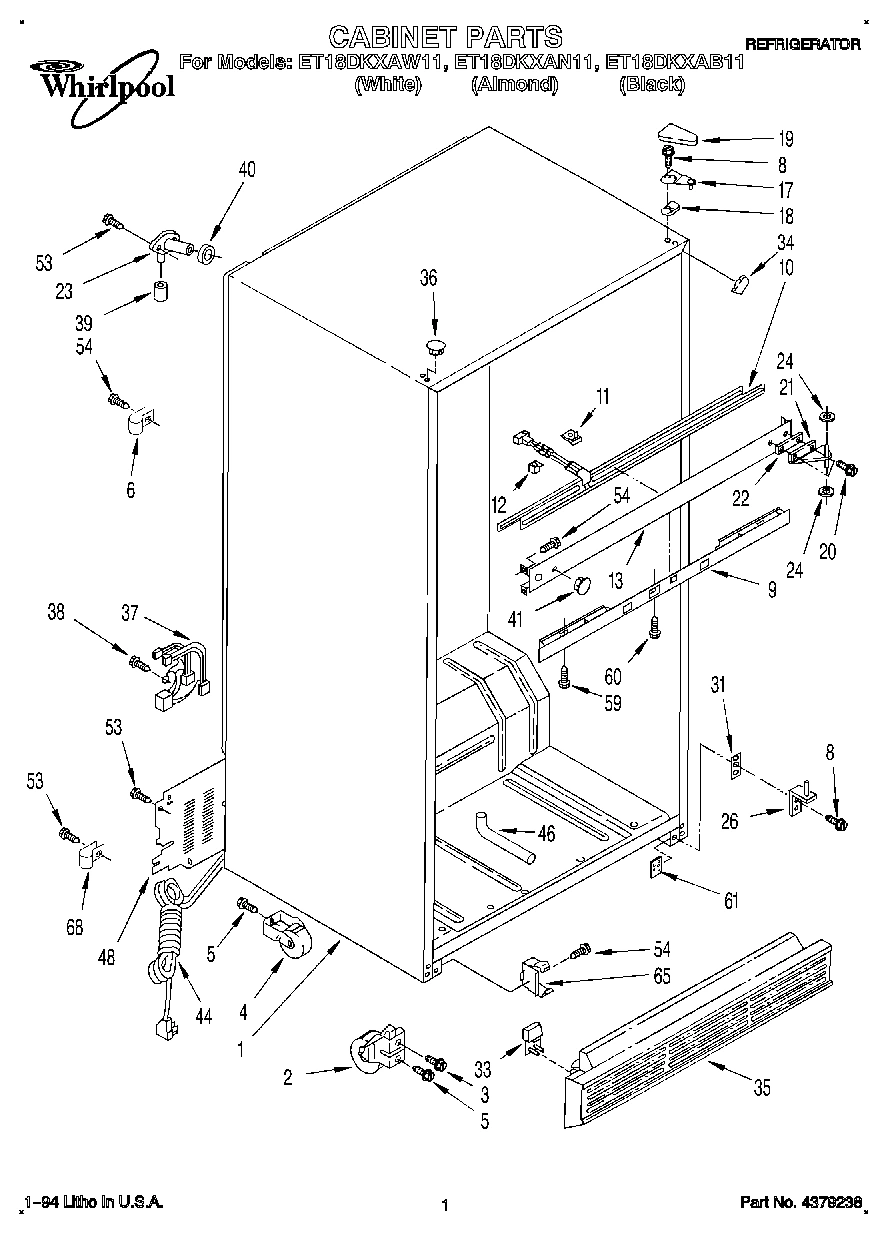

Cabinet (Not A Serviceable Part) WPL ARI146338A Contact Us For Availability

1

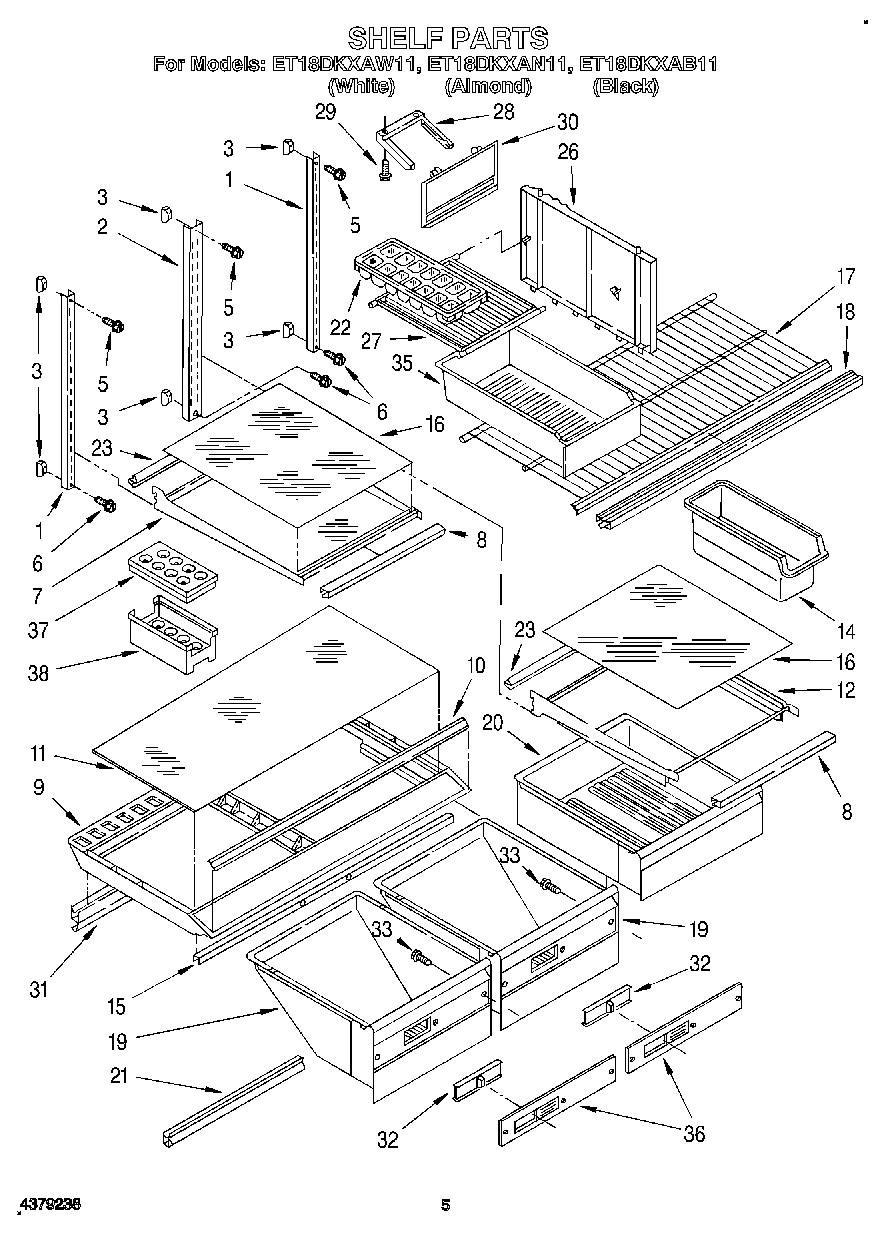

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

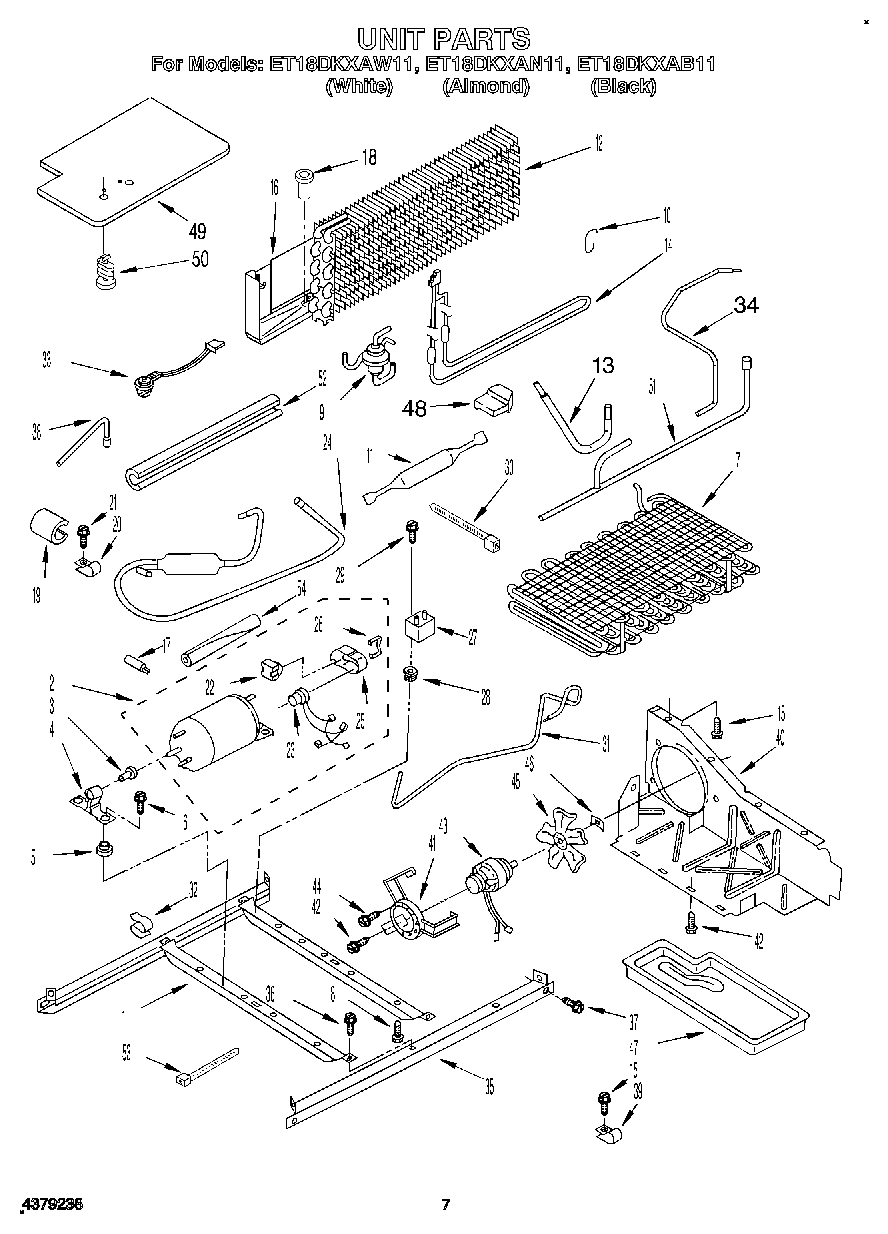

Unit, Frame WPL 2159747 Contact Us For Availability

1

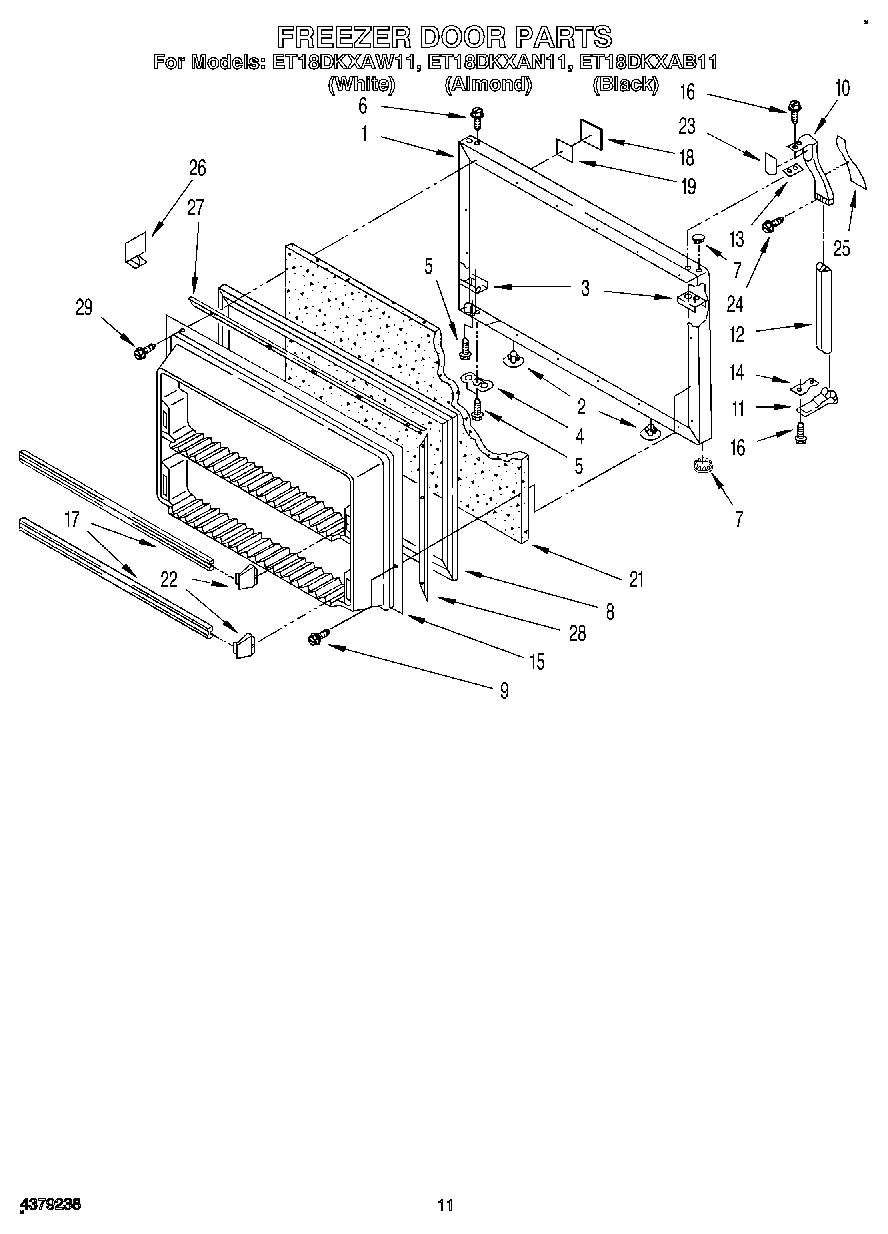

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2162881 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability

2

Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Bracket Door Stop (Black) WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop (Chrome) WPL 944036 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Screw WPL 489334 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever (3) WPL 1116693 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

8

Door Gasket, Magnetic (Almond Model) WPL 1116734 Contact Us For Availability

8

Door Gasket, Magnetic (White Model) WPL 1125889 Contact Us For Availability

8

Trim, Shelf (4) WPL 2148575 Contact Us For Availability

8

Door Gasket Magnetic (Almond Model) WPL 1116735 Contact Us For Availability

8

Door Gasket Magnetic (White Model) WPL 1125888 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

NLA:SCREW Backorder WPL WPW10141645 $4.82

9

Control, Front Cover WPL 2148582 Contact Us For Availability

9

Crisper Cover WPL 2148570 Contact Us For Availability

9

Valve, Fluid WPL 2159655 Contact Us For Availability

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 2154064 Contact Us For Availability

Trim, Crisper Cover WPL 2172715 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Handle End, Side WPL 1109189 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Clip, Center Rail (3) WPL 1129018 Contact Us For Availability

Glass, Crisper Cover WPL 1124926 Contact Us For Availability

Handle, Center (Black) WPL 1120781 Contact Us For Availability

Handle, Center (White) WPL 2150150 Contact Us For Availability

Handle Center (Almond) WPL 943068 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability

Evaporator WPL 2153977 Contact Us For Availability

Handle, Center (Black Model) WPL 2159168 Contact Us For Availability

Handle, Center (White Model) WPL 2162586 Contact Us For Availability

Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Tube-Heat Loop To Valve WPL 2159636 Contact Us For Availability

14

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $17.72

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

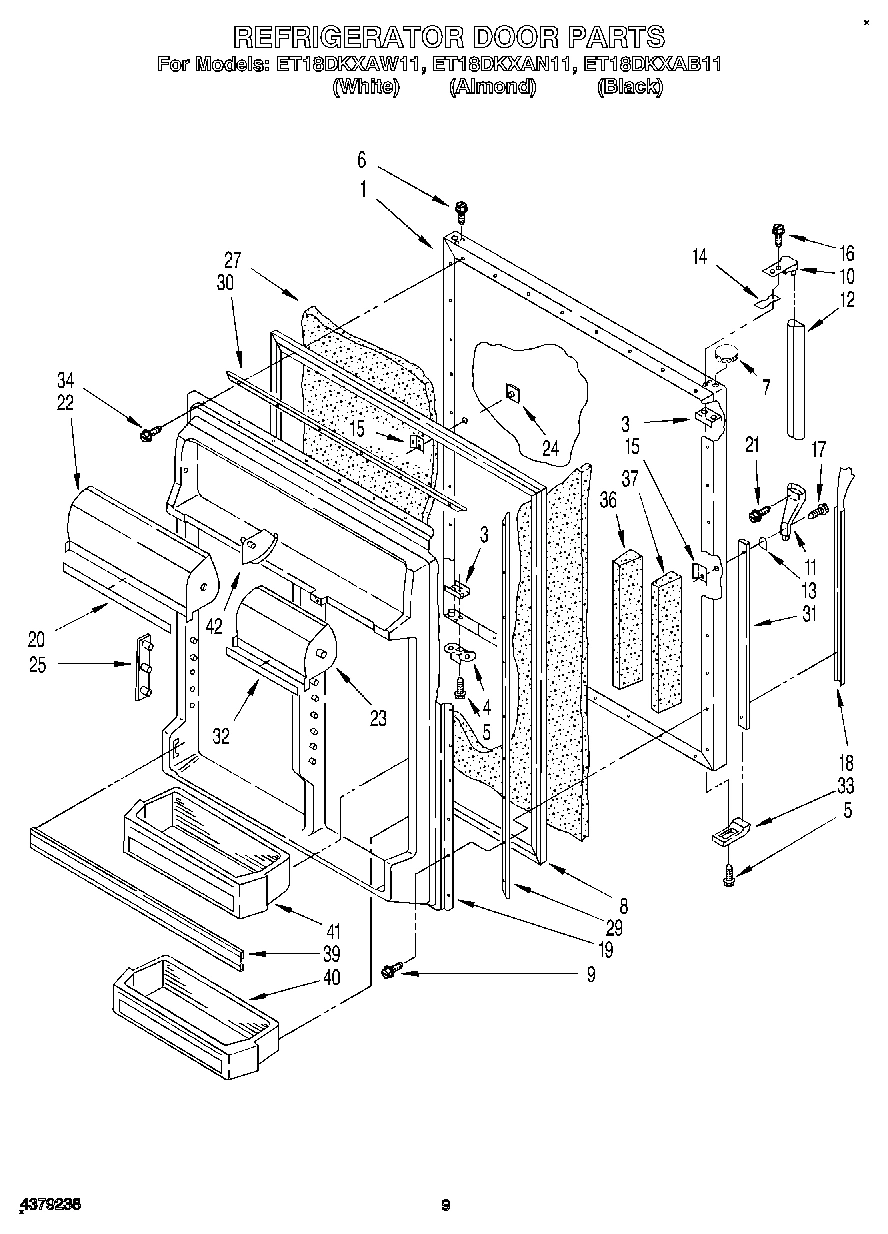

Interior Door Panel WPL 1116610 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

16

Shelf, Glass (4) WPL 1124924 Contact Us For Availability

16

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $77.96

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Shelf, Freezer WPL 1116722 Contact Us For Availability

Capacitor, Start WPL 1108065 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148595 Contact Us For Availability

Insert, Handle (Black Model) WPL 1118082 Contact Us For Availability

Insert, Handle (White Model) WPL 2150155 Contact Us For Availability

Insert, Handle (Almond) WPL 2150156 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Trim, Shelf Front WPL 2148584 Contact Us For Availability

Drain Fitting WPL 2172811 Contact Us For Availability

Nameplate (White Model) WPL 2148544 Contact Us For Availability

Nameplate (Black Model) WPL 2162668 Contact Us For Availability

Nameplate (Almond Model) WPL 2162698 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

Interior Door Panel WPL 2157384 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Pan, Crisper WPL 2162720 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Trim, Door Compartment WPL 1121186 Contact Us For Availability

Pan, Meat WPL 2162719 Contact Us For Availability

Tube Clamp WPL 1108033 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Hinge, Center WPL 2147335 Contact Us For Availability

Crisper, Gasket Front (2) WPL 1116713 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $13.82

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Compartment Door WPL 2148747 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Relay (See Overload) WPL ARI146340A Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

Compartment Door WPL 2148745 Contact Us For Availability

Reflector, Shelf (4) WPL 1115165 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Washer, Plain (Black) WPL 489200 Contact Us For Availability

Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Muffler WPL 2159657 Contact Us For Availability

Pin Plate WPL 1116986 Contact Us For Availability

Terminal Cover WPL 2154452 Contact Us For Availability

Insert, Handle (White Model) WPL 1108828 Contact Us For Availability

Insert, Handle (Almond Model) WPL 1108830 Contact Us For Availability

Insert, Handle (Black Model) WPL 1114390 Contact Us For Availability

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

Divider WPL 1118054 Contact Us For Availability

Strap, Cover WPL 1105222 Contact Us For Availability

Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

27

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

27

Shelf, Ice Compartment WPL 1106624 Contact Us For Availability

28

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

WPL 1115138 WPL 1115138 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

29

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Door, Ice Compartment WPL 2148741 Contact Us For Availability

WPL 1118080 WPL 1118080 Contact Us For Availability

Spacer WPL 2172744 Contact Us For Availability

Crisper, Gasket Rear (2) WPL 1116714 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

32

WPL 2148588 WPL 2148588 Contact Us For Availability

32

Slide, Crisper WPL 2148524 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

WPL 1105804 WPL 1105804 Contact Us For Availability

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Screw WPL 489268 Contact Us For Availability

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrapper Corner (2) (Black) WPL 2162679 Contact Us For Availability

Tube-Condenser To Valve WPL 2159635 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $40.99

Grille (Black) WPL 1118079 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.61

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WPL 2157385 WPL 2157385 Contact Us For Availability

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

Crisper, Pan Front WPL 2148573 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

WPL 1118007 WPL 1118007 Contact Us For Availability

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

Egg Container, Top WPL 1107388 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Egg Container, Bottom WPL 1107384 Contact Us For Availability

Door Reversal Instructions WPL 2148985 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Tube, Process WPL 2154090 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

39

WPL 2148591 WPL 2148591 Contact Us For Availability

39

Tube Clamp WPL 510716 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

40

WPL 2148592 WPL 2148592 Contact Us For Availability

40

Air, Baffle WPL 2154102 Contact Us For Availability

41

WPL 2148593 WPL 2148593 Contact Us For Availability

41

Hole Plug (White) WPL 1129062 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $4.82

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

46

Fitting, Drain WPL 2154118 Contact Us For Availability

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

49

Cover, Unit Bottom WPL 2160517 Contact Us For Availability

50

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

51

Tube Assembly, Suction Line WPL 2159689 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
