Model Whirlpool ET14JKYAN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

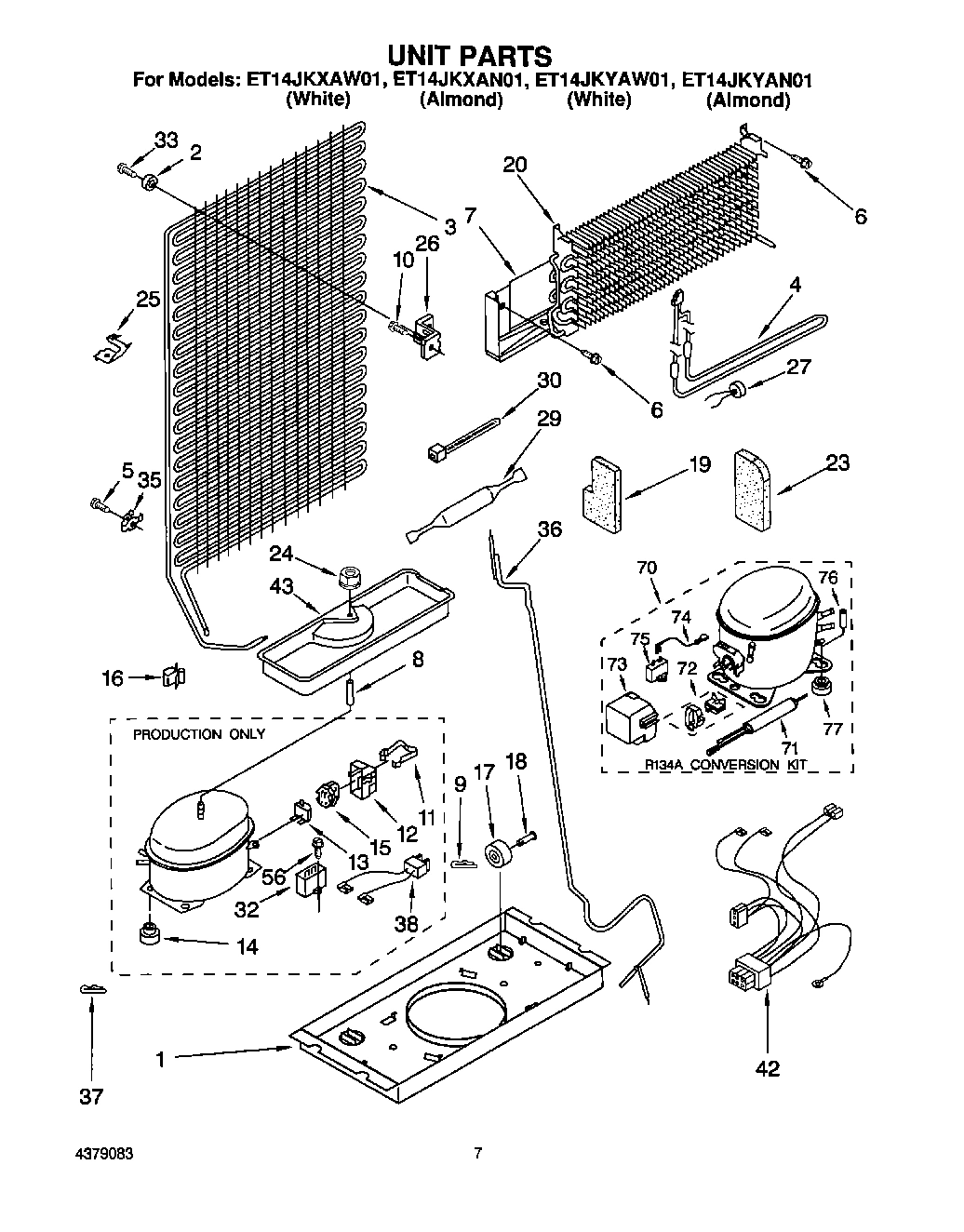

04 - UNIT

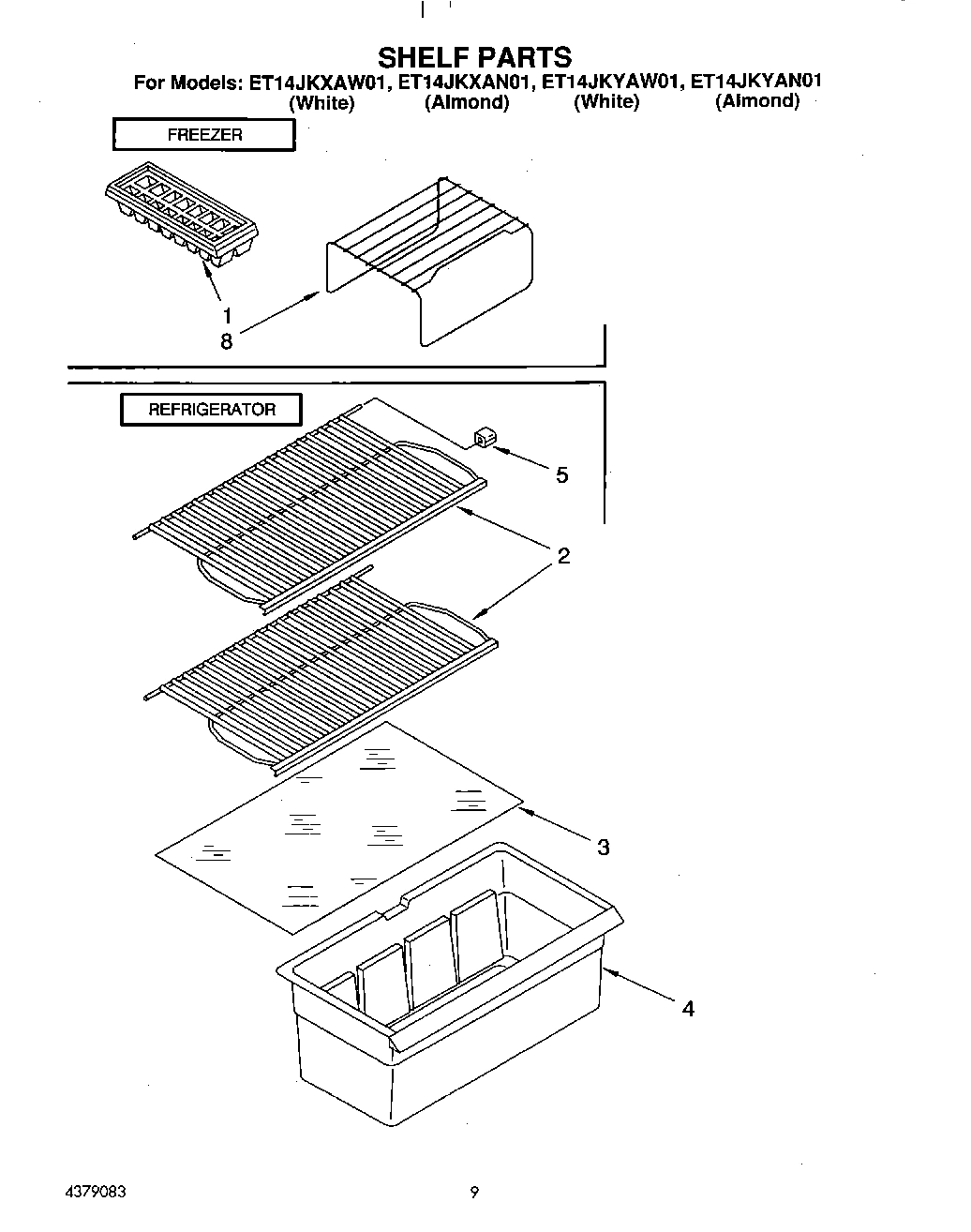

05 - SHELF

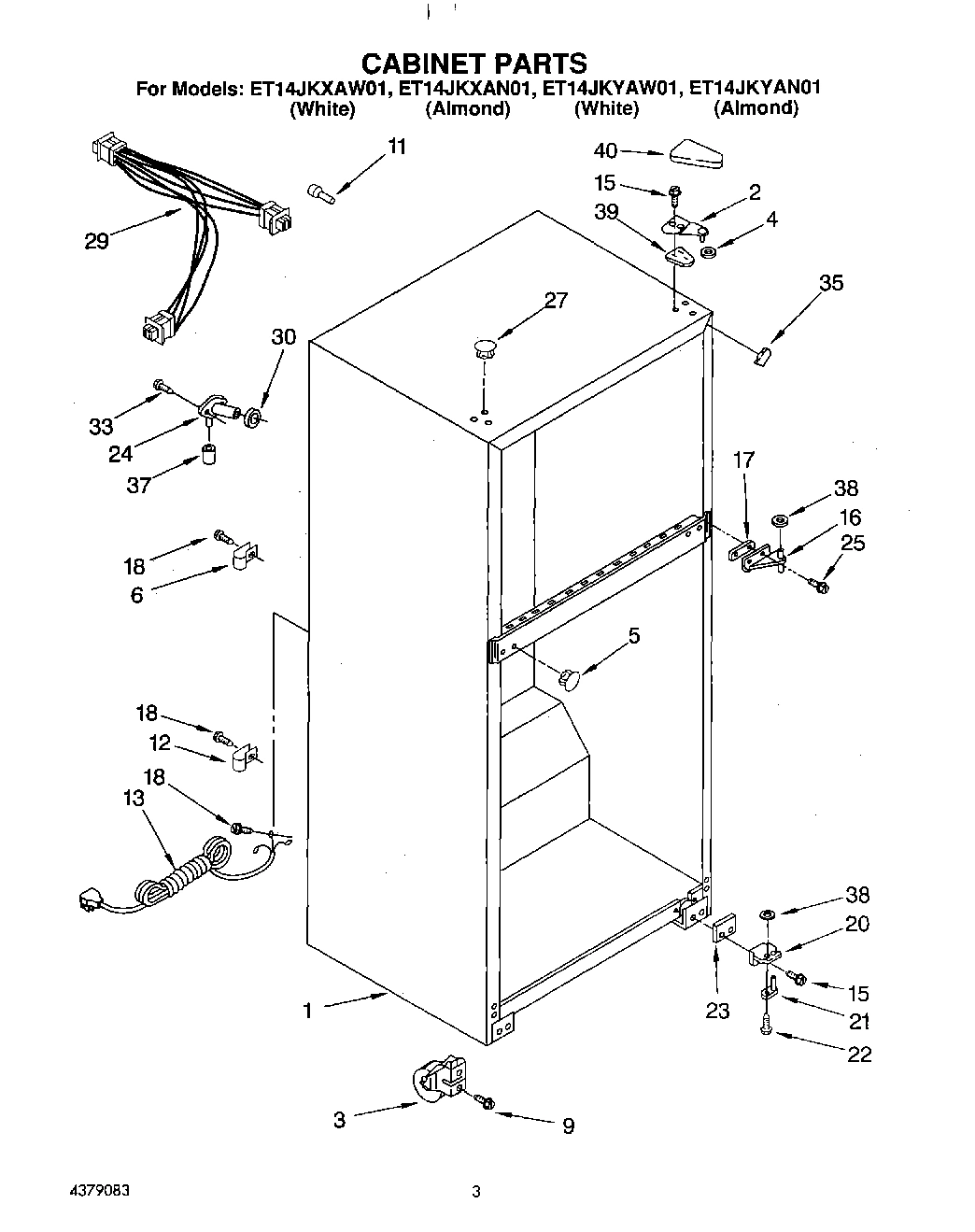

02 - CABINET

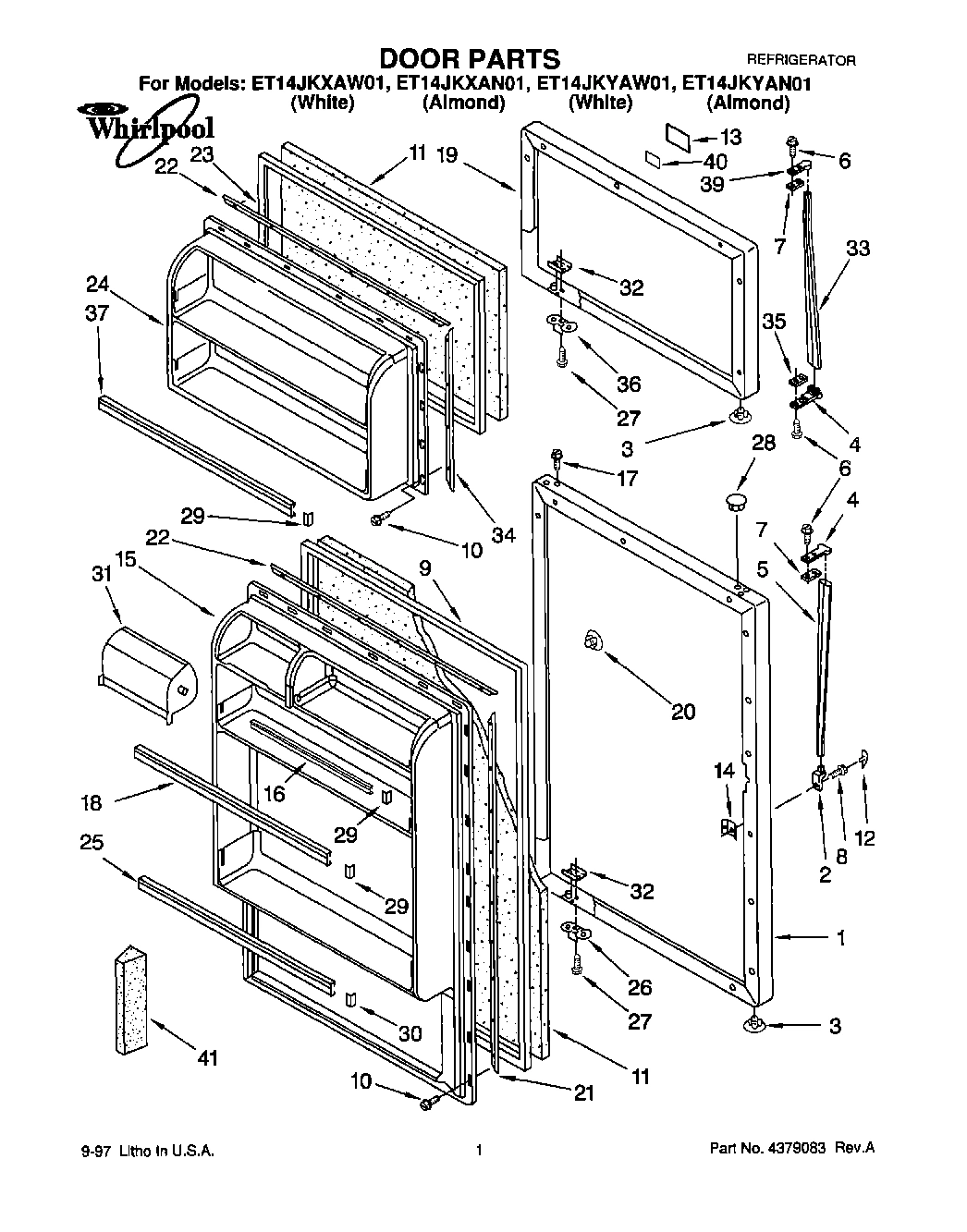

01 - DOOR

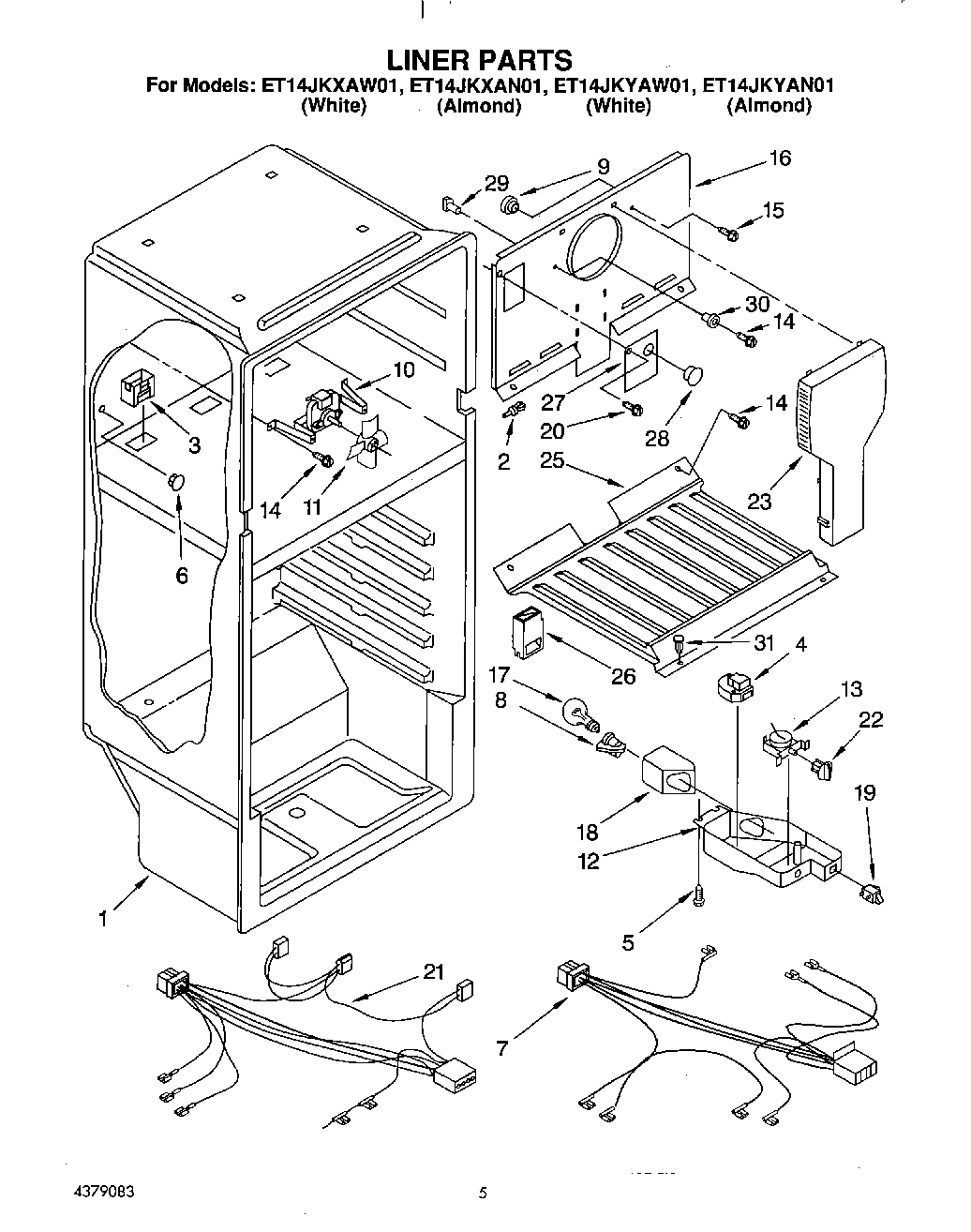

03 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool ET14JKYAN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2160150 WPL LIT2160150 Contact Us For Availability
WPL LIT2162807 WPL LIT2162807 Contact Us For Availability
WPL LIT4379083 WPL LIT4379083 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT9791409 WPL LIT9791409 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42068A6 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Diffuser-Air WPL 9791377 Contact Us For Availability
4
Pan, Crisper WPL 9790377 Contact Us For Availability
5
Hole Plug (White) WPL 1129062 Contact Us For Availability
5
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
9
Screw (2) WPL 9791768 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Tube, Water Inlet WPL 836490 Contact Us For Availability
11
Fan Blade WPL 2160471 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Nameplate (White) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond) WPL 2162782 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
15
Screw WPL 488357 Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
21
Wiring-Freezer WPL 9791403 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
22
Retainer, Gasket WPL 1120614 Contact Us For Availability
23
Air Tower WPL 2166065 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 9791741 Contact Us For Availability
25
Freezer Floor WPL 2166030 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
29
Grommet WPL 2166046 Contact Us For Availability
30
Sleeve WPL 2166010 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
Compartment Door WPL 9790560 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
31
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
33
Screw WPL 489050 Contact Us For Availability
33
Handle, F.C. (Almond Model) WPL 2148069 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
38
Washer WPL 489201 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
WPL 991259 WPL 991259 Contact Us For Availability
41
WPL 2166029 WPL 2166029 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
