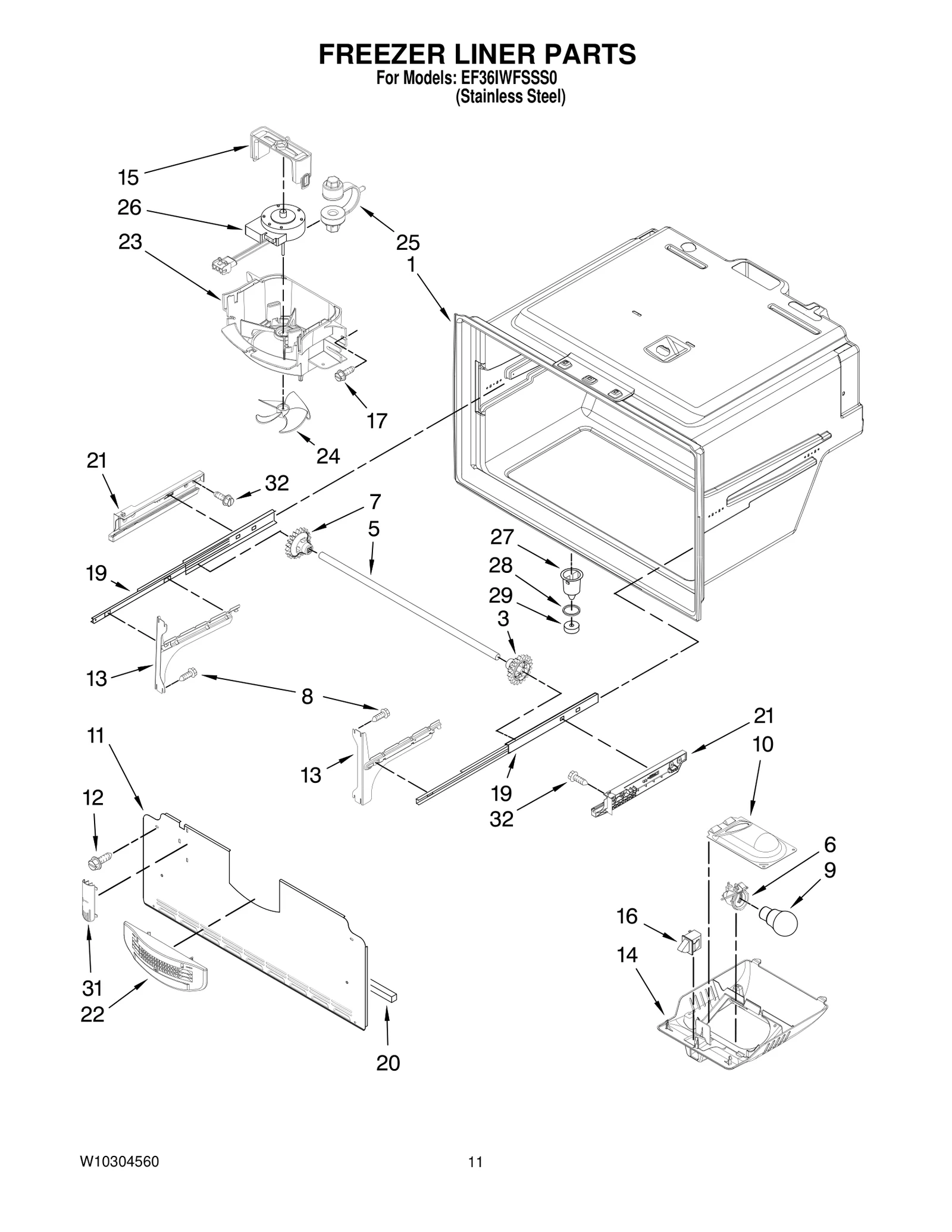

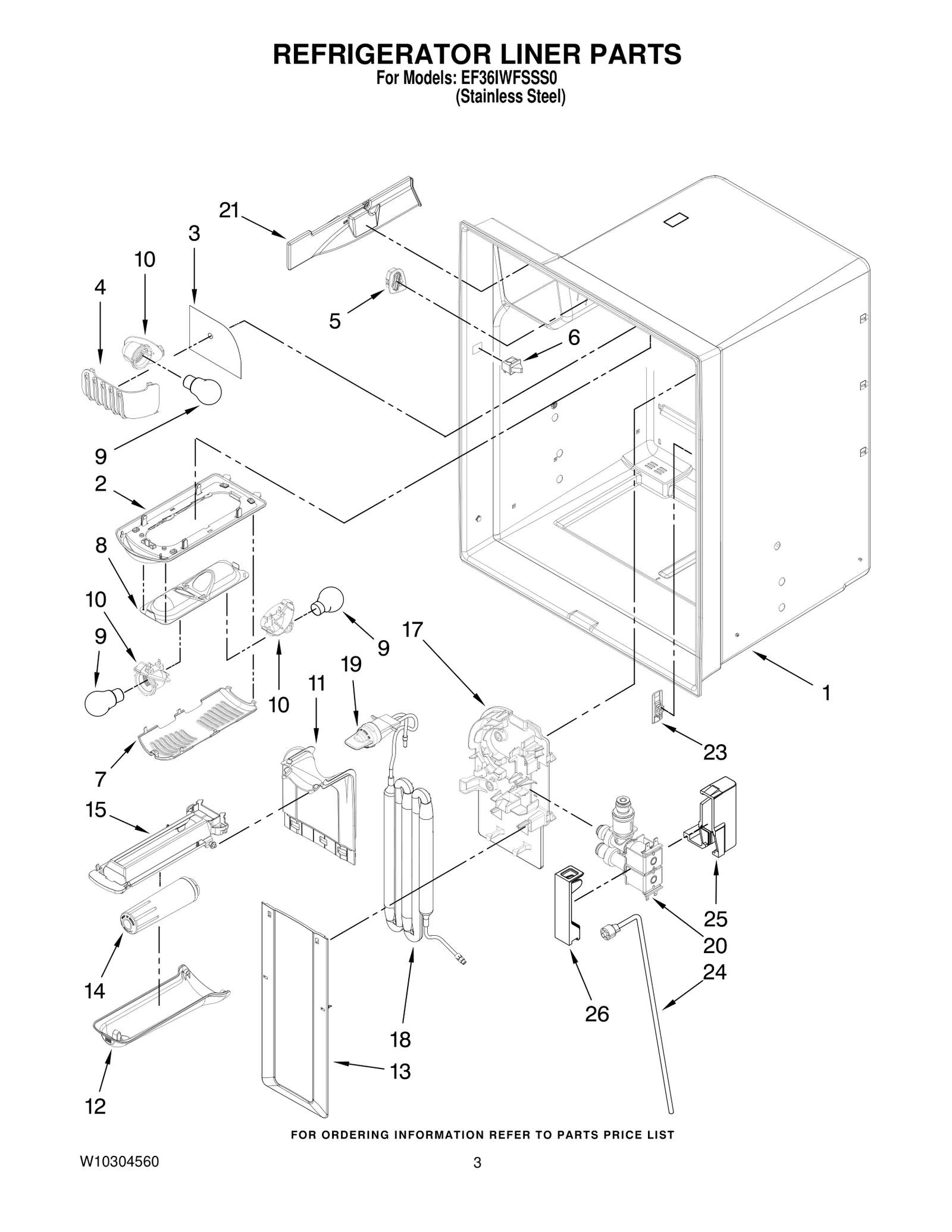

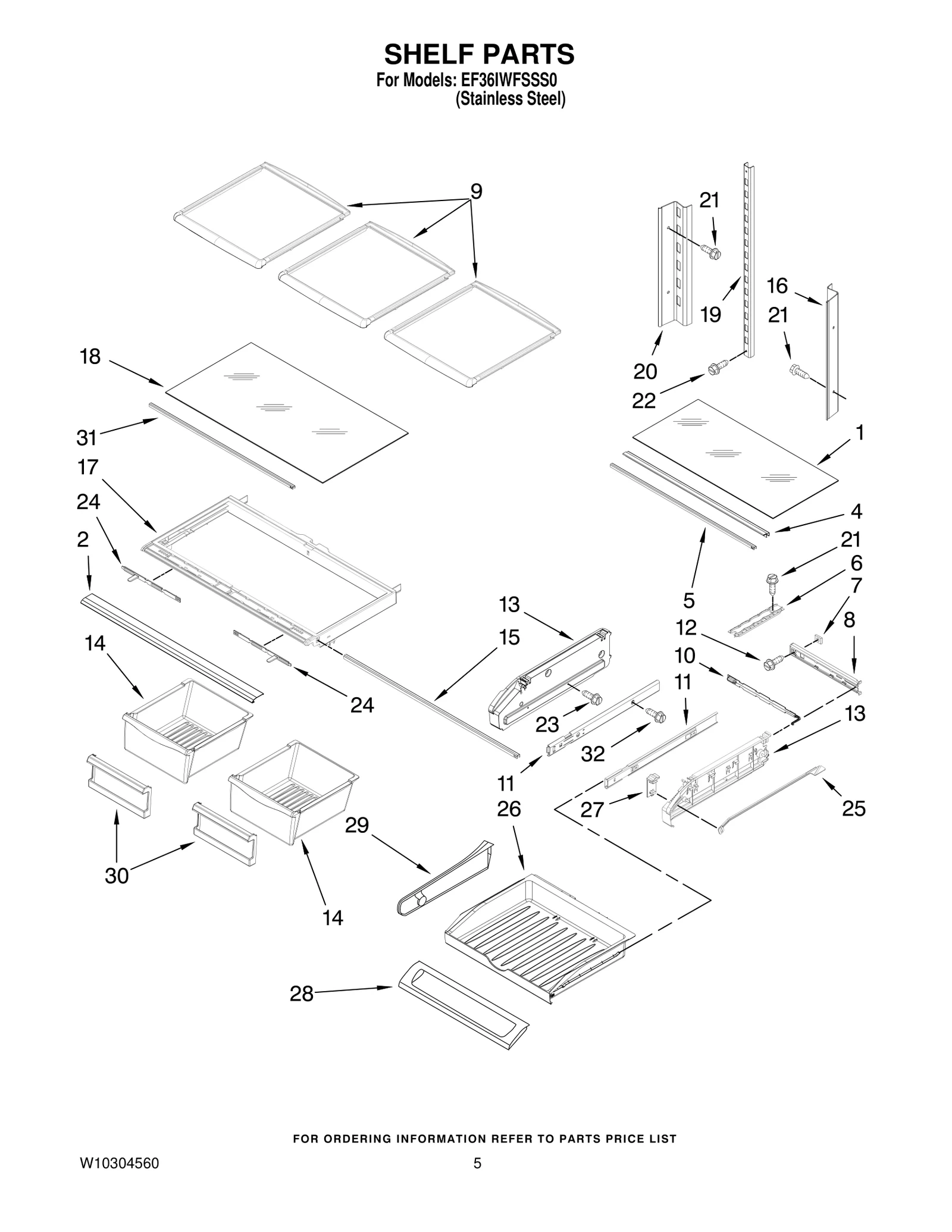

Model Whirlpool EF36IWFSSS0 Refrigerator – Common Parts &amp; Diagrams

1

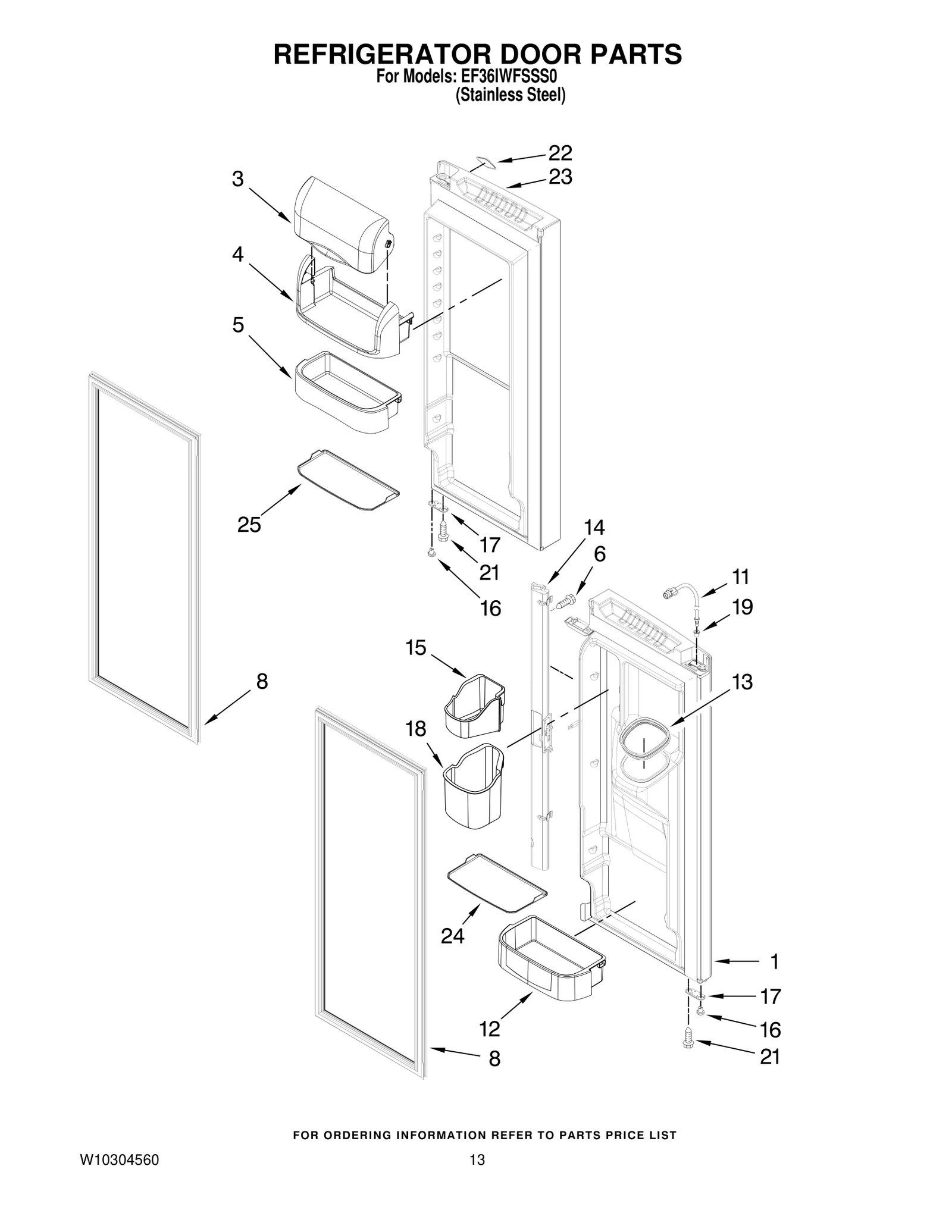

Door, Left — Stainless WPL 12978085SQ Contact Us For Availability

1

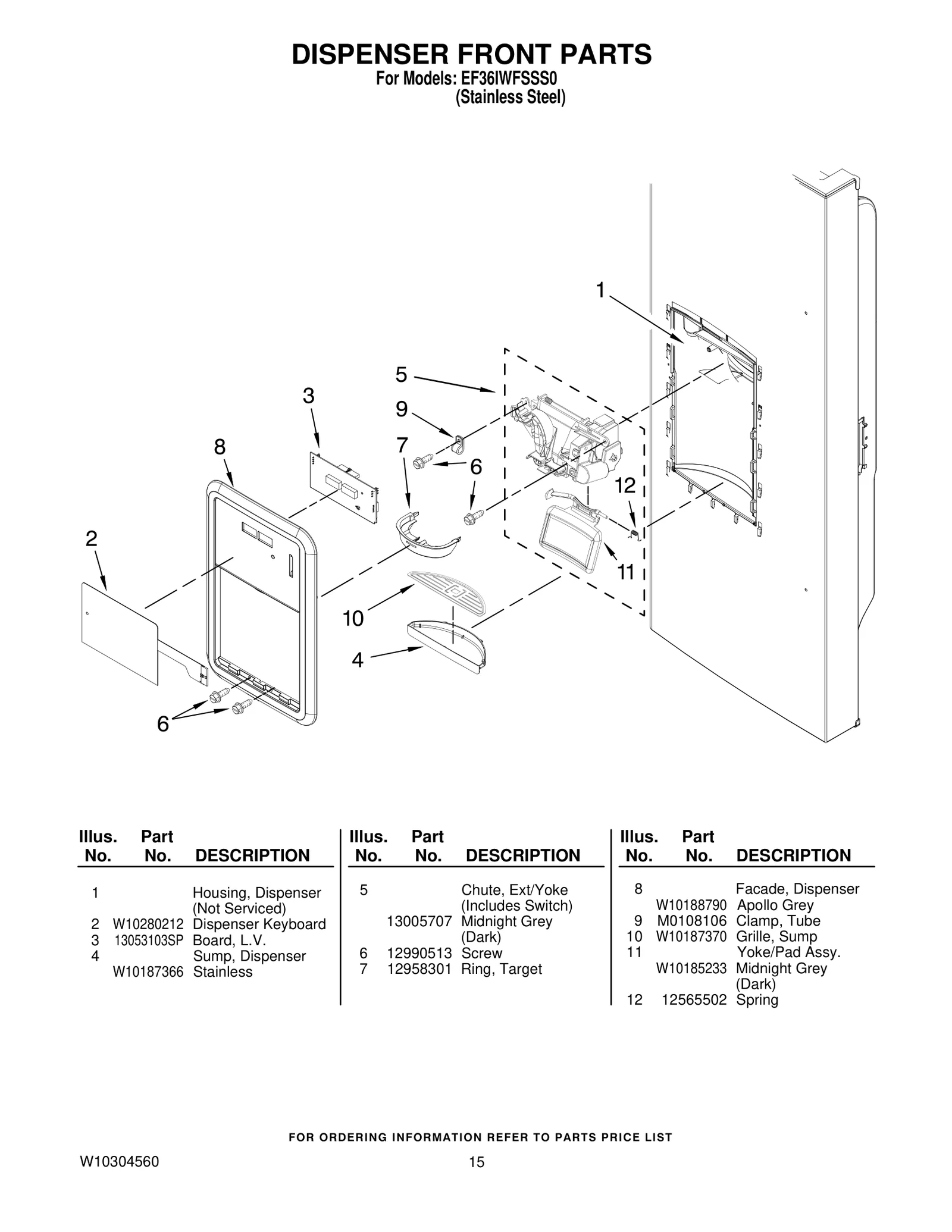

Housing, Dispenser WPL N/S Contact Us For Availability

1

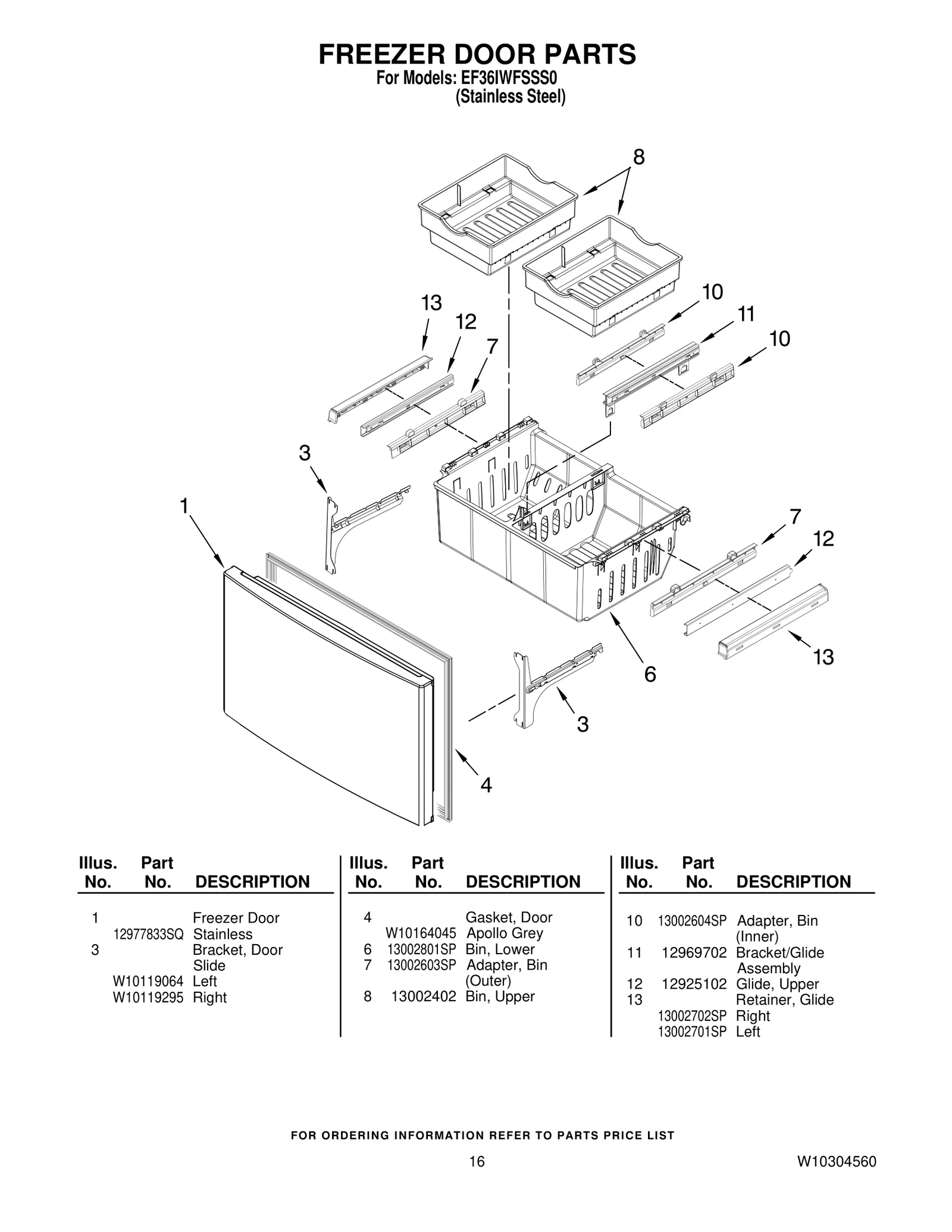

Freezer Door — Stainless WPL 12977833SQ Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.91

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.44

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $61.52

2

Dispenser Keyboard WPL W10280212 Contact Us For Availability

3

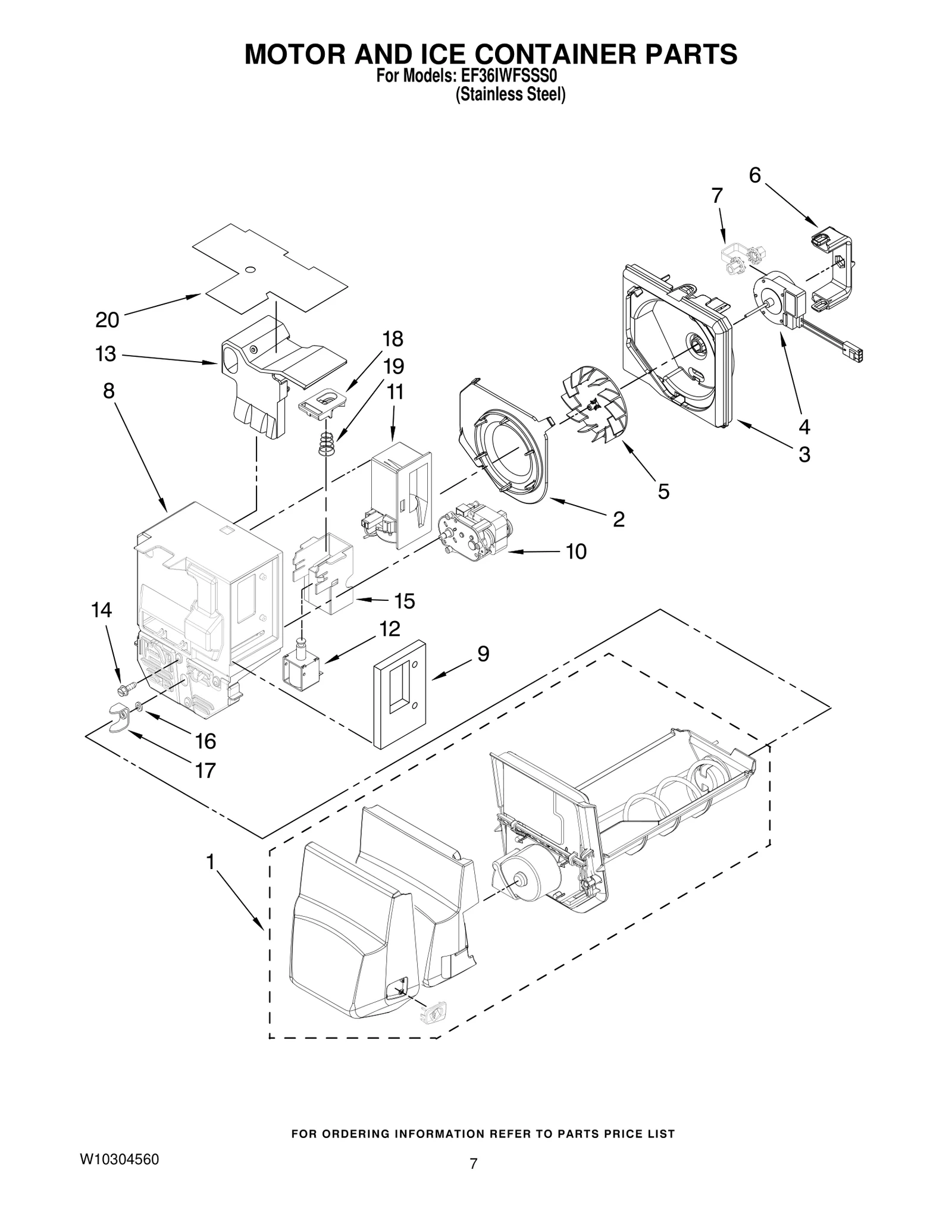

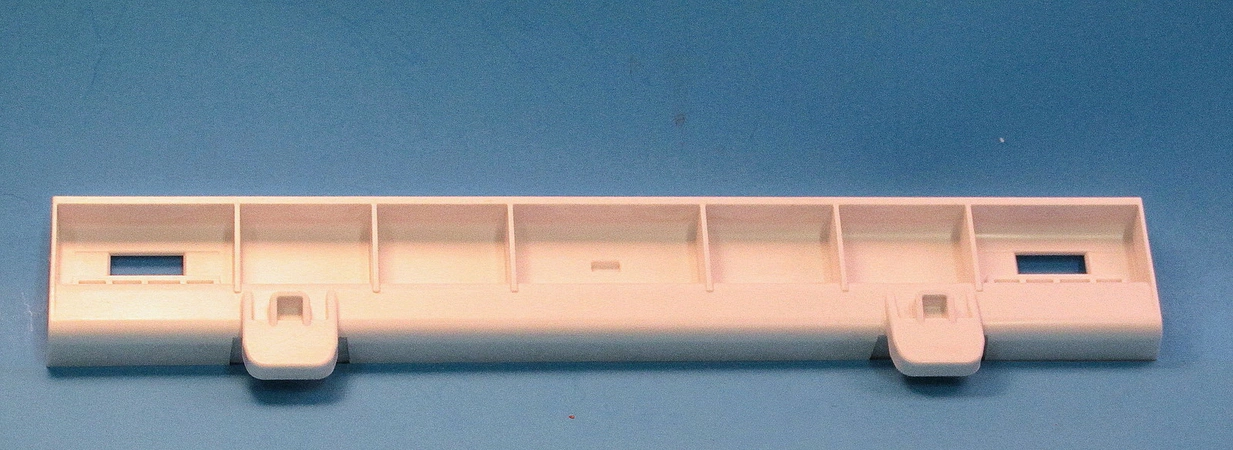

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $56.50

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $70.73

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

3

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $102.22

3

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $109.49

3

Board, L.V. WPL 13053103SP Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $14.02

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $231.82

4

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $123.64

4

Sump, Dispenser — Stainless WPL W10187366 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.52

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

5

WPW10371193 Whirlpool Refrigerator Door Bin Backorder WPL WPW10371193 $62.74

5

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

5

Chute, Ext/Yoke — Midnight Grey WPL 13005707 Contact Us For Availability

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $8.89

6

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $97.67

6

Bin, Lower WPL 13002801SP Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $80.37

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $38.47

7

W10187469 Whirlpool Refrigerator Bracket Backorder WPL W10187469 $61.32

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $103.70

8

W10184227 Whirlpool Refrigerator Freezer Bin Backorder WPL W10184227 $83.97

8

W10830055 Whirlpool Refrigerator Door Gasket In Stock WPL W10830055 $134.26

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $60.14

8

Facade, Dispenser — Apollo Grey WPL W10188790 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

9

M0108106 Whirlpool Refrigerator Clamp Backorder WPL M0108106 $48.89

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

W10184223 Whirlpool Refrigerator Bracket Backorder WPL W10184223 $66.78

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.94

W11702858 Whirlpool Housing Backorder WPL W11702858 $57.71

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $91.95

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $62.64

Grille, Sump WPL W10187370 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $83.96

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.90

W10235358 Whirlpool Refrigerator Glide Backorder WPL W10235358 $224.79

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $83.79

WPW10185233 Whirlpool Refrigerator Pad In Stock WPL WPW10185233 $54.35

Cover, Evap WPL 12935801 Contact Us For Availability

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $5.99

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $39.32

WPW10235368 Whirlpool Refrigerator Glide Backorder WPL WPW10235368 $229.30

WPW10289489 Whirlpool Door Shelf Bin In Stock WPL WPW10289489 $49.84

W10826790 Whirlpool Refrigerator Retainer Backorder WPL W10826790 $42.12

W10826791 Whirlpool Refrigerator Retainer Backorder WPL W10826791 $42.12

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $14.02

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $38.80

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $12.74

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

Endcap, Pantry — Right WPL 12656024 Contact Us For Availability

Seal, Ice Chute WPL W10296799 Contact Us For Availability

WP12722813AP Whirlpool Refrigerator Mullion R Backorder WPL WP12722813AP $230.44

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $54.07

WPW10121269 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10121269 $62.64

Module, Freezer Light WPL 13027902SP Contact Us For Availability

W10187453 Whirlpool Refrigerator Bin Backorder WPL W10187453 $48.89

W11712696 Whirlpool Clip Backorder WPL W11712696 $7.27

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $72.41

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

Harness, Icemaker WPL W10123395 Contact Us For Availability

16

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $27.33

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $31.64

16

Screw WPL 12992101 Contact Us For Availability

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $8.89

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $16.65

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $149.45

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $248.87

Bucket, Dispenser WPL 12977501 Contact Us For Availability

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $8.89

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $19.26

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $30.03

W11658403 Whirlpool Slides In Stock WPL W11658403 $91.20

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $58.63

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $18.40

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $35.72

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $18.25

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $69.52

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $70.27

13033601 Whirlpool Refrigerator Wire Cover Backorder WPL 13033601 $50.61

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

Adapter — Left WPL W10261196 Contact Us For Availability

Adapter — Right WPL W10261197 Contact Us For Availability

22

12002730 Whirlpool Refrigerator Evaporator Ki Backorder WPL 12002730 $276.40

22

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $82.12

22

(Stainless) WPL W10046610 Contact Us For Availability

12963002SP Whirlpool Refrigerator Evaporator Backorder WPL 12963002SP $37.85

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $8.40

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $37.95

Door, Right — Stainless WPL 12978086SQ Contact Us For Availability

Dam — Right Side WPL 12963102SP Contact Us For Availability

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $57.87

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $60.95

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $48.38

Gripper−Bucket−Gal WPL 12567326 Contact Us For Availability

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $61.99

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

W11676465 Whirlpool Grommet Backorder WPL W11676465 $8.89

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

Gripper−Bucket−Med WPL 12567311SP Contact Us For Availability

26

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $165.54

26

W11666013 Whirlpool Wire Harness Backorder WPL W11666013 $62.15

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $379.31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.18

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $4.80

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

29

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $137.05

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

31

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $72.58

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

32

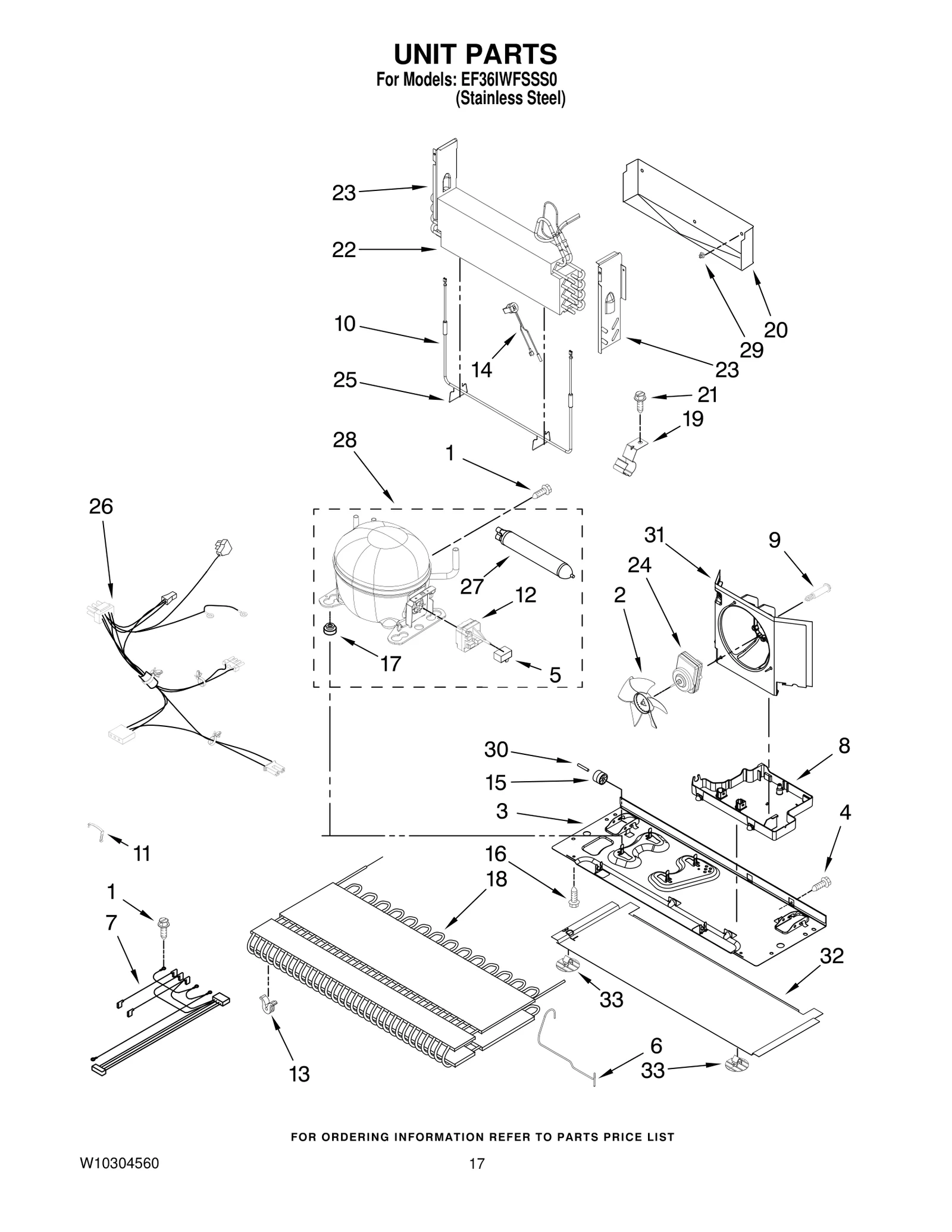

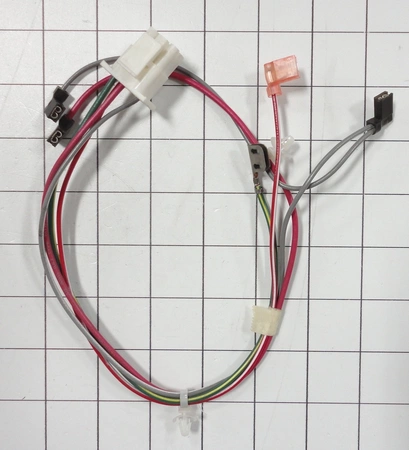

12952005 Whirlpool Refrigerator Wire Harness Backorder WPL 12952005 $105.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

32

Extension−Basepan WPL W10206338 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

Fiber, Acoustic WPL 12820505 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.30

100

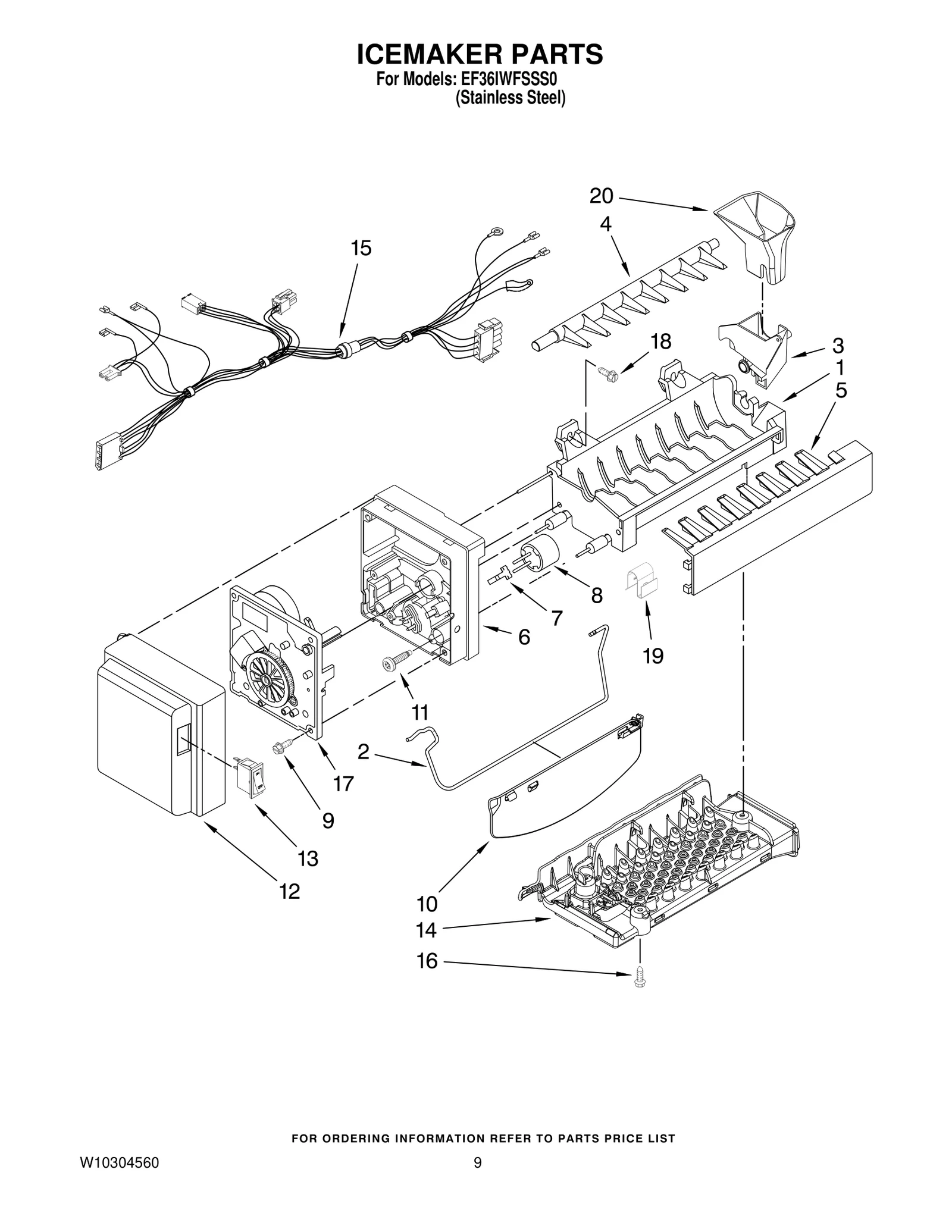

WPW10190981 Whirlpool Refrigerator Icemaker In Stock WPL WPW10190981 $199.47

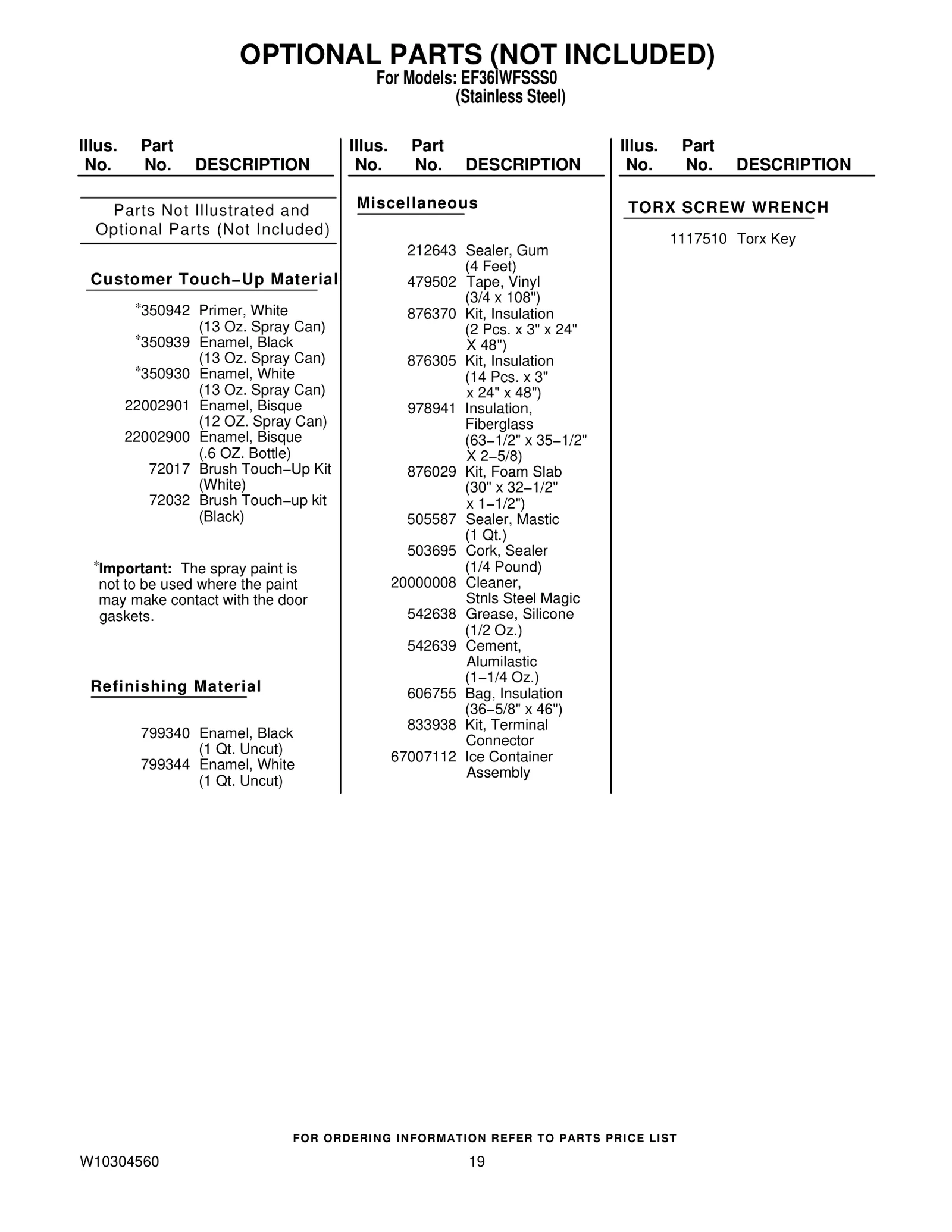

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-7

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-8

Enamel, Black WPL 799340 Contact Us For Availability

OPT-9

Enamel, White WPL 799344 Contact Us For Availability

OPT-10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-11

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-13

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-15

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-16

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-17

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-18

Cleaner, WPL 20000008 Contact Us For Availability

OPT-19

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-20

Cement, WPL 542639 Contact Us For Availability

OPT-21

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

OPT-22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-23

WPW10324088 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324088 $285.73

OPT-24

Torx Key WPL 1117510 Contact Us For Availability
