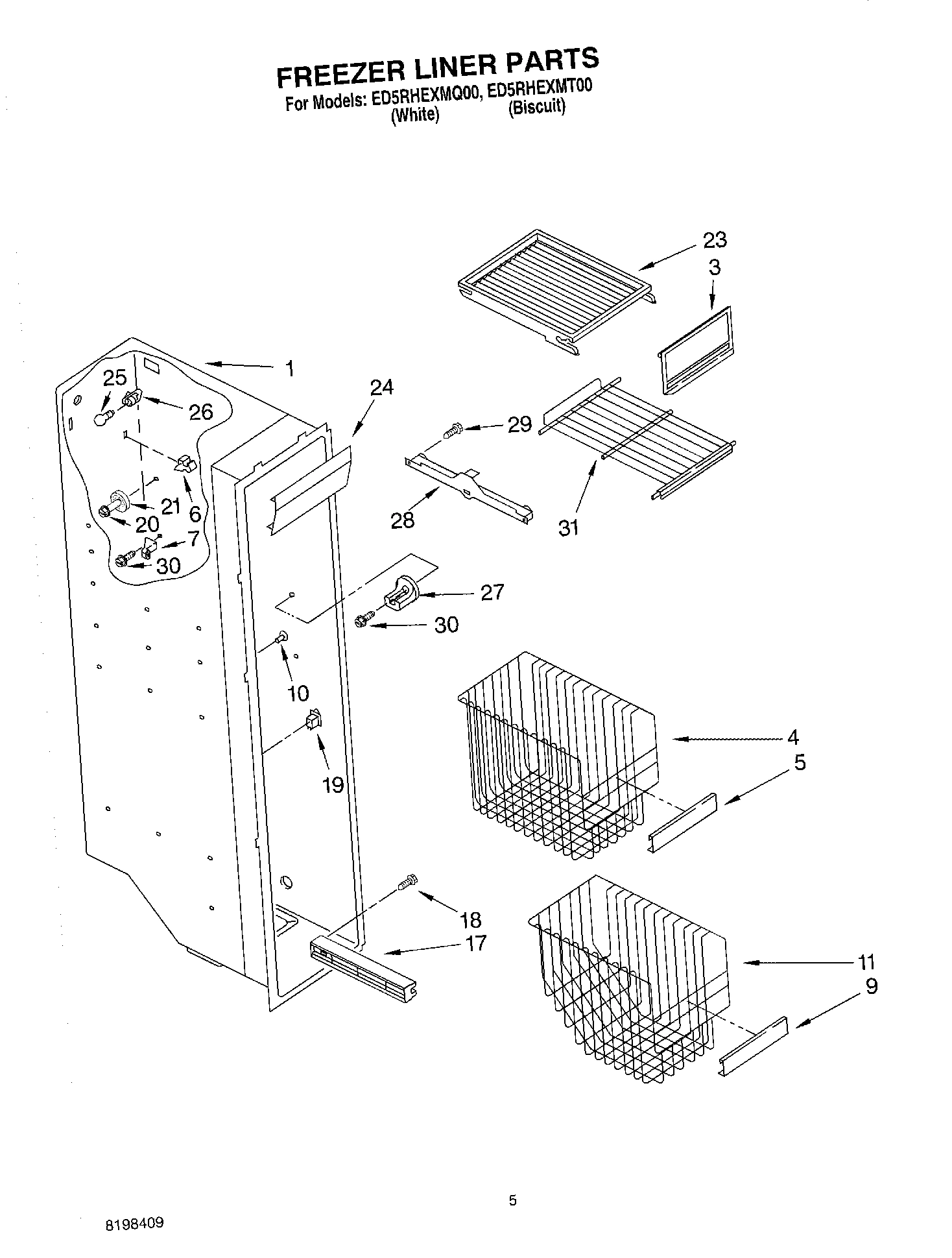

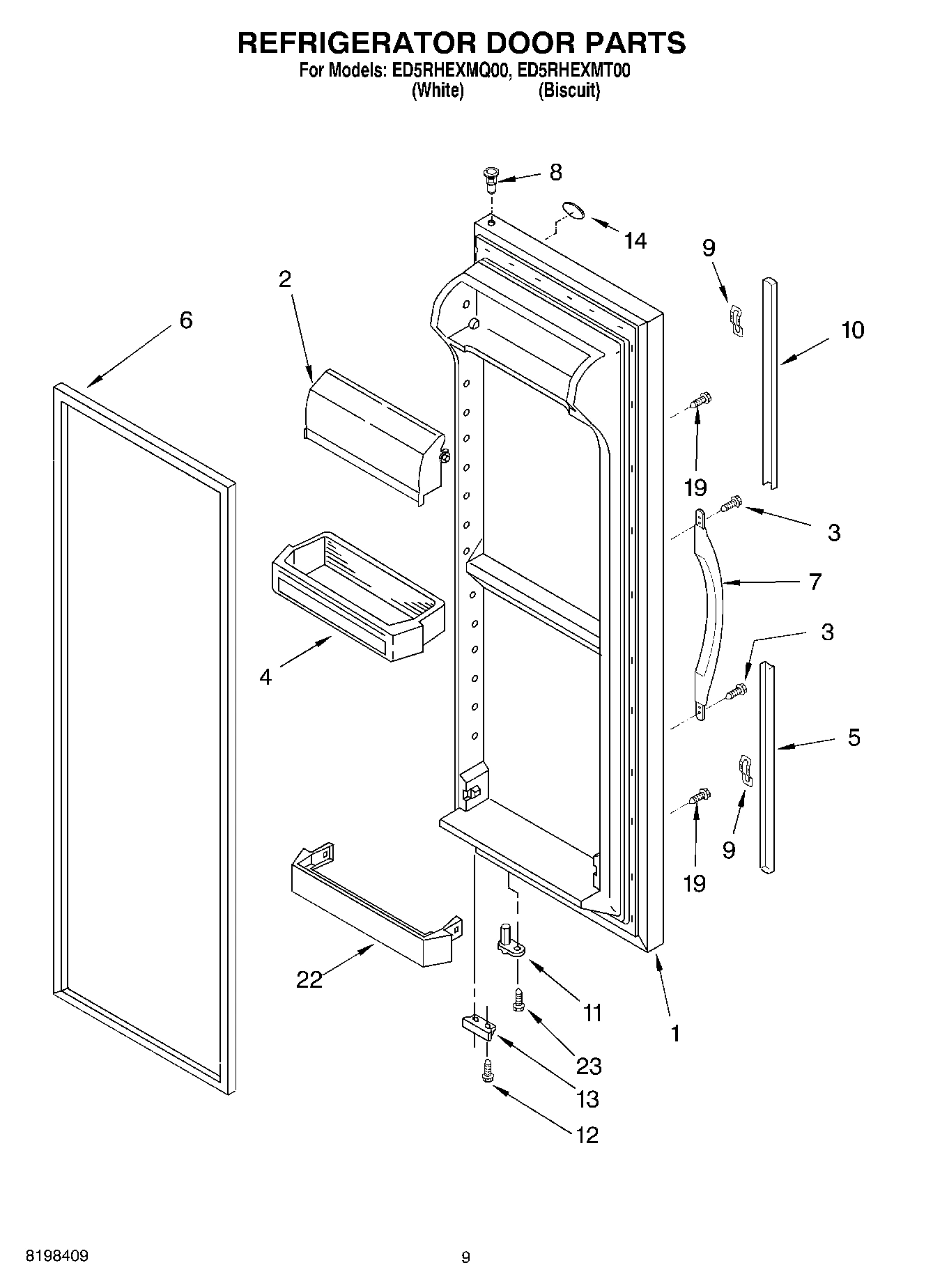

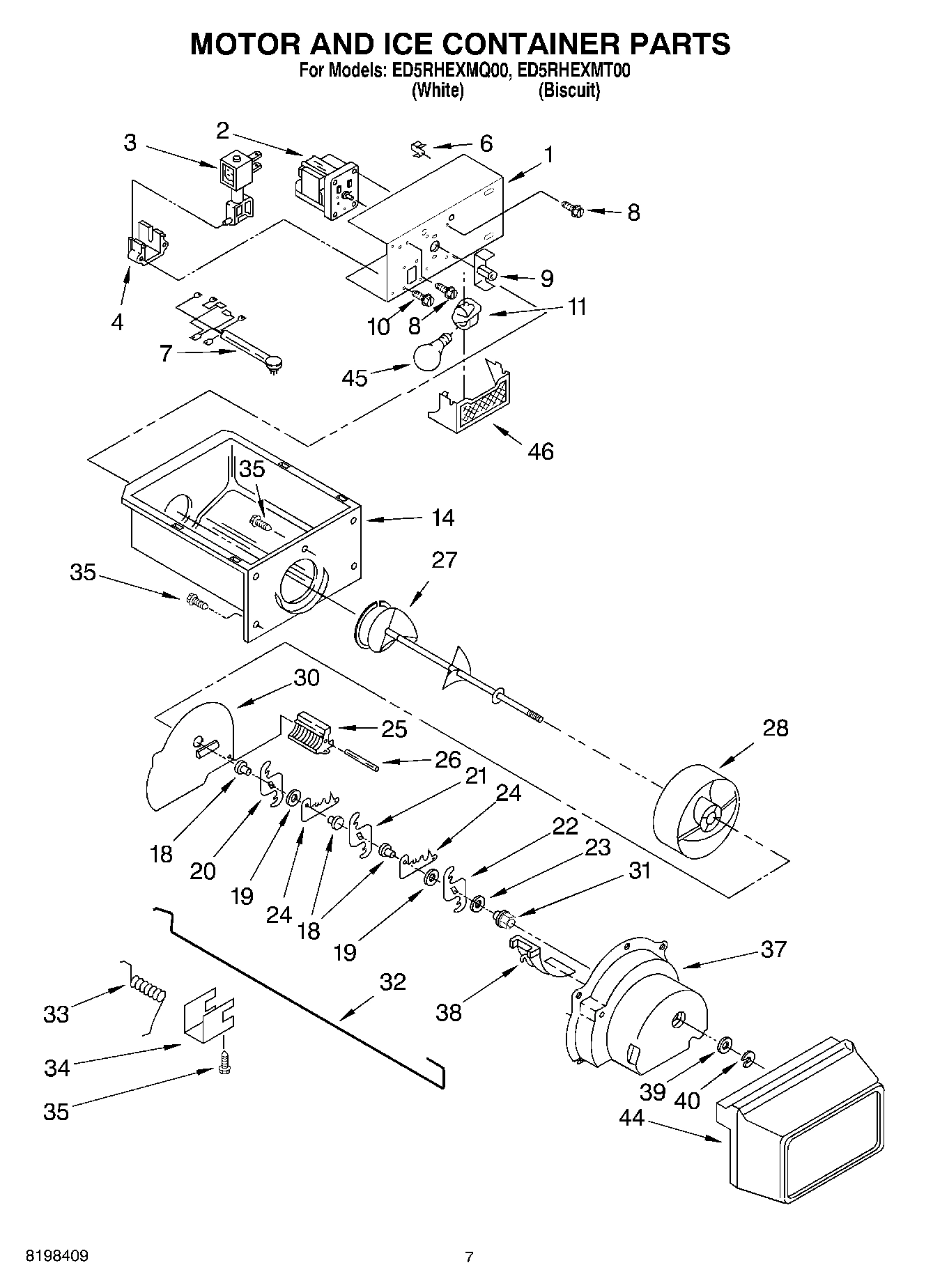

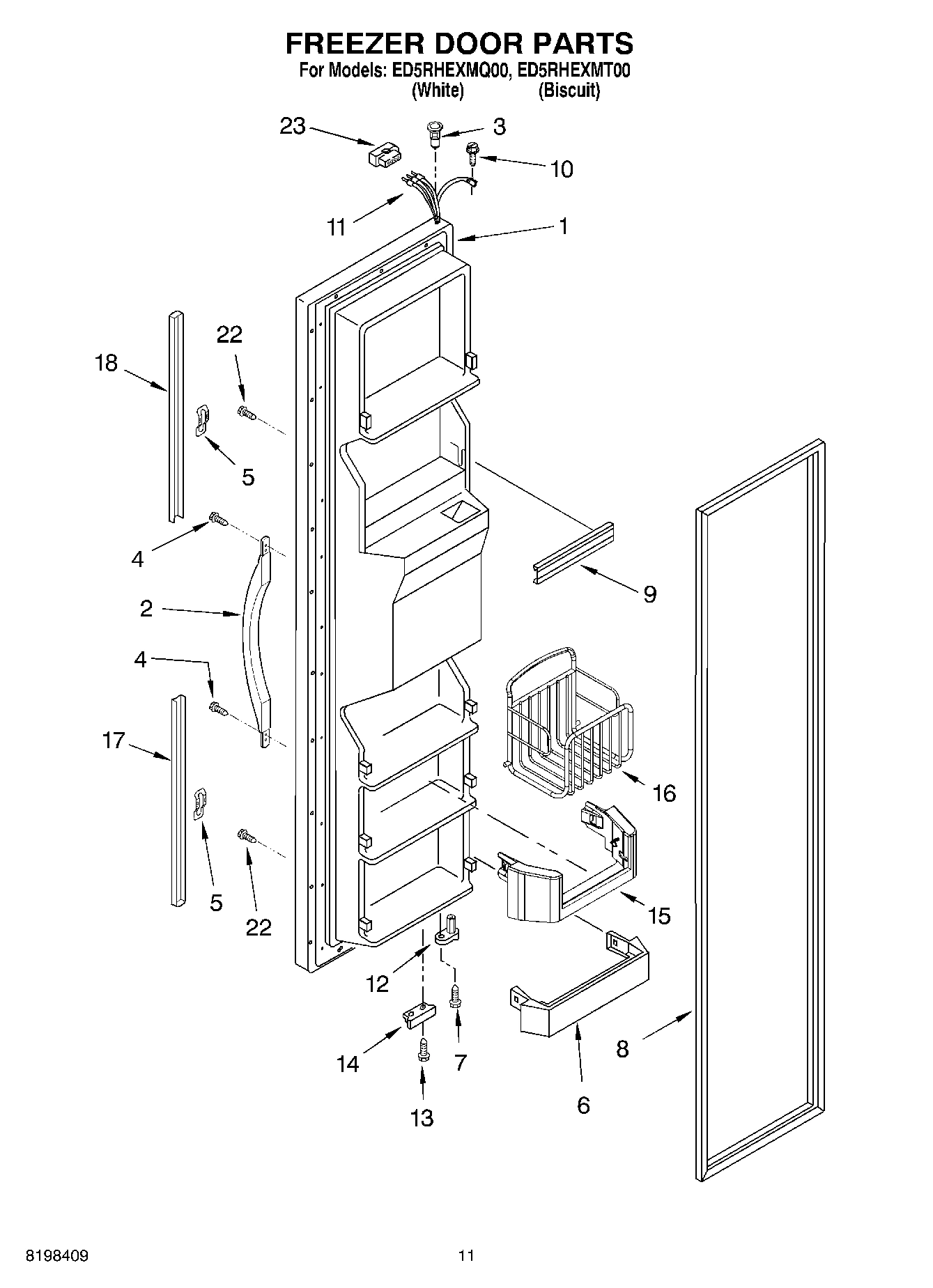

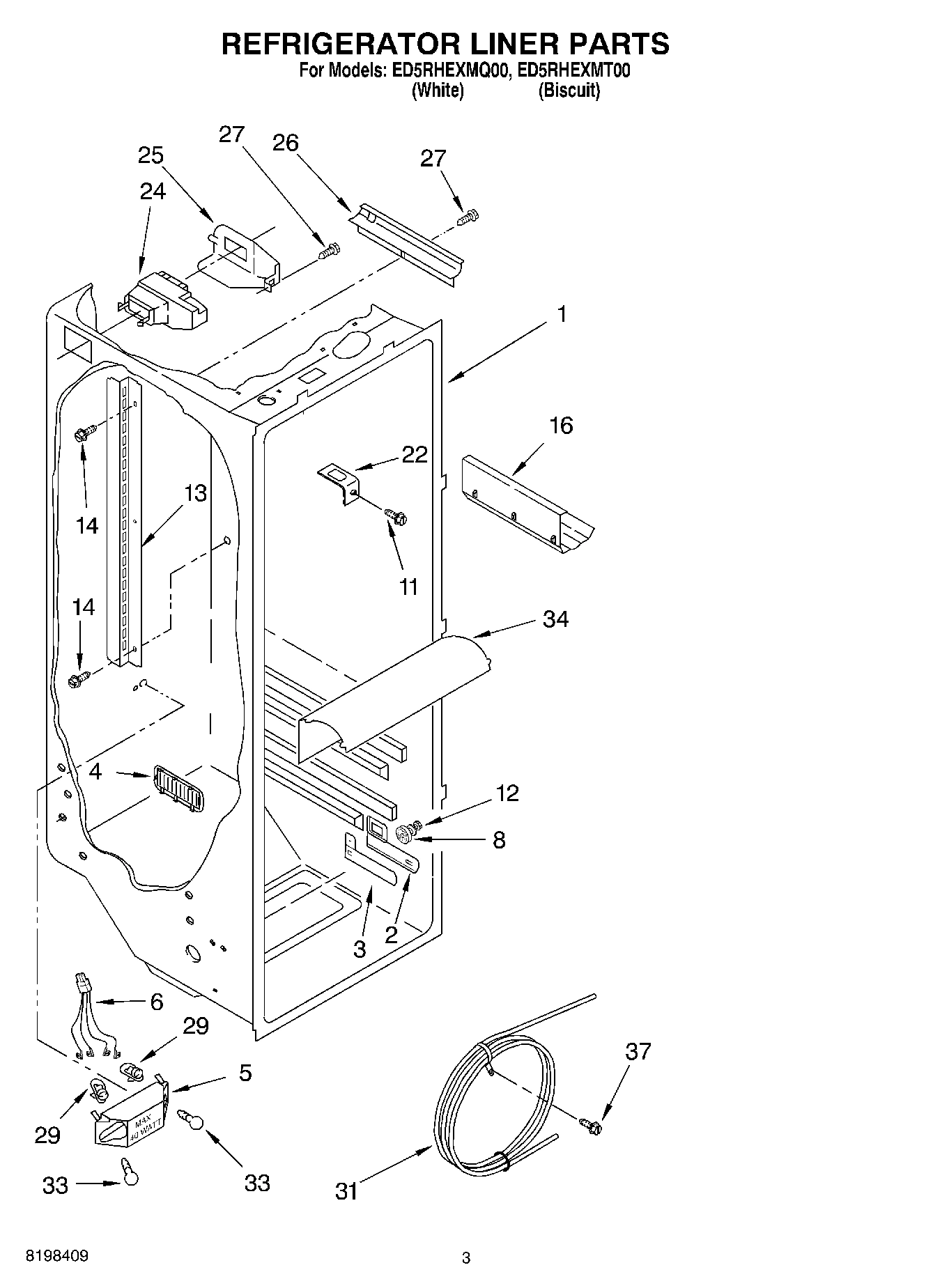

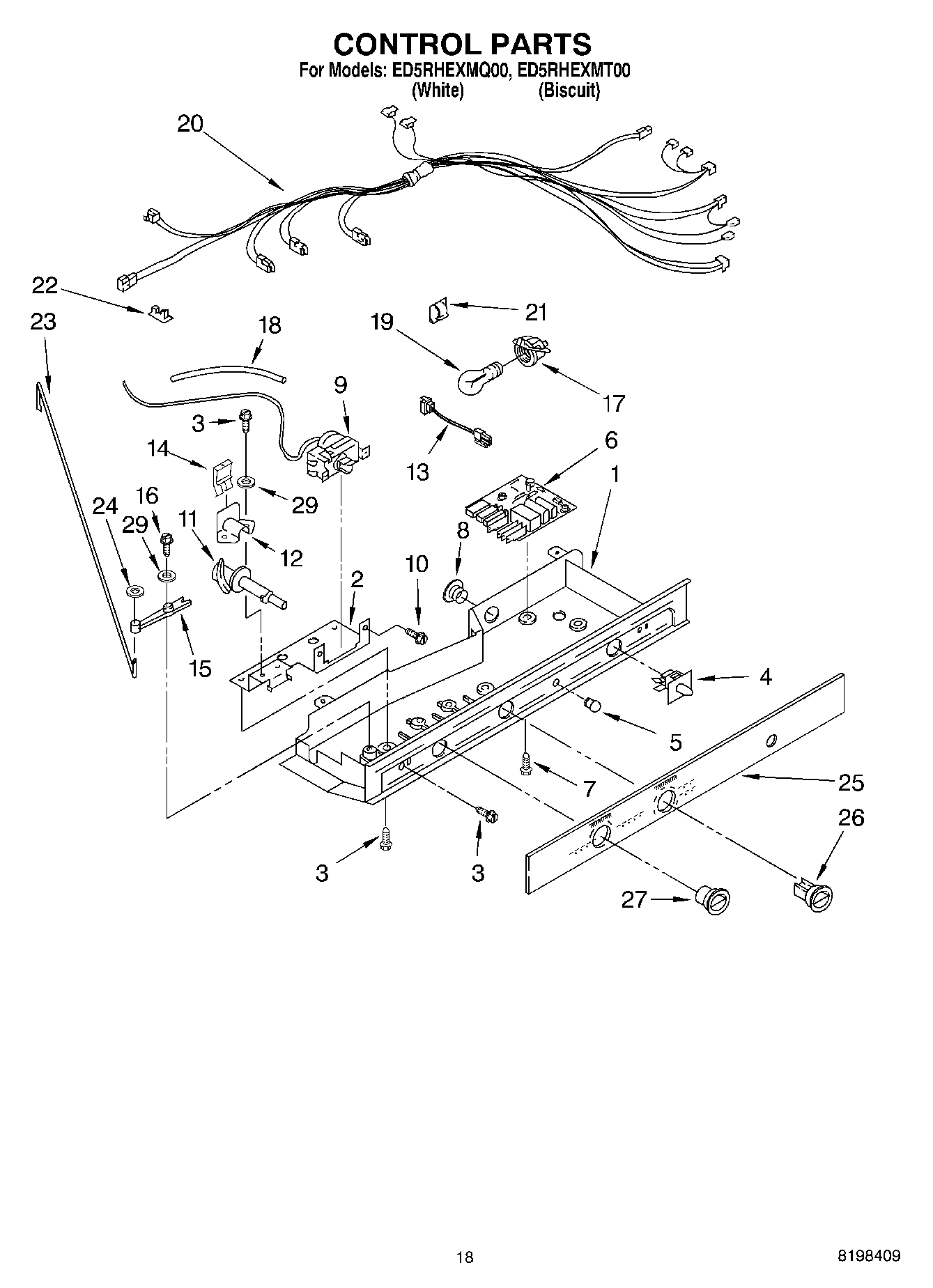

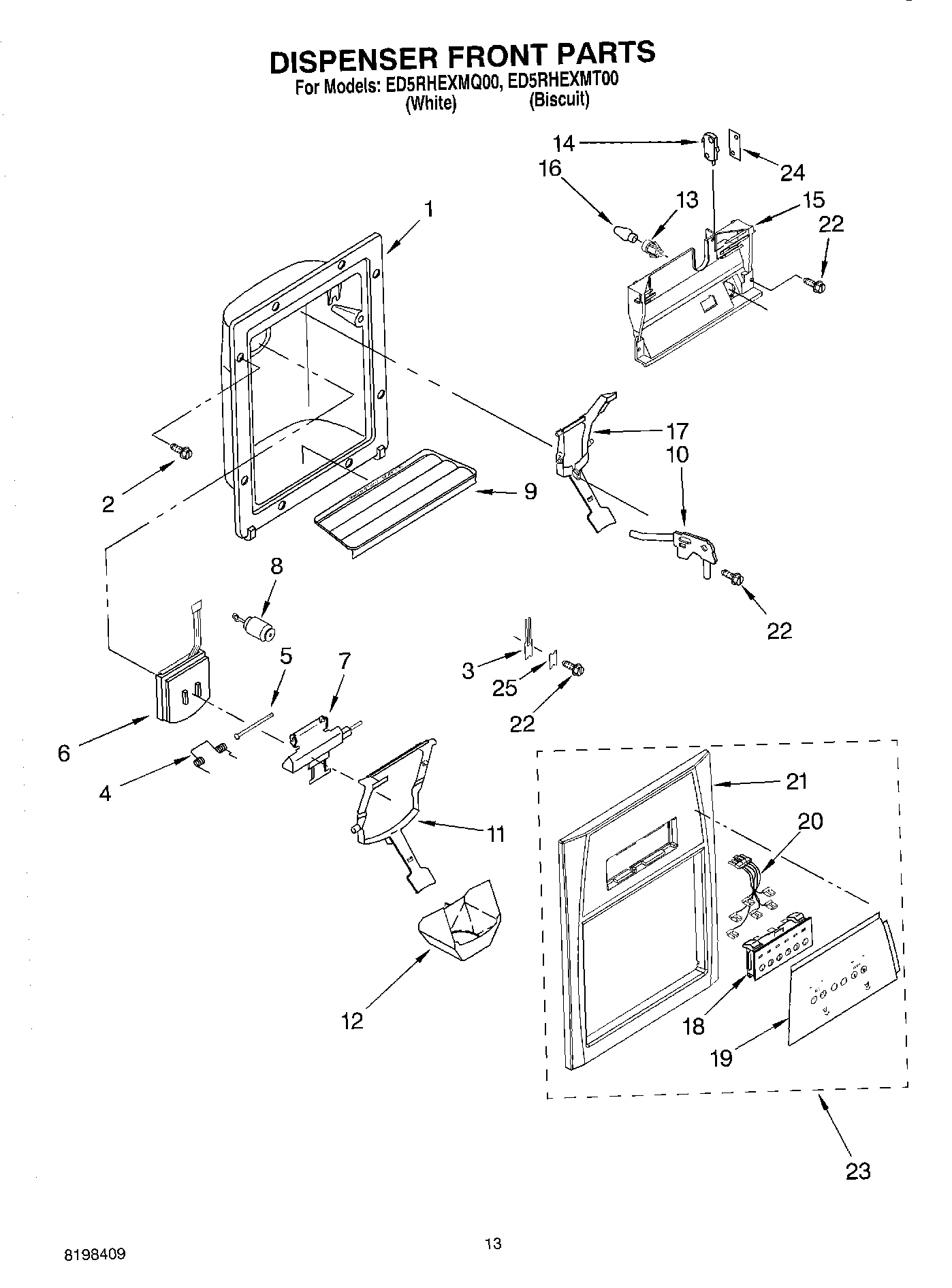

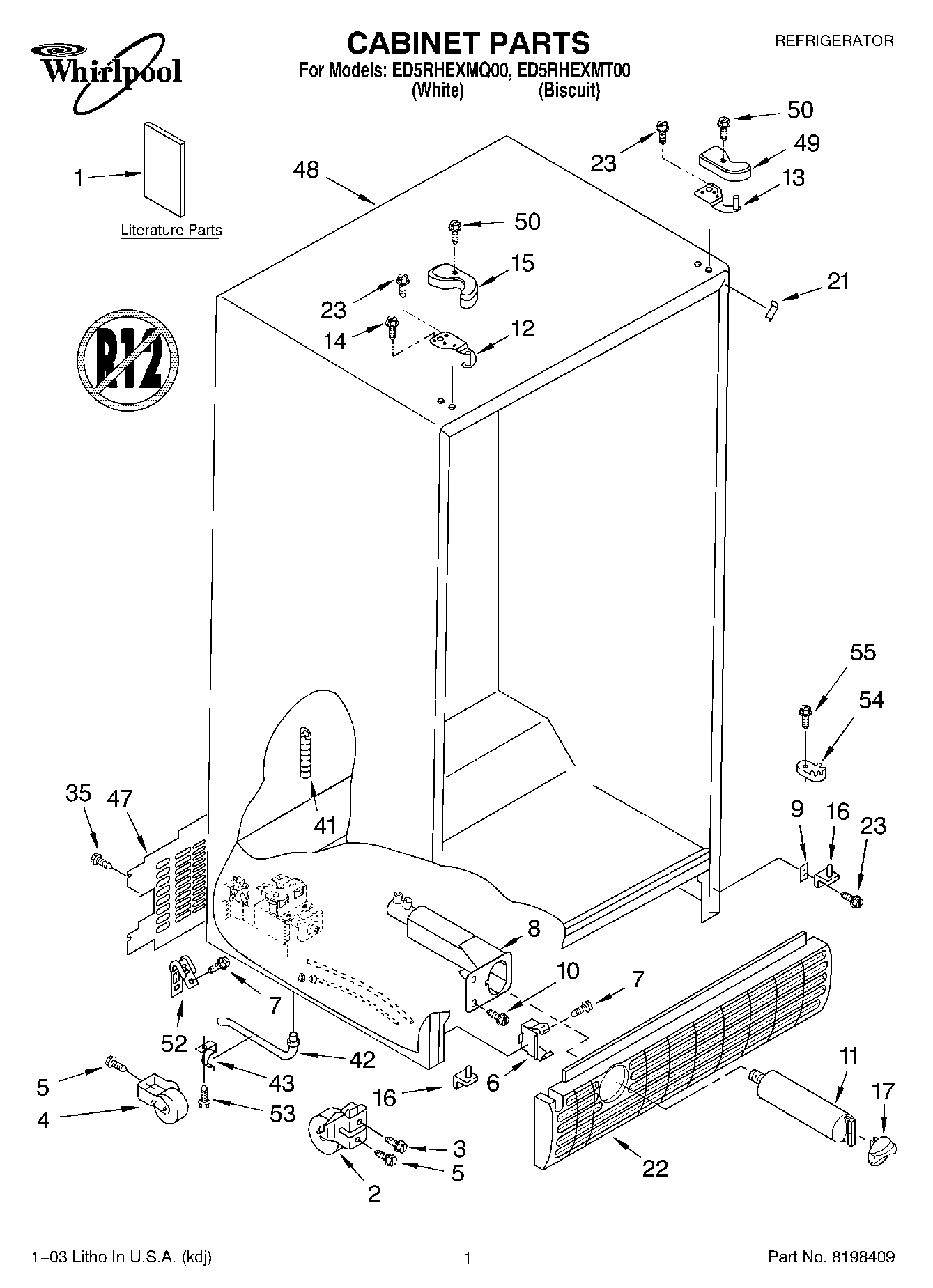

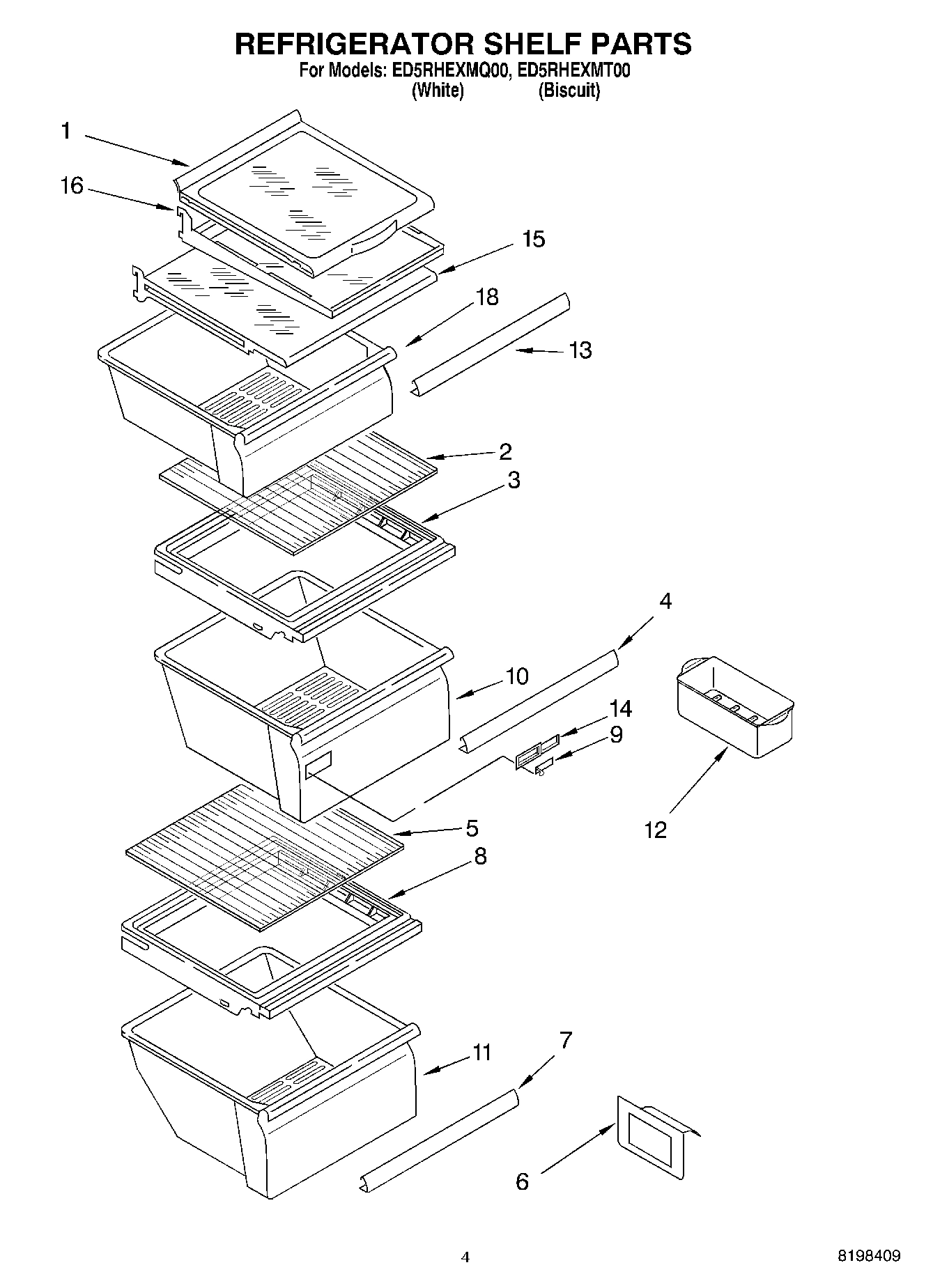

Model Whirlpool ED5RHEXMT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $39.77

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.19

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255789T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255789W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.48

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.22

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $99.61

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.59

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

5

Extension, Handle (White) WPL 2194969W Contact Us For Availability

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $14.22

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $38.52

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.78

7

Handle, Center (White) WPL 2186649W Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $200.15

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $18.95

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $51.90

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $12.90

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.19

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.21

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $56.52

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $45.20

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.40

9

Trim, Basket WPL 2195905 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.77

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $35.85

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $151.17

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.31

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $43.87

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.33

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Freezer Bin WPL 2223535 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.35

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $39.02

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.32

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $88.13

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $35.59

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.67

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $14.41

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $252.65

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $17.66

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $58.91

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $21.55

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.73

Pivot Arm WPL 1110559 Contact Us For Availability

TRIVET, TILT-OUT WPL 2223334 Contact Us For Availability

16

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $72.33

16

Basket, Tilt Out WPL 2223333 Contact Us For Availability

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.54

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $34.57

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $43.32

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $43.37

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $98.86

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.57

Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability

Extension, Handle (Biscuit) WPL 2194969T Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.77

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $5.64

Acceler-Ice Assy. WPL 2255794 Contact Us For Availability

Extension, Handle (Biscuit) WPL 2194973T Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $12.94

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.32

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

20

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.75

21

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $40.56

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $10.43

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Grille (Biscuit) WPL 2198468T Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $16.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.18

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.90

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $39.78

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $16.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.22

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $12.20

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $467.42

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $61.51

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $14.93

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $183.01

30

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $8.04

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $16.84

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.19

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $60.29

31

Unit, Harness (Includes Power Cord) WPL 2187510 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $16.69

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.67

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.34

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $5.07

34

Clip WPL 2161330 Contact Us For Availability

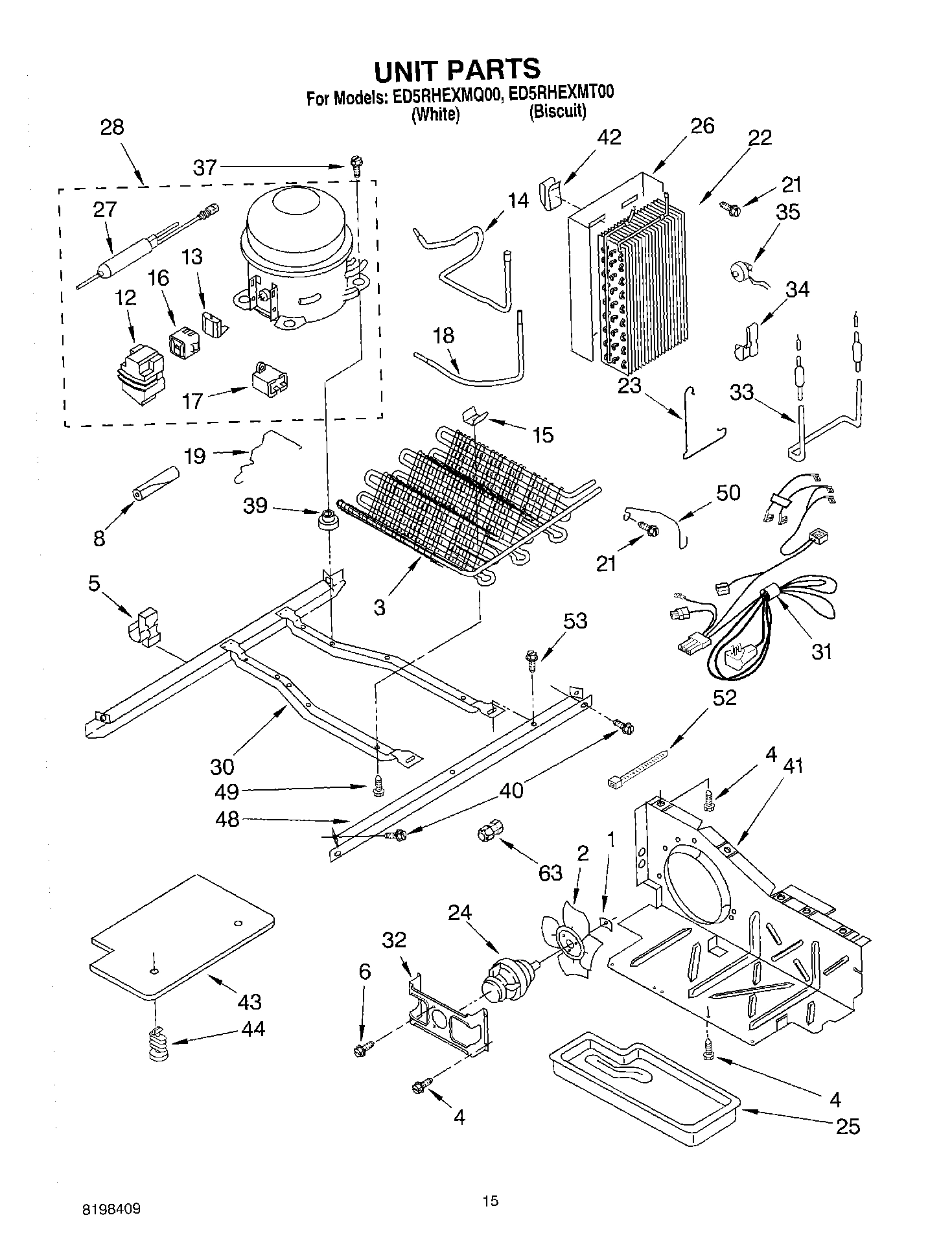

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $5.76

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $14.93

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.04

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $5.76

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $5.84

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $6.52

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $63.20

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $13.86

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $36.47

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $53.90

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.92

50

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.76

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

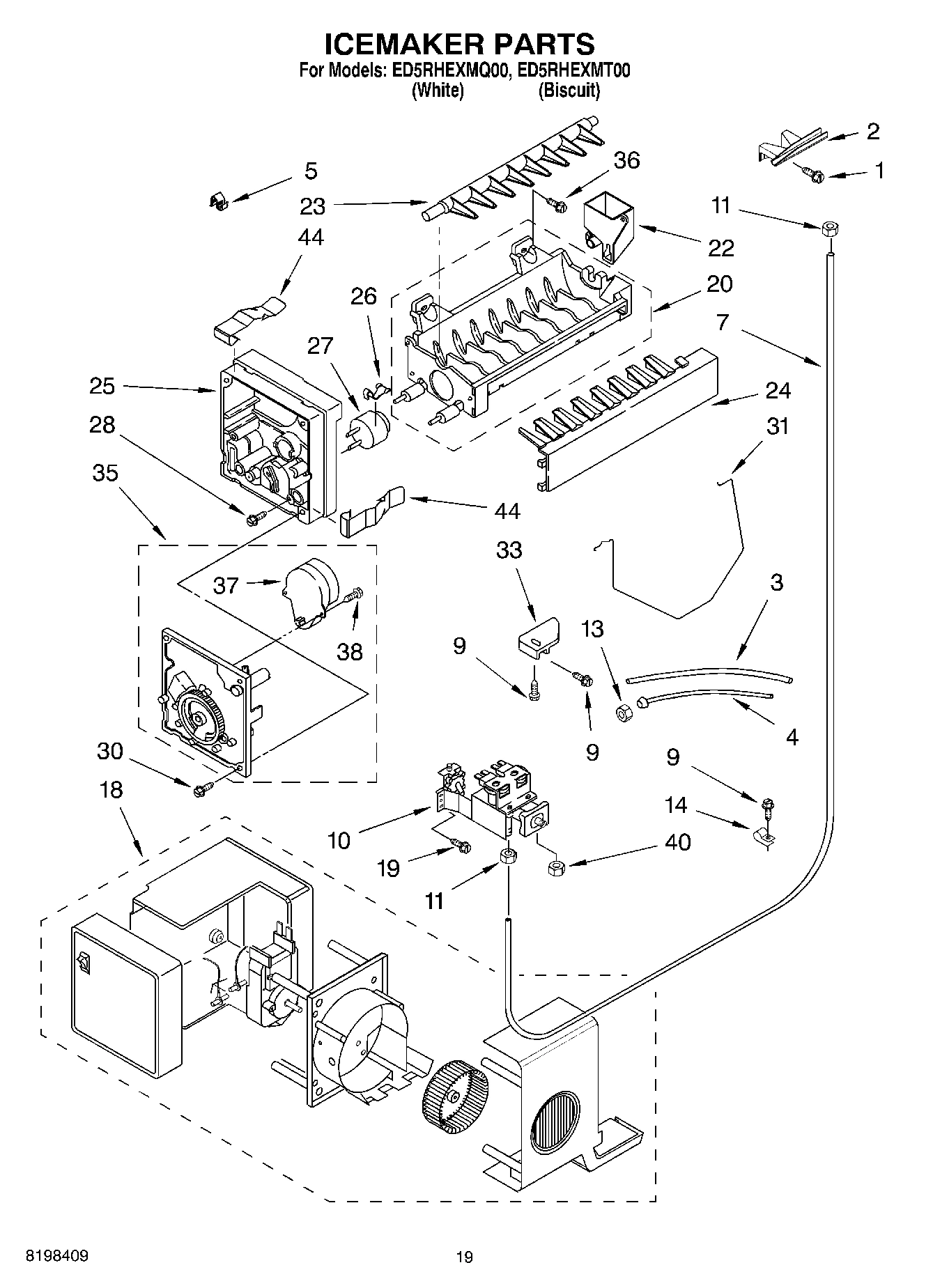

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI37957A9 Contact Us For Availability

and Optional Parts Not Included WPL ARI37958A3 Contact Us For Availability

REFRIGERANT CHARGE 5.0 WPL ARI37959A4 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.68
