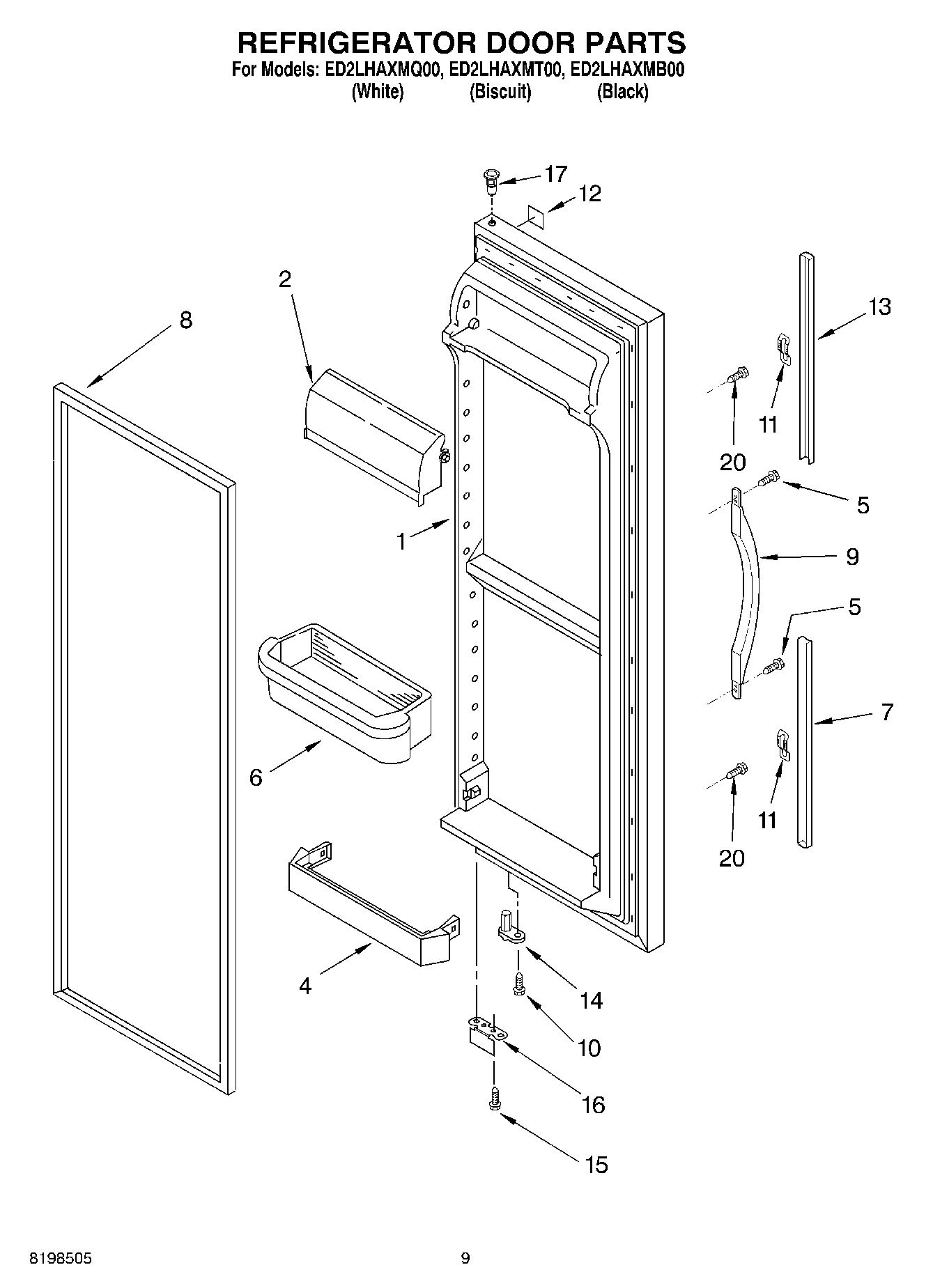

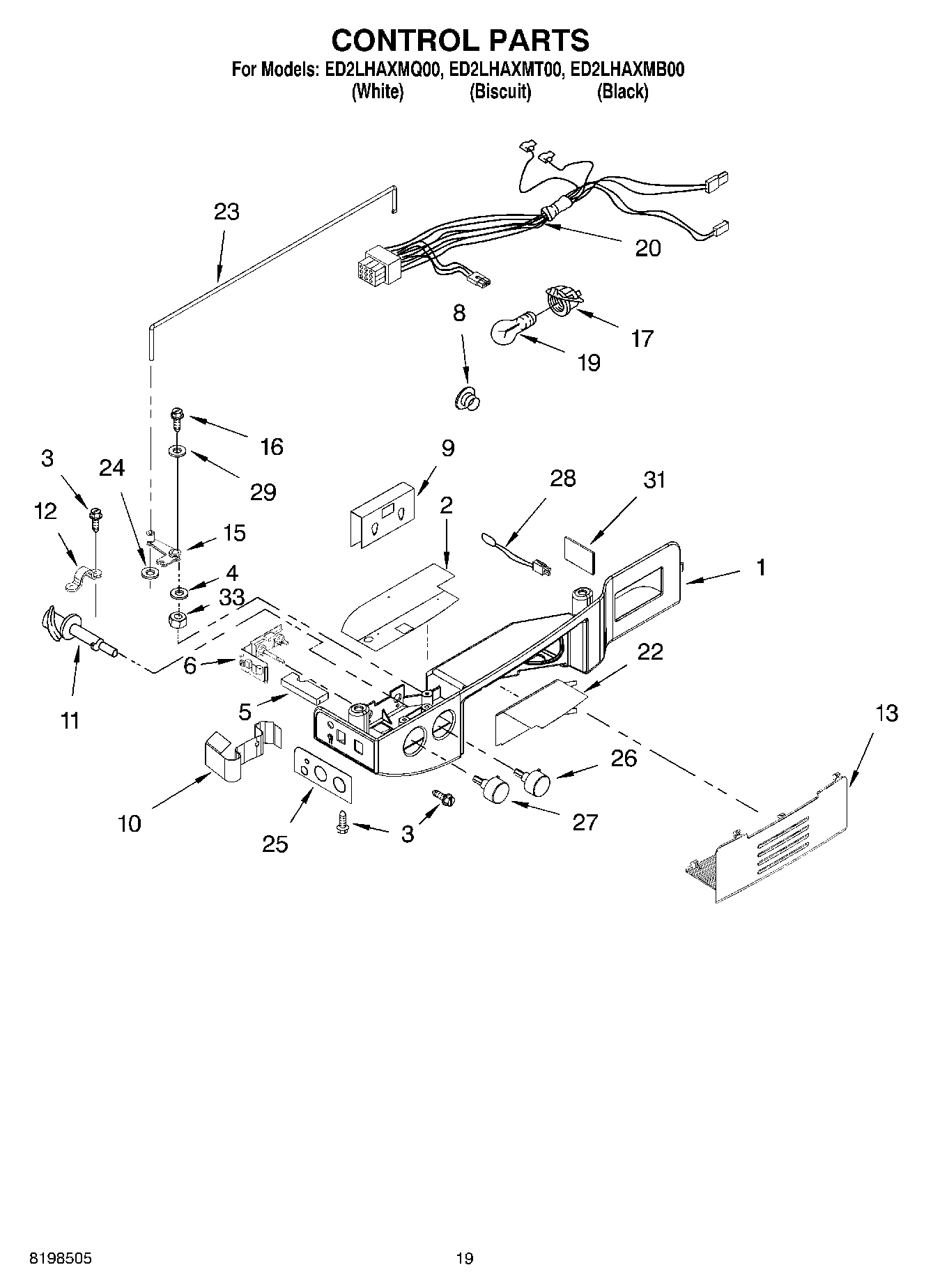

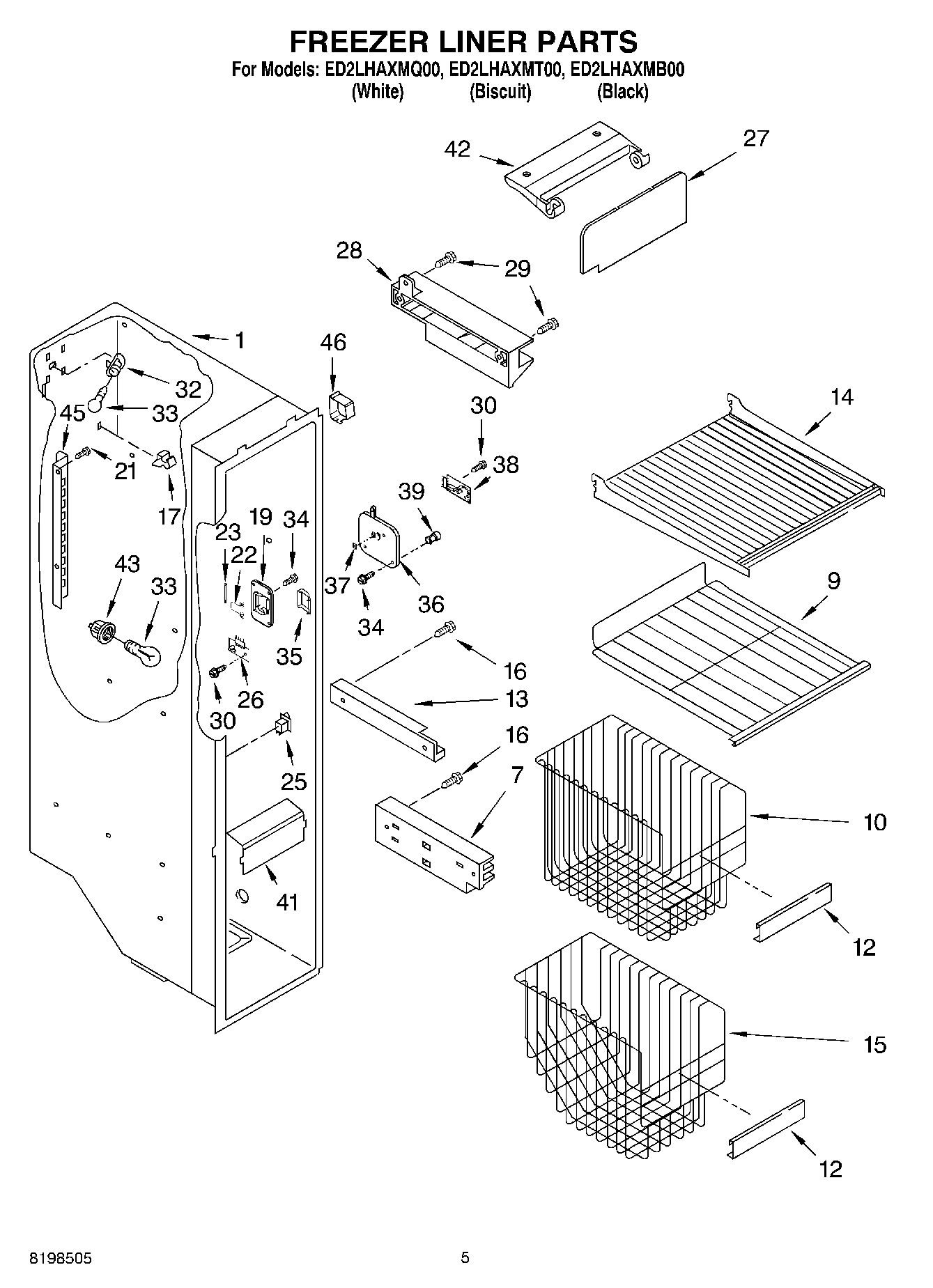

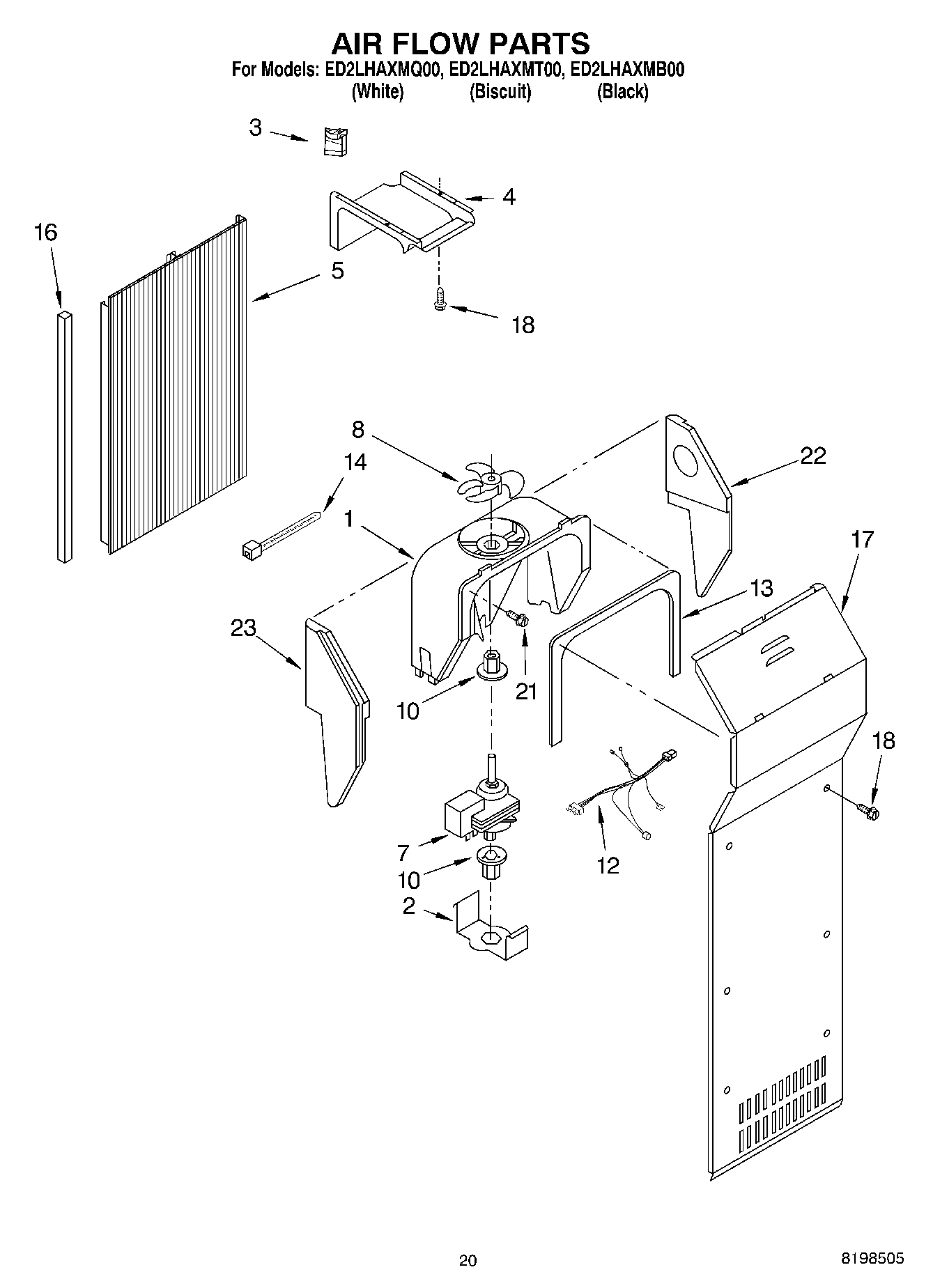

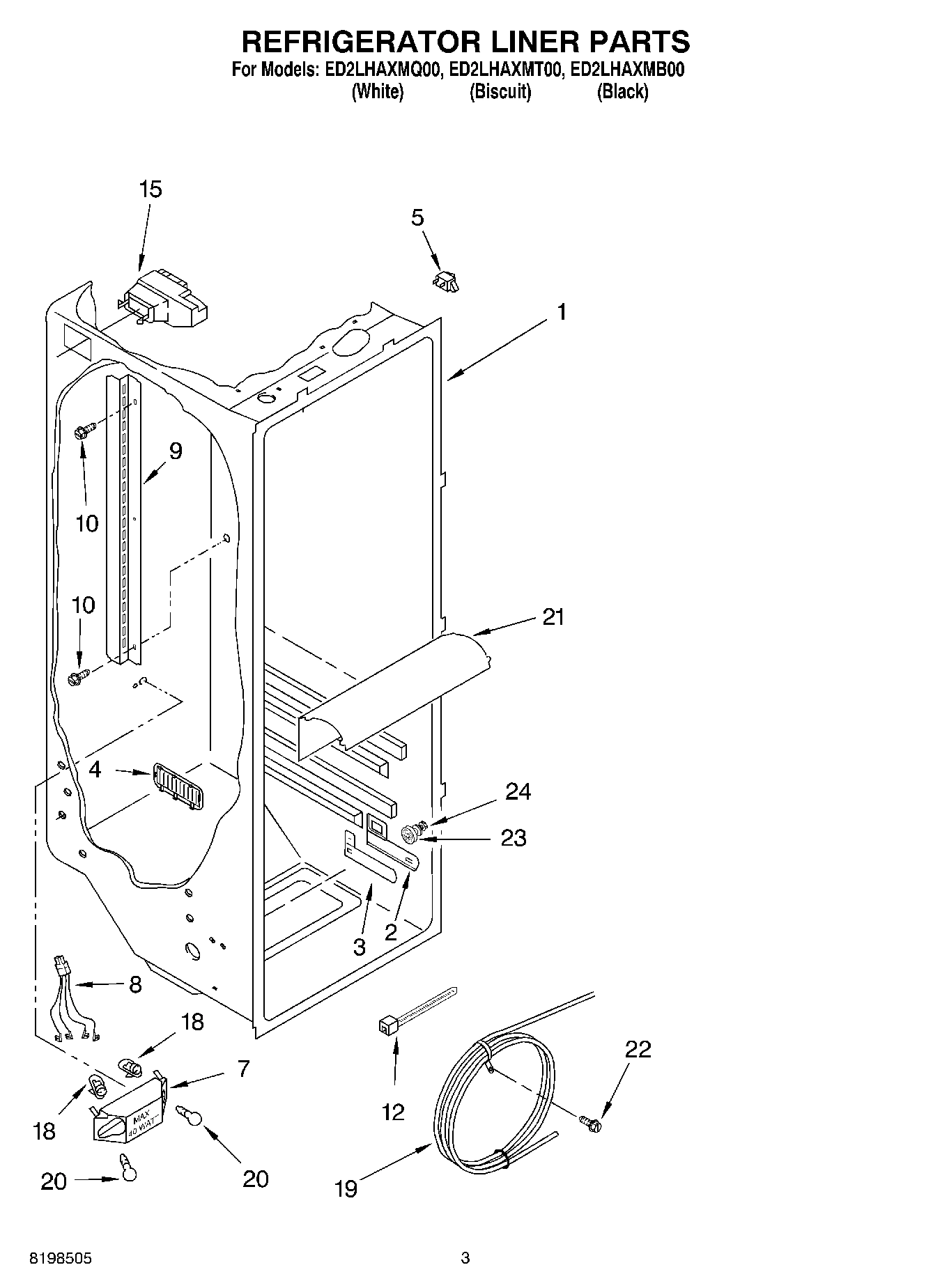

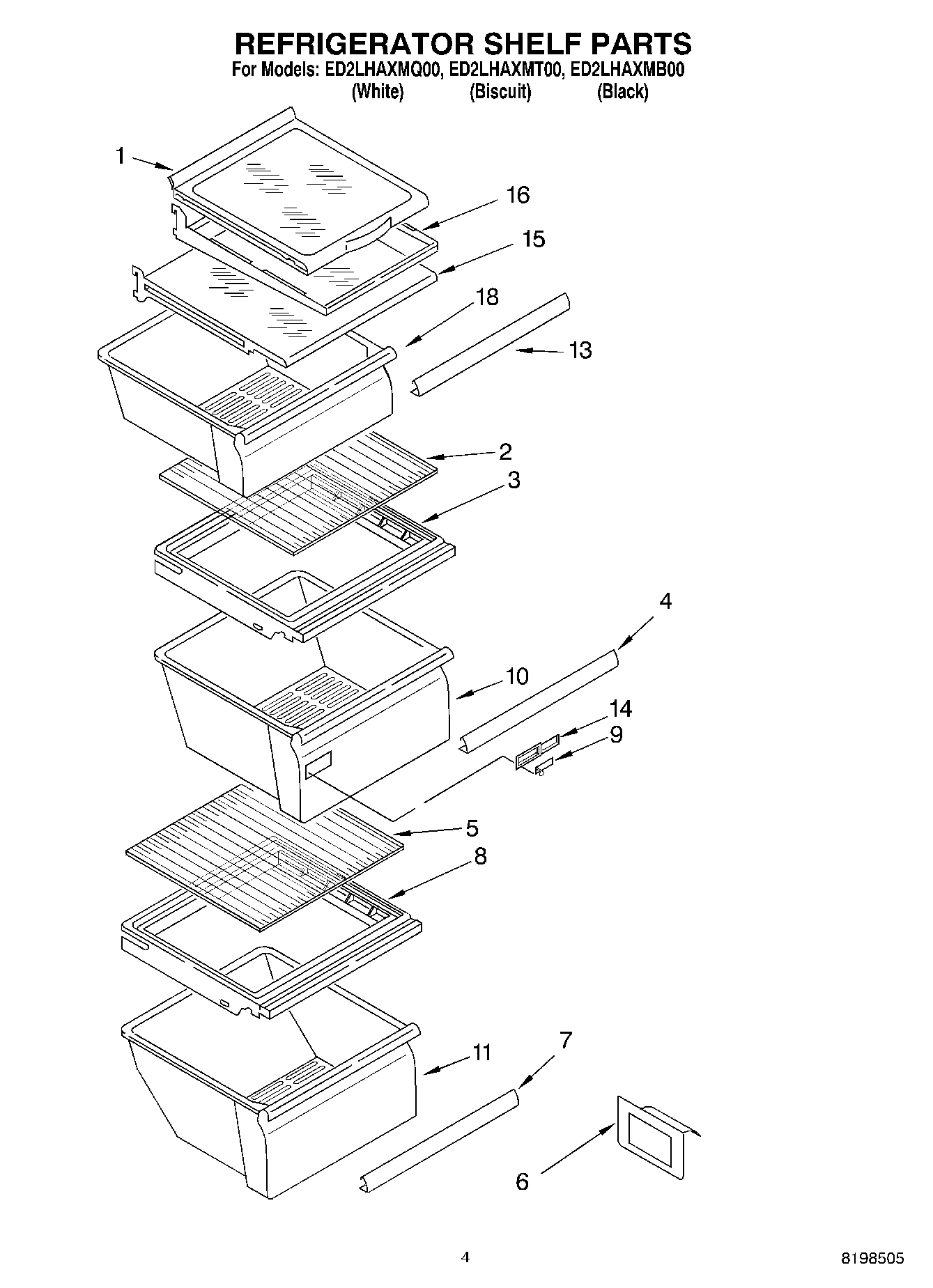

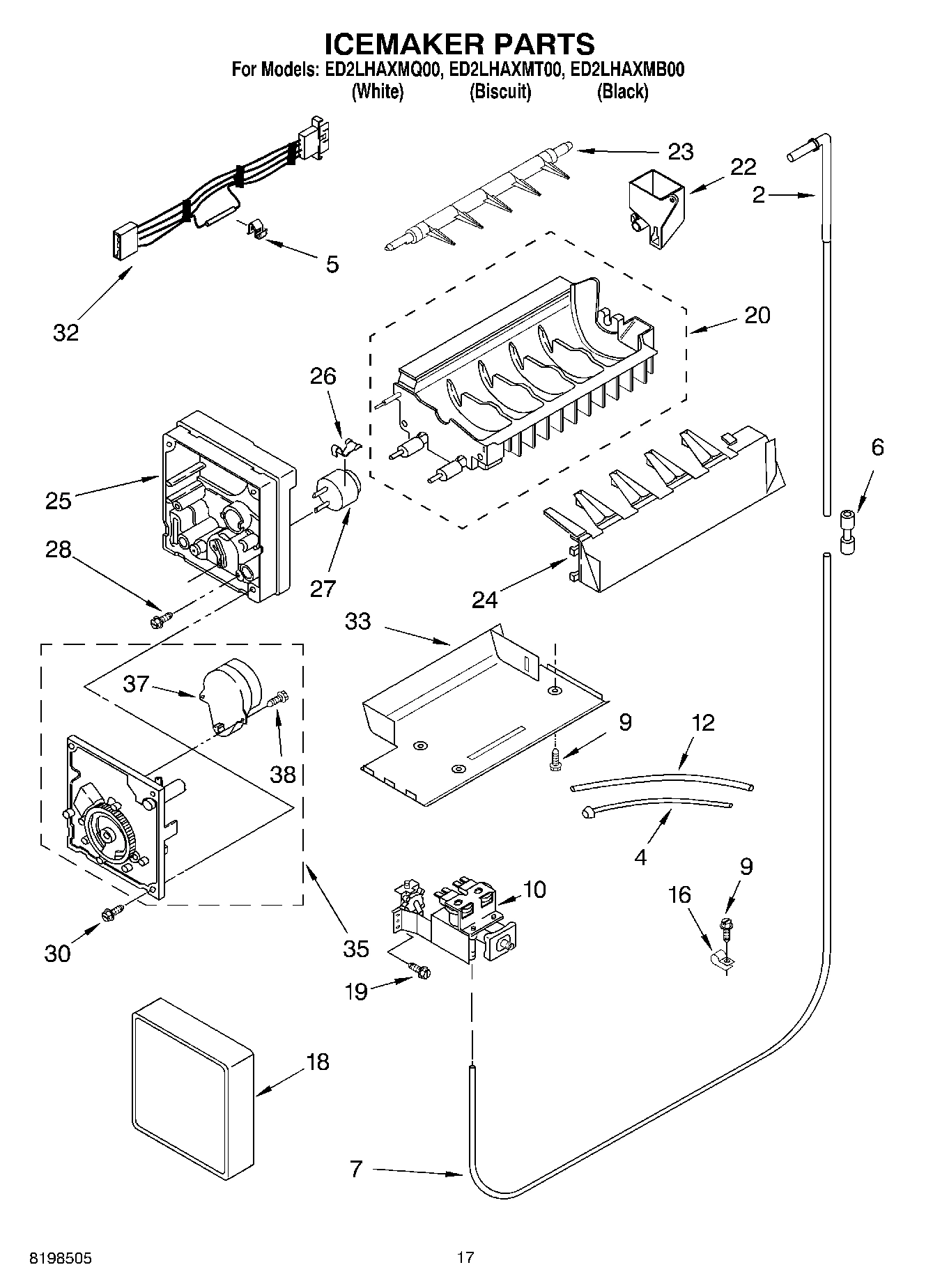

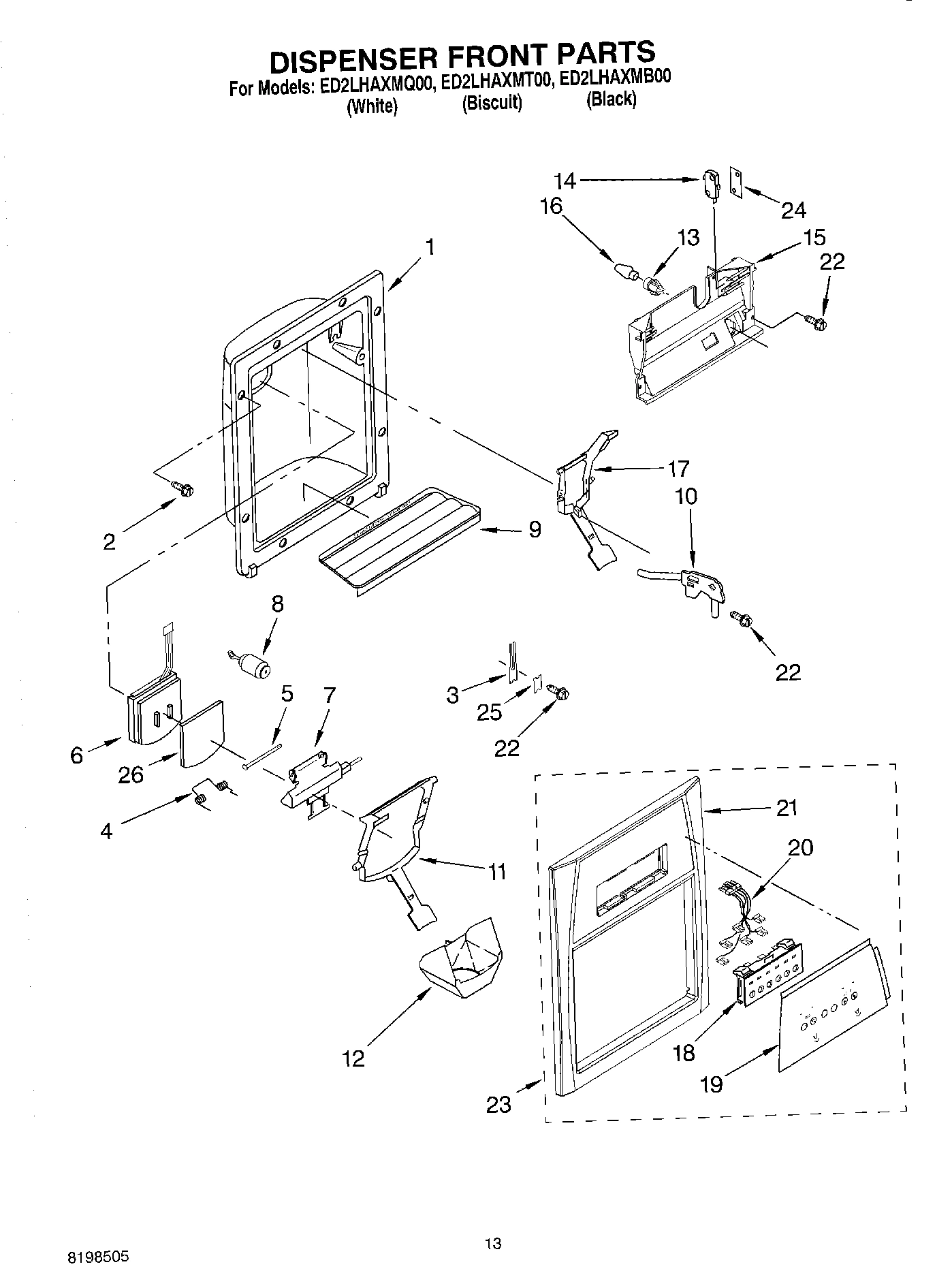

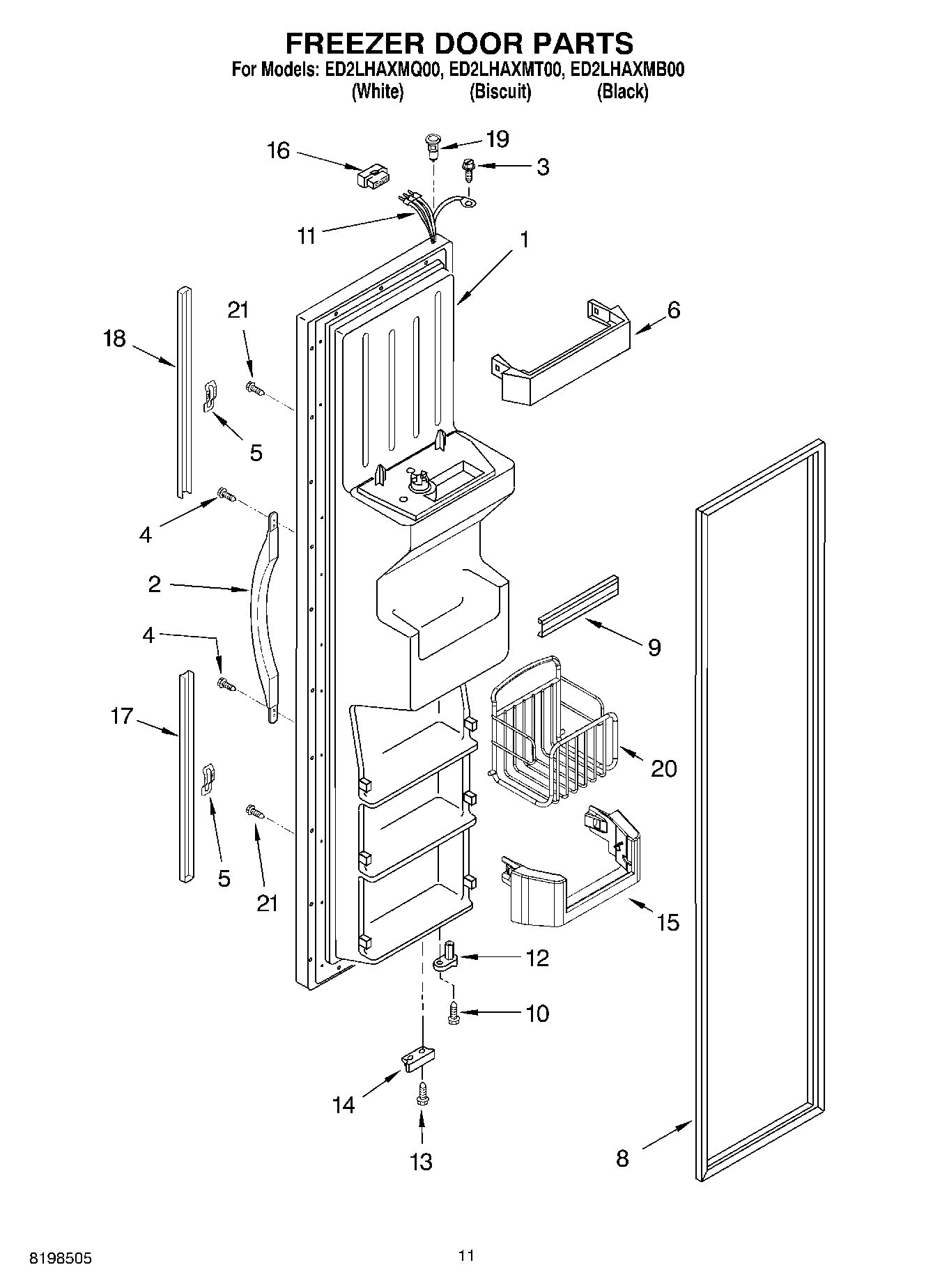

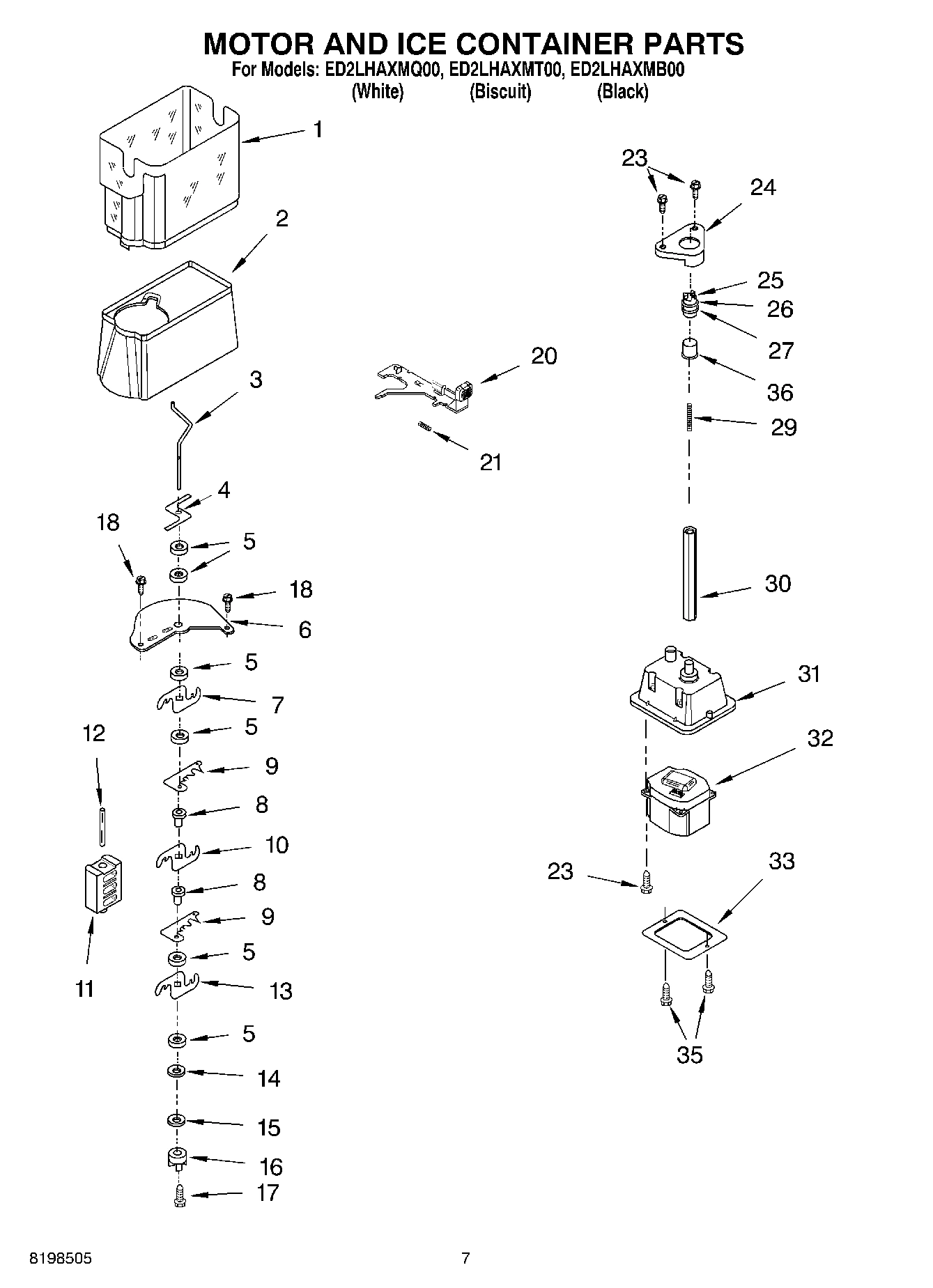

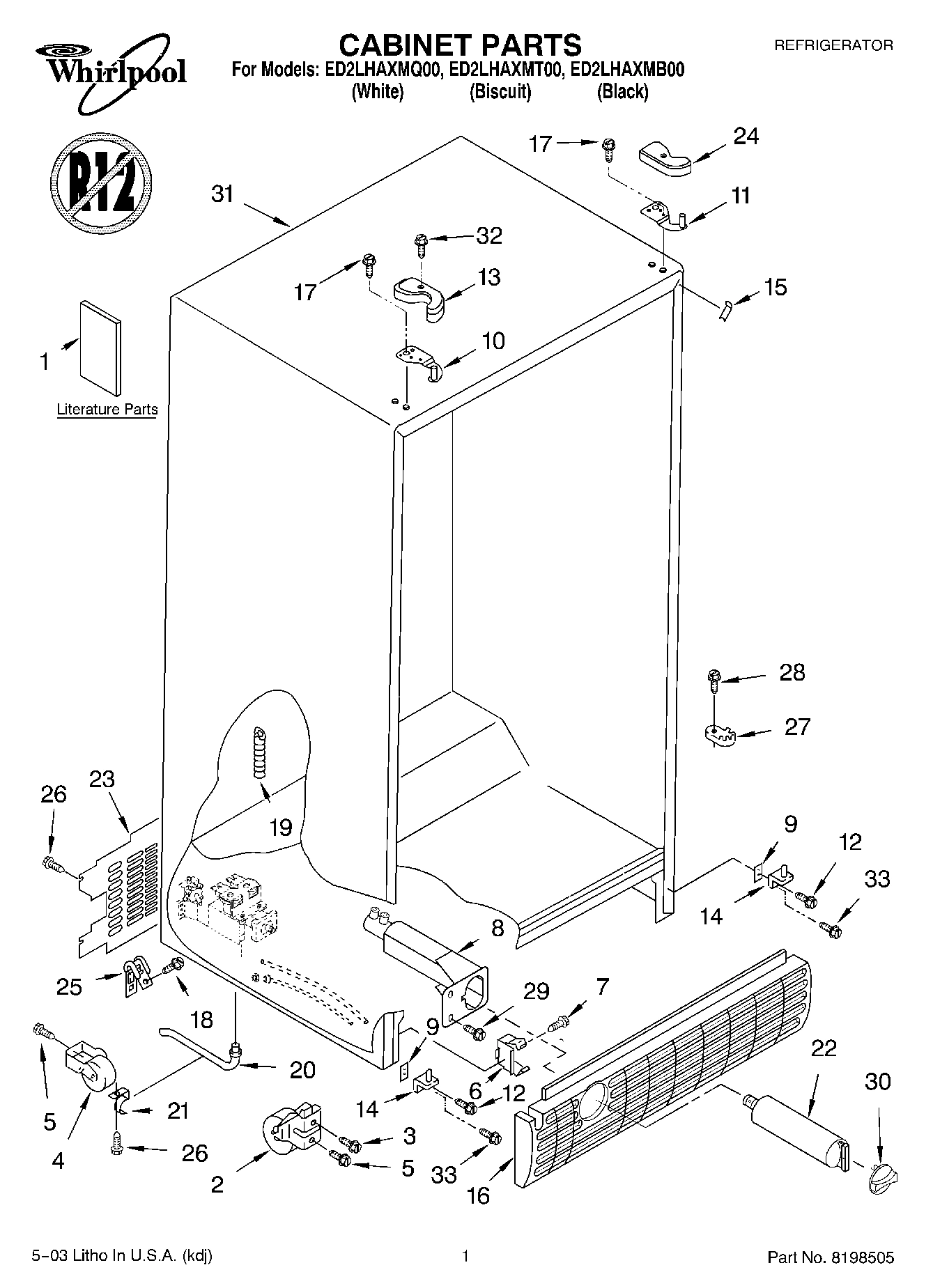

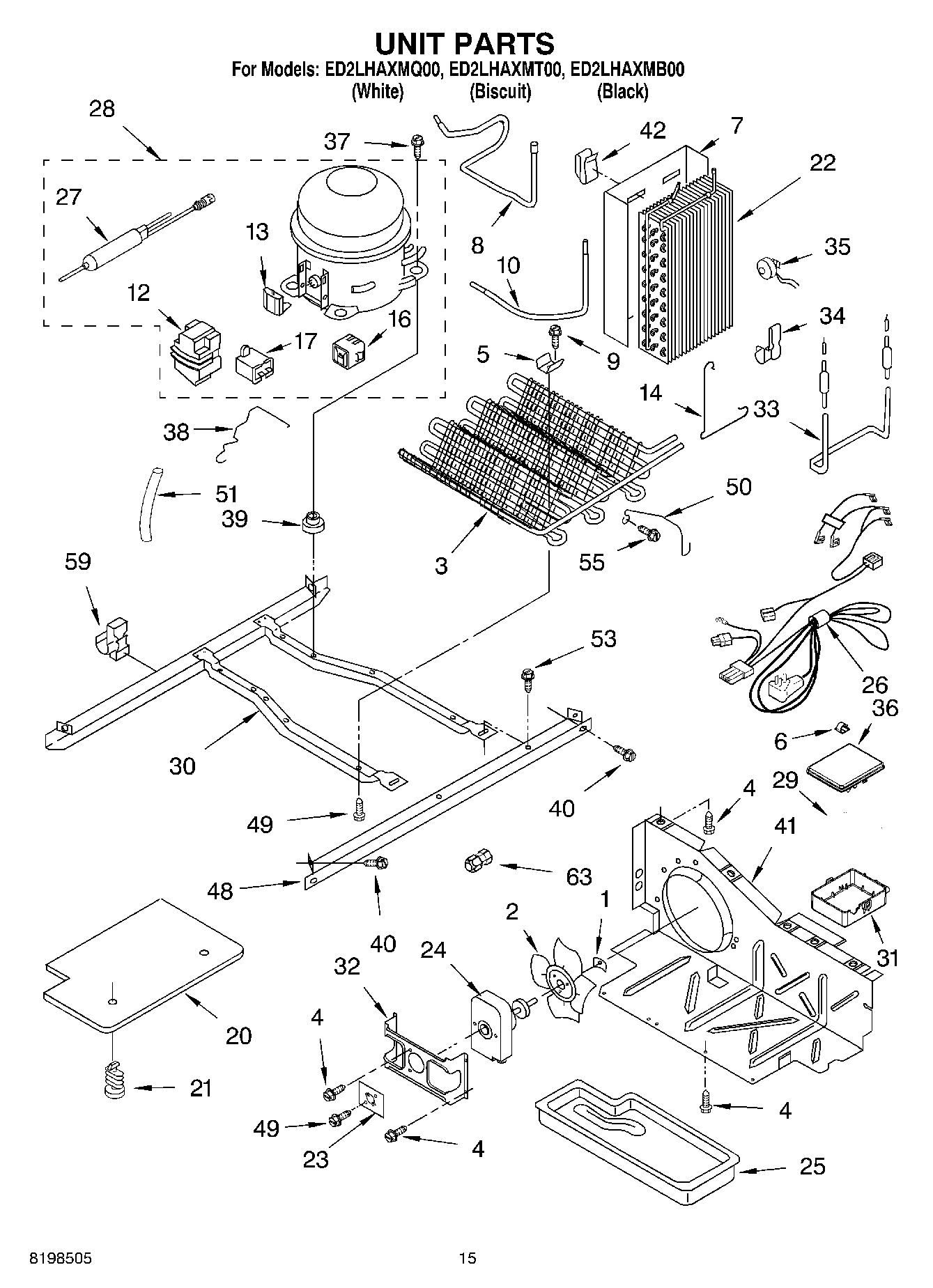

Model Whirlpool ED2LHAXMQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

1

Liner (Not A Serviceable Part) WPL ARI31293A9 Contact Us For Availability

1

Ice Bin WPL 2212302 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261179B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261179T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261179W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2255577 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Auger WPL 2212342 Contact Us For Availability

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2182147 Contact Us For Availability

4

BLade, Stirring WPL 2212382 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $40.75

6

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

6

Cover, Crusher WPL 2255461 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

7

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

7

Bracket, Dual Crisper WPL 2256035 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Handle, Center (Black) WPL 2186649B Contact Us For Availability

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Extension, Top (White) WPL 2194971W Contact Us For Availability

Shelf Track (Left Side) WPL 2223704 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Shelf WPL 2212343 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Basket, Slope WPL 2223278 Contact Us For Availability

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

Trivet, Tilt Out (2) WPL 2223472 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

Frame, Shelf WPL 2195975 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP2194971B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194971B $72.48

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Extension, Top (Biscuit) WPL 2194971T Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Latch, Bin WPL 2255578 Contact Us For Availability

Basket, Tilt Out (2) WPL 2223473 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

Light Lens WPL 2209769 Contact Us For Availability

22

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

22

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

26

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

Shield, Ice Door WPL 987121 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Knob, FC WPL 2255992 Contact Us For Availability

Cover, Icemaker WPL 2255589 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

Control Box WPL 2255623 Contact Us For Availability

31

Enclosure, Motor WPL 2212304 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $178.99

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

33

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2255558 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $62.24

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
