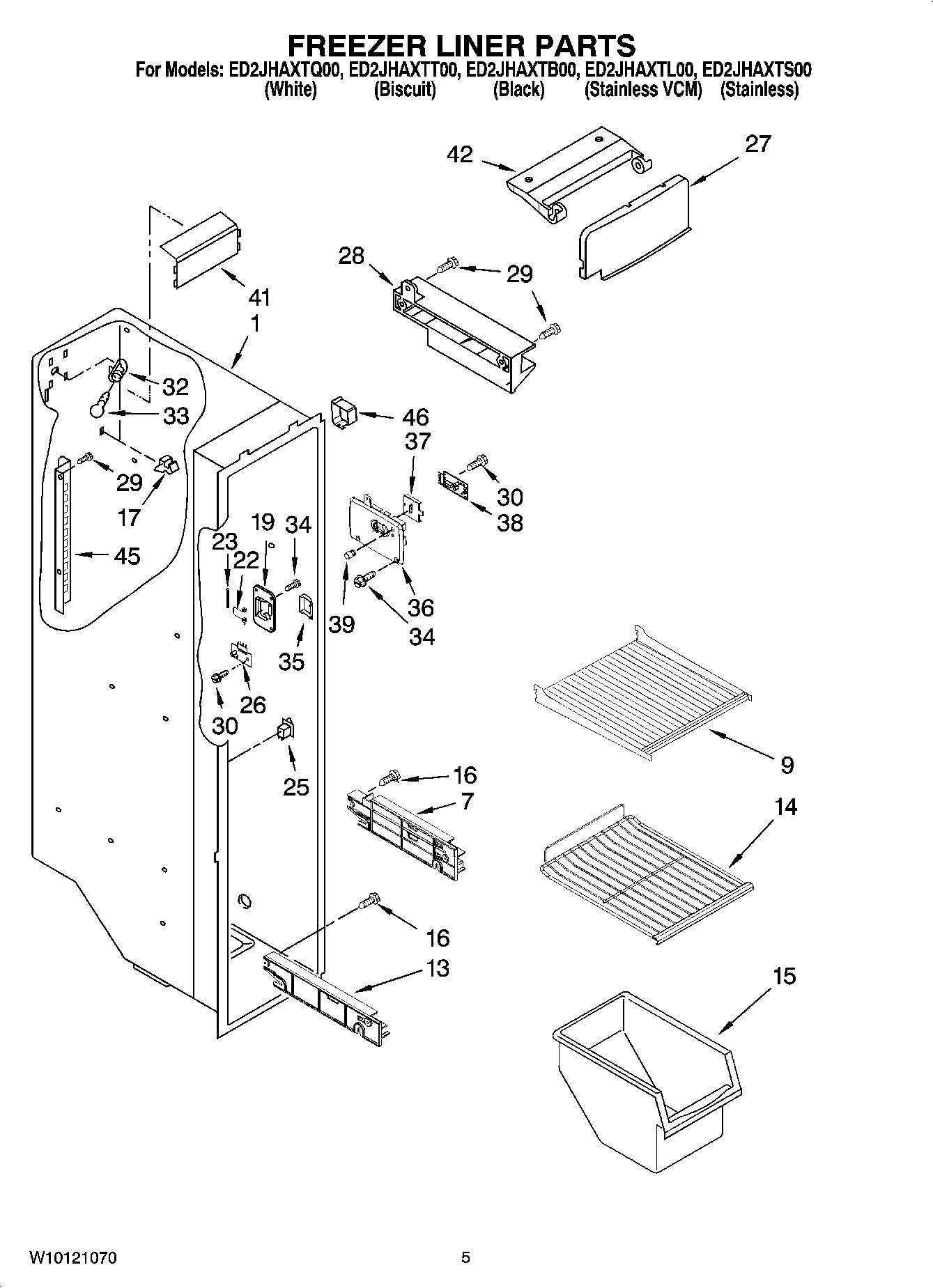

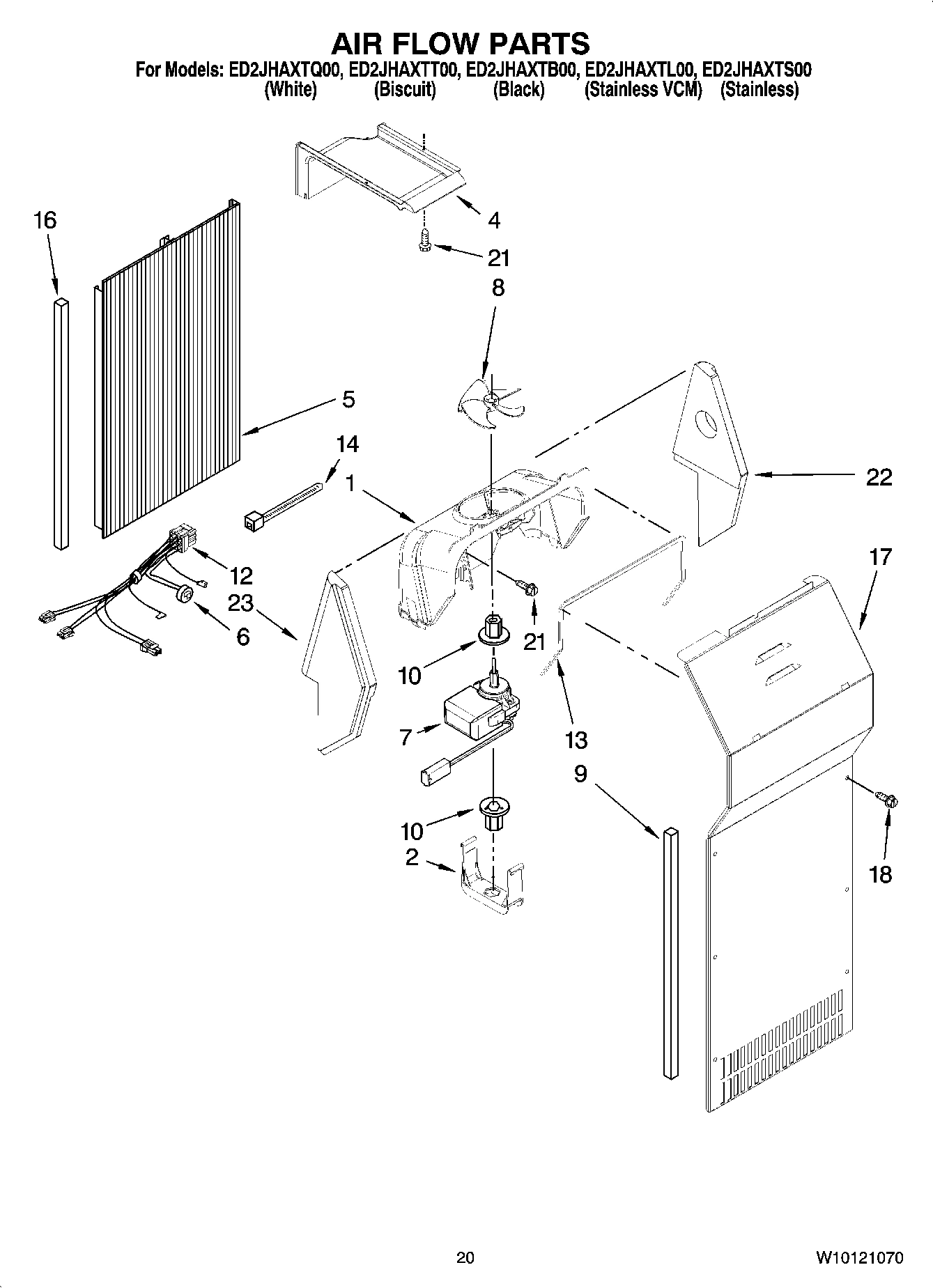

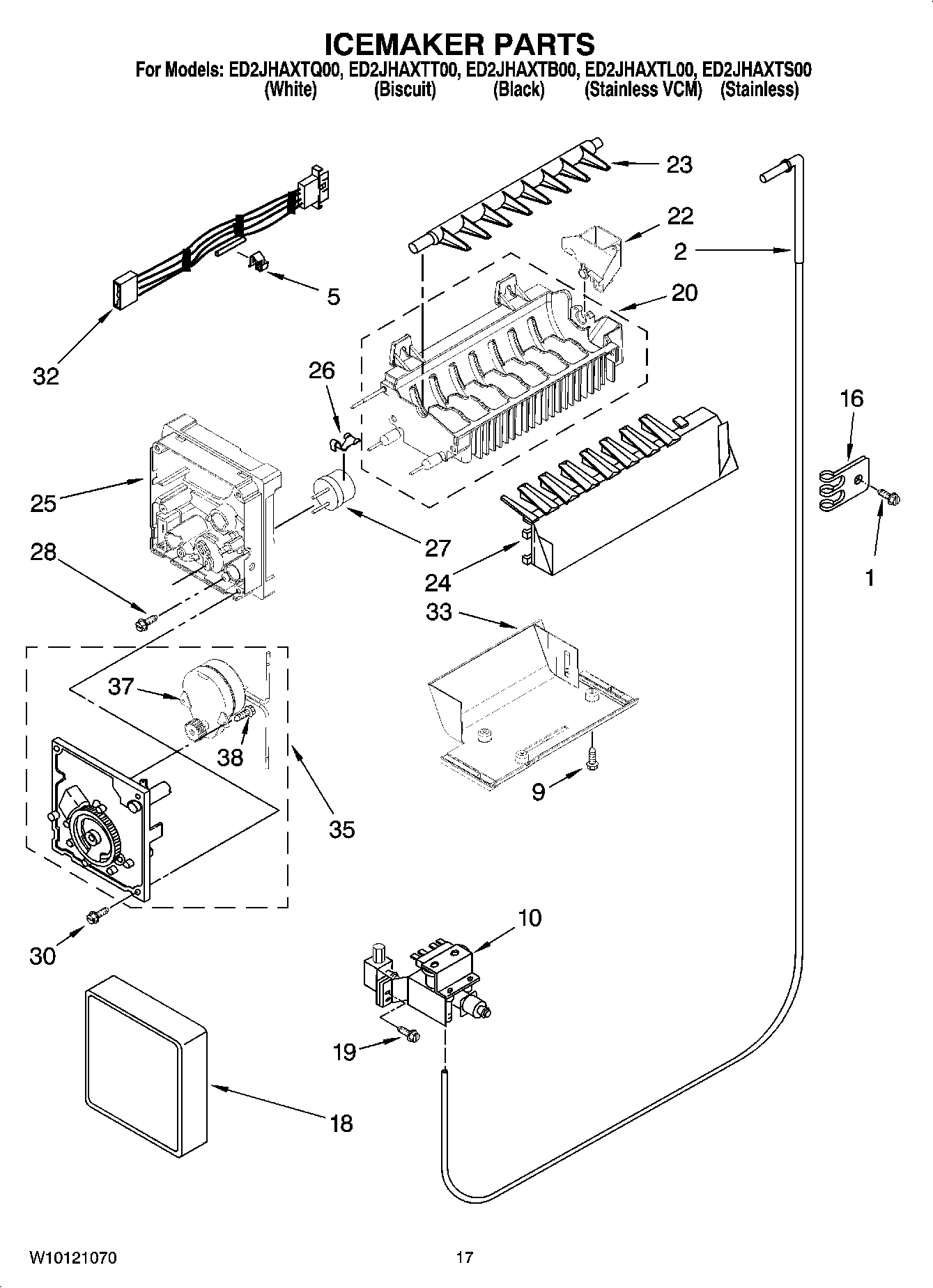

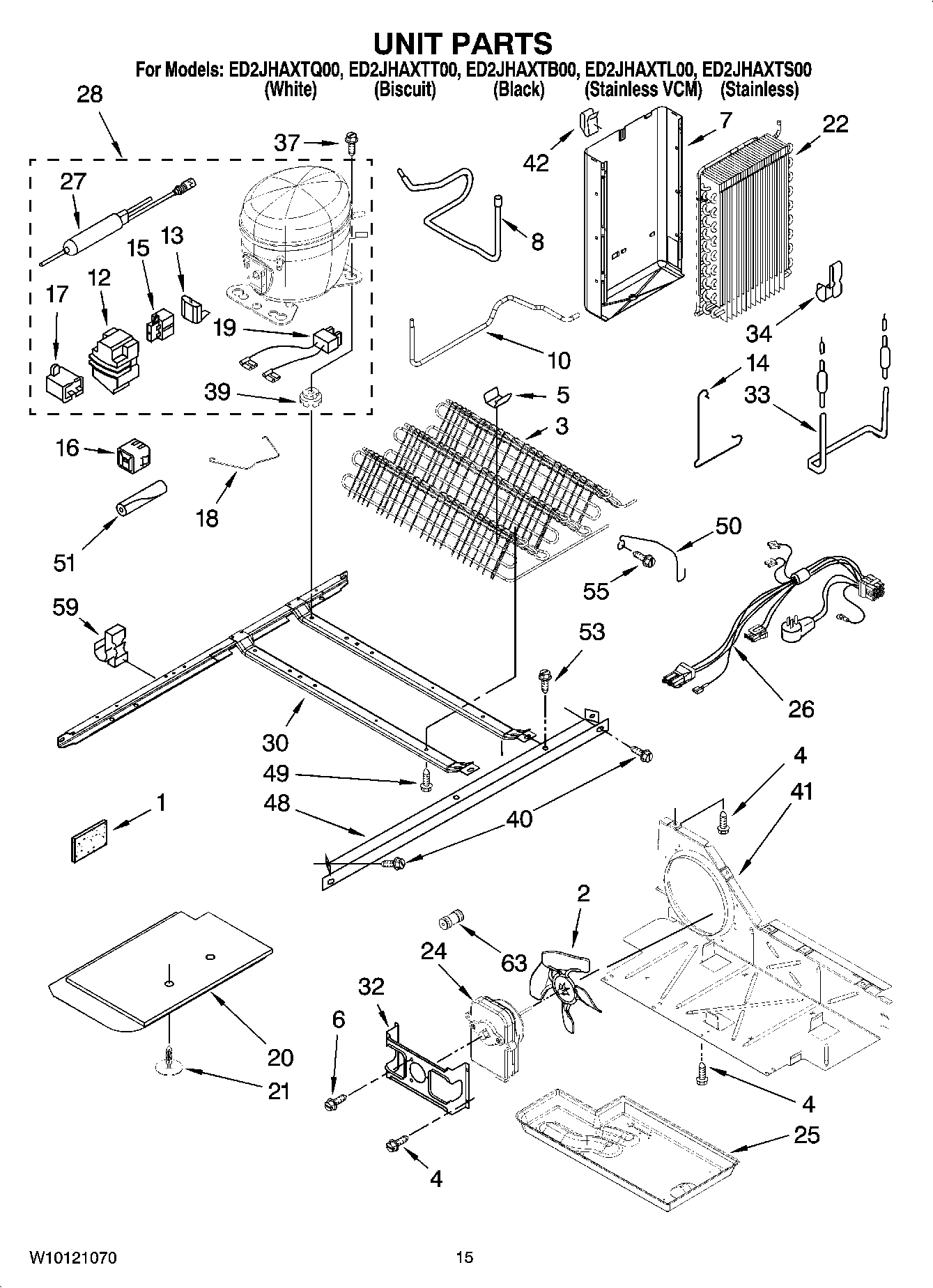

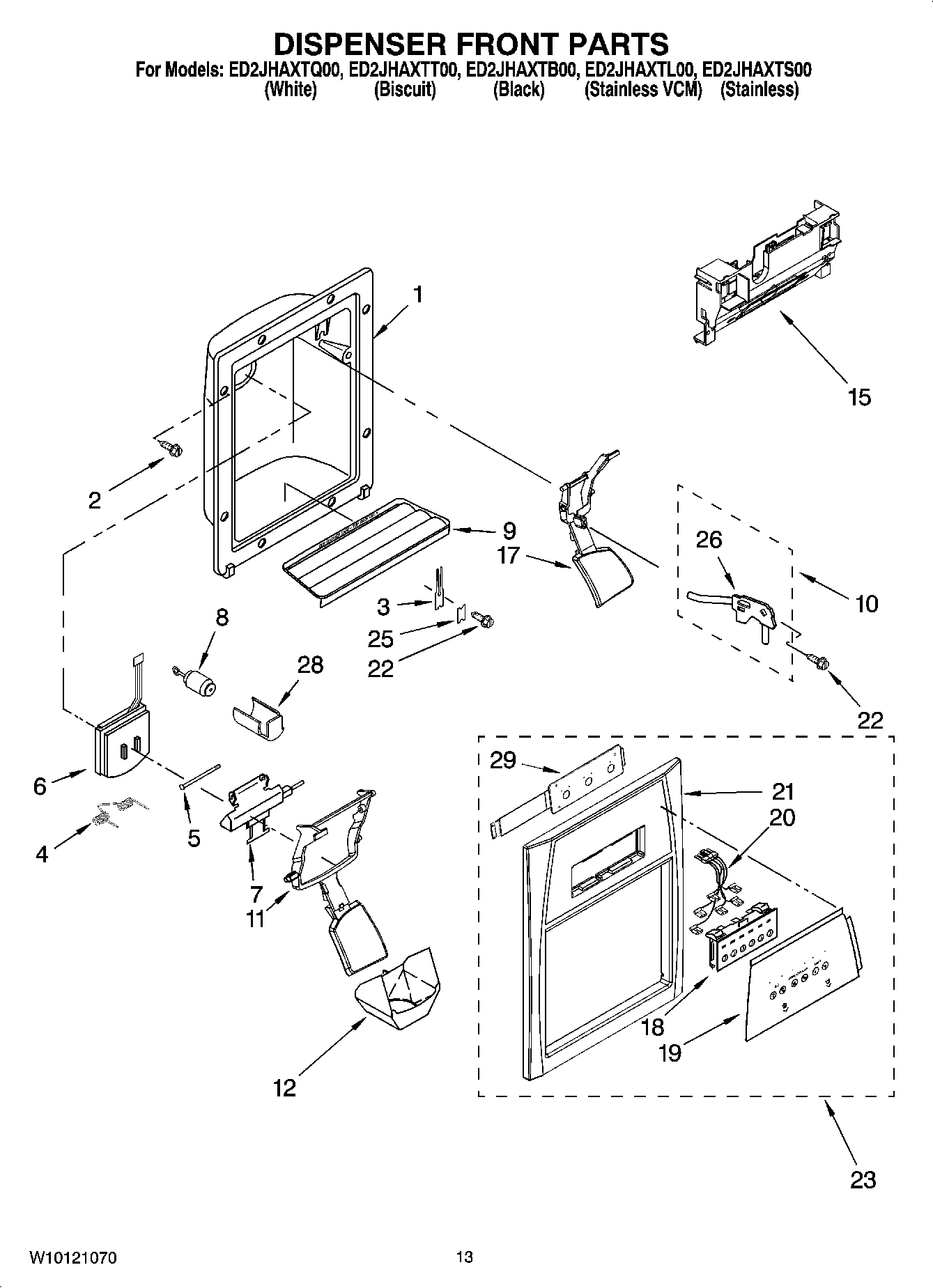

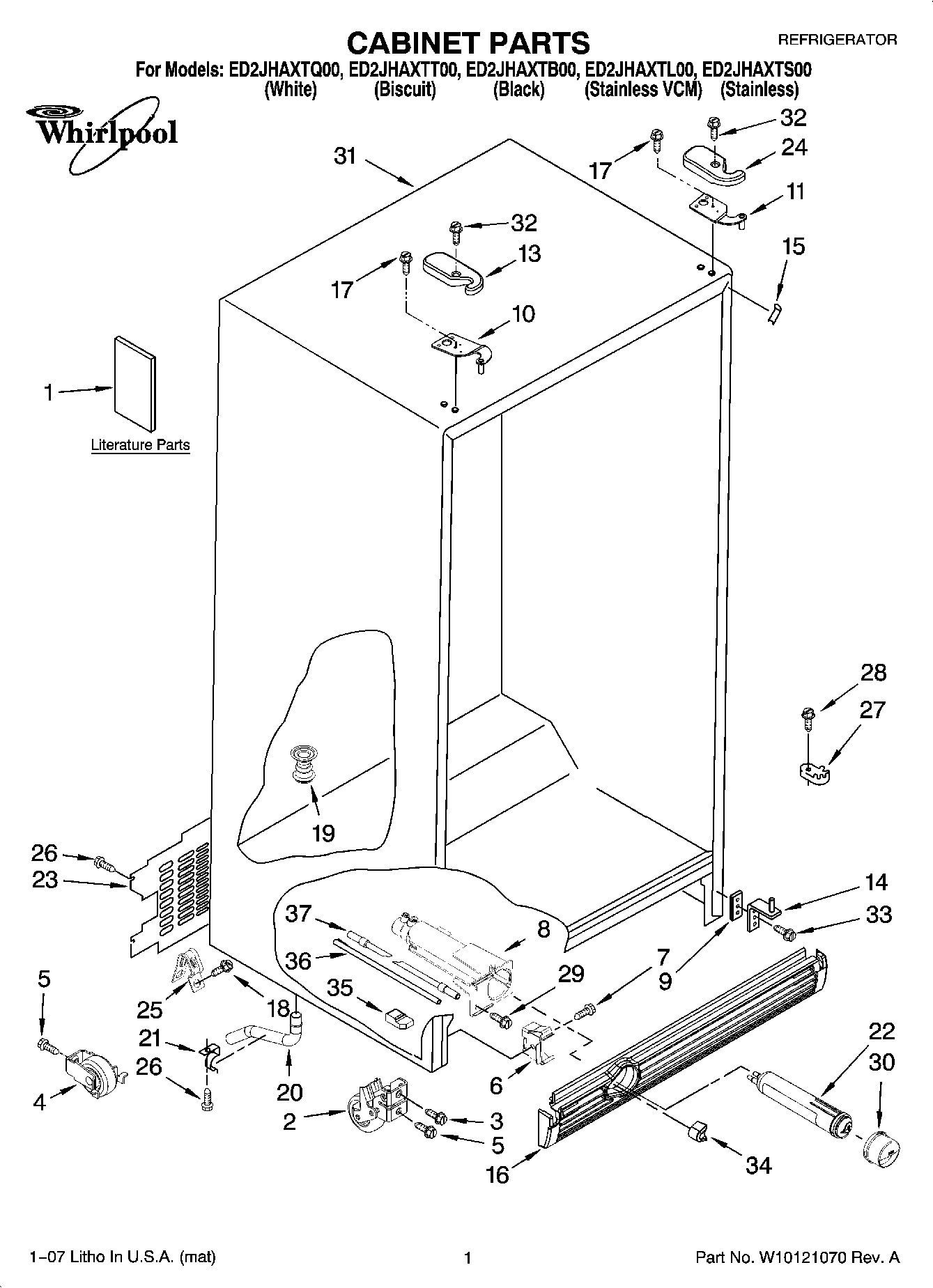

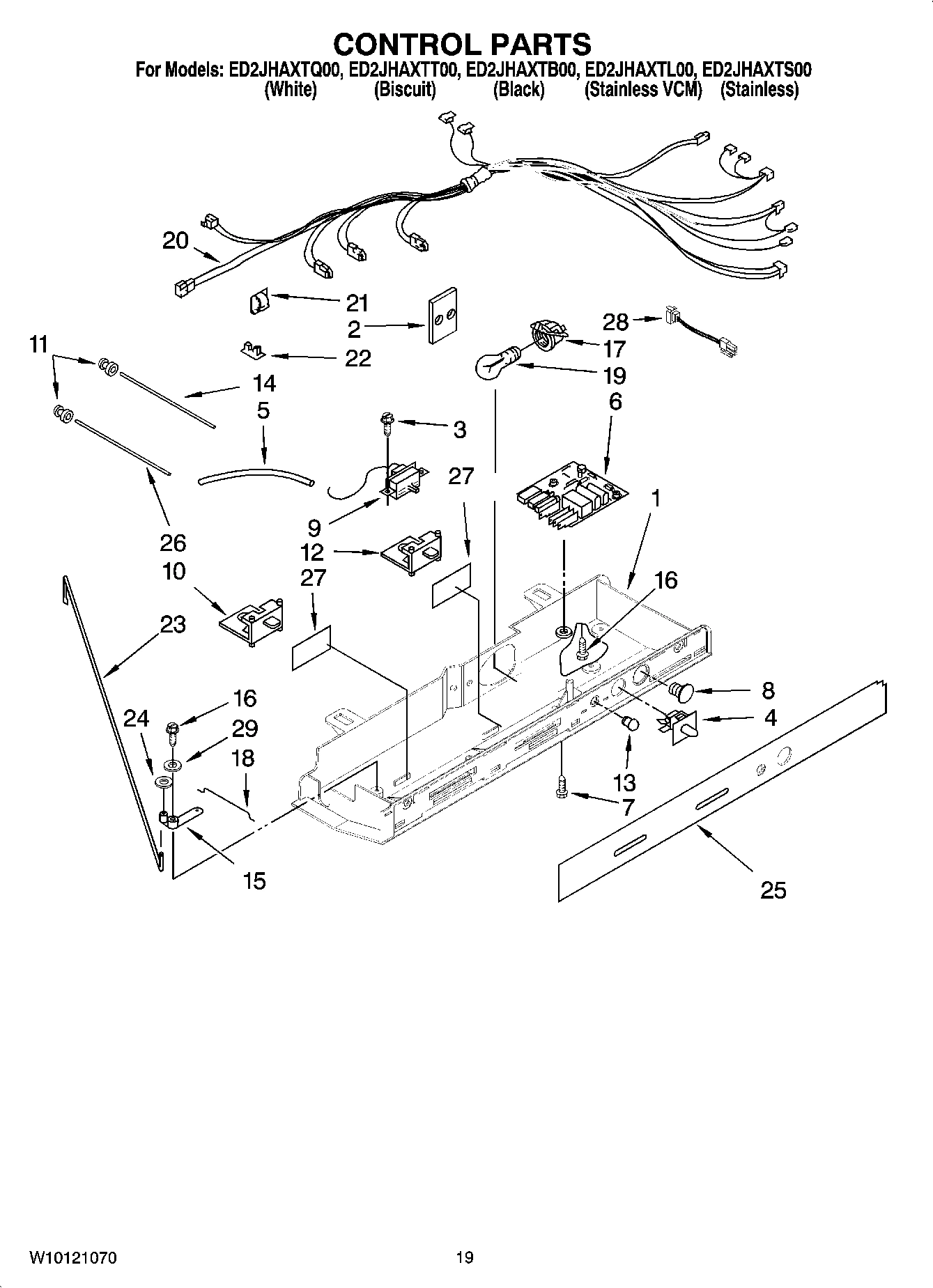

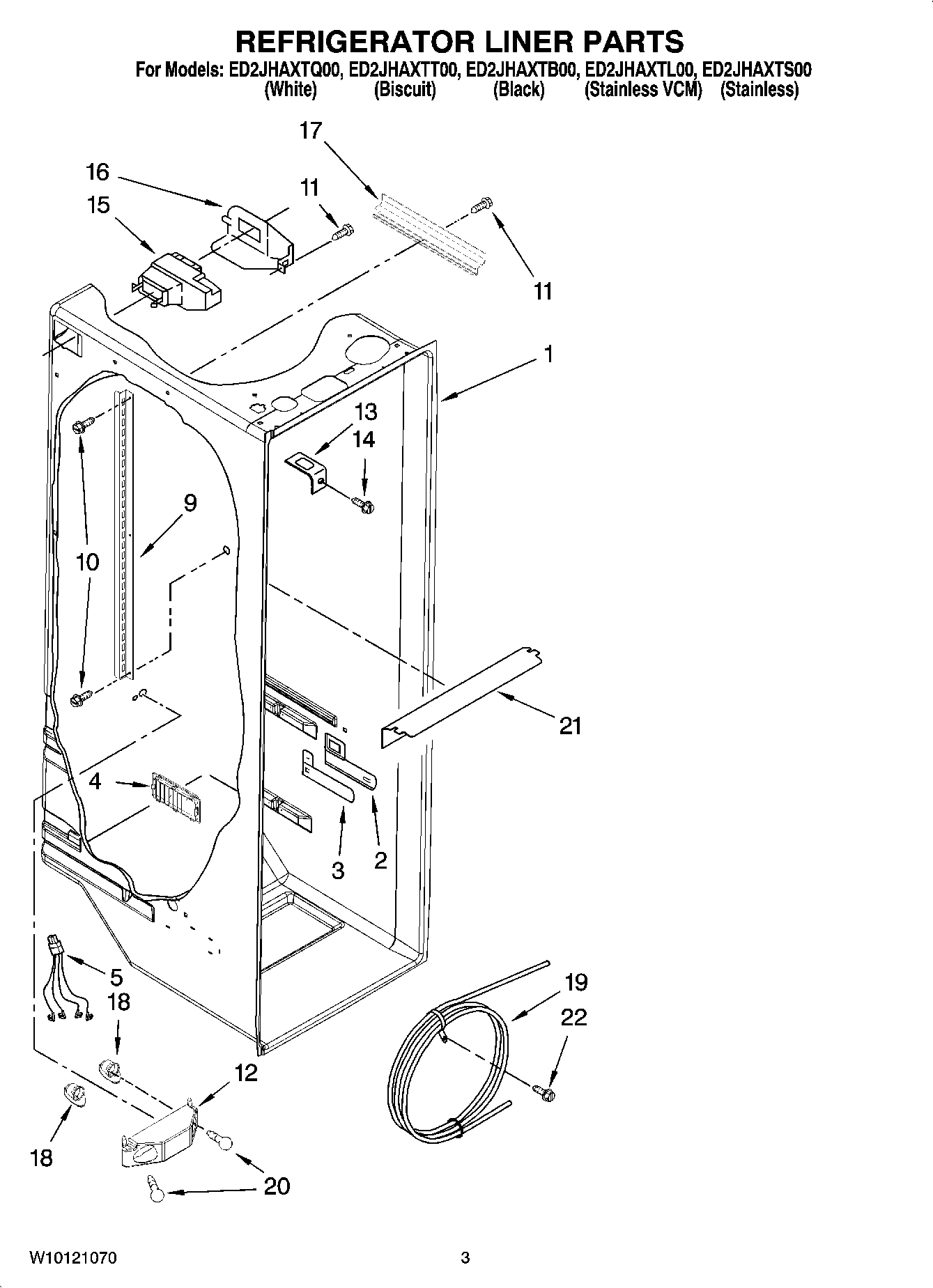

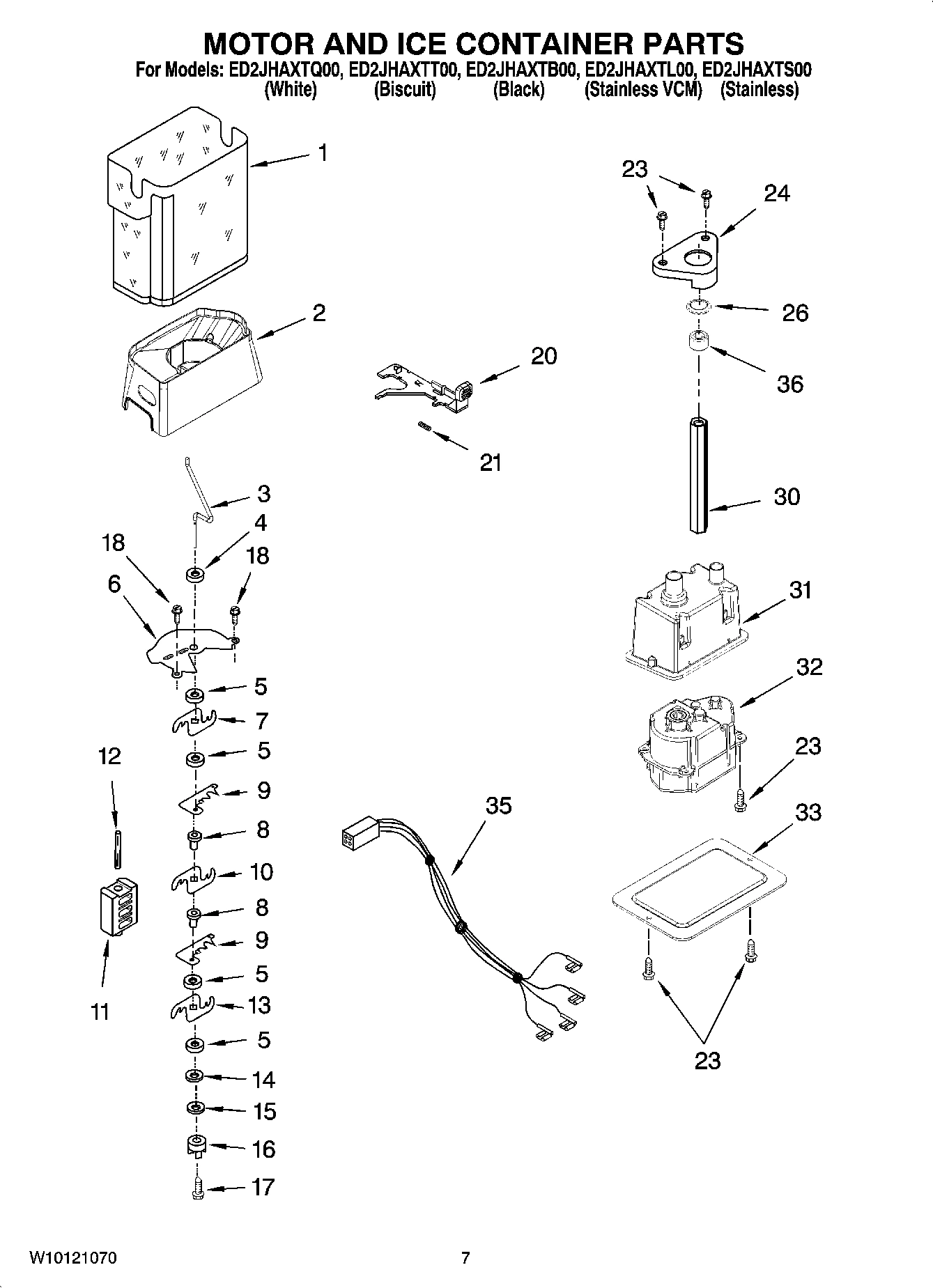

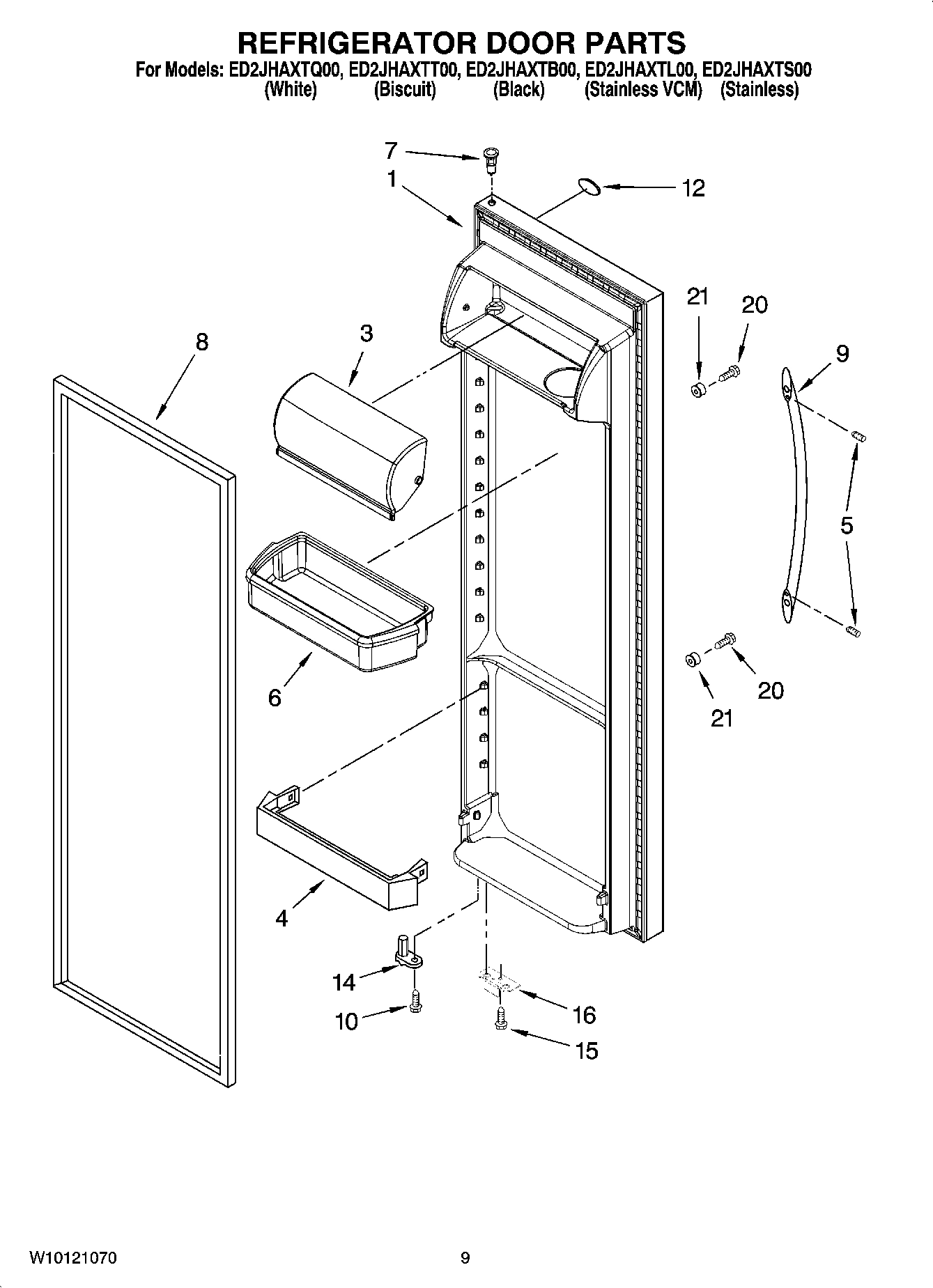

Model Whirlpool ED2JHAXTT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

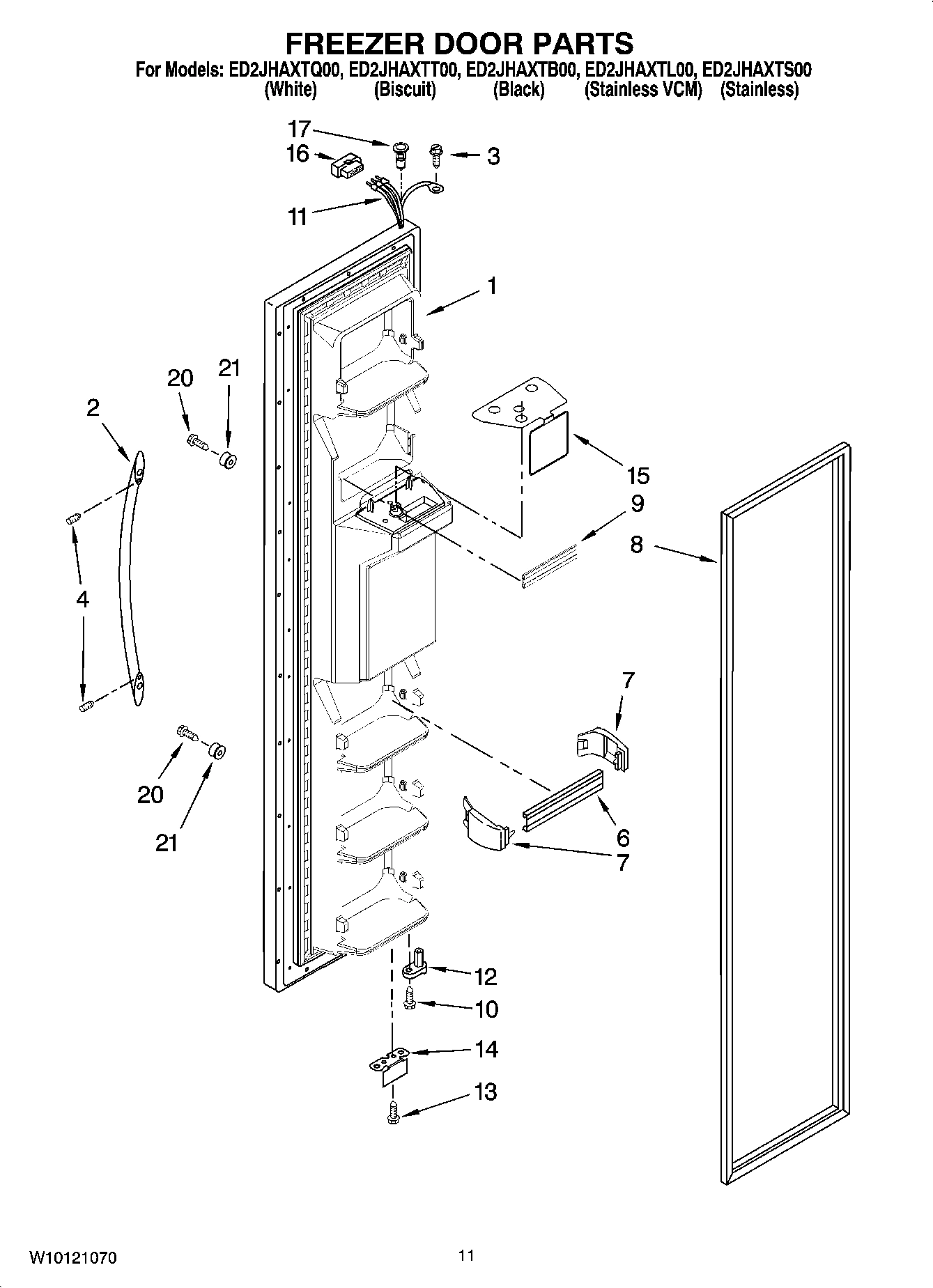

Freezer Door (Includes Item 8 And Dispenser F WPL 2326375B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326375LG Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326375S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326375T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326375W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI31026A8 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI31027A2 Contact Us For Availability

1

Control Box WPL 2216012 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $151.04

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $170.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Stainless) WPL 2254600S Contact Us For Availability

2

Handle (Biscuit) WPL 2319729T Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $280.46

6

Trim, Door (3) WPL 2313198K Contact Us For Availability

7

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $117.44

7

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $119.75

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

7

Endcap (6) WPL 2195917 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Shelf, Slide Out Lower (2) WPL 2211743K Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Wire Harness (Not Serviceable) WPL ARI31028A3 Contact Us For Availability

Grommet WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $75.44

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Cover, Indicator Light WPL 2200096 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Shelf (2) WPL 2212343K Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Freezer Bin WPL 2216111 Contact Us For Availability

Safety Barrier WPL 2304896 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $126.86

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

20

Screw WPL W10029730 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

Light Lens WPL 2209769 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Screw WPL 488280 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $118.15

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

Fastener, Push-On WPL 489391 Contact Us For Availability

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

25

Escutcheon, Control Box WPL 2315154 Contact Us For Availability

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

Cover, Icemaker WPL 2255589 Contact Us For Availability

27

Window WPL 2175513 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

32

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

36

Cover, Receiver WPL 2255558 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $62.24

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

45

Ladder (Left Side) WPL 2320027 Contact Us For Availability

45

Ladder (Right Side) WPL 2320028 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
