Model Whirlpool ED25DWXTG01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER INTERIOR

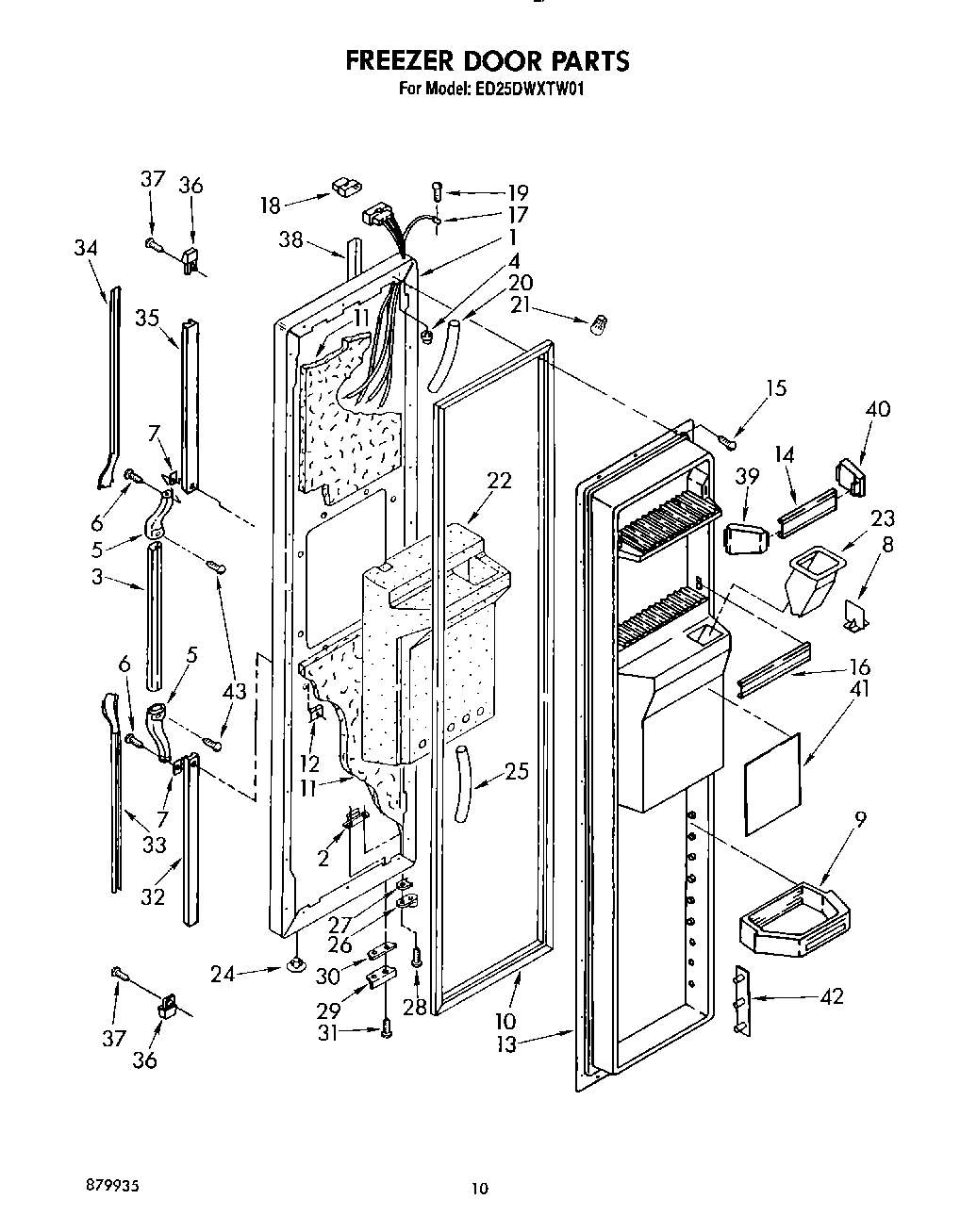

08 - FREEZER DOOR

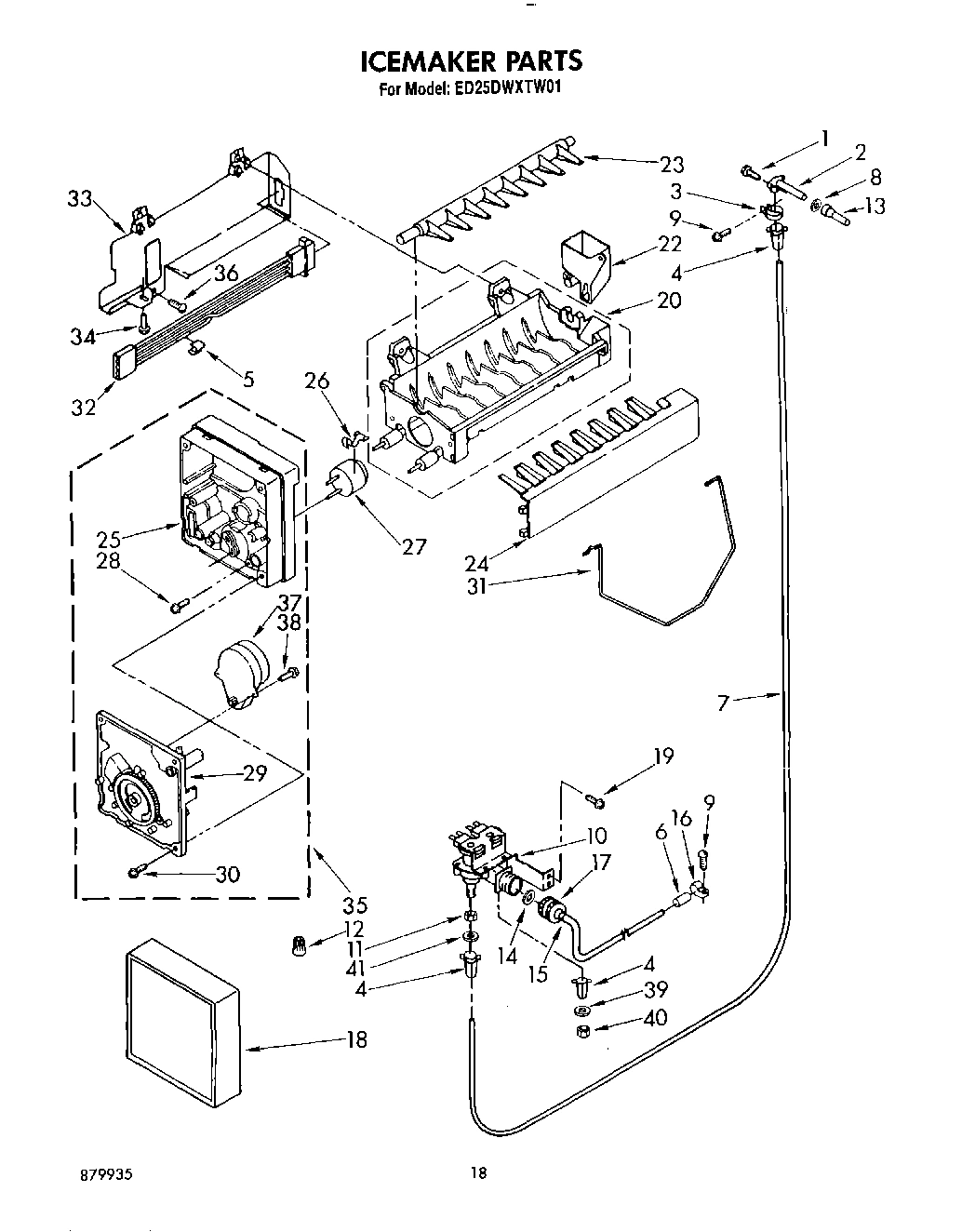

13 - ICEMAKER, LIT/OPTIONAL

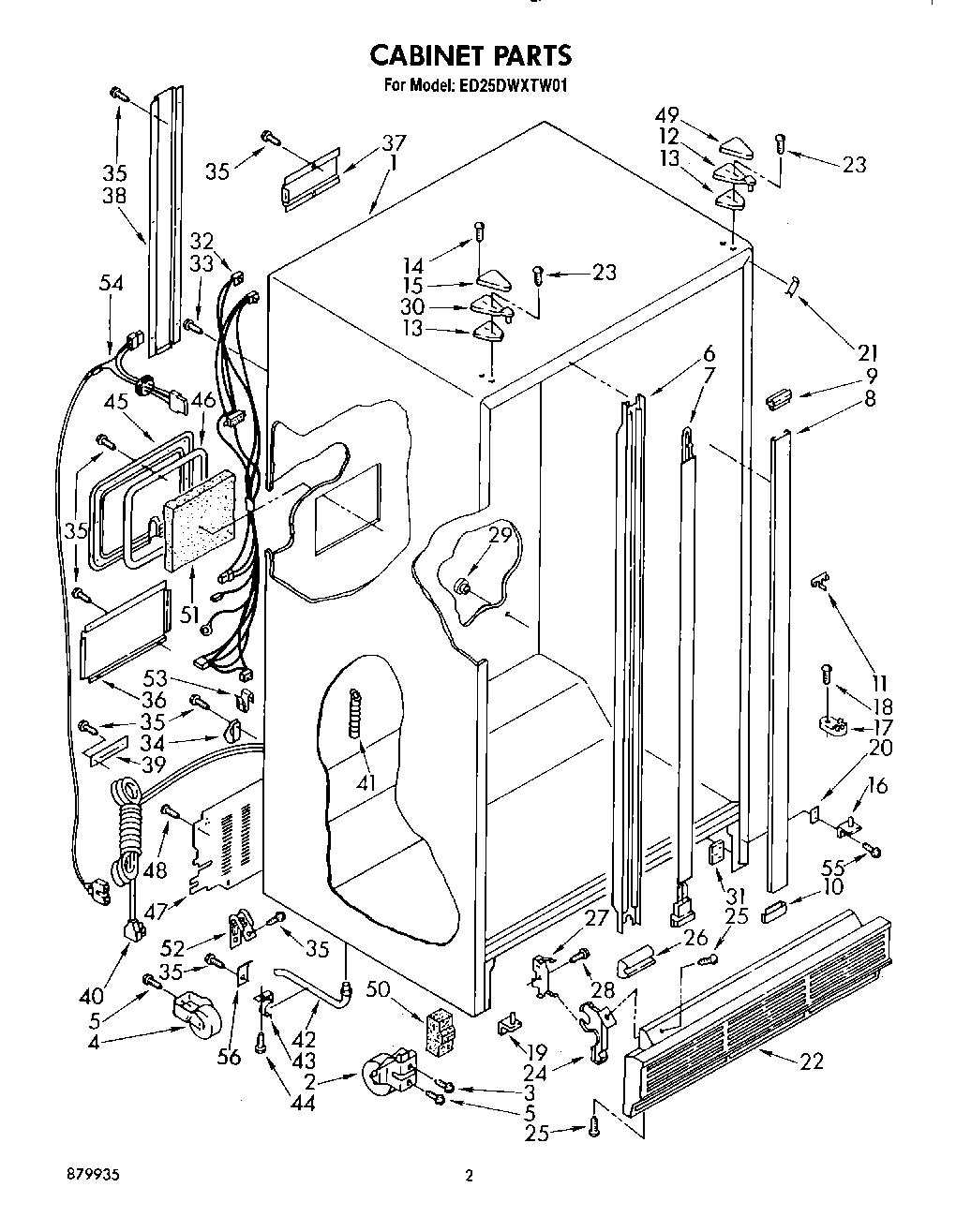

02 - CABINET

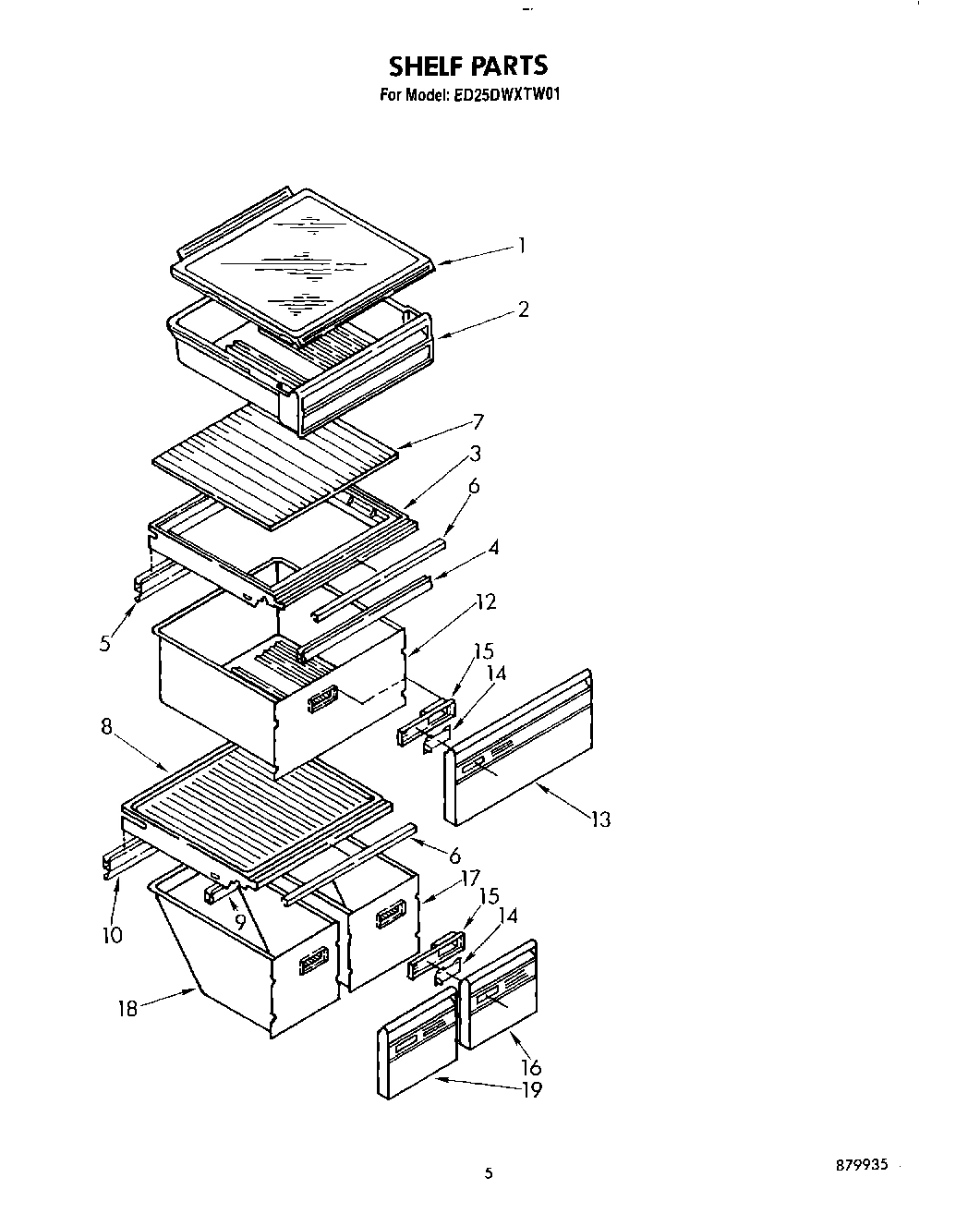

04 - SHELF

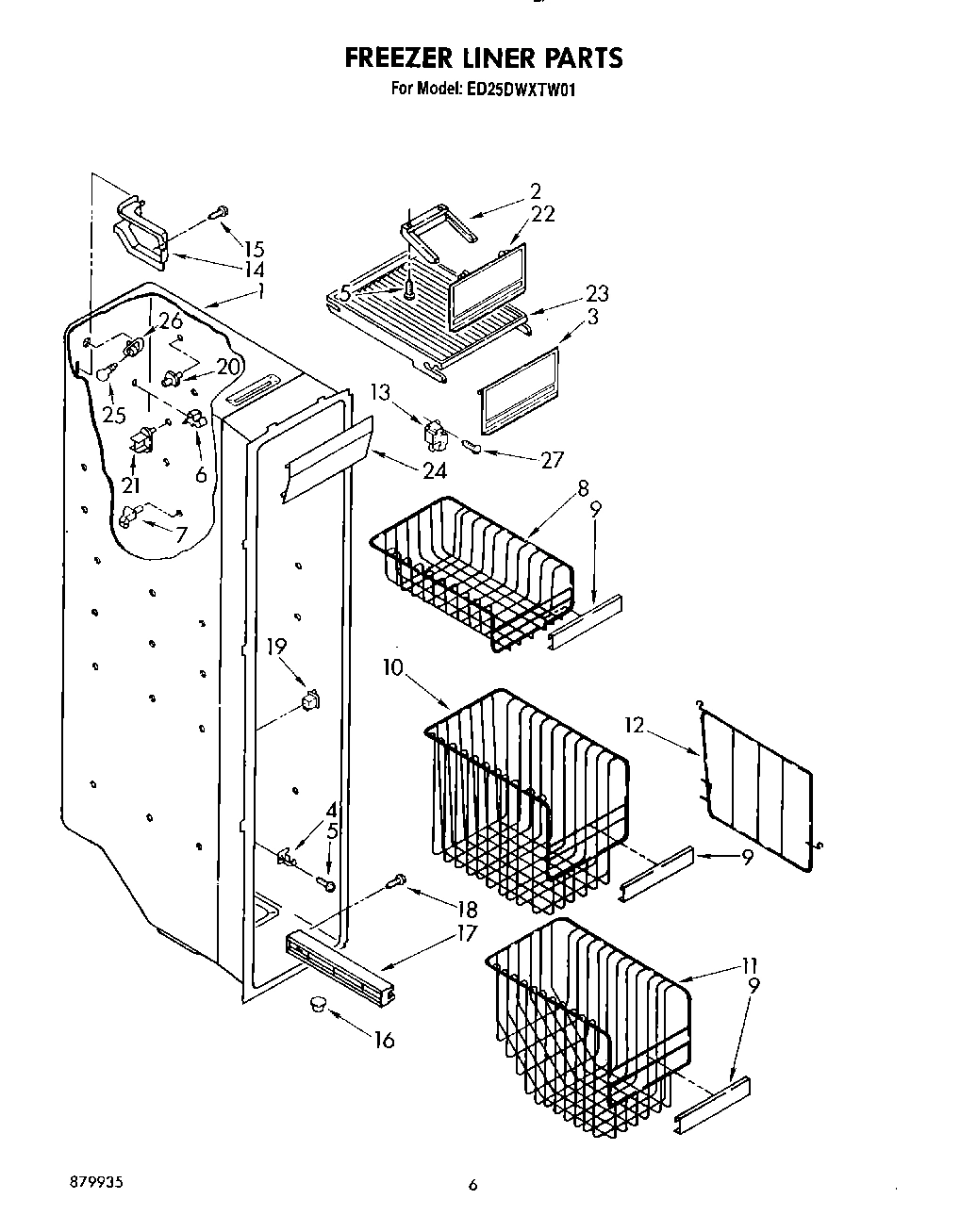

05 - FREEZER LINER

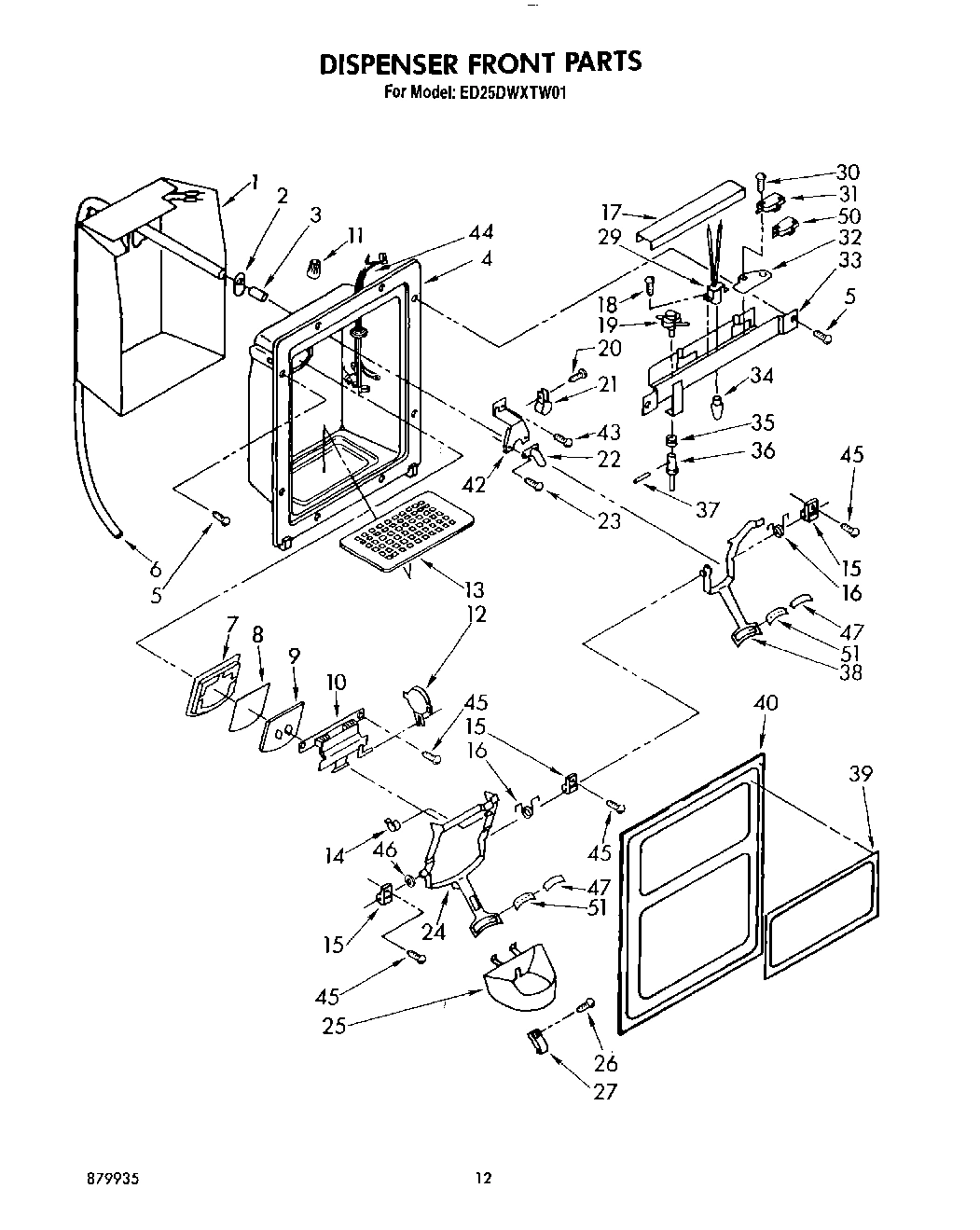

09 - DISPENSER FRONT

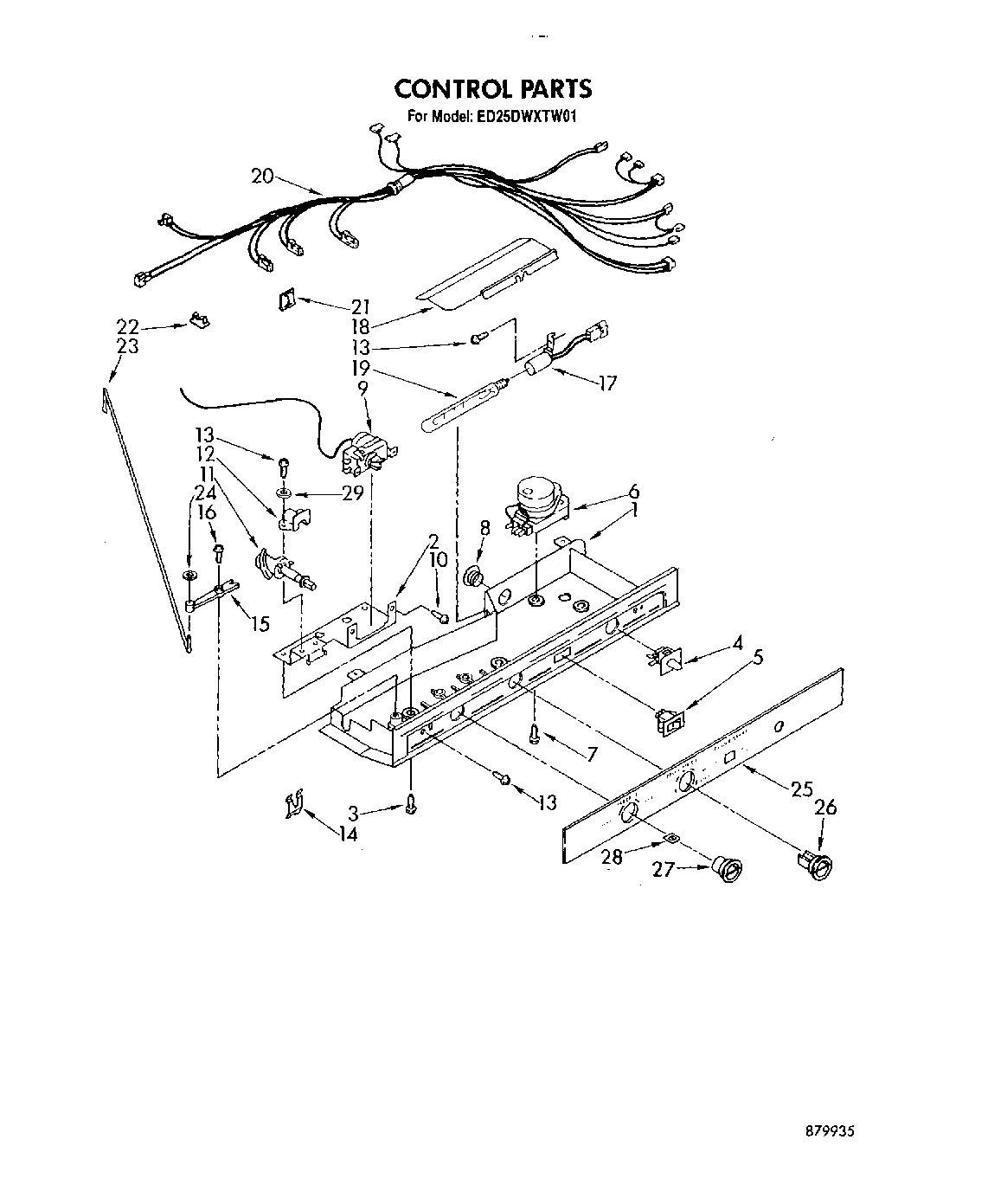

12 - CONTROL

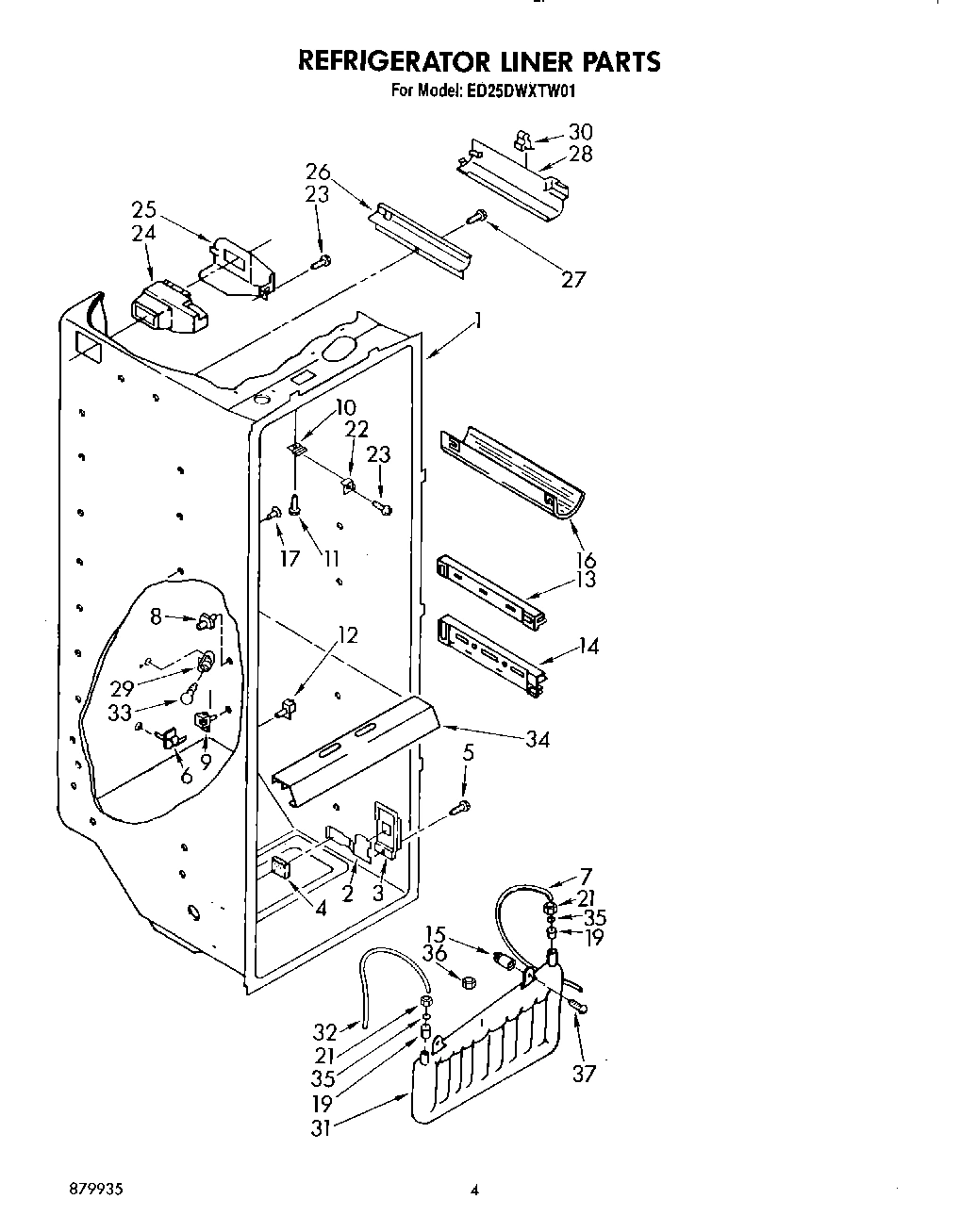

03 - REFRIGERATOR LINER

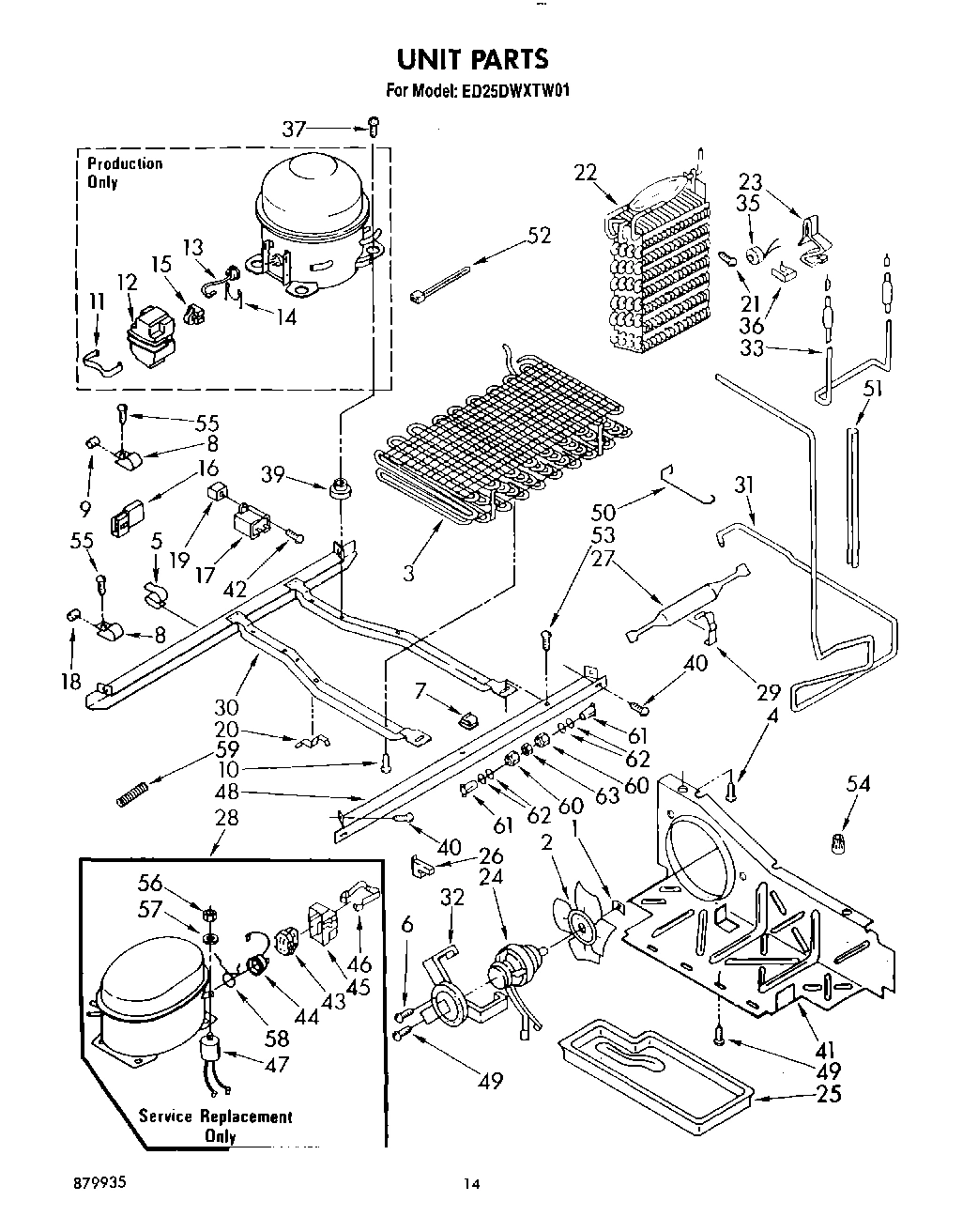

10 - UNIT

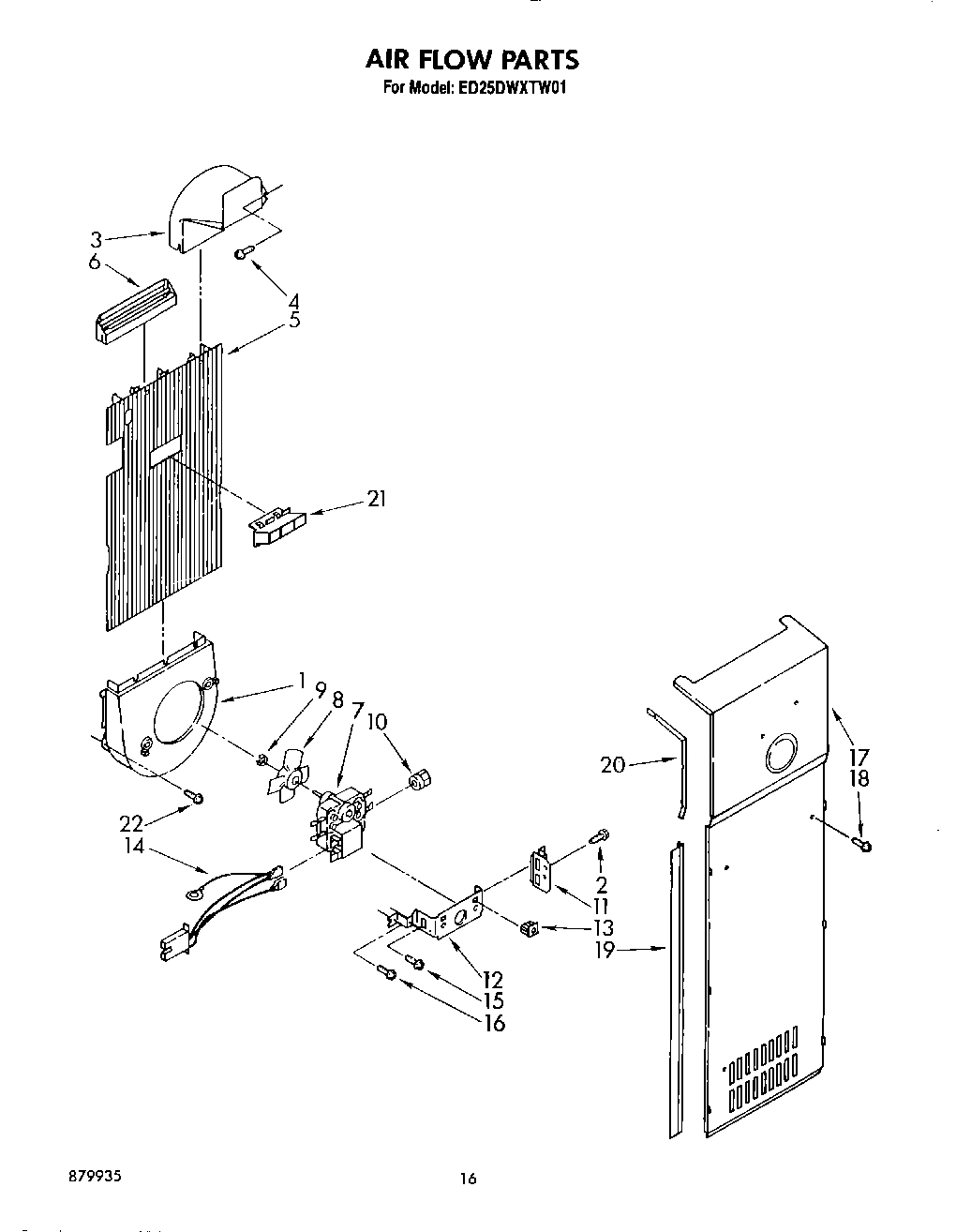

11 - AIR FLOW

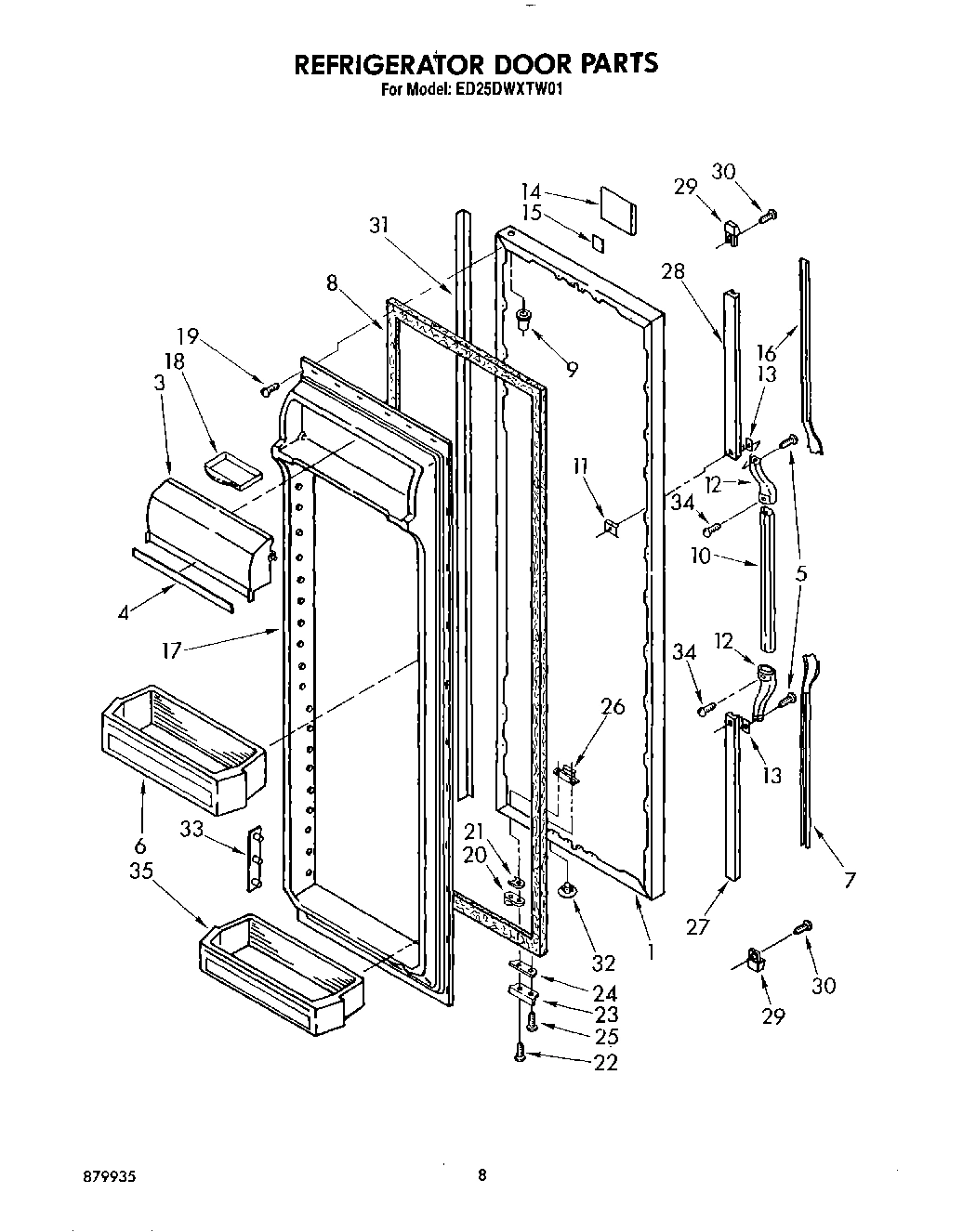

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED25DWXTG01 SIDE BY SIDE REFRIGERATOR
WPL LIT1115391 WPL LIT1115391 Contact Us For Availability
WPL LIT1118427 WPL LIT1118427 Contact Us For Availability
WPL LIT1121341 WPL LIT1121341 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879935 WPL LIT879935 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI145896A Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1114625 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145898A Contact Us For Availability
1
Heater, Dispenser WPL 1118039 Contact Us For Availability
1
Control Box WPL 1108446 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145897A Contact Us For Availability
1
Fan Scroll WPL 1108414 Contact Us For Availability
1
Refrigerator Door (White) WPL 1110642 Contact Us For Availability
1
Refrigerator Door (Golden Harvest) WPL 1110644 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 1110645 Contact Us For Availability
1
Refrigerator Door (Toast) WPL 1110646 Contact Us For Availability
1
Refrigerator Door (Platinum) WPL 1110647 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Snack Bin WPL 1115262 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Door, Ice Compartment WPL 1115254 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Door, Compartment WPL 1115385 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
6
Mullion Rail WPL 1118355 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 945486 Contact Us For Availability
6
Stud, Cradle WPL 1115398 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Shelf Bin (2) WPL 1121334 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Golden Harvest) WPL 1119362 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Insert, Handle (Toast) WPL 1119364 Contact Us For Availability
7
Insert, Handle (Platinum) WPL 1119365 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1110600 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1110602 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1110603 Contact Us For Availability
8
Front Mullion Rail (Toast) WPL 1110604 Contact Us For Availability
8
Front Mullion Rail (Platinum) WPL 1110605 Contact Us For Availability
8
Cover, Meat Pan WPL 1118198 Contact Us For Availability
8
Basket (2) WPL 1114672 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1110649 Contact Us For Availability
9
Stud (4) WPL 1115290 No Longer Available
9
Door, Ice WPL 983690 Contact Us For Availability
9
Filler Top Mullion (White) WPL 1118356 Contact Us For Availability
9
Filler Top Mullion (Almond) WPL 1118357 Contact Us For Availability
9
Filler Top Mullion (Golden Harvest) WPL 1118358 Contact Us For Availability
9
Filler Top Mullion (Toast) WPL 1118359 Contact Us For Availability
9
Filler Top Mullion (Platinum) WPL 1118360 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Trim, Basket WPL 1114678 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Filler Bottom Mullion (Toast) WPL 1118364 Contact Us For Availability
10
Filler Bottom Mullion (Platinum) WPL 1118365 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Basket, Tall WPL 1114674 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Clip (2) WPL 1110706 Contact Us For Availability
10
Fan Grommet (3) WPL 548268 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Basket, Slope WPL 1114676 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Fan, Bracket Double WPL 548263 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Rack, Pizza WPL 1115253 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Fan, Bracket Single WPL 548264 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Front, Crisper Pan WPL 1114684 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
13
Overload WPL 1119052 Contact Us For Availability
13
Screw Grommet WPL 538449 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability
14
Slide, Humidity Control WPL 1110541 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Fan Motor, Harness WPL 1110749 Contact Us For Availability
14
Nameplate WPL 1111555 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Hinge Cover (Toast) WPL 1100381 Contact Us For Availability
15
Hinge Cover (Platinum) WPL 1100382 Contact Us For Availability
15
Hinge Cover (Golden Harvest) WPL 989885 Contact Us For Availability
15
Housing, Humidity Control WPL 1110542 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Insert, Handle (Toast) WPL 1119376 Contact Us For Availability
16
Insert, Handle (Platinum) WPL 1119377 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
16
Front, Meat Pan WPL 1114693 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Wine Rack WPL 1115261 Contact Us For Availability
16
Insert, Handle (White) WPL 1119373 Contact Us For Availability
16
Insert, Handle (Golden Harvest) WPL 1119374 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Cover, Evaporator WPL 1110623 Contact Us For Availability
17
Panel, Interior Door WPL 1118241 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
18
Heat Shield WPL 1110689 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
19
Front, Meat Pan WPL 1114694 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Spacer, Hinge WPL 1105474 Contact Us For Availability
20
Control Box Harness WPL 1115201 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
21
Filler, Wrapper (Toast) WPL 1110711 Contact Us For Availability
21
Filler, Wrapper (Platinum) WPL 1110712 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille WPL 1118380 Contact Us For Availability
22
Door, Top Compartment WPL 1115258 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Bracket Retainer WPL 1110705 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1115246 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1115309 Contact Us For Availability
24
Fastener, Push-On WPL 489187 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
25
WPL 489173 WPL 489173 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Escutcheon, Control WPL 1110707 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Screw, 8 x 1/2 WPL 488549 Contact Us For Availability
26
WPL 546131 WPL 546131 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Cover, Conduit WPL 1114658 Contact Us For Availability
26
Receptacle, Housing WPL 943647 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
WPL 989068 WPL 989068 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Retainer, Insert WPL 1119372 Contact Us For Availability
28
Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Cover, Wiring WPL 1114659 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
29
End Cap (2) WPL 941259 Contact Us For Availability
29
WPL 839989 WPL 839989 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
30
WPL 1123510 WPL 1123510 Contact Us For Availability
30
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
31
Trim, Door WPL 1119062 Contact Us For Availability
31
WPL 836162 WPL 836162 Contact Us For Availability
31
Switch (2) WPL 841336 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
WPL 1118268 WPL 1118268 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
33
Pin Plate (14) WPL 1116986 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
33
Bracket, Control WPL 1107454 Contact Us For Availability
33
Heater, Defrost WPL 1110669 Contact Us For Availability
34
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
34
WPL 937357 WPL 937357 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
``O`` Ring WPL 488819 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
Shelf Bin (2) WPL 1121335 Contact Us For Availability
36
WPL 1108442 WPL 1108442 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Nut, Compression WPL 1108005 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
WPL 1108440 WPL 1108440 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
WPL 1119063 WPL 1119063 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115308 Contact Us For Availability
39
WPL 1115333 WPL 1115333 Contact Us For Availability
39
WPL 1105607 WPL 1105607 Contact Us For Availability
39
Plaque, Front Cover WPL 1118319 Contact Us For Availability
40
WPL 1115364 WPL 1115364 Contact Us For Availability
40
Nut WPL 488795 Contact Us For Availability
40
WPL 937360 WPL 937360 Contact Us For Availability
40
Front Cover, Housing WPL 2150310 Contact Us For Availability
41
WPL 876029 WPL 876029 Contact Us For Availability
41
WPL 479502 WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
WPL 1115271 WPL 1115271 Contact Us For Availability
41
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
41
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
41
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
41
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
41
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
41
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
41
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
41
WPL 515393 WPL 515393 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799340 WPL 799340 Contact Us For Availability
41
WPL 799832 WPL 799832 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 799908 WPL 799908 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
41
WPL 842258 WPL 842258 Contact Us For Availability
41
Air Baffle WPL 1110662 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
44
WPL 488978 WPL 488978 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118373 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
45
WPL 1110626 WPL 1110626 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
WPL 1115322 WPL 1115322 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
WPL 1110664 WPL 1110664 Contact Us For Availability
47
Pad, Lever WPL 1115310 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
WPL 1100172 WPL 1100172 Contact Us For Availability
49
WPL 989896 WPL 989896 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
WPL 836372 WPL 836372 Contact Us For Availability
50
Switch WPL 934316 Contact Us For Availability
51
WPL 1118237 WPL 1118237 Contact Us For Availability
51
Saddle, Lever WPL 1119000 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
55
WPL 488949 WPL 488949 Contact Us For Availability
56
WPL 836472 WPL 836472 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
