Model Whirlpool ED22ZRXDN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET

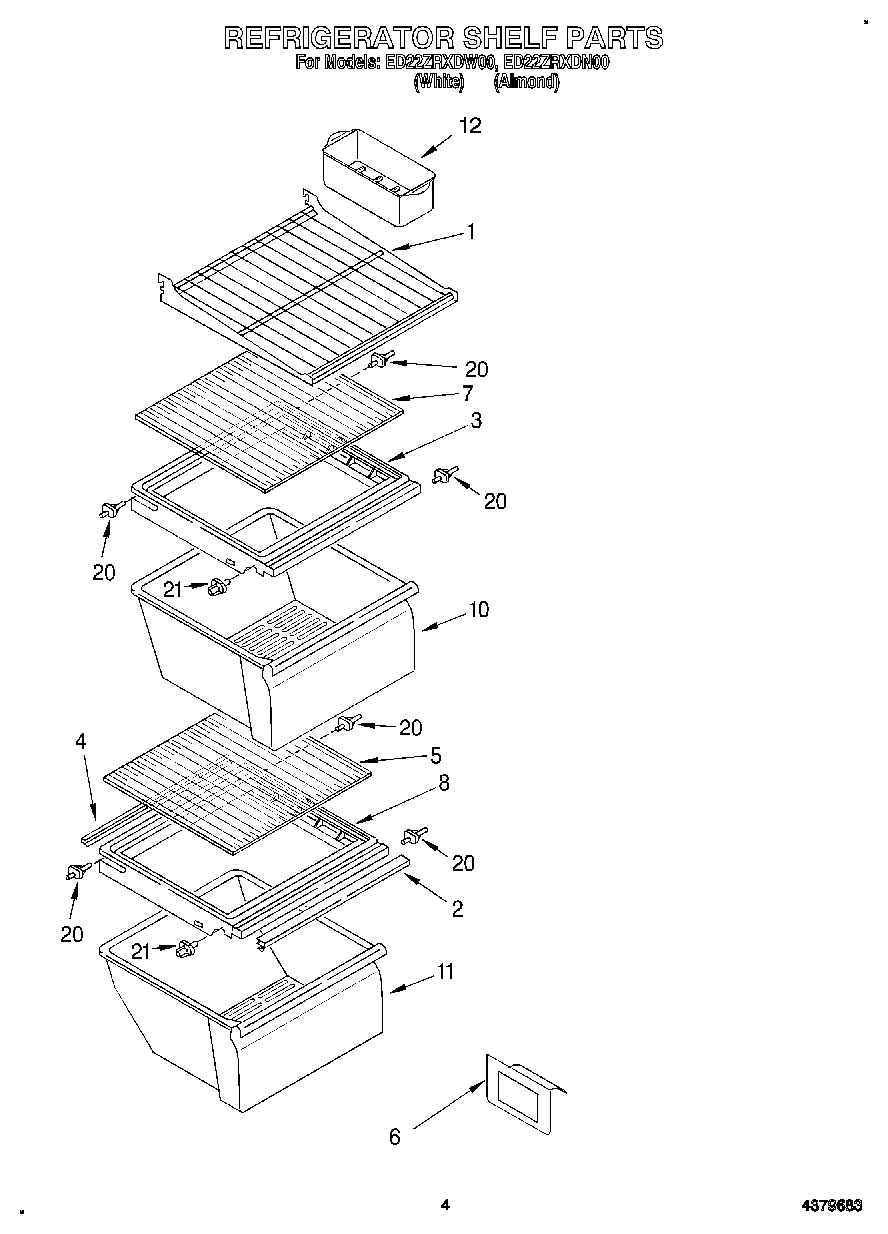

03 - REFRIGERATOR SHELF

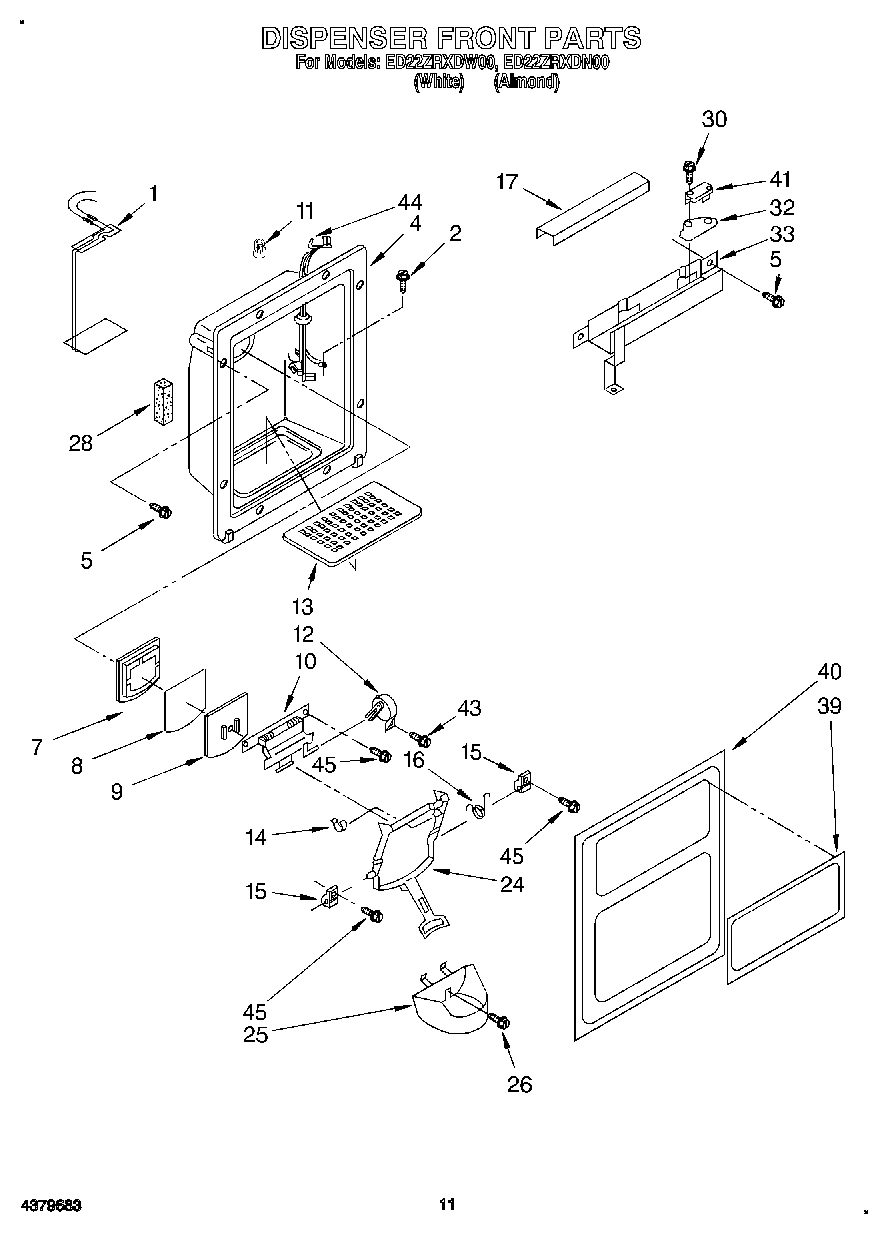

08 - DISPENSER FRONT

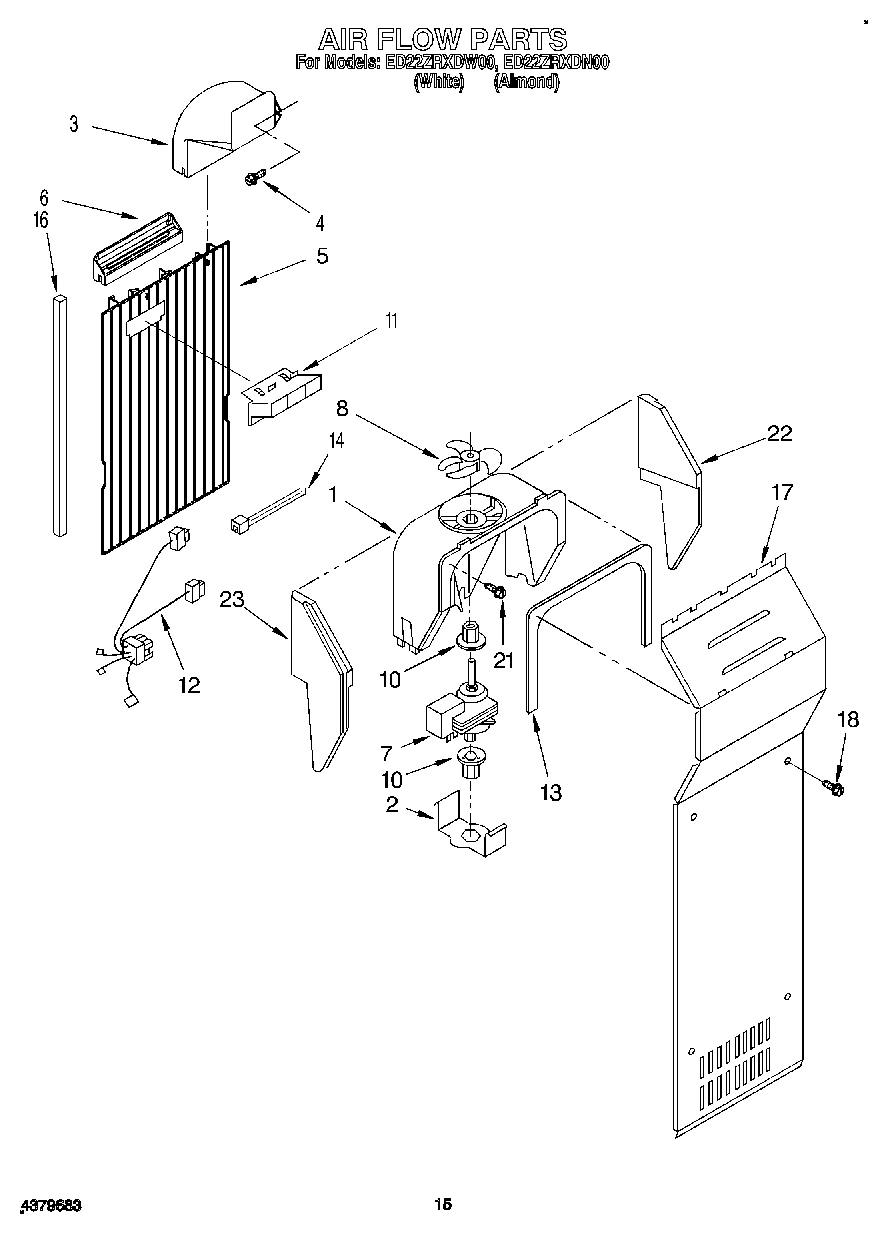

10 - AIR FLOW

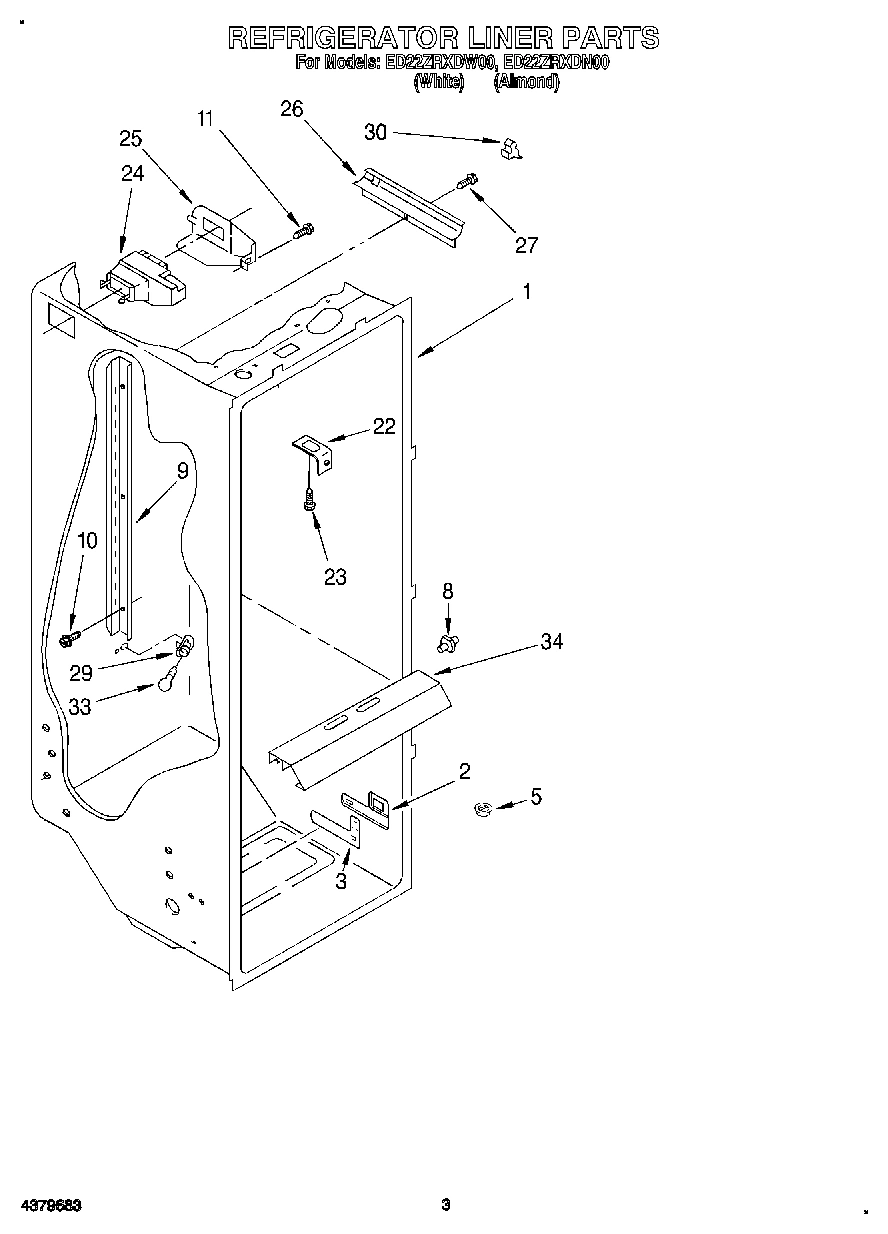

02 - REFRIGERATOR LINER

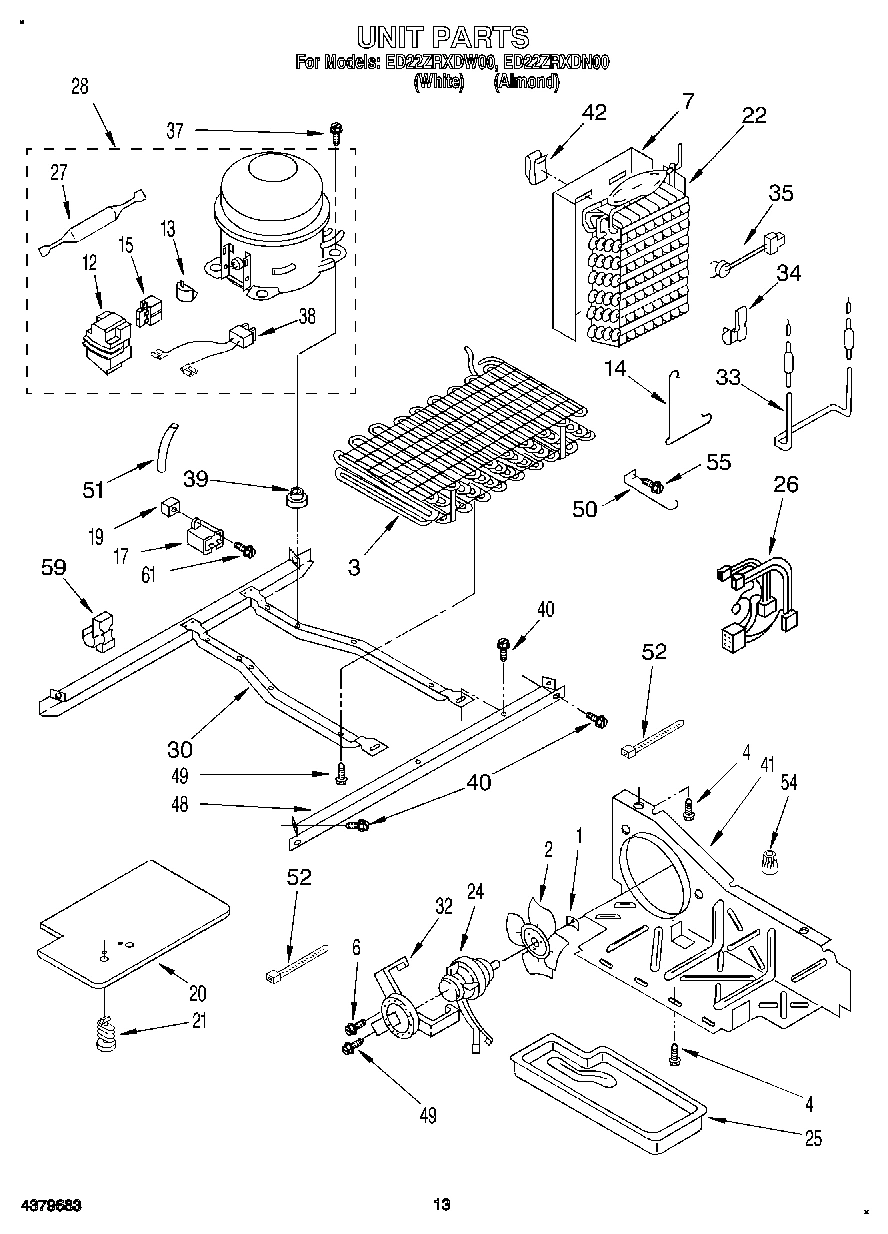

09 - UNIT

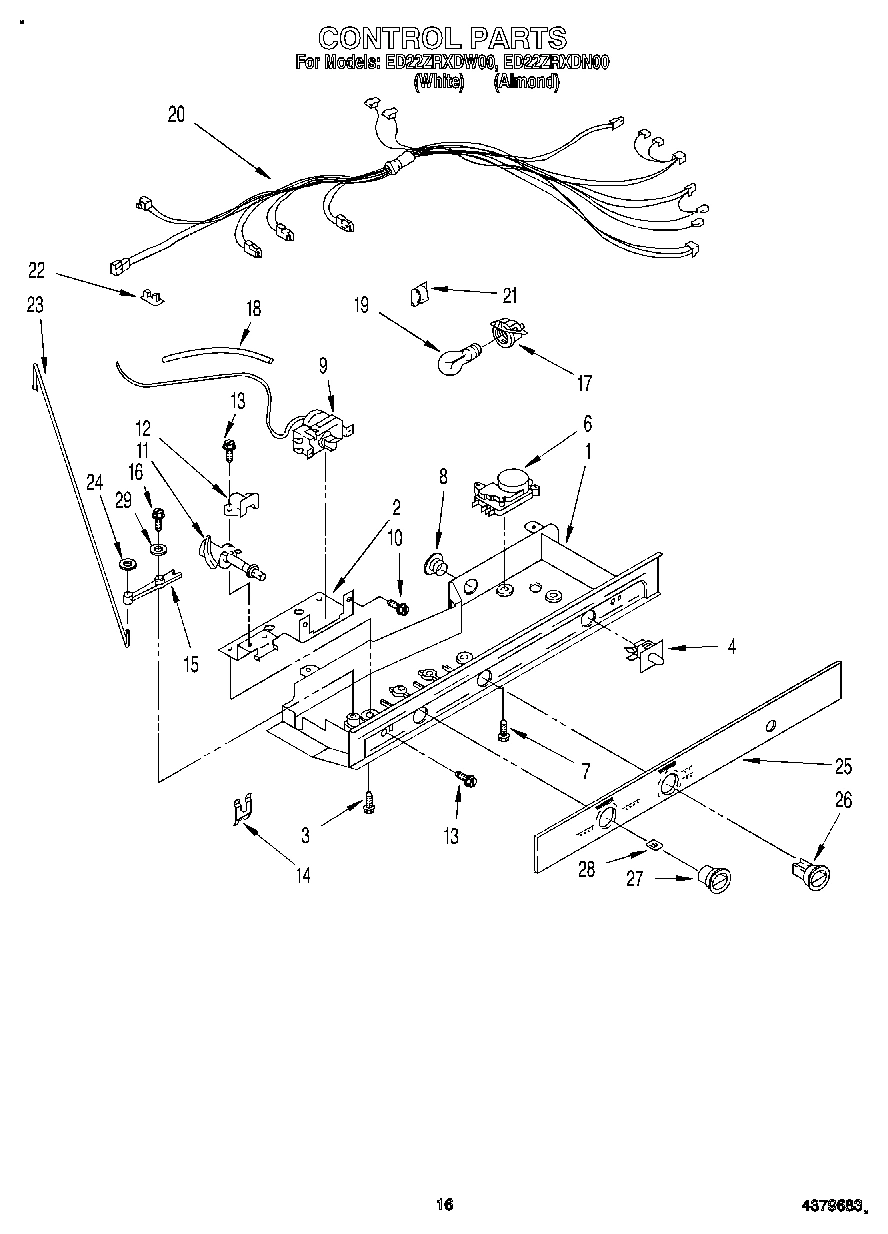

11 - CONTROL

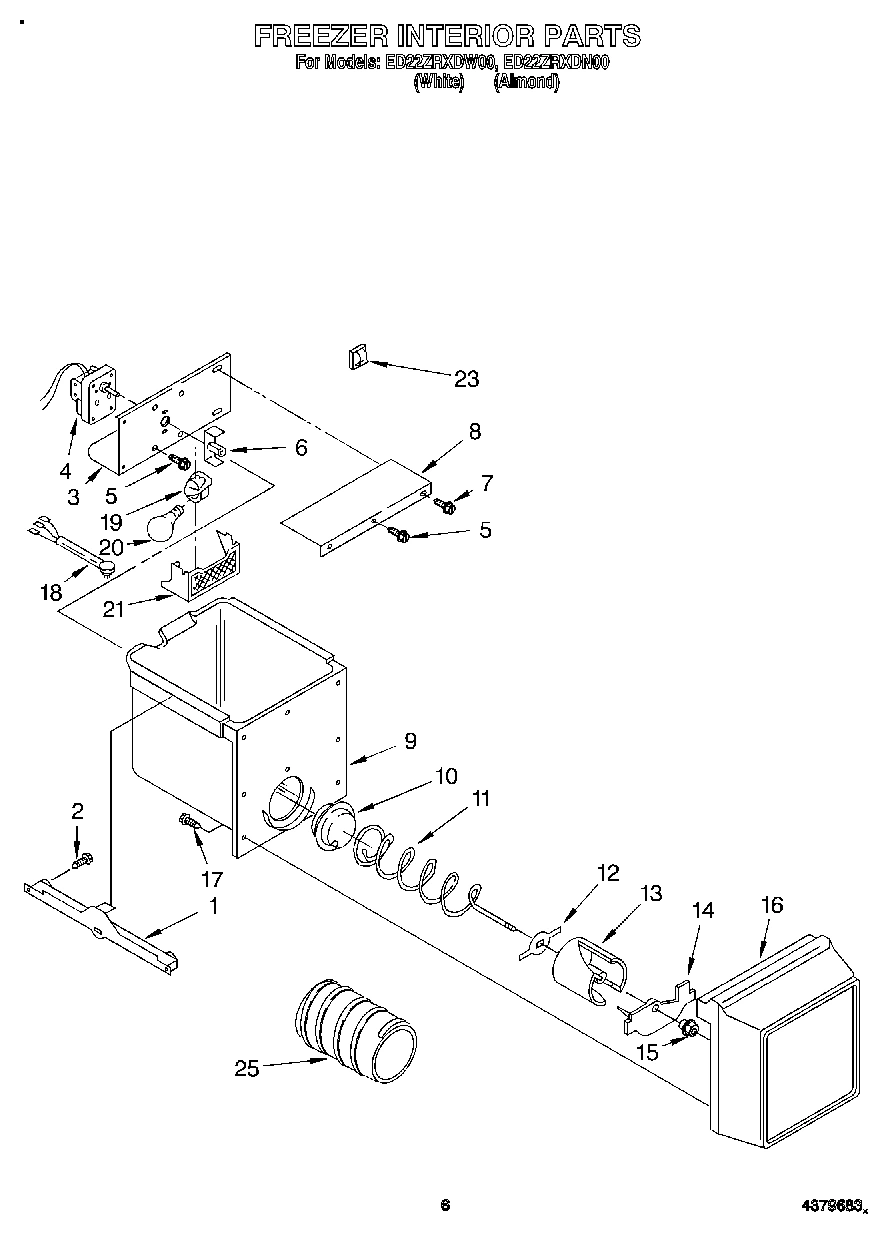

05 - FREEZER INTERIOR

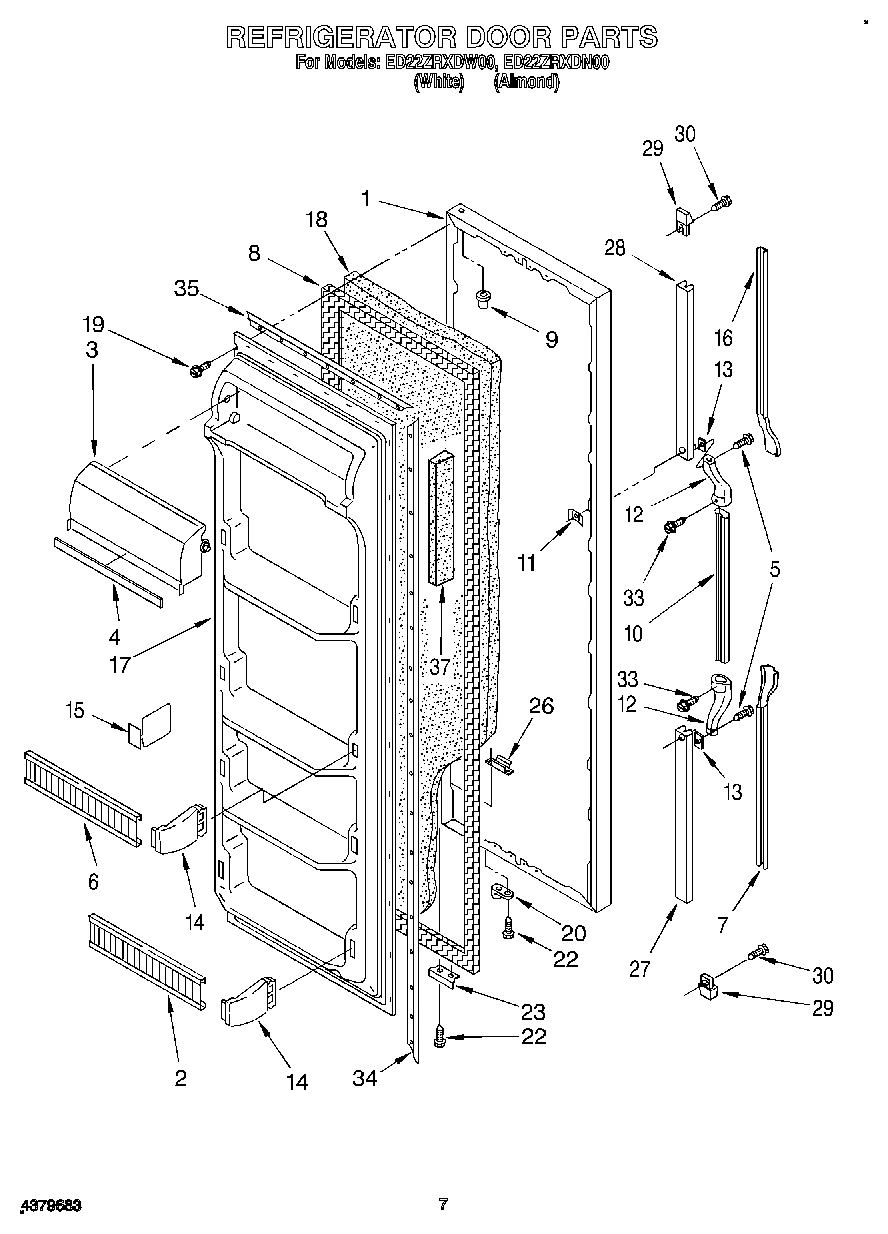

06 - REFRIGERATOR DOOR

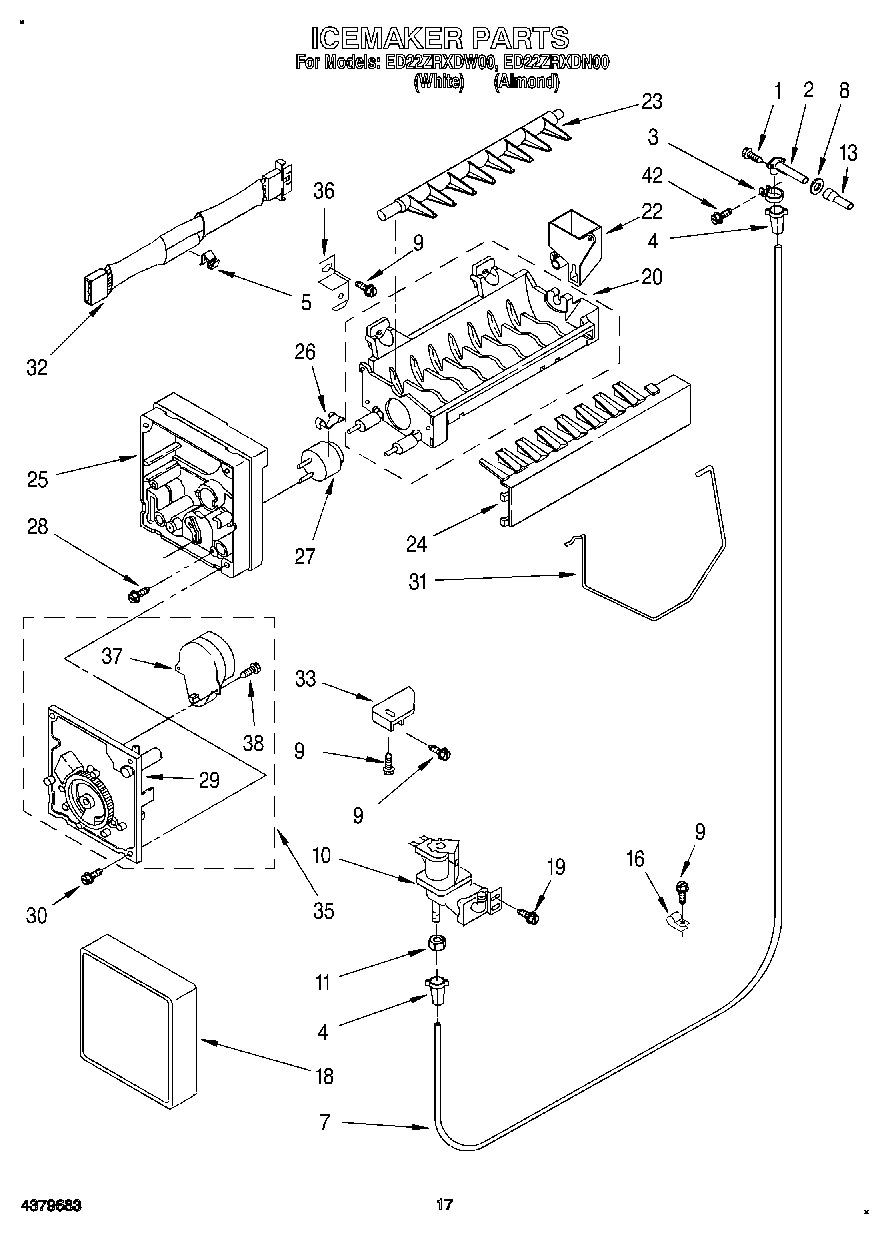

12 - ICEMAKER, LIT/OPTIONAL

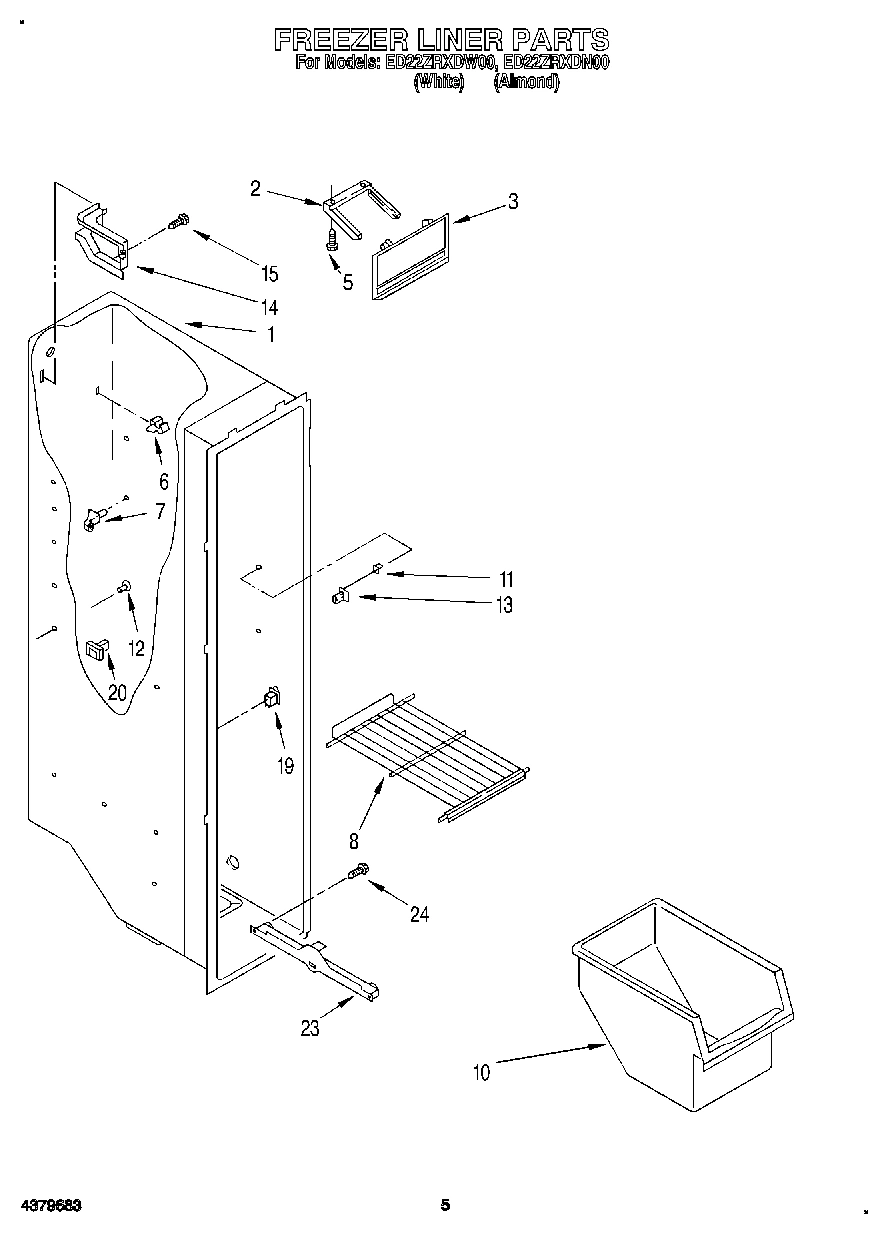

04 - FREEZER LINER

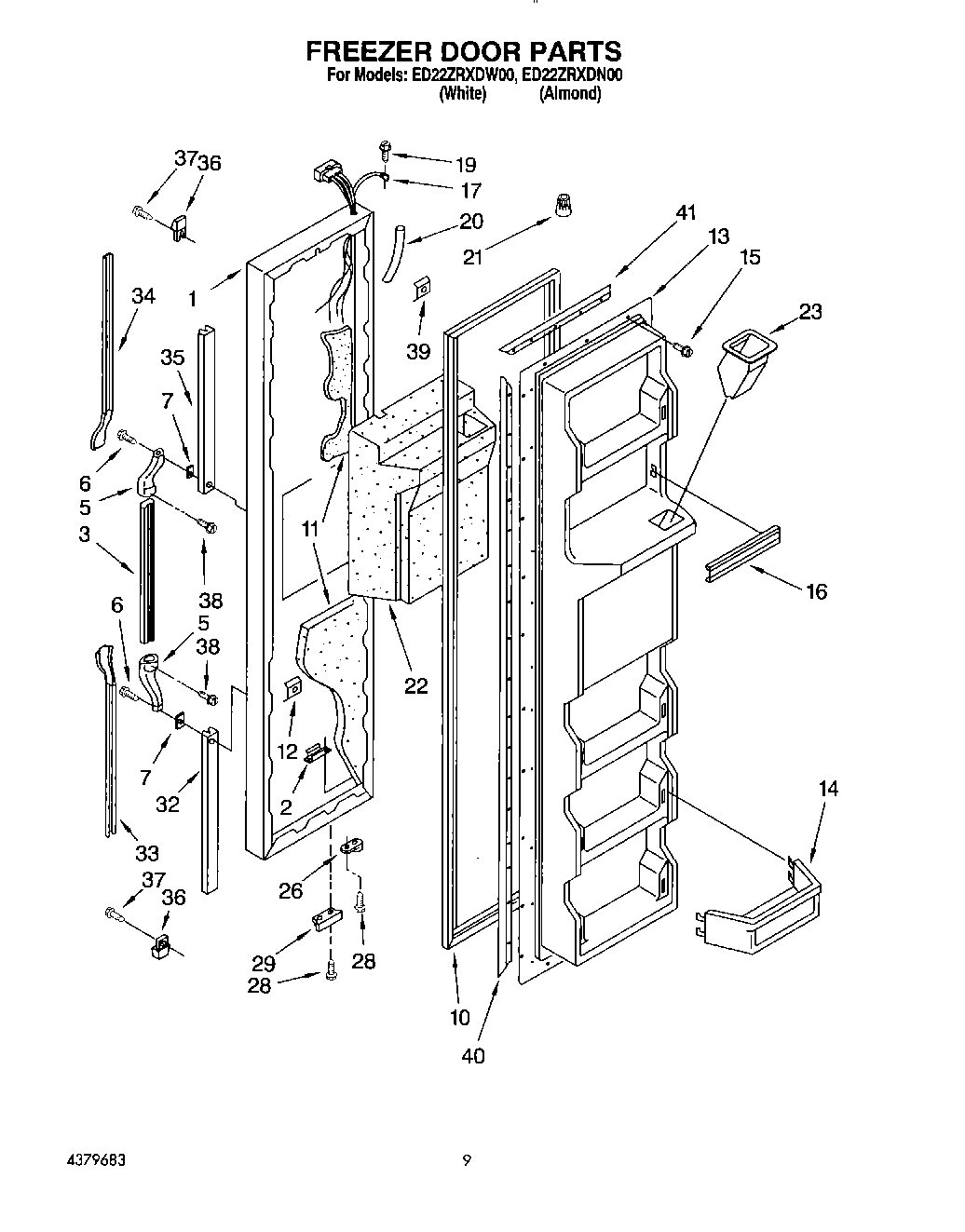

07 - FREEZER DOOR
Common parts from model Whirlpool ED22ZRXDN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176778 WPL LIT2176778 Contact Us For Availability
WPL LIT2180433 WPL LIT2180433 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27208A4 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Shelf Bin (2) WPL 2170587 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Compartment WPL 2174901 Contact Us For Availability
3
Handle, Center (White) WPL 1124713 Contact Us For Availability
3
Handle, Center (Almond) WPL 943079 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Shelf Bin (2) WPL 2170586 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2170705 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI27209A4 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Divider, Bin WPL 2160050 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Trim, Door Shelf WPL 2170582 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Panel, Interior Door WPL 1124961 Contact Us For Availability
17
Harness, Door WPL 1118032 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2155332 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Insert, Handle (White) WPL 1119367 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
37
woodgrain handle insert WPL 4210445 Contact Us For Availability
37
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
37
Black Handle Insert WPL 4319080 Contact Us For Availability
38
Screw WPL 489022 Contact Us For Availability
40
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
41
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncu WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
