Model Whirlpool ED22TQXEW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

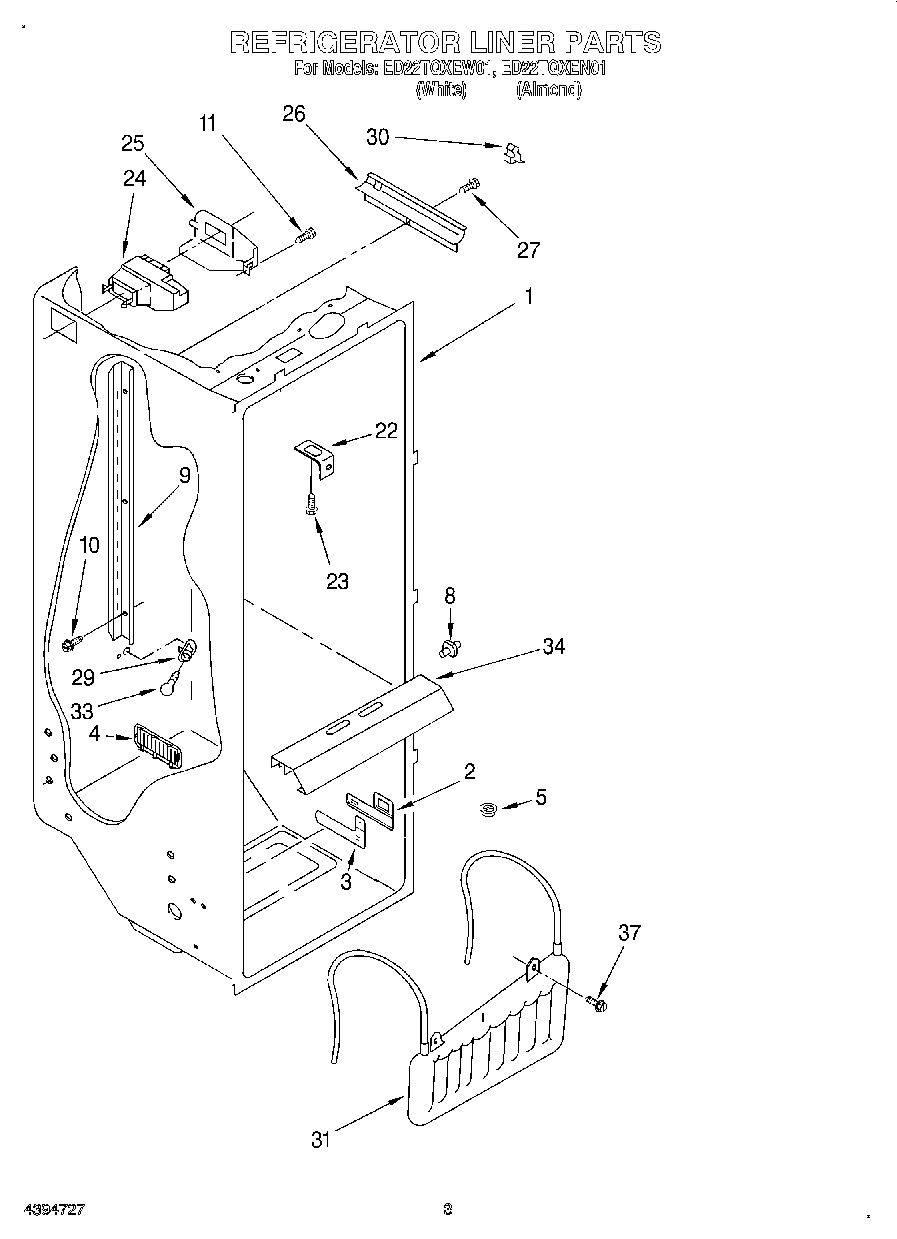

02 - REFRIGERATOR LINER

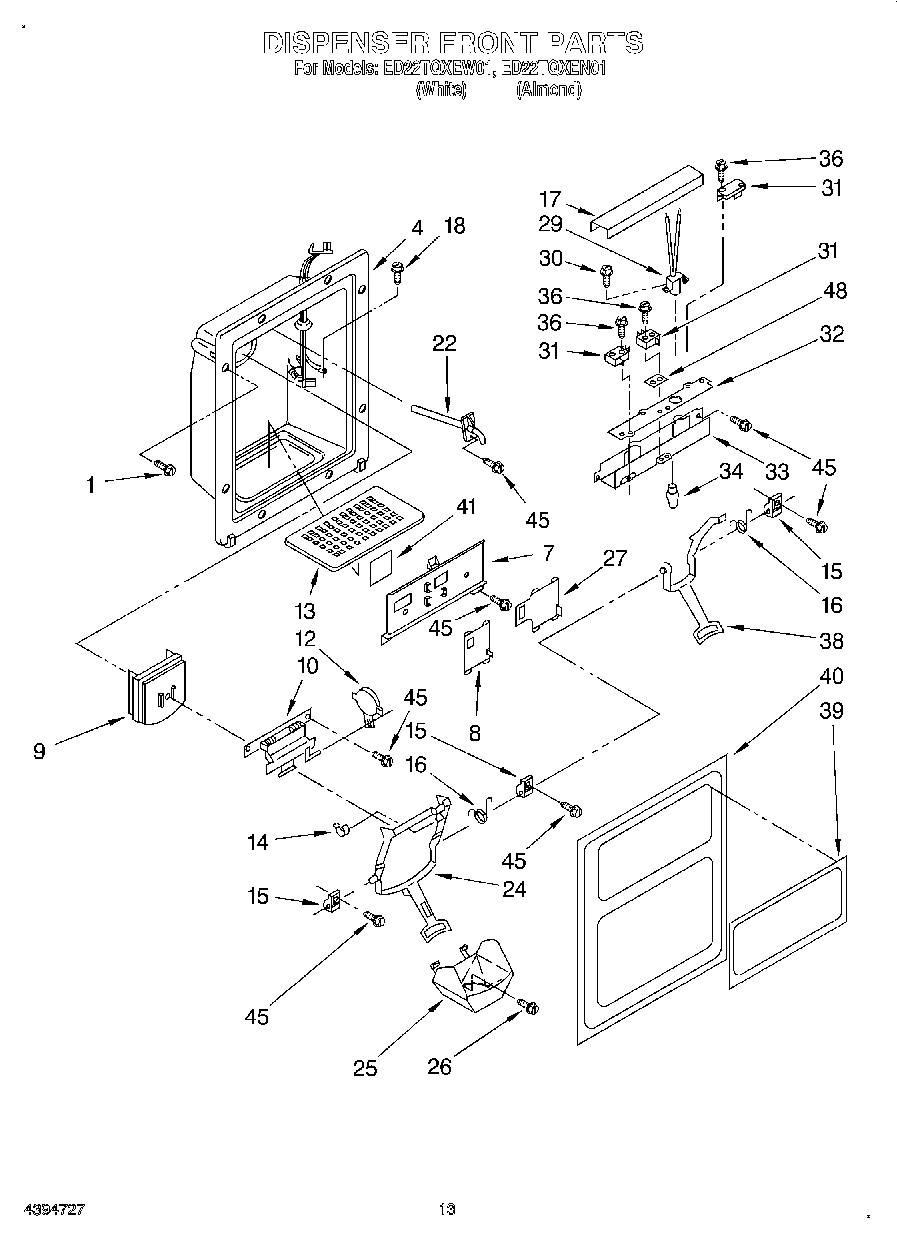

09 - DISPENSER FRONT

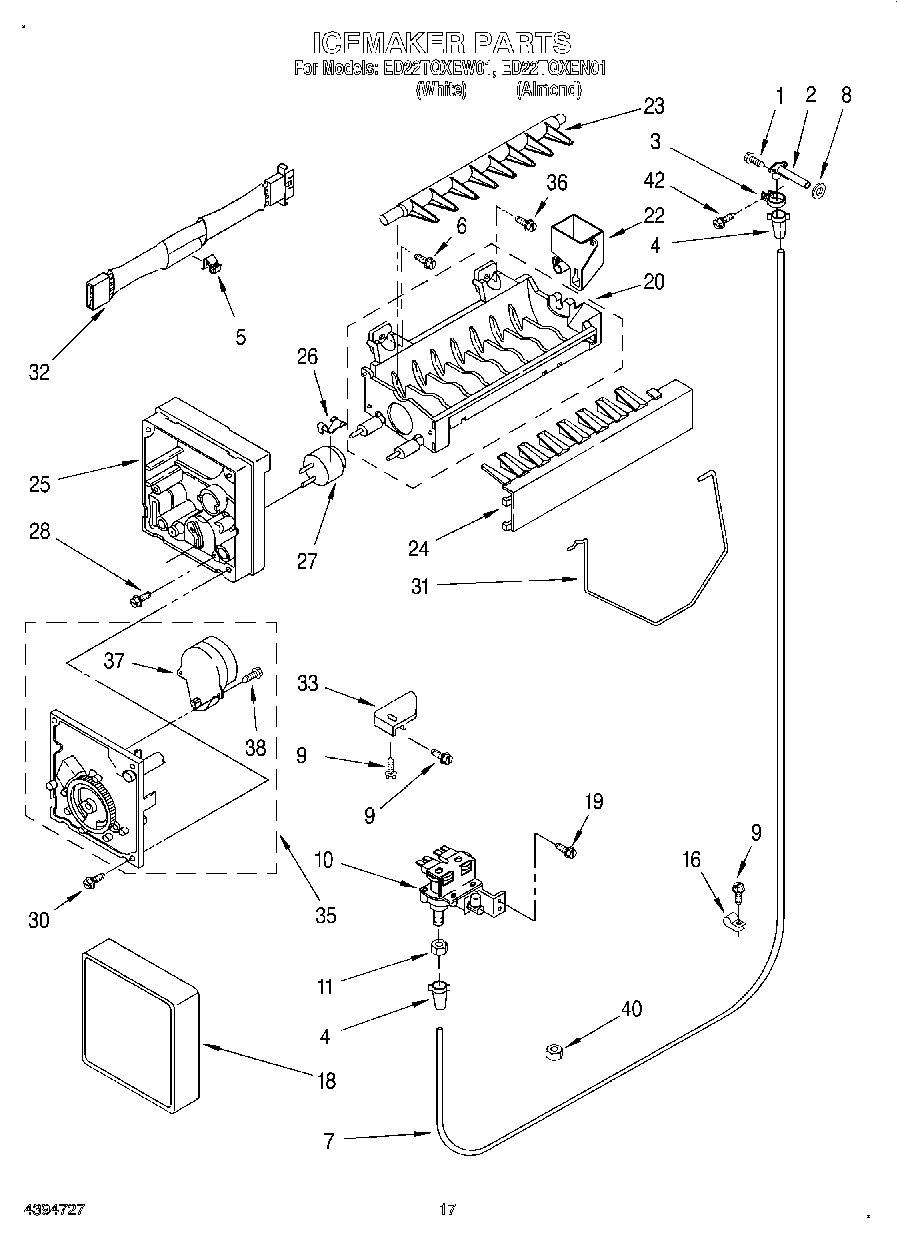

11 - ICE MAKER

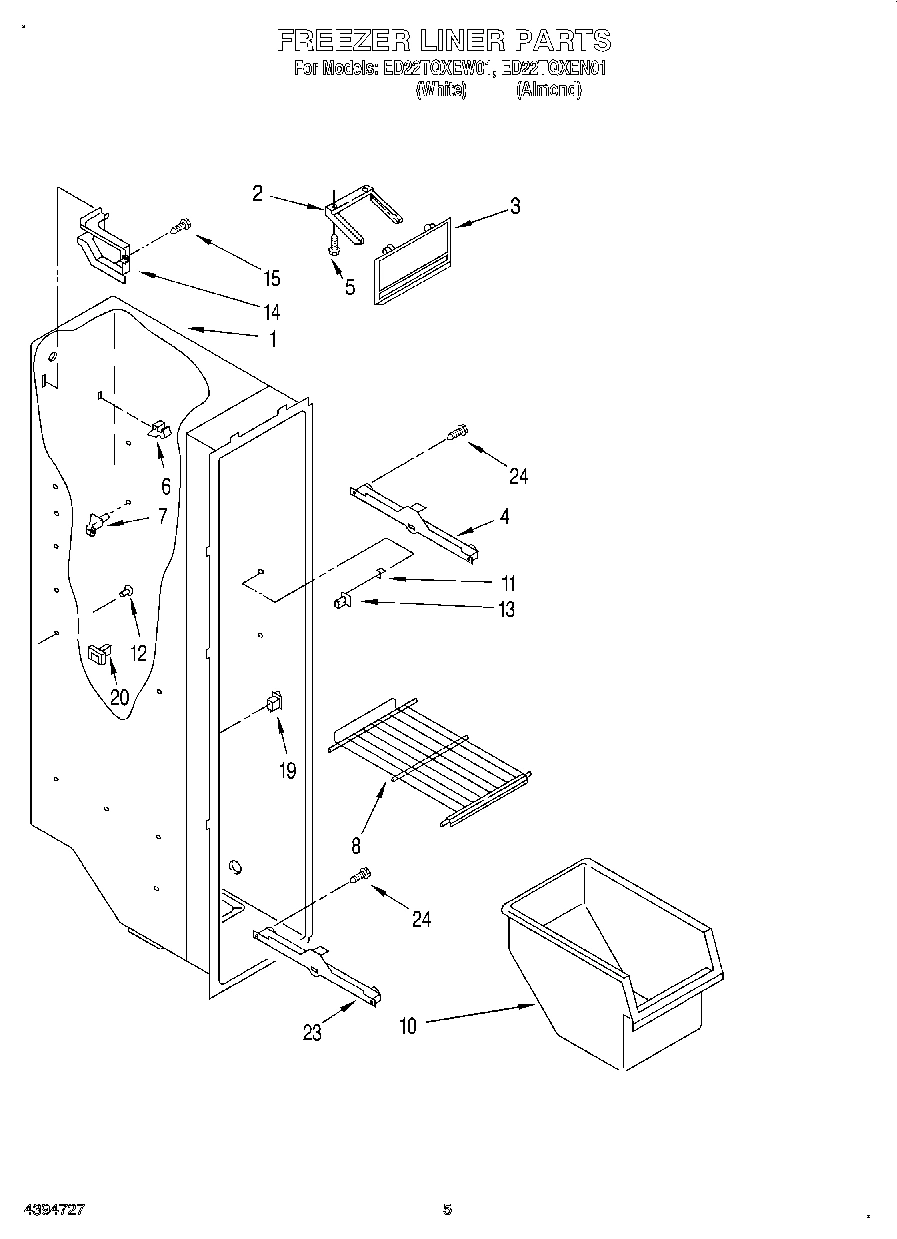

04 - FREEZER LINER
05 - AIR FLOW

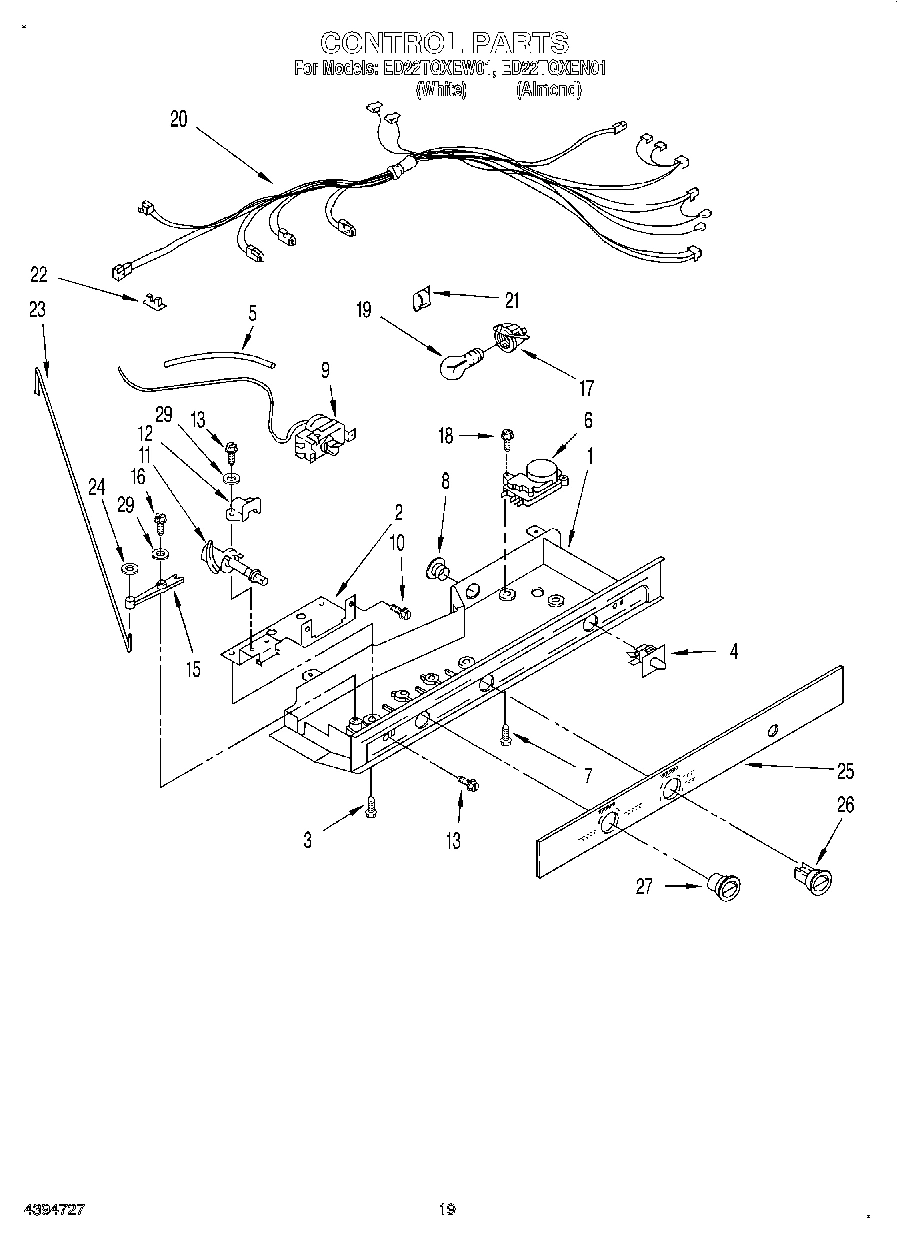

12 - CONTROL, LIT/OPTIONAL

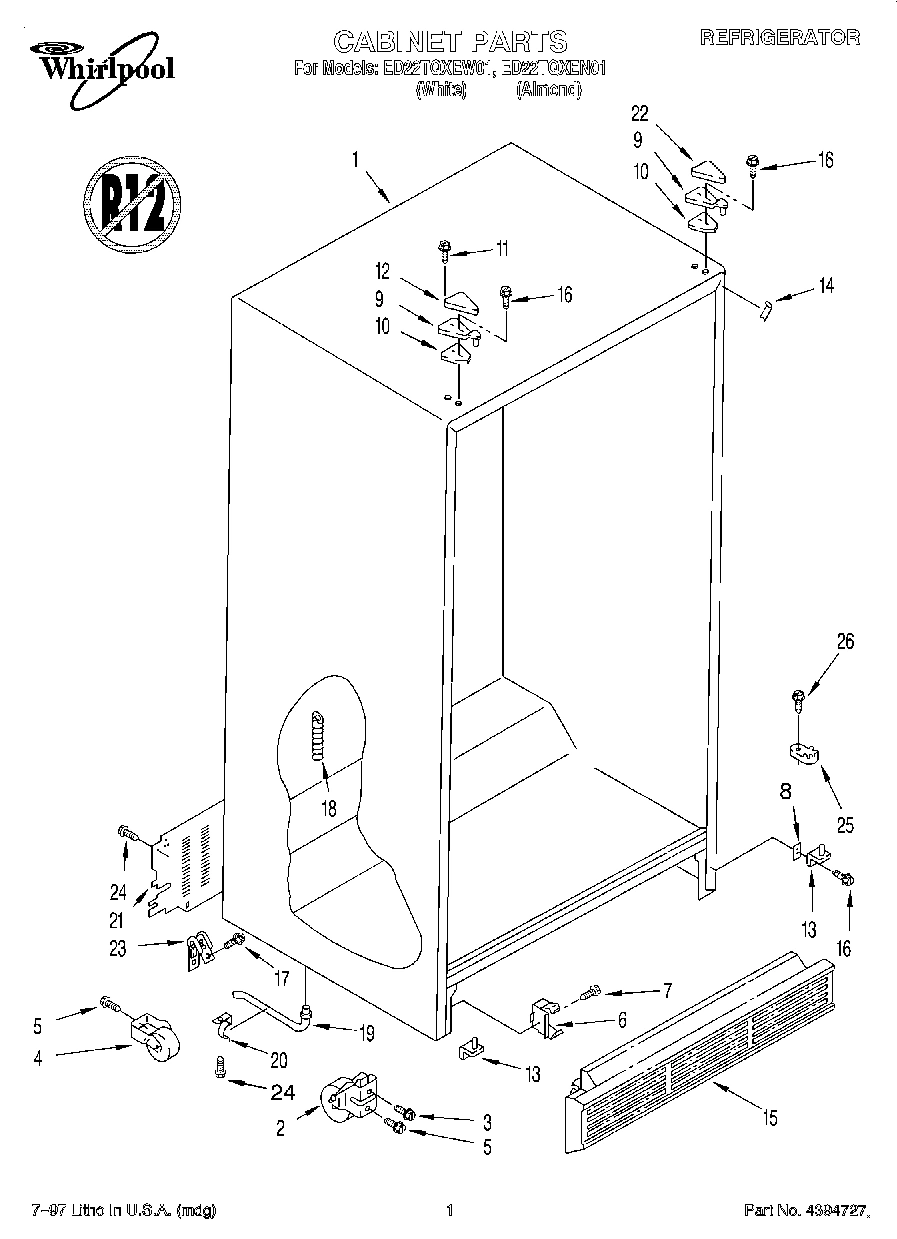

01 - CABINET

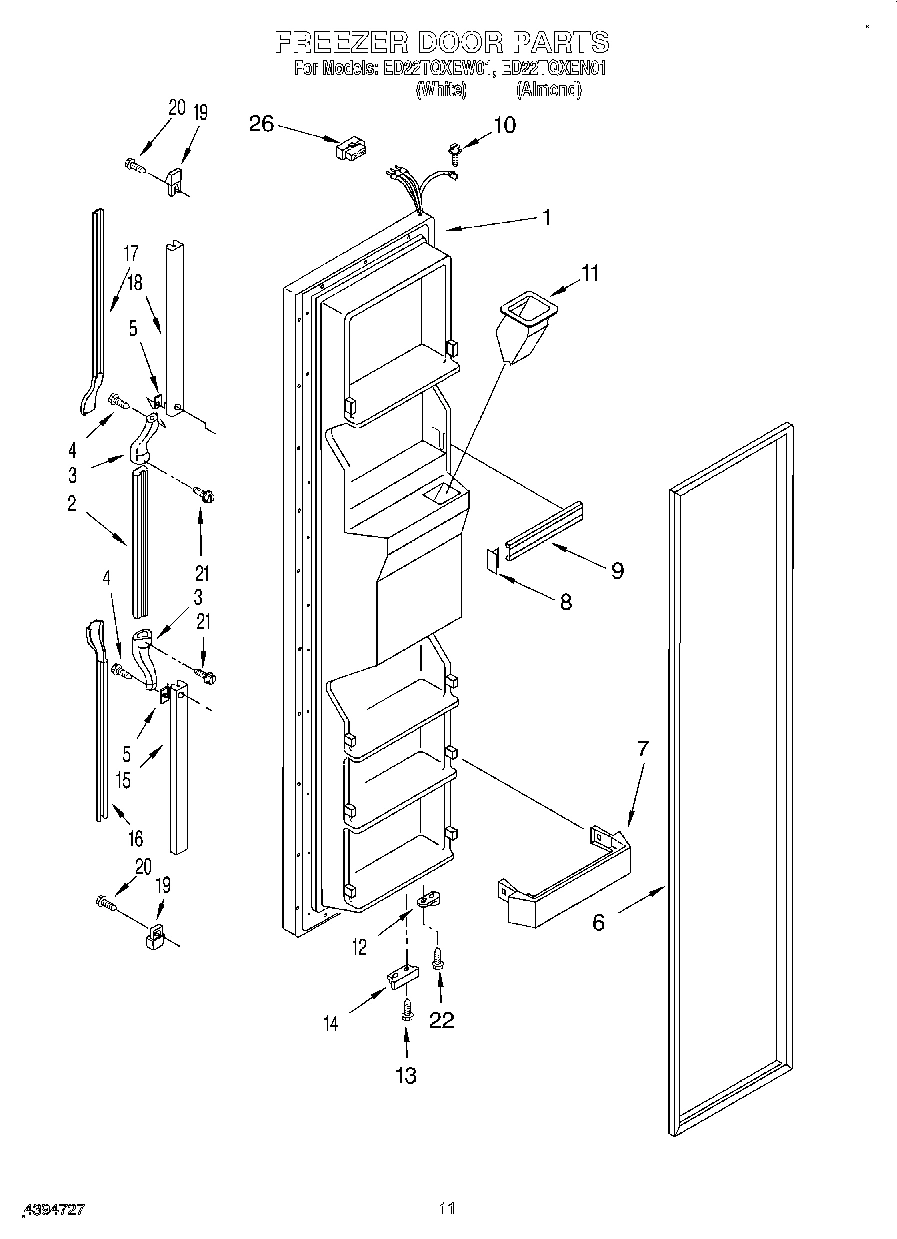

08 - FREEZER DOOR

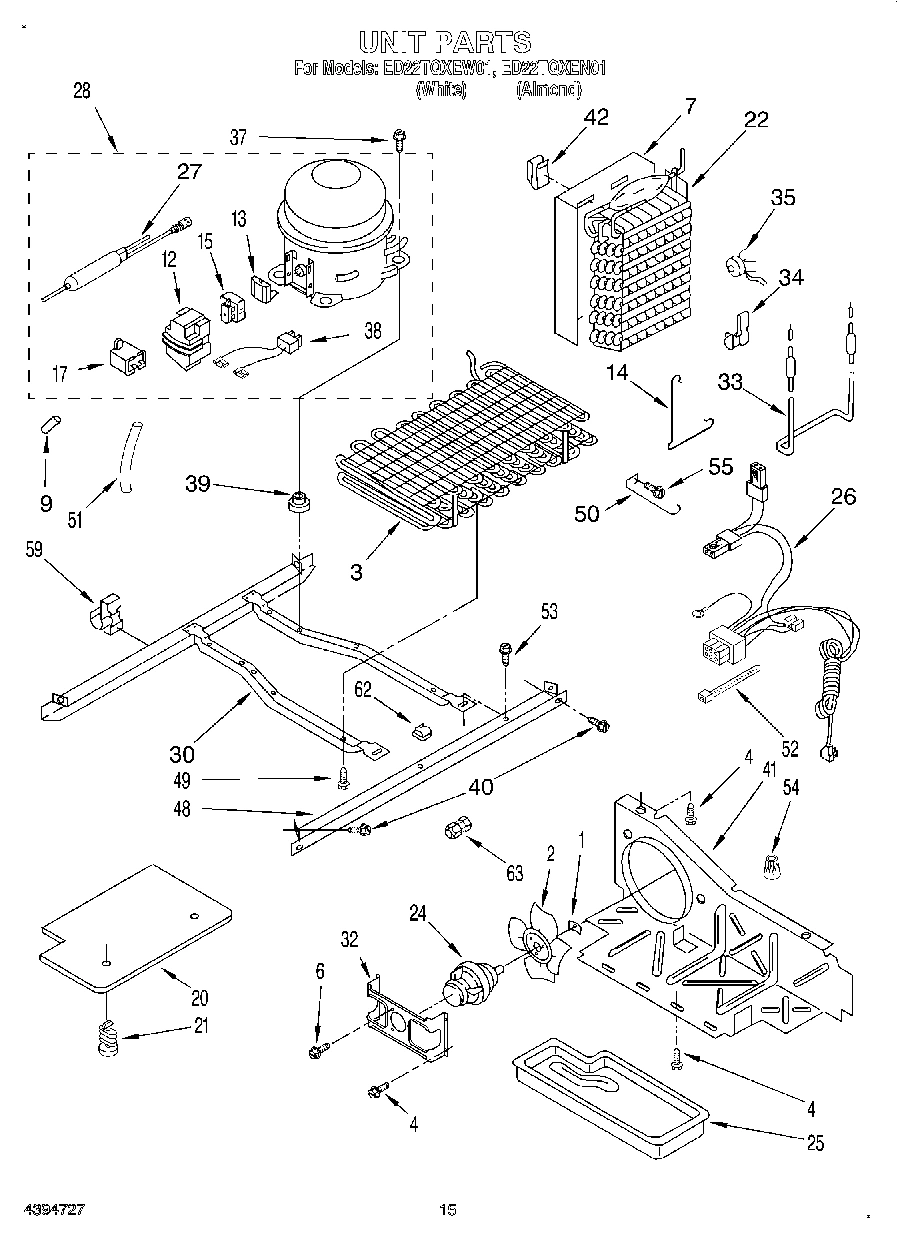

10 - UNIT

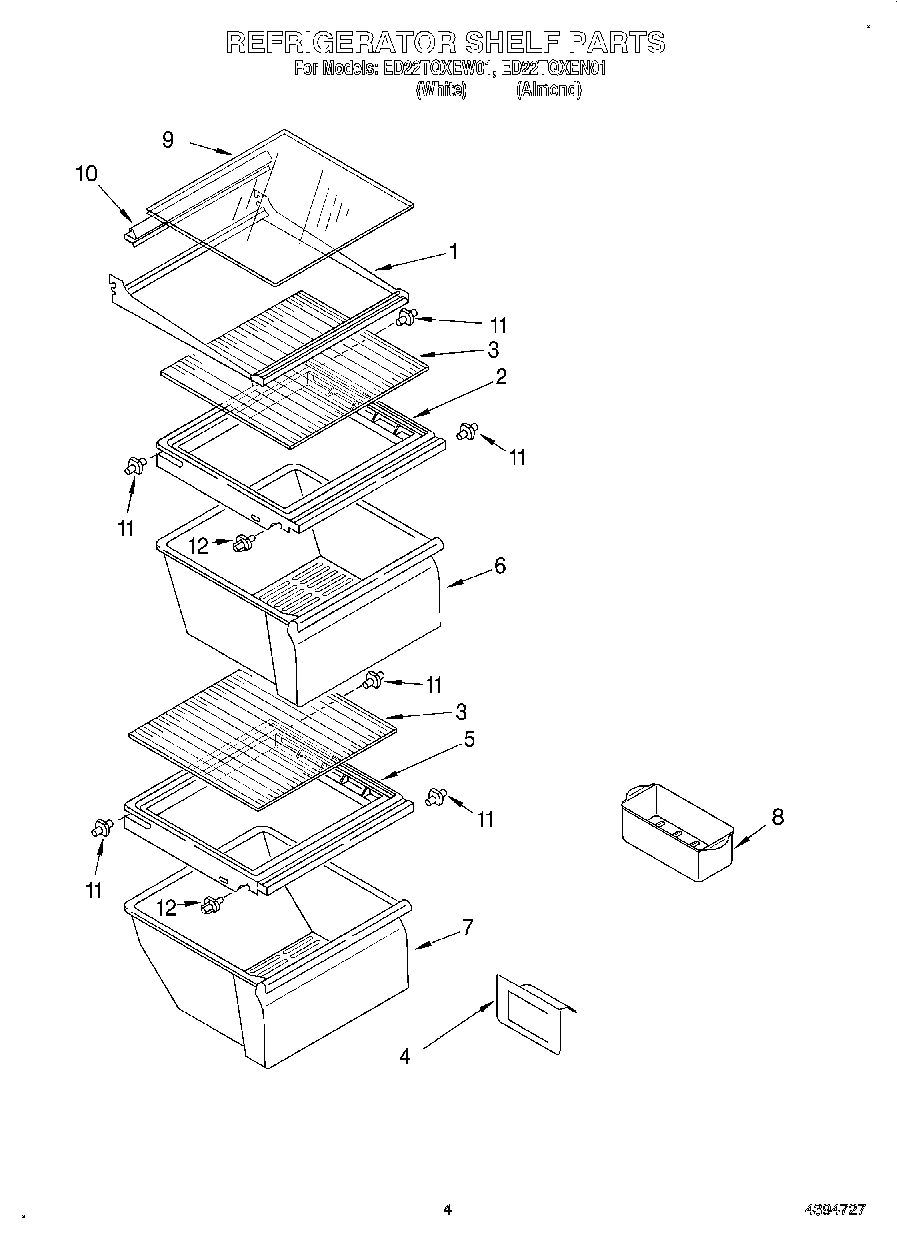

03 - REFRIGERATOR SHELF

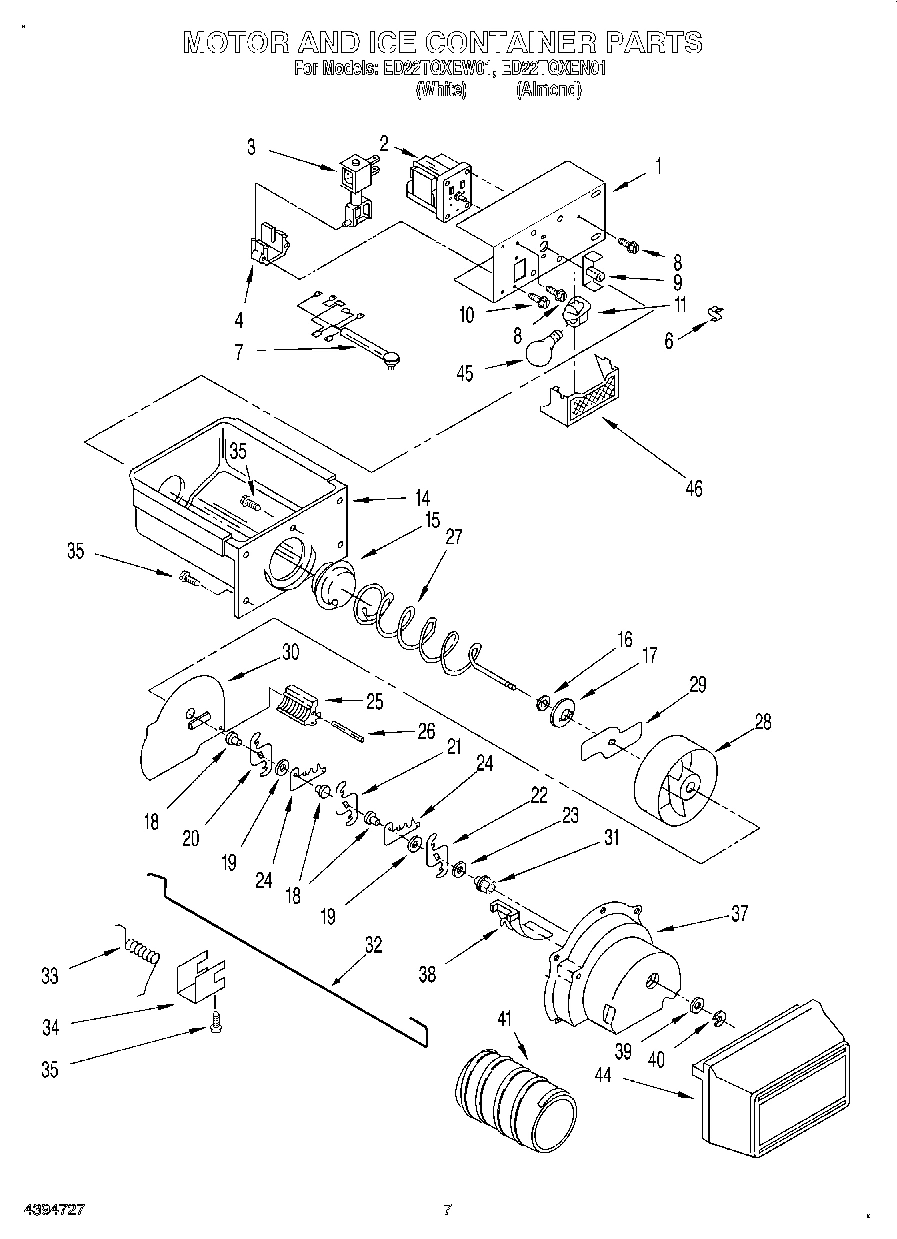

06 - MOTOR AND ICE CONTAINER

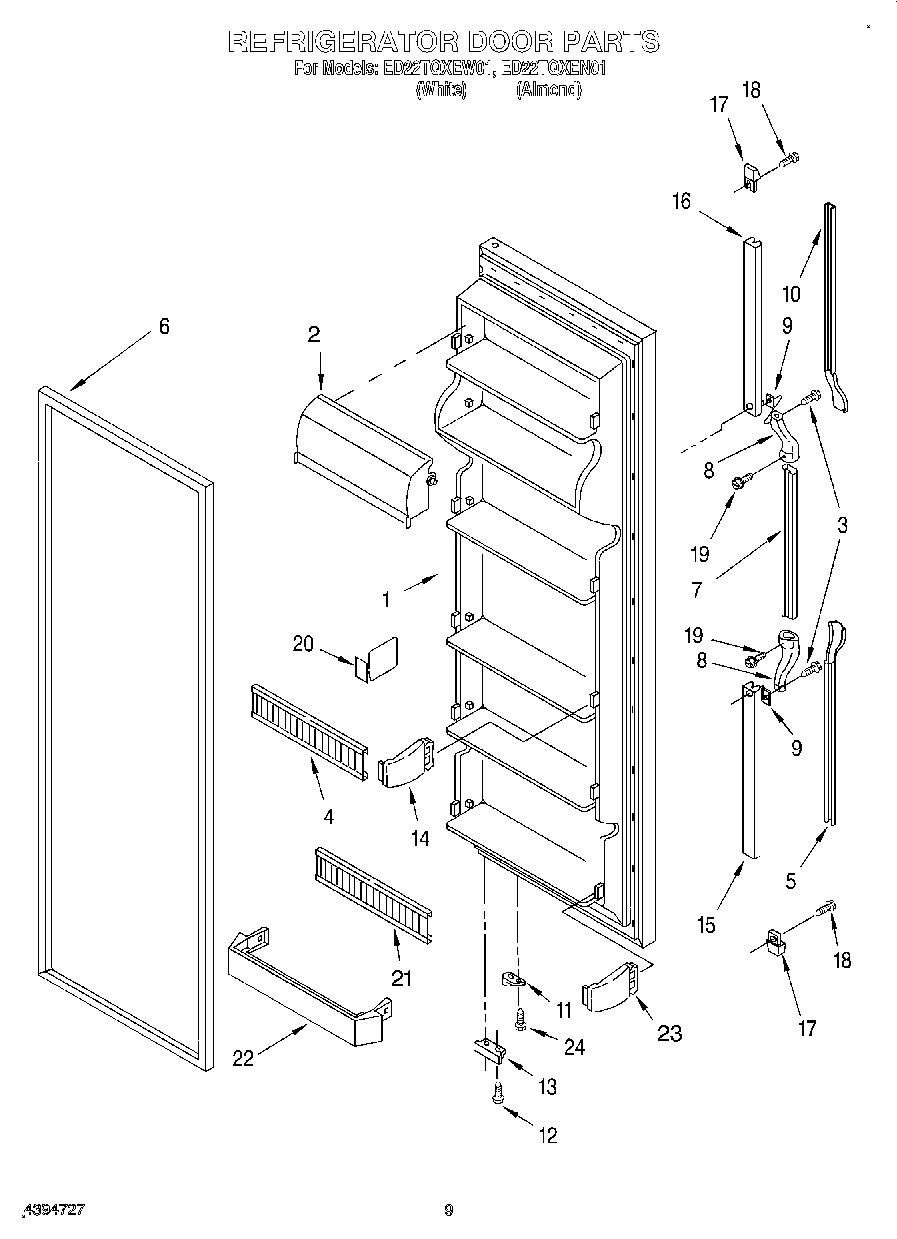

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22TQXEW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793N Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793W Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194796N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194796W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Trim, Door (3) WPL 2175989 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Glass, Shelf WPL 2175987 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
10
Insert, Handle (White) WPL 2194774W Contact Us For Availability
10
Reflector WPL 2170621 Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
14
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Grille (White) WPL 2155477 Contact Us For Availability
15
Grille (Almond) WPL 2155478 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 2194771 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Divider, Bin WPL 2160050 Contact Us For Availability
21
Trim, Door (1) WPL 2175990 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
KIT, FOAM SLAB WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
