Model Whirlpool ED22PQXDW05 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

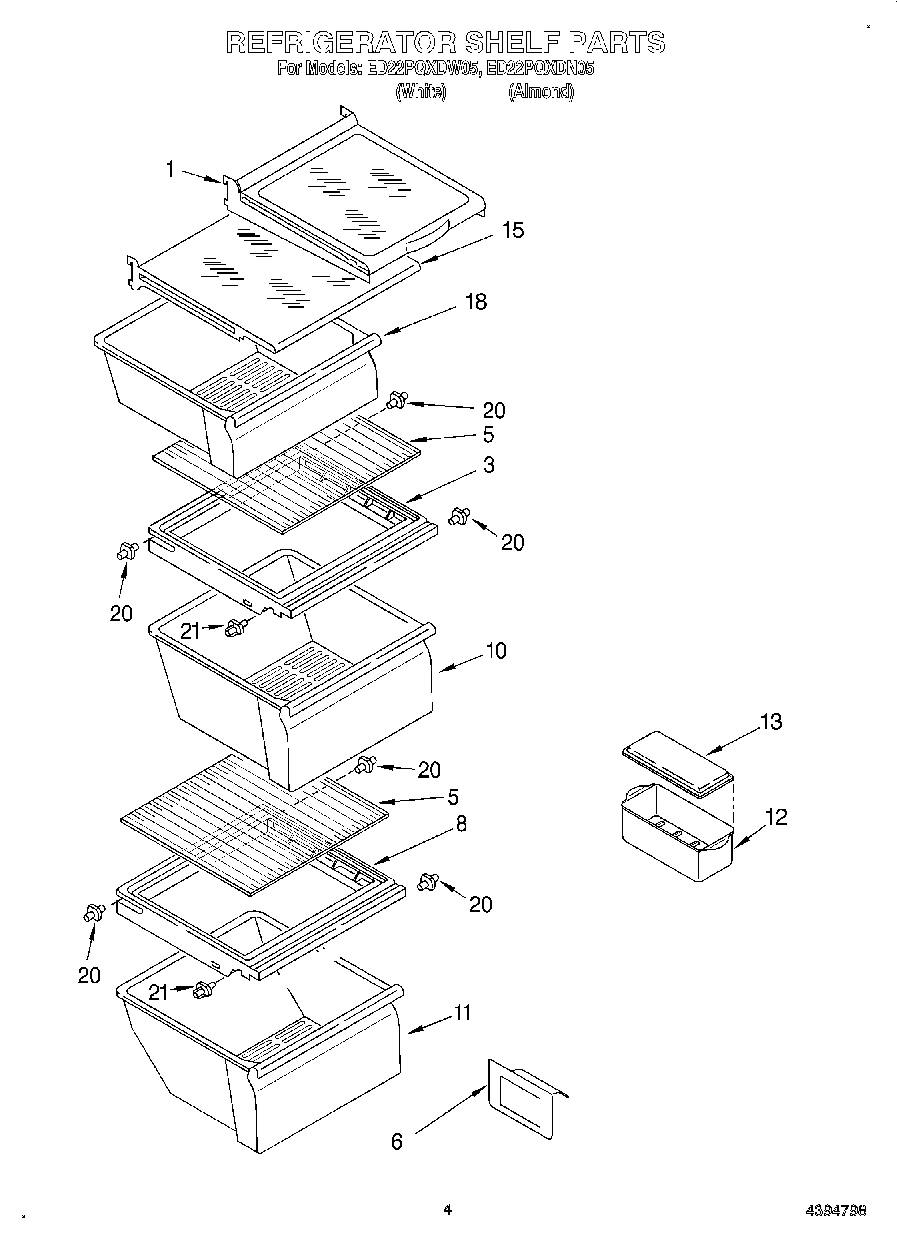

03 - REFRIGERATOR SHELF
05 - AIR FLOW

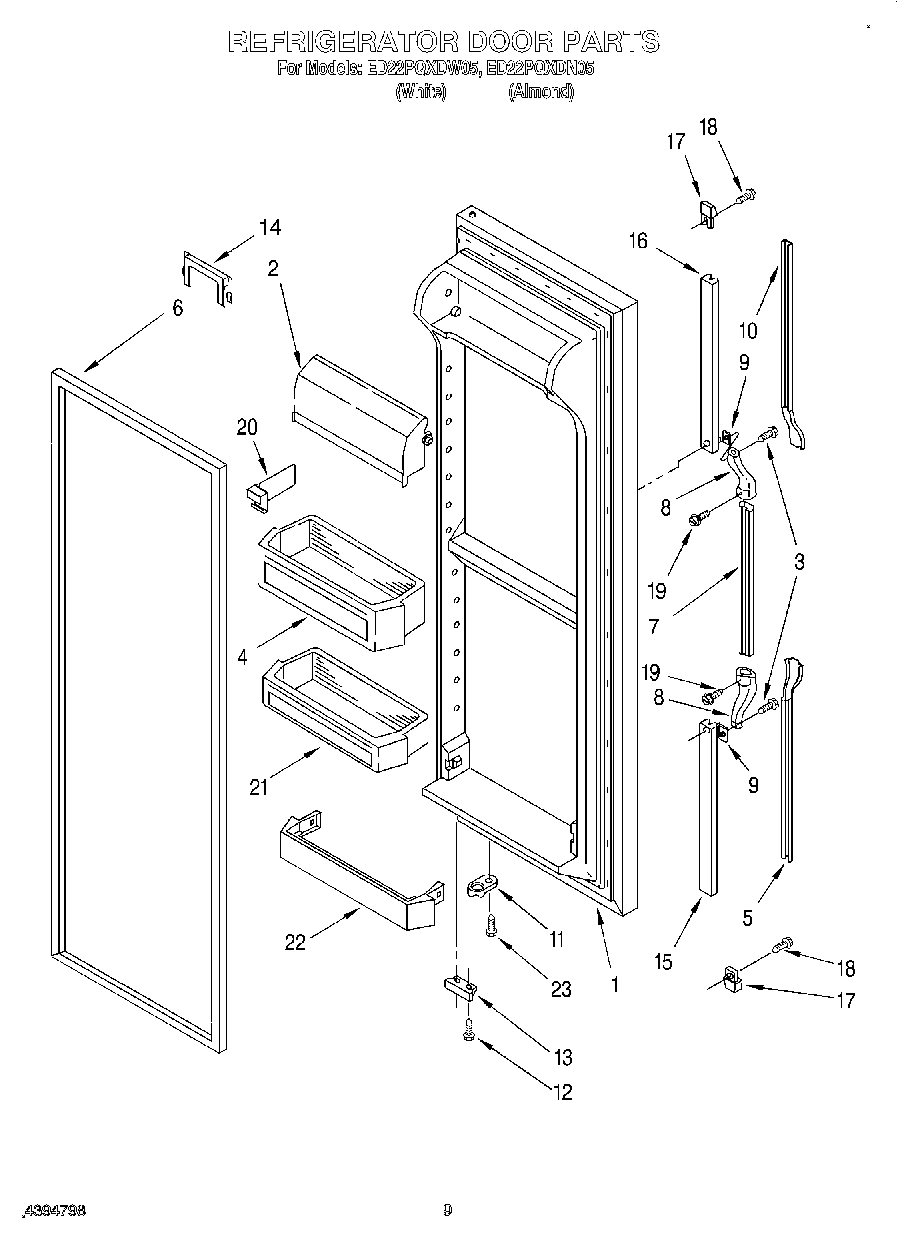

07 - REFRIGERATOR DOOR

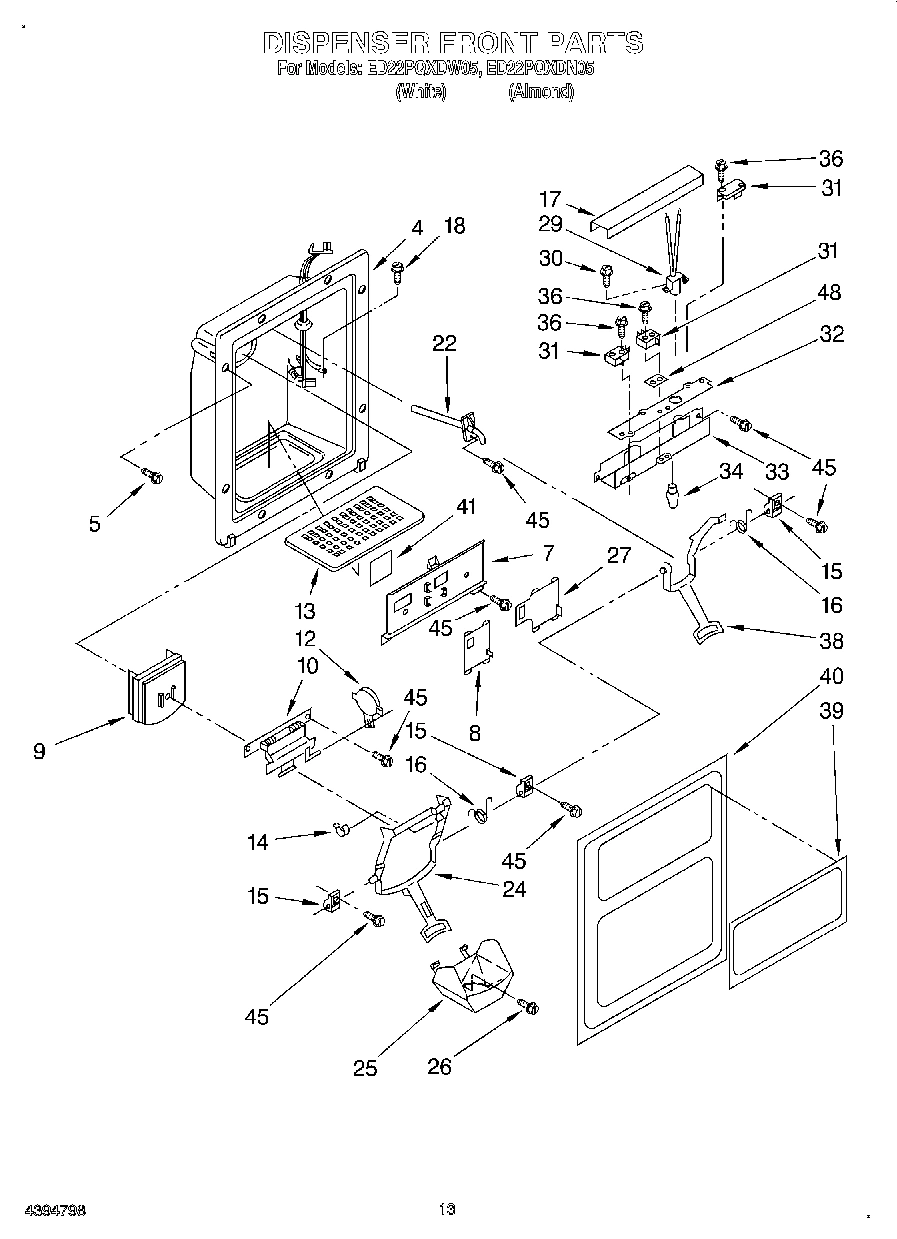

09 - DISPENSER FRONT

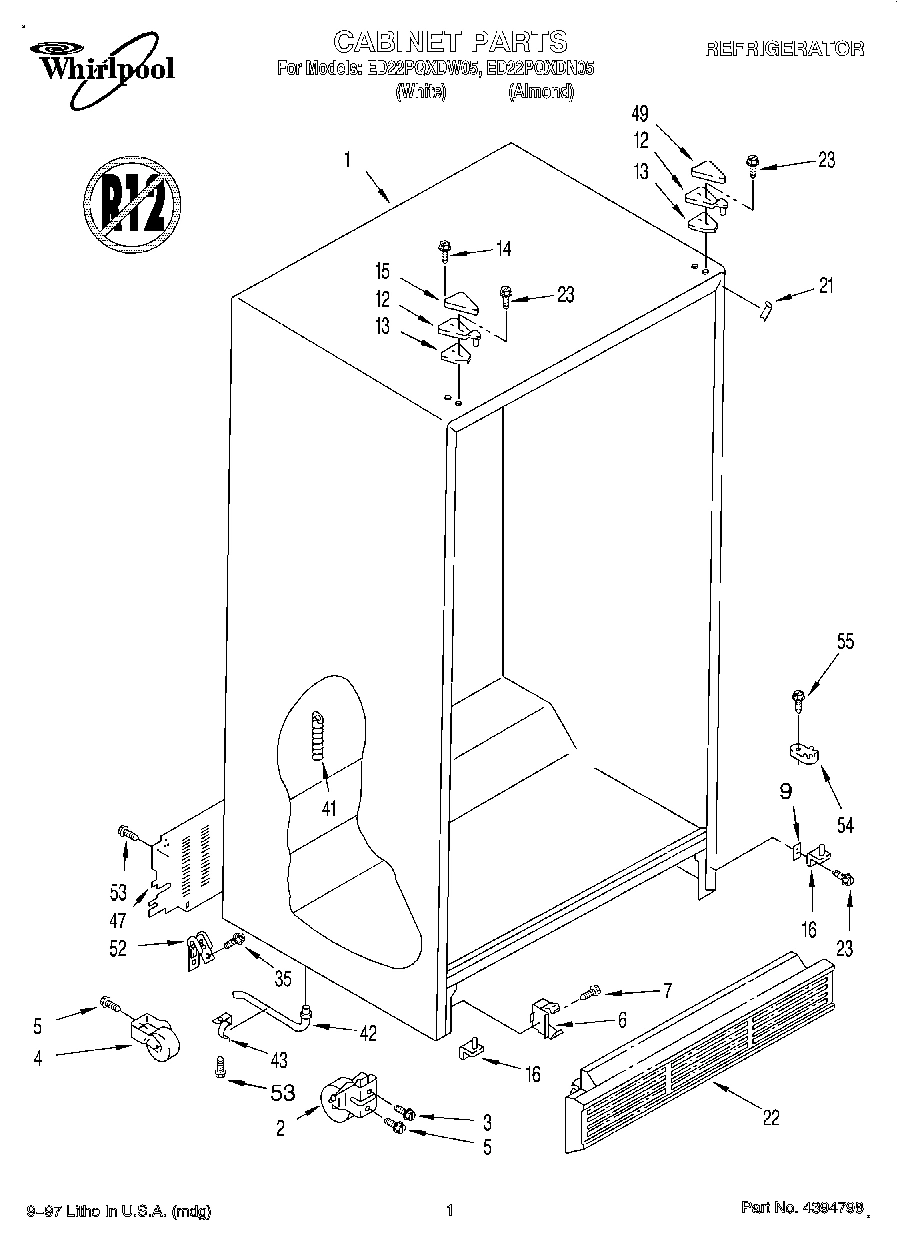

01 - CABINET

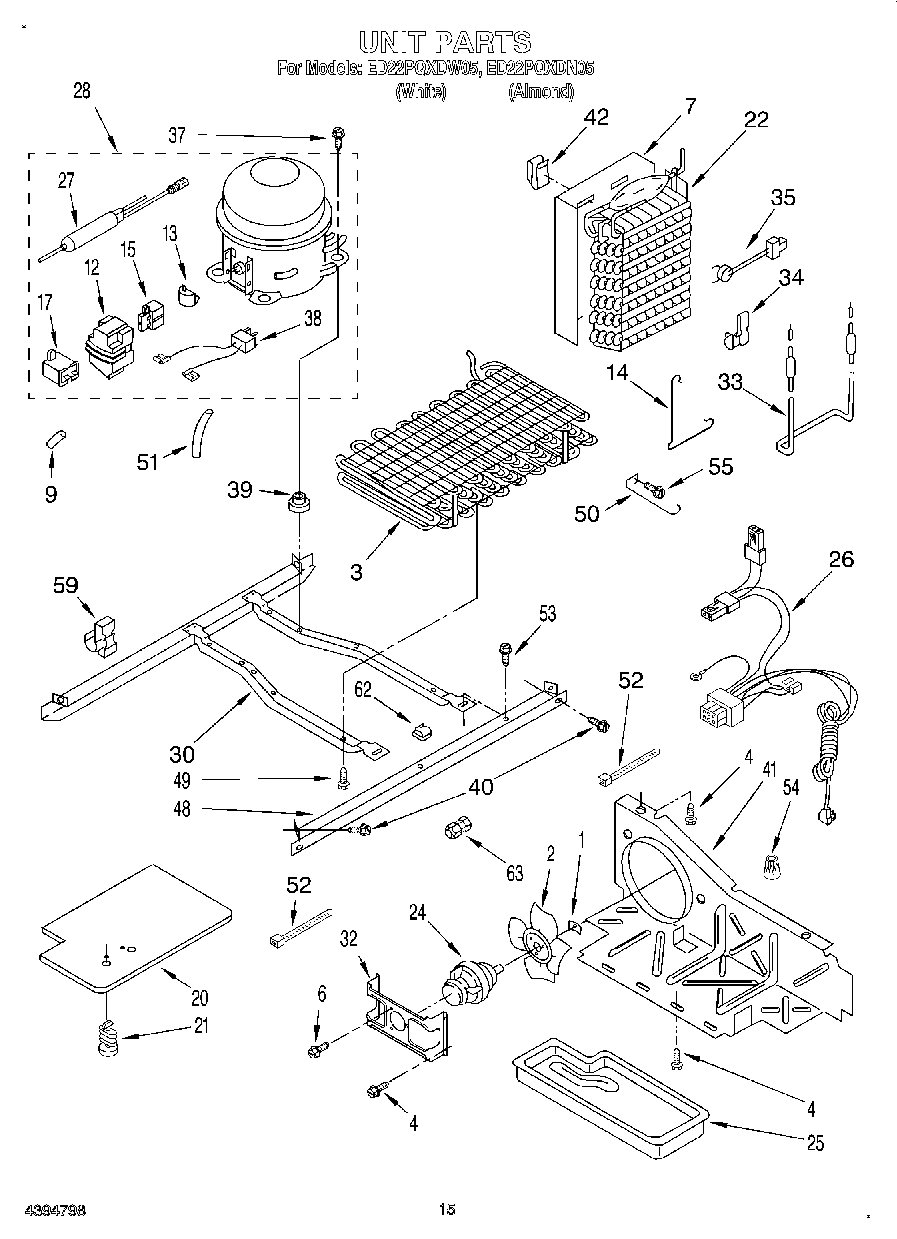

10 - UNIT

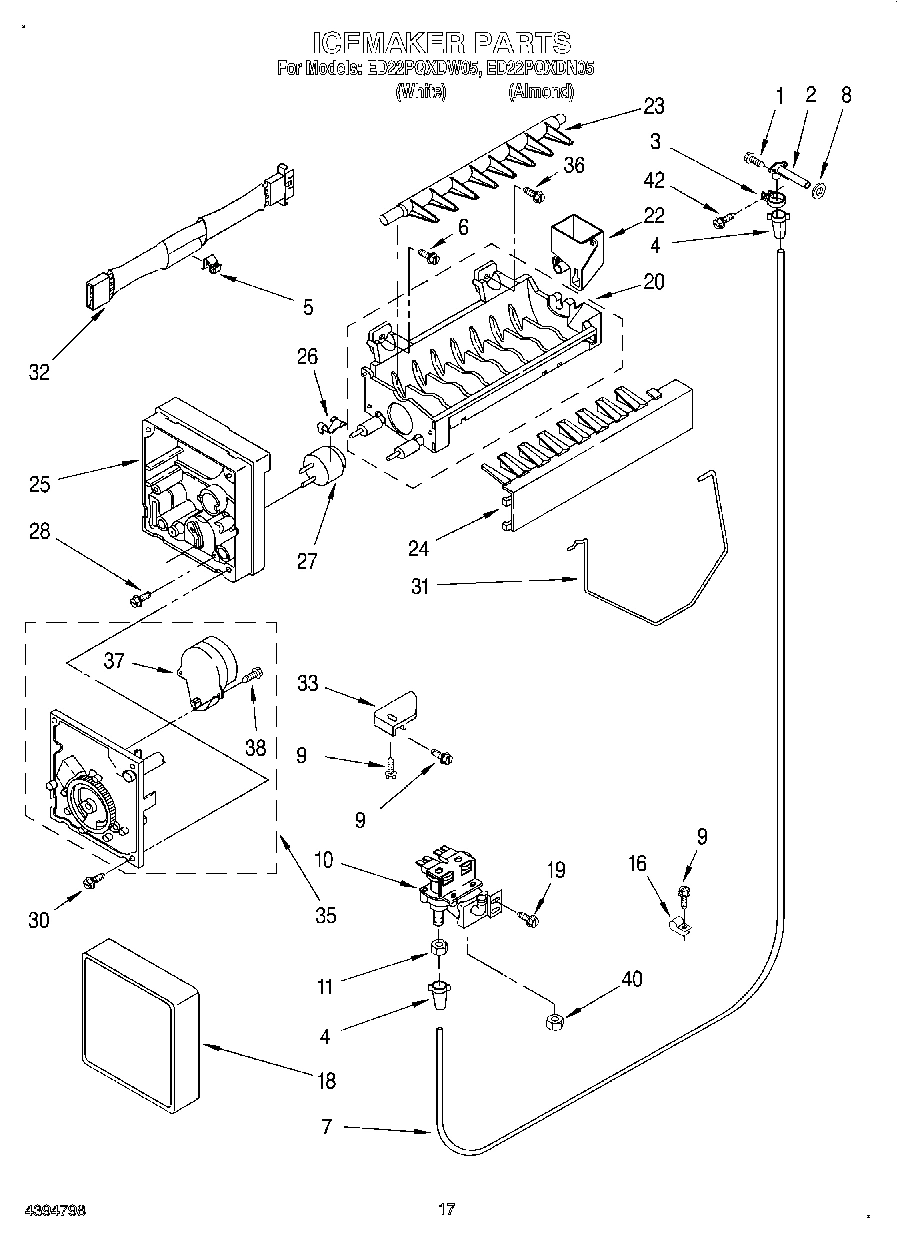

11 - ICEMAKER

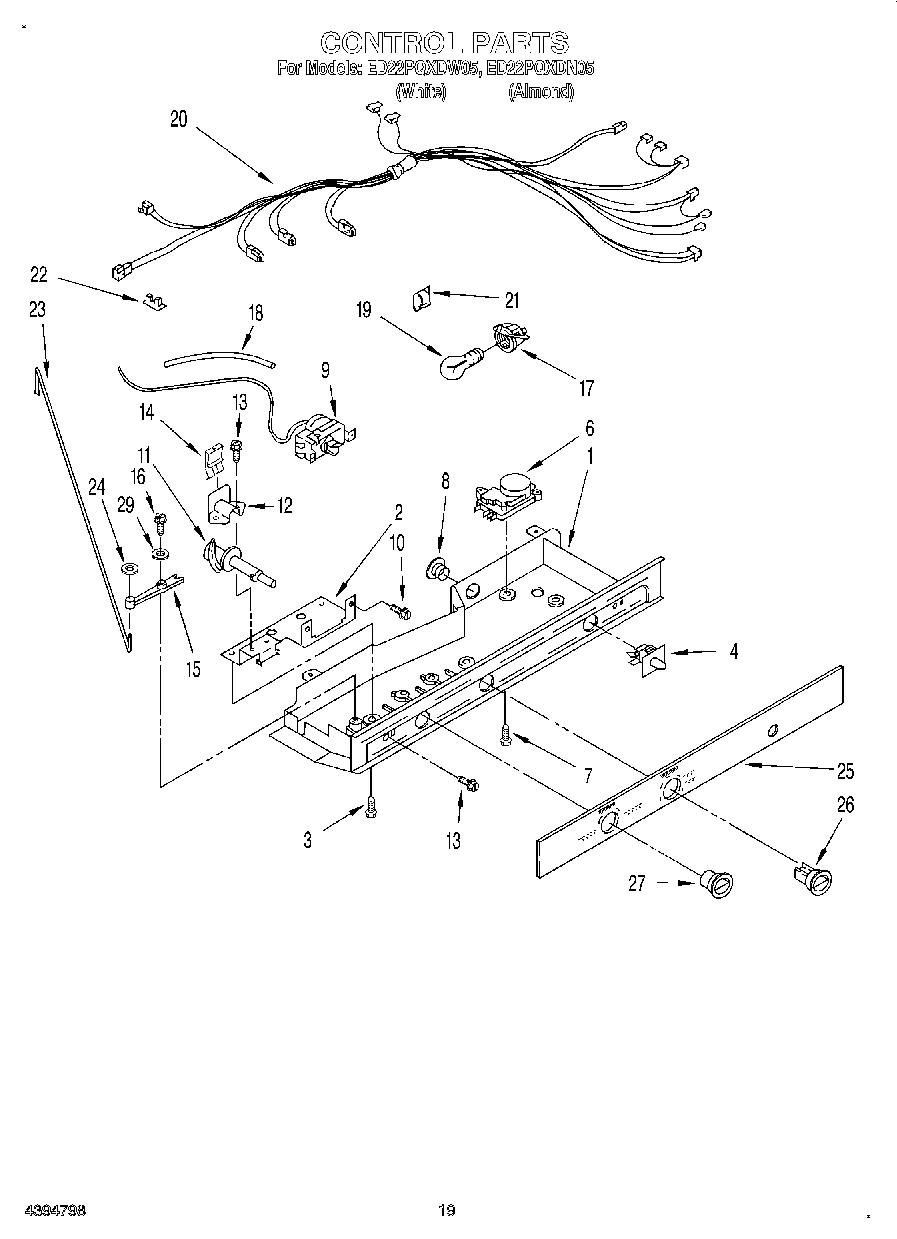

12 - CONTROL, LIT/OPTIONAL

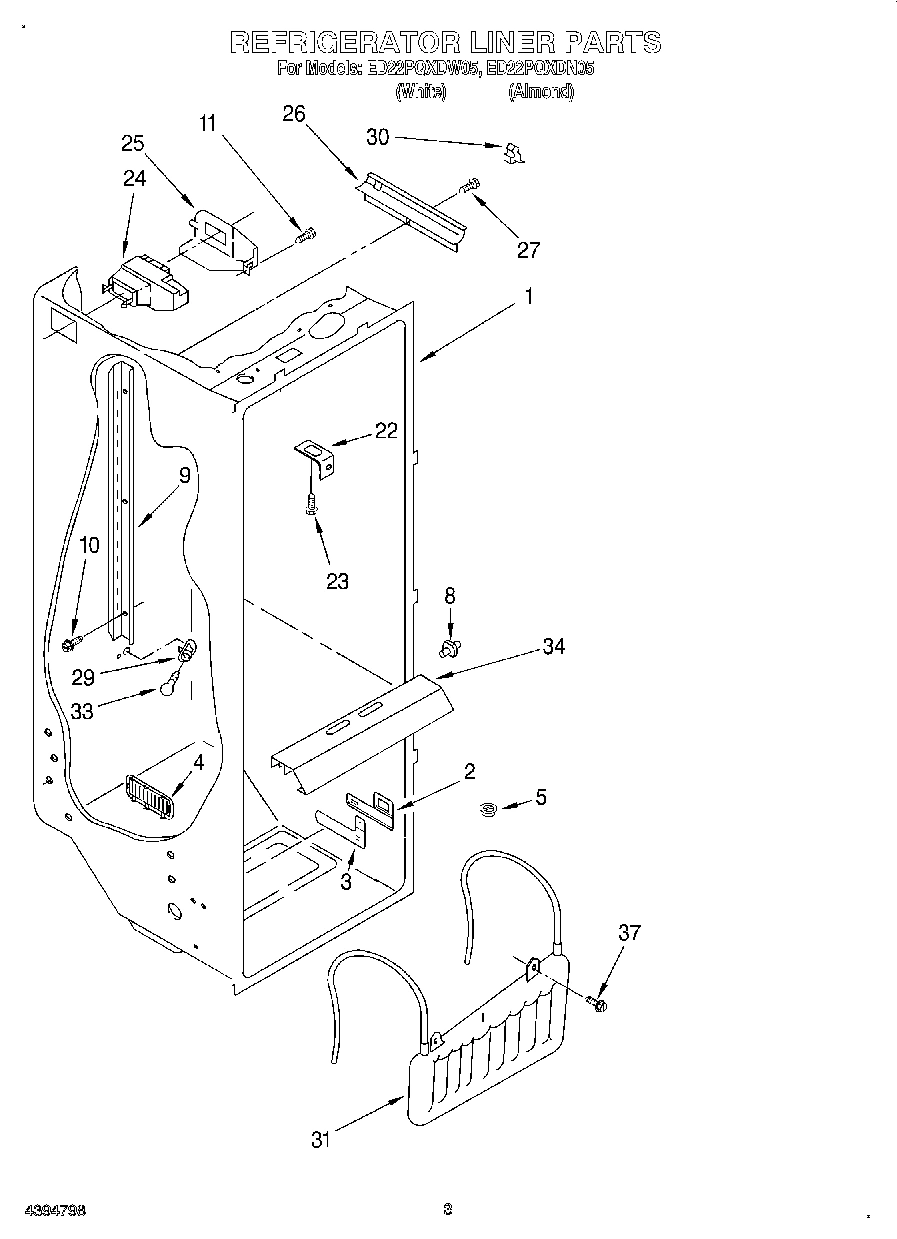

02 - REFRIGERATOR LINER

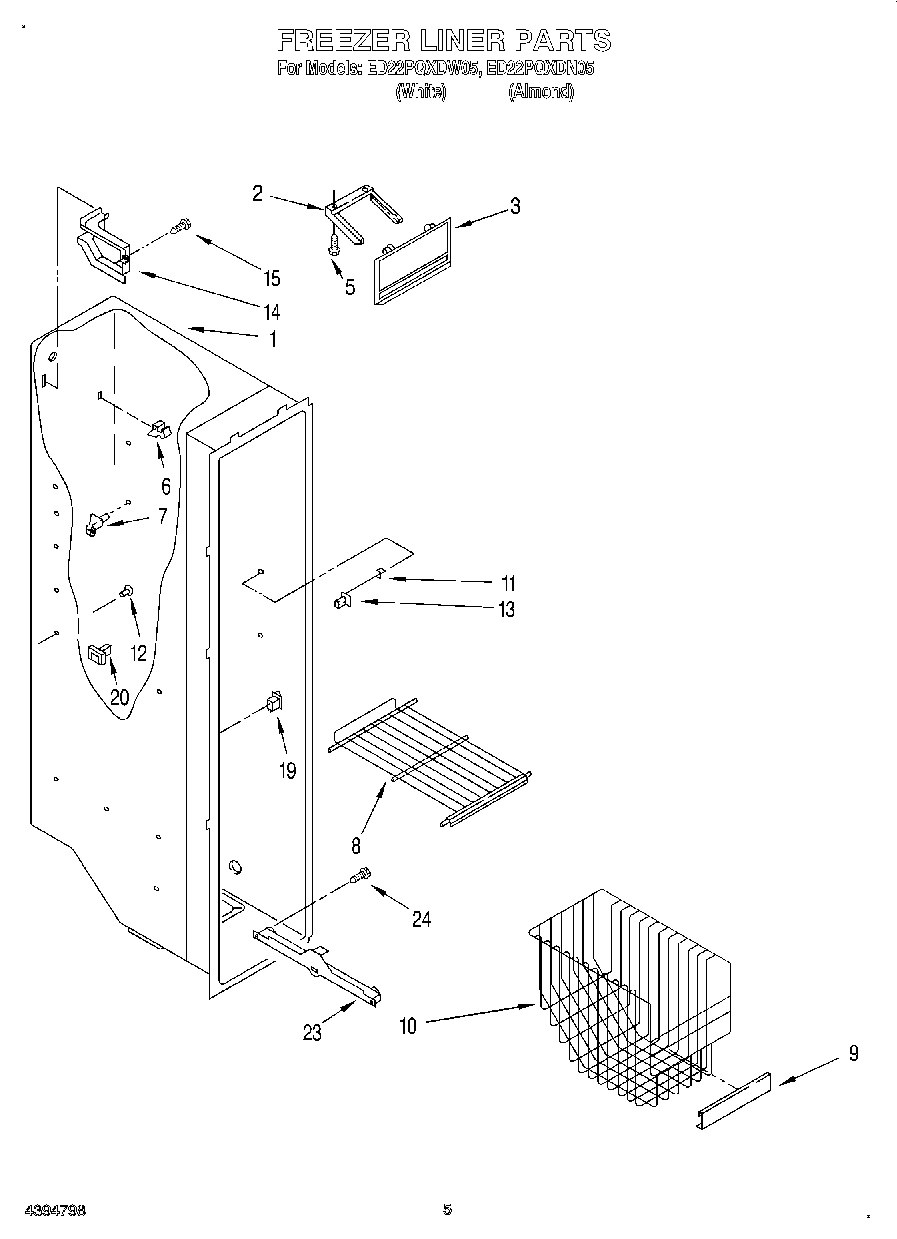

04 - FREEZER LINER

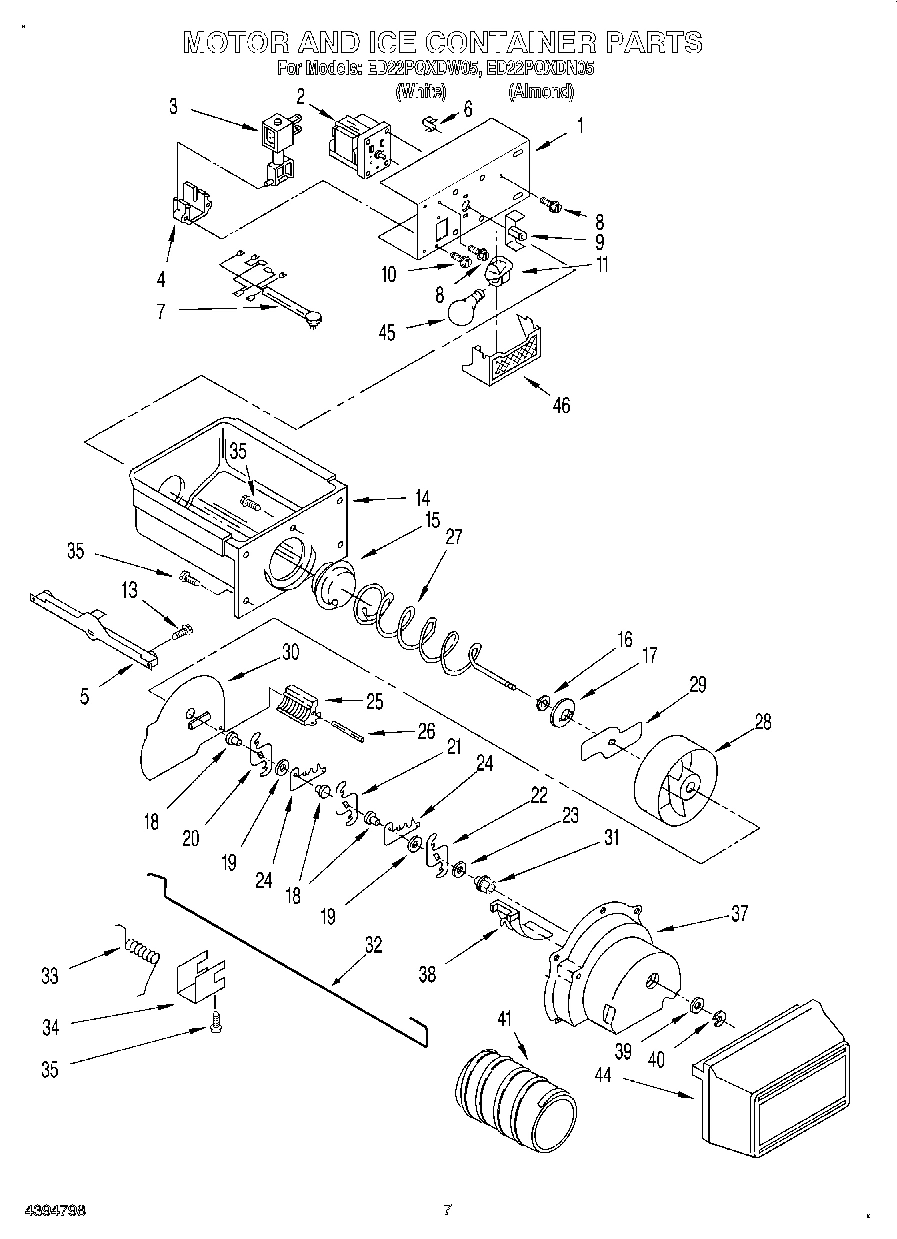

06 - MOTOR AND ICE CONTAINER

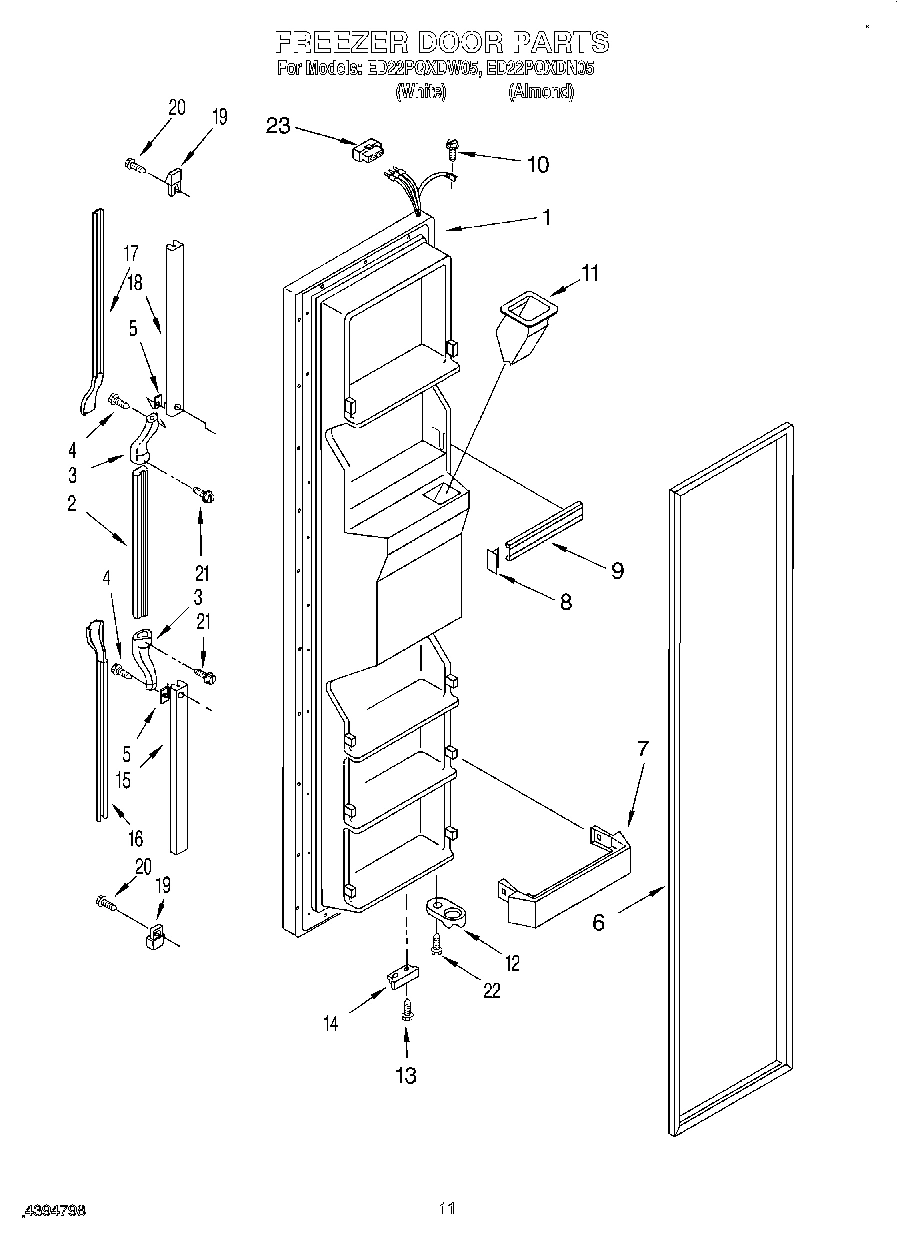

08 - FREEZER DOOR
Common parts from model Whirlpool ED22PQXDW05 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2194920 WPL LIT2194920 Contact Us For Availability
WPL LIT2198064 WPL LIT2198064 Contact Us For Availability
WPL LIT2198368 WPL LIT2198368 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26752A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26753A3 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793N Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176648 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195901 Contact Us For Availability
10
Freezer Basket WPL 2181762 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 2194770 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
16
Insert, Handle (White) WPL 2194773W Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
17
Insert, Handle (White) WPL 2194774W Contact Us For Availability
18
Retainer, Insert WPL 2194771 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
KI WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
