Model Whirlpool ED22MMXRWR3 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER LINER

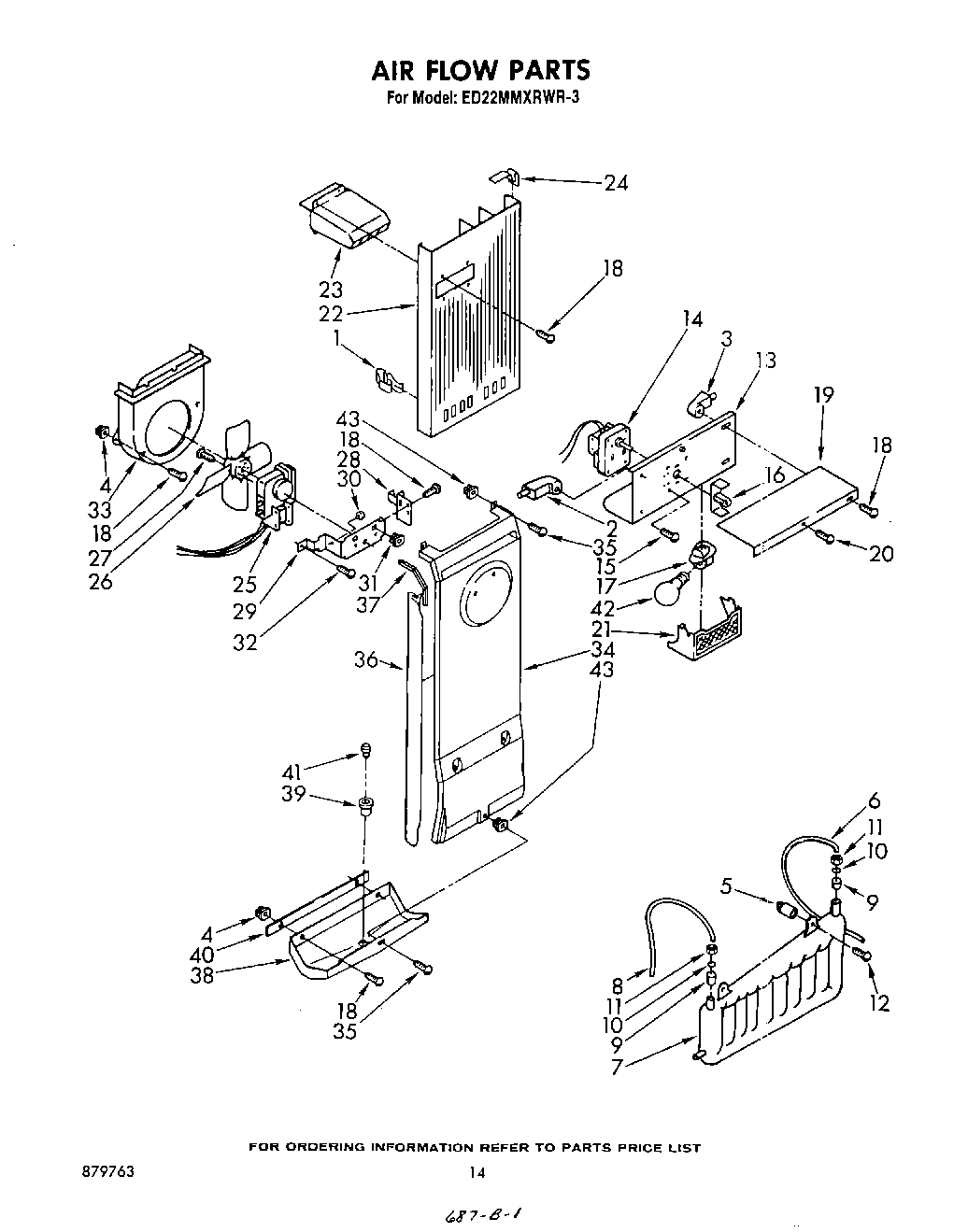

08 - AIRFLOW

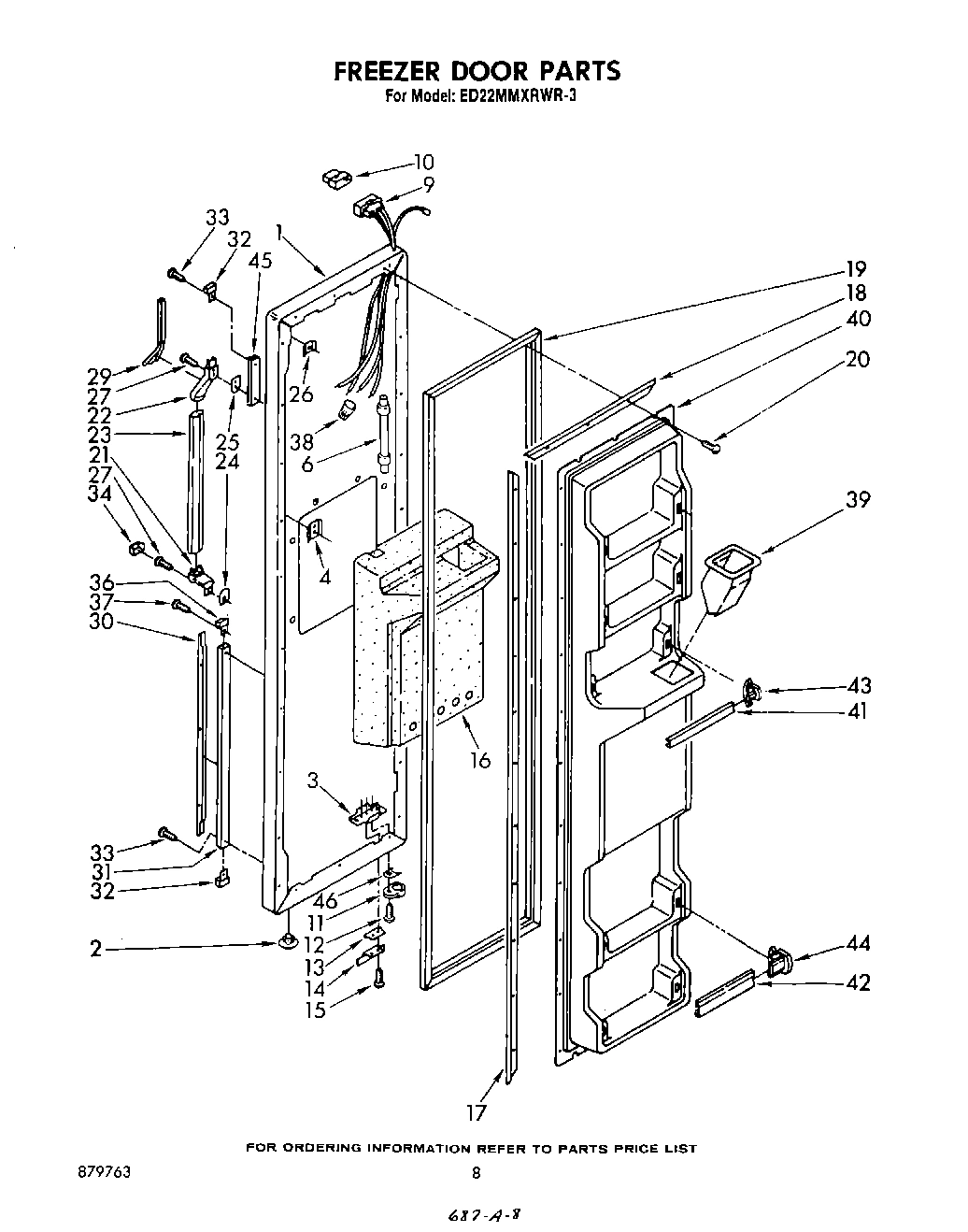

05 - FREEZER DOOR

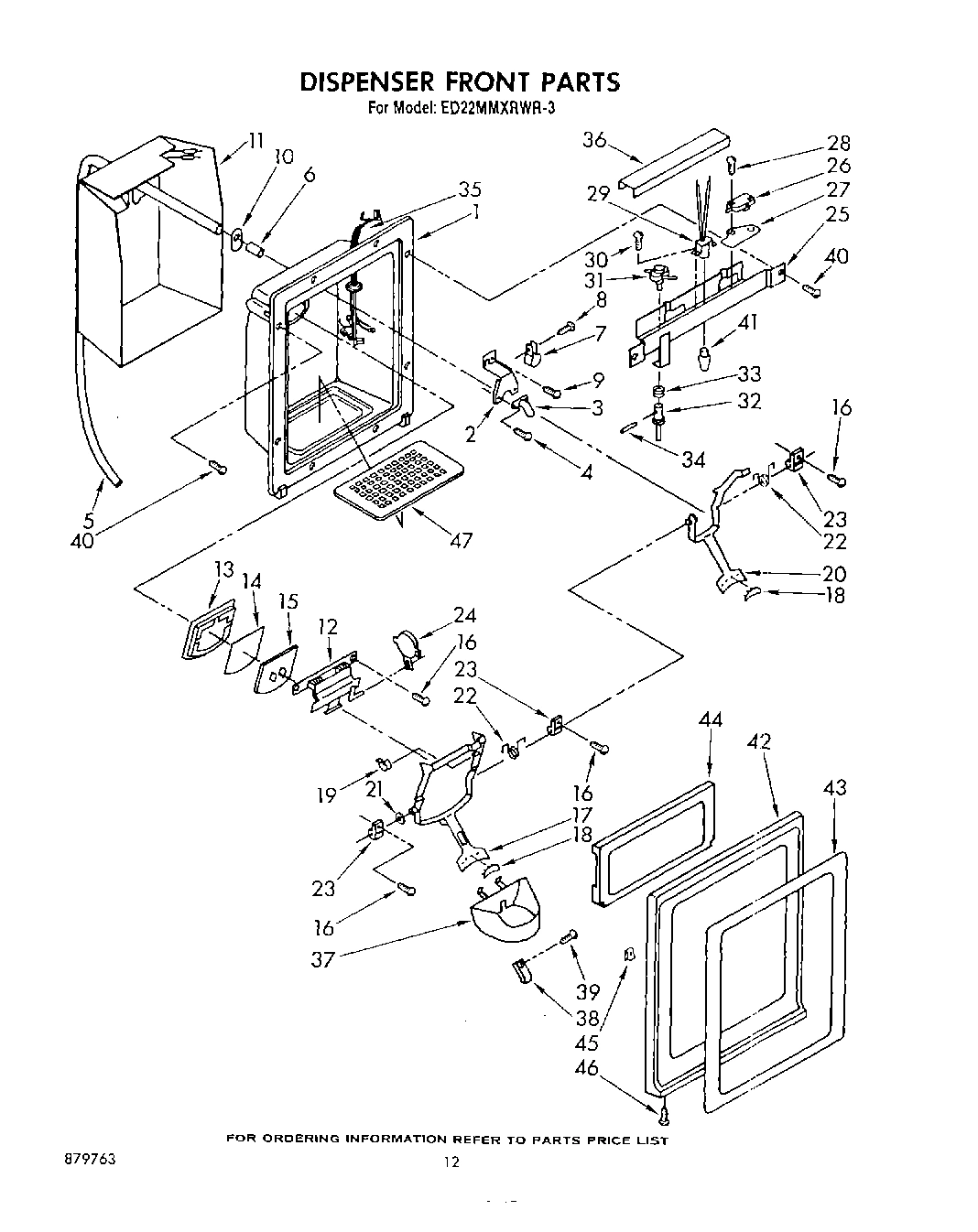

07 - DISPENSER FRONT

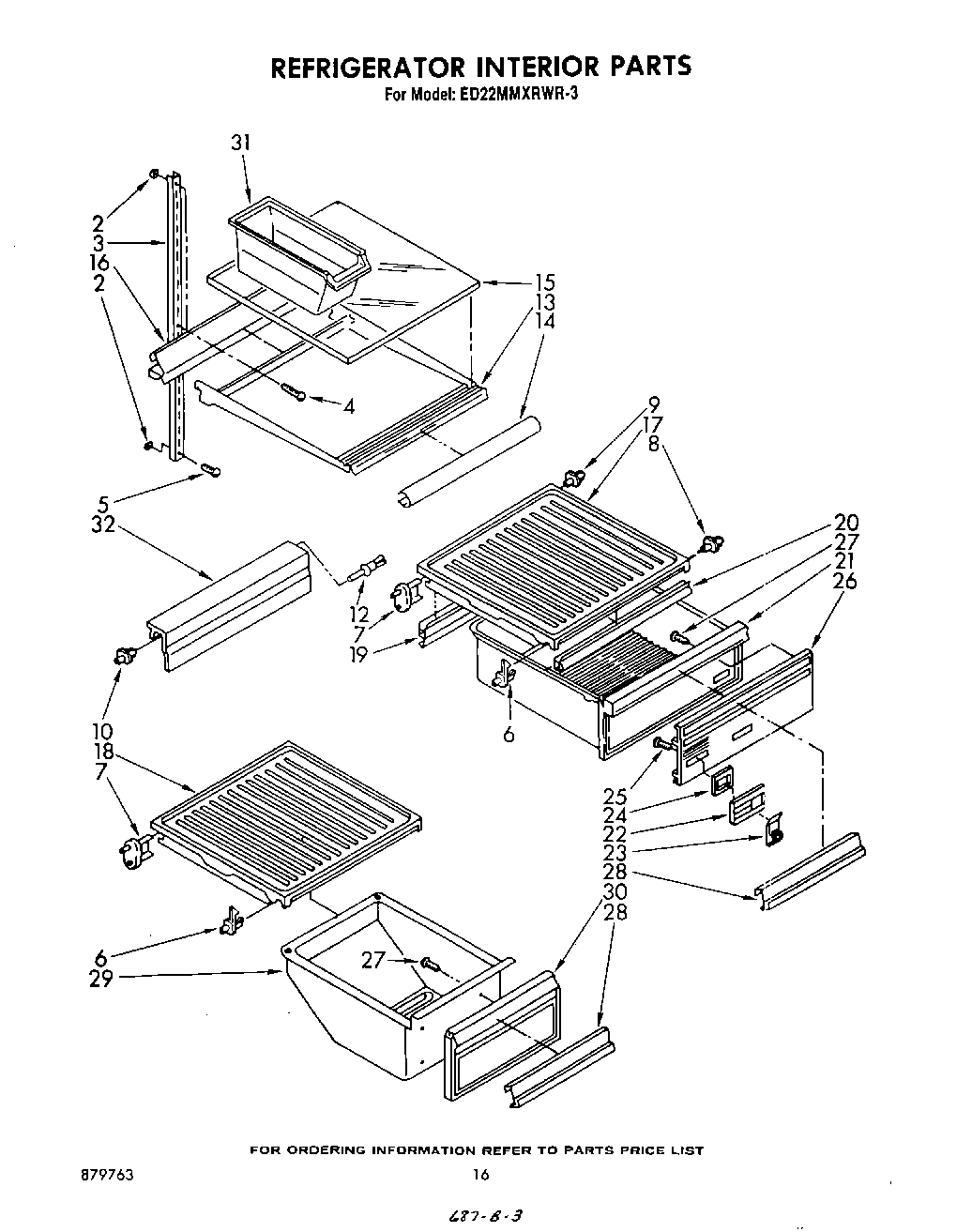

09 - REFRIGERATOR INTERIOR , LIT/OPTIONAL

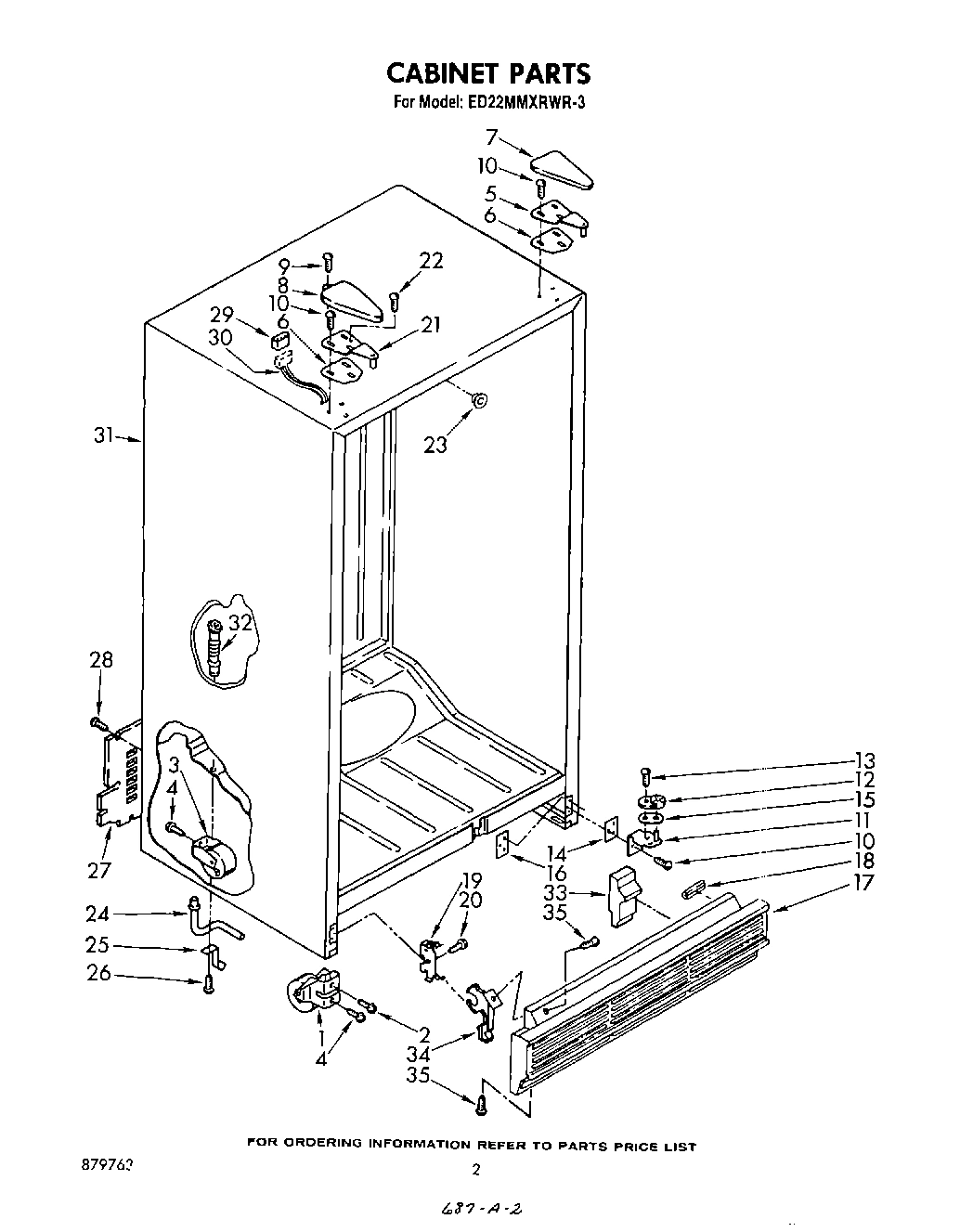

02 - CABINET

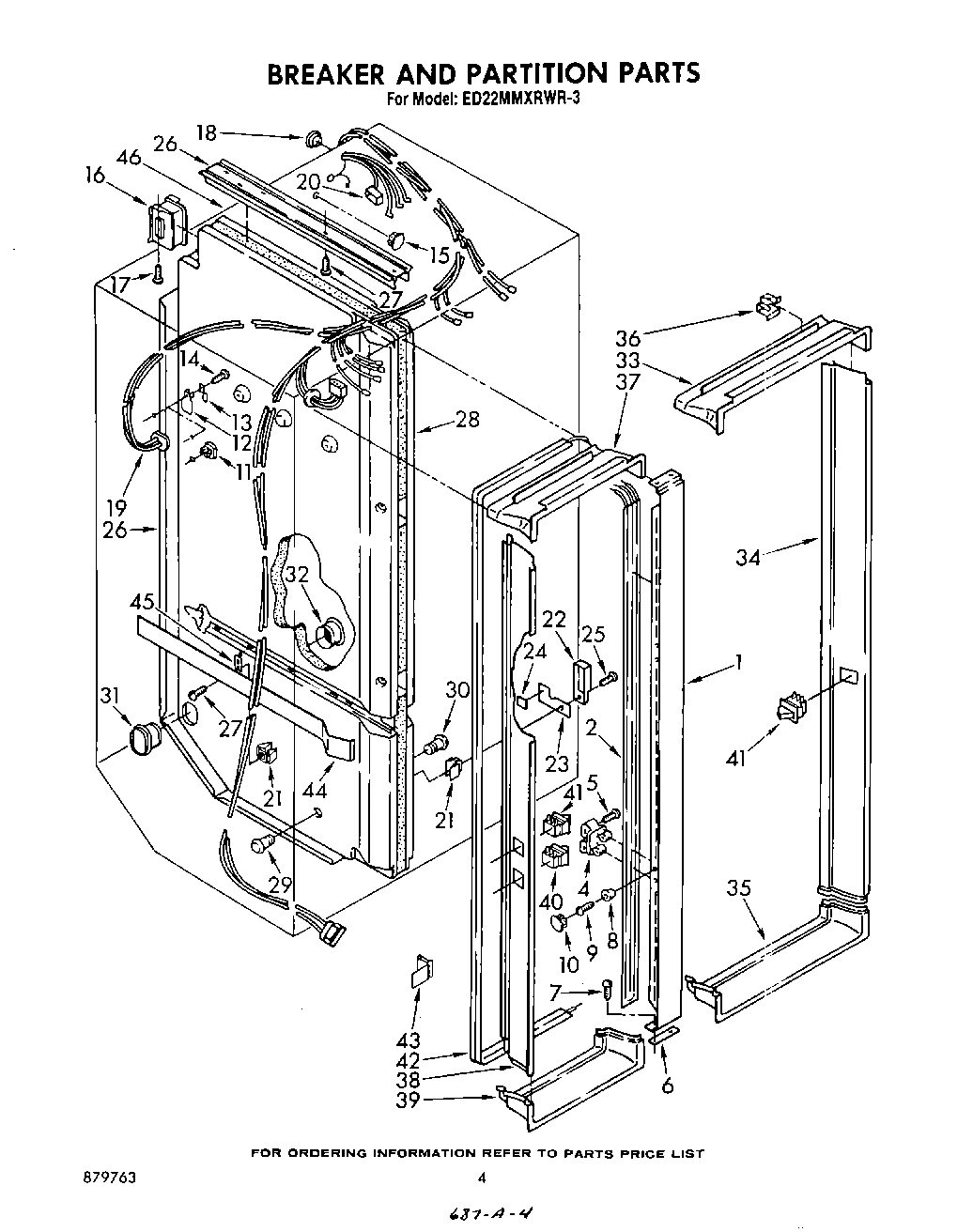

03 - BREAKER AND PARTITION

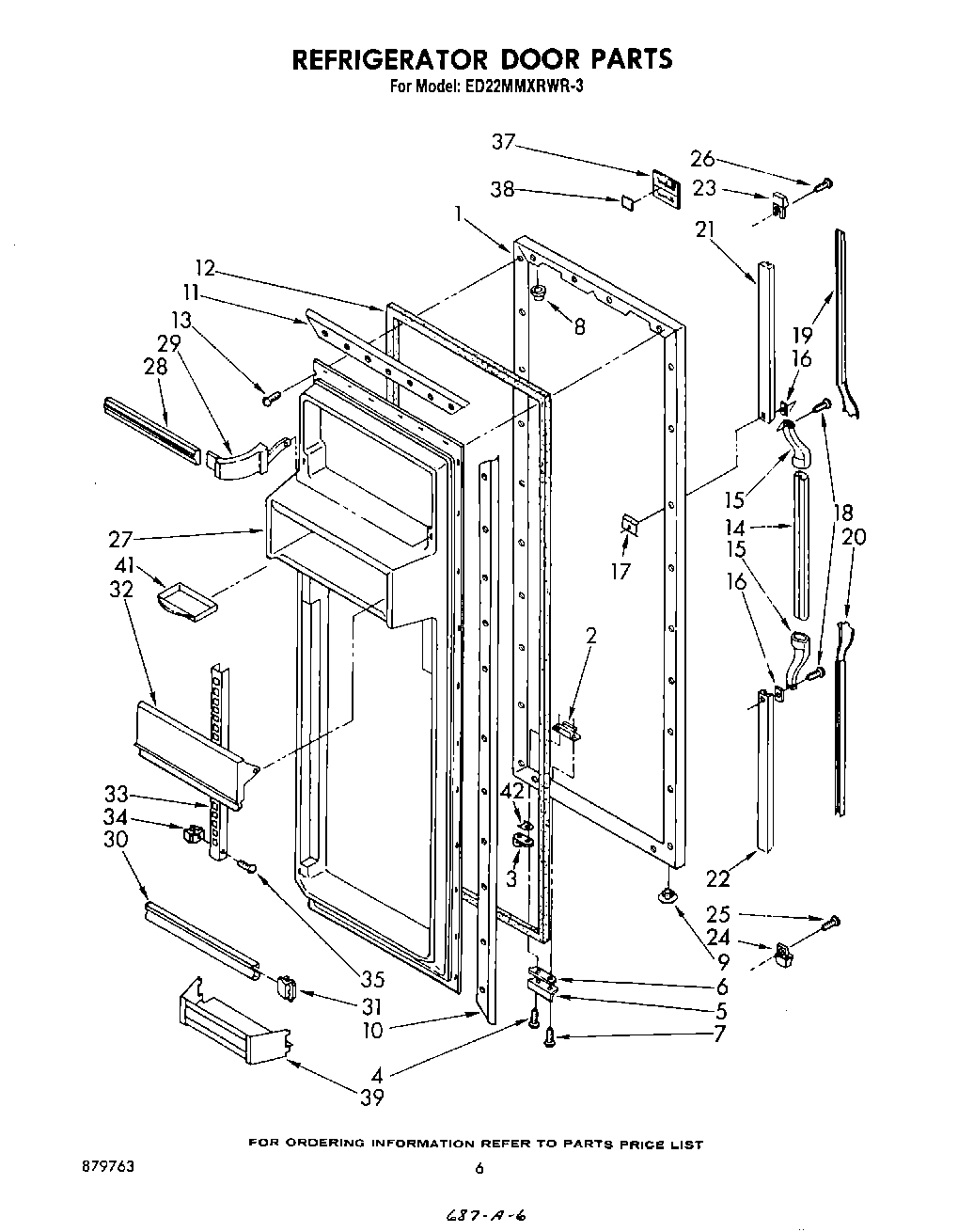

04 - REFRIGERATOR DOOR

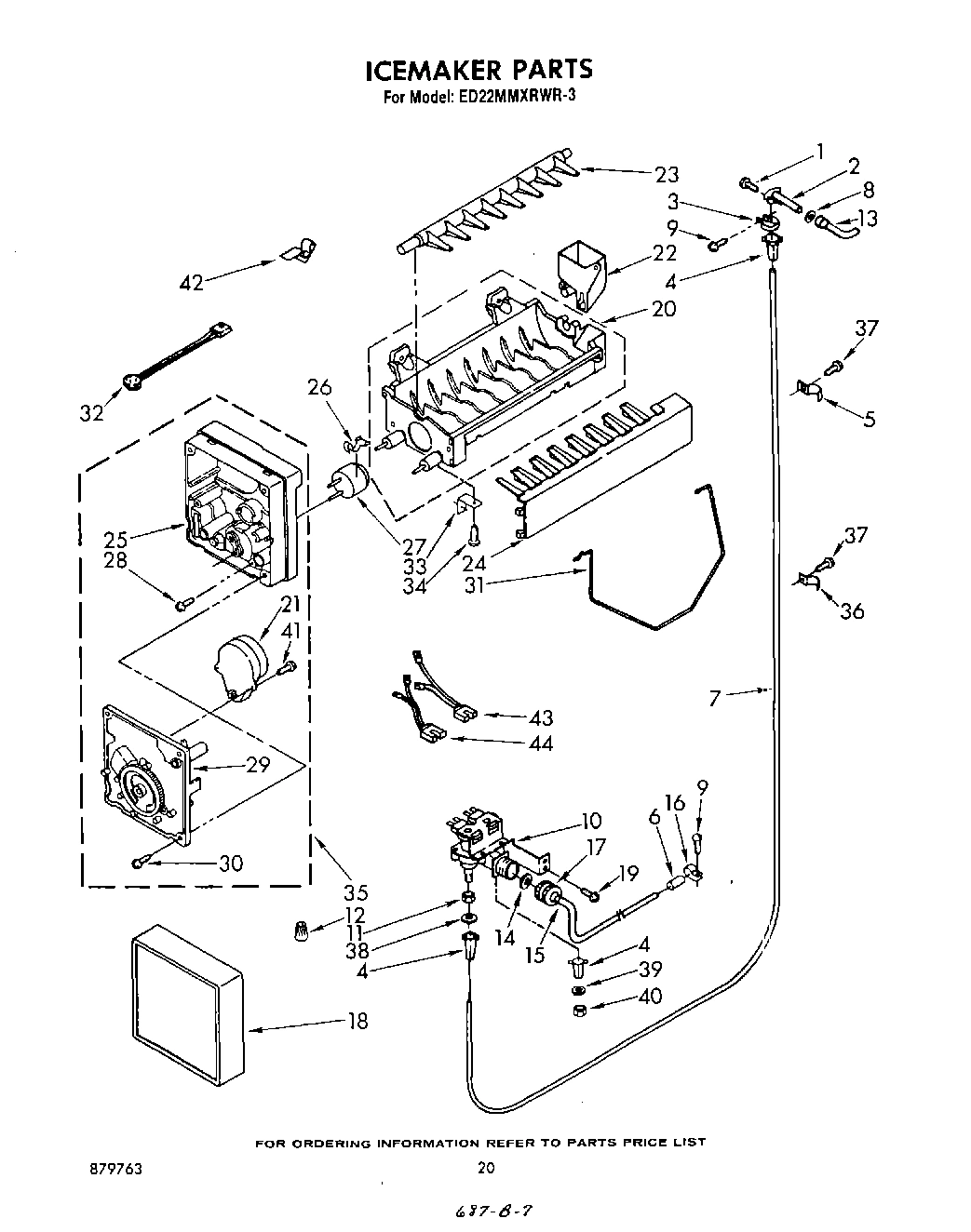

11 - ICE MAKER

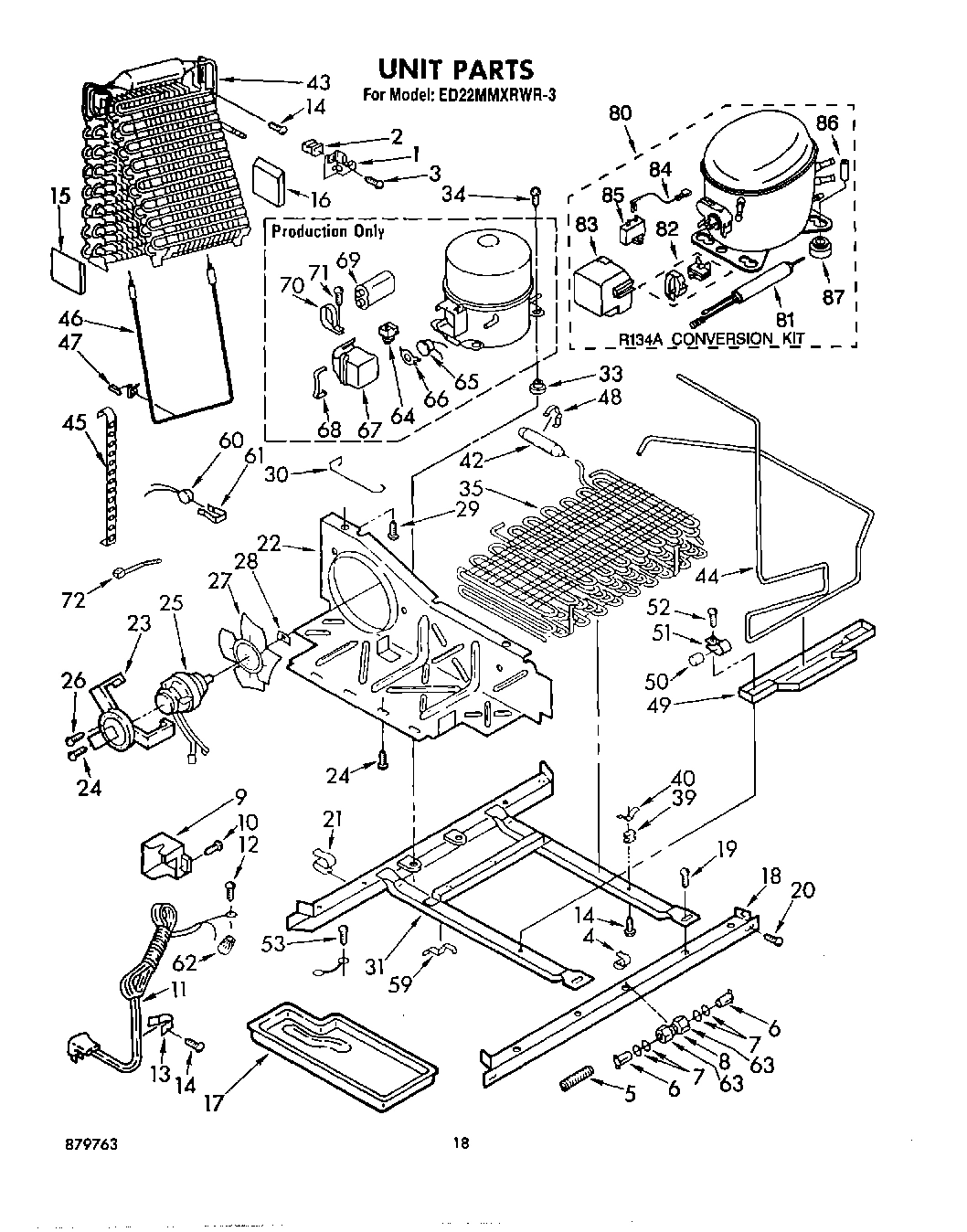

10 - UNIT

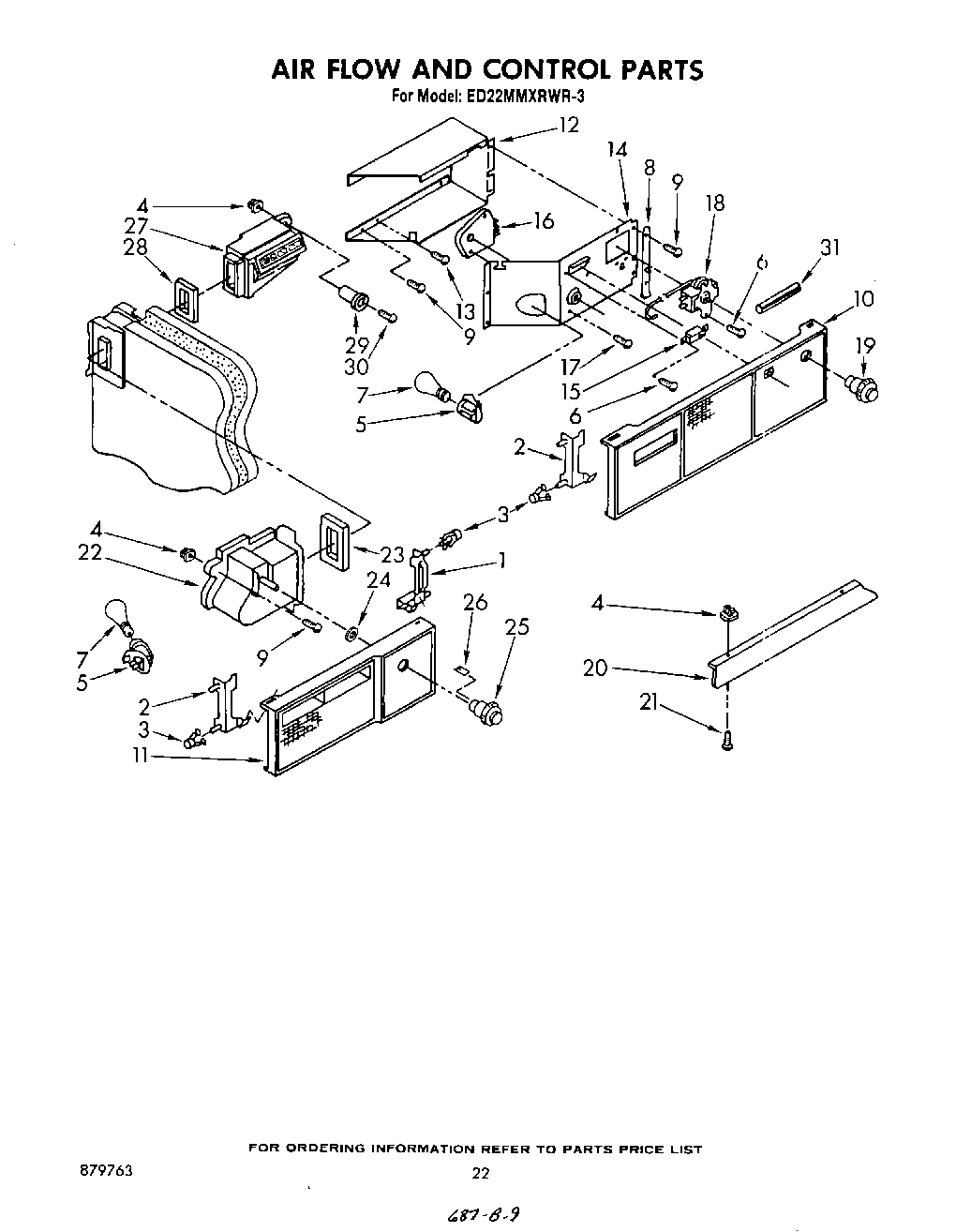

12 - AIRFLOW AND CONTROL
Common parts from model Whirlpool ED22MMXRWR3 SIDE BY SIDE REFRIGERATOR
WPL LIT1108821 WPL LIT1108821 Contact Us For Availability
WPL LIT1109120 WPL LIT1109120 Contact Us For Availability
WPL LIT1115423 WPL LIT1115423 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879763 WPL LIT879763 Contact Us For Availability
1
Door, Freezer (Toast) WPL 1101381 Contact Us For Availability
1
Door, Freezer (Platinum) WPL 1101382 Contact Us For Availability
1
Door, Freezer (White) WPL 945025 Contact Us For Availability
1
Door, Freezer (Golden Harvest) WPL 945027 Contact Us For Availability
1
Door, Freezer (Almond) WPL 945029 Contact Us For Availability
1
Housing, Dispenser WPL 938565 Contact Us For Availability
1
Roller, Front (2) WPL 981127 Contact Us For Availability
1
Center Rail, Mullion (Toast) WPL 1101361 Contact Us For Availability
1
Center Rail, Mullion (Platinum) WPL 1101362 Contact Us For Availability
1
Center Rail Mullion (White) WPL 985974 Contact Us For Availability
1
Center Rail Mullion (Golden Harvest) WPL 989921 Contact Us For Availability
1
Center Rail Mullion (Almond) WPL 989923 Contact Us For Availability
1
Refrigerator, Door Panel (Toast) WPL 1100383 Contact Us For Availability
1
Refrigerator, Door Panel (Platinum) WPL 1100384 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 943197 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 943199 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 943201 Contact Us For Availability
1
Support, Evaporator WPL 842436 Contact Us For Availability
1
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
2
Heater, Mullion WPL 936199 Contact Us For Availability
2
Screw, Grommet WPL 944454 Contact Us For Availability
2
Support, Light Lens (L.S.) (2) WPL 842356 Contact Us For Availability
3
Shelfladder (2) WPL 934264 Contact Us For Availability
3
Clip, Tubular (6) WPL 843945 Contact Us For Availability
4
Stabilizer, Mullion (2) WPL 849367 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
4
Clip, Water Tube (2) WPL 934011 Contact Us For Availability
5
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Hinge, Top WPL 842039 Contact Us For Availability
5
Spring, Tube Forming WPL 983659 Contact Us For Availability
6
Tube, Door Wiring WPL 991415 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Shelf, Stud WPL 984779 Contact Us For Availability
6
Shim, Top Hinge WPL 836192 Contact Us For Availability
6
Spacer WPL 983592 Contact Us For Availability
7
Stud, Shelf WPL 937521 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
7
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
7
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
7
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
8
Shelf, Stud WPL 208500 Contact Us For Availability
8
Hinge Cover (Toast) WPL 1100381 Contact Us For Availability
8
Hinge Cover (Platinum) WPL 1100382 Contact Us For Availability
8
Hinge Cover (Golden Harvest) WPL 989885 Contact Us For Availability
8
Spacer, Screw (4) WPL 849368 Contact Us For Availability
8
Cap, Hinge WPL 509929 Contact Us For Availability
8
Support, Light Lens (R.S.) WPL 984552 Contact Us For Availability
9
Stud WPL 936591 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Plug, Crossover (Includes Illus. 10) WPL 851373 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Screw, 8 x 7/8 (4) WPL 488318 Contact Us For Availability
9
Box, Junction WPL 850482 Contact Us For Availability
10
Connector, Plug WPL 851649 Contact Us For Availability
10
Retainer, Side WPL 836120 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Stud Water Reservoir WPL 937513 Contact Us For Availability
10
Screw, 12-14 x 3 (Repair) WPL 488949 Contact Us For Availability
10
Hole Cover (4) WPL 848414 Contact Us For Availability
10
Light Lens WPL 943218 Contact Us For Availability
11
Heater, Dispenser WPL 938328 Contact Us For Availability
11
Hinge Bottom (R.H) WPL 986763 Contact Us For Availability
11
Hinge Bottom (L.H) WPL 986764 Contact Us For Availability
11
Retainer, Top & Bottom WPL 836121 Contact Us For Availability
11
Cord, Service WPL 850626 Contact Us For Availability
11
Light Lens, Freezer WPL 985456 Contact Us For Availability
12
Ice\ Door\ Mechanism Assembly WPL 938669 Contact Us For Availability
12
Stud WPL 521878 Contact Us For Availability
12
Grommet, Ice Maker (2) WPL 538532 Contact Us For Availability
12
Box, Control WPL 984550 Contact Us For Availability
13
Gasket, Ice Door WPL 983691 Contact Us For Availability
13
Shelf, Cantilever WPL 936787 Contact Us For Availability
13
Screw (Repair) WPL 488913 Contact Us For Availability
13
Clip, Support (2) WPL 538533 Contact Us For Availability
13
Tube, Inlet Valve WPL 983656 Contact Us For Availability
13
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
14
Shield, Ice Door WPL 987121 Contact Us For Availability
14
Shelf Trim, Cantilever WPL 849021 Contact Us For Availability
14
Shim, Bottom Hinge WPL 836196 Contact Us For Availability
14
Handle, Center WPL 1108792 Contact Us For Availability
14
Handle, Center (For Platinum Model Only) WPL 1110287 Contact Us For Availability
14
Control, Front WPL 934045 Contact Us For Availability
15
Door, Ice WPL 983690 Contact Us For Availability
15
Shim, Door Closer (0.30) WPL 987179 Contact Us For Availability
15
Screw (Repair) WPL 488930 Contact Us For Availability
15
Center End Cap (2) WPL 935103 Contact Us For Availability
15
Glass, Cantilever Shelf WPL 1108782 Contact Us For Availability
15
Hole Plug (2) WPL 519890 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Baffle, Evaporator WPL 652985 Contact Us For Availability
16
Insulation, Dispenser WPL 938649 Contact Us For Availability
16
Shim, Handle Center (2) WPL 935075 Contact Us For Availability
16
Reflector, Cantilever WPL 849028 Contact Us For Availability
16
Plate, Tap WPL 836162 Contact Us For Availability
16
Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability
16
Air Baffle WPL 849335 Contact Us For Availability
16
Defrost, Timer (10 Hour) WPL 943435 Contact Us For Availability
17
Lever, Ice Dispenser WPL 987075 Contact Us For Availability
17
Screw Anchor (2) WPL 941242 Contact Us For Availability
17
Pan Slide & Cover (Crisper) WPL 1108778 Contact Us For Availability
17
Exterior Grille (Toast) WPL 1101379 Contact Us For Availability
17
Exterior Grille (Platinum) WPL 1101380 Contact Us For Availability
17
Exterior Grille (White) WPL 944239 Contact Us For Availability
17
Exterior Grille (Golden Harvest) WPL 944241 Contact Us For Availability
17
Exterior Grille (Almond) WPL 944243 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Tray, Evaporator WPL 849331 Contact Us For Availability
18
Retainer, Top & Bottom (2) WPL 836122 Contact Us For Availability
18
Pad, Lever (2) WPL 983693 Contact Us For Availability
18
Pan Slide & Cover WPL 1101202 Contact Us For Availability
18
Bumper, Grille (2) WPL 546131 Contact Us For Availability
18
Grommet, Wiring WPL 851020 Contact Us For Availability
18
Cover WPL 627000 Contact Us For Availability
18
Front, Rail WPL 548662 Contact Us For Availability
19
Insert, Handle (Top) (White) WPL 1108793 Contact Us For Availability
19
Insert, Handle (Top) (Golden Harvest) WPL 1108794 Contact Us For Availability
19
Insert, Handle (Top) (Almond) WPL 1108795 Contact Us For Availability
19
Insert, Handle (Top) (Toast) WPL 1108796 Contact Us For Availability
19
Insert, Handle (Top) (Platinum) WPL 1108797 Contact Us For Availability
19
Bearing, Lever Clip (2) WPL 987917 Contact Us For Availability
19
Crisper Gasket Rear WPL 982588 Contact Us For Availability
19
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
19
Support, Grille (2) WPL 989068 Contact Us For Availability
19
Harness, Cabinet Wiring (Ice Maker) WPL 481658 Contact Us For Availability
19
Knob, Temperature Control WPL 836482 Contact Us For Availability
20
Crisper Gasket Front WPL 982587 Contact Us For Availability
20
Harness, Cabinet Wiring (Defrost Timer) WPL 481782 Contact Us For Availability
20
Insert, Handle (Bottom) (White) WPL 1108798 Contact Us For Availability
20
Insert, Handle (Bottom) (Golden Harvest) WPL 1108799 Contact Us For Availability
20
Insert, Handle (Bottom) (Almond) WPL 1108800 Contact Us For Availability
20
Insert, Handle (Bottom) (Toast) WPL 1108801 Contact Us For Availability
20
Insert, Handle (Bottom) (Platinum) WPL 1108802 Contact Us For Availability
20
Screw (Repair) WPL 489035 Contact Us For Availability
20
Baffle, Liner WPL 836216 Contact Us For Availability
21
End, Cap Handle WPL 935105 Contact Us For Availability
21
Retainer Insert WPL 941954 Contact Us For Availability
21
Washer WPL 488307 Contact Us For Availability
21
Pan Crisper WPL 943112 Contact Us For Availability
21
Hinge Assembly Top, L.S. WPL 983608 Contact Us For Availability
21
Clip, Wire (2) WPL 548745 Contact Us For Availability
22
Spring, Lever (2) WPL 983696 Contact Us For Availability
22
Retainer, Insert WPL 942081 Contact Us For Availability
22
Housing, Humidity Control WPL 942234 Contact Us For Availability
22
Escutcheon, Cold Control WPL 984101 Contact Us For Availability
22
Air Baffle WPL 850391 Contact Us For Availability
22
Air Scoop (Includes Illus. 23) WPL 841269 Contact Us For Availability
23
Handle, Center WPL 1108814 Contact Us For Availability
23
Handle, Center (For Platinum Model Only) WPL 1111554 Contact Us For Availability
23
End Cap WPL 941259 Contact Us For Availability
23
Bearing, Lever (3) WPL 983697 Contact Us For Availability
23
Slide, Humidity Control WPL 942235 Contact Us For Availability
23
Grommet WPL 839989 Contact Us For Availability
23
Slide, Cold Control WPL 984102 Contact Us For Availability
23
Bracket, Motor WPL 548695 Contact Us For Availability
23
Gasket Scoop WPL 844871 Contact Us For Availability
24
Shim, Handle End WPL 935076 Contact Us For Availability
24
End Cap Insert WPL 935106 Contact Us For Availability
24
Seal, Humidity Control WPL 942236 Contact Us For Availability
24
Extension Fitting WPL 841646 Contact Us For Availability
24
Pad, Foam WPL 992358 Contact Us For Availability
24
Screw, 8 x 3/8 (7) WPL 488624 Contact Us For Availability
24
Retainer, Damper WPL 938439 Contact Us For Availability
25
Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability
25
Bracket, Control WPL 983983 Contact Us For Availability
25
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
25
Clip, Drain WPL 841648 Contact Us For Availability
25
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
25
Control Knob WPL 837445 Contact Us For Availability
26
Blade, Fan WPL 992920 Contact Us For Availability
26
Screw, 10-32 x 3/8 WPL 489075 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Front Cover, Crisper WPL 1108780 Contact Us For Availability
26
Track Divider (Back & Bottom) WPL 946146 Contact Us For Availability
26
Track, Divider (Top) WPL 988455 Contact Us For Availability
26
Knob, Retainer WPL 837444 Contact Us For Availability
27
Switch, Insulator WPL 984683 Contact Us For Availability
27
Screw (Repair) WPL 488132 Contact Us For Availability
27
Cover, Unit Compartment WPL 850457 Contact Us For Availability
27
Interior Door, Panel WPL 988671 Contact Us For Availability
27
Fan, Blade WPL 989524 Contact Us For Availability
27
Air Diffuser Assembly WPL 946145 Contact Us For Availability
28
Screw, 4-40 x 3/4 WPL 488362 Contact Us For Availability
28
Overlay, Front Cover WPL 984750 Contact Us For Availability
28
Divider Mullion Assembly WPL 940968 Contact Us For Availability
28
Trim, Door Shelf WPL 1108786 Contact Us For Availability
28
Screw, 10-32 x 43/64 WPL 489163 Contact Us For Availability
28
Gasket Diffuser WPL 842394 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Pan (Meat) WPL 840037 Contact Us For Availability
29
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
29
Receptacle, Head WPL 851648 Contact Us For Availability
29
Retainer, Hole WPL 843888 Contact Us For Availability
30
Insert, Handle (Extension) (White) WPL 1108815 Contact Us For Availability
30
Insert, Handle (Extension) (Golden Harvest) WPL 1108816 Contact Us For Availability
30
Insert, Handle (Extension) (Almond) WPL 1108817 Contact Us For Availability
30
Insert, Handle (Extension) (Toast) WPL 1108818 Contact Us For Availability
30
Insert, Handle (Extension) (Platinum) WPL 1108819 Contact Us For Availability
30
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
30
Front Cover, Meat WPL 1108777 Contact Us For Availability
30
Harness, Wiring (6`` Leads) (Includes Illus. WPL 482553 Contact Us For Availability
30
Insert, Hole WPL 843887 Contact Us For Availability
30
Trim Door Shelf WPL 1108787 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Cabinet (Not A Serviceable Part) WPL ARI145518A Contact Us For Availability
31
Insert, Hole WPL 982921 Contact Us For Availability
31
Retainer Door Trim WPL 988709 Contact Us For Availability
31
Frame WPL 945463 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
WPL 799344 WPL 799344 Contact Us For Availability
32
Plunger, Extension WPL 983985 Contact Us For Availability
32
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
32
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
32
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
32
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
32
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
32
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
32
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
WPL 542639 WPL 542639 Contact Us For Availability
32
WPL 72112 WPL 72112 Contact Us For Availability
32
WPL 799340 WPL 799340 Contact Us For Availability
32
WPL 799832 WPL 799832 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 938572 WPL 938572 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Drain Fitting WPL 836068 Contact Us For Availability
32
Retainer, Hole WPL 982920 Contact Us For Availability
32
Co WPL 1108788 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
Insert, Baffle WPL 836372 Contact Us For Availability
33
Breaker Trim, Top WPL 936908 Contact Us For Availability
33
WPL 983804 WPL 983804 Contact Us For Availability
34
Cover, End Cap WPL 987873 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
WPL 537095 WPL 537095 Contact Us For Availability
34
Breaker, Trim R.S. WPL 935114 Contact Us For Availability
35
Wiring, Door WPL 851384 Contact Us For Availability
35
WPL 489085 WPL 489085 Contact Us For Availability
35
Breaker, Trim (Bottom) WPL 848477 Contact Us For Availability
35
Condenser & Precooler Assembly WPL 943480 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Retainer, Breaker (9) WPL 836090 Contact Us For Availability
36
Tube, Clamp WPL 836472 Contact Us For Availability
37
Guide, Ice WPL 985866 Contact Us For Availability
37
Breaker Trim, Top WPL 983253 Contact Us For Availability
37
WPL 945116 WPL 945116 Contact Us For Availability
38
Glass Stop WPL 986088 Contact Us For Availability
38
Breaker Trim (L.S.) WPL 1107798 Contact Us For Availability
38
WPL 991259 WPL 991259 Contact Us For Availability
39
WPL 987188 WPL 987188 Contact Us For Availability
39
Screw, 4-34 x 3/8 WPL 488892 Contact Us For Availability
39
Breaker Trim, Bottom WPL 848481 Contact Us For Availability
39
WPL 1108789 WPL 1108789 Contact Us For Availability
39
``O`` Ring WPL 488819 Contact Us For Availability
39
Grommet Mounting WPL 943447 Contact Us For Availability
40
Gasket, Drain Pan WPL 845564 Contact Us For Availability
40
WPL 1101396 WPL 1101396 Contact Us For Availability
40
Nut WPL 488795 Contact Us For Availability
40
Clamp, Mounting WPL 548738 Contact Us For Availability
41
Cap, Drain WPL 842259 Contact Us For Availability
41
WPL 939773 WPL 939773 Contact Us For Availability
42
WPL 1108804 WPL 1108804 Contact Us For Availability
42
Front Cover, Housing WPL 983903 Contact Us For Availability
42
Stile Heater WPL 989660 Contact Us For Availability
42
Clip WPL 652604 Contact Us For Availability
43
WPL 839975 WPL 839975 Contact Us For Availability
43
Grommet WPL 981616 Contact Us For Availability
43
Insert, Housing Cover (Toast) WPL 1101389 Contact Us For Availability
43
Insert, Housing Cover (Platinum) WPL 1101390 Contact Us For Availability
43
Insert, Housing Cover (White) WPL 1108810 Contact Us For Availability
43
Insert, Housing Cover (Golden Harvest) WPL 1108811 Contact Us For Availability
43
Insert, Housing Cover (Almond) WPL 945032 Contact Us For Availability
43
Clip, Heater (6) WPL 935663 Contact Us For Availability
43
Water, Valve Harness WPL 548734 Contact Us For Availability
43
Evaporator WPL 1101078 Contact Us For Availability
44
Cover, Housing WPL 1116335 Contact Us For Availability
44
Cover, Heat Exchanger WPL 848482 Contact Us For Availability
44
Dispenser, Valve Harness WPL 850564 Contact Us For Availability
44
Exchanger, Heat WPL 1100809 Contact Us For Availability
45
Speed Nut WPL 488885 Contact Us For Availability
45
Heat Exch WPL 983605 Contact Us For Availability
45
Heat Shield (2) WPL 850568 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
47
Heater, Clamp (4) WPL 549419 Contact Us For Availability
48
Drier, Clamp WPL 548508 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
50
Dampener (2) WPL 510769 Contact Us For Availability
51
Tube Clamp (2) WPL 510716 Contact Us For Availability
59
Clip (2) WPL 548744 Contact Us For Availability
61
Clamp WPL 513584 Contact Us For Availability
62
Wire Connector WPL 227991 Contact Us For Availability
64
Relay WPL 945535 Contact Us For Availability
65
Overload WPL 1101187 Contact Us For Availability
66
Overload Spring WPL 943494 Contact Us For Availability
67
Terminal Cover WPL 943496 Contact Us For Availability
68
Terminal Cover Strap WPL 943497 Contact Us For Availability
69
Running Capacitor WPL 1101183 Contact Us For Availability
70
Clamp, Capacitor WPL 1101184 Contact Us For Availability
72
Strap WPL 851095 Contact Us For Availability
80
Compressor (Includes Items 81, 82, WPL 4388009 Contact Us For Availability
86
WPL 4387559 WPL 4387559 Contact Us For Availability
87
WPL 978029 WPL 978029 Contact Us For Availability
87
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
