Model Whirlpool ED20PKXBN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
02 - REFRIGERATOR LINER

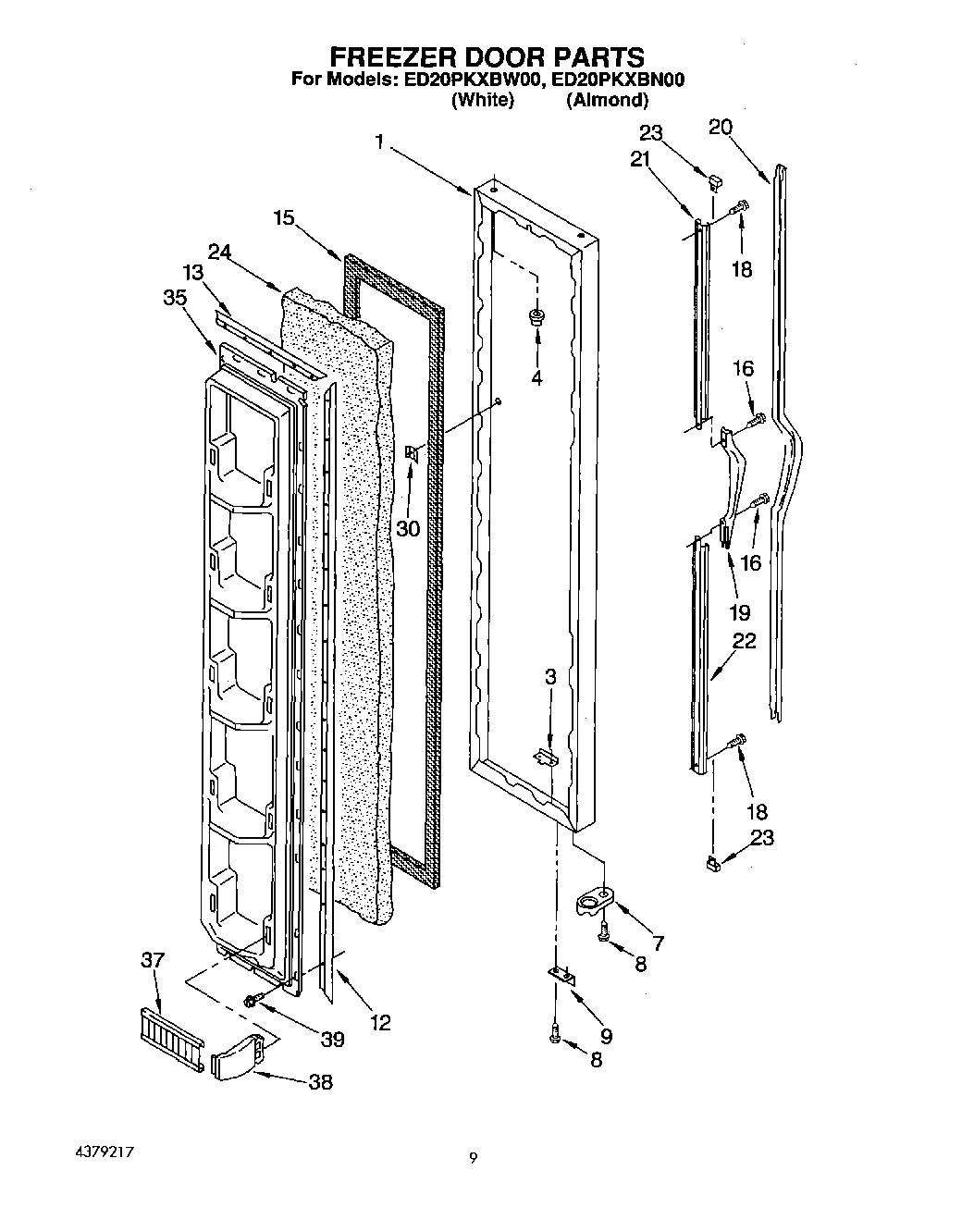

05 - FREEZER DOOR

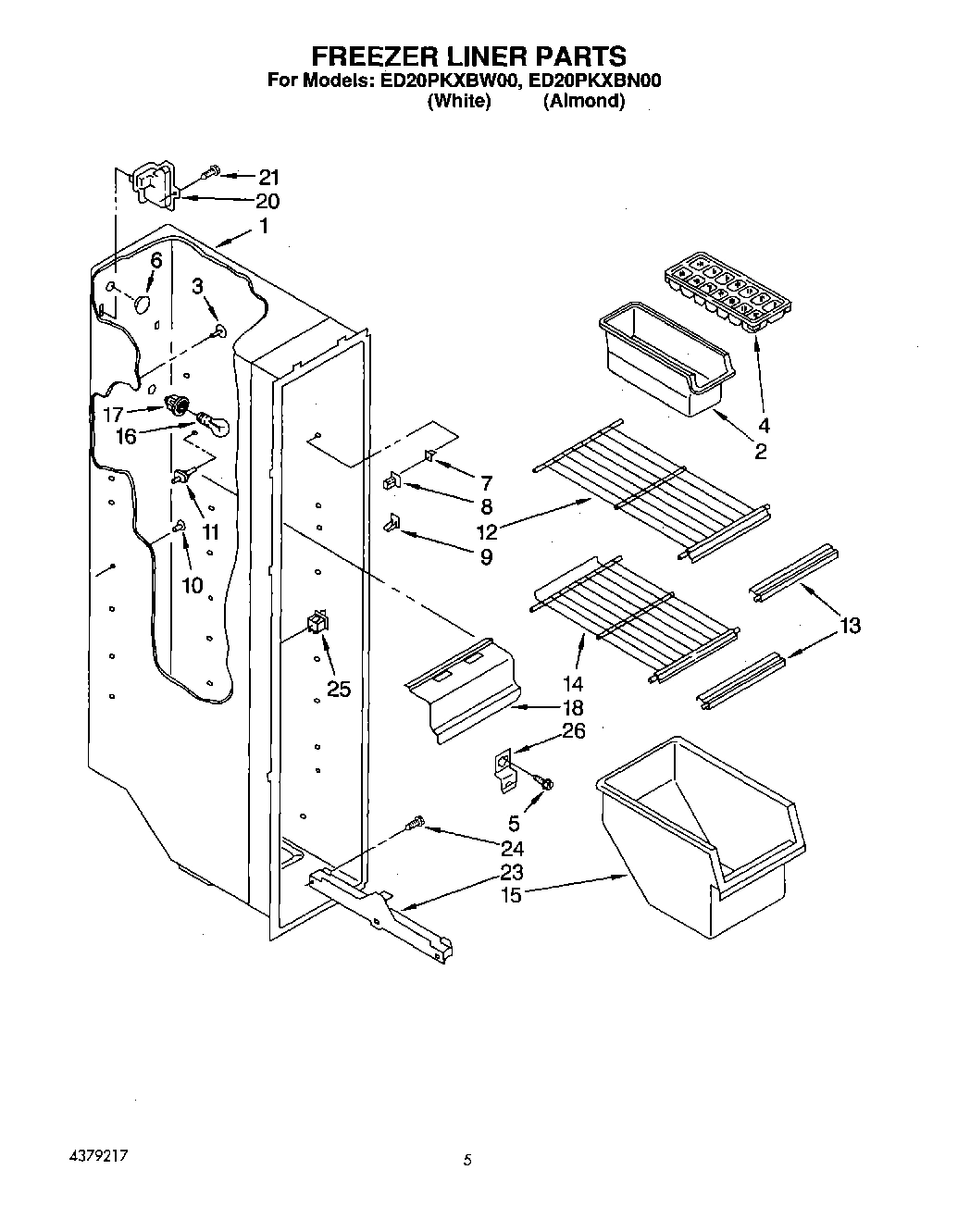

03 - FREEZER LINER

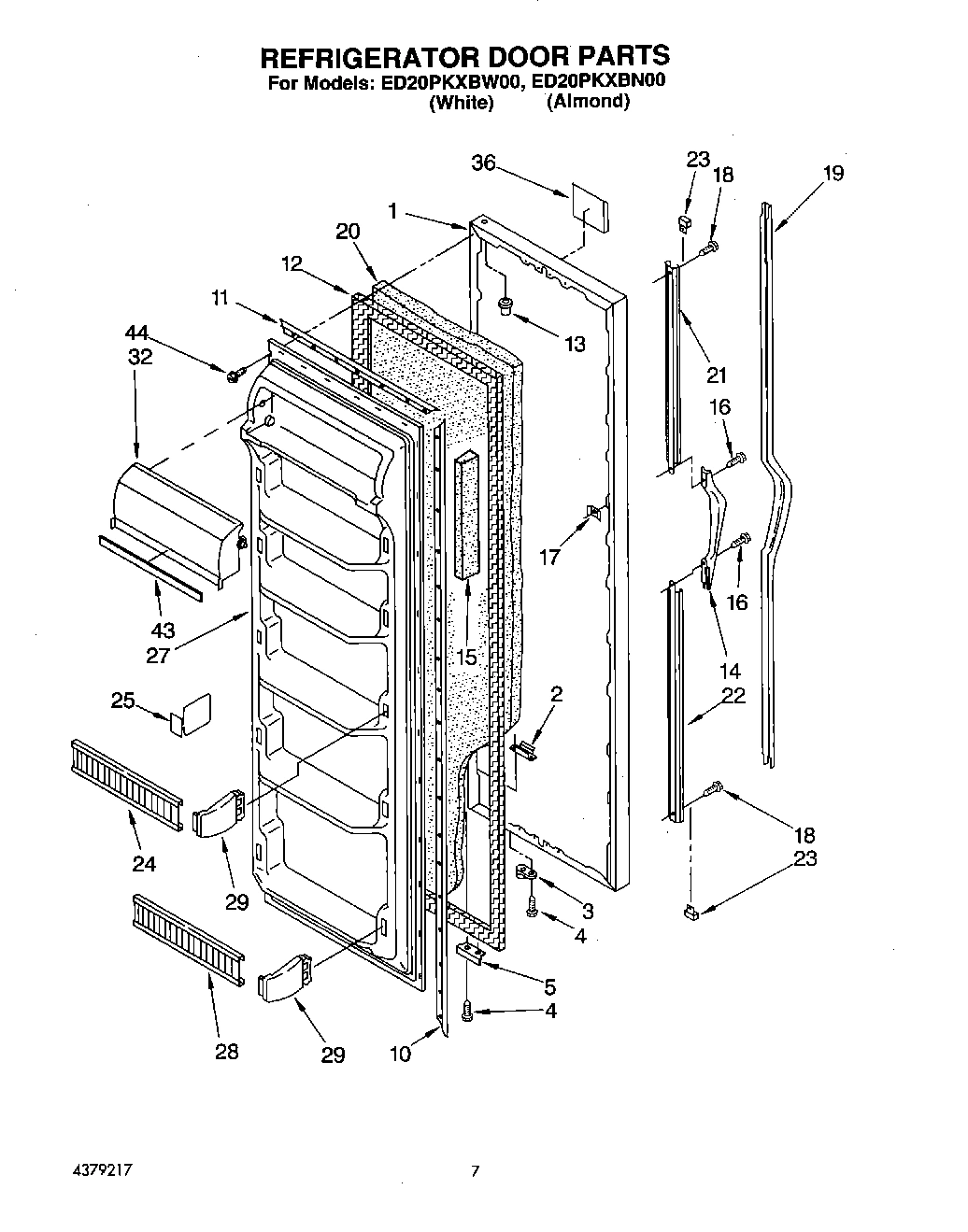

04 - REFRIGERATOR DOOR

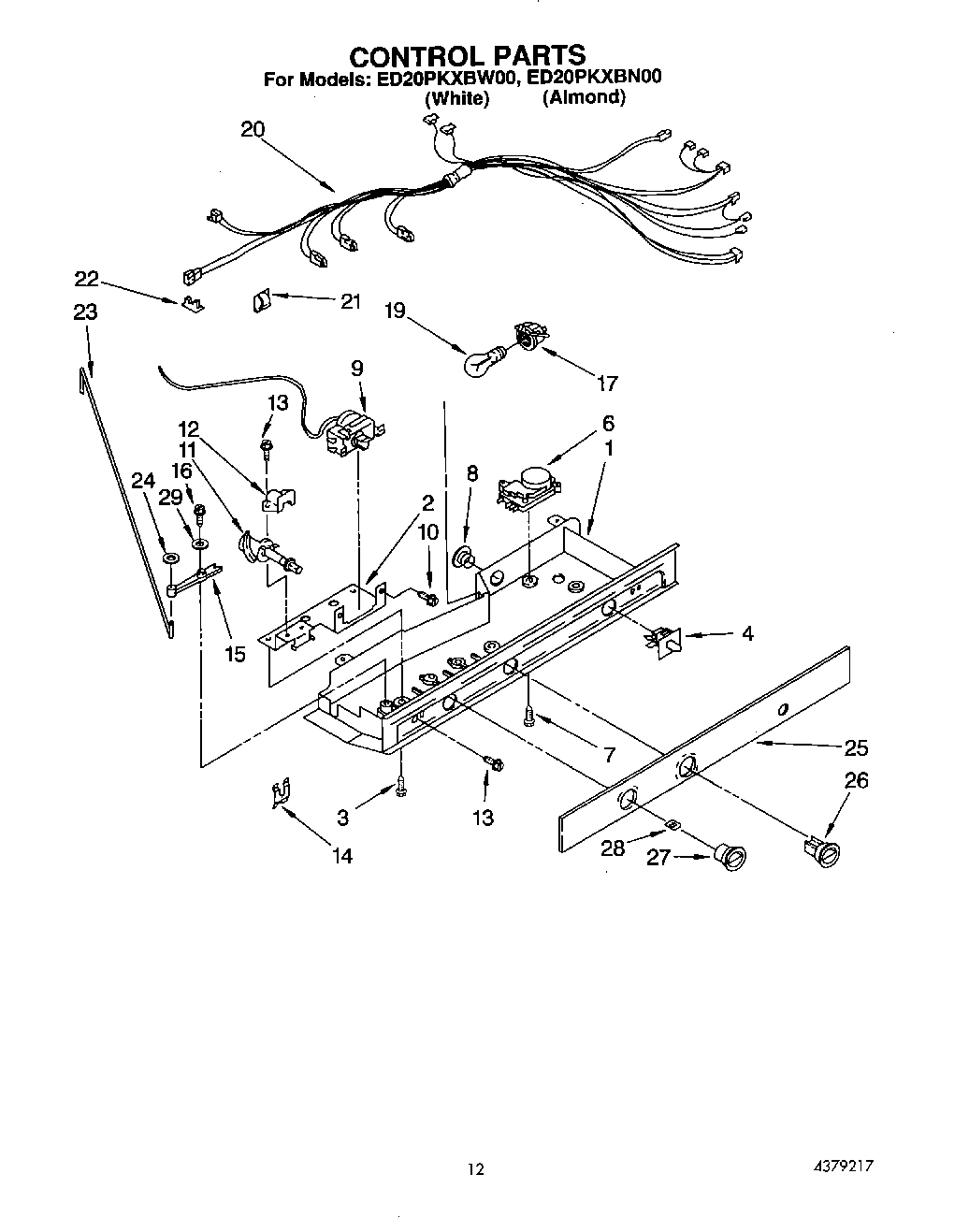

07 - CONTROL

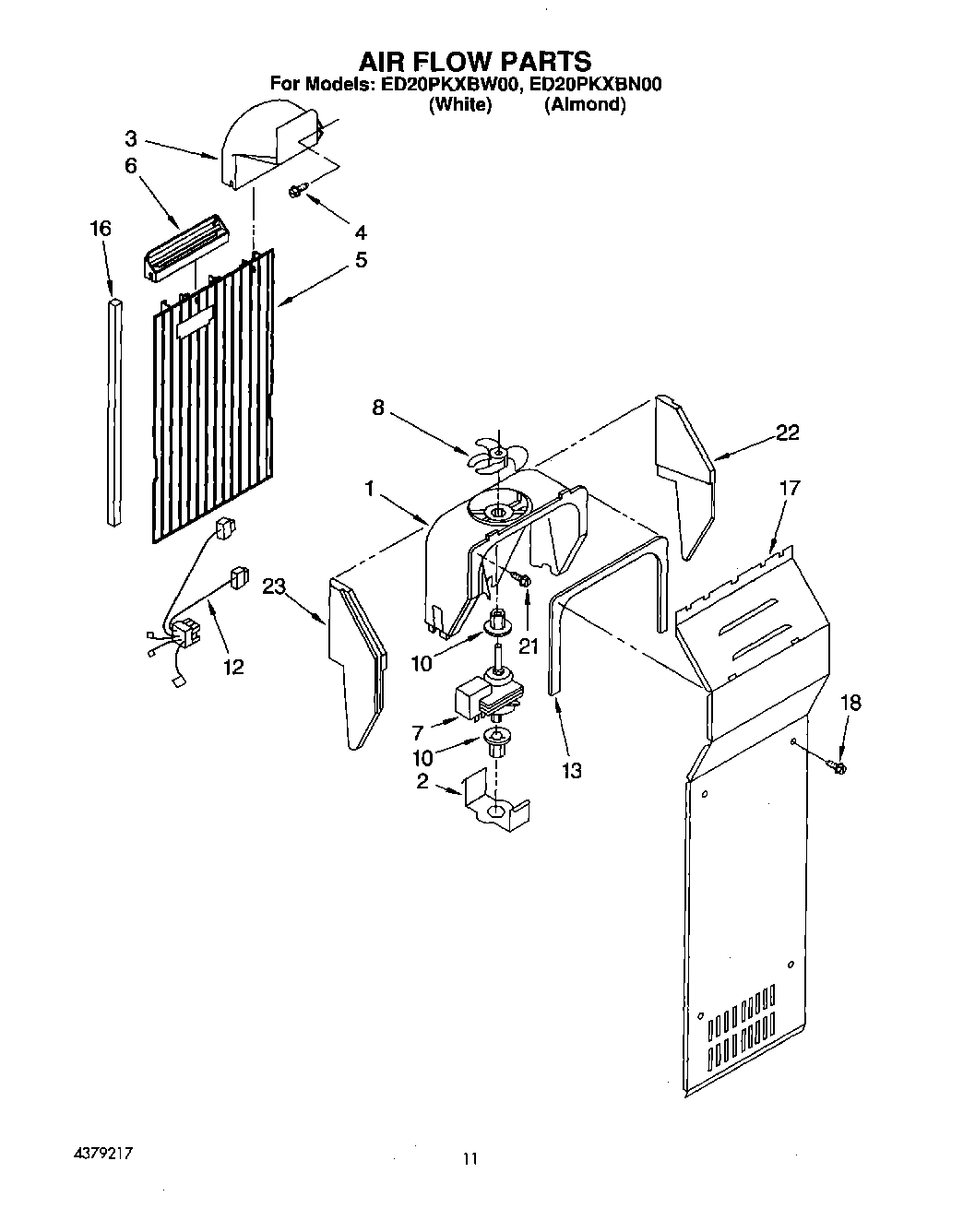

06 - AIR FLOW

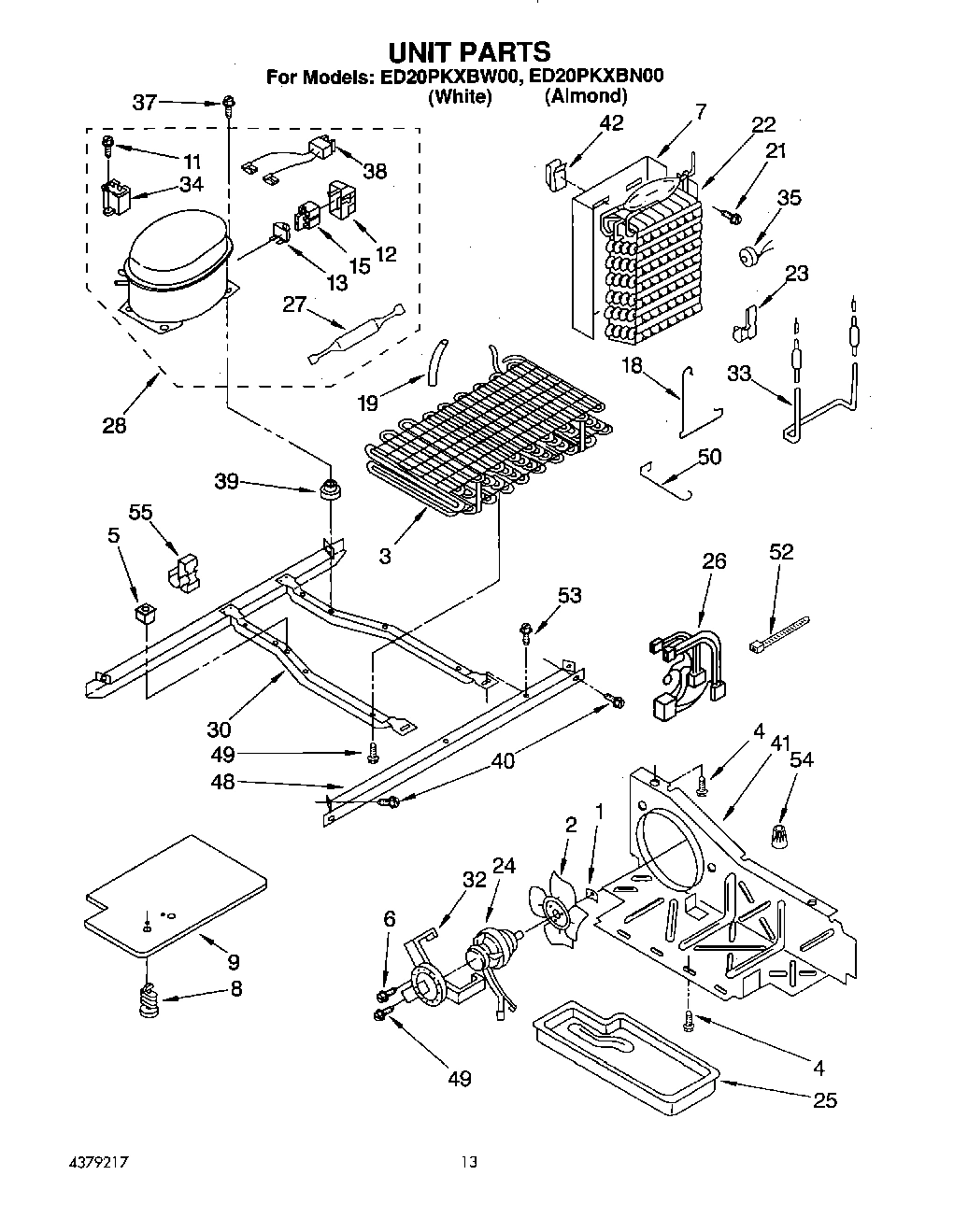

08 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool ED20PKXBN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169103 WPL LIT2169103 Contact Us For Availability
WPL LIT2170778 WPL LIT2170778 Contact Us For Availability
WPL LIT2170840 WPL LIT2170840 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item No.24) ( WPL 4362051 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item No.24) ( WPL 4362052 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25788A6 Contact Us For Availability
1
Refrigerator, Door Panel (Also Order Item No. WPL 4362024 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item No.2 WPL 4362025 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
5
Bracket, Door Stop WPL 2155334 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Trim, Shelf WPL 2162938 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Relay (See Overload) WPL ARI25789A4 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Insert, Handle (White) WPL 2148102 Contact Us For Availability
19
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Support Clip WPL 2155021 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Cover WPL 2170780 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Door, Compartment WPL 2170703 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
34
Capacitor WPL 2154565 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate (White) WPL 2162781 Contact Us For Availability
36
Nameplate (Almond) WPL 2162782 Contact Us For Availability
37
Trim, Door Shelf WPL 2170585 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Compartment Door WPL 2170553 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
WPL 978029 WPL 978029 Contact Us For Availability
55
WPL 876029 WPL 876029 Contact Us For Availability
55
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
55
WPL 799344 WPL 799344 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
55
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
55
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
55
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
55
WPL 542639 WPL 542639 Contact Us For Availability
55
WPL 799340 WPL 799340 Contact Us For Availability
55
WPL 799833 WPL 799833 Contact Us For Availability
55
WPL 978028 WPL 978028 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
