Model Whirlpool DG19CD WASHER – Common Parts & Diagrams

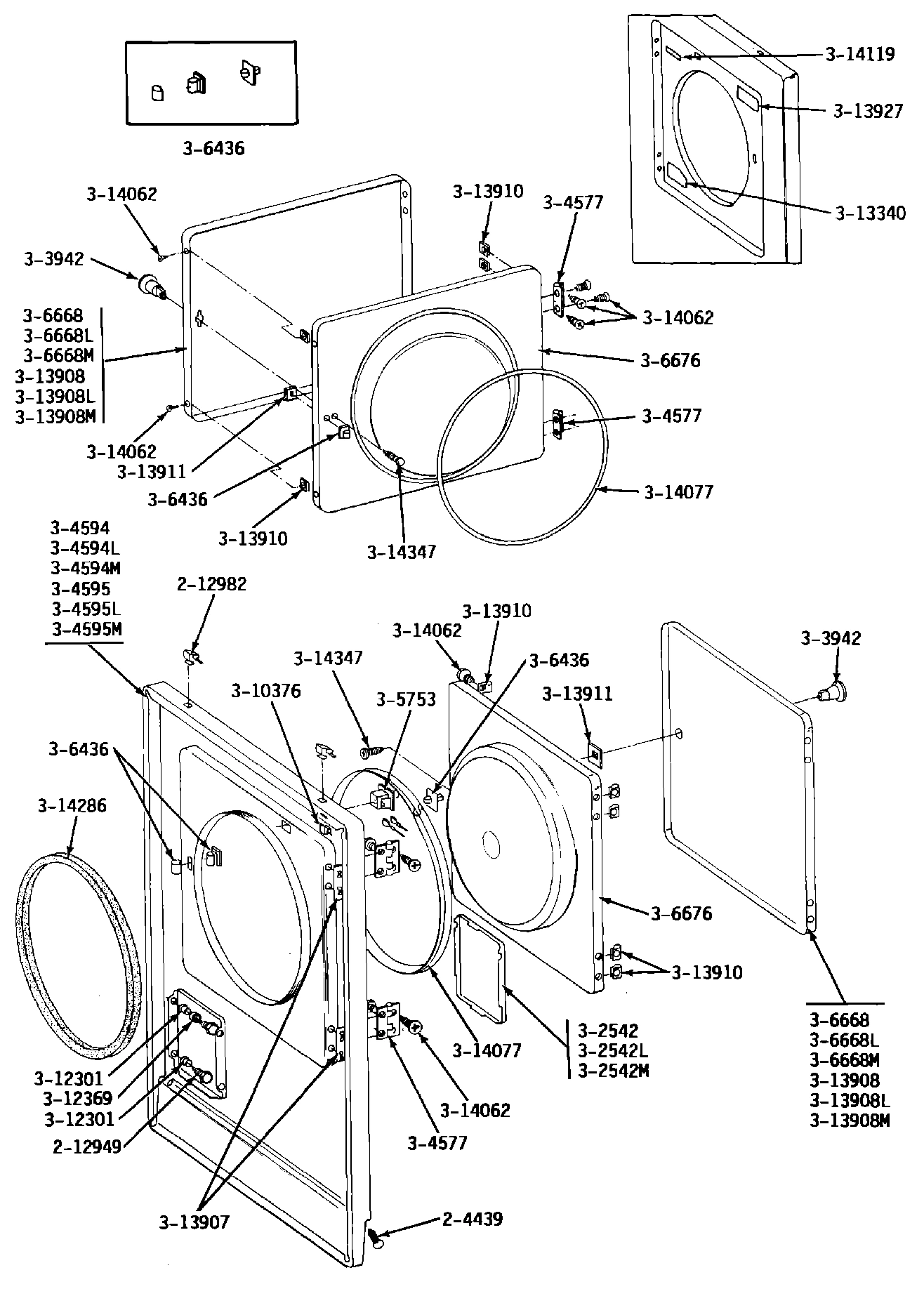

04 - FRONT PANEL\DOOR ASSY.

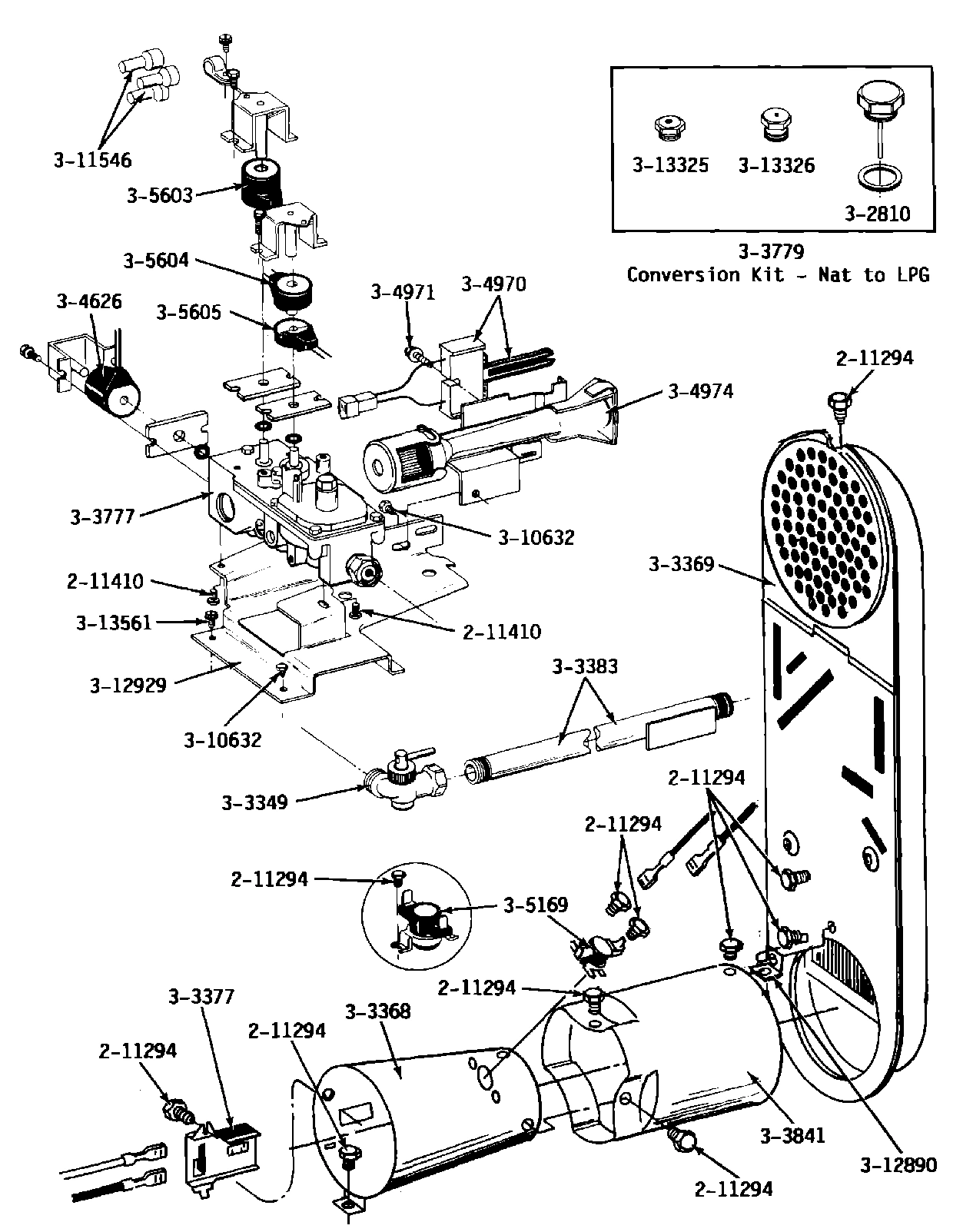

06 - INLET DUCT, GAS VALVE, CONE & EXTENSION

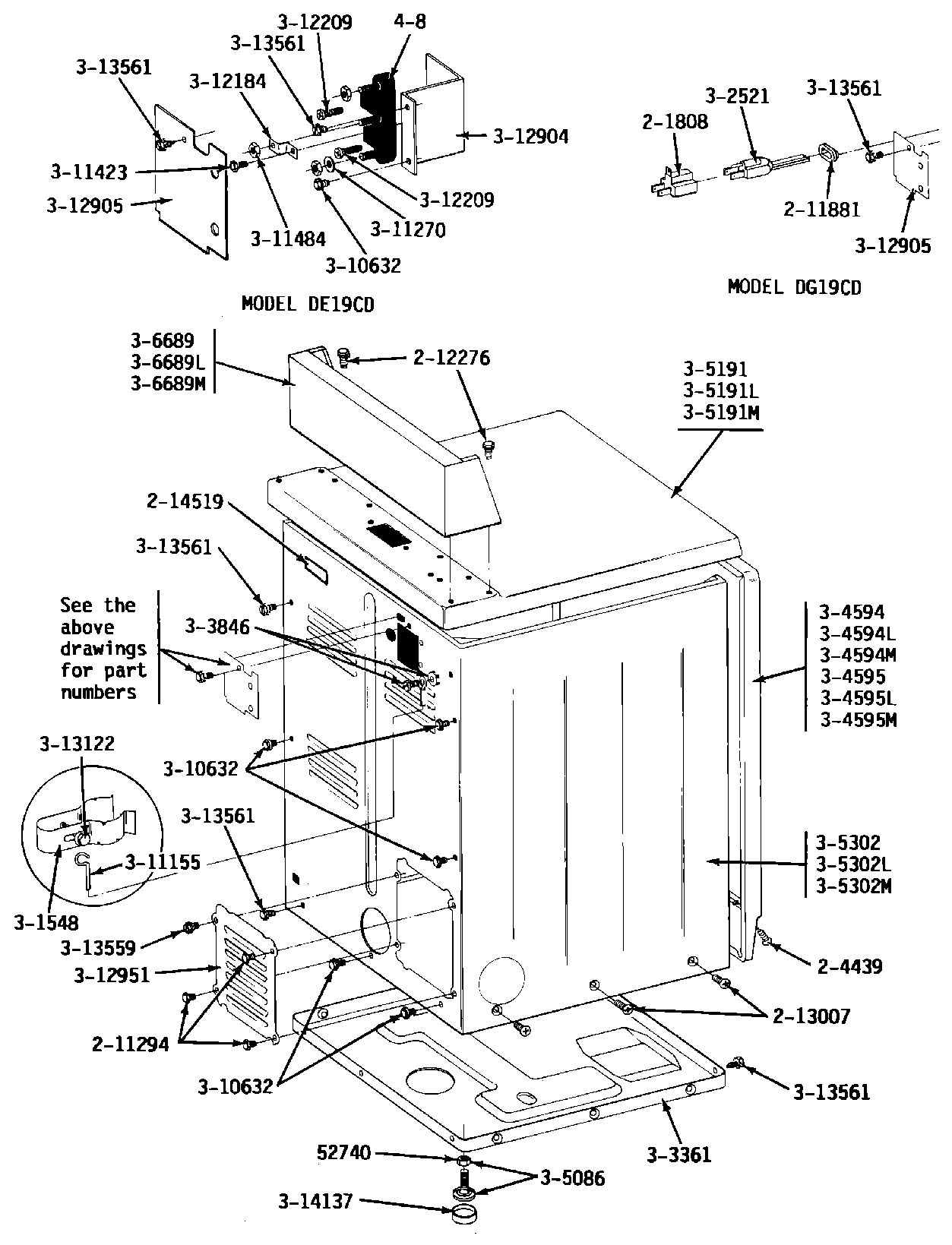

03 - REAR VIEW

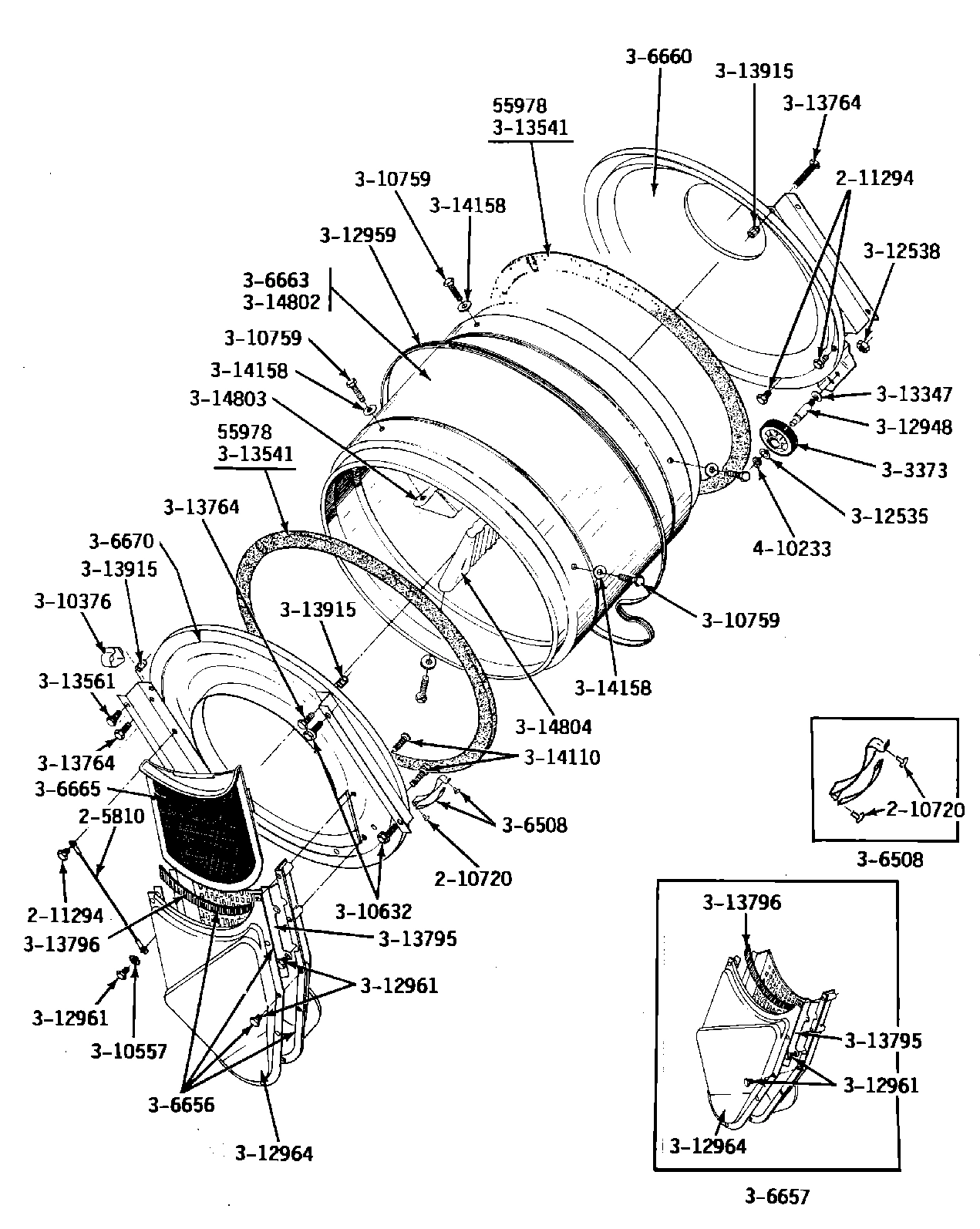

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

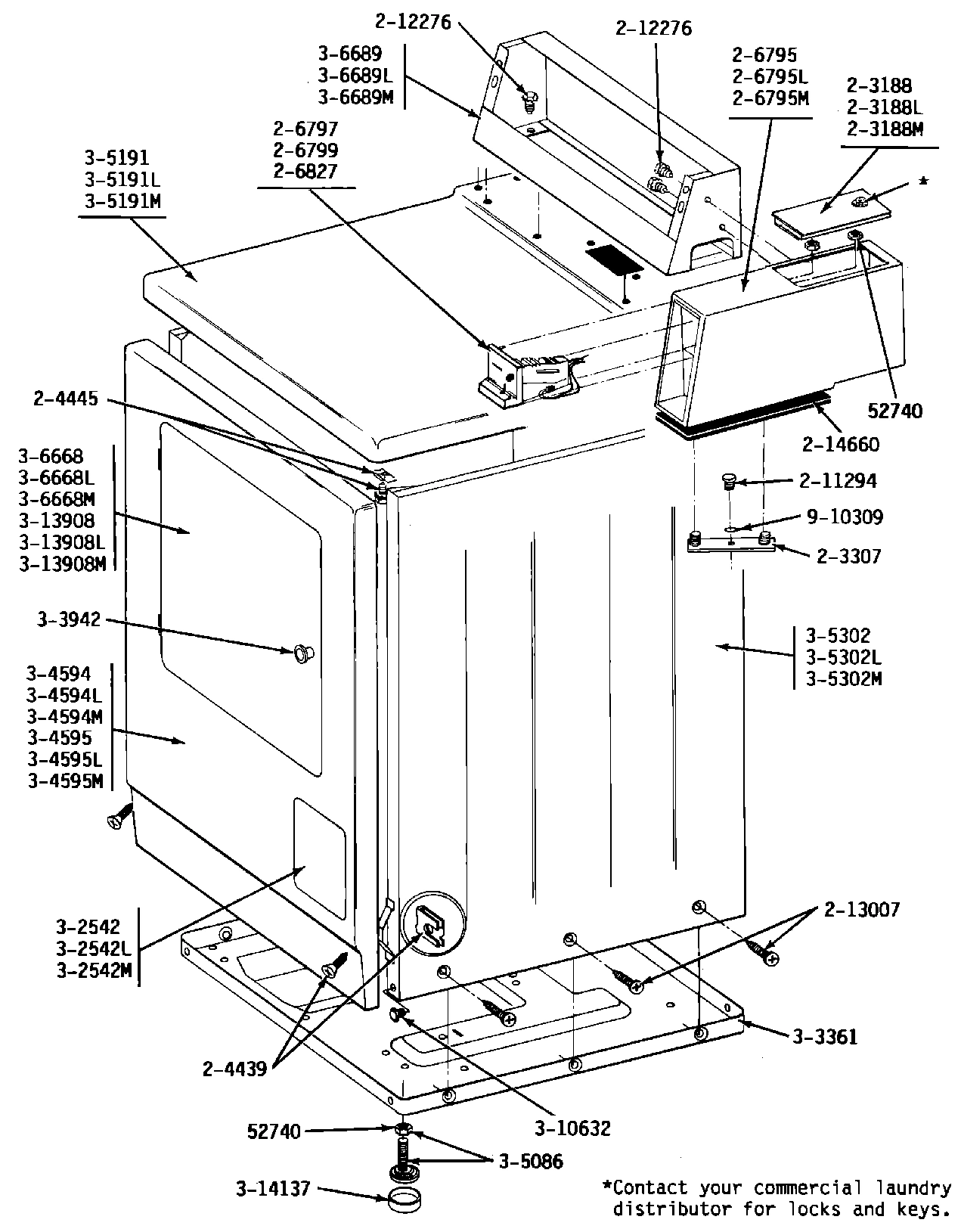

02 - FRONT VIEW

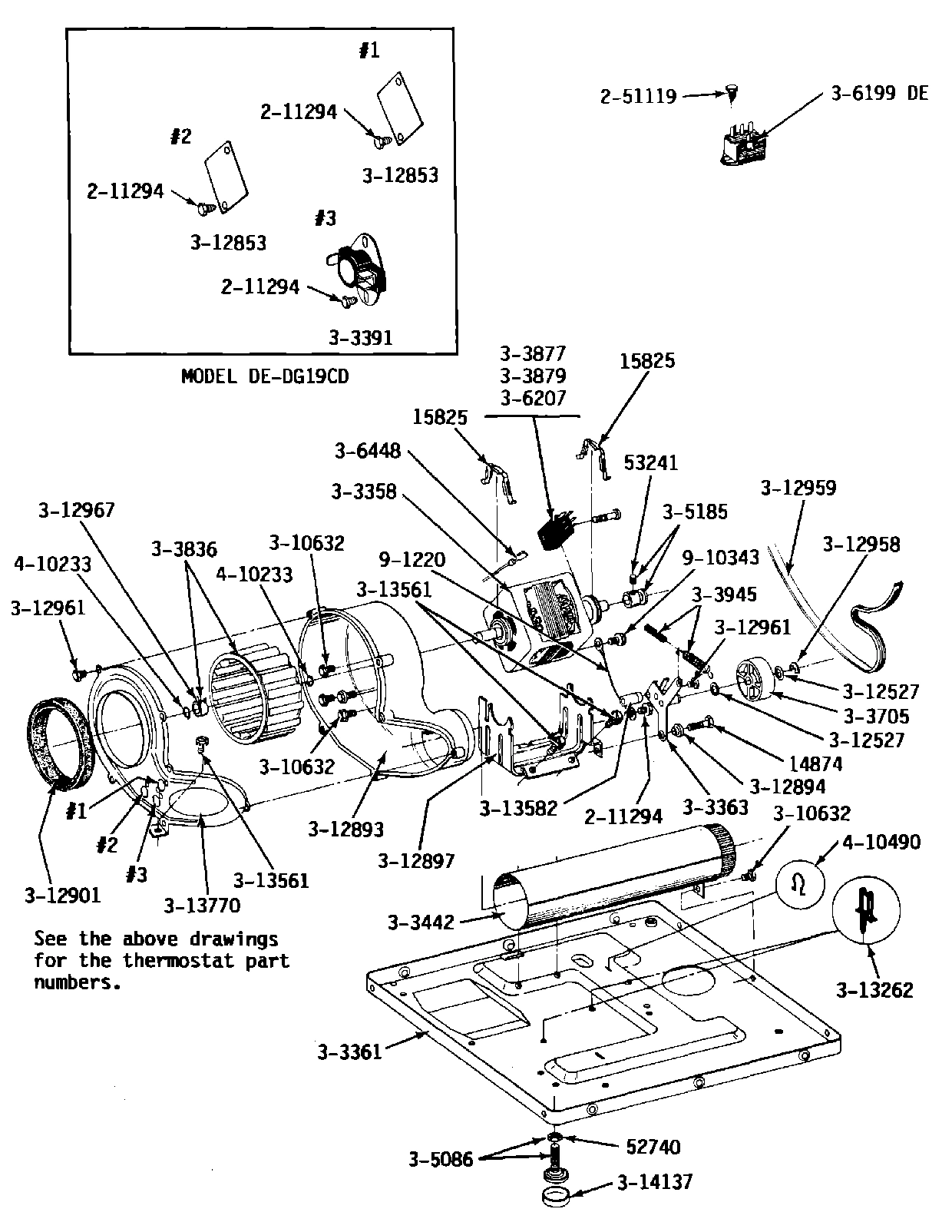

07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

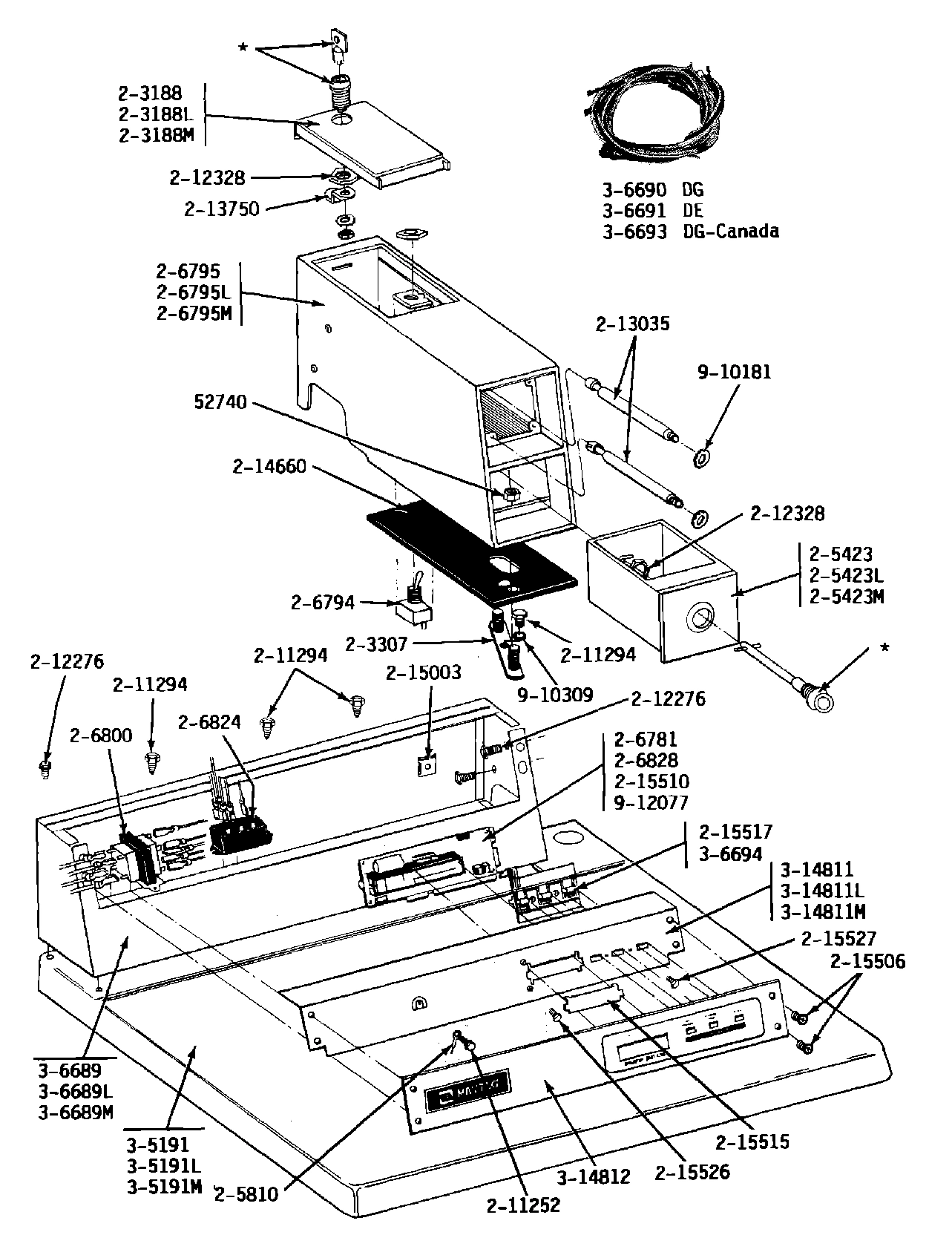

01 - CD CONTROL PANEL & CONTROL CENTER

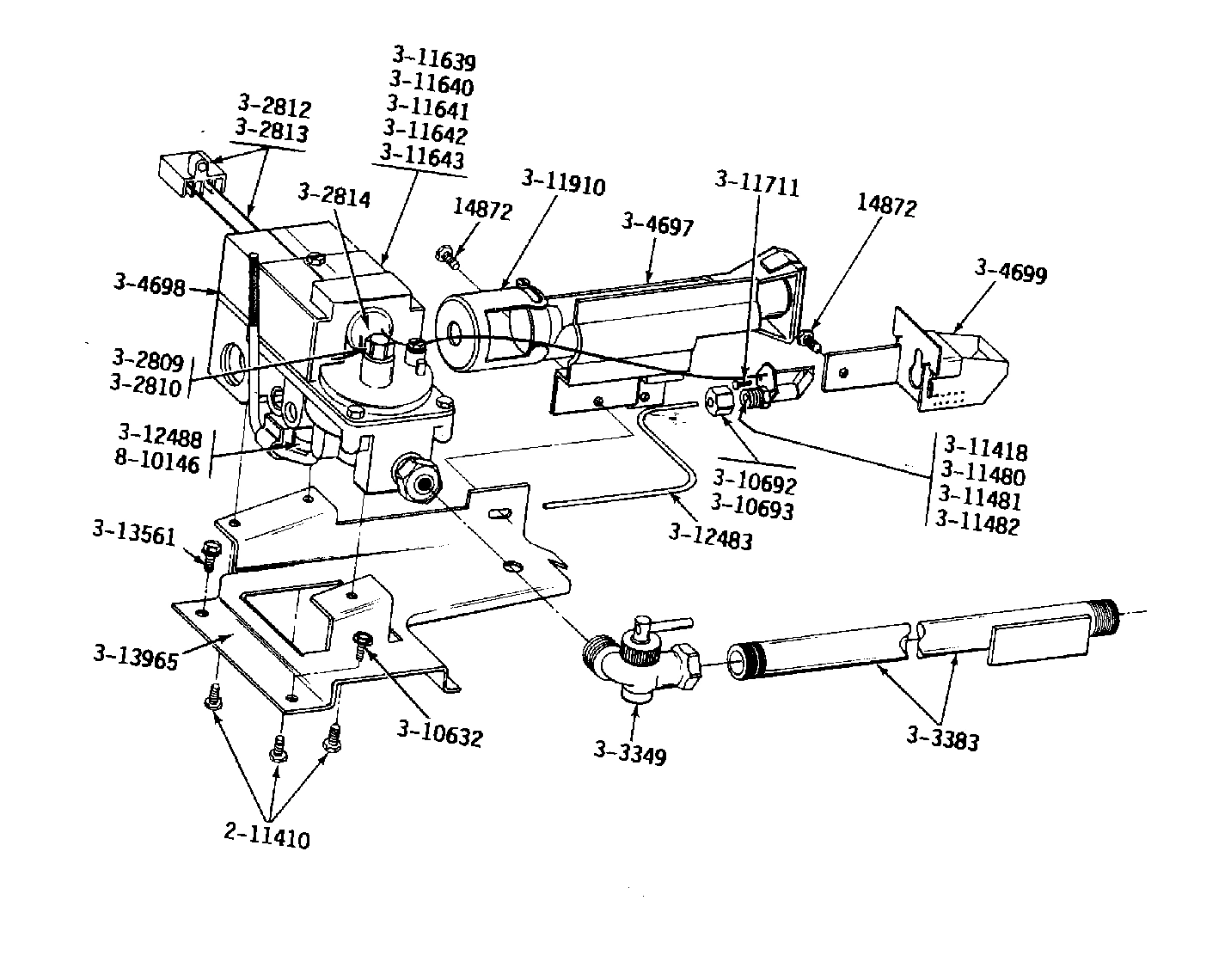

08 - 50HZ GAS VALVE
Common parts from model Whirlpool DG19CD WASHER
001
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
002
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
003
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
004
ACCESS DOOR-HARVEST WHEAT WPL 203188M Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
CONVERSION KIT-LPG TO NAT. WPL 301539 Contact Us For Availability
005
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
006
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
006
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
006
COIN BOX-WHITE WPL 205423 Contact Us For Availability
007
BASE ASSY. WPL Y303361 Contact Us For Availability
007
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
007
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
007
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
007
MAIN BURNER SOLENOID WPL Y302812 Contact Us For Availability
008
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
008
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
008
COIN BOX-HARVEST WHEAT WPL 205423M Contact Us For Availability
008
MAIN BURN. SOLENOID 230-50 WPL Y302813 Contact Us For Availability
009
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
WIRE, GROUND WPL 205810 Contact Us For Availability
009
TUMBLER BACK WPL Y306660 Contact Us For Availability
010
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
010
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
010
POWER CORD WPL 302521 Contact Us For Availability
010
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
010
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
011
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
011
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
011
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
011
SWITCH WPL 206794 Contact Us For Availability
012
SIDE COIL WPL Y304626 Contact Us For Availability
012
COIN DROP METER ASSY WPL 206795 Contact Us For Availability
012
BURNER ASSEMBLY WPL Y304697 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
COIN DROP METER ASSY WPL 206795L Contact Us For Availability
013
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
013
GAS VALVE (240-50) WPL Y304698 Contact Us For Availability
014
SCREW WPL 304971 Contact Us For Availability
014
WASHER WPL 310557 Contact Us For Availability
014
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
015
SCREW WPL Y310632 Contact Us For Availability
015
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
015
TRANSFORMER ----S WPL Y206800 Contact Us For Availability
016
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
016
SCREW WPL Y310759 Contact Us For Availability
016
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
016
COMPRESSION NUT WPL 310692 Contact Us For Availability
017
SECONDARY COIL WPL 305603 Contact Us For Availability
017
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
017
BATTERY WPL 206828 Contact Us For Availability
017
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
018
HOLDING COIL WPL 305604 Contact Us For Availability
018
PILOT ORIFICE WPL Y311418 Contact Us For Availability
019
PILOT ORIFICE (LP) WPL Y311480 Contact Us For Availability
021
PILOT ORIFICE-LPG WPL Y311482 Contact Us For Availability
022
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
022
BOLT, LOCKING WPL 213035 Contact Us For Availability
022
ORIFICE FOR MAIN BURNER WPL Y311639 Contact Us For Availability
023
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
023
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
024
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
024
GASKET, METER CASE WPL 214660 Contact Us For Availability
024
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
025
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
025
TWIN FASTENER WPL Y313907 Contact Us For Availability
025
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
025
FASTENER WPL 215003 Contact Us For Availability
027
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
027
SUPPORT, PC BOARD WPL 215510 Contact Us For Availability
027
SCREW WPL Y311711 Contact Us For Availability
028
LINT SEAL WPL Y313796 Contact Us For Availability
028
DISPLAY COVER WPL 215515 Contact Us For Availability
029
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
029
PILOT TUBE WPL Y312483 Contact Us For Availability
030
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
030
SCREW WPL 215526 Contact Us For Availability
031
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
031
SCREW----NA WPL Y313561 Contact Us For Availability
031
WASHER WPL 314158 Contact Us For Availability
032
SCREW WPL Y314062 Contact Us For Availability
032
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
032
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
033
DOOR SEAL WPL 314077 Contact Us For Availability
033
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
033
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
034
SCREW WPL NLA Contact Us For Availability
035
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
035
DOOR WPL Y306668 Contact Us For Availability
036
COVER FOR BLOWER HOUSING WPL Y313770 Contact Us For Availability
037
COVER, TERMINAL WPL Y312905 Contact Us For Availability
038
COVER, ACCESS WPL Y312951 Contact Us For Availability
039
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
039
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
040
WIRE, GROUND WPL 901220 Contact Us For Availability
041
BACKUP PLATE WITH SWITCH WPL 306694 Contact Us For Availability
042
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
046
LOCK WASHER WPL 910181 Contact Us For Availability
047
WASHER WPL 910309 Contact Us For Availability
× ![]()
