Model Whirlpool DE21CS ELECTRIC DRYER – Common Parts & Diagrams
01 - FRONT VIEW

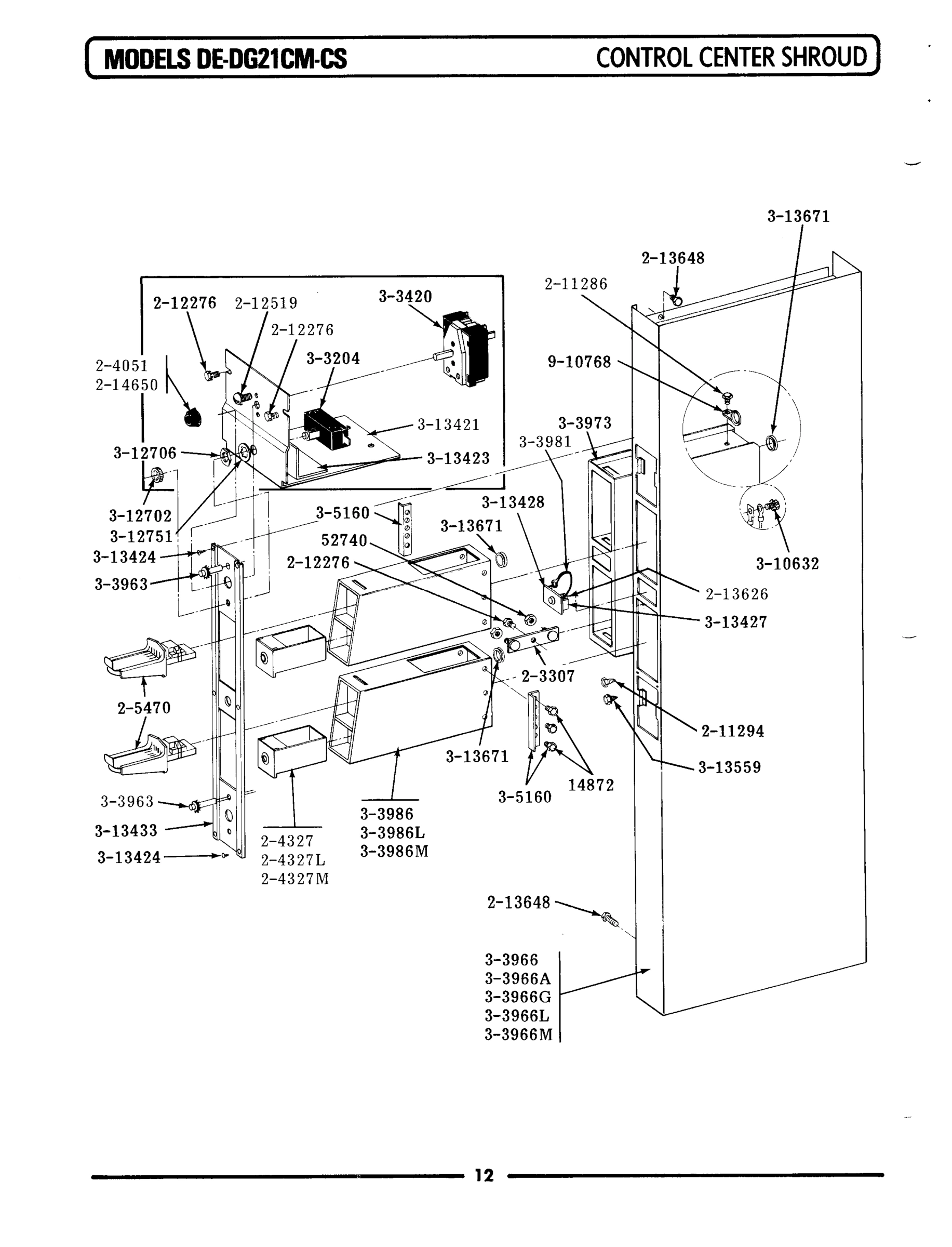

03 - CONTROL CENTER SHROUD

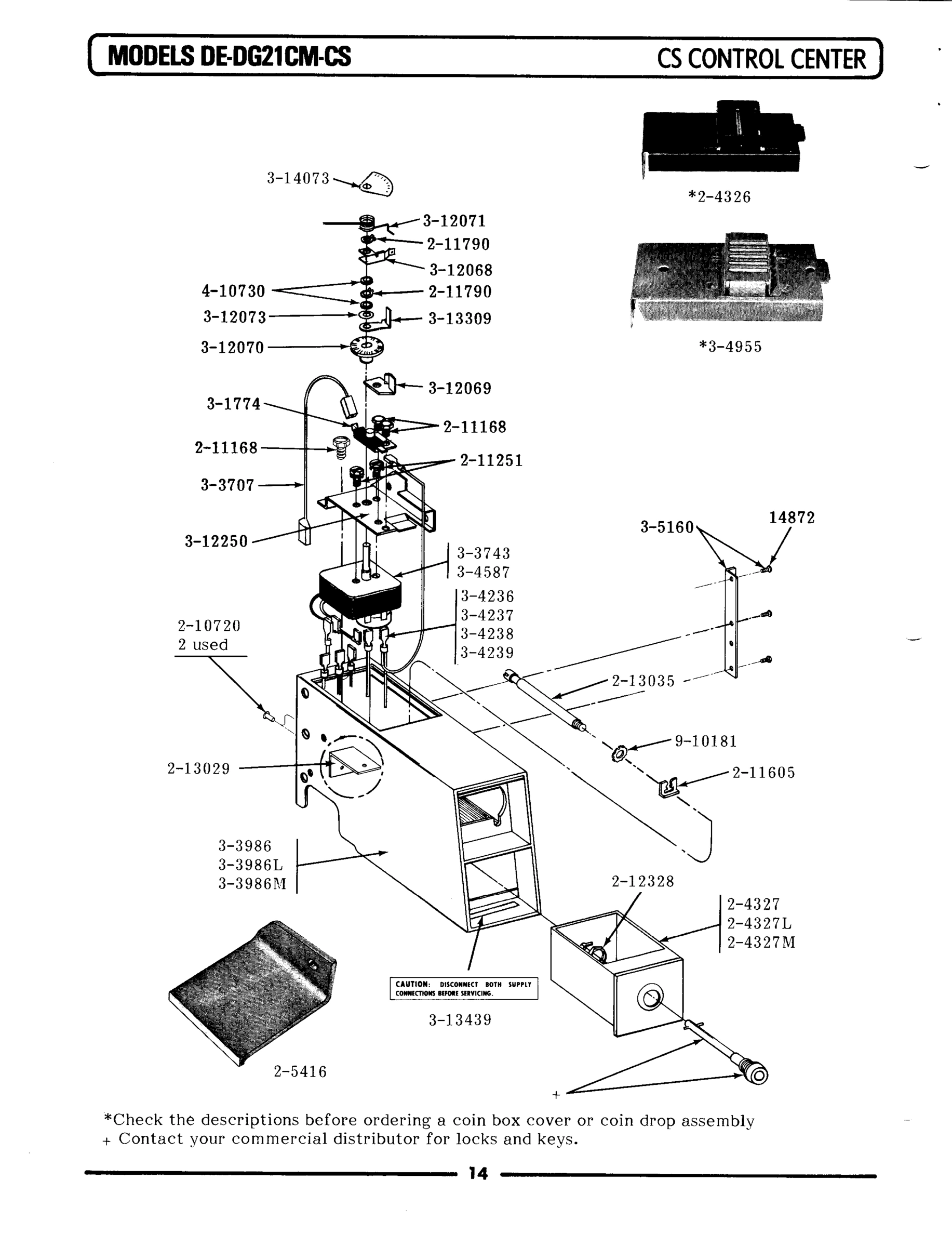

04 - CONTROL CENTER

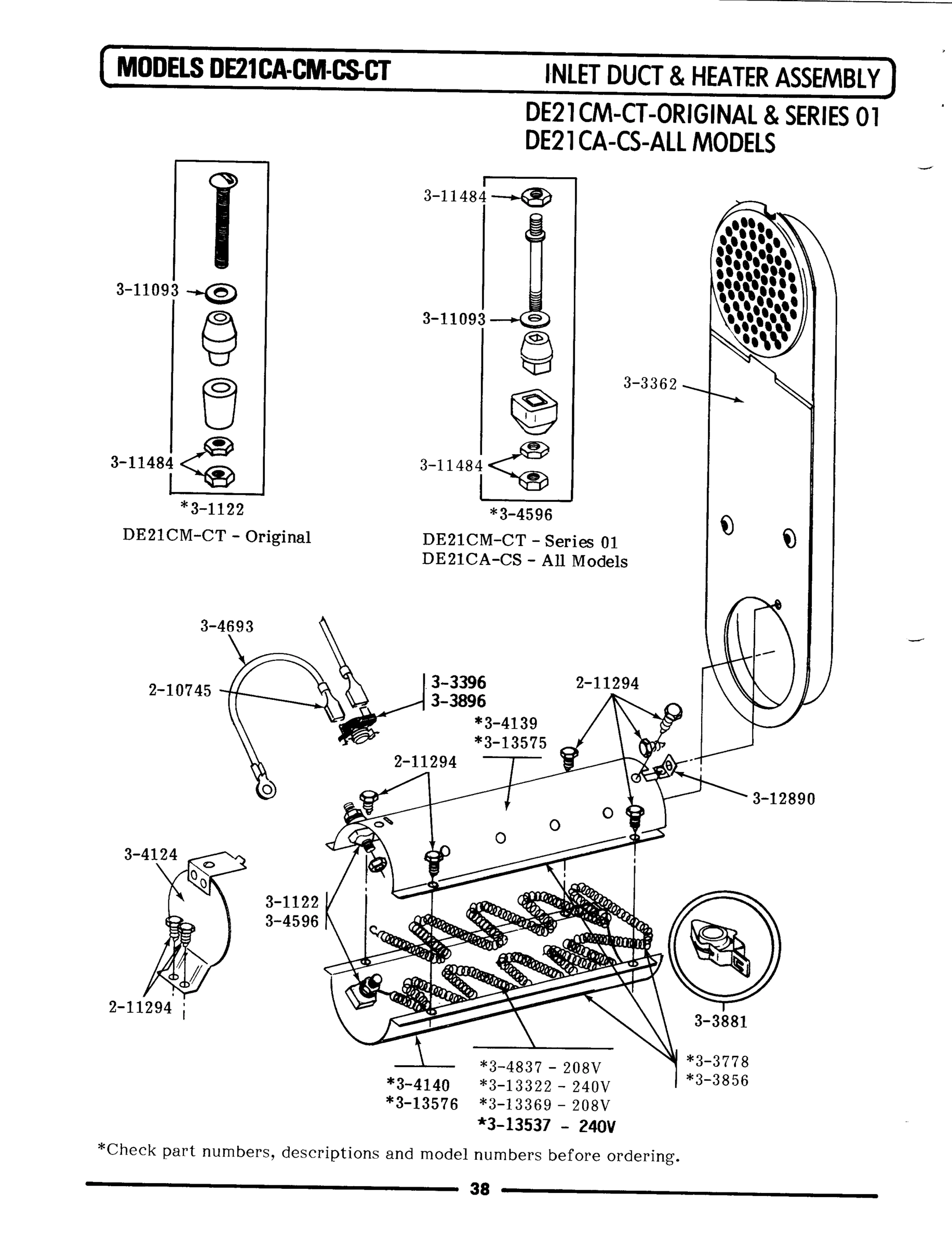

08 - INLET DUCT & HEATER ASSEMBLY

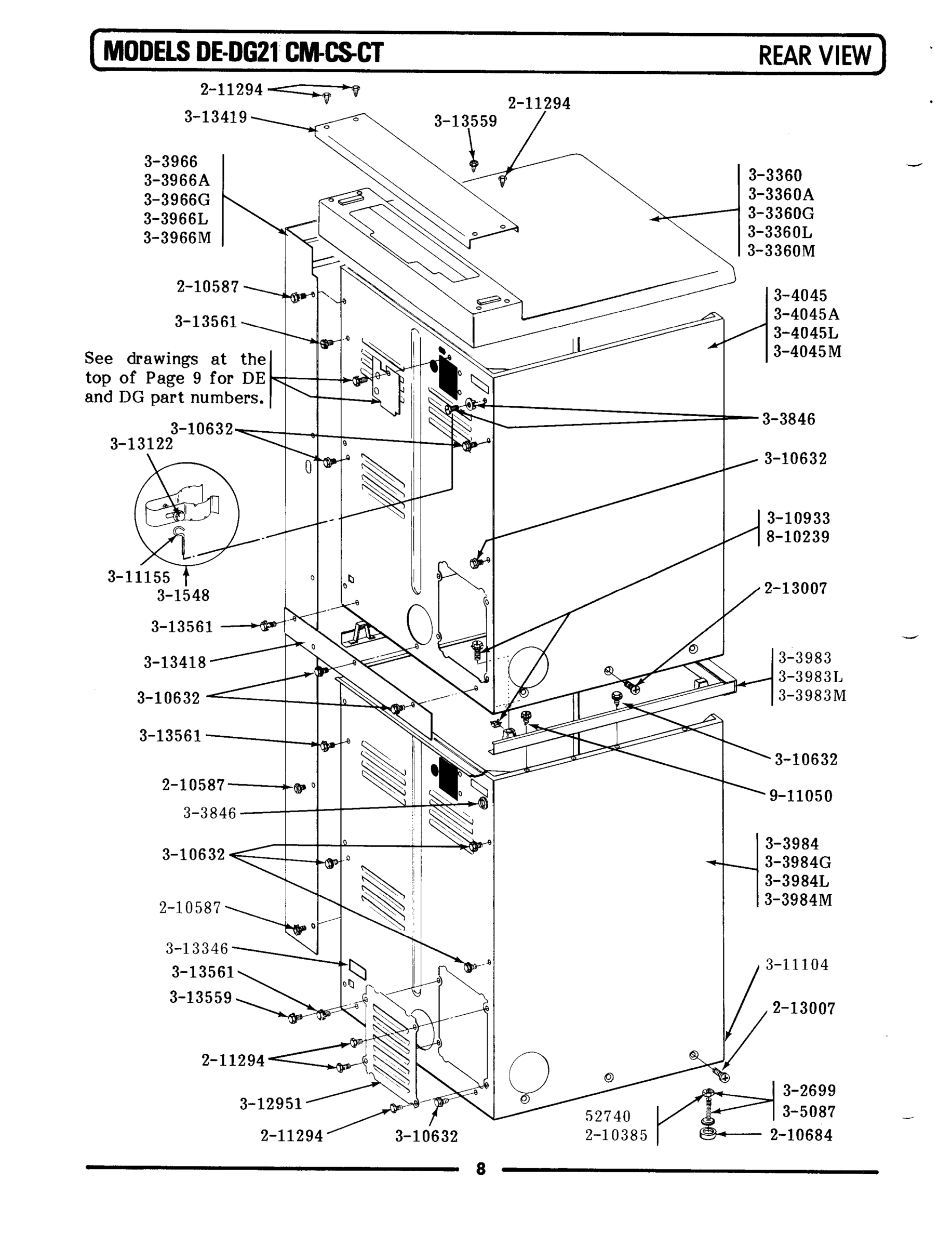

02 - REAR VIEW

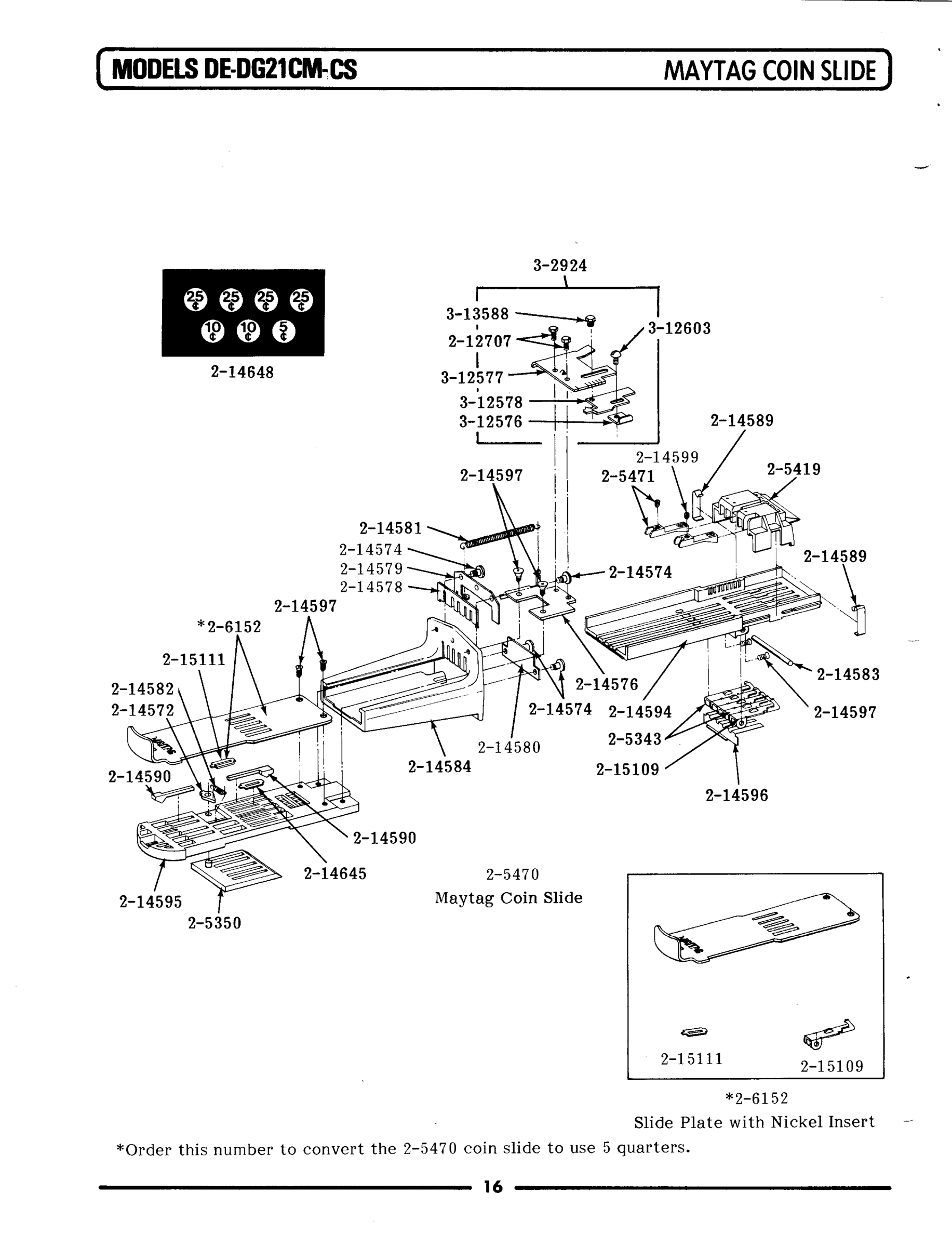

05 - MAYTAG COIN SLIDE

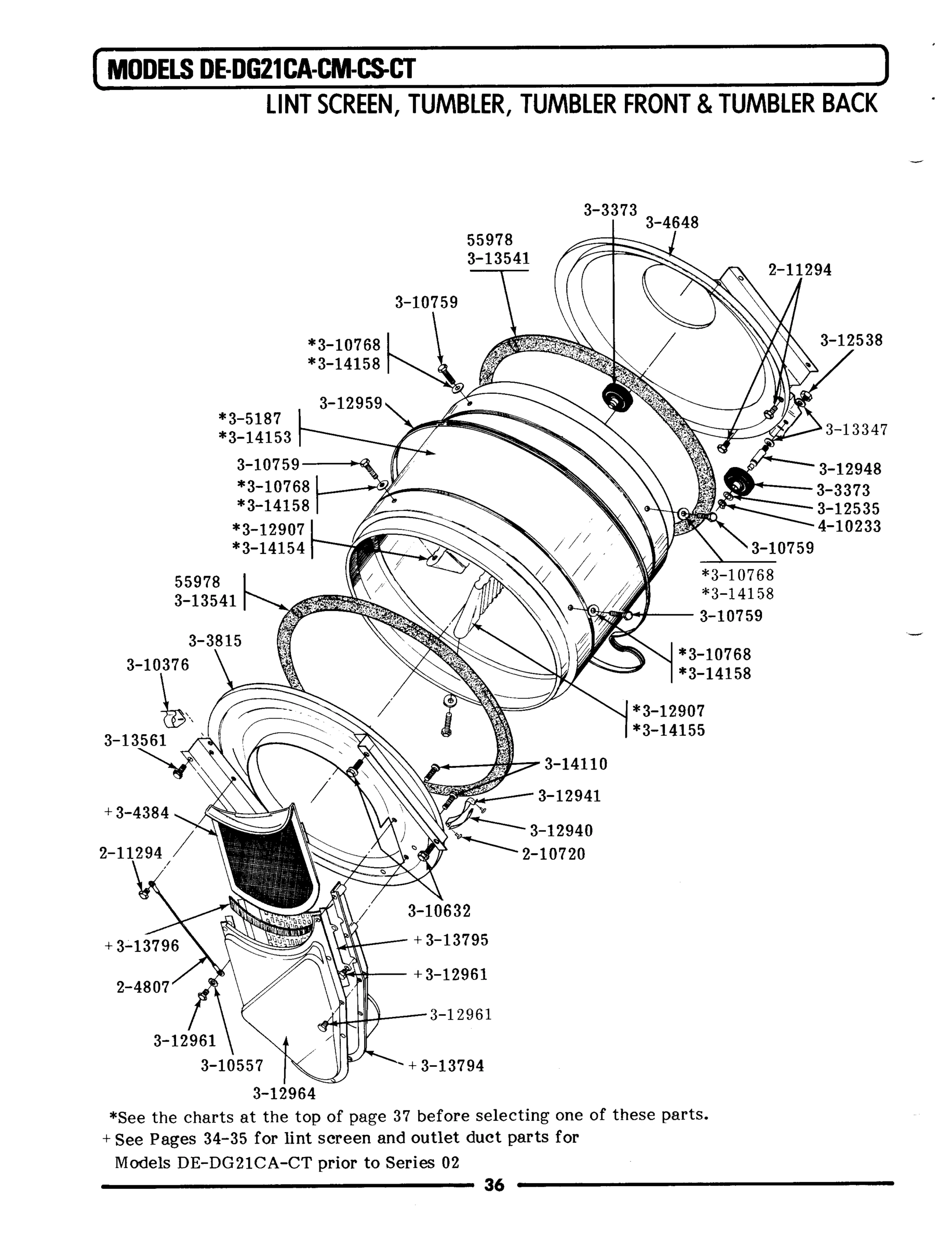

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

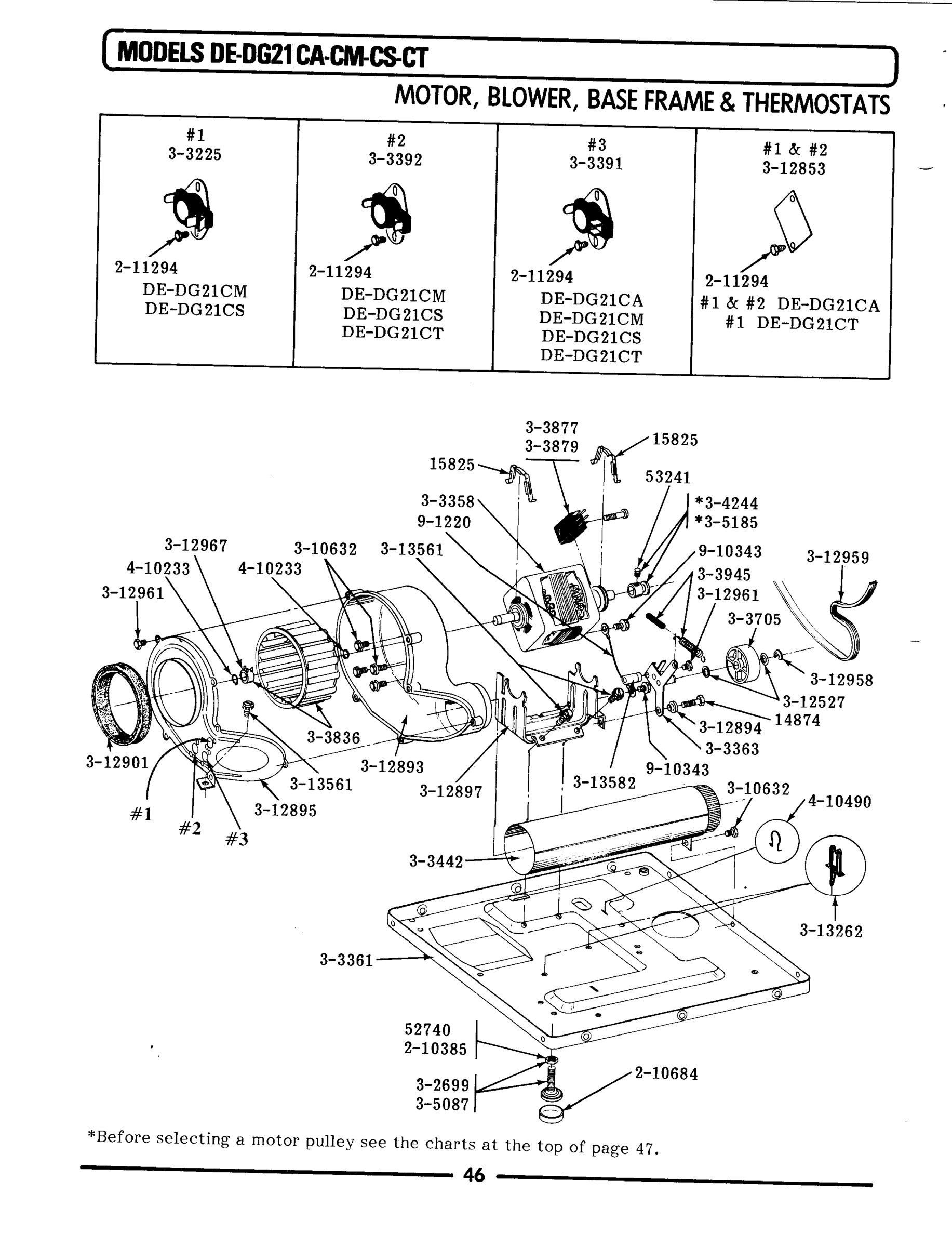

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

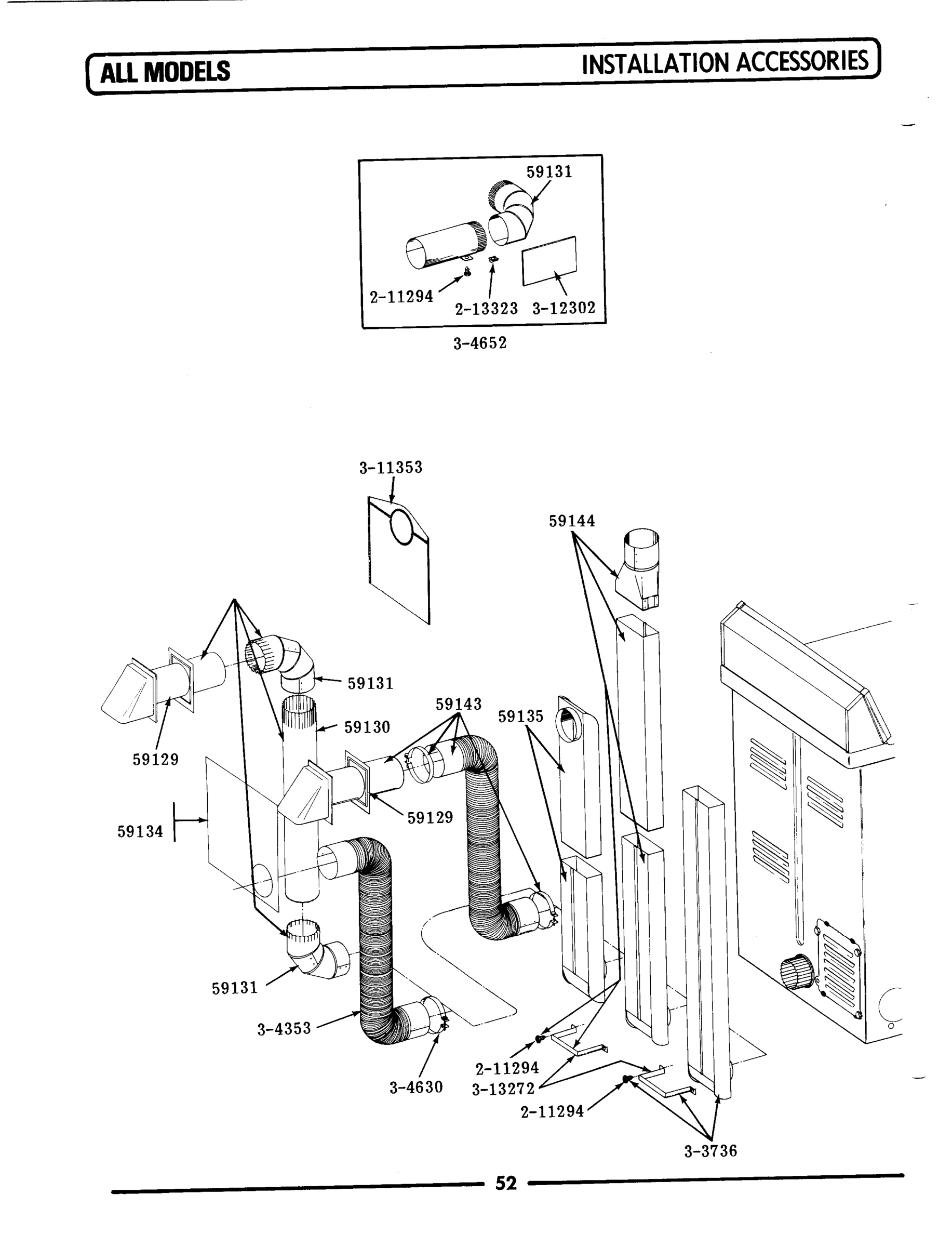

10 - INSTALLATION ACCESSORIES

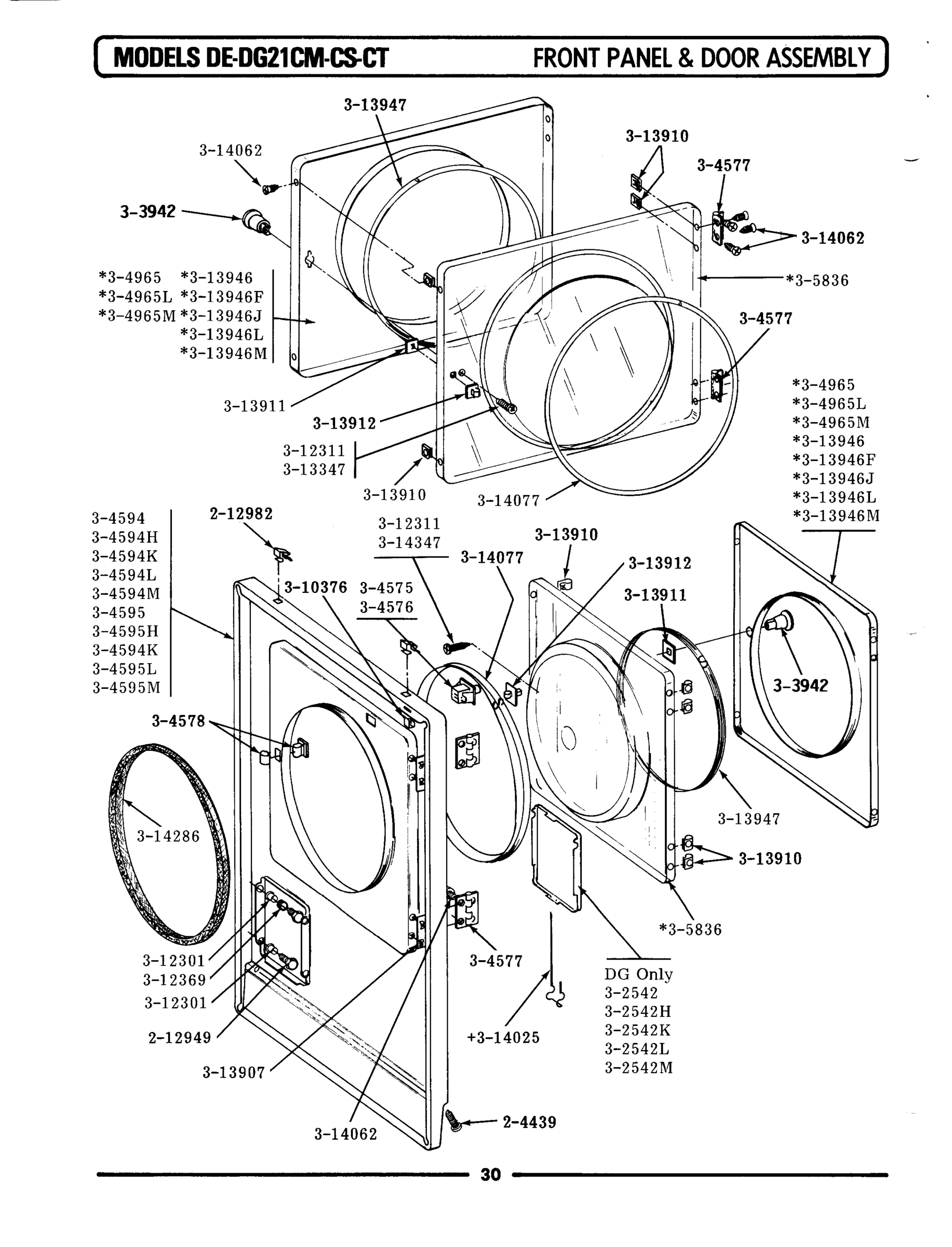

06 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool DE21CS ELECTRIC DRYER
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
001
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
002
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
002
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
003
GUARD, COIN BOX WPL 205416 Contact Us For Availability
003
GRND.WIRE, SUPP. PLTE WPL 204807 Contact Us For Availability
004
KNOB WPL 204051 Contact Us For Availability
004
INLET DUCT ASSEMBLY WPL Y303362 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
006
SCREW WPL 211251 Contact Us For Availability
006
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
006
PIPE, VENTING WPL Y059130 Contact Us For Availability
007
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
007
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
007
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
007
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
008
DOOR COMPLETE-WHITE WPL 304965 Contact Us For Availability
008
LOCK RING, TIMER SHAFT WPL 211790 Contact Us For Availability
008
RATCHET ARM WPL 214572 Contact Us For Availability
008
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
009
HEATER SHIELD WPL 304124 Contact Us For Availability
009
TUMBLER BACK W/SEAL WPL Y304648 Contact Us For Availability
009
THERMOSTAT, PERM. PRESS WPL Y303225 Contact Us For Availability
009
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
010
TIMER SUPPORT BRACKET WPL 213029 Contact Us For Availability
010
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
011
BASE ASSY. WPL Y303361 Contact Us For Availability
011
BOLT, LOCKING WPL 213035 Contact Us For Availability
011
GATE, COIN OPENING WPL 214578 Contact Us For Availability
011
TUMBLER W/BAFFLES WPL 305187 Contact Us For Availability
011
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
012
SWITCH, COIN SLIDE WPL Y301774 Contact Us For Availability
013
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
013
WIRE ASSEMBLY WPL Y303707 Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
013
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
014
CABINET-WHITE WPL 304045 Contact Us For Availability
014
START SWITCH W/NUTS WPL Y303204 Contact Us For Availability
014
TIMER WPL Y303743 Contact Us For Availability
014
RETURN SPRING WPL 214581 Contact Us For Availability
014
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
015
SPRING, RATCHET ARM WPL 214582 Contact Us For Availability
015
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
015
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
016
INDICATOR LIGHT WPL 303963 Contact Us For Availability
016
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
016
TWIN FASTENER WPL Y313907 Contact Us For Availability
017
FASTENER WPL 310933 Contact Us For Availability
017
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
017
HOUSING, COIN SLIDE WPL 214584 Contact Us For Availability
017
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
017
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
018
HEATER ELEMENT WPL Y313322 Contact Us For Availability
018
SPRING CLIP WPL 214589 Contact Us For Availability
018
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
018
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
018
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
019
GROUND WIRE, LATCH WPL Y303981 Contact Us For Availability
019
TUMBLER BAFFLE WPL Y312907 Contact Us For Availability
019
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
019
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
020
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
020
BASE INSERT, HOUSING WPL 214594 Contact Us For Availability
020
BEARING PAD, TUMBLER FRONT WPL 312940 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
020
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
021
RETURN LEVER WPL Y312068 Contact Us For Availability
021
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
021
DOOR PANEL-WHITE WPL Y313946 Contact Us For Availability
022
STOP, ACTUATOR WPL Y312069 Contact Us For Availability
022
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
022
SPRING, LOWER GAGE ARM WPL 214596 Contact Us For Availability
022
IDLER, PULLEY & SLEEVE KIT WPL Y304245 Contact Us For Availability
022
GASKET, WINDOW WPL Y313947 Contact Us For Availability
023
KNURLED NUT WPL Y312702 Contact Us For Availability
023
STRAP, GROUND WPL Y312184 Contact Us For Availability
023
SCREW WPL 214597 Contact Us For Availability
023
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
024
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
024
RETURN SPRING, ACTUATOR WPL Y312071 Contact Us For Availability
024
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
024
SCREW WPL Y314062 Contact Us For Availability
025
SCREW WPL Y310632 Contact Us For Availability
025
GROMMET, STRIP WPL 33001303 Contact Us For Availability
025
SPRING WASHER WPL 312073 Contact Us For Availability
025
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
025
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
025
DOOR SEAL WPL 314077 Contact Us For Availability
026
TIMER SUPPORT BRACKET WPL 312250 Contact Us For Availability
026
COVER, TERMINAL WPL Y312905 Contact Us For Availability
026
COINAGE DECAL WPL 214648 Contact Us For Availability
027
SEAL, FRONT PANEL WPL 314286 Contact Us For Availability
027
TIMER ACTUATOR LEVER WPL Y313309 Contact Us For Availability
027
COVER, ACCESS WPL Y312951 Contact Us For Availability
027
COVER,THERMOSTAT OPENING WPL Y312853 Contact Us For Availability
028
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
028
SCREW, DOOR KNOB WPL NLA Contact Us For Availability
028
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
028
SCREW, BAFFLE WPL 313122 Contact Us For Availability
029
TIME INDICATOR GAGE WPL 314073 Contact Us For Availability
029
ACTUATOR KIT-DRYER SLIDES WPL Y302924 Contact Us For Availability
029
OUTLET GRID & DUCT WPL Y313794 Contact Us For Availability
030
PLATE, LATCH WPL 313428 Contact Us For Availability
030
WASHER WPL 410730 Contact Us For Availability
030
ZERO SLIDE ADJUSTMENT WPL Y312576 Contact Us For Availability
030
COVER, BLOWER WPL Y312895 Contact Us For Availability
031
LOCK WASHER WPL 910181 Contact Us For Availability
031
BRACKET, SLIDE WPL Y312577 Contact Us For Availability
031
TUMBLER No. WPL Y314153 Contact Us For Availability
032
SLIDE ADJUSTMENT WPL Y312578 Contact Us For Availability
033
GROMMET, CONTROL CENTER WPL Y313671 Contact Us For Availability
034
CABLE STRAP-HARNESS WPL 910768 Contact Us For Availability
034
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
034
WASHER WPL 314158 Contact Us For Availability
037
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
038
SCREW----NA WPL Y313561 Contact Us For Availability
041
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
WIRE, GROUND WPL 901220 Contact Us For Availability
× ![]()
