Model Whirlpool DE21CM ELECTRIC DRYER – Common Parts & Diagrams
07 - FRONT PANEL & DOOR ASSEMBLY

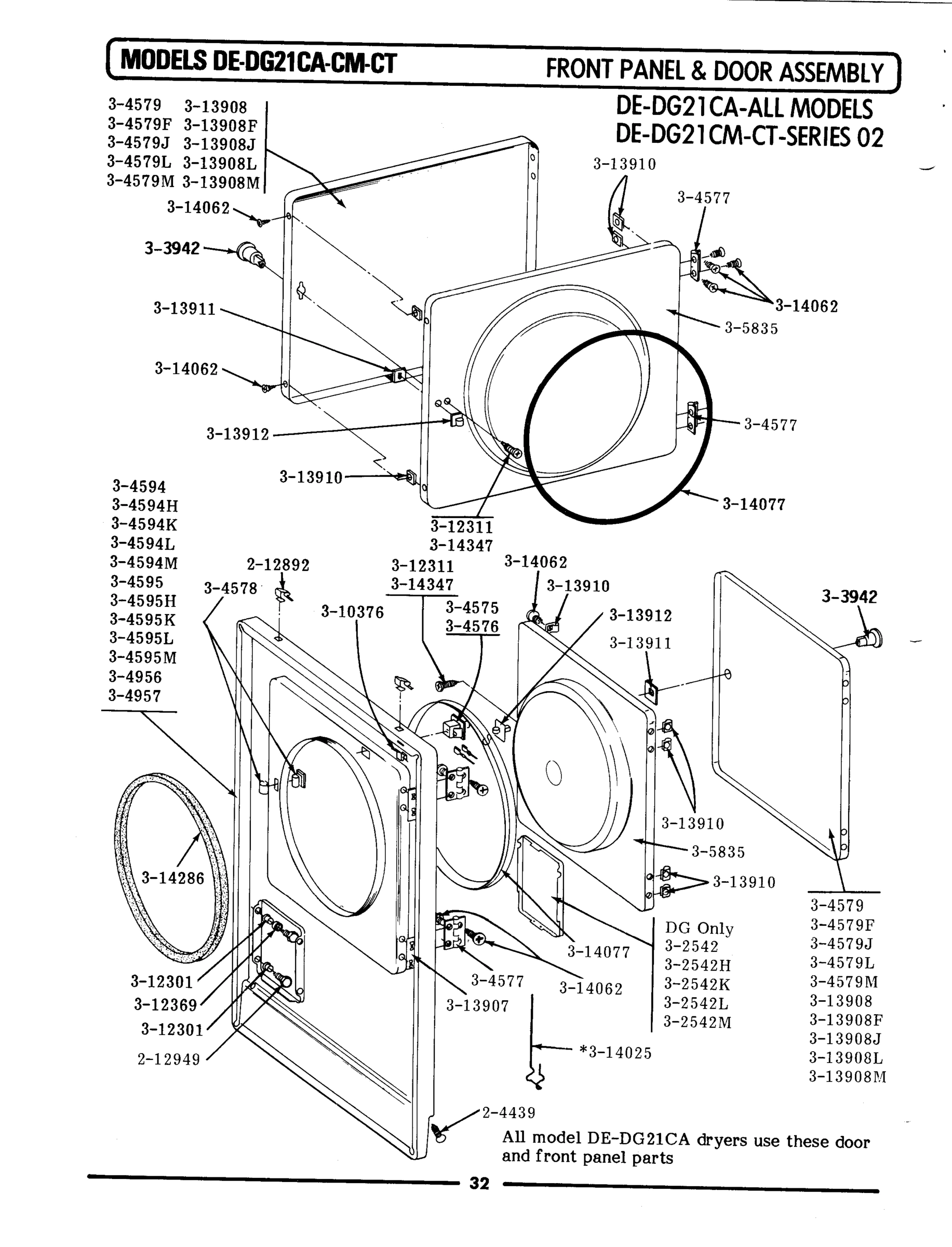

08 - FRONT PANEL & DOOR ASSY (SERIES 02)

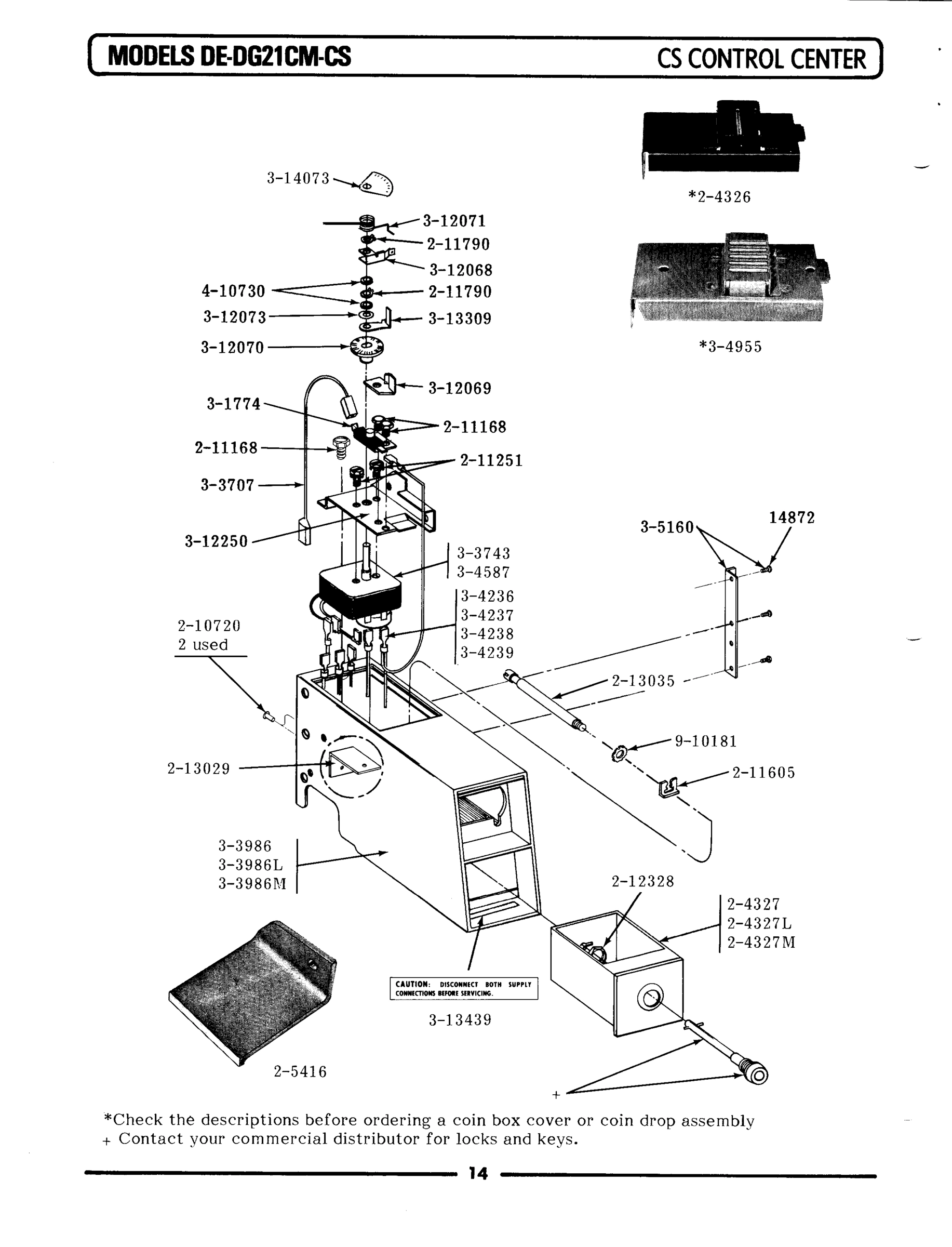

04 - CONTROL CENTER

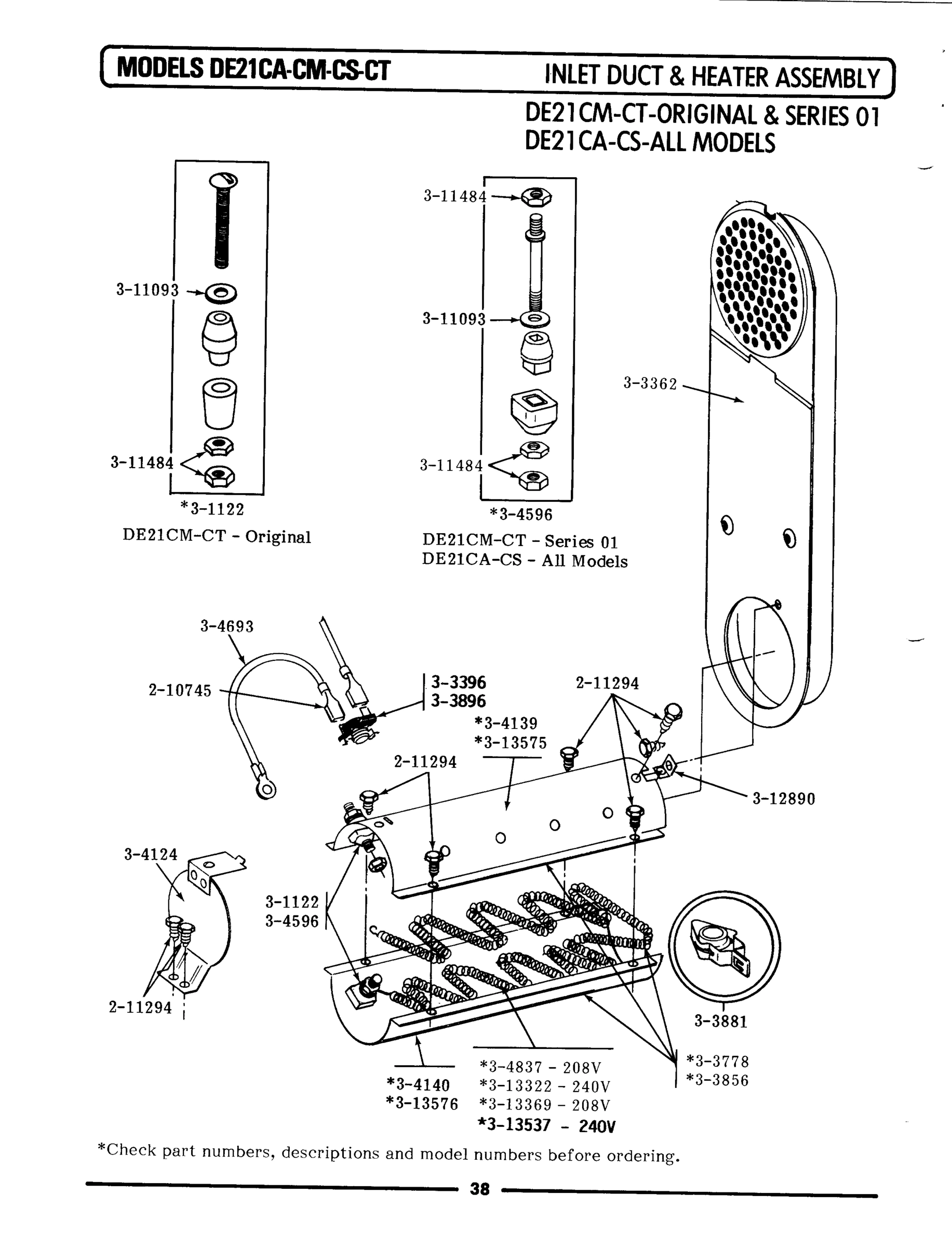

11 - INLET DUCT & HEATER ASSEMBLY

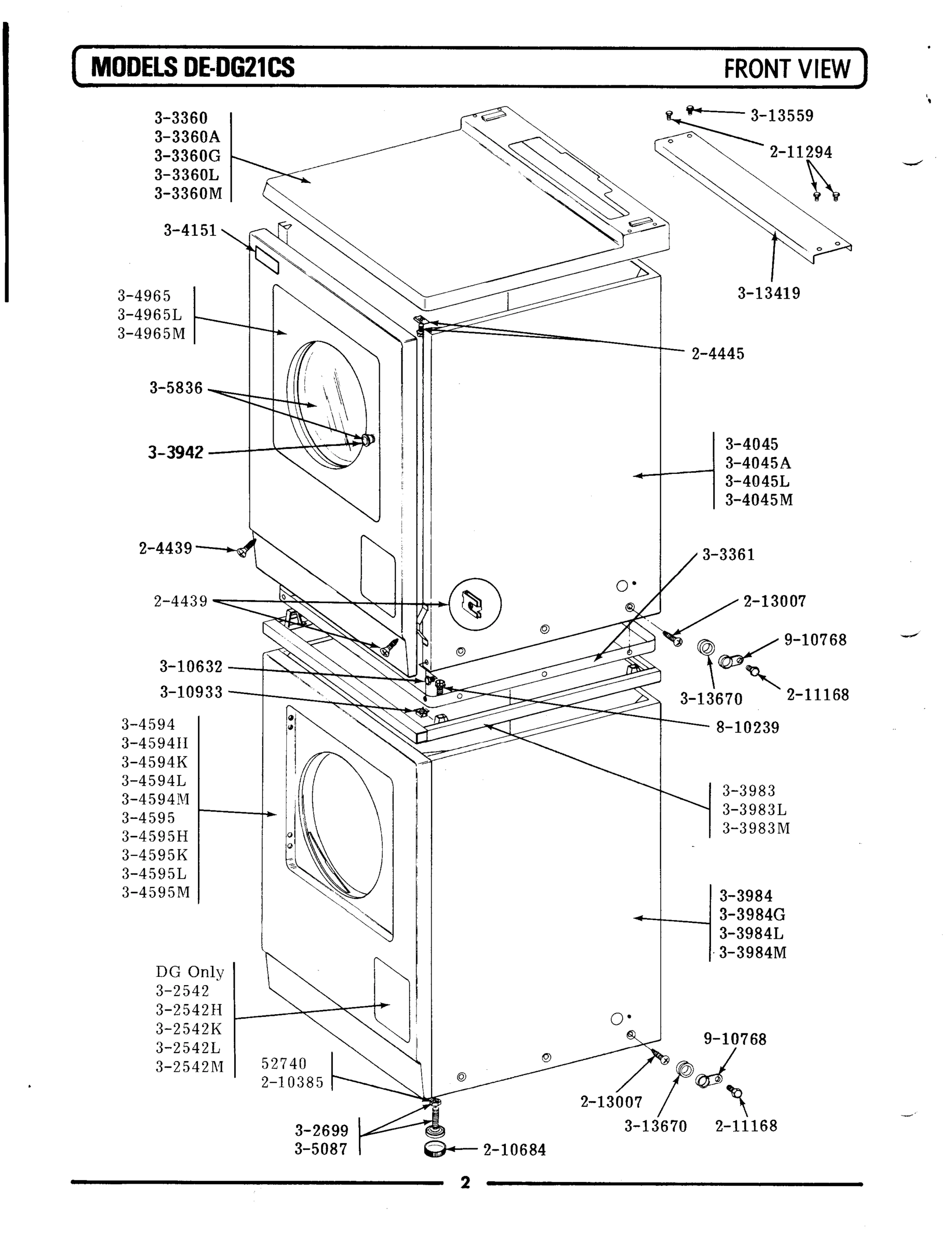

01 - FRONT VIEW
14 - 50HZ CONVERSION LIST

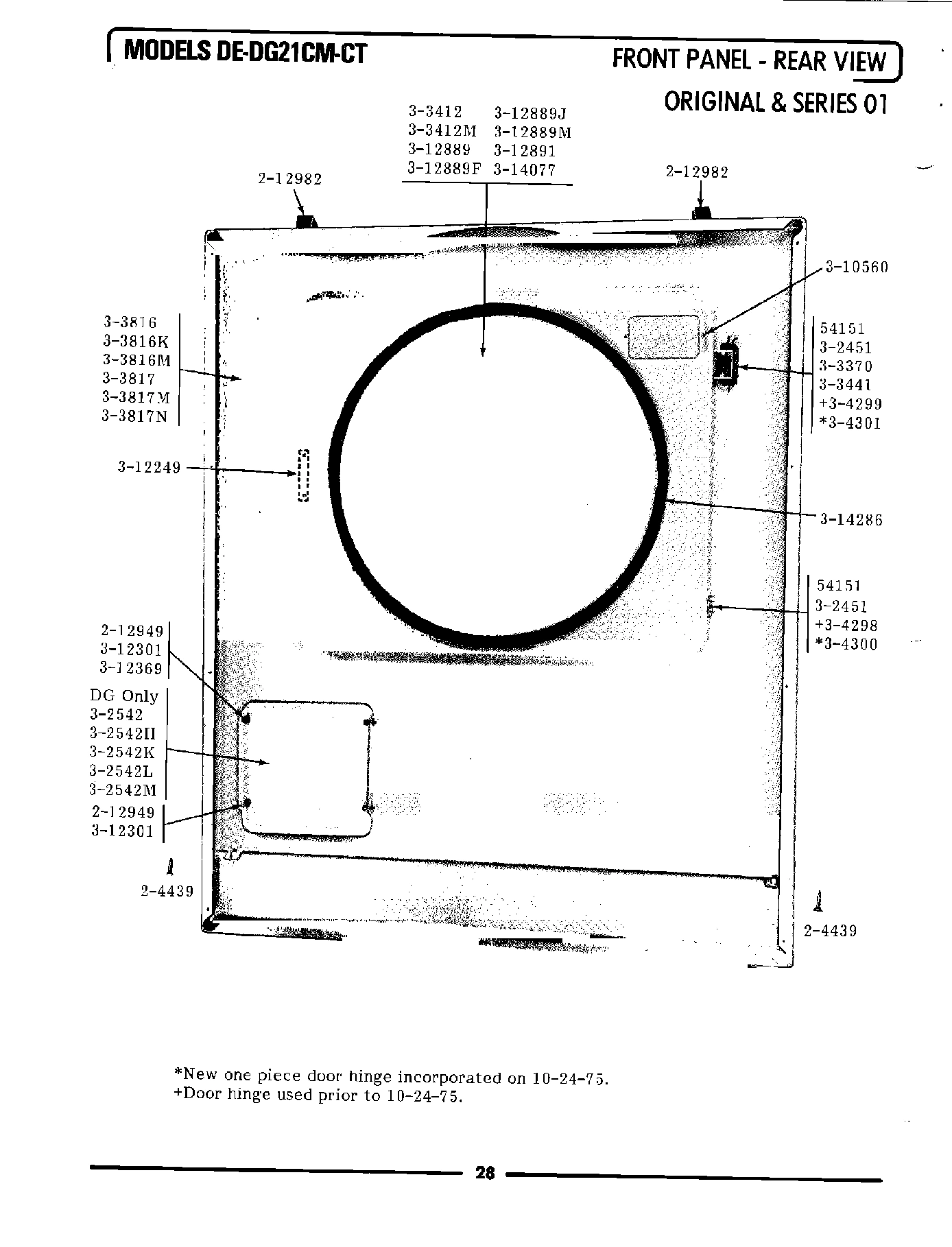

06 - FRONT PANEL-REAR VIEW

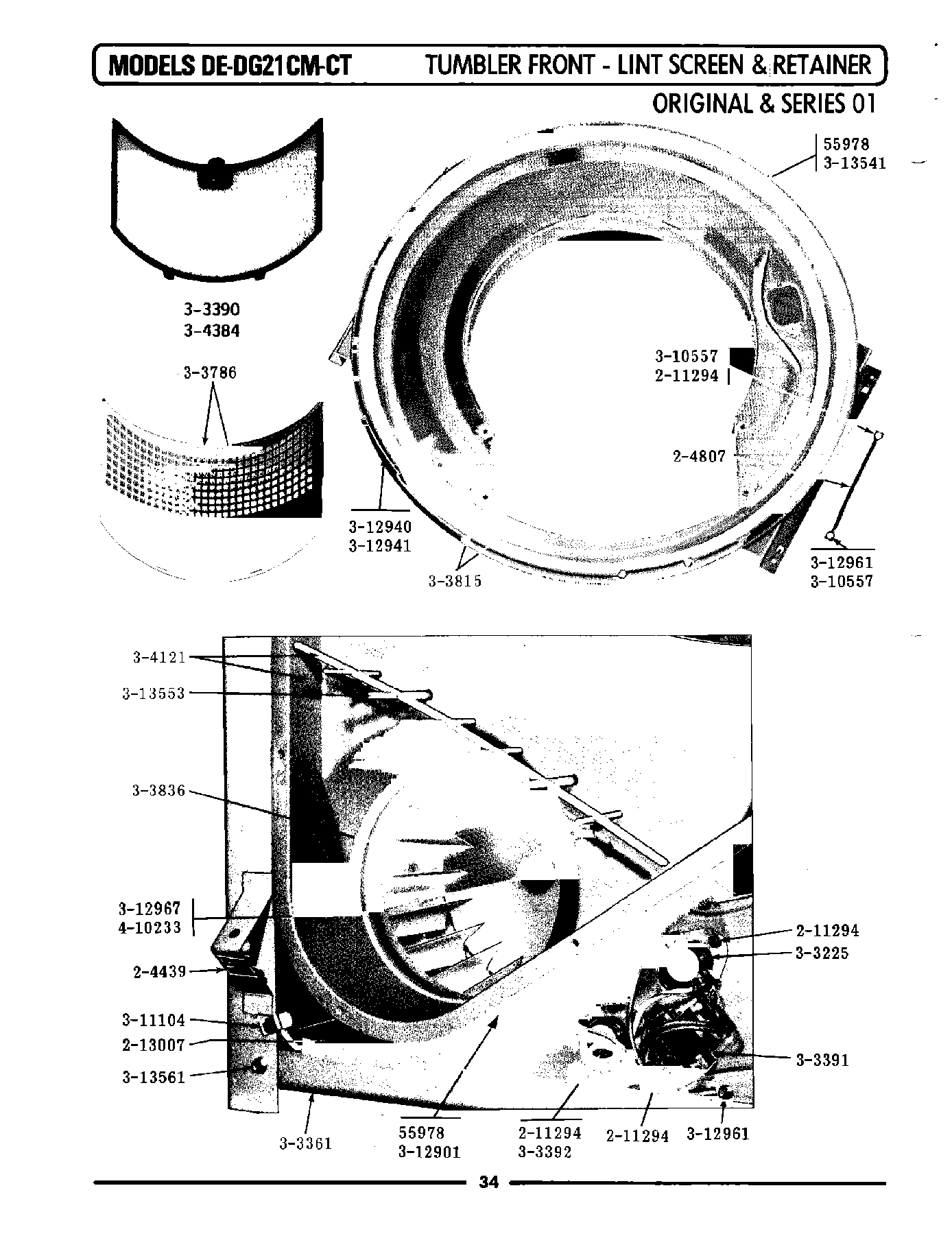

09 - TUMBLER FRONT, LINT SCREEN & RETAINER

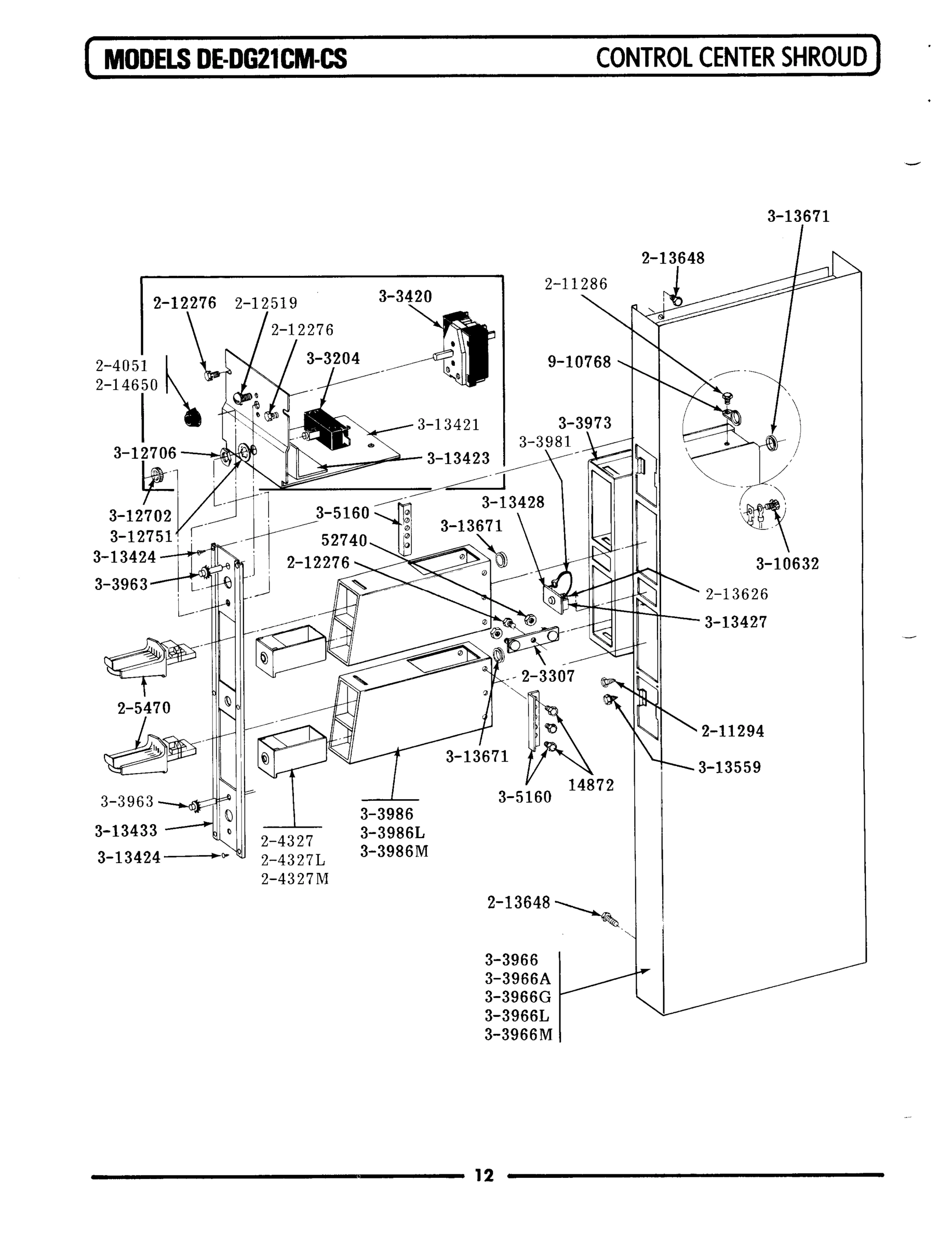

03 - CONTROL CENTER SHROUD

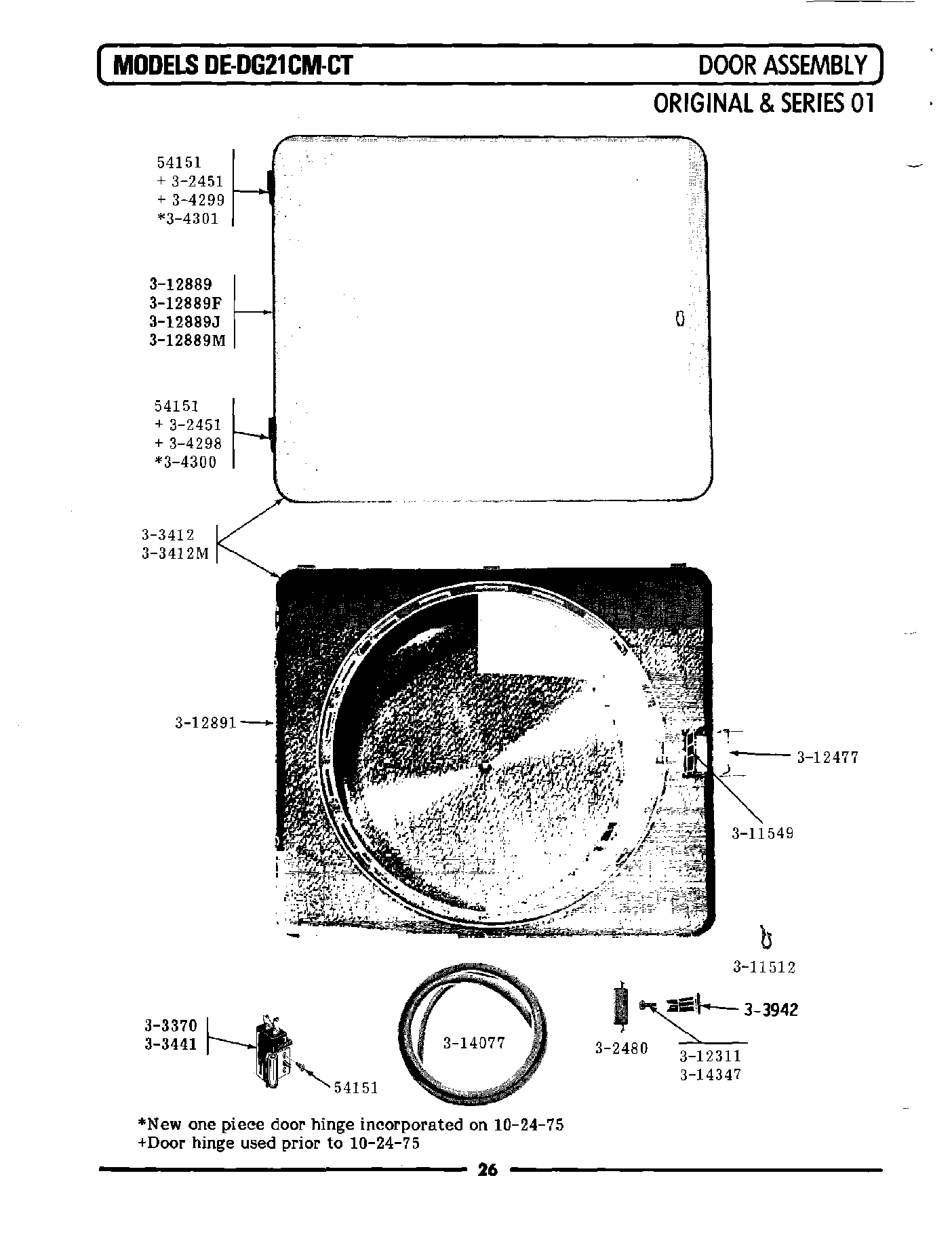

05 - DOOR ASSEMBLY

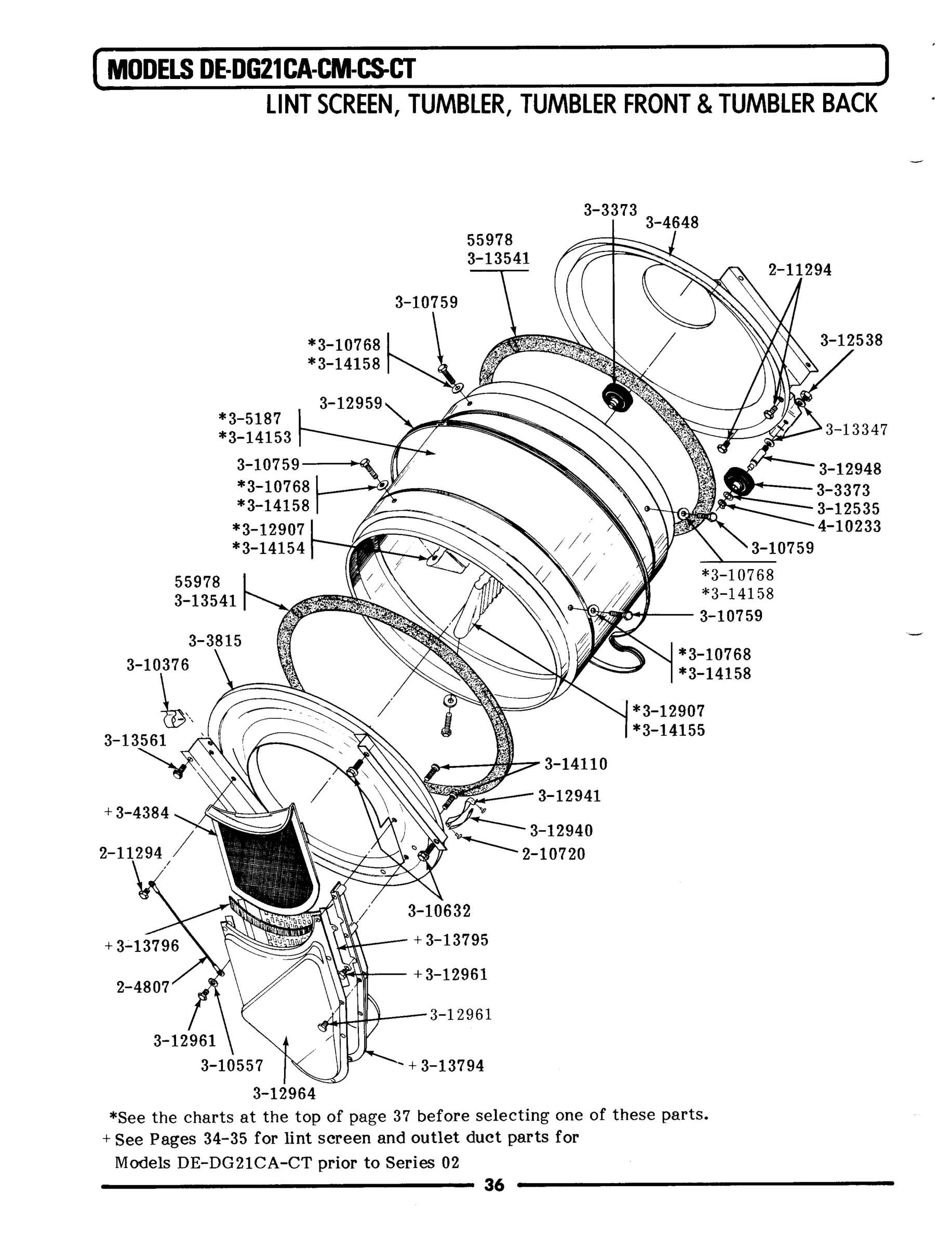

10 - LINT SCREEN, TUMBLER (FRONT & BACK)

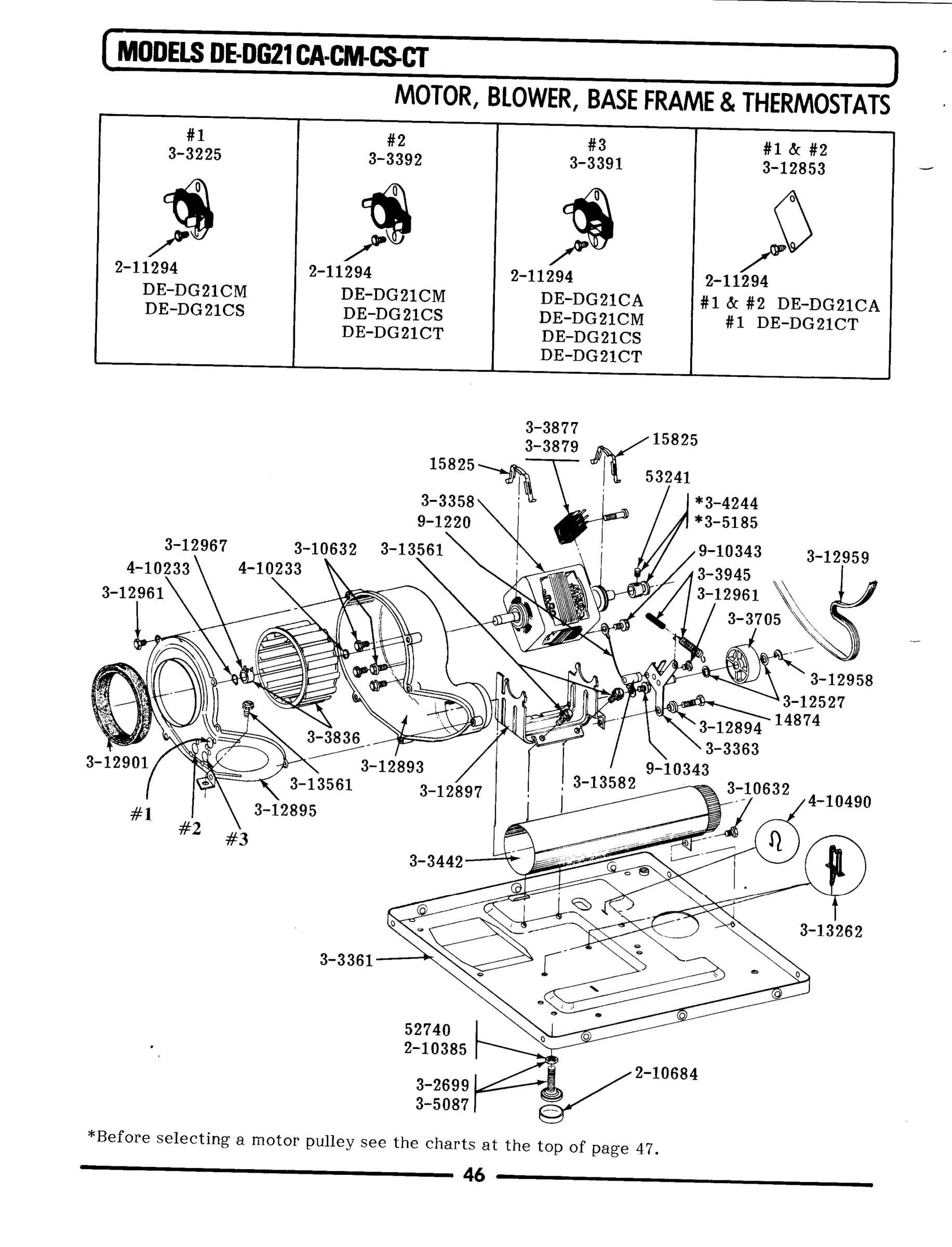

12 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

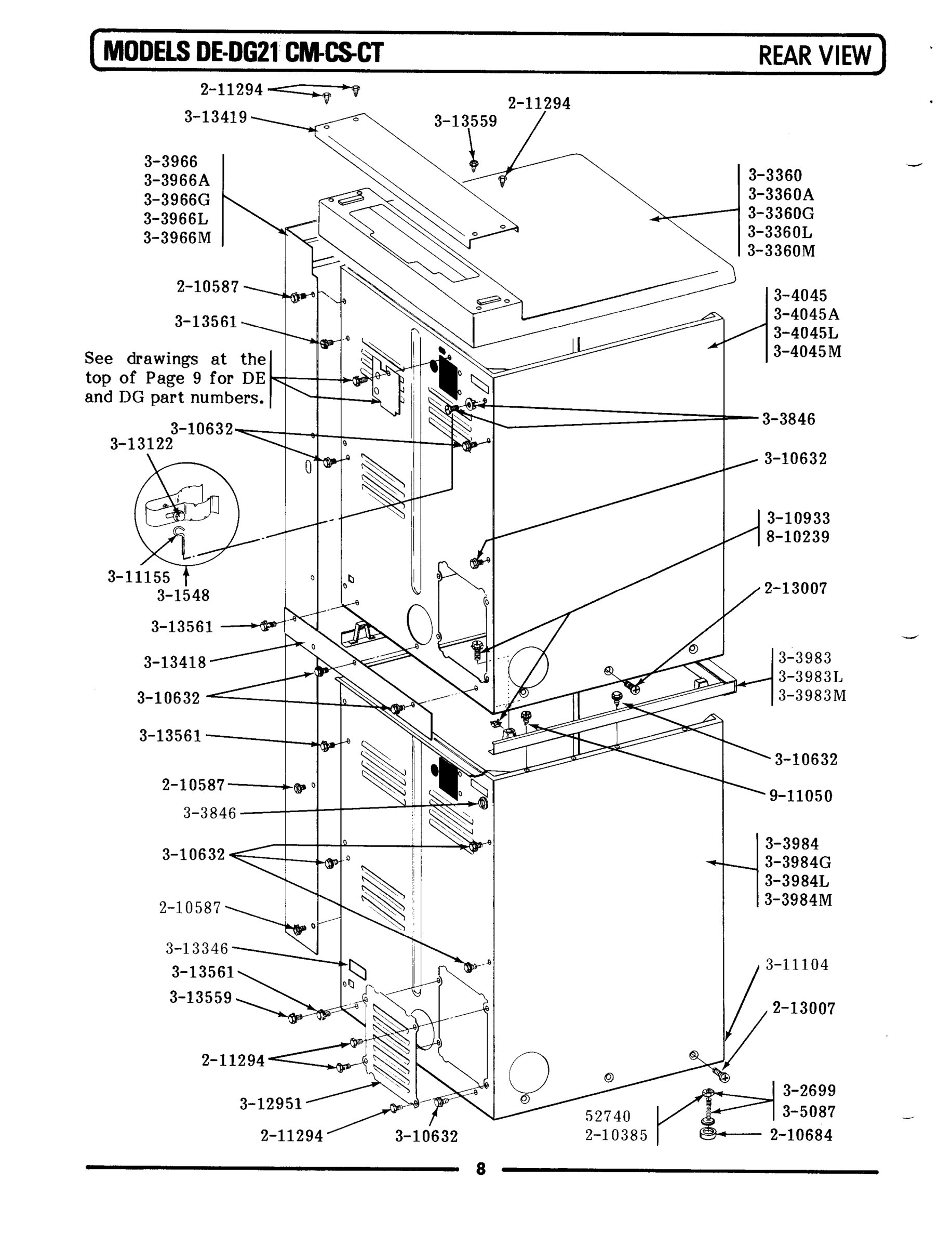

02 - REAR VIEW

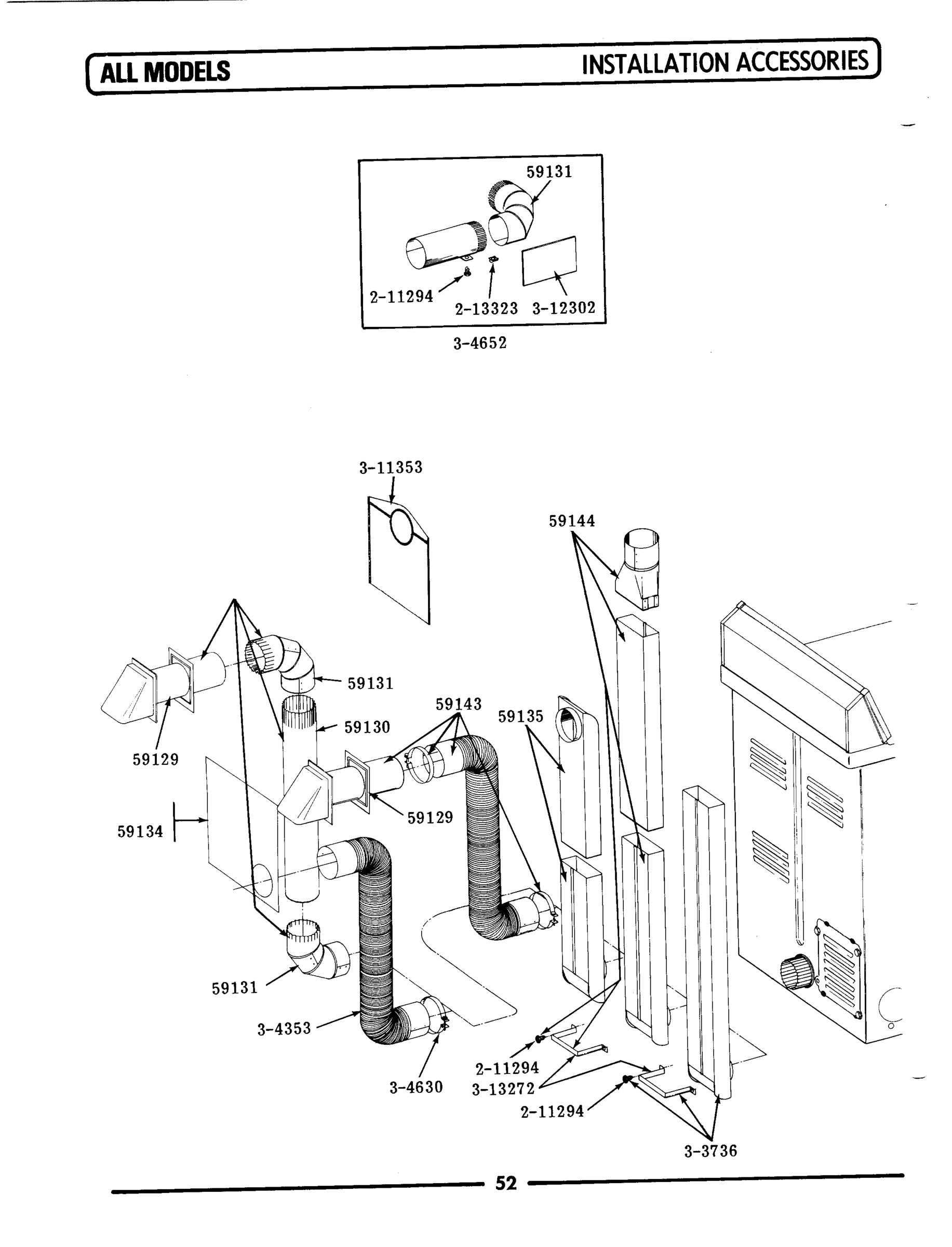

13 - INSTALLATION ACCESSORIES
Common parts from model Whirlpool DE21CM ELECTRIC DRYER
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
002
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
002
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
002
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
003
SCREW WPL 212949 Contact Us For Availability
003
GUARD FOR COIN BOX WPL 205416 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
004
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
004
MOTOR 240-50 WPL Y304656 Contact Us For Availability
004
KNOB WPL 204051 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
005
DOOR SWITCH WPL Y303441 Contact Us For Availability
006
SCREW WPL 211251 Contact Us For Availability
006
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
006
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
006
HINGE - LOWER WPL Y304298 Contact Us For Availability
006
PIPE, VENTING WPL Y059130 Contact Us For Availability
007
DOOR-WHITE WPL Y304579 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
007
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
007
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
007
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
007
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
008
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
008
LINT SCREEN WPL Y303390 Contact Us For Availability
008
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
009
HEATER SHIELD WPL 304124 Contact Us For Availability
009
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
009
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
010
TIMER SUPPORT BRACKET WPL 213029 Contact Us For Availability
010
TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability
010
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
011
BOLT, LOCKING WPL 213035 Contact Us For Availability
011
BASE ASSY. WPL Y303361 Contact Us For Availability
011
LINT SCREEN WITH RETAINER WPL Y303786 Contact Us For Availability
012
SWITCH FOR COIN SLIDE WPL Y301774 Contact Us For Availability
012
TUMBLER WPL 305187 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
WIRE ASSEMBLY WPL Y303707 Contact Us For Availability
013
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
013
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
014
TIMER WPL Y303743 Contact Us For Availability
014
CABINET-WHITE WPL 304045 Contact Us For Availability
014
WASHER WPL 310557 Contact Us For Availability
014
START SWITCH WITH NUTS WPL Y303204 Contact Us For Availability
015
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
015
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
016
SCREW WPL Y310759 Contact Us For Availability
016
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
016
TWIN FASTENER WPL Y313907 Contact Us For Availability
016
SCREW WPL Y310632 Contact Us For Availability
016
DOOR LINER - INNER HALF WPL Y312891 Contact Us For Availability
016
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
016
INDICATOR LIGHT WPL 303963 Contact Us For Availability
016
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
017
DOOR SEAL WPL 314077 Contact Us For Availability
017
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
017
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
017
FASTENER WPL 310933 Contact Us For Availability
017
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
018
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
018
HEATER ELEMENT - DE MODELS WPL Y313322 Contact Us For Availability
018
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
018
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
019
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
019
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
019
GROUND WIRE FOR LATCH WPL Y303981 Contact Us For Availability
019
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
019
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
020
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
020
BRACKET, EXHAUST DEFLECTOR WPL NLA Contact Us For Availability
020
RETURN LEVER WPL Y312068 Contact Us For Availability
020
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
020
TUMBLER BAFFLE WPL Y312907 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
021
DOOR PANEL-WHITE WPL Y313946 Contact Us For Availability
021
STOP FOR ACTUATOR WPL Y312069 Contact Us For Availability
021
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
021
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
022
GASKET FOR WINDOW WPL Y313947 Contact Us For Availability
022
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
022
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
022
IDLER, PULLEY & SLEEVE KIT WPL Y304245 Contact Us For Availability
023
SCREW WPL Y314062 Contact Us For Availability
023
RETURN SPRING FOR ACTUATOR WPL Y312071 Contact Us For Availability
023
GROMMET, STRIP WPL 33001303 Contact Us For Availability
023
KNURLED NUT WPL Y312702 Contact Us For Availability
023
STRAP, GROUND WPL Y312184 Contact Us For Availability
024
SPRING WASHER WPL 312073 Contact Us For Availability
024
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
024
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
025
TIMER SUPPORT BRACKET WPL 312250 Contact Us For Availability
025
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
026
TIMER ACTUATOR LEVER WPL Y313309 Contact Us For Availability
026
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
026
COVER, TERMINAL WPL Y312905 Contact Us For Availability
027
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
027
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
027
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
027
COVER, ACCESS WPL Y312951 Contact Us For Availability
028
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
028
TIME INDICATOR GAGE WPL 314073 Contact Us For Availability
028
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
029
WASHER WPL 410730 Contact Us For Availability
030
LOCK WASHER WPL 910181 Contact Us For Availability
030
OUTLET GRID AND DUCT ---S WPL Y313794 Contact Us For Availability
030
PLATE FOR LATCH WPL 313428 Contact Us For Availability
030
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
031
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
032
LINT SEAL WPL Y313796 Contact Us For Availability
033
SCREW----NA WPL Y313561 Contact Us For Availability
033
GROMMET FOR CONTROL CENTER WPL Y313671 Contact Us For Availability
034
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
034
TUMBLER No. WPL Y314153 Contact Us For Availability
034
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
037
WASHER WPL 314158 Contact Us For Availability
037
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
041
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
WIRE, GROUND WPL 901220 Contact Us For Availability
× ![]()
