Model Whirlpool DE18CT ELECTRIC DRYER – Common Parts & Diagrams
12 - LINT SCREEN, TUMBLER (FRONT & BACK)

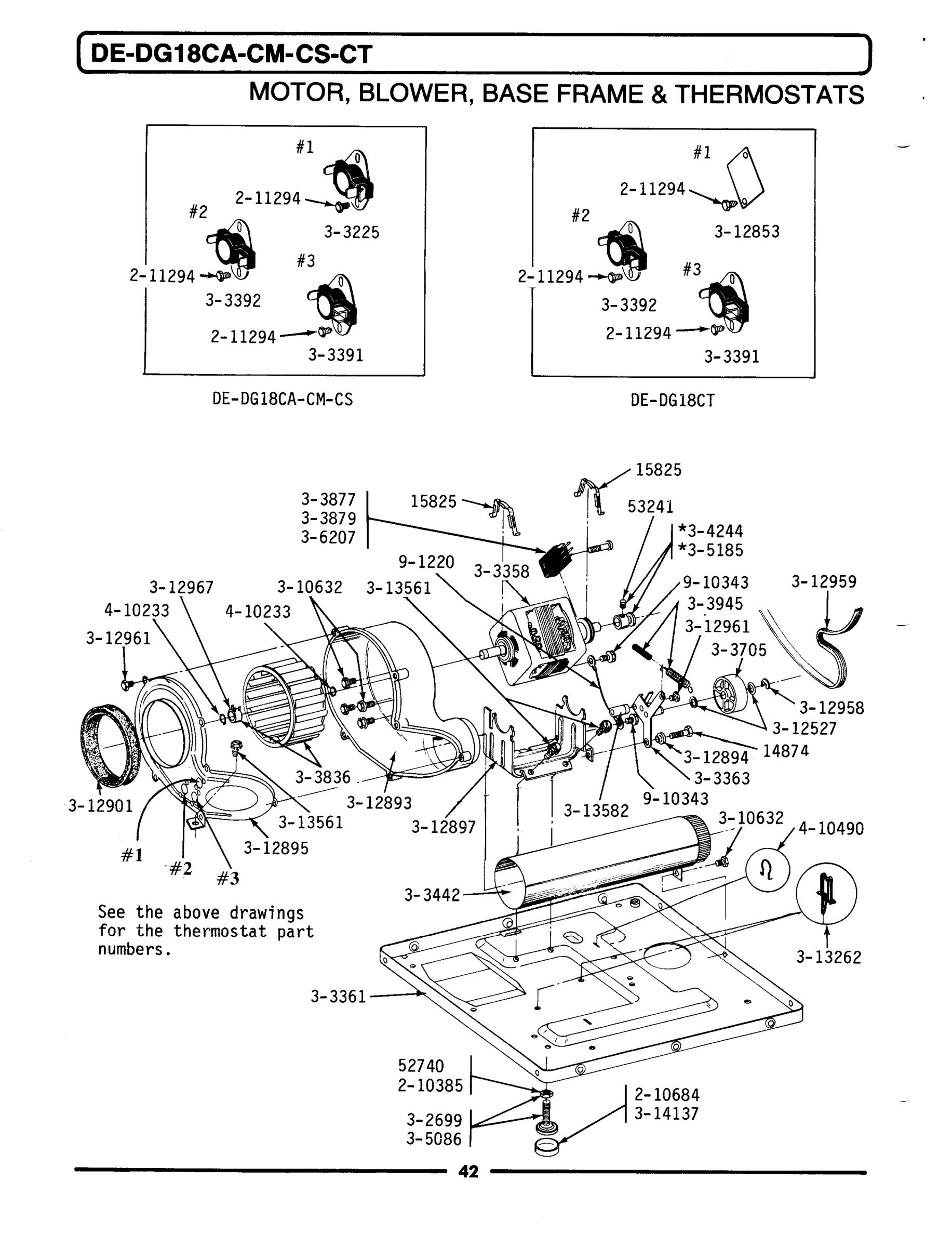

14 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

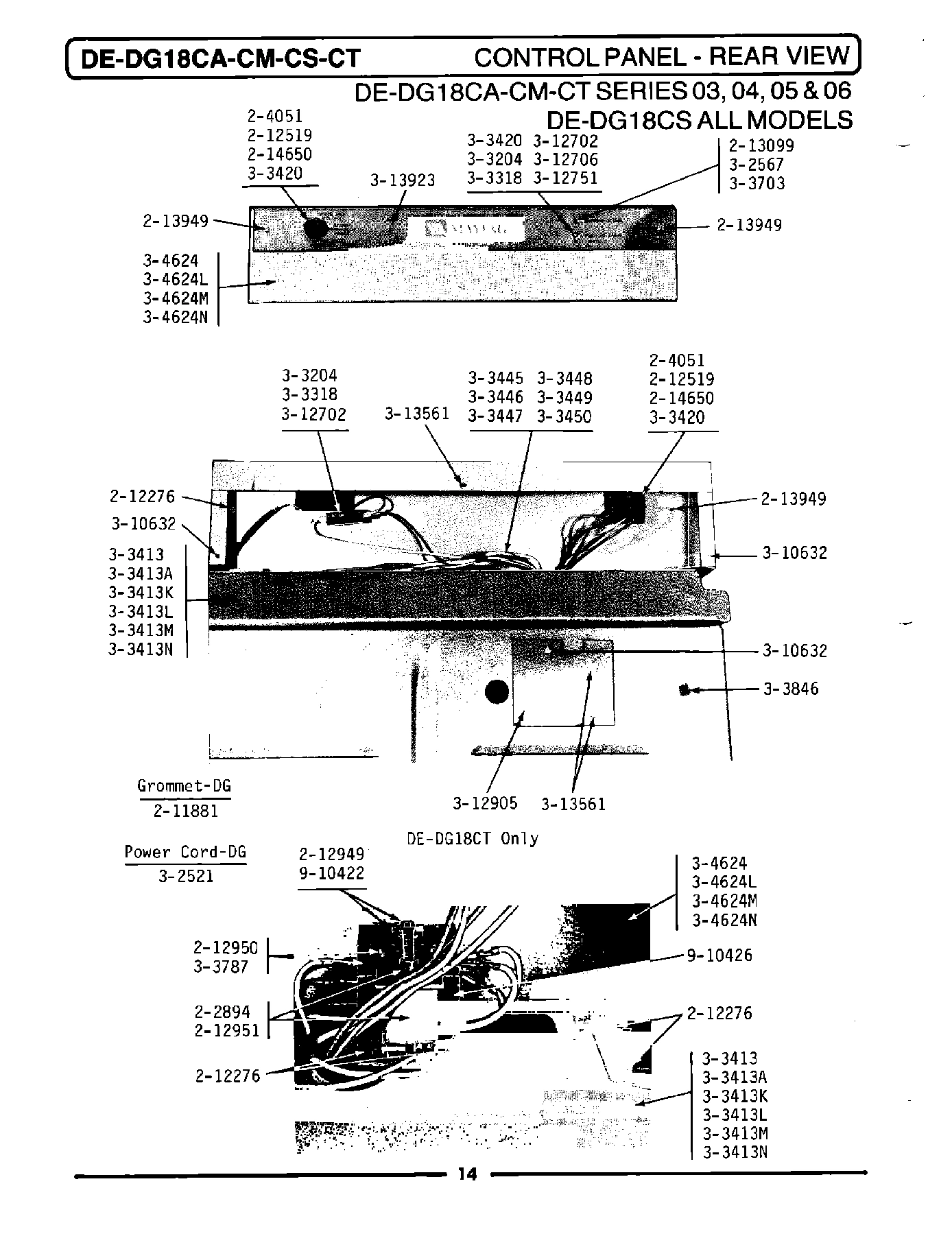

05 - CONTROL PANEL-REAR VIEW (SERIES 03)
06 - CT CONTROL CENTER

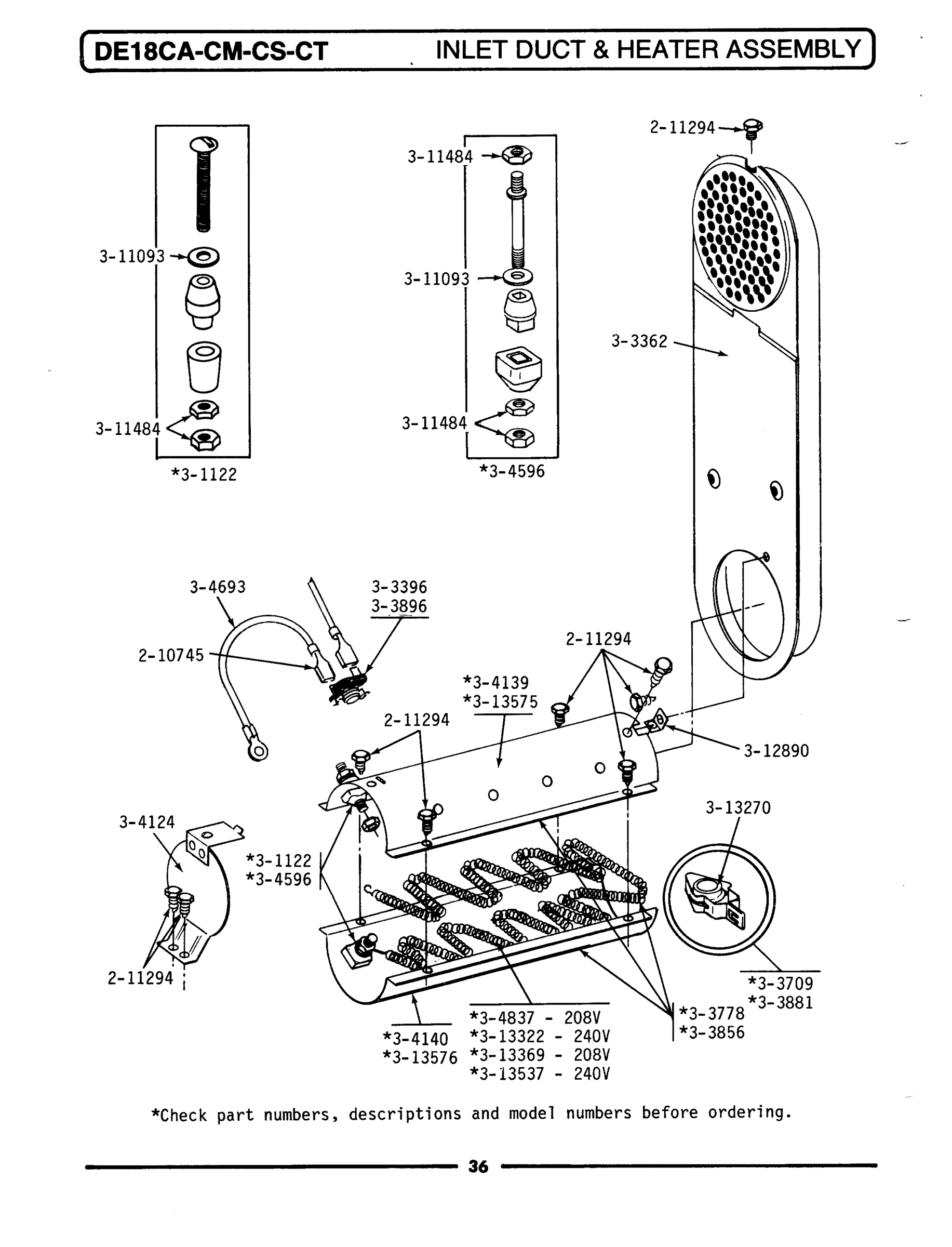

13 - INLET DUCT & HEATER ASSEMBLY
02 - FRONT VIEW (SERIES 03)

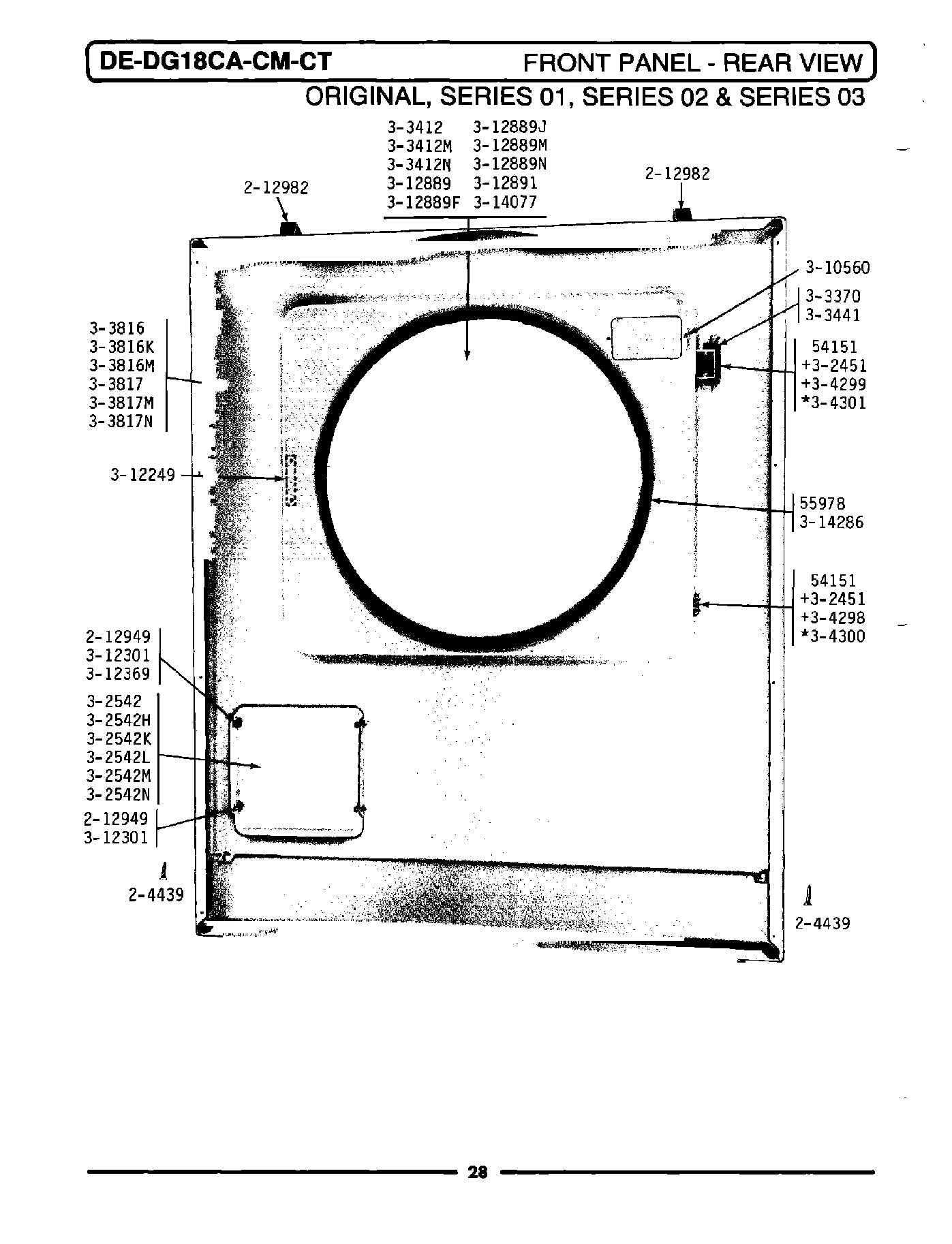

09 - FRONT PANEL-REAR VIEW

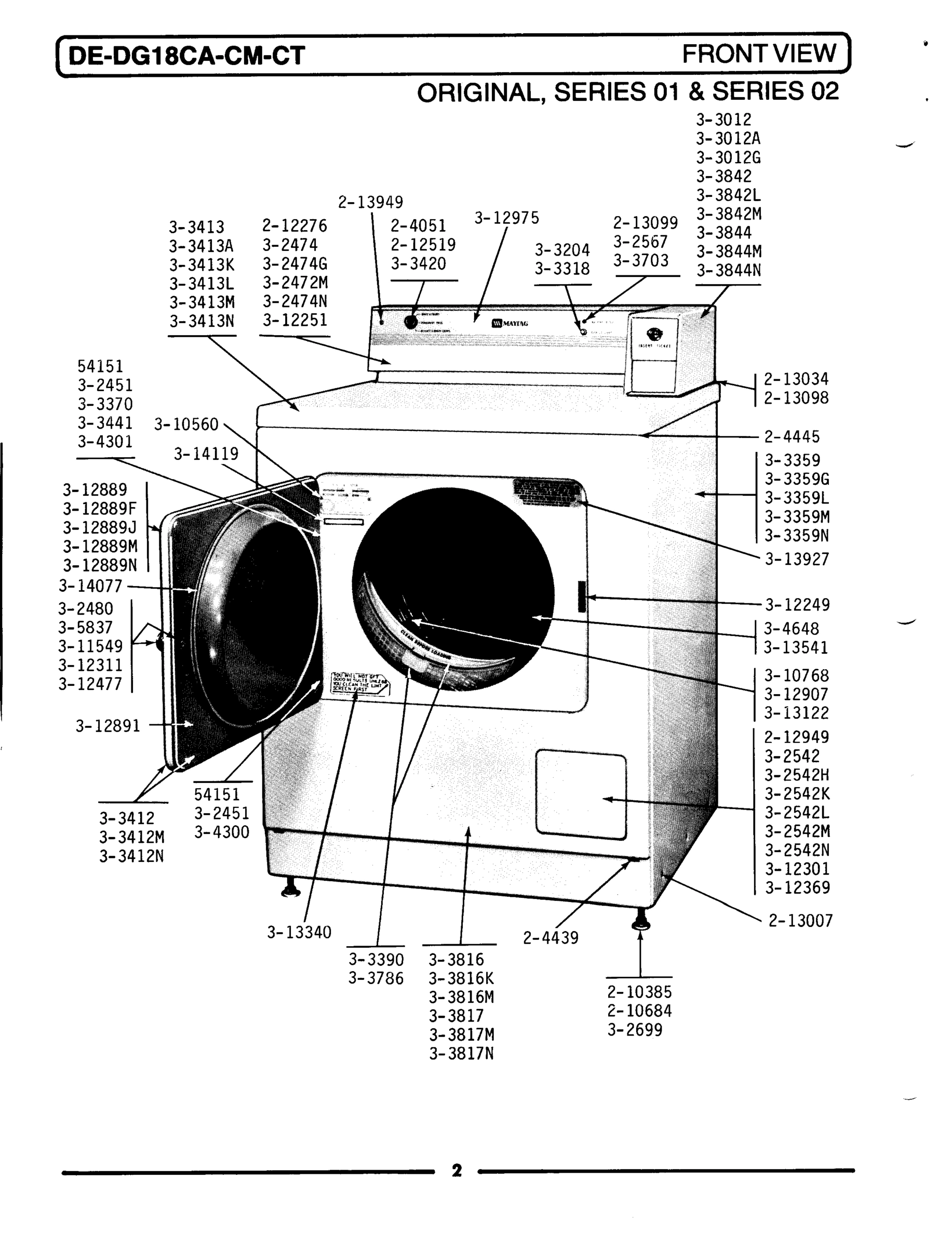

01 - FRONT VIEW
03 - REAR VIEW

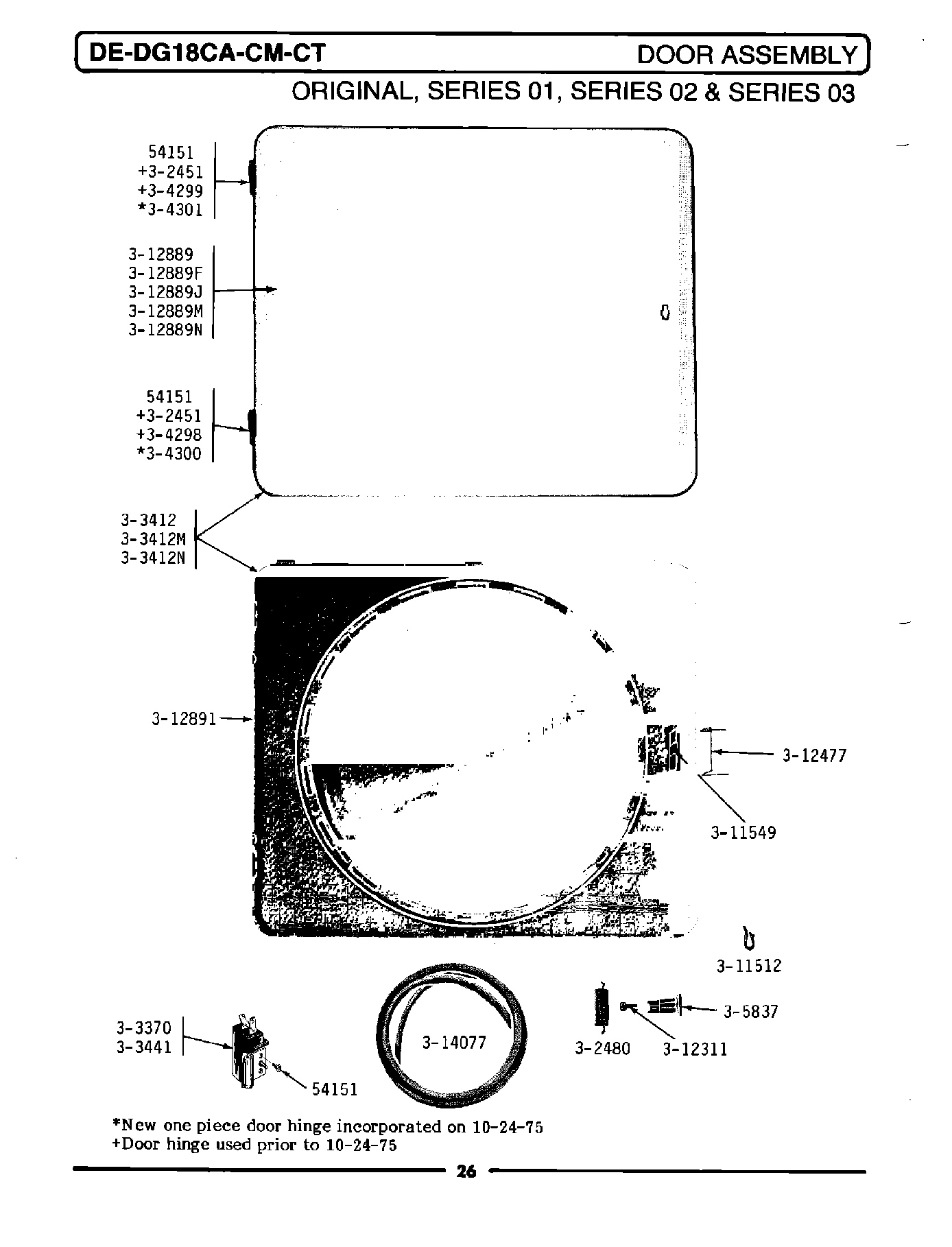

08 - DOOR ASSEMBLY

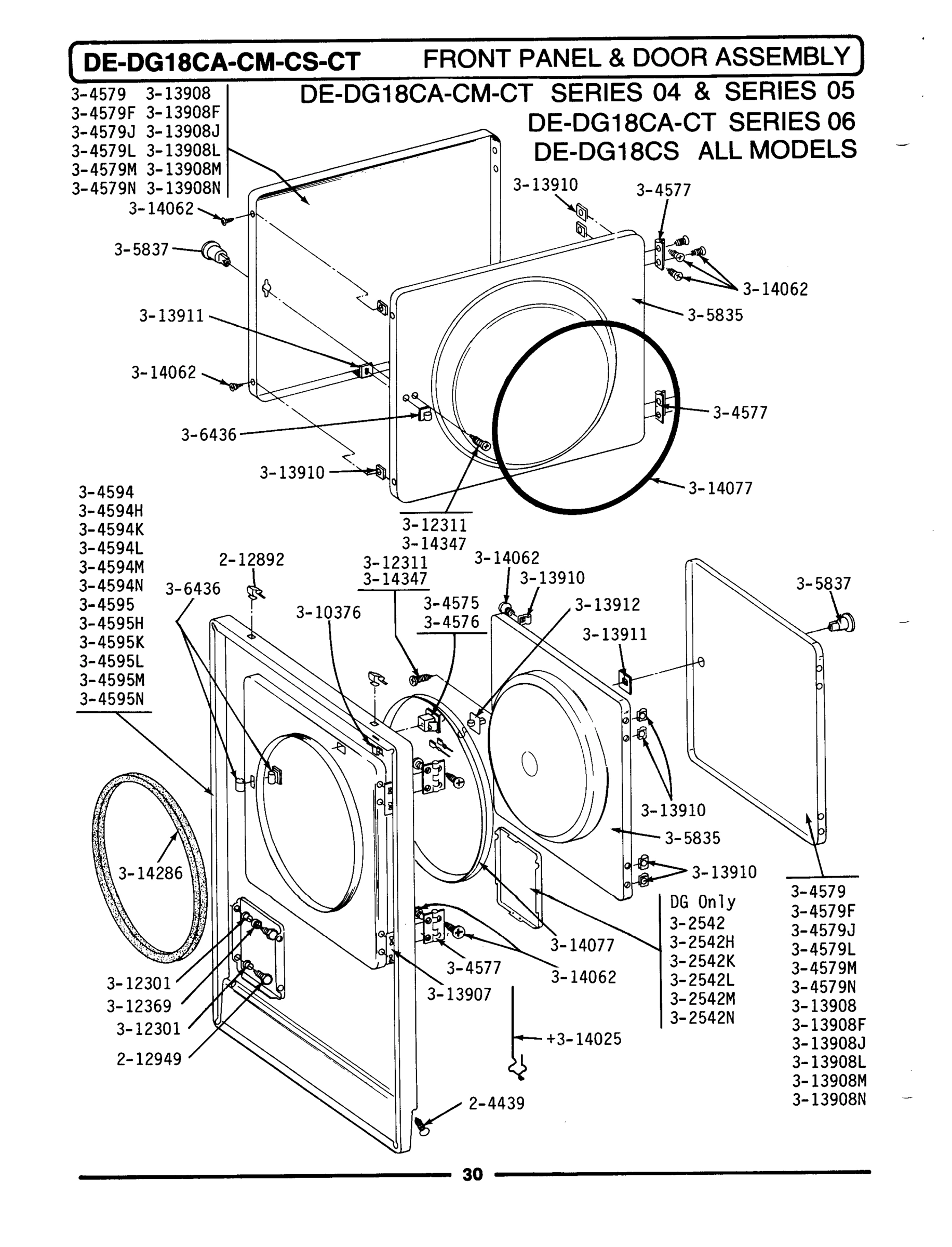

10 - FRONT PANEL & DOOR ASSEMBLY
04 - CONTROL PANEL-REAR VIEW

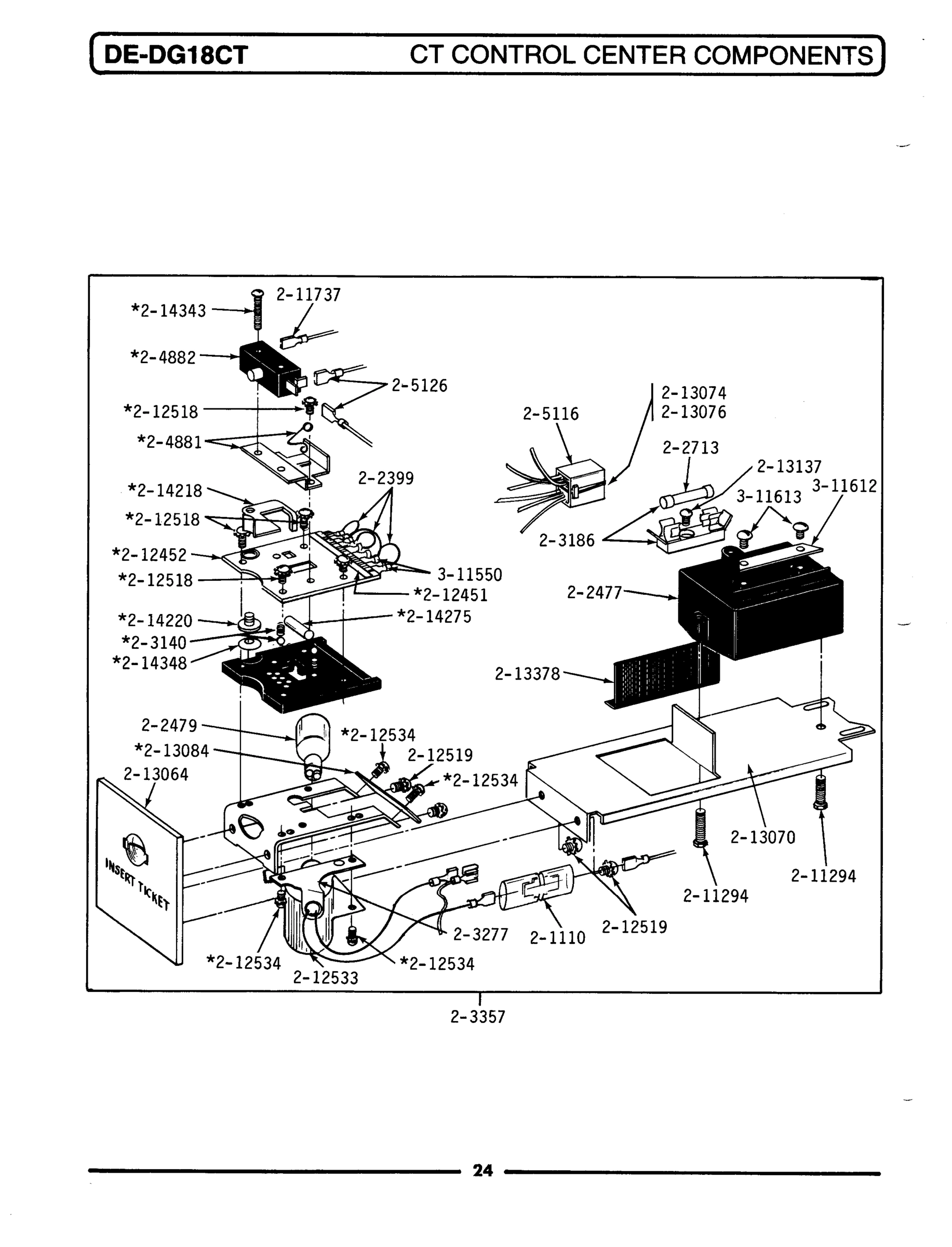

07 - CT CONTROL CENTER COMPONENTS

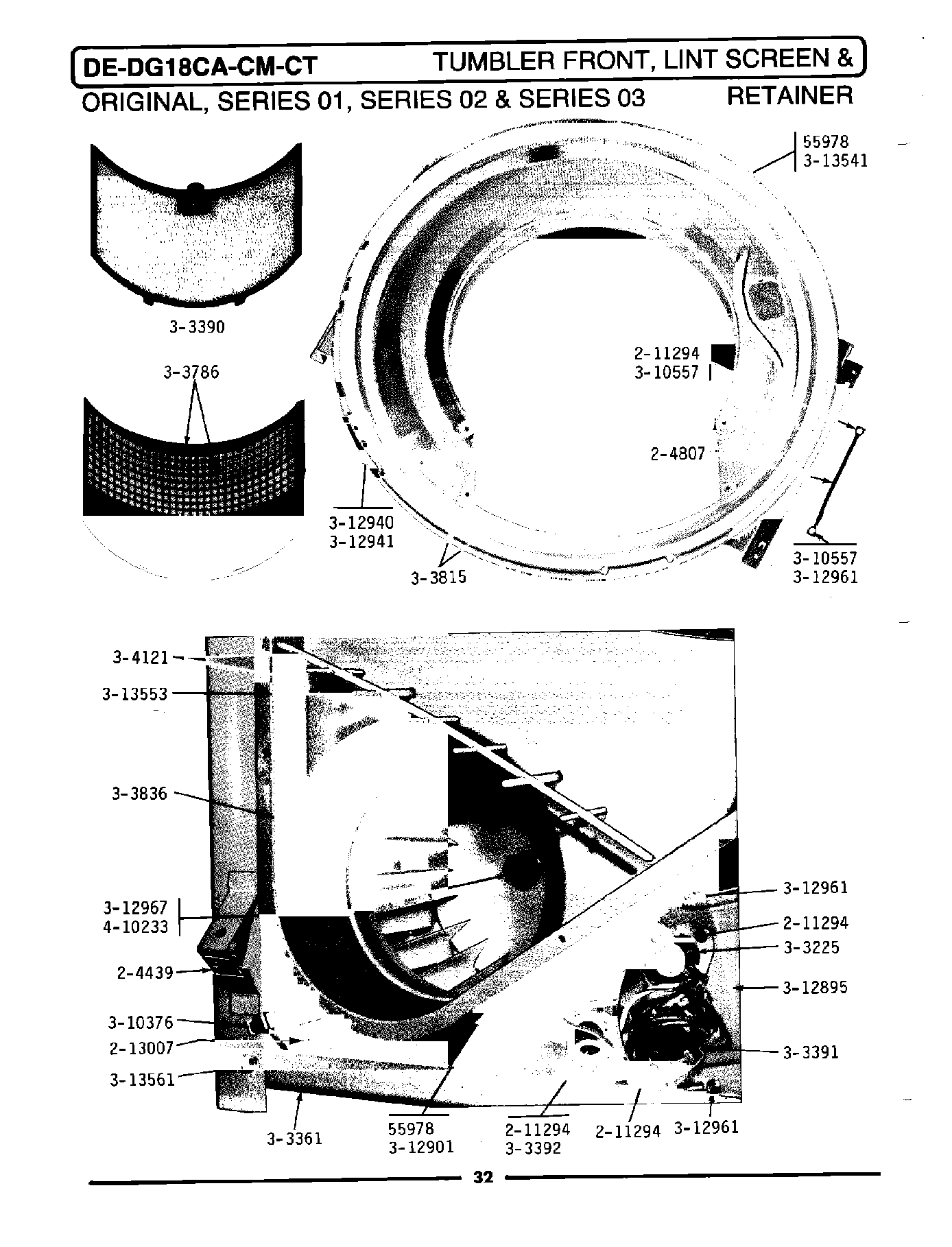

11 - TUMBLER FRONT, LINT SCREEN & RETAINER
Common parts from model Whirlpool DE18CT ELECTRIC DRYER
001
SOLENOID FOR RELAY ASSEMBLY WPL 202894 Contact Us For Availability
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
001
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
001
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
002
KNOB WPL 204051 Contact Us For Availability
002
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
003
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
003
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
004
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
004
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
004
DOOR SWITCH WPL Y303370 Contact Us For Availability
004
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
005
SCREW WPL 212949 Contact Us For Availability
005
DOOR-WHITE WPL Y304579 Contact Us For Availability
005
TICKET CONTROL WPL 202509 Contact Us For Availability
006
SCREW, RELAY SWITCH TO BRKT WPL 212950 Contact Us For Availability
006
CLIP AND INSULATOR ASSEMBLY WPL 303709 Contact Us For Availability
007
BASE ASSY. WPL Y303361 Contact Us For Availability
007
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
007
HINGE - LOWER WPL Y304298 Contact Us For Availability
007
CONTACT BALL KIT WPL 203140 Contact Us For Availability
008
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
008
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
008
LINT SCREEN WPL Y303390 Contact Us For Availability
010
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
011
HEATER SHIELD WPL 304124 Contact Us For Availability
011
LINT SCREEN WITH RETAINER WPL Y303786 Contact Us For Availability
011
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
012
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
012
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
013
TUMBLER WPL 305187 Contact Us For Availability
014
SWITCH ASSEMBLY WITH HEX NU WPL Y303318 Contact Us For Availability
015
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
016
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
016
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
016
KNOB FOR TIMER WPL 213089 Contact Us For Availability
016
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
017
WASHER WPL 310557 Contact Us For Availability
017
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
017
TWIN FASTENER WPL Y313907 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
018
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
018
HARNESS FOR TIMER WPL Y302559 Contact Us For Availability
018
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
018
DOOR LINER - INNER HALF WPL Y312891 Contact Us For Availability
018
CIRCUIT BOARD WPL 212452 Contact Us For Availability
019
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
019
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
020
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
020
TIMER WITH KNOB AND PIN WPL Y303801 Contact Us For Availability
020
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
021
IDLER, PULLEY & SLEEVE KIT WPL Y304245 Contact Us For Availability
021
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
021
HEATER ELEMENT - DE MODELS WPL Y313322 Contact Us For Availability
021
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
021
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
022
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
023
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
023
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
023
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
023
SWITCH FOR RELAY WPL Y303787 Contact Us For Availability
023
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
023
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
024
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
024
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
025
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
025
SCREW WPL Y314062 Contact Us For Availability
025
PIN RECEPTACLE FOR PLUG WPL 213074 Contact Us For Availability
026
SCREW WPL Y310632 Contact Us For Availability
026
GRID FOR OUTLET DUCT WPL NLA Contact Us For Availability
026
GROOV-PIN WPL Y312300 Contact Us For Availability
026
DOOR SEAL WPL 314077 Contact Us For Availability
027
SCREW----NA WPL Y313561 Contact Us For Availability
027
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
027
WASHER WPL 910309 Contact Us For Availability
028
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
028
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
028
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
029
LINT SEAL WPL Y313796 Contact Us For Availability
029
KNURLED NUT WPL Y312702 Contact Us For Availability
029
STRAP, GROUND WPL Y312184 Contact Us For Availability
030
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
030
SWITCH LEVER WPL 214218 Contact Us For Availability
031
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
032
COVER, TERMINAL WPL Y312905 Contact Us For Availability
032
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
032
ROLLER FOR CAM WPL 214275 Contact Us For Availability
034
COVER, ACCESS WPL Y312951 Contact Us For Availability
035
TUMBLER No. WPL Y314153 Contact Us For Availability
035
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
036
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
037
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
037
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
037
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
038
WASHER WPL 314158 Contact Us For Availability
038
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
040
TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability
042
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
043
WIRE, GROUND WPL 901220 Contact Us For Availability
052
TUMBLER BAFFLE WPL Y312907 Contact Us For Availability
054
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
× ![]()
