Model Whirlpool CE2500XMW1 COMMERCIAL ELECTRIC DRYER – Common Parts & Diagrams
02 - BULKHEAD, LITERATURE AND OPTIONAL
05 - WIRING HARNESS

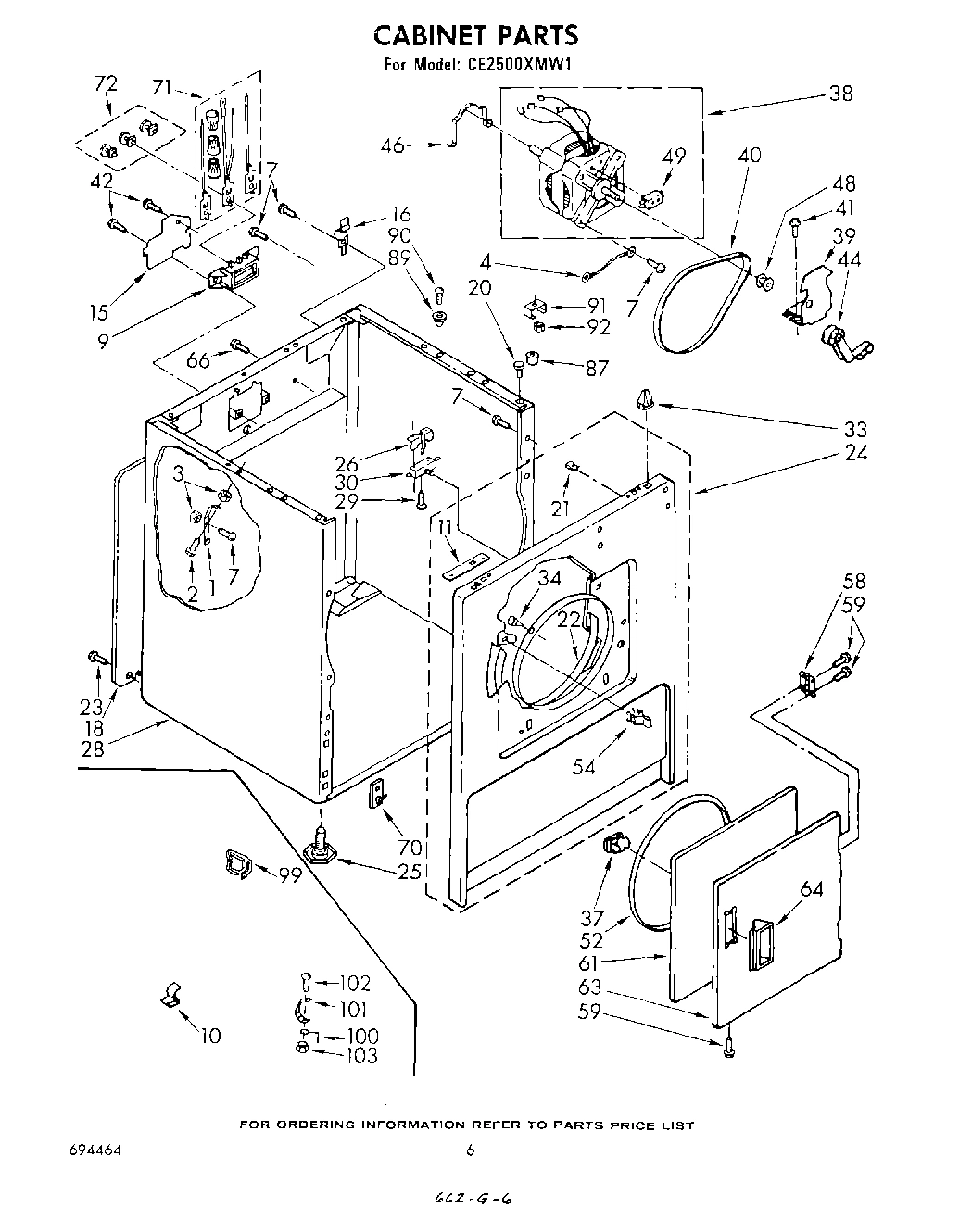

04 - CABINET
03 - TOP AND CONSOLE
Common parts from model Whirlpool CE2500XMW1 COMMERCIAL ELECTRIC DRYER
1
Harness, Timer WPL 695076 Contact Us For Availability
1
Bracket, Top Lock WPL 688074 Contact Us For Availability
1
Nut, Push-In (4) WPL 98219 Contact Us For Availability
2
Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability
2
BOLT, 5/16-18 X 2 3/4 WPL 354730 Contact Us For Availability
2
White WPL 688150 Contact Us For Availability
2
Almond WPL 689310 Contact Us For Availability
2
New Avocado WPL 689312 Contact Us For Availability
2
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
2
Cover, Lint Screen WPL 691197 Contact Us For Availability
3
Harness, Wiring (Upper) WPL 695512 Contact Us For Availability
4
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
4
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
4
Switch, Pushbutton WPL 693987 Contact Us For Availability
5
Cap, Terminal (9-Way) WPL 94612 Contact Us For Availability
6
Harness, Wiring (Lower) WPL 695513 Contact Us For Availability
6
Cap, End (R.H.) WPL 385800 Contact Us For Availability
7
Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability
7
Screw, 10-16 x 1/2 WPL 90057 Contact Us For Availability
9
Billboard, Console WPL 693988 Contact Us For Availability
11
Bracket, Front Top Lock WPL 688021 Contact Us For Availability
11
Bracket, Control WPL 386567 Contact Us For Availability
14
Panel, Rear WPL 356441 Contact Us For Availability
16
Top (White) WPL 693939 Contact Us For Availability
16
Top (Almond) WPL 693940 Contact Us For Availability
16
Top (New Avocado) WPL 693941 Contact Us For Availability
16
Top (Golden Harvest) WPL 693942 Contact Us For Availability
18
Panel, Rear WPL 346368 Contact Us For Availability
19
Lens, Amber (3) WPL 301006 Contact Us For Availability
20
Locator, Top WPL 98669 Contact Us For Availability
20
Lights, Indicator (240 Volts) WPL 358742 Contact Us For Availability
21
Lens, Yellow WPL 358741 Contact Us For Availability
23
Plate Assembly (Vault Cover) WPL 376429 Contact Us For Availability
24
Front Panel Assembly (White) WPL 693975 Contact Us For Availability
24
Front Panel Assembly (Almond) WPL 693976 Contact Us For Availability
24
Front Panel Assembly (New Avocado) WPL 693978 Contact Us For Availability
24
Front Panel Assembly (Golden Harvest) WPL 693979 Contact Us For Availability
24
Button (4) WPL 385798 Contact Us For Availability
25
Plug, Button WPL 54690 Contact Us For Availability
26
Case, Meter (White) WPL 385365 Contact Us For Availability
26
Case, Meter (Almond) WPL 385366 Contact Us For Availability
26
Case, Meter (New Avocado) WPL 385367 Contact Us For Availability
26
Case, Meter (Golden Harvest) WPL 385368 Contact Us For Availability
27
Bolt, 5/16-24 x 3/4 WPL 691983 Contact Us For Availability
28
Cabinet (White) WPL 690847 Contact Us For Availability
28
Cabinet (Almond) WPL 690848 Contact Us For Availability
28
Cabinet (New Avocado) WPL 690850 Contact Us For Availability
28
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
28
Washer, 5/16 WPL 138485 Contact Us For Availability
29
Plate & Nut Assembly WPL 83701 Contact Us For Availability
33
Door, Service (Almond) WPL 385758 Contact Us For Availability
33
Door, Service (New Avocado) WPL 385759 Contact Us For Availability
33
Door, Service (Golden Harvest) WPL 385760 Contact Us For Availability
34
Insulation WPL 685870 Contact Us For Availability
36
Wire, Ground WPL 687261 Contact Us For Availability
37
Wire, Ground WPL 340025 Contact Us For Availability
43
NUT, PUSH IN WPL 352292 Contact Us For Availability
44
Screw & Washer WPL 358409 Contact Us For Availability
45
Strap, Support WPL 357856 Contact Us For Availability
48
Slide & Extension WPL 694308 Contact Us For Availability
49
Slide Extension Bag Assembly WPL 694339 Contact Us For Availability
63
Door, Front (Almond) WPL 689314 Contact Us For Availability
63
Door, Front (New Avocado) WPL 689318 Contact Us For Availability
63
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
64
Handle, Do WPL 689306 Contact Us For Availability
64
WPL 689583 WPL 689583 Contact Us For Availability
64
WPL 689584 WPL 689584 Contact Us For Availability
77
WPL 799344 WPL 799344 Contact Us For Availability
77
Golden Harvest WPL 261890 Contact Us For Availability
77
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
77
Instructions, Multi-Venting WPL 348772 Contact Us For Availability
77
Leveler (Thinner) WPL 350941 Contact Us For Availability
77
Instructions, Installation WPL 687455 Contact Us For Availability
77
Sheet, Top Lock Instruction WPL 692257 Contact Us For Availability
77
List, Service Parts WPL 694464 Contact Us For Availability
77
WPL 978883 WPL 978883 Contact Us For Availability
87
WPL 356674 WPL 356674 Contact Us For Availability
89
WPL 356837 WPL 356837 Contact Us For Availability
90
WPL 427190 WPL 427190 Contact Us For Availability
99
WPL 688412 WPL 688412 Contact Us For Availability
100
WPL 685449 WPL 685449 Contact Us For Availability
101
WPL 22965 WPL 22965 Contact Us For Availability
102
WPL 132848 WPL 132848 Contact Us For Availability
NI
WPL 689791 WPL 689791 Contact Us For Availability
× ![]()
