Whirlpool AGR4230BAW1 RANGE/OVEN, GAS, FREESTANDING Parts List

1

W10610297 Whirlpool Nut Backorder WPL W10610297 $9.90

View on Model

1

W10873109 Whirlpool Endcap Panel Backorder WPL W10873109 $54.97

View on Model

1

WPW10550642 Whirlpool Range Rack In Stock WPL WPW10550642 $52.51

View on Model

1B

W10873107 Whirlpool Panel Endcap Backorder WPL W10873107 $54.97

View on Model

2

W10535815 Whirlpool Mounting Bracket Backorder WPL W10535815 $13.41

View on Model

2

W10859921 Whirlpool Venturi Assembly In Stock WPL W10859921 $25.68

View on Model

2

W11173616 Whirlpool Power Cord Backorder WPL W11173616 $77.75

View on Model

2

W11688365 Whirlpool Insulation Backorder WPL W11688365 $20.59

View on Model

2A

W11213836 Whirlpool Venturi In Stock WPL W11213836 $87.99

View on Model

2B

W10861724 Whirlpool Venturi In Stock WPL W10861724 $25.86

View on Model

2C

W11167099 Whirlpool Orifice Holder In Stock WPL W11167099 $26.80

View on Model

3

W10535761 Whirlpool Door Liner Backorder WPL W10535761 $60.74

View on Model

3

W11715913 Whirlpool Mounting Bracket In Stock WPL W11715913 $19.14

View on Model

3

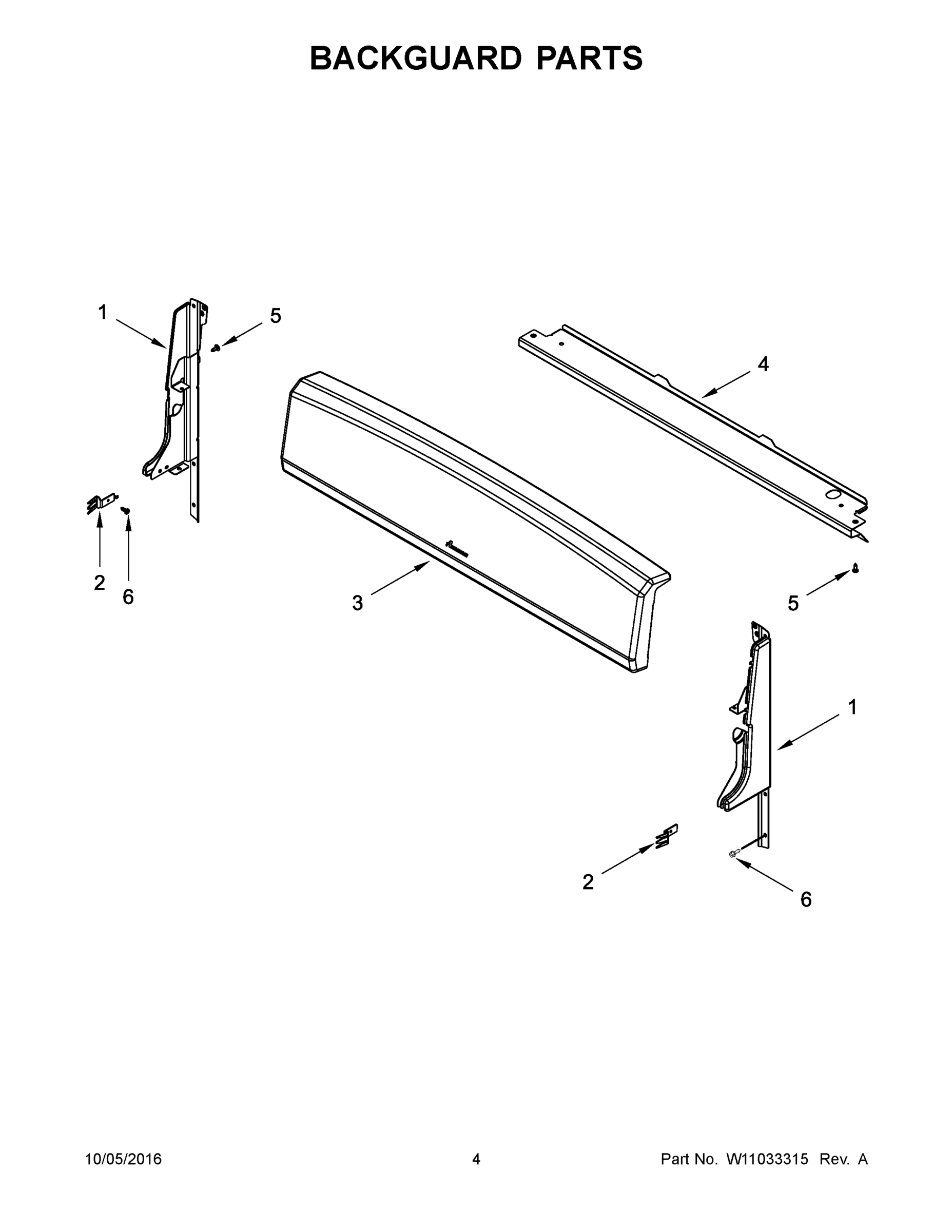

BACKGUARD (BLACK) WPL W10620552 Contact Us For Availability

View on Model

3A

W10620542 Whirlpool Manifold Panel Backorder WPL W10620542 $22.89

View on Model

3A

W10620551 Whirlpool Control Panel Assembly Backorder WPL W10620551 $42.56

View on Model

4

W10535746 Whirlpool Deflector Backorder WPL W10535746 $18.09

View on Model

4

W10622750 Whirlpool Wire Harness Backorder WPL W10622750 $16.51

View on Model

4

WP98004650 Whirlpool Nut In Stock WPL WP98004650 $5.30

View on Model

4

WPW10614598 Whirlpool Knob In Stock WPL WPW10614598 $15.04

View on Model

4A

WPW10614597 Whirlpool Burner Knob In Stock WPL WPW10614597 $17.78

View on Model

5

W10624273 Whirlpool Support Backorder WPL W10624273 $23.10

View on Model

5

W11590249 Whirlpool Spark Module In Stock WPL W11590249 $17.14

View on Model

5

W11690132 Whirlpool Knob Backorder WPL W11690132 $8.89

View on Model

5A

W10624275 Whirlpool Support Backorder WPL W10624275 $21.84

View on Model

5A

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

View on Model

6

W10647966 Whirlpool Door Hinge Assembly In Stock WPL W10647966 $23.85

View on Model

6

W11095995 Whirlpool Door Hinge Backorder WPL W11095995 $115.26

View on Model

6

WPW10209656 Whirlpool Surface Ignitor In Stock WPL WPW10209656 $66.86

View on Model

6

WPW10578251 Whirlpool Burner Grate In Stock WPL WPW10578251 $87.61

View on Model

6A

WPW10209657 Whirlpool Range Surface Igniter In Stock WPL WPW10209657 $42.78

View on Model

7

98015363 Whirlpool Range Support Backorder WPL 98015363 $59.65

View on Model

7

CLIP, COOKTOP WPL 98004722 Contact Us For Availability

View on Model

7A

W11033080 Whirlpool Door Panel Backorder WPL W11033080 $108.60

View on Model

8

98013634 Whirlpool Range Screw Backorder WPL 98013634 $48.14

View on Model

8

W10535762 Whirlpool Door Handle Backorder WPL W10535762 $93.09

View on Model

8A

W10535774 Whirlpool Door Handle Backorder WPL W10535774 $96.24

View on Model

9

W10446851 Whirlpool Door Liner Backorder WPL W10446851 $102.67

View on Model

9

W11206744 Whirlpool Screw In Stock WPL W11206744 $15.02

View on Model

9

W11676351 Whirlpool Screw Backorder WPL W11676351 $8.89

View on Model

10

W11220387 Whirlpool Range Burner In Stock WPL W11220387 $128.91

View on Model

10

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.56

View on Model

11

W11098799 Whirlpool Range Bottom Assembly In Stock WPL W11098799 $92.73

View on Model

11

W11706803 Whirlpool Appliance Insulation Backorder WPL W11706803 $14.18

View on Model

11

WP98017461 Whirlpool Burner Cap In Stock WPL WP98017461 $41.38

View on Model

12

W10670197 Whirlpool Range Bottom Baffle Backorder WPL W10670197 $106.44

View on Model

12

WPW10548355 Whirlpool Wire Harness In Stock WPL WPW10548355 $55.08

View on Model

12A

W11099211 Whirlpool Drawer Panel Backorder WPL W11099211 $137.05

View on Model

13

W10535809 Whirlpool Door Handle Backorder WPL W10535809 $24.08

View on Model

13

W10577312 Whirlpool Brace Panel Backorder WPL W10577312 $29.66

View on Model

13

WP98014893 Whirlpool Gas Safety Valve Assembl In Stock WPL WP98014893 $123.74

View on Model

13

WPW10636224 Whirlpool Burner Top In Stock WPL WPW10636224 $47.02

View on Model

13A

W10498563 Whirlpool Door Handle Backorder WPL W10498563 $29.79

View on Model

14

W10520269 Whirlpool Base Rail Backorder WPL W10520269 $59.84

View on Model

14

WPW10278150 Whirlpool Clip Assembly In Stock WPL WPW10278150 $28.78

View on Model

15

W10545322 Whirlpool Support Backorder WPL W10545322 $21.67

View on Model

15

WPW10141709 Whirlpool Burner Valve In Stock WPL WPW10141709 $190.97

View on Model

15

WPW10613666 Whirlpool Bracket Backorder WPL WPW10613666 $11.87

View on Model

15A

W10823037 Whirlpool Burner Valve Backorder WPL W10823037 $182.24

View on Model

16

98017517 Whirlpool Range Screw Backorder WPL 98017517 $7.80

View on Model

16

BRACKET, FOOT WPL W10535682 Contact Us For Availability

View on Model

17

W10549293 Whirlpool Access Cover Backorder WPL W10549293 $16.51

View on Model

18

W11628651 Whirlpool Gas Tubing Backorder WPL W11628651 $93.26

View on Model

18

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

View on Model

18

WPW10636339 Whirlpool Thermostat In Stock WPL WPW10636339 $90.16

View on Model

19

98005642 Whirlpool Clip Backorder WPL 98005642 $60.90

View on Model

19

W11346659 Whirlpool Regulator In Stock WPL W11346659 $122.39

View on Model

19

WPW10169985 Whirlpool Burner Cap Backorder WPL WPW10169985 $48.52

View on Model

20

WP98017348 Whirlpool Orifice In Stock WPL WP98017348 $66.96

View on Model

20

WPW10515453 Whirlpool Burner Head In Stock WPL WPW10515453 $64.64

View on Model

20A

WPW10170506 Whirlpool Orifice Spud Backorder WPL WPW10170506 $68.82

View on Model

21

W10918546 Whirlpool Oven Range Igniter In Stock WPL W10918546 $34.62

View on Model

21

WPW10535778 Whirlpool Door Gasket In Stock WPL WPW10535778 $47.48

View on Model

22

W10574737 Whirlpool Mounting Bracket Backorder WPL W10574737 $18.63

View on Model

22

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $5.02

View on Model

23

W11684515 Whirlpool Range Gas Tubing Backorder WPL W11684515 $34.52

View on Model

24

WP98007225 Whirlpool Screw Assembly Backorder WPL WP98007225 $4.82

View on Model

25

98007410 Whirlpool Range Mounting Bracket Backorder WPL 98007410 $70.64

View on Model

25

W10538845 Whirlpool Access Cover Backorder WPL W10538845 $16.51

View on Model

26

98005026 Whirlpool Range Clip Backorder WPL 98005026 $6.92

View on Model

27

W11161898 Whirlpool Hinge Receiver Backorder WPL W11161898 $47.75

View on Model

28

98007193 Whirlpool Oven Washer Backorder WPL 98007193 $6.92

View on Model

29

W11688713 Whirlpool Burner Baffle Backorder WPL W11688713 $138.09

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

View on Model

NI

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

View on Model

NI

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

View on Model

NI

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

View on Model

NI

98012220 Whirlpool Range Door Pin Backorder WPL 98012220 $6.92

View on Model

NI

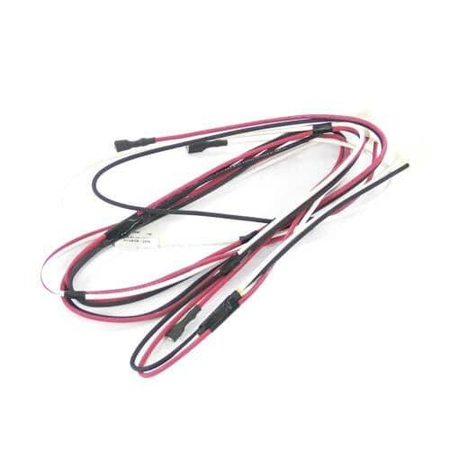

W10556705 Whirlpool Wire Harness Backorder WPL W10556705 $60.04

View on Model

NI

W11492324 Whirlpool Insulation Backorder WPL W11492324 $78.33

View on Model

NI

W11688850 Whirlpool Insulation Backorder WPL W11688850 $15.03

View on Model

NI

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

View on Model

NI

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model
