Model Maytag AFD2535DEB14 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

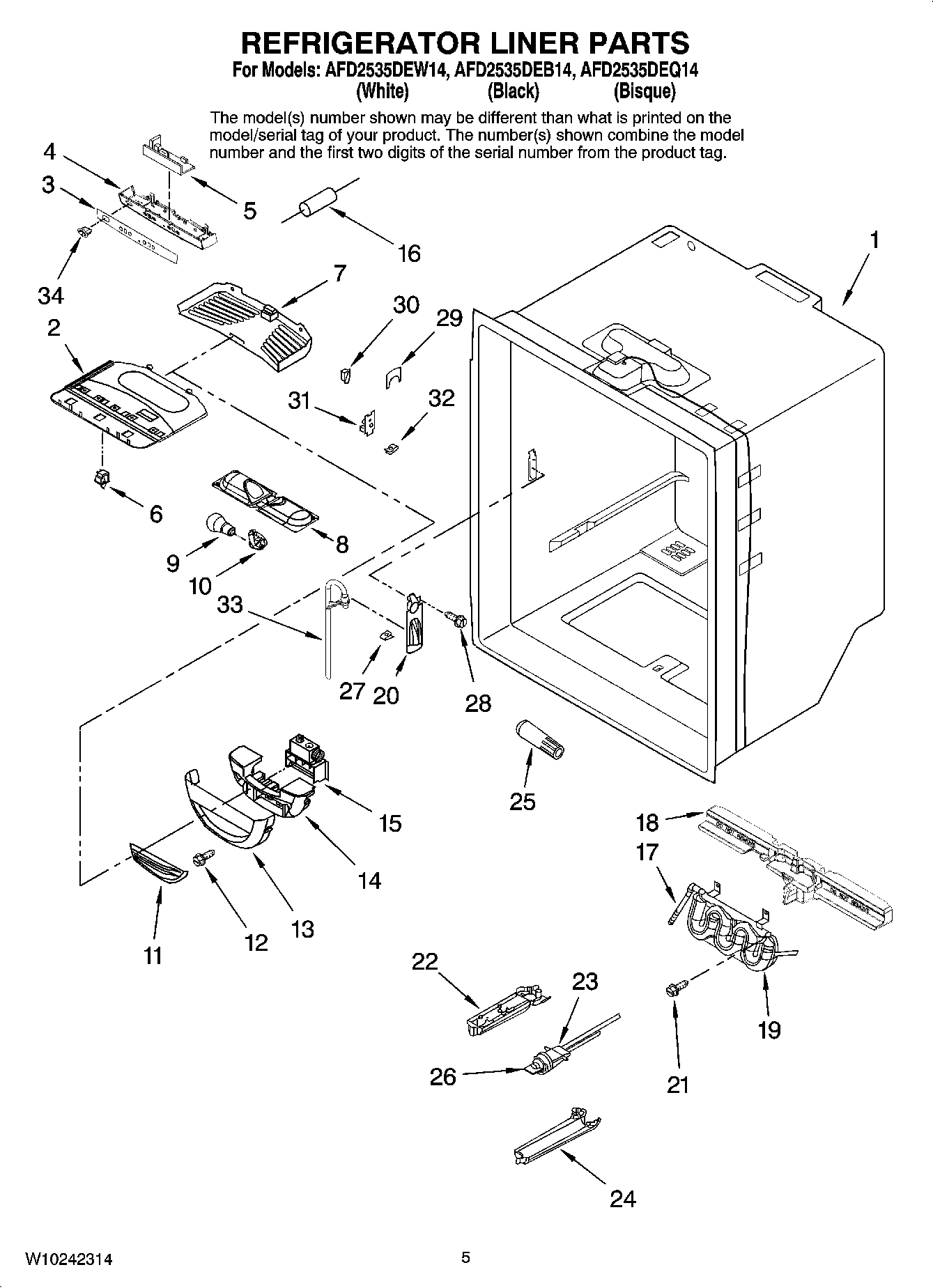

03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR DOOR PARTS

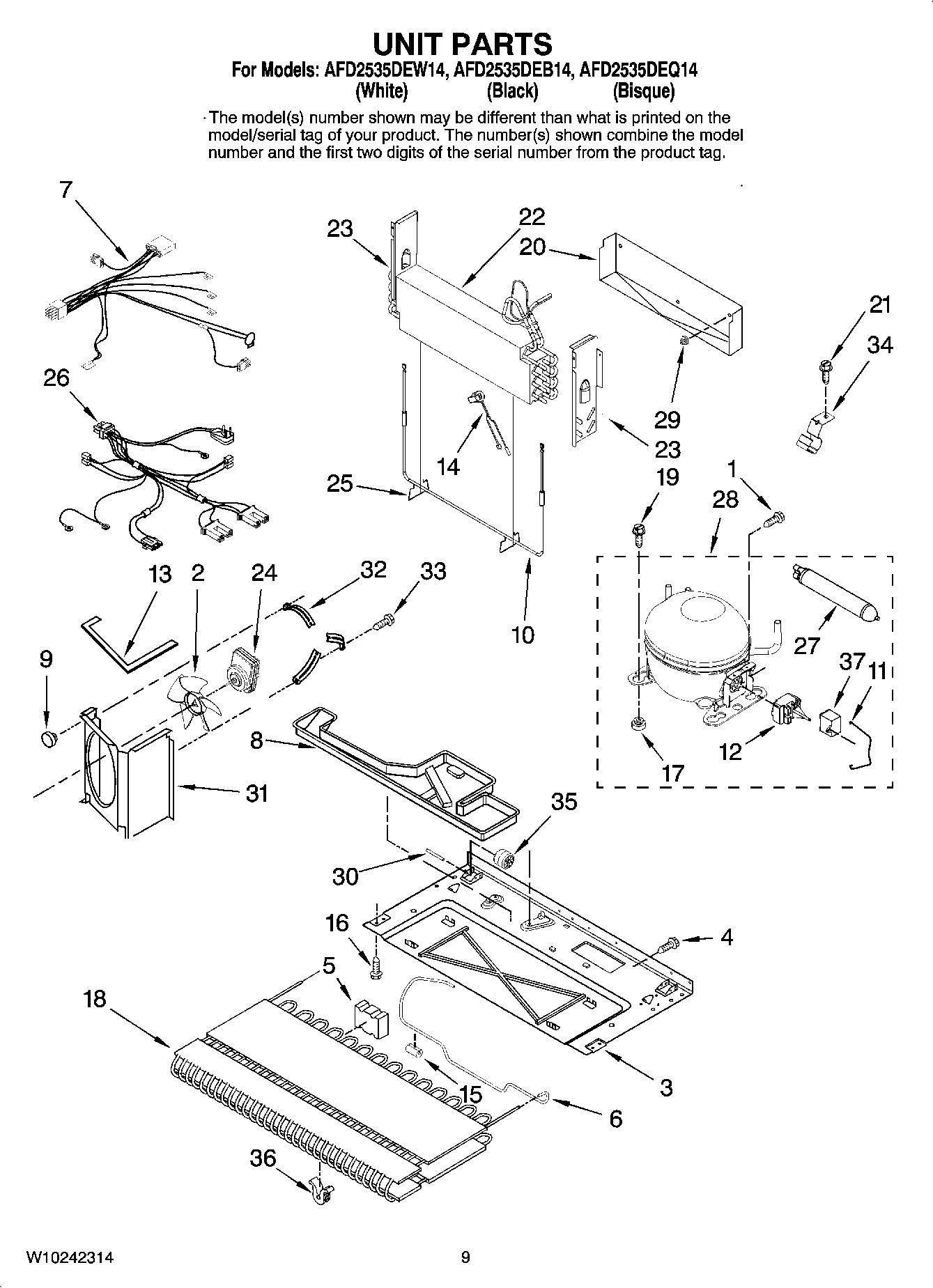

05 - UNIT PARTS

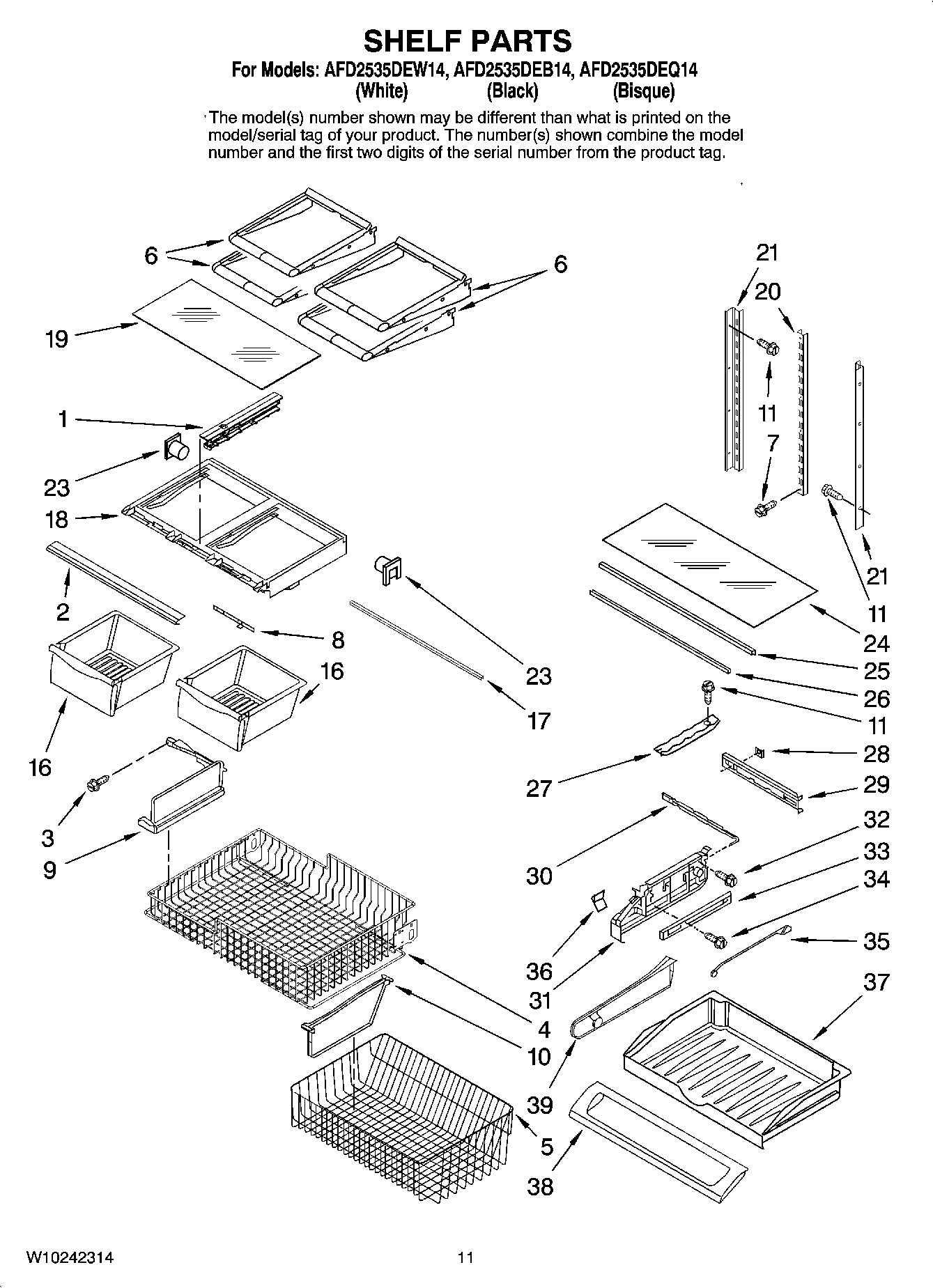

06 - SHELF PARTS
07 - ICEMAKER PARTS

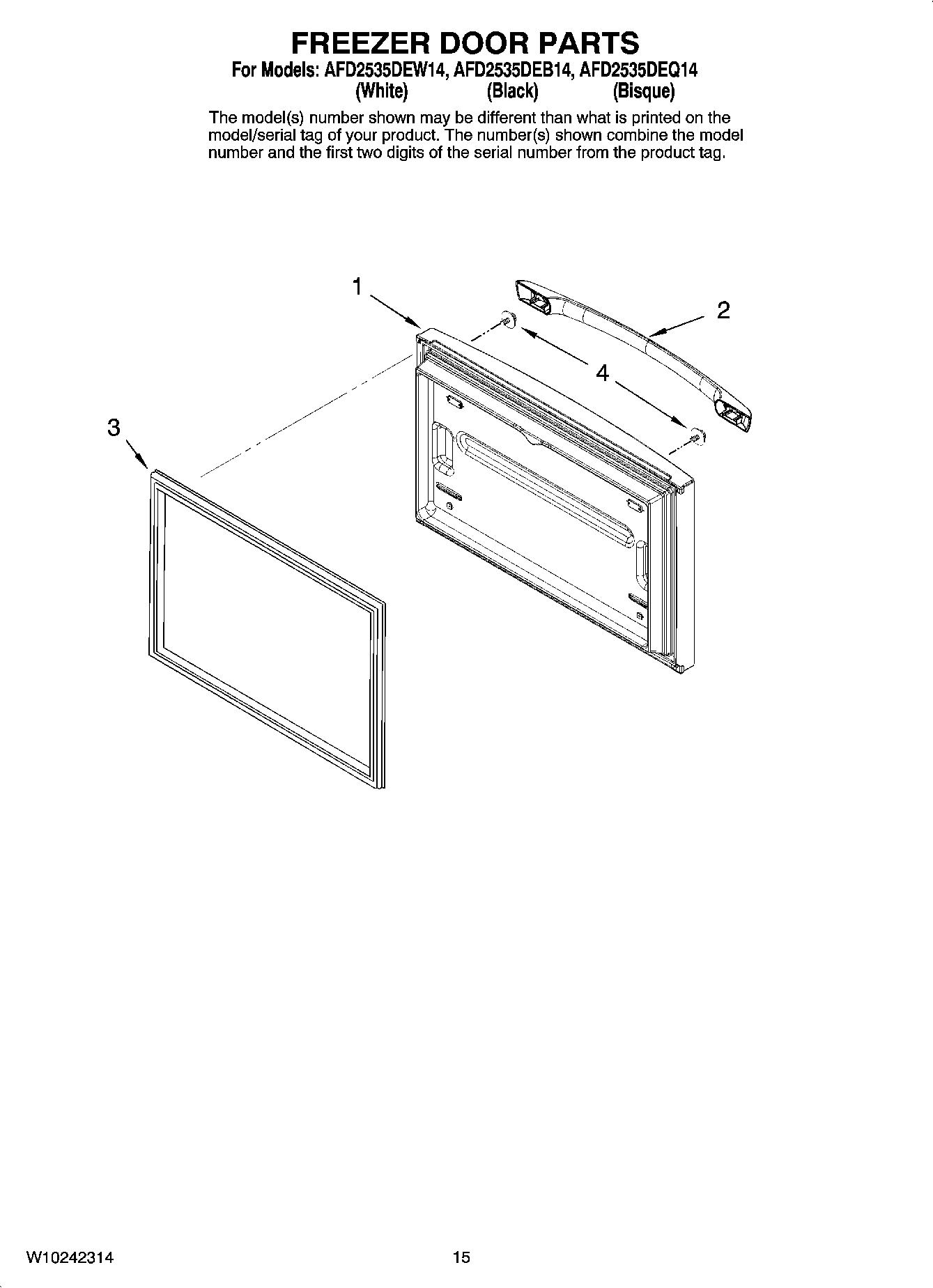

08 - FREEZER DOOR PARTS, OPTIONAL PARTS
Common parts from model Maytag AFD2535DEB14 REFRIGERATOR
1
MAY 13024018BQ MAY 13024018BQ Contact Us For Availability
1
MAY 13024018QQ MAY 13024018QQ Contact Us For Availability
1
MAY 13024018WQ MAY 13024018WQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
Door, Freezer (Black) MAY 13092203BQ Contact Us For Availability
1
Door, Freezer (Bisque) MAY 13092203QQ Contact Us For Availability
1
Door, Freezer (White) MAY 13092203WQ Contact Us For Availability
2
MAY 67004078 MAY 67004078 Contact Us For Availability
2
MAY 13024017BQ MAY 13024017BQ Contact Us For Availability
2
MAY 13024017QQ MAY 13024017QQ Contact Us For Availability
2
MAY 13024017WQ MAY 13024017WQ Contact Us For Availability
2
MAY W10119666 MAY W10119666 Contact Us For Availability
2
MAY W10119667 MAY W10119667 Contact Us For Availability
2
MAY W10119668 MAY W10119668 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
2
MAY 67004636 MAY 67004636 Contact Us For Availability
2
MAY 67003729 MAY 67003729 Contact Us For Availability
3
MAY 67004695 MAY 67004695 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
MAY 67003932 MAY 67003932 Contact Us For Availability
3
MAY W10131754 MAY W10131754 Contact Us For Availability
3
MAY W10133249 MAY W10133249 Contact Us For Availability
3
Gasket, Door (Bisque) MAY W10164040 Contact Us For Availability
4
Module, Control MAY 67004005 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10165748 MAY W10165748 Contact Us For Availability
5
MAY 12699207 MAY 12699207 Contact Us For Availability
5
MAY 67005491 MAY 67005491 Contact Us For Availability
6
Switch, Light (2) MAY C3680310 Contact Us For Availability
6
MAY 67004700 MAY 67004700 Contact Us For Availability
6
Shelf (4) MAY 67004637 Contact Us For Availability
7
MAY 67006786 MAY 67006786 Contact Us For Availability
7
MAY W10119856 MAY W10119856 Contact Us For Availability
8
MAY W10137006 MAY W10137006 Contact Us For Availability
8
Gasket, Door (Black) MAY W10163895 Contact Us For Availability
8
Slide, Humidity Control (2) MAY 67005864 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
MAY W10119663 MAY W10119663 Contact Us For Availability
9
MAY W10119664 MAY W10119664 Contact Us For Availability
9
MAY W10119665 MAY W10119665 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY Y12570701 Contact Us For Availability
10
MAY 67006644 MAY 67006644 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 67006400 MAY 67006400 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
Clip, Retainer MAY 67007052 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 67006602 MAY 67006602 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 67006604 MAY 67006604 Contact Us For Availability
14
MAY W10165425 MAY W10165425 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY W10127429 MAY W10127429 Contact Us For Availability
15
Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability
16
Grippers (Medium) MAY 67003212 Contact Us For Availability
16
Grippers (Gallon) MAY 67005453 Contact Us For Availability
16
MAY 67006573 MAY 67006573 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY W10169124 MAY W10169124 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY W10117358 MAY W10117358 Contact Us For Availability
18
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
19
MAY W10153959 MAY W10153959 Contact Us For Availability
19
Screw MAY 67006432 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
Dispenser MAY W10158503 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
20
Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability
21
SCREW MAY 67006737 Contact Us For Availability
21
MAY 626684 MAY 626684 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
MAY 67001066 MAY 67001066 Contact Us For Availability
24
MAY 67002761 MAY 67002761 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
24
MAY 67005603 MAY 67005603 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
25
Filter, Water MAY 67006467 Contact Us For Availability
25
MAY W10182748 MAY W10182748 Contact Us For Availability
26
Plug, Filter Bypass MAY 12664501 Contact Us For Availability
26
Screw (8) MAY 67006473 Contact Us For Availability
26
MAY 13060301 MAY 13060301 Contact Us For Availability
27
Clip, Waterline MAY B8390302 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27) MAY 67005565 Contact Us For Availability
29
MAY W10128118 MAY W10128118 Contact Us For Availability
29
MAY W10128119 MAY W10128119 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 67005625 MAY 67005625 Contact Us For Availability
30
Screw (6) MAY 67006406 Contact Us For Availability
30
Slide, Control MAY 67003793 Contact Us For Availability
31
MAY W10158508 MAY W10158508 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
33
Guide, Water MAY 67003728 Contact Us For Availability
33
Glide, Pantry (2) MAY 67007026 Contact Us For Availability
34
Screw (4) MAY 67006415 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
37
Capacitor MAY 67005562 Contact Us For Availability
100
Complete Ice Maker MAY D7824706 Contact Us For Availability
NI
MAY 67006095 MAY 67006095 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
