Model Whirlpool A26CDC WASHER – Common Parts & Diagrams
05 - TUB COVER

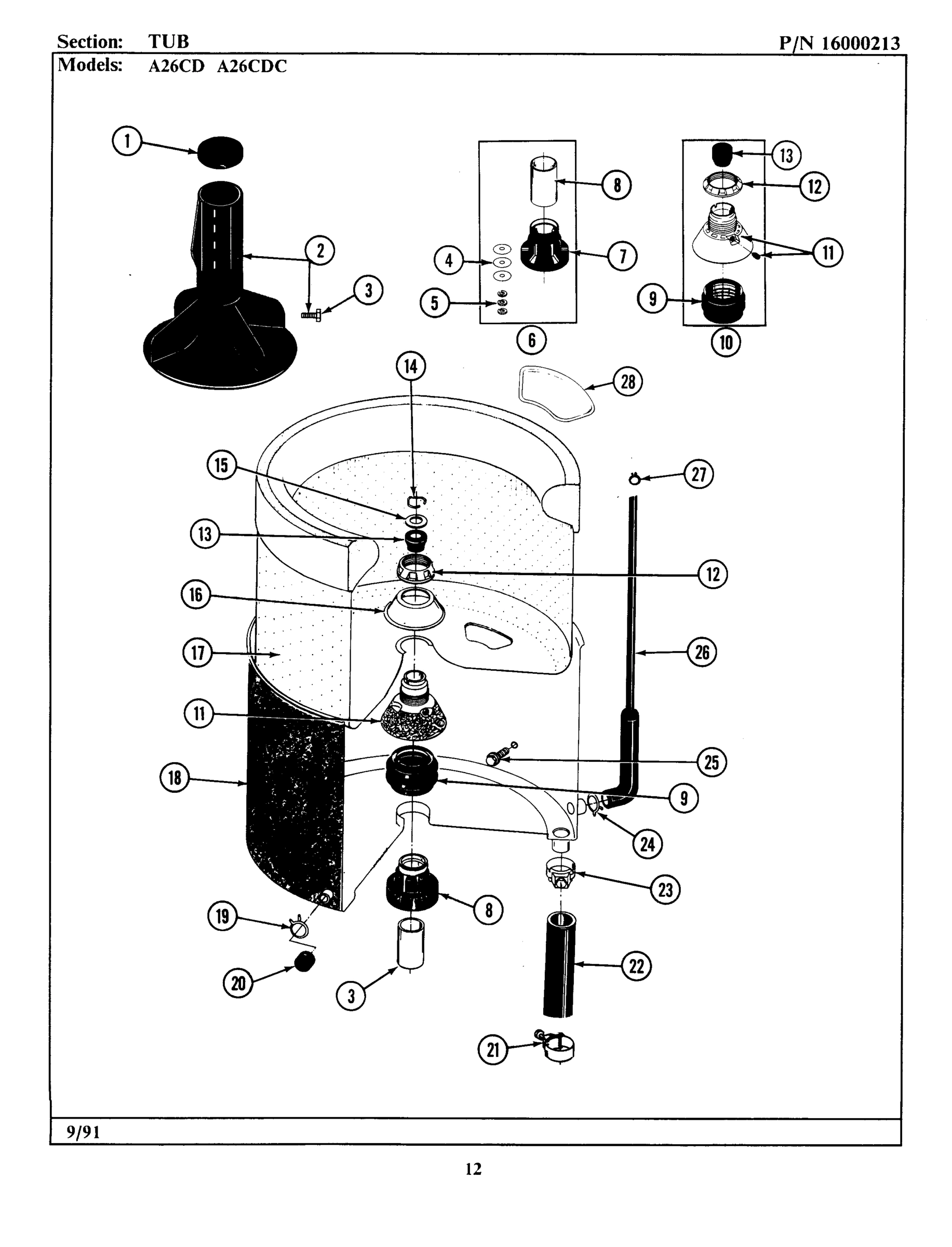

06 - TUB

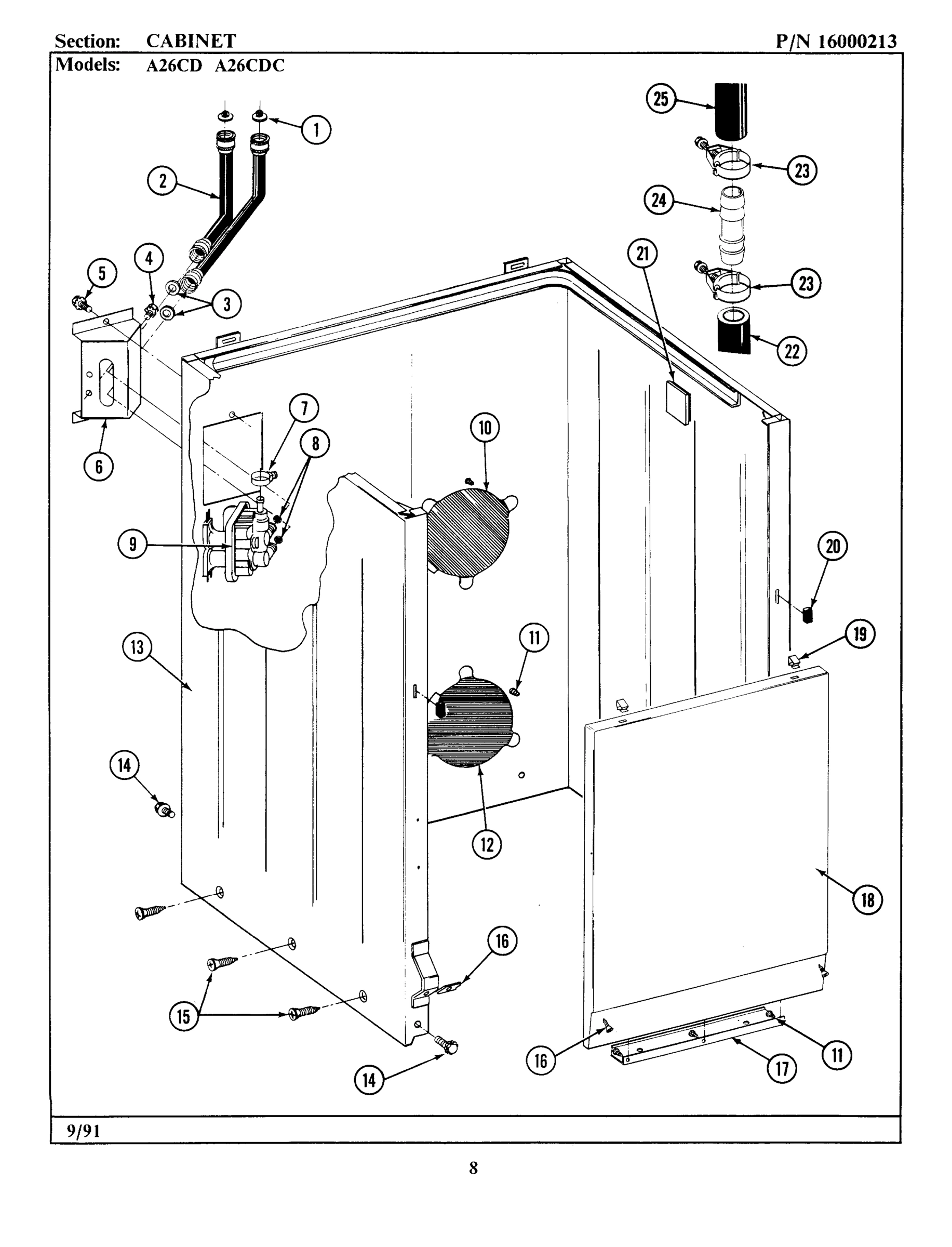

04 - CABINET

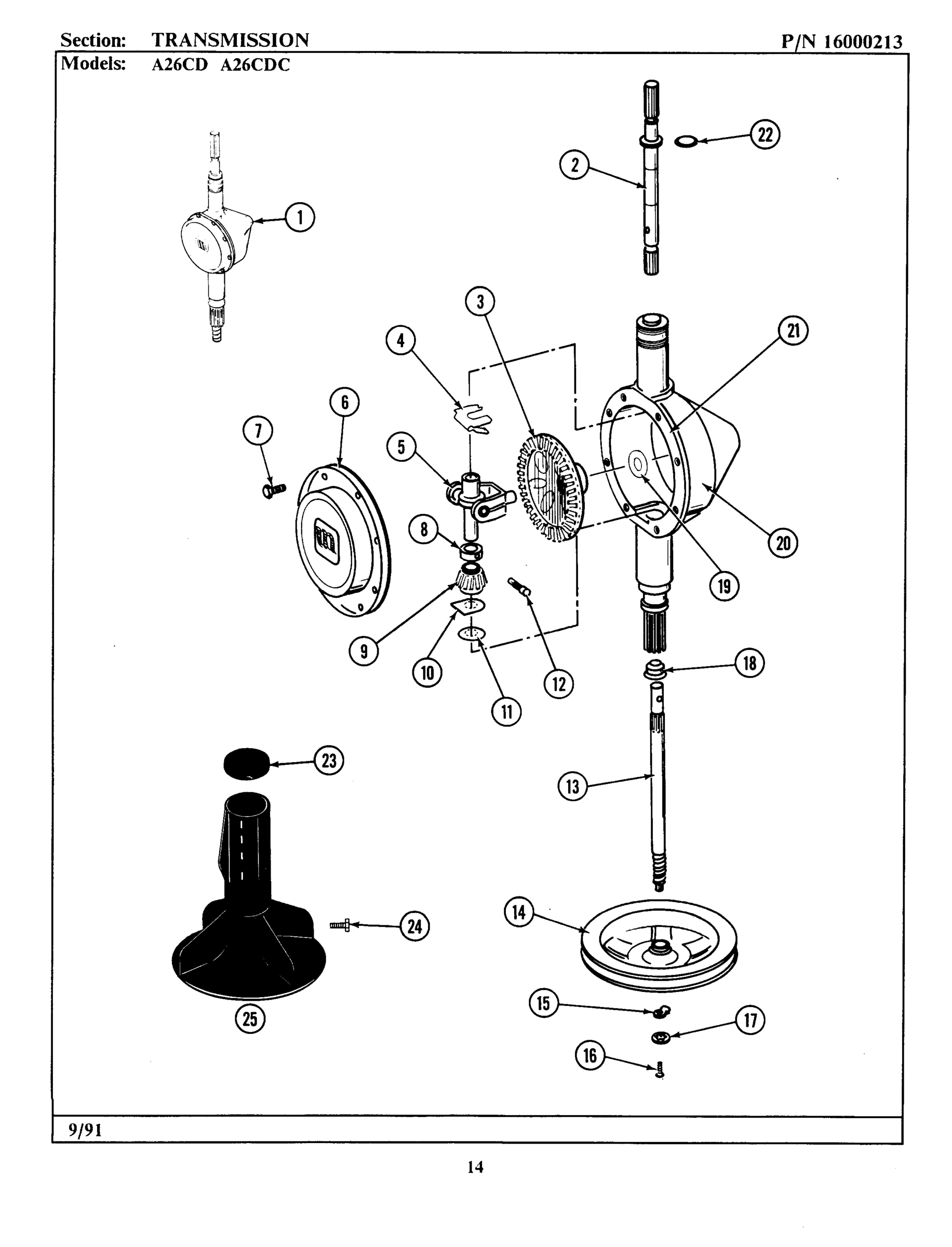

07 - TRANSMISSION

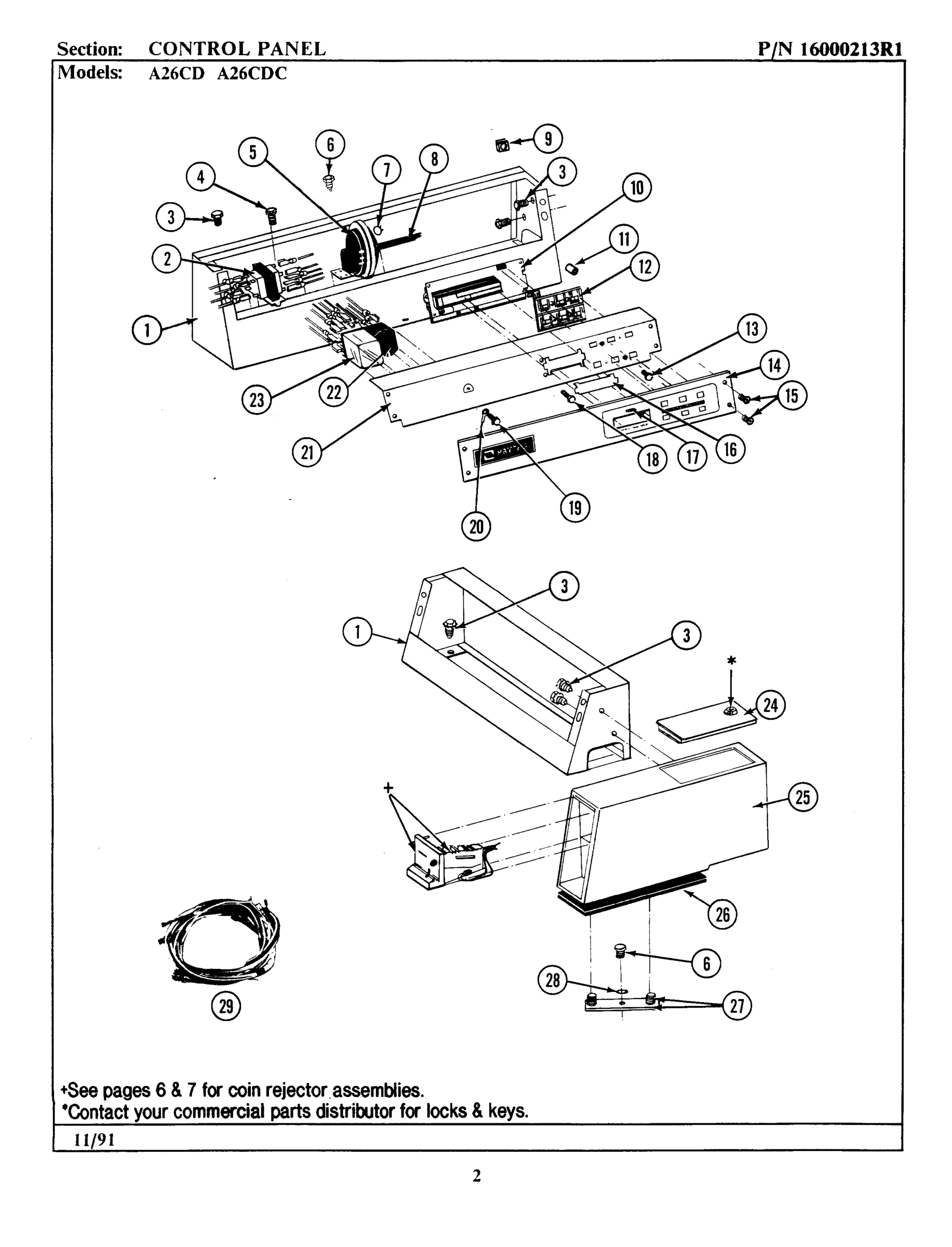

01 - CONTROL PANEL

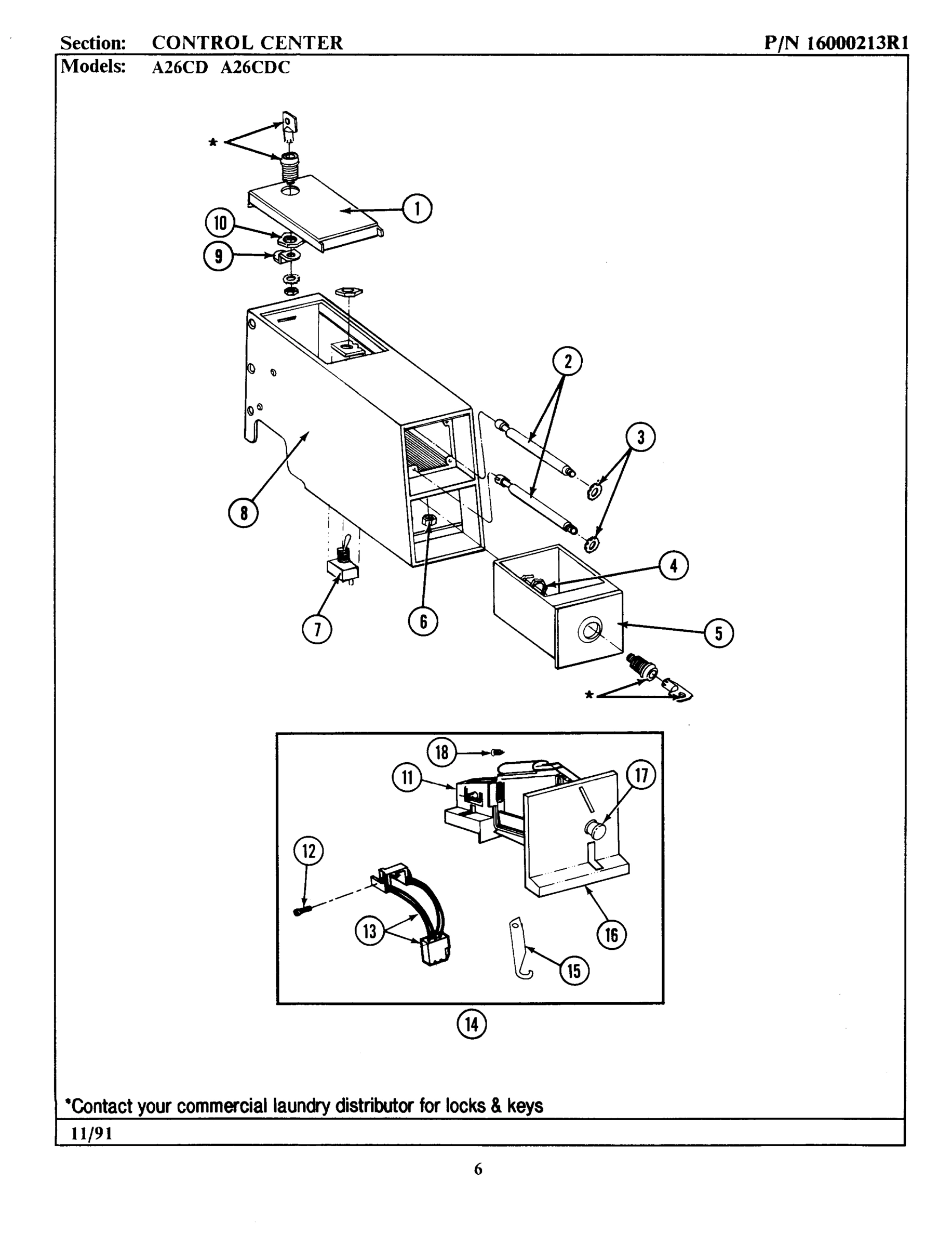

03 - CONTROL CENTER

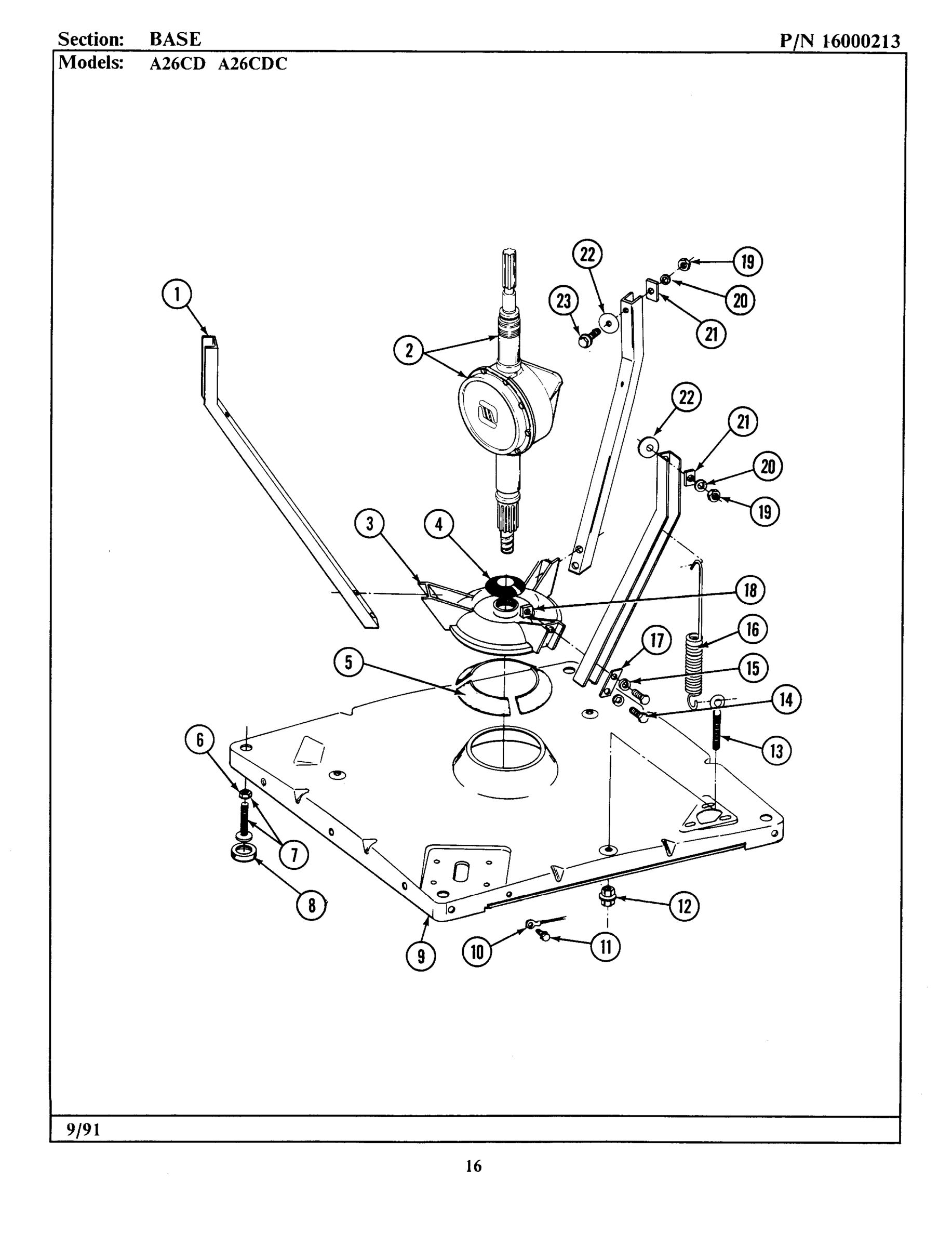

08 - BASE

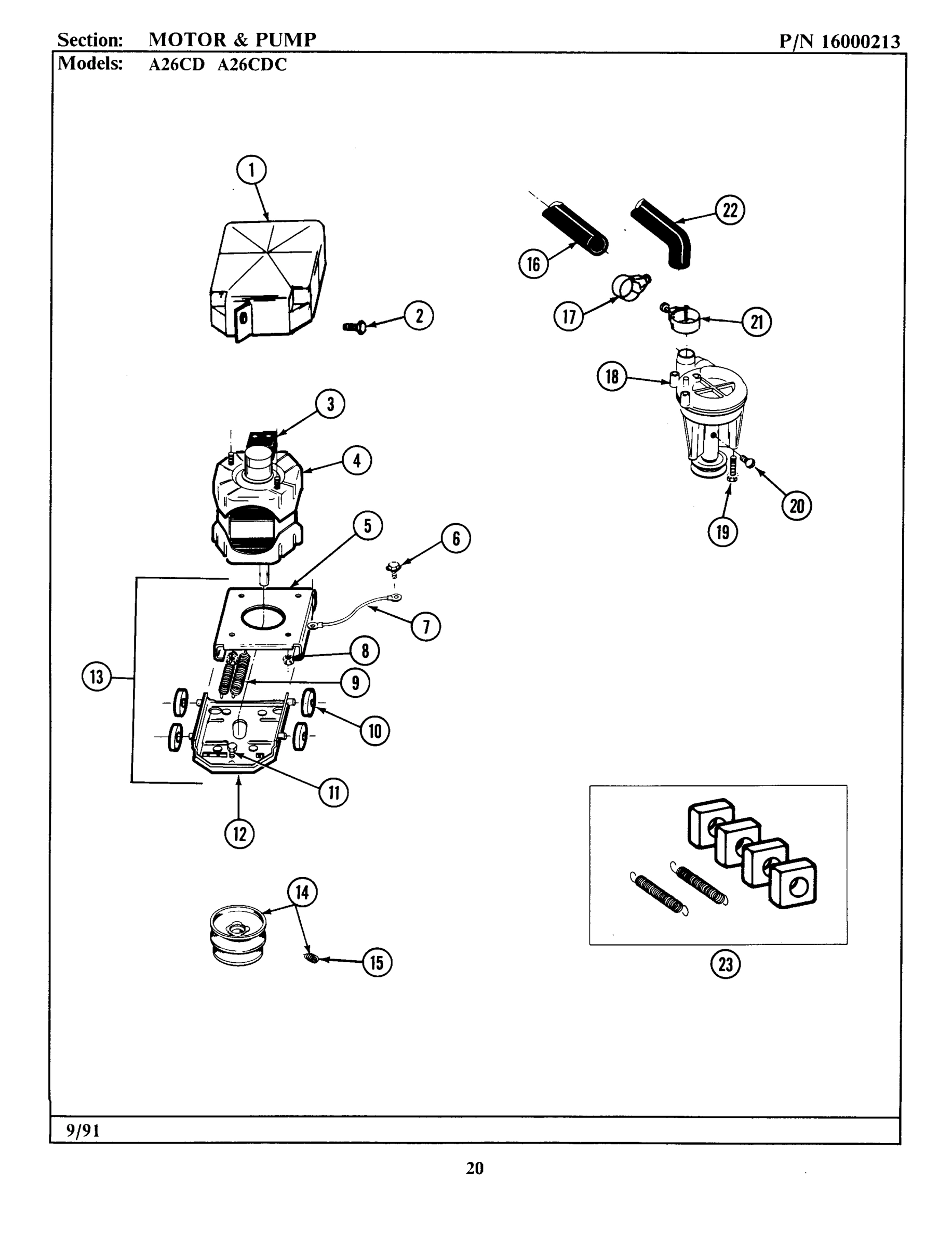

10 - MOTOR & PUMP
02 - TOP

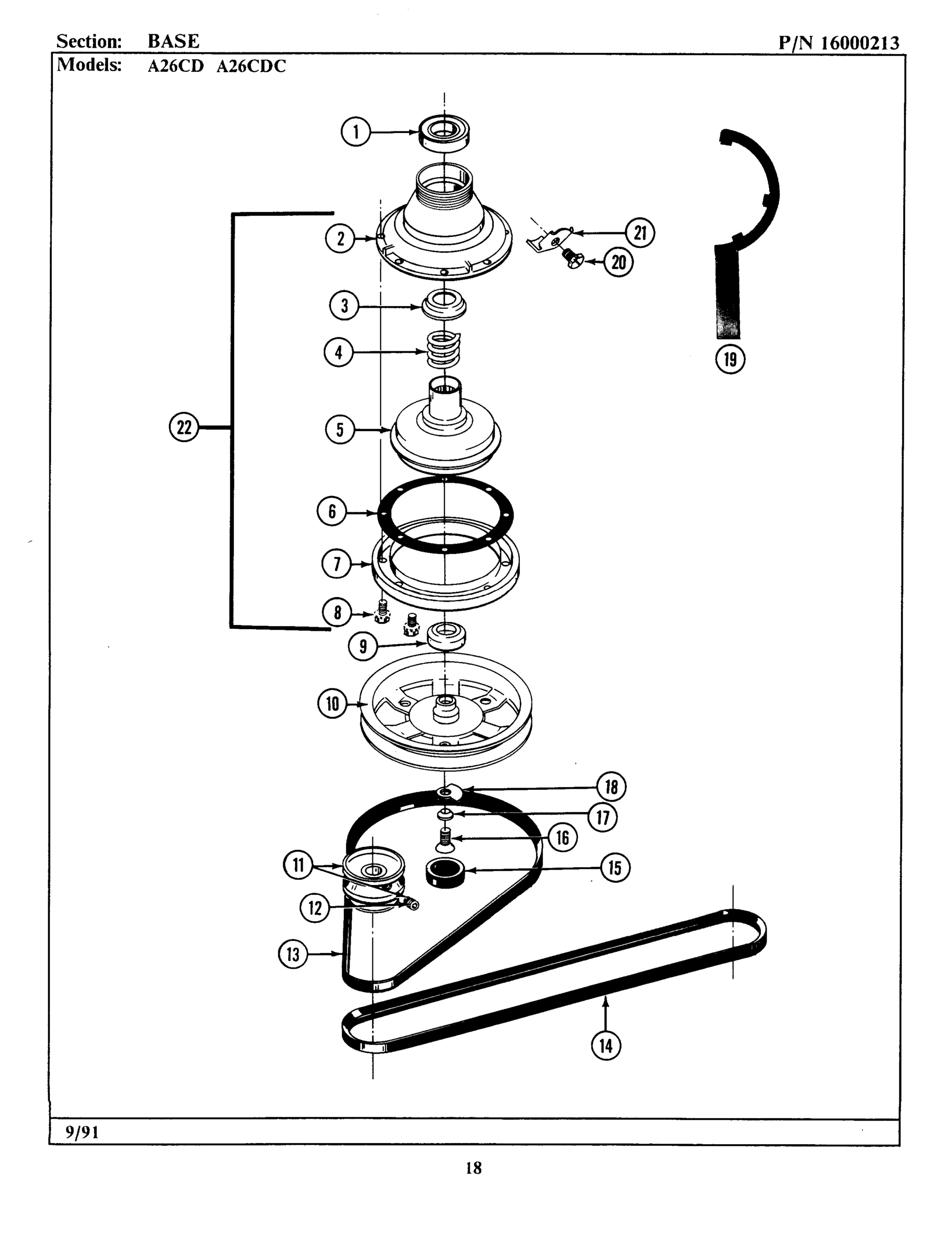

09 - CLUTCH, BRAKE & BELTS
Common parts from model Whirlpool A26CDC WASHER
001
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
001
CONTROL COVER ASSY WPL 206780 Contact Us For Availability
001
CONSOLE (ALM) SU WPL 206780L Contact Us For Availability
001
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
001
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
001
ACCESS DOOR-HARVEST WHEAT WPL 203188M Contact Us For Availability
001
BRACE, TUB WPL 213053 Contact Us For Availability
001
SHIELD, MOTOR WPL 215098 Contact Us For Availability
001
LID-WHITE WPL 214901 Contact Us For Availability
001
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
002
TRANSMISSION, ORBITAL WPL 206707 Contact Us For Availability
002
SHAFT, AGITATOR (W/SPRING) WPL 207153 Contact Us For Availability
002
TRANSFORMER WPL 207766 Contact Us For Availability
002
BOLT, LOCKING WPL 213035 Contact Us For Availability
002
HOUSING, BRAKE WPL 211045 Contact Us For Availability
003
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
003
GEAR, BEVEL WPL 206713 Contact Us For Availability
003
LOCK WASHER WPL 910181 Contact Us For Availability
003
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
003
SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-166 WPL 205132 Contact Us For Availability
003
2-1664-8 & 2-5463 WPL 205133 Contact Us For Availability
003
2-1664-11, 2-1664-13, & WPL 206505 Contact Us For Availability
003
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
004
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
004
SPRING, BRAKE WPL 211041 Contact Us For Availability
005
BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability
005
SWITCH, WATER LEVEL WPL 203263 Contact Us For Availability
005
BOX, COIN (WHT)----SUB WPL 207912 Contact Us For Availability
005
COIN BOX - ALMOND----NA WPL 207912L Contact Us For Availability
005
MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability
005
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
006
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
006
COVER, TRANSMISSION WPL 206628 Contact Us For Availability
006
WASHER WPL 910309 Contact Us For Availability
006
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
007
SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability
007
SWITCH WPL 206794 Contact Us For Availability
007
WIRE, GROUND WPL 901220 Contact Us For Availability
007
TOP COVER ASSY WPL 207173 Contact Us For Availability
007
DRUM, BRAKE WPL 211043 Contact Us For Availability
008
LINER, TUB BEARING WPL 211130 Contact Us For Availability
008
COLLAR, LOWER WPL 215415 Contact Us For Availability
008
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
008
CONTROL CENTERCASE ALMOND WPL 207940L Contact Us For Availability
009
SEAL AND SPRING WPL 201537 Contact Us For Availability
009
FASTENER WPL 215003 Contact Us For Availability
009
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
009
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
009
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
010
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
010
BATTERY WPL 206828 Contact Us For Availability
010
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
010
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
011
MOUNTING STEM WPL 202521 Contact Us For Availability
011
SCREW----NA WPL Y313561 Contact Us For Availability
011
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
011
COIN REJECTOR 25 CENTS WPL 207949 Contact Us For Availability
011
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
012
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
012
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
012
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
012
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
013
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
013
CENTER SHAFT - LARGER WPL 215410 Contact Us For Availability
013
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
013
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
014
RETAINING RING WPL Y015667 Contact Us For Availability
014
PANEL, CONTROL WPL 215519 Contact Us For Availability
014
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
015
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
015
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
015
CAP, OIL RETAINER WPL NLA Contact Us For Availability
015
SPRING, BUTTON WPL 216011 Contact Us For Availability
015
WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability
015
UNBALANCE LEVER WPL 215704 Contact Us For Availability
016
TUB COVER WPL 206380 Contact Us For Availability
016
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
016
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
016
DRAIN HOSE WPL 215057 Contact Us For Availability
016
DISPLAY COVER WPL 215515 Contact Us For Availability
016
PLATE, MOUNTING WPL 216010 Contact Us For Availability
016
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
017
INNER TUB W/PLUG WPL 207831 Contact Us For Availability
017
GUARD, BELT WPL 213846 Contact Us For Availability
017
BUMPER, LID WPL 214610 Contact Us For Availability
017
BUTTON, RETURN WPL 216009 Contact Us For Availability
017
WASHER, DOUBLE WPL 213073 Contact Us For Availability
017
POWER CORD WPL 204590 Contact Us For Availability
018
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
018
OUTER TUB WPL 205484 Contact Us For Availability
018
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
018
FRONT PANEL-ALMOND WPL 212998L Contact Us For Availability
018
SCREW WPL 215526 Contact Us For Availability
018
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
018
PUMP AS PAK WPL 202203 Contact Us For Availability
018
GROMMET, CORD WPL 211881 Contact Us For Availability
019
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
019
WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability
019
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
019
NUT WPL Y052734 Contact Us For Availability
019
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
020
WASHER, LOCK WPL Y054867 Contact Us For Availability
020
CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability
020
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
020
HOUSING, TRANSMISSION WPL 206624 Contact Us For Availability
020
WIRE, GROUND WPL 205810 Contact Us For Availability
020
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
021
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
021
BACK BRACKET ASSY WPL 206825 Contact Us For Availability
021
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
021
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
022
WASHER, CUSHION WPL 211100 Contact Us For Availability
022
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
022
SEAL, RUBBER WPL 210690 Contact Us For Availability
022
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
022
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
023
AGITATOR CAP - BLACK WPL 215532 Contact Us For Availability
023
RELAY-MOTOR REVERSING WPL 206421 Contact Us For Availability
023
SCREW WPL 212949 Contact Us For Availability
024
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
025
AGITATOR W/LOCK SCREW WPL 207119 Contact Us For Availability
026
GASKET, METER CASE WPL 214660 Contact Us For Availability
028
PLUG, FILTER HOLE WPL 215980 Contact Us For Availability
× ![]()
