Model Whirlpool A24CA WASHER – Common Parts & Diagrams

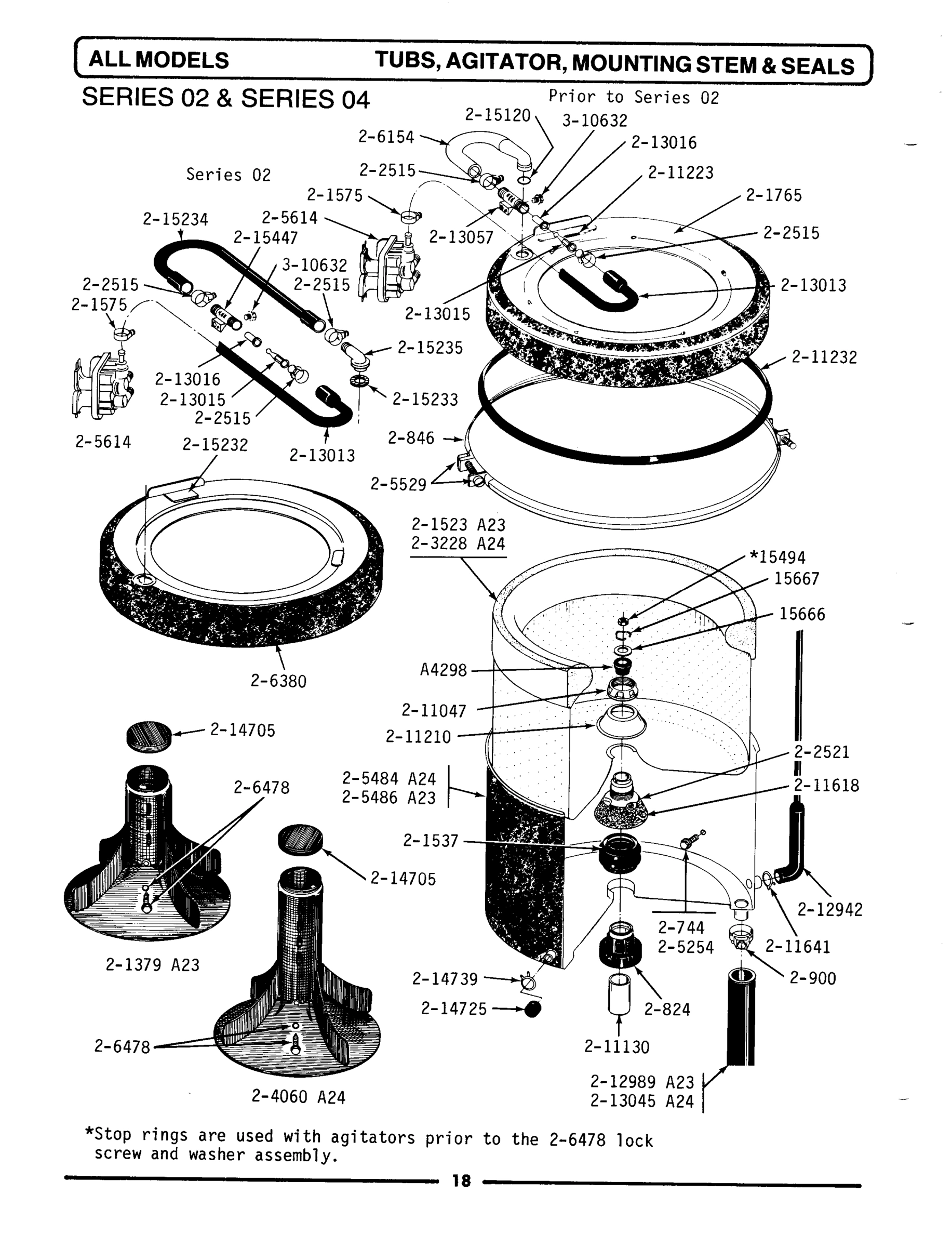

03 - TUB, AGITATOR, MOUNTING STEM & SEAL

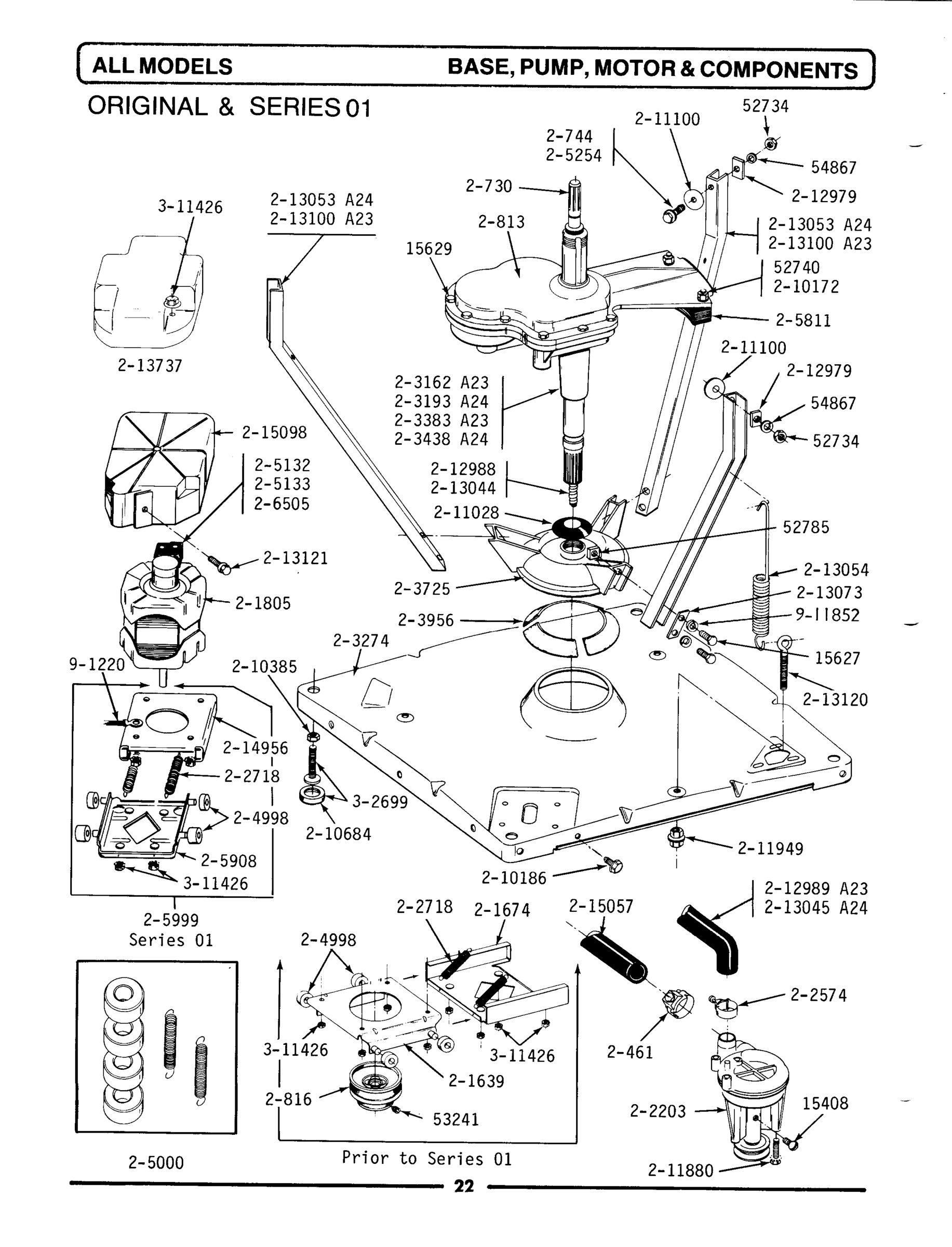

05 - BASE, PUMP, MOTOR & COMPONENTS
07 - 240 VOLT, 50HZ PARTS

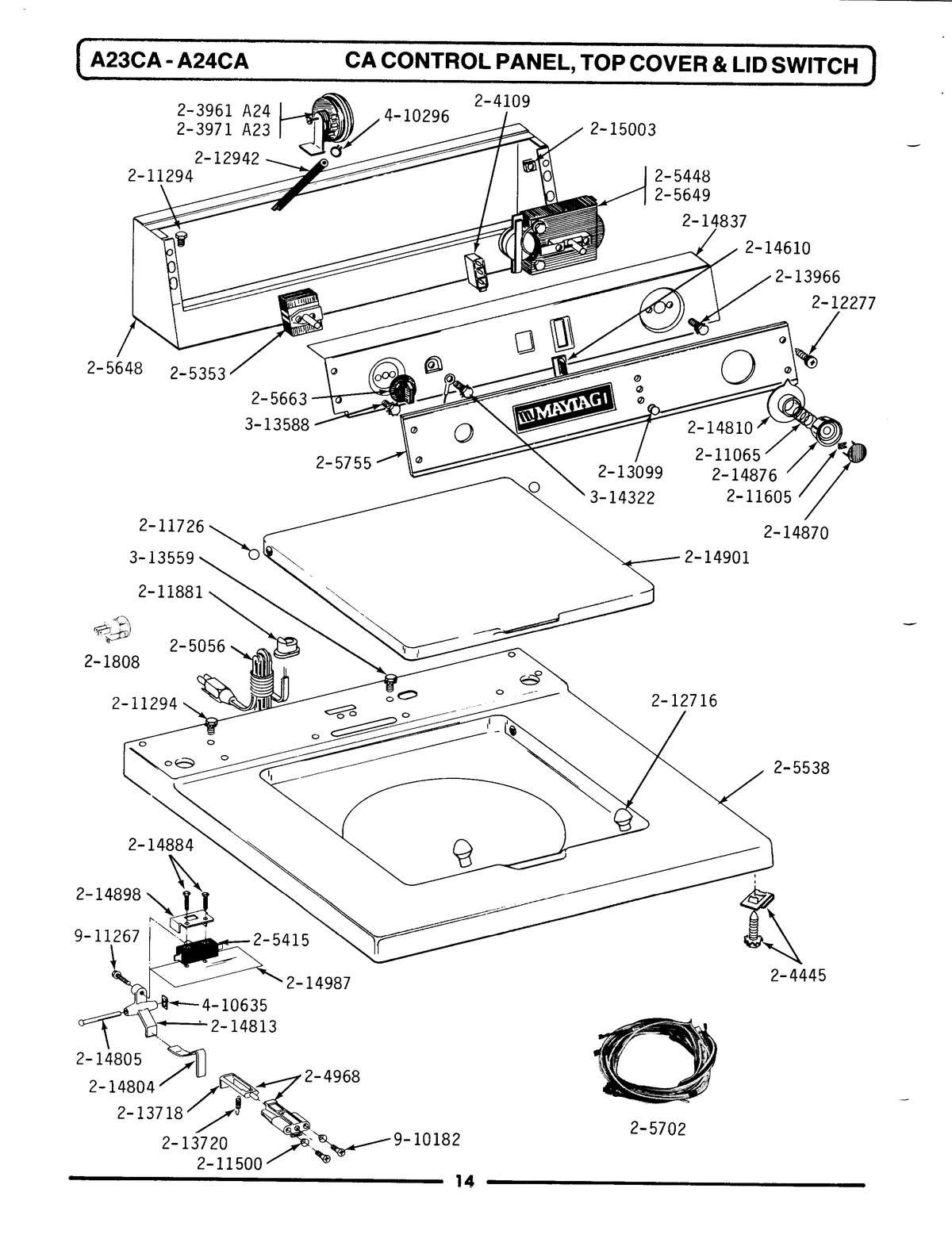

01 - CA CONTROL PANEL, TOP COVER & LID SWITCH

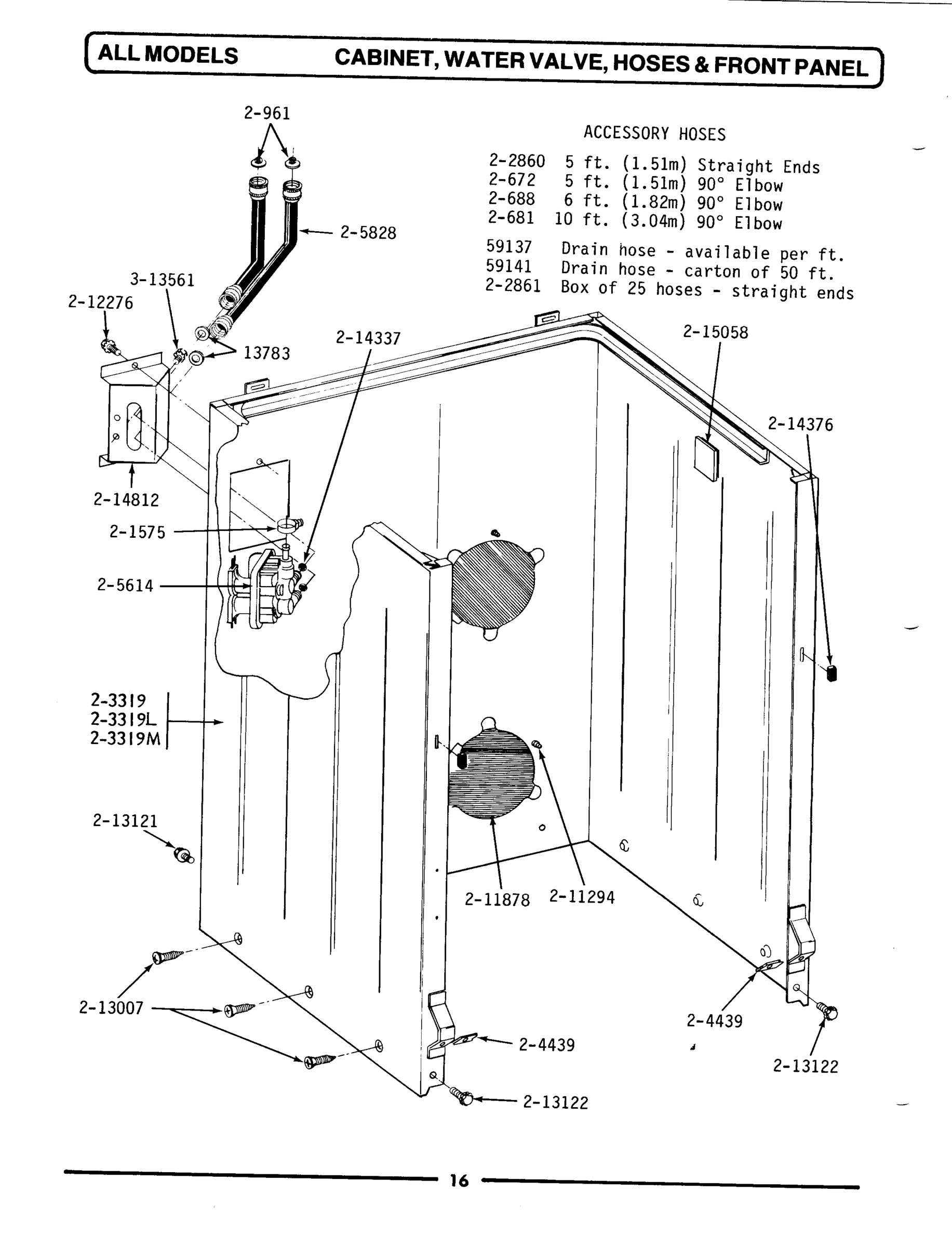

02 - CABINET, WATER VALVE, HOSES & FRNT PANEL

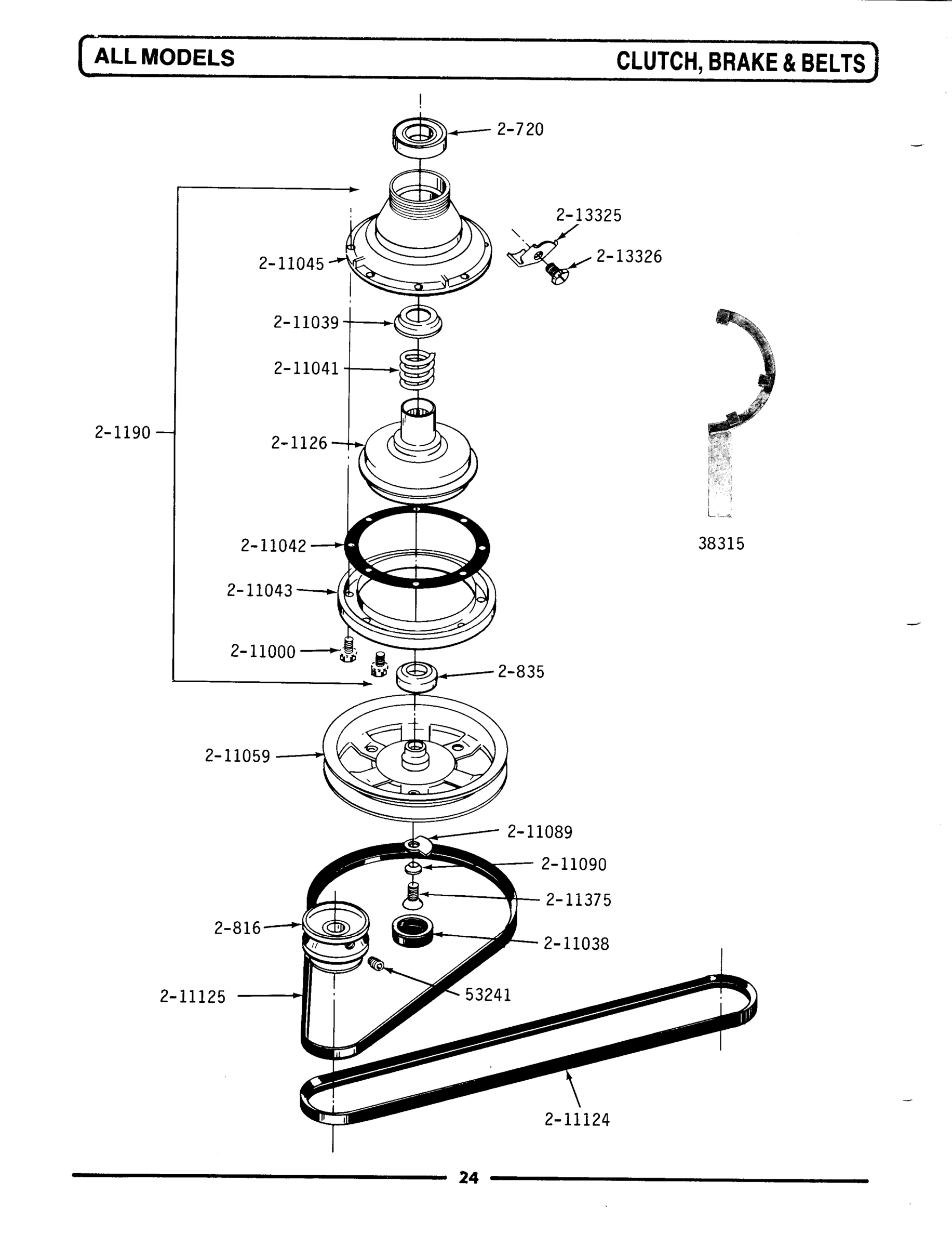

06 - CLUTCH, BRAKE & BELTS

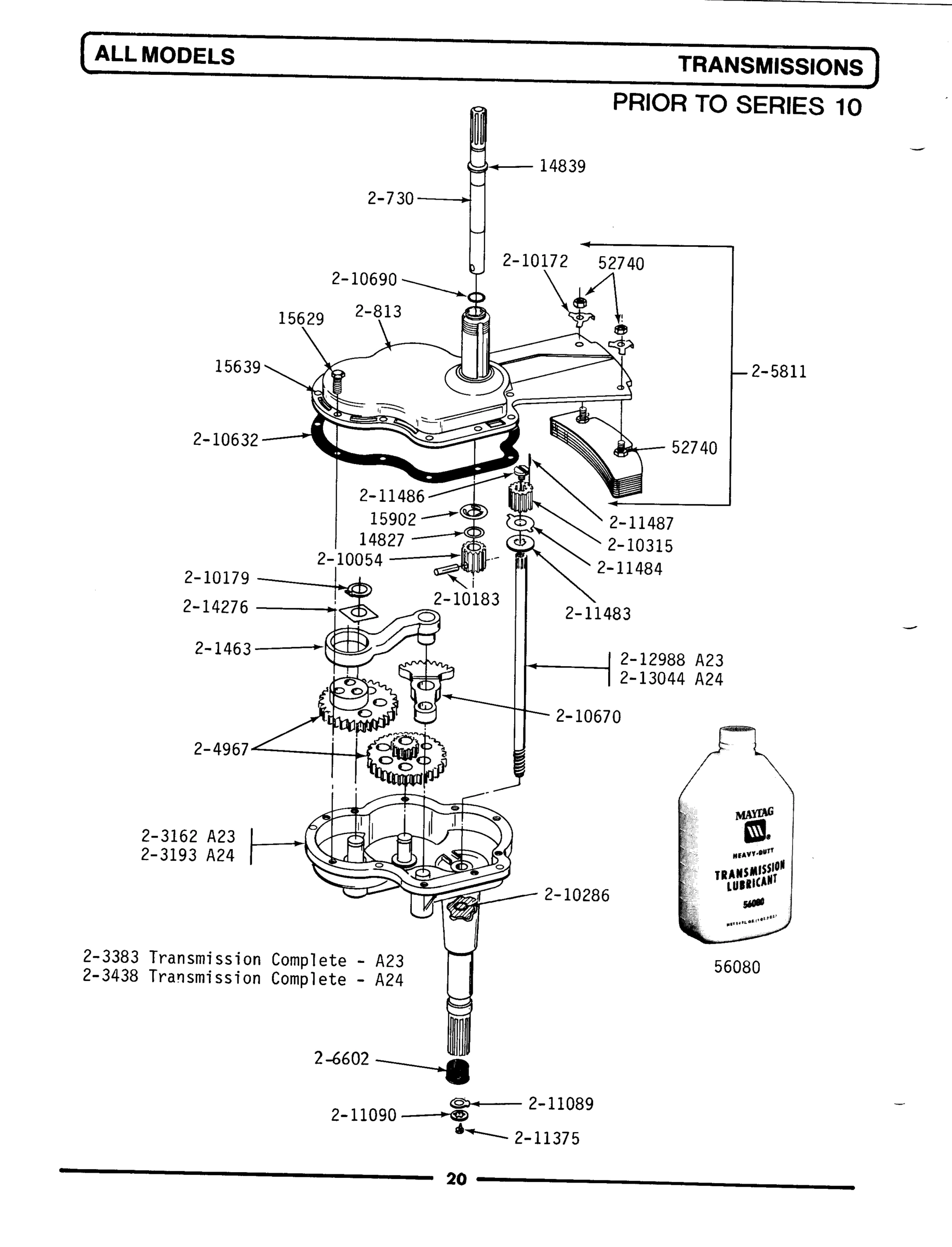

04 - TRANSMISSIONS
Common parts from model Whirlpool A24CA WASHER
001
CAPACITOR WPL 201101 Contact Us For Availability
001
CONVERTER WPL Y201808 Contact Us For Availability
001
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
001
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
001
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
002
PRESSURE SWITCH WPL 203961 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
002
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
003
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
003
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
003
PULLEY, MOTOR (W/SET SCREW) WPL Y202496 Contact Us For Availability
003
PRESSURE SWITCH WPL 203971 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
003
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
004
NUT WPL Y052734 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
004
3 LIGHT INDICATOR WPL 204110 Contact Us For Availability
004
3 BULB SIGNAL LIGHT WPL 204109 Contact Us For Availability
005
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
005
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
005
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
006
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
006
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
006
TIMER MOTOR 240-50 WPL 205706 Contact Us For Availability
006
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
006
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
007
TIMER 240-50 WPL 205739 Contact Us For Availability
007
CORD, POWER WPL 205056 Contact Us For Availability
007
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
007
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
008
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
008
WASHER, LOCK WPL Y054867 Contact Us For Availability
008
AGITATOR SHAFT WPL 200730 Contact Us For Availability
008
SWITCH, TEMP. WPL 205353 Contact Us For Availability
008
CAPACITOR WPL Y200832 Contact Us For Availability
010
TIMER MOTOR 120-60 WPL 205448 Contact Us For Availability
010
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
010
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
011
SPRING, BRAKE WPL 211041 Contact Us For Availability
012
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
012
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
013
TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability
013
TIMER WPL 205649 Contact Us For Availability
013
DRUM, BRAKE WPL 211043 Contact Us For Availability
014
TUB COVER WPL 201765 Contact Us For Availability
014
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
014
TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability
014
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
014
HOUSING, BRAKE WPL 211045 Contact Us For Availability
015
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
015
No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability
015
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
016
MOUNTING STEM WPL 202521 Contact Us For Availability
017
INNER TUB WPL 203228 Contact Us For Availability
017
PUMP AS PAK WPL 202203 Contact Us For Availability
018
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
018
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
018
PINION WPL 210054 Contact Us For Availability
019
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
020
AGITATOR-BLACK WPL 204060 Contact Us For Availability
020
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
021
CAPACITOR KIT WPL 206103 Contact Us For Availability
021
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
022
OUTER TUB WPL 205484 Contact Us For Availability
022
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
022
GROMMET, CORD WPL 211881 Contact Us For Availability
022
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
022
SEAL WPL 210286 Contact Us For Availability
023
TUB, OUTER WPL 205486 Contact Us For Availability
023
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
023
PINION WPL 210315 Contact Us For Availability
024
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
024
GASKET WPL 210632 Contact Us For Availability
025
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
025
CLAMP WPL 211448 Contact Us For Availability
026
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
026
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
026
SEAL, RUBBER WPL 210690 Contact Us For Availability
027
TUB COVER WPL 206380 Contact Us For Availability
027
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
027
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
028
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
029
INJECTOR HOSE KIT WPL 206531 Contact Us For Availability
029
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
029
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
030
BUMPER, LID WPL 214610 Contact Us For Availability
030
FRONT PANEL-ALMOND WPL 212998L Contact Us For Availability
031
UNBALANCE LEVER WPL 214804 Contact Us For Availability
031
LUG WASHER WPL 211484 Contact Us For Availability
032
PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability
032
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
033
LINER, TUB BEARING WPL 211130 Contact Us For Availability
033
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
033
TIMER DIAL INDICATOR WPL 214810 Contact Us For Availability
034
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
034
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
034
CENTER SHAFT WPL 212988 Contact Us For Availability
034
LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability
034
GUARD, BELT WPL 213846 Contact Us For Availability
035
UNBALANCE BUMPER WPL 211223 Contact Us For Availability
035
CENTER SHAFT WPL 213044 Contact Us For Availability
036
WASHER FOR GEARS WPL NLA Contact Us For Availability
036
CAP FOR KNOB WPL 214870 Contact Us For Availability
036
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
037
KNOB FOR TIMER - CA WPL 214876 Contact Us For Availability
037
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
038
SCREW - LID SWITCH WPL 214884 Contact Us For Availability
038
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
039
DRAIN HOSE WPL 215057 Contact Us For Availability
039
COVER FOR LID SWITCH WPL 214898 Contact Us For Availability
040
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
040
LID-WHITE WPL 214901 Contact Us For Availability
040
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
041
WASHER, CUSHION WPL 211100 Contact Us For Availability
041
SCREW WPL Y310842 Contact Us For Availability
042
FASTENER WPL 215003 Contact Us For Availability
042
SCREW----NA WPL Y313561 Contact Us For Availability
044
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
045
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
046
AGITATOR CAP WPL 214705 Contact Us For Availability
047
CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability
047
FASTENER WPL 410635 Contact Us For Availability
049
BRACE, TUB WPL 213053 Contact Us For Availability
049
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
050
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
050
CENTERING SPRING - 3 WPL 213054 Contact Us For Availability
051
WPL 213073 WPL 213073 Contact Us For Availability
052
WPL 213100 WPL 213100 Contact Us For Availability
053
INJECTOR TUBE WPL 215235 Contact Us For Availability
055
WPL Y310632 WPL Y310632 Contact Us For Availability
055
WPL 213737 WPL 213737 Contact Us For Availability
056
WPL 214956 WPL 214956 Contact Us For Availability
058
WPL 215098 WPL 215098 Contact Us For Availability
061
WPL 901220 WPL 901220 Contact Us For Availability
062
WPL 911852 WPL 911852 Contact Us For Availability
× ![]()
