Model Whirlpool A23CDL WASHER – Common Parts & Diagrams
04 - CABINET\WATER VALVE\HOSES\FRONT PANEL

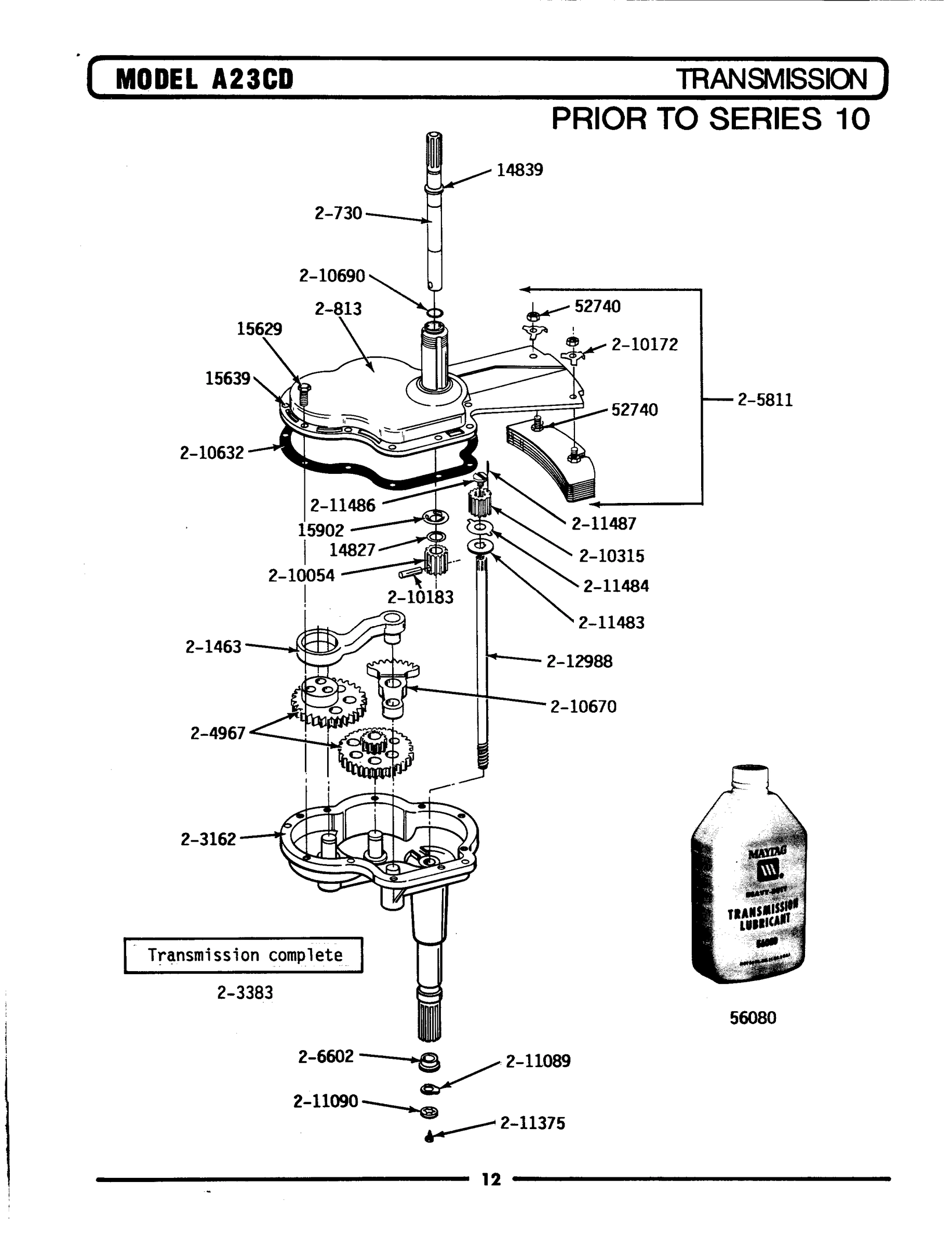

06 - TRANSMISSION

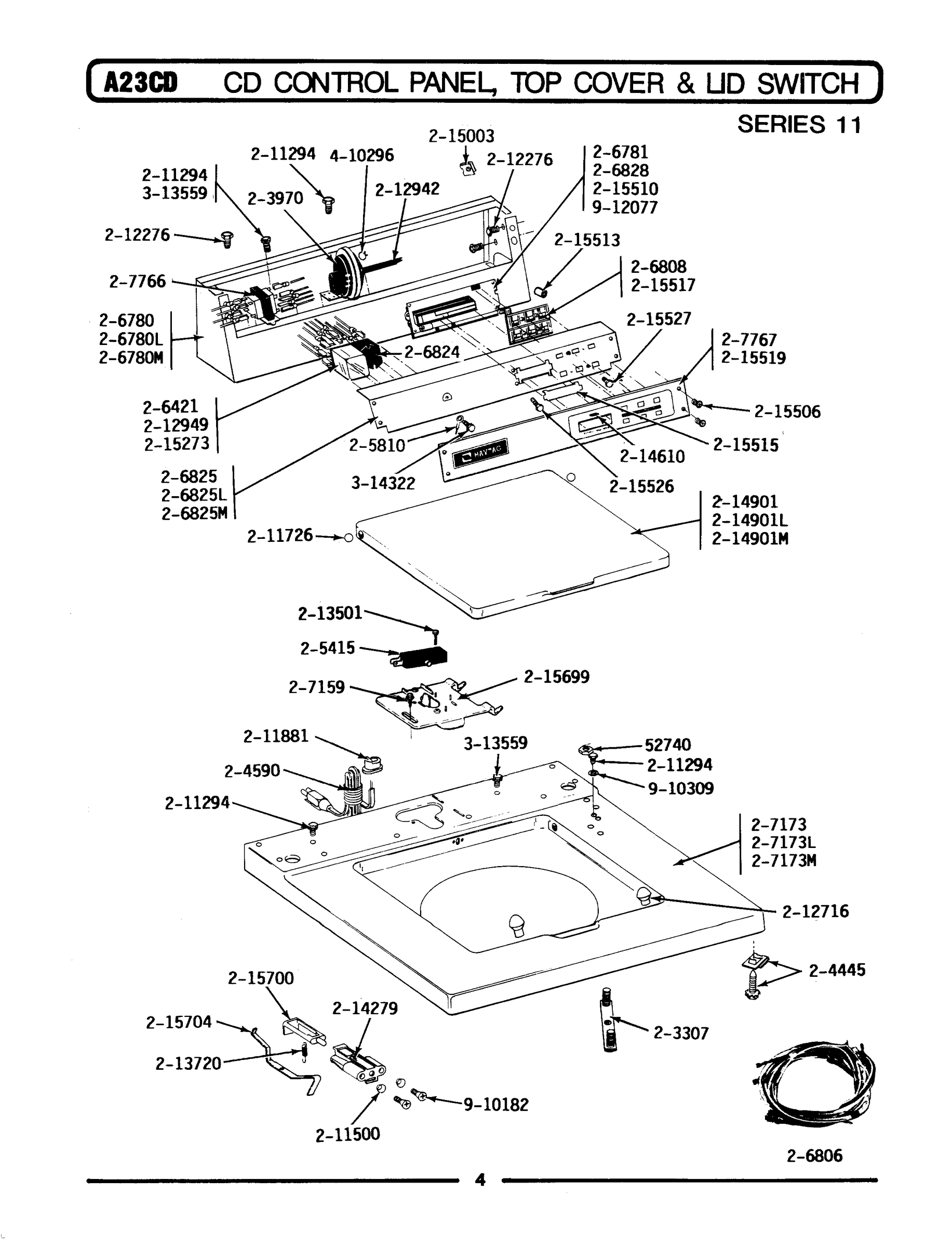

02 - CD CONTROL PANEL, TOP COVER & LID SWITCH

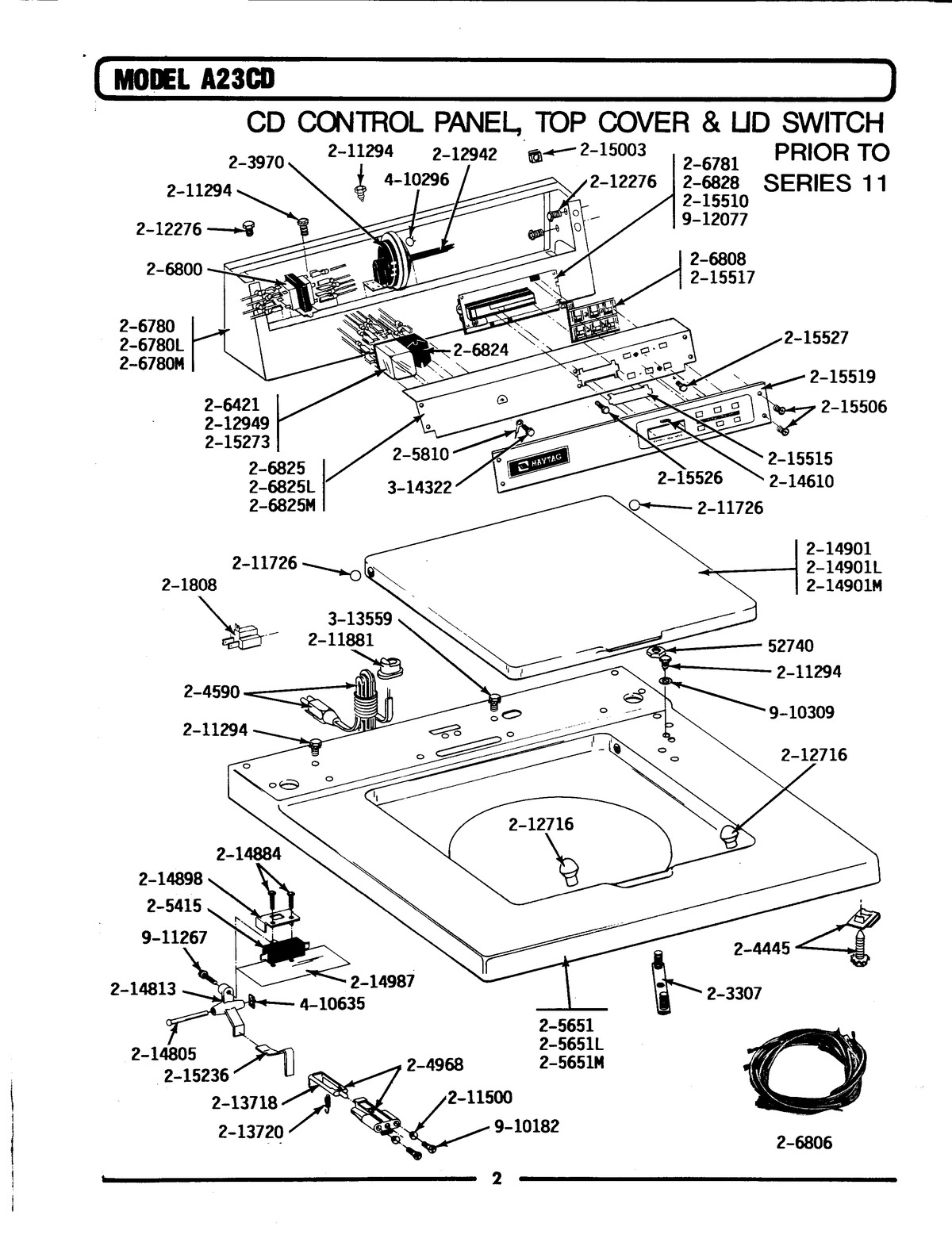

01 - CD CONTROL PANEL, TOP COVER & LID SWITCH

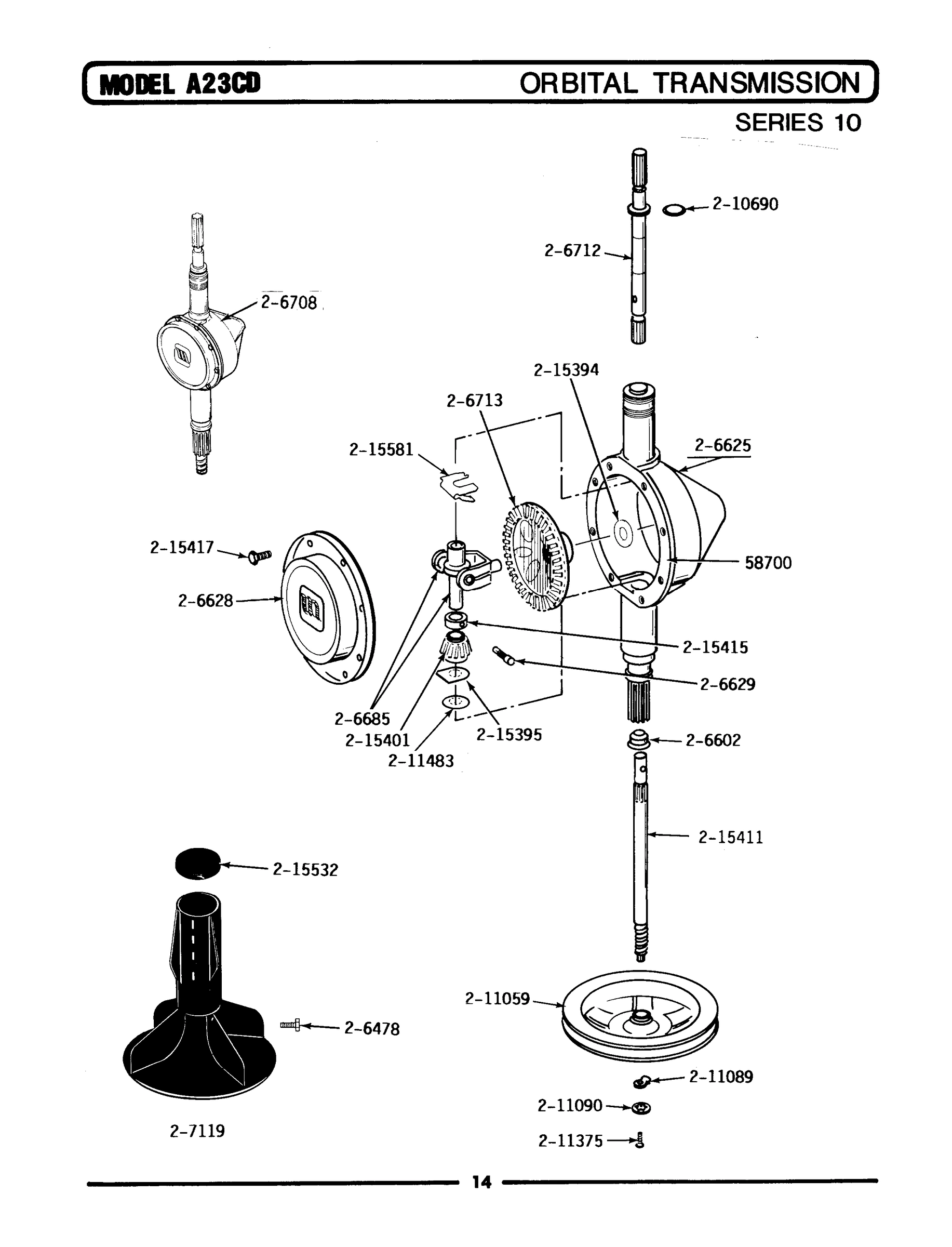

07 - ORBITAL TRANSMISSION

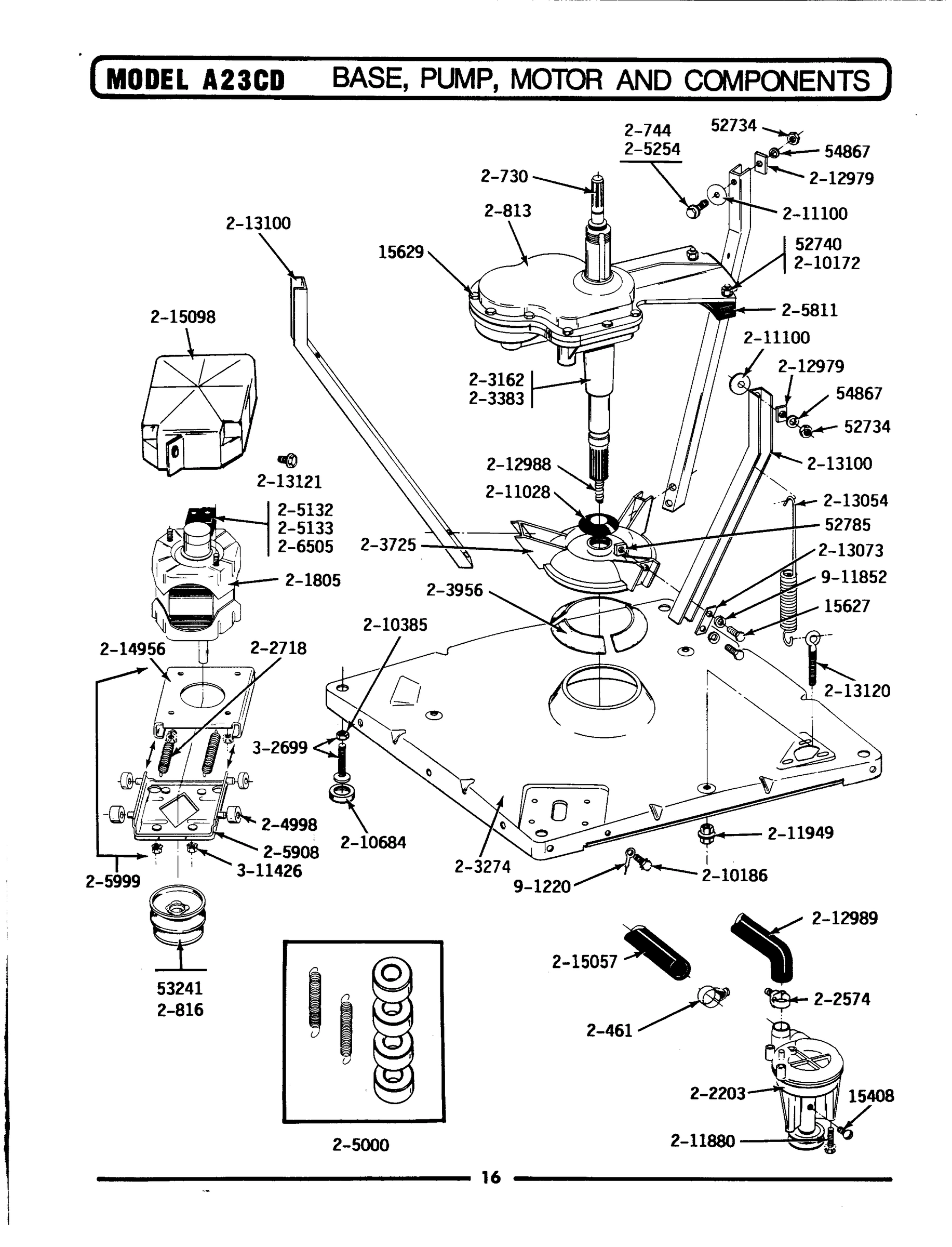

08 - BASE\PUMP\MOTOR

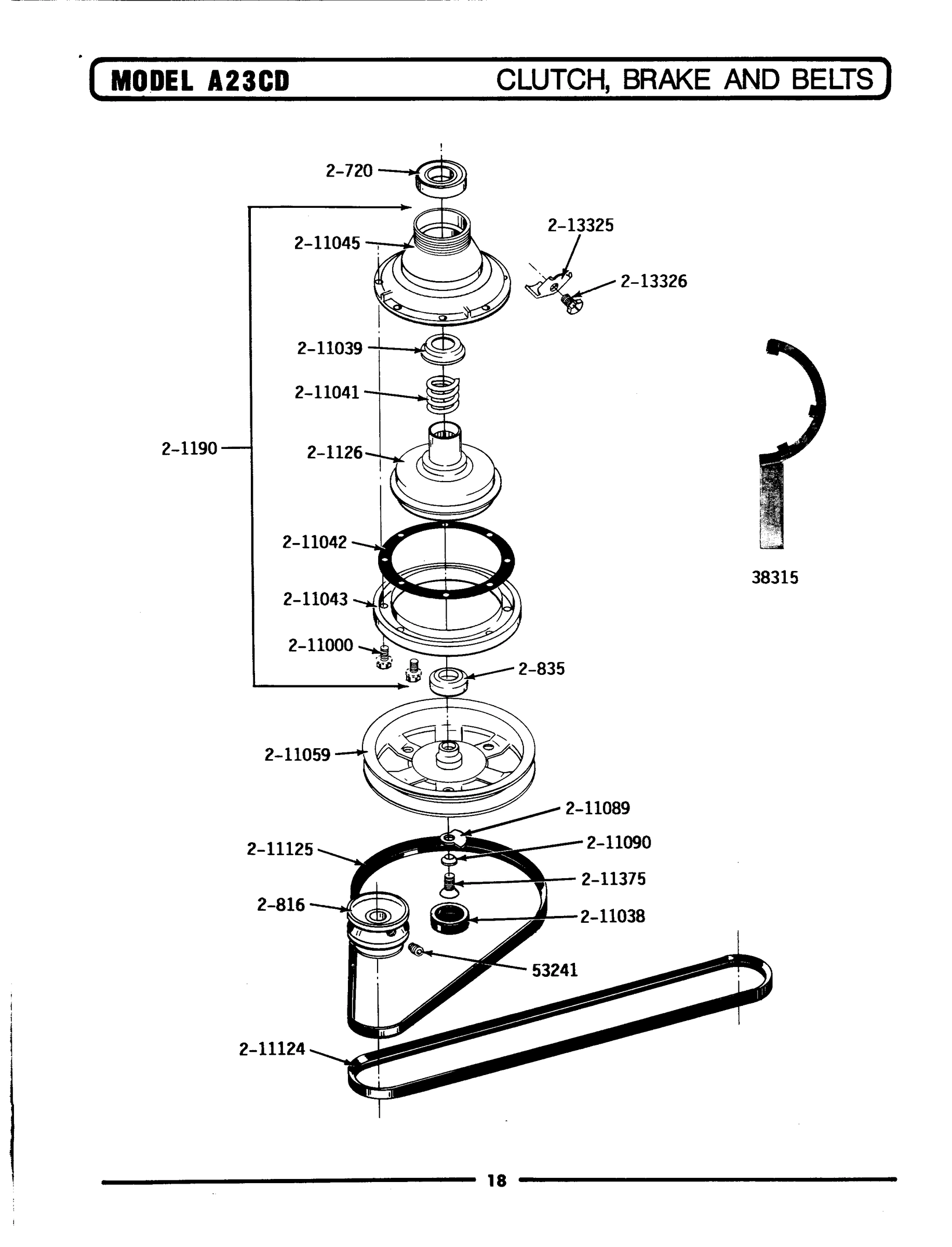

09 - CLUTCH\BRAKE\BELTS

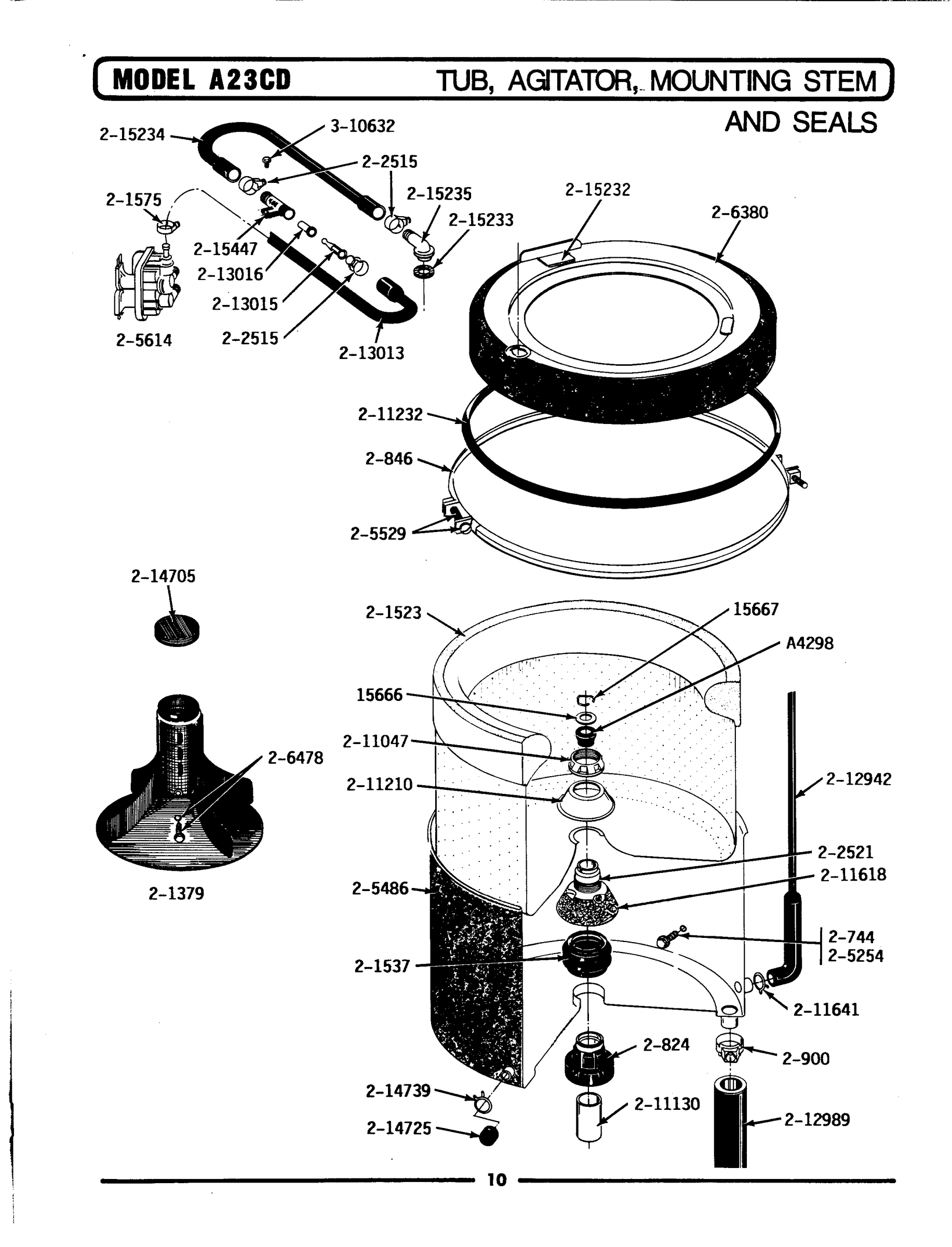

05 - TUB\AGITATOR

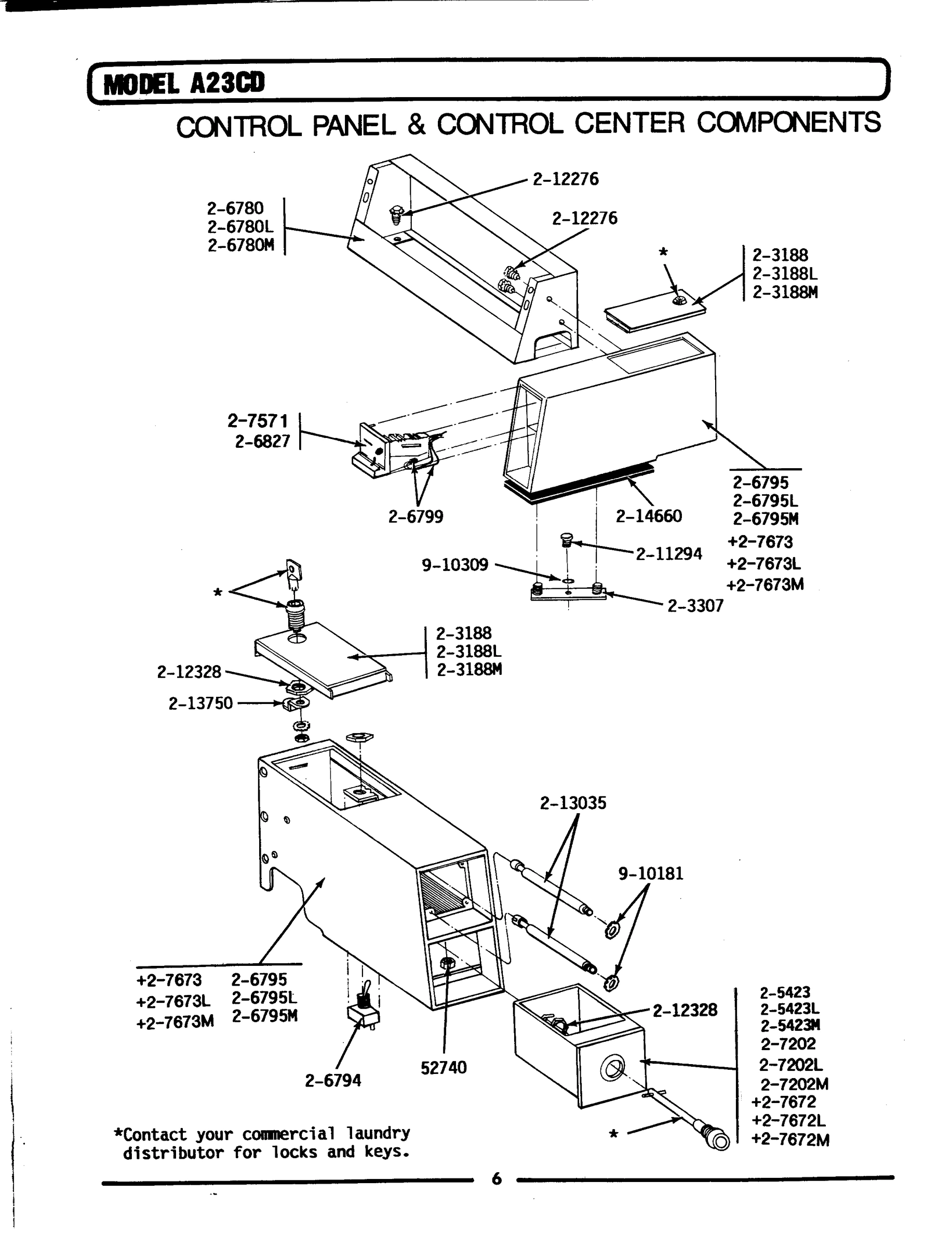

03 - CONTROL PANEL
Common parts from model Whirlpool A23CDL WASHER
001
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
001
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
002
WASHER, RETAINING (CNTR SEAL) WPL Y015666 Contact Us For Availability
002
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
002
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
003
BOLT, GRINDING CHAMBER (DRAIN) WPL Y015629 Contact Us For Availability
003
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
003
RETAINING RING WPL Y015667 Contact Us For Availability
003
(ALM) WPL 203188L Contact Us For Availability
004
SWITCH WPL 203970 Contact Us For Availability
004
HOUSING, TRANSMISSION WPL 206625 Contact Us For Availability
004
NUT, BRACE (TUB) WPL Y052734 Contact Us For Availability
004
WASHER, LOCK WPL Y054867 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
005
SPRING, AGITATOR WPL Y015902 Contact Us For Availability
005
SCREW & FASTENER ASSEMBLY WPL 204445 Contact Us For Availability
005
COVER, TRANSMISSION WPL 206628 Contact Us For Availability
005
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
005
COIN BOX (WHT) WPL 205423 Contact Us For Availability
006
NUT, BRACE (DAMPER) WPL Y052785 Contact Us For Availability
006
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
006
(ALM) WPL 205423L Contact Us For Availability
007
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
007
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
007
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
007
POWER CORD WPL 204590 Contact Us For Availability
007
CONTROL COVER ASSY. (WHT) WPL 206780 Contact Us For Availability
007
BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability
007
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
008
(ALM) WPL 206780L Contact Us For Availability
008
TRANSMISSION WPL 206708 Contact Us For Availability
009
WIRE, GROUND WPL 205810 Contact Us For Availability
009
TOP COVER (WHT) WPL 205651 Contact Us For Availability
009
ASSEMBLY, AGITATOR SHAFT WPL 206712 Contact Us For Availability
009
AGITATOR - BLACK WPL 201379 Contact Us For Availability
009
SWITCH WPL 206794 Contact Us For Availability
010
AGITATOR SHAFT WPL 200730 Contact Us For Availability
010
RELAY-MOTOR REVERSING WPL 206421 Contact Us For Availability
010
GEAR, BEVEL WPL 206713 Contact Us For Availability
010
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
010
COIN DROP METER ASSY WPL 206795 Contact Us For Availability
011
INDICATOR, 5 LIGHT 115V WPL 206881 Contact Us For Availability
011
SPRING, BRAKE WPL 211041 Contact Us For Availability
011
SEAL & SPRING WPL 201537 Contact Us For Availability
011
COIN DROP METER ASSY WPL 206795L Contact Us For Availability
012
SEAL, RUBBER WPL 210690 Contact Us For Availability
012
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
012
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
013
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
013
DRUM, BRAKE WPL 211043 Contact Us For Availability
014
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
014
HOUSING, BRAKE WPL 211045 Contact Us For Availability
014
MOUNTING STEM WPL 202521 Contact Us For Availability
015
No.17 WIRE W/TERMINAL WPL 203237 Contact Us For Availability
015
BACK BRACKET ASSEMBLY WPL 206825 Contact Us For Availability
015
PUMP AS PAK WPL 202203 Contact Us For Availability
015
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
016
COIN REJECTOR WPL NLA Contact Us For Availability
016
PINION WPL 210054 Contact Us For Availability
017
BATTERY WPL 206828 Contact Us For Availability
017
COIN BOX (WHT) WPL 207672 Contact Us For Availability
018
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
018
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
018
TRANSFORMER WPL 207766 Contact Us For Availability
018
WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability
018
TUB, OUTER WPL 205486 Contact Us For Availability
018
(ALM) WPL 207672L Contact Us For Availability
019
NUT & BOLT KIT, TUB CLAM WPL 205529 Contact Us For Availability
019
PINION WPL 210315 Contact Us For Availability
019
BASE W/DAMPER PADS WPL 203274 Contact Us For Availability
019
CONTROL CENTER CASE (WHT) WPL 207673 Contact Us For Availability
020
TRANS & CENTER ASSY. (REG) WPL 203383 Contact Us For Availability
020
GASKET WPL 210632 Contact Us For Availability
020
WASHER, BRACKET (TOP COVER) WPL 211500 Contact Us For Availability
020
(ALM) WPL 207673L Contact Us For Availability
021
CAPACITOR KIT WPL 206103 Contact Us For Availability
021
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
021
TUB COVER WPL 206380 Contact Us For Availability
022
TOP COVER ASSEMBLY (WHT) WPL 207173 Contact Us For Availability
022
GROMMET, CORD WPL 211881 Contact Us For Availability
022
SCREW & WASHER, AGITATOR WPL 206478 Contact Us For Availability
022
COLLAR, LOWER WPL 215415 Contact Us For Availability
022
BOLT, RETAINING CLIP WPL 213326 Contact Us For Availability
023
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
023
SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability
023
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
024
DISPENSER CUP WPL 215533 Contact Us For Availability
024
BOLT, LOCKING WPL 213035 Contact Us For Availability
025
CLAMP WPL 211448 Contact Us For Availability
025
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
025
WASHER, CUSHION WPL 211100 Contact Us For Availability
026
SCREW WPL 212949 Contact Us For Availability
026
LINER, TUB BEARING WPL 211130 Contact Us For Availability
026
GASKET, METER CASE WPL 214660 Contact Us For Availability
027
LUG WASHER WPL 211484 Contact Us For Availability
027
PLUNGER, LID SWITCH WPL 213718 Contact Us For Availability
027
WASHER, CLAMPING NUT (STNLS) WPL 211210 Contact Us For Availability
027
LOCK WASHER WPL 910181 Contact Us For Availability
028
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
028
WASHER WPL 910309 Contact Us For Availability
029
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
029
BUMPER, LID WPL 214610 Contact Us For Availability
029
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
030
FRONT PANEL (WHT) WPL 212998 Contact Us For Availability
030
PIN, UNBALANCE LEVER WPL 214805 Contact Us For Availability
030
MOTOR MOUNT ASSY. COMPLETE WPL 205999 Contact Us For Availability
031
(ALM) WPL 212998L Contact Us For Availability
031
LEVER, LID SWITCH WPL 214813 Contact Us For Availability
032
SCREW - LID SWITCH WPL 214884 Contact Us For Availability
033
BRACKET, LID SWITCH PLUNGER WPL 214279 Contact Us For Availability
033
COVER, LID SWITCH WPL 214898 Contact Us For Availability
034
LID (WHT) WPL 214901 Contact Us For Availability
035
GUARD, BELT WPL 213846 Contact Us For Availability
036
MOISTURE BARRIER, SWITCH WPL 214987 Contact Us For Availability
036
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
036
AGITATOR CAP WPL 214705 Contact Us For Availability
037
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
037
FASTENER WPL 215003 Contact Us For Availability
037
CAP, SPOUT (OUTER TUB) WPL 214725 Contact Us For Availability
038
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
038
LEVER, UNBALANCE WPL 215236 Contact Us For Availability
039
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
039
CLIP, SPRING WPL 215273 Contact Us For Availability
039
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
040
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
041
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
041
CENTER SHAFT WPL 212988 Contact Us For Availability
041
SUPPORT, PC BOARD WPL 215510 Contact Us For Availability
042
SCREW WPL Y310842 Contact Us For Availability
042
BOARD, SPACER CIRCUIT WPL Y215513 Contact Us For Availability
042
INJECTOR TUBE WPL 215235 Contact Us For Availability
043
SCREW----NA WPL Y313561 Contact Us For Availability
043
COVER, DISPLAY WPL 215515 Contact Us For Availability
043
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
044
WASHER, DBLE. (BRACE-DAMPER) WPL 213073 Contact Us For Availability
044
SCREW WPL Y310632 Contact Us For Availability
045
PANEL, CONTROL WPL 215519 Contact Us For Availability
045
BRACE, TUB WPL 213100 Contact Us For Availability
046
SCREW WPL 215526 Contact Us For Availability
048
PLATE, MOTOR MT. (UPPER) WPL 214956 Contact Us For Availability
049
DRAIN HOSE WPL 215057 Contact Us For Availability
049
SCREW (No.8-32 X 3/8``) WPL Y314322 Contact Us For Availability
050
LEVER, UNBALANCE WPL 215704 Contact Us For Availability
050
SHIELD, MOTOR WPL 215098 Contact Us For Availability
051
FASTENER WPL 410635 Contact Us For Availability
053
WPL 901220 WPL 901220 Contact Us For Availability
054
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
054
WPL 911852 WPL 911852 Contact Us For Availability
× ![]()
