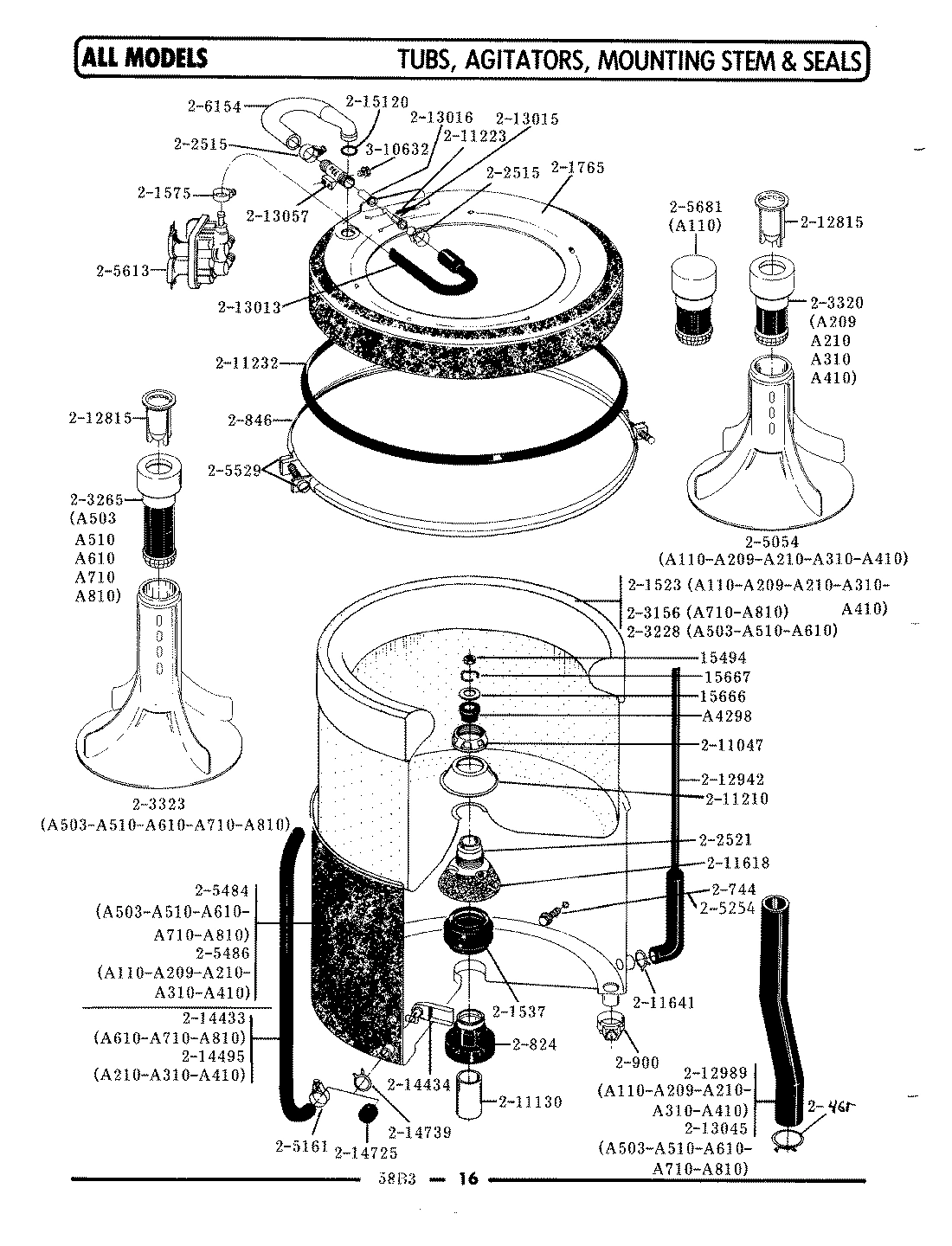

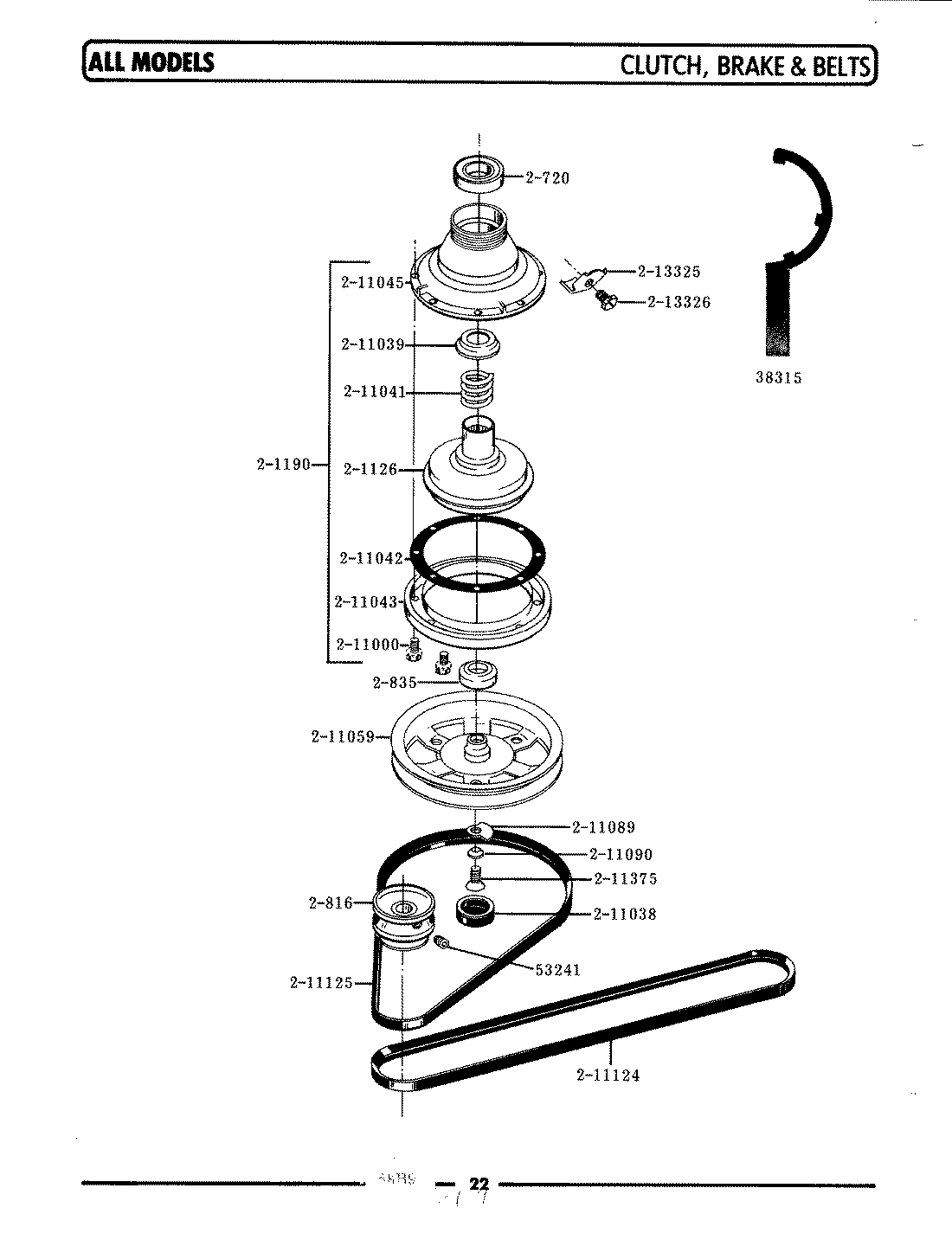

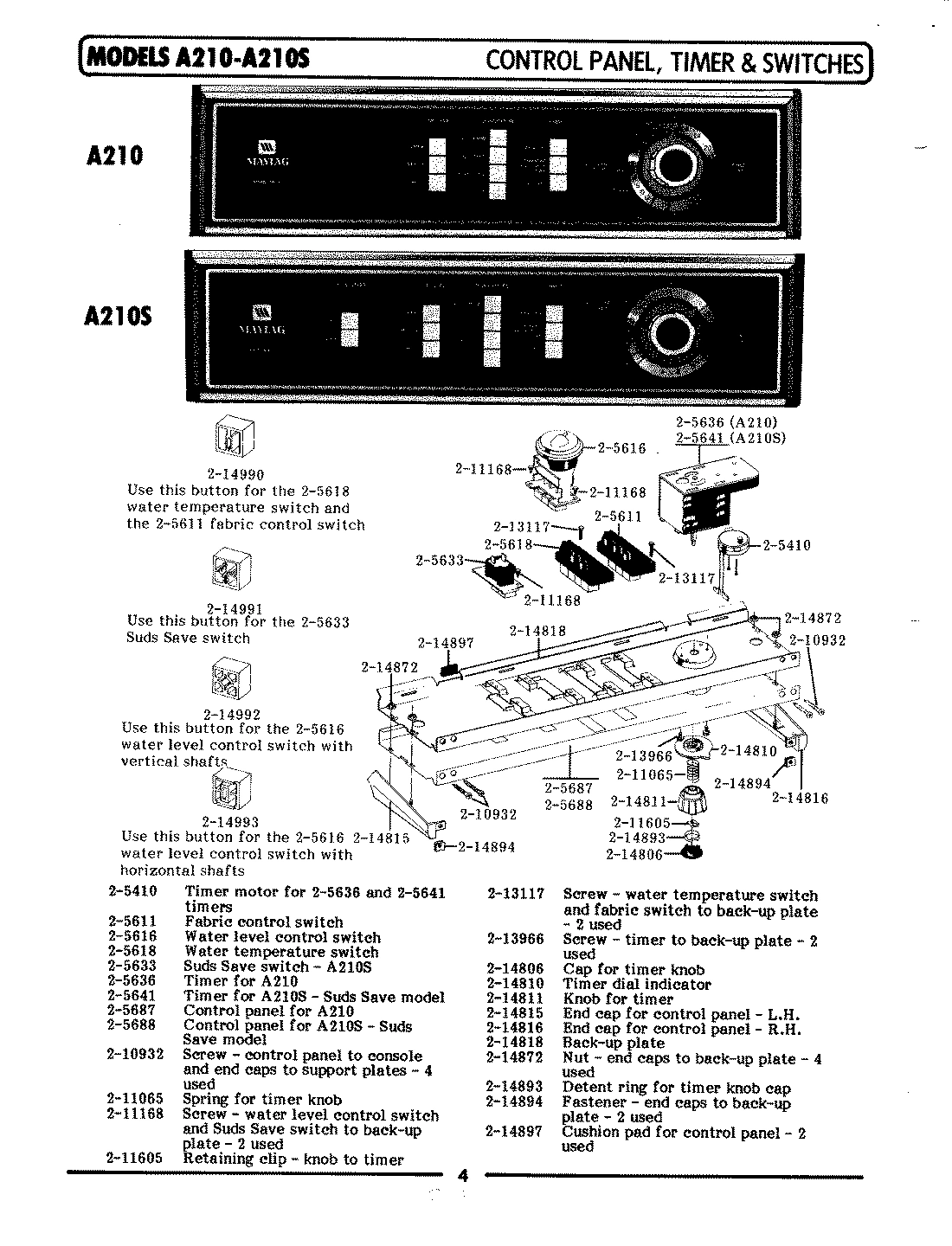

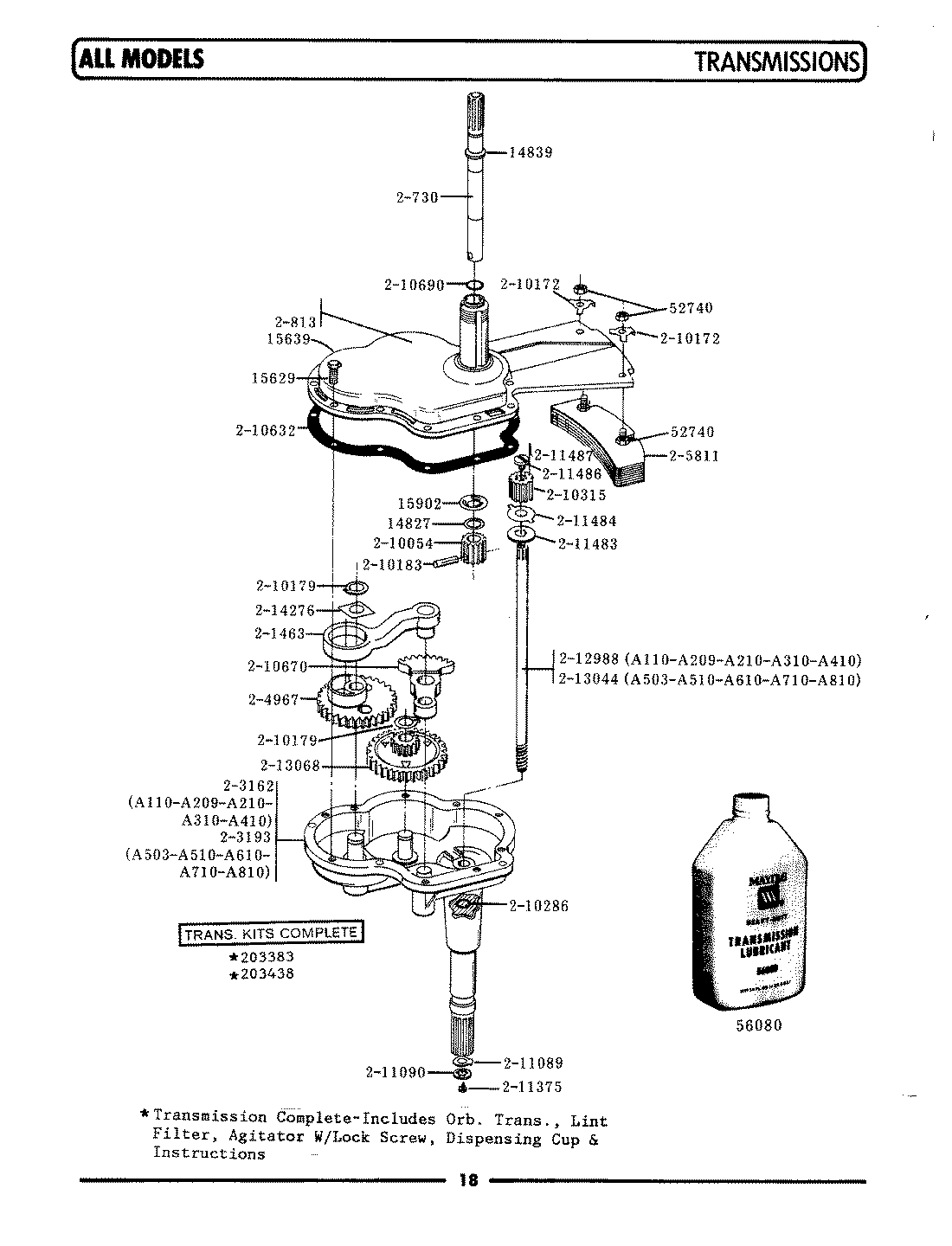

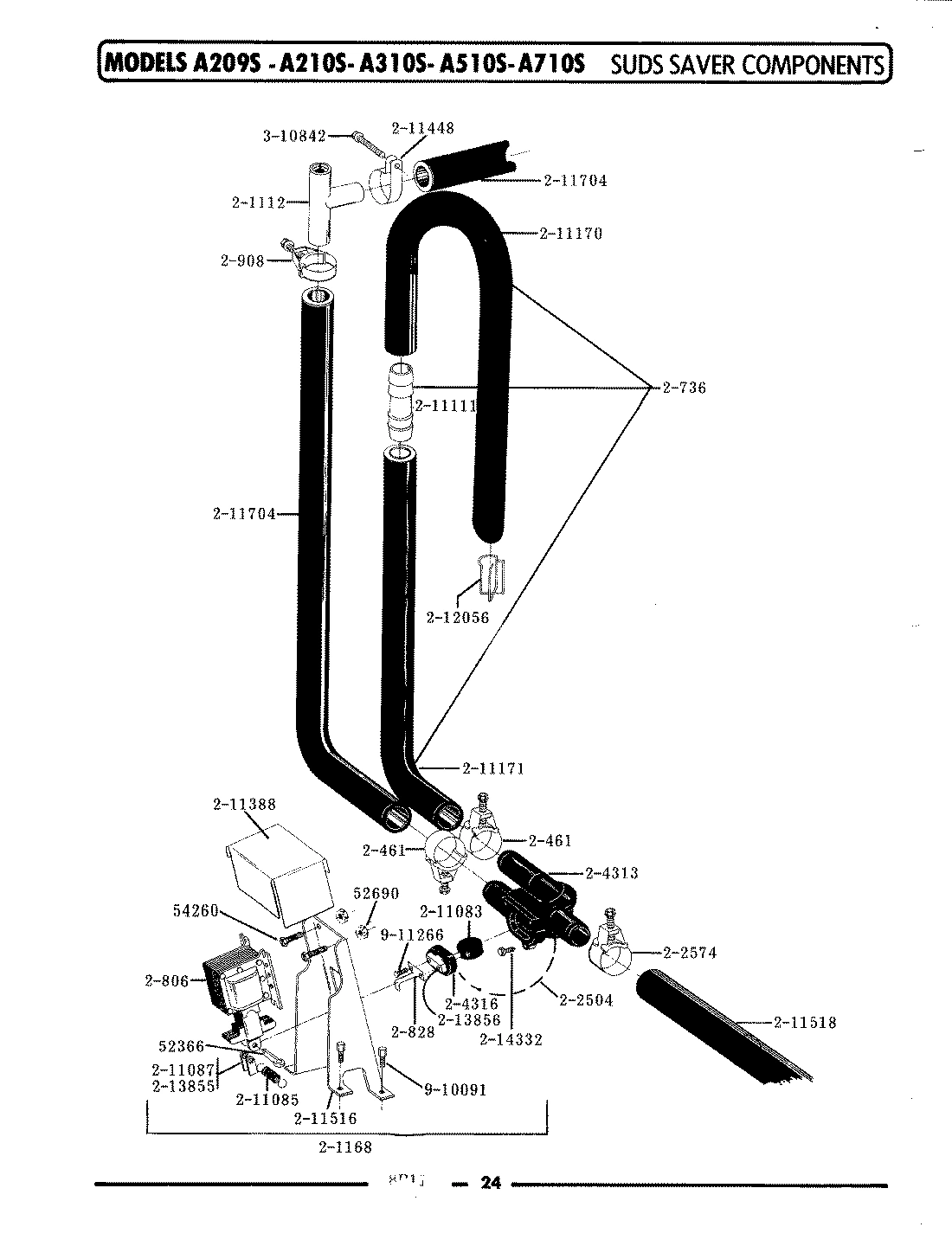

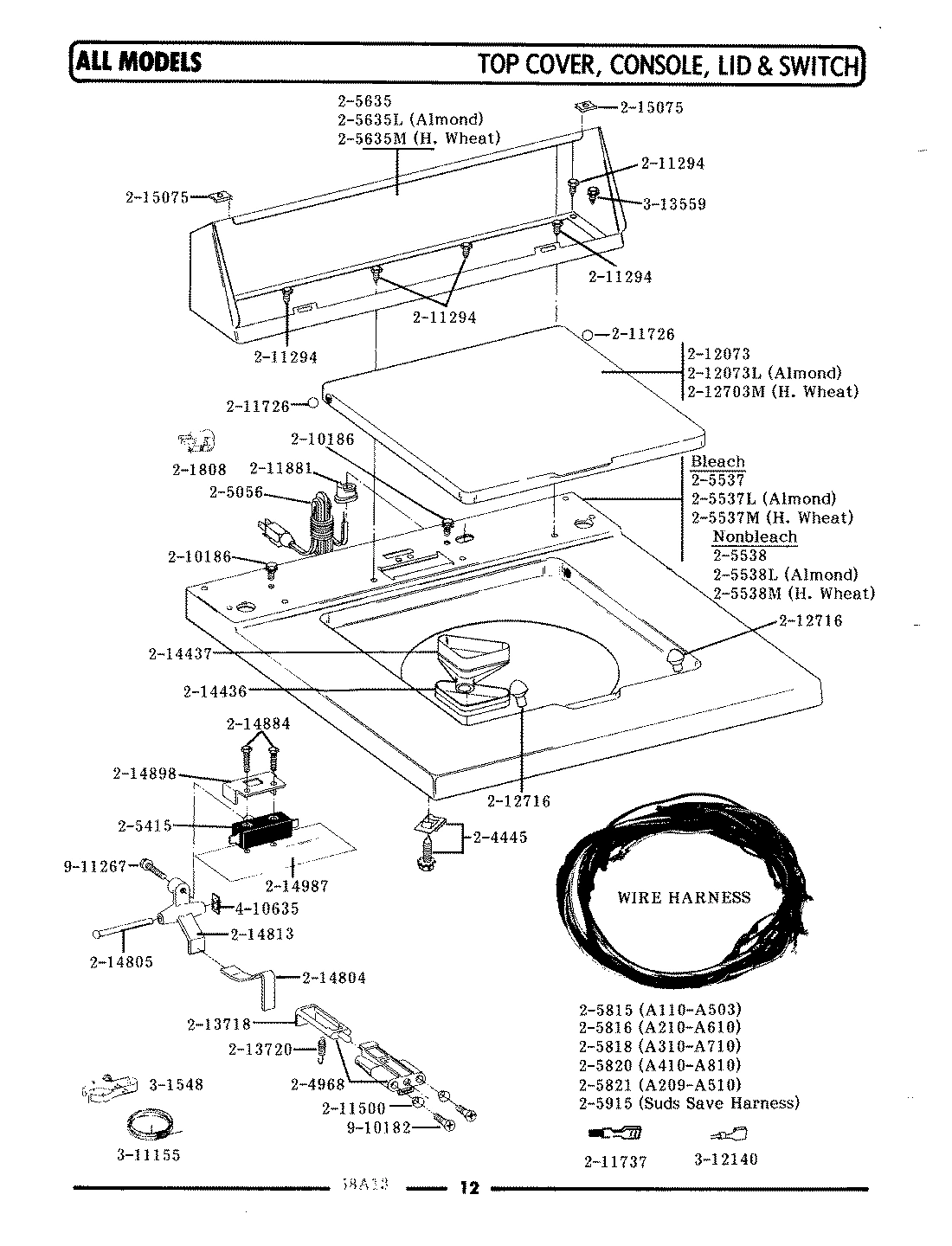

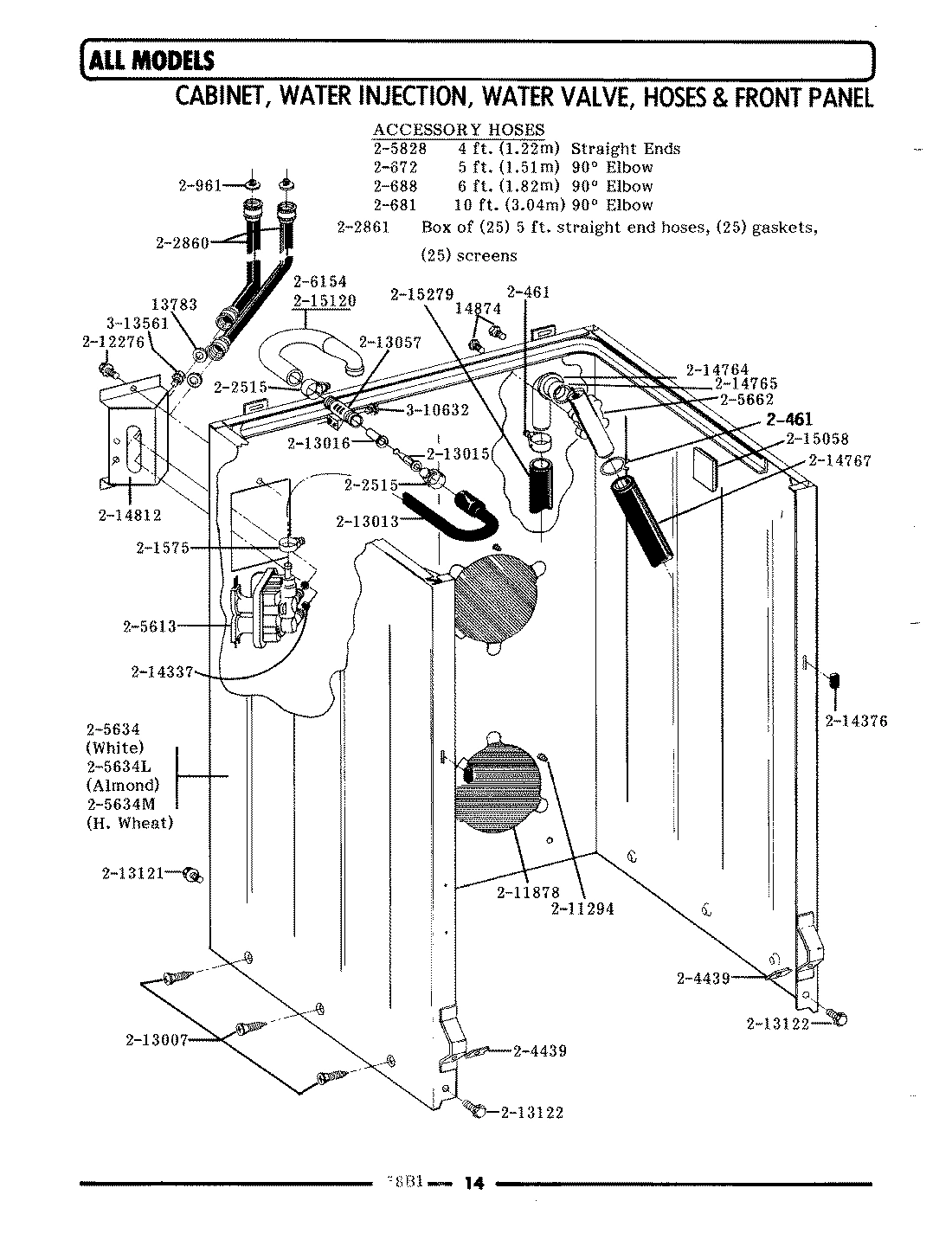

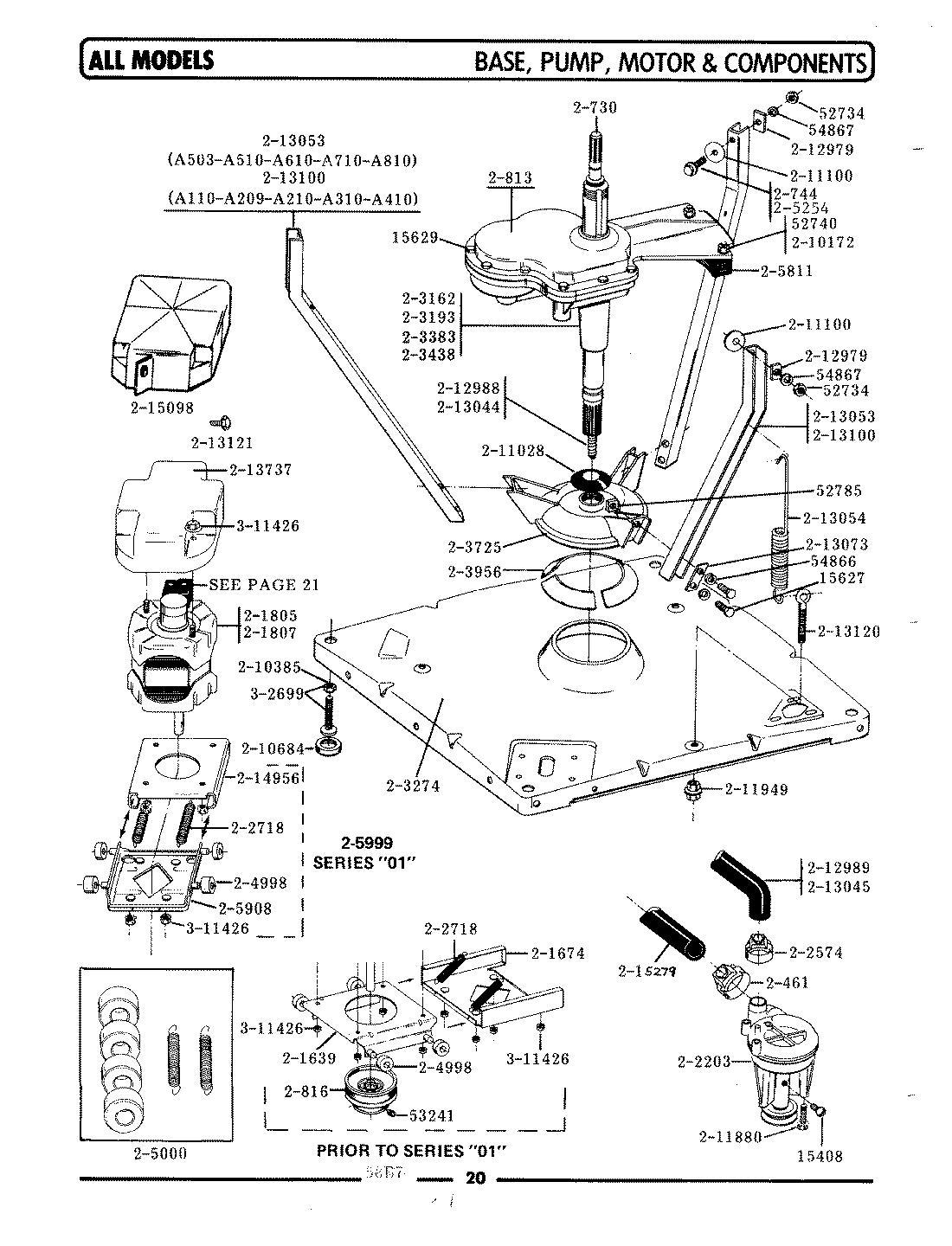

Model Whirlpool A210S WASHER – Common Parts &amp; Diagrams

1

TIMER MOTOR 120-60 WPL 205410 Contact Us For Availability

1

CONVERTER WPL Y201808 Contact Us For Availability

1

WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability

1

SEAL, AGITATOR DRIVE SHAFT WPL A04298 Contact Us For Availability

1

TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability

1

COTTER KEY, 1/8 X 7/8 WPL 052366 Contact Us For Availability

2

FABRIC CONTROL SWITCH WPL 205611 Contact Us For Availability

2

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

2

COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability

2

STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability

2

HEX. NUT, No.10-32 WPL 052690 Contact Us For Availability

2

SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability

3

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

3

PLUNGER & BRACKET ASSEMBLY WPL 204968 Contact Us For Availability

3

WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability

3

WATER LEVEL CONTROL SWITCH WPL 205616 Contact Us For Availability

3

BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability

3

BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability

4

WATER TEMPERATURE SWITCH WPL 205618 Contact Us For Availability

4

CORD, POWER WPL 205056 Contact Us For Availability

4

DOWEL PIN WPL 015639 Contact Us For Availability

4

RETAINING RING WPL Y015667 Contact Us For Availability

4

NUT WPL Y052734 Contact Us For Availability

5

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $30.21

5

SUDS SAVE SWITCH WPL 205633 Contact Us For Availability

5

SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability

5

BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability

5

SUDS RETURN HOSE WPL 200736 Contact Us For Availability

6

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

6

TOP COVER-WHITE WPL 205537 Contact Us For Availability

6

ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability

6

SOLENOID WPL 200806 Contact Us For Availability

6

NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability

7

6-2040130 Whirlpool Washer Tub Bearing Kit In Stock WPL 6-2040130 $58.63

7

TIMER NLA WPL 205641 Contact Us For Availability

7

TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability

7

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

7

BRAKE ASSEMBLY WPL 201190 Contact Us For Availability

7

VALVE ARM ASSEMBLY WPL 200828 Contact Us For Availability

8

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

8

CLAMP - TUB COVER WPL 200846 Contact Us For Availability

8

CONSOLE (WHT) WPL 205635 Contact Us For Availability

8

AGITATOR SHAFT WPL 200730 Contact Us For Availability

8

LOCK WASHER WPL Y054866 Contact Us For Availability

9

76660 Whirlpool Syphon Break with Clamps Backorder WPL 76660 $95.17

9

CONTROL PANEL WPL 205688 Contact Us For Availability

9

GEAR CASE COVER ASSEMBLY WPL 200813 Contact Us For Availability

9

WASHER, LOCK WPL Y054867 Contact Us For Availability

9

CAP, OIL RETAINER WPL 211038 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

MAIN WIRE HARNESS WPL 205816 Contact Us For Availability

PITMAN WITH WRIST PIN WPL 201463 Contact Us For Availability

INNER TUB WPL 201523 Contact Us For Availability

RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability

DIVERTER VALVE WPL 201168 Contact Us For Availability

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.40

SUDS SAVE HARNESS WPL 205915 Contact Us For Availability

SEAL AND SPRING WPL 201537 Contact Us For Availability

SPRING, BRAKE WPL 211041 Contact Us For Availability

DIVERTER VALUE COVER/FLAPPER WPL 202504 Contact Us For Availability

W10175939 Whirlpool Bolt Assembly In Stock WPL W10175939 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

GEAR HOUSING W/STUDS & TUBE WPL 203193 Contact Us For Availability

GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability

TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability

TUB COVER WPL 201765 Contact Us For Availability

DRUM, BRAKE WPL 211043 Contact Us For Availability

BODY FOR DIVERTER VALVE WPL 204313 Contact Us For Availability

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability

TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability

HOUSING, BRAKE WPL 211045 Contact Us For Availability

DIAPHRAGM AND ARM WPL 204316 Contact Us For Availability

WP211726 Whirlpool Ball Assembly In Stock WPL WP211726 $5.30

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

WP6-2301530 Whirlpool Pulley Backorder WPL WP6-2301530 $140.51

GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability

MOUNTING STEM WPL 202521 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability

FLAPPER WPL 211083 Contact Us For Availability

WP248562 Whirlpool Terminal Backorder WPL WP248562 $4.82

CAP FOR TIMER KNOB WPL 214806 Contact Us For Availability

COUNTERWEIGHT WPL 205811 Contact Us For Availability

MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability

RETURN SPRING WPL 211085 Contact Us For Availability

UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability

TIMER DIAL INDICATOR WPL 214810 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

PINION WPL 210054 Contact Us For Availability

SOLENOID LINK WPL 211087 Contact Us For Availability

LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability

12112425 Whirlpool Washer Pump and Drive Belt In Stock WPL 12112425 $19.50

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

KNOB FOR TIMER WPL 214811 Contact Us For Availability

LID-WHITE WPL 212073 Contact Us For Availability

LOCK WASHER WPL 210172 Contact Us For Availability

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

RETAINING RING WPL 210179 Contact Us For Availability

SUDS HOSE, UPPER WPL 211170 Contact Us For Availability

PUMP AS PAK WPL 202203 Contact Us For Availability

WP212716 Whirlpool Lid Bumper In Stock WPL WP212716 $5.30

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability

GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability

SUDS RETURN HOSE-LOWER WPL 211171 Contact Us For Availability

BACK UP PLATE WPL 214818 Contact Us For Availability

LID SWITCH PLUNGER WPL 213718 Contact Us For Availability

SEAL WPL 210286 Contact Us For Availability

SHIELD WPL 211388 Contact Us For Availability

202718 Whirlpool Tension Spring Backorder WPL 202718 $8.52

WP213720 Whirlpool Spring Assembly In Stock WPL WP213720 $6.02

PALNUT, END CAP WPL 214872 Contact Us For Availability

PINION WPL 210315 Contact Us For Availability

SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability

CLAMP WPL 211448 Contact Us For Availability

23

DETENT RING F/TIMER KNOB CA WPL 214893 Contact Us For Availability

23

GASKET WPL 210632 Contact Us For Availability

23

VALVE BRACKET WPL 211516 Contact Us For Availability

24

FASTENER, END CAP WPL 214894 Contact Us For Availability

24

SEGMENT WPL 210670 Contact Us For Availability

24

HOSE WPL 211518 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

UNBALANCE LEVER WPL 214804 Contact Us For Availability

SEAL, RUBBER WPL 210690 Contact Us For Availability

LINER, TUB BEARING WPL 211130 Contact Us For Availability

DRAIN HOSE WPL 211704 Contact Us For Availability

BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability

WP211089 Whirlpool Lug Stop Backorder WPL WP211089 $7.19

PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability

WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability

STRAINER WPL 212056 Contact Us For Availability

WP22003555 Whirlpool Washer ST Backorder WPL WP22003555 $12.87

LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability

UNBALANCE BUMPER WPL 211223 Contact Us For Availability

PIN, PIVOT WPL 213855 Contact Us For Availability

DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability

203956 Whirlpool Damper Pads 3 Pack with Poly In Stock WPL 203956 $25.53

WP211232 Whirlpool Seal In Stock WPL WP211232 $44.89

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

SCREW - LID SWITCH WPL 214884 Contact Us For Availability

RETAINER WPL 213856 Contact Us For Availability

29

22001423 Whirlpool Screw Set Assembly Backorder WPL 22001423 $36.70

29

WP6-2114830 Whirlpool Washer Spare Part Backorder WPL WP6-2114830 $4.82

29

COVER FOR LID SWITCH WPL 214898 Contact Us For Availability

MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability

LUG WASHER WPL 211484 Contact Us For Availability

DISPENSER CUP WPL 212815 Contact Us For Availability

SCREW WPL Y310842 Contact Us For Availability

205000 Whirlpool Motor Spring and Guide Kit Backorder WPL 205000 $45.73

WP22001619 Whirlpool Washer Water Level Press In Stock WPL WP22001619 $64.18

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability

32

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

32

GROOV-PIN WPL 211487 Contact Us For Availability

32

SCREW, STRAINER TO PUMP WPL 911266 Contact Us For Availability

33

WP213013 Whirlpool Injector Hose Backorder WPL WP213013 $31.58

34

WP213015 Whirlpool Nozzle Injector Tube In Stock WPL WP213015 $4.82

34

WIRE CONNECTOR WPL Y312140 Contact Us For Availability

34

CENTER SHAFT WPL 213044 Contact Us For Availability

35

WP216201 Whirlpool Rubber Injector Valve In Stock WPL WP216201 $13.69

35

INTERMEDIATE GEAR WPL 213068 Contact Us For Availability

WP22213057 Whirlpool Injector Sleeve In Stock WPL WP22213057 $6.02

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

FASTENER WPL 410635 Contact Us For Availability

WASHER FOR GEARS WPL 214276 Contact Us For Availability

37

W10756178 Whirlpool Screw Backorder WPL W10756178 $4.55

38

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.86

38

SCREW, PUMP COVER WPL 911267 Contact Us For Availability

38

LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability

39

SPACER, FRONT PANEL WPL 214376 Contact Us For Availability

39

MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability

40

208847 Whirlpool Washer Siphon Break Kit In Stock WPL 208847 $18.92

40

CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability

41

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $4.82

41

WP214765 Whirlpool Gasket Backorder WPL WP214765 $59.25

42

WP210684 Whirlpool Dishwasher Leveling Leg Pa In Stock WPL WP210684 $11.40

42

WP22001448 Whirlpool Drain Pump Hose In Stock WPL WP22001448 $52.38

43

DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability

43

DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability

44

BRACKET,WATER VALVE WPL 214812 Contact Us For Availability

44

WASHER, CUSHION WPL 211100 Contact Us For Availability

45

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

46

WP211949 Whirlpool Nut Backorder WPL WP211949 $4.82

46

PAD, CABINET BUMPER WPL 215058 Contact Us For Availability

47

WASHER, TUB BRACE WPL 212979 Contact Us For Availability

49

SCREW----NA WPL Y313561 Contact Us For Availability

53

CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability

54

SCREW WPL Y310632 Contact Us For Availability

54

WASHER, DOUBLE WPL 213073 Contact Us For Availability

56

W11129403 Whirlpool Bolt Backorder WPL W11129403 $8.89

57

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $4.26

58

MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability

59

WP22003410 Whirlpool Drain Hose In Stock WPL WP22003410 $43.54

60

MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability

61

SHIELD, MOTOR WPL 215098 Contact Us For Availability

62

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $8.94

63

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

205613 Whirlpool Washer Water Inlet Valve In Stock WPL 205613 $78.89

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability

NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability

No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability

CAPACITOR KIT WPL 206103 Contact Us For Availability

CLIP, CAPACITOR WPL 211149 Contact Us For Availability

FRONT PANEL-WHITE WPL 212998 Contact Us For Availability

GUARD, BELT WPL 213846 Contact Us For Availability

CAPACITOR WPL Y200832 Contact Us For Availability

END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability

GEAR CASE COVER WPL 200750 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

SWITCH, MOTOR START WPL 205131 Contact Us For Availability

SWITCH, MOTOR START WPL 205132 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205133 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205134 Contact Us For Availability
