Model Whirlpool A210 WASHER – Common Parts & Diagrams

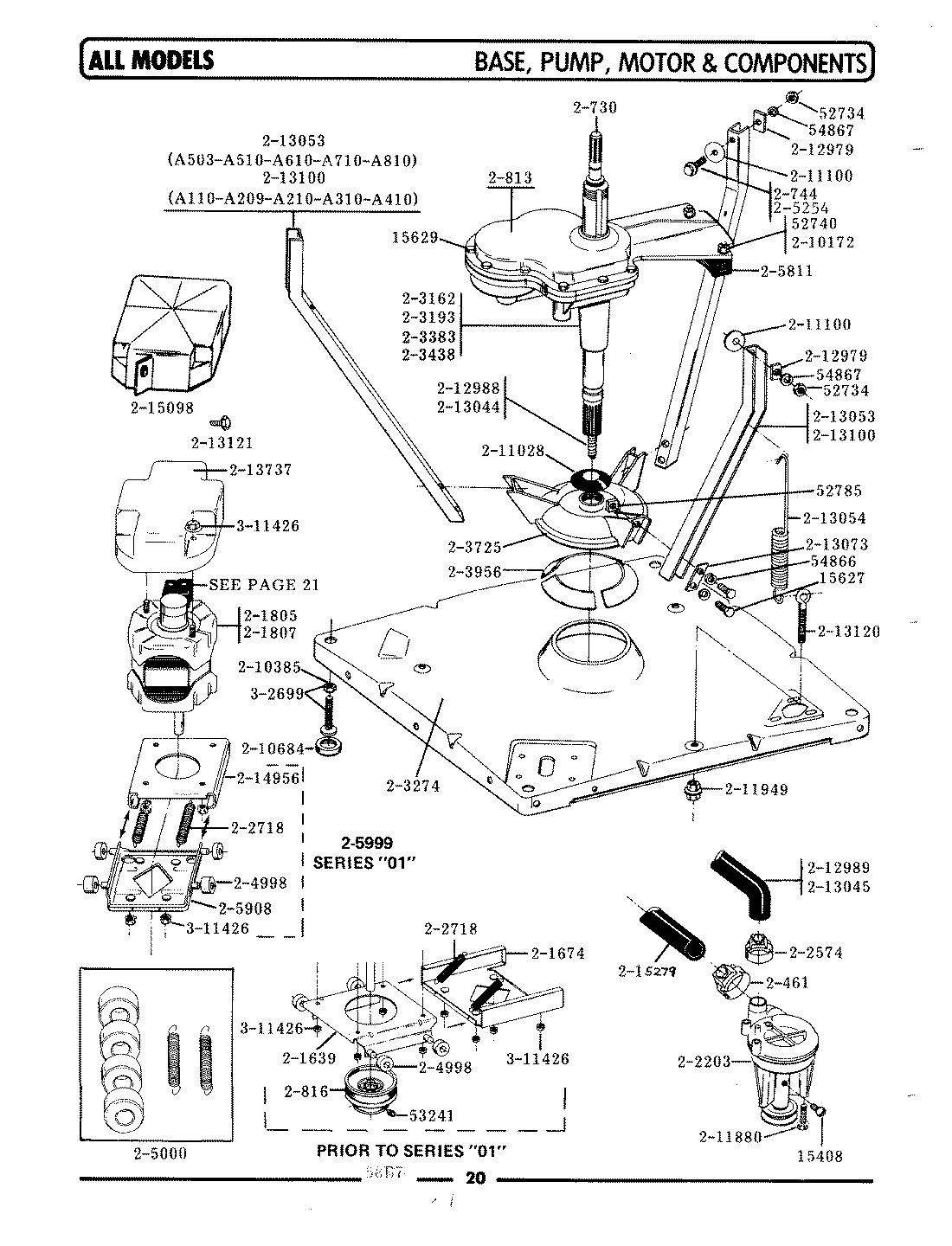

02 - BASE\PUMP\MOTOR

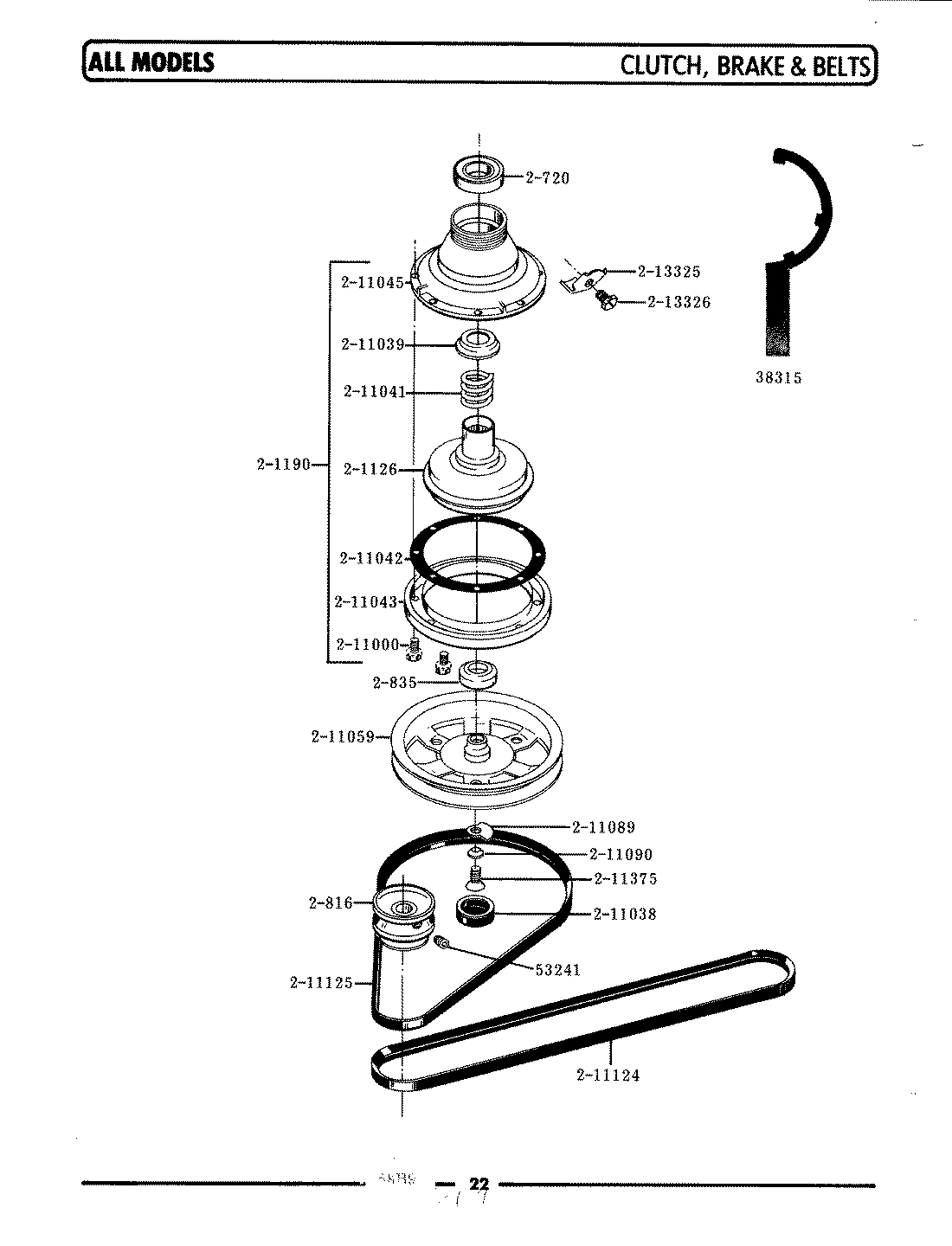

04 - CLUTCH, BRAKE & BELTS

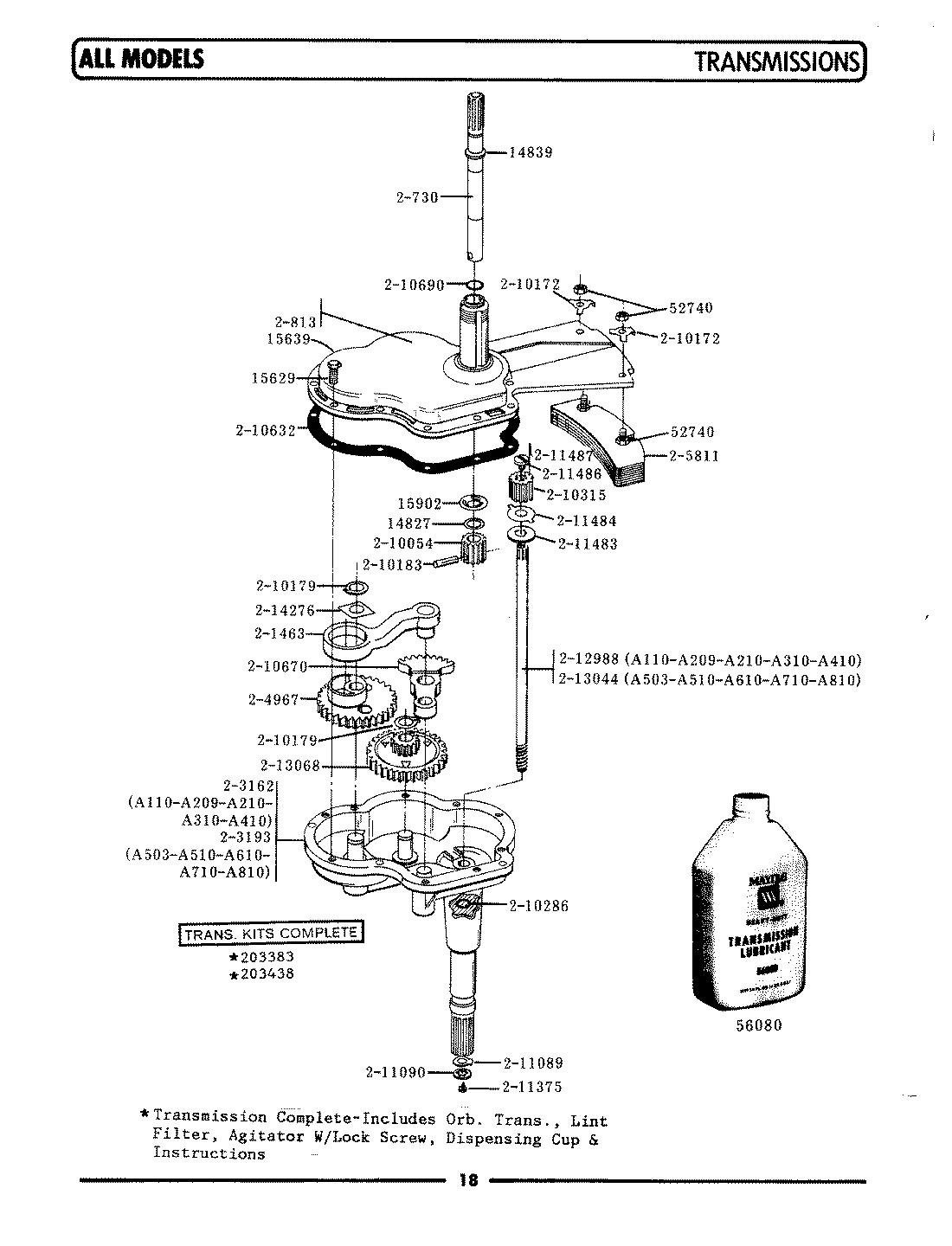

09 - TRANSMISSIONS

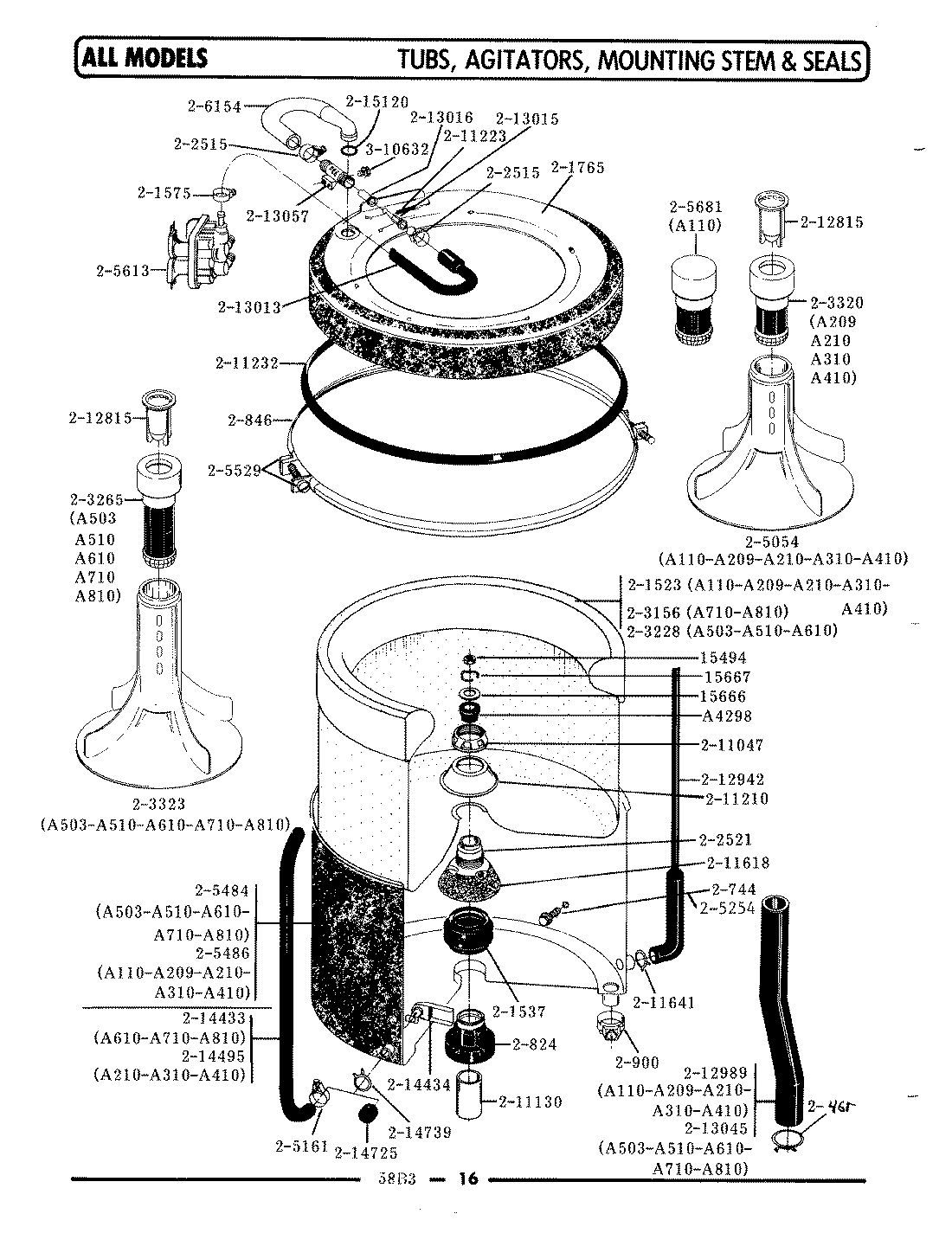

11 - TUB, AGITATOR, MOUNTING STEM & SEAL

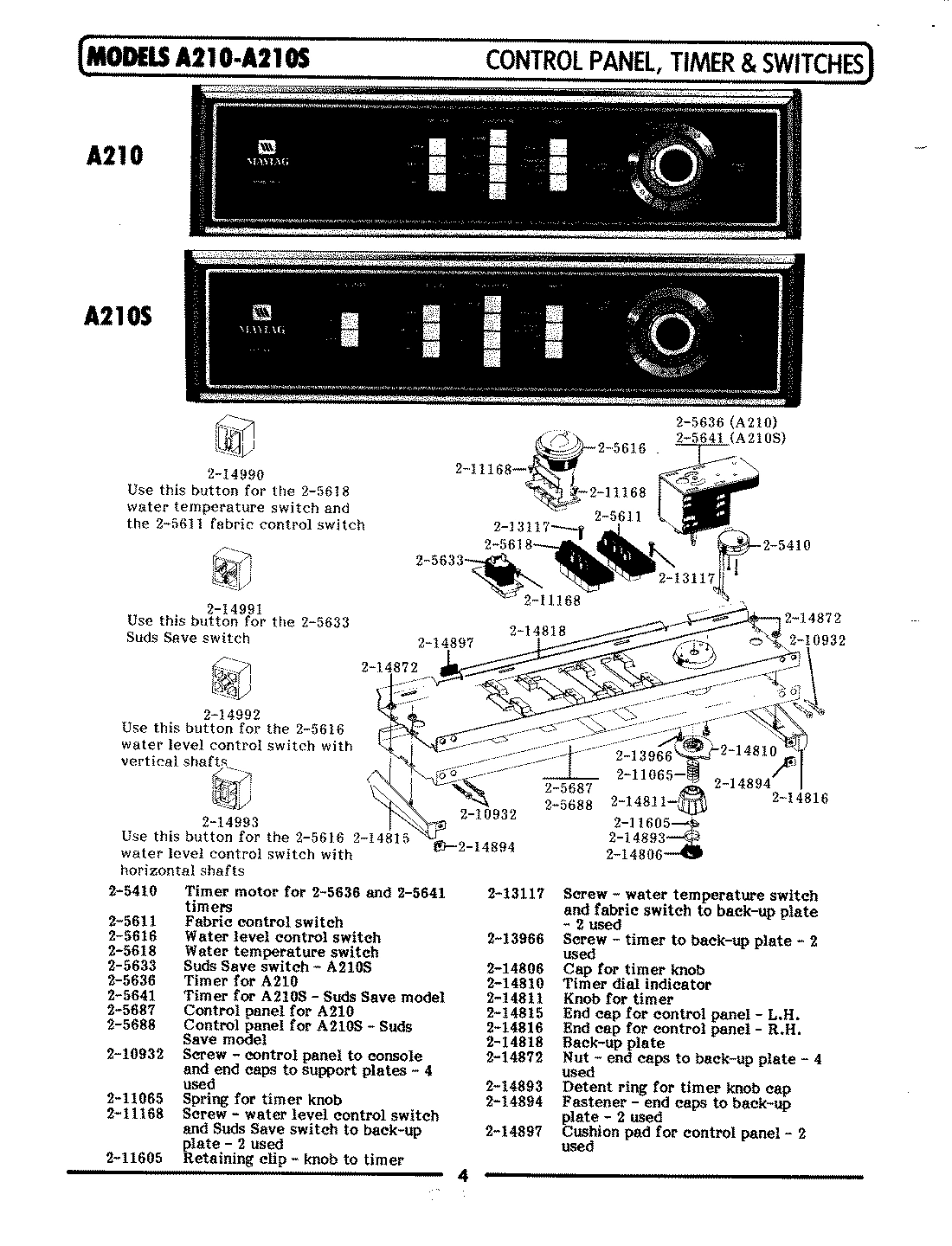

05 - CONTROL PANEL, TIMER & SWITCHES

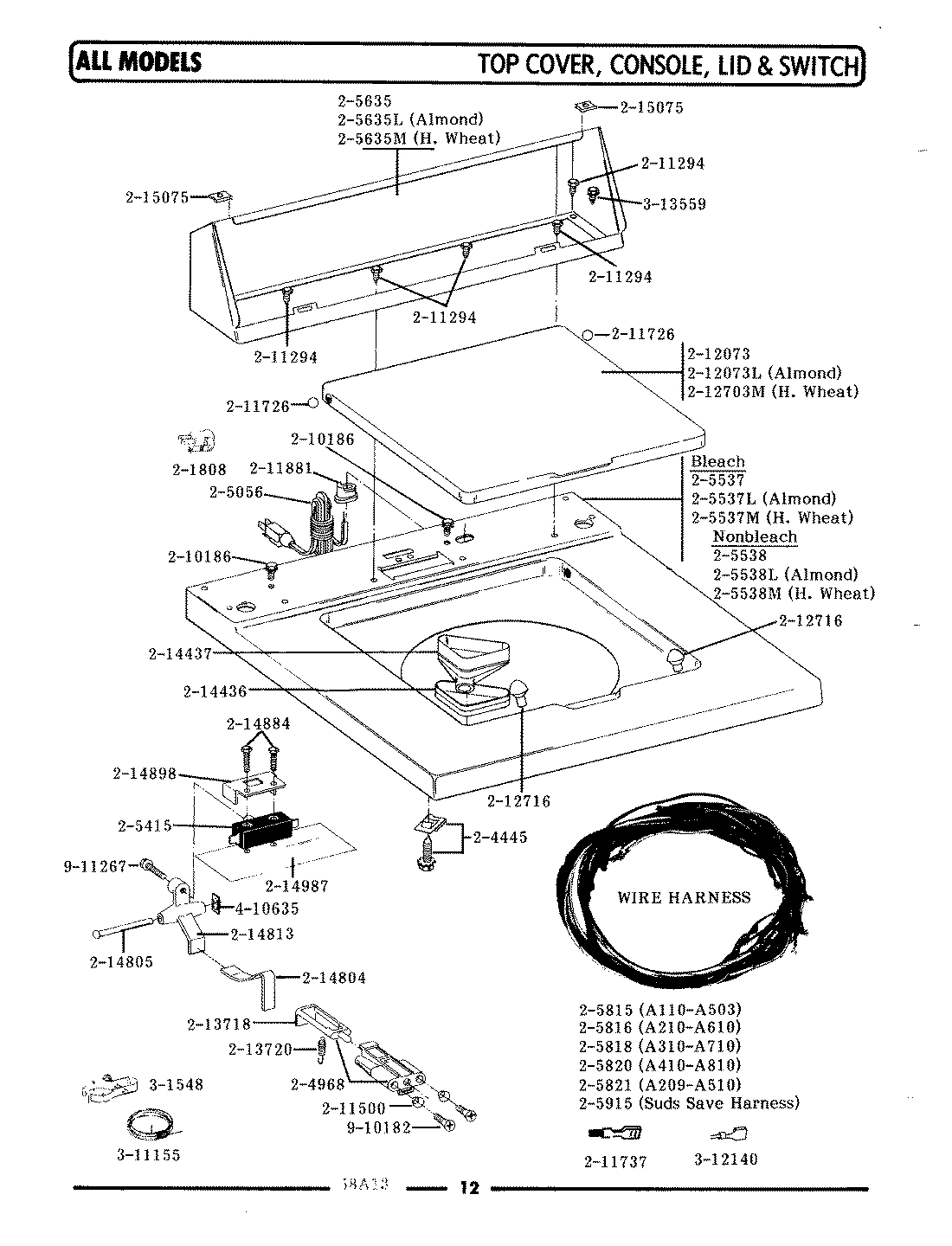

08 - TOP COVER\CONSOLE\LID SWITCH
06 - CONVERSION KIT (A210)
07 - TIMER MOTORS (A210)

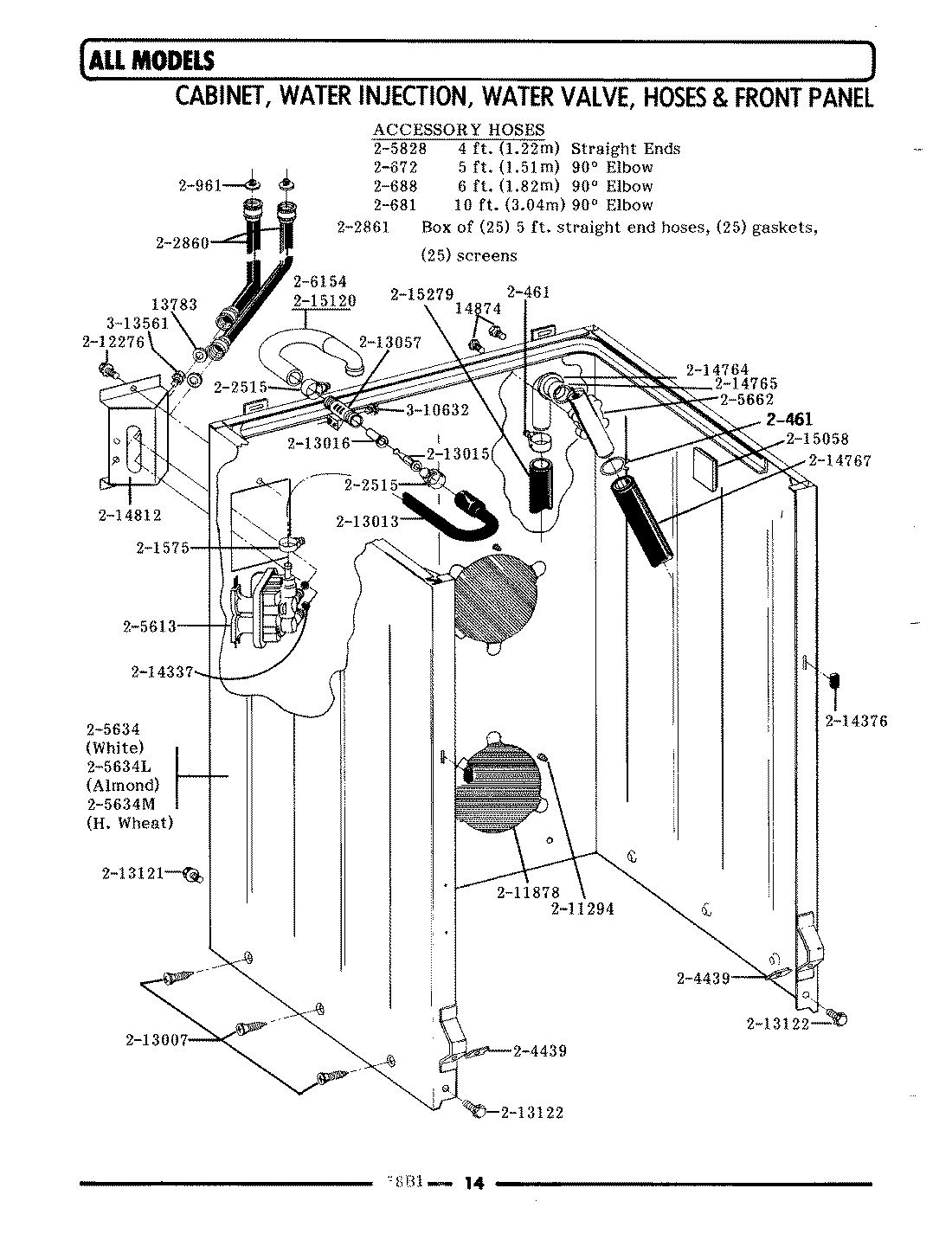

03 - CBNT,WATER INJ & VALVE,HOSES & FRT PANEL
10 - TRANSMISSIONS
01 - 50HZ PARTS
Common parts from model Whirlpool A210 WASHER
1
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
1
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
1
SEAL, AGITATOR DRIVE SHAFT WPL A04298 Contact Us For Availability
1
TIMER MOTOR 120-60 WPL 205410 Contact Us For Availability
1
CONVERTER WPL Y201808 Contact Us For Availability
1
CONVERSION KIT 120-50 TO 60 WPL 205998 Contact Us For Availability
1
TIMER MOTOR 120-50 WPL 205411 Contact Us For Availability
1
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
1
MOTOR 120-50 WPL 202158 Contact Us For Availability
2
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
2
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
2
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
2
FABRIC CONTROL SWITCH WPL 205611 Contact Us For Availability
2
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
2
TIMER MOTOR 240-50 WPL 205412 Contact Us For Availability
3
PLUNGER & BRACKET ASSEMBLY WPL 204968 Contact Us For Availability
3
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
3
BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability
3
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
3
WATER LEVEL CONTROL SWITCH WPL 205616 Contact Us For Availability
4
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
4
DOWEL PIN WPL 015639 Contact Us For Availability
4
RETAINING RING WPL Y015667 Contact Us For Availability
4
WATER TEMPERATURE SWITCH WPL 205618 Contact Us For Availability
4
CORD, POWER WPL 205056 Contact Us For Availability
5
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
5
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
5
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
5
CAPACITOR 120-50 WPL 201408 Contact Us For Availability
6
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
6
TIMER RPR WPL 205636 Contact Us For Availability
6
TOP COVER-WHITE WPL 205537 Contact Us For Availability
7
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
7
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
8
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
8
AGITATOR SHAFT WPL 200730 Contact Us For Availability
8
CONTROL PANEL WPL 205687 Contact Us For Availability
8
CONSOLE (WHT) WPL 205635 Contact Us For Availability
8
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
8
TIMER 120-50 WPL 205776 Contact Us For Availability
9
CAP, OIL RETAINER WPL 211038 Contact Us For Availability
9
GEAR CASE COVER ASSEMBLY WPL 200813 Contact Us For Availability
10
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
10
PITMAN WITH WRIST PIN WPL 201463 Contact Us For Availability
10
INNER TUB WPL 201523 Contact Us For Availability
10
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
10
MAIN WIRE HARNESS WPL 205816 Contact Us For Availability
10
PULLEY, MOTOR (W/SET SCREW) WPL Y202496 Contact Us For Availability
11
GEAR HOUSING W/STUDS & TUBE WPL 203162 Contact Us For Availability
11
SPRING, BRAKE WPL 211041 Contact Us For Availability
11
SEAL AND SPRING WPL 201537 Contact Us For Availability
11
SUDS SAVE HARNESS WPL 205915 Contact Us For Availability
12
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
12
GEAR HOUSING W/STUDS & TUBE WPL 203193 Contact Us For Availability
13
DRUM, BRAKE WPL 211043 Contact Us For Availability
13
TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability
13
TUB COVER WPL 201765 Contact Us For Availability
13
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
13
CAPACITOR WPL 201101 Contact Us For Availability
14
HOUSING, BRAKE WPL 211045 Contact Us For Availability
14
TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability
14
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
14
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
14
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
15
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
15
MOUNTING STEM WPL 202521 Contact Us For Availability
15
WATER VALVE 240-50 WPL Y205684 Contact Us For Availability
16
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
16
COUNTERWEIGHT WPL 205811 Contact Us For Availability
16
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
16
CAP FOR TIMER KNOB WPL 214806 Contact Us For Availability
16
CABINET-WHITE WPL 205634 Contact Us For Availability
16
No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability
17
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
17
PINION WPL 210054 Contact Us For Availability
17
TIMER DIAL INDICATOR WPL 214810 Contact Us For Availability
17
GROMMET, CORD WPL 211881 Contact Us For Availability
17
TIMER 240-50 WPL 205775 Contact Us For Availability
18
LOCK WASHER WPL 210172 Contact Us For Availability
18
AGITATOR WPL 205054 Contact Us For Availability
18
KNOB FOR TIMER WPL 214811 Contact Us For Availability
18
LID-WHITE WPL 212073 Contact Us For Availability
18
TIMER 240-50 WPL 205777 Contact Us For Availability
19
PUMP AS PAK WPL 202203 Contact Us For Availability
19
RETAINING RING WPL 210179 Contact Us For Availability
20
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
20
END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability
21
SEAL WPL 210286 Contact Us For Availability
21
BACK UP PLATE WPL 214818 Contact Us For Availability
21
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
22
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
22
PINION WPL 210315 Contact Us For Availability
22
PALNUT, END CAP WPL 214872 Contact Us For Availability
23
GASKET WPL 210632 Contact Us For Availability
23
DETENT RING F/TIMER KNOB CA WPL 214893 Contact Us For Availability
23
GASKET WPL 214436 Contact Us For Availability
24
WASHER, CUSHION WPL 211100 Contact Us For Availability
24
SEGMENT WPL 210670 Contact Us For Availability
24
FASTENER, END CAP WPL 214894 Contact Us For Availability
25
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
25
SEAL, RUBBER WPL 210690 Contact Us For Availability
25
LINER, TUB BEARING WPL 211130 Contact Us For Availability
25
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
25
UNBALANCE LEVER WPL 214804 Contact Us For Availability
25
PLATE, ACCESS WPL 211878 Contact Us For Availability
26
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
26
PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability
27
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
27
UNBALANCE BUMPER WPL 211223 Contact Us For Availability
27
LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability
28
SCREW - LID SWITCH WPL 214884 Contact Us For Availability
29
COVER FOR LID SWITCH WPL 214898 Contact Us For Availability
30
LUG WASHER WPL 211484 Contact Us For Availability
30
DISPENSER CUP WPL 212815 Contact Us For Availability
30
MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability
31
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
31
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
32
GROOV-PIN WPL 211487 Contact Us For Availability
32
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
33
CENTER SHAFT WPL 212988 Contact Us For Availability
34
CENTER SHAFT WPL 213044 Contact Us For Availability
34
WIRE CONNECTOR WPL Y312140 Contact Us For Availability
35
INTERMEDIATE GEAR WPL 213068 Contact Us For Availability
36
WASHER FOR GEARS WPL 214276 Contact Us For Availability
36
FASTENER WPL 410635 Contact Us For Availability
38
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
38
SPOUT, DEFLECTOR WPL 214434 Contact Us For Availability
38
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
39
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
39
TUBE, INLET TO TUB WPL 214495 Contact Us For Availability
39
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
40
CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability
43
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
43
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
44
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
46
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
47
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
48
SCREW WPL Y310632 Contact Us For Availability
49
SCREW----NA WPL Y313561 Contact Us For Availability
53
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
54
WASHER, DOUBLE WPL 213073 Contact Us For Availability
55
BRACE, TUB WPL 213100 Contact Us For Availability
58
MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability
60
MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability
61
SHIELD, MOTOR WPL 215098 Contact Us For Availability
NI
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
NI
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
NI
GEAR CASE COVER WPL 200750 Contact Us For Availability
NI
POWER UNIT WITH FAST GEARS WPL 204437 Contact Us For Availability
NI
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
NI
SWITCH, WPL 205131 Contact Us For Availability
NI
WPL 205132 WPL 205132 Contact Us For Availability
NI
WPL 205133 WPL 205133 Contact Us For Availability
NI
WPL 205134 WPL 205134 Contact Us For Availability
NI
WASHER, LOCK WPL Y054867 Contact Us For Availability
NI
END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability
NI
BLEACH INLET WPL 214437 Contact Us For Availability
NI
CAPACITOR KIT WPL 206103 Contact Us For Availability
NI
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
NI
GUARD, BELT WPL 213846 Contact Us For Availability
NI
CAPACITOR WPL Y200832 Contact Us For Availability
× ![]()
