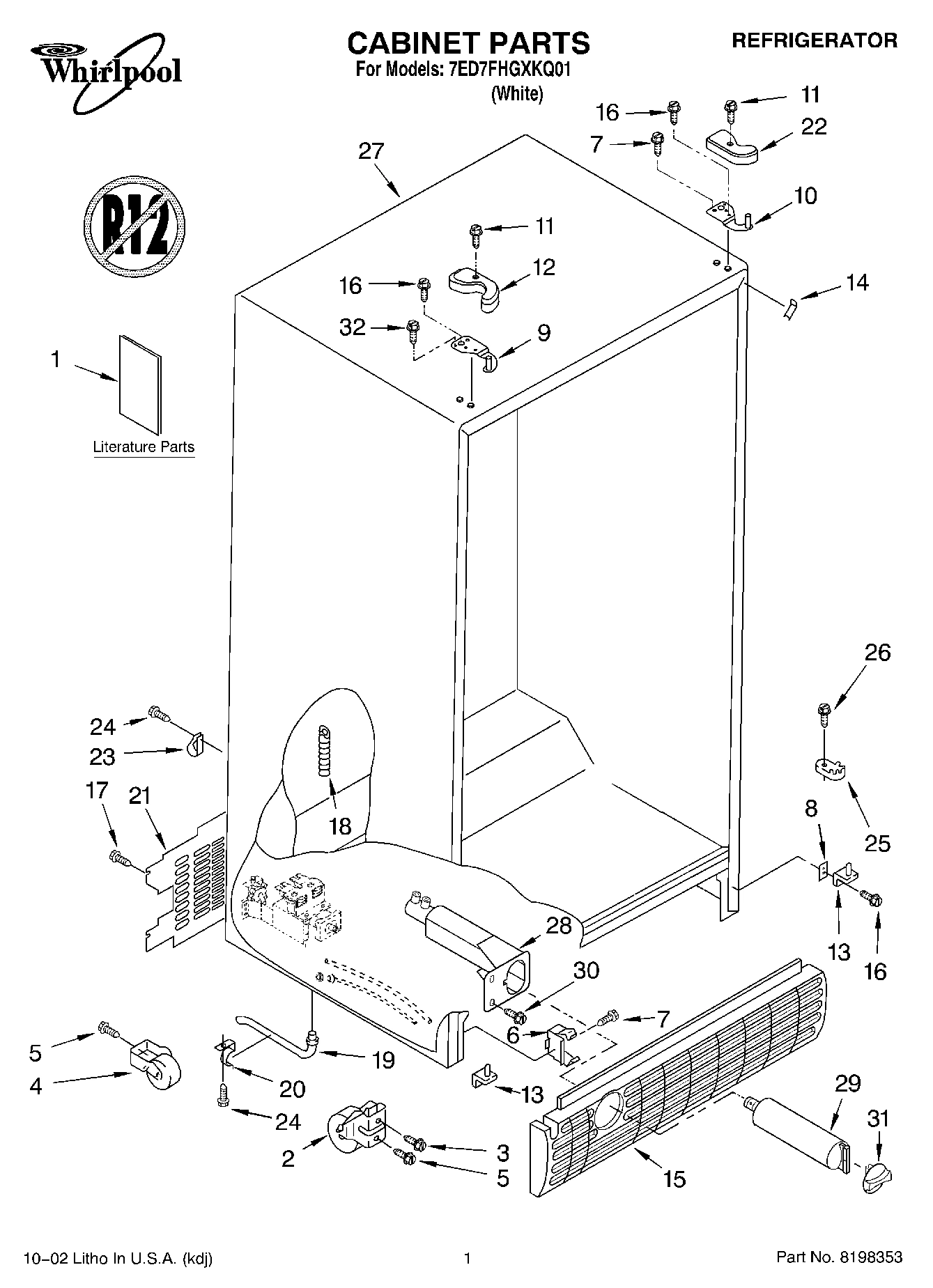

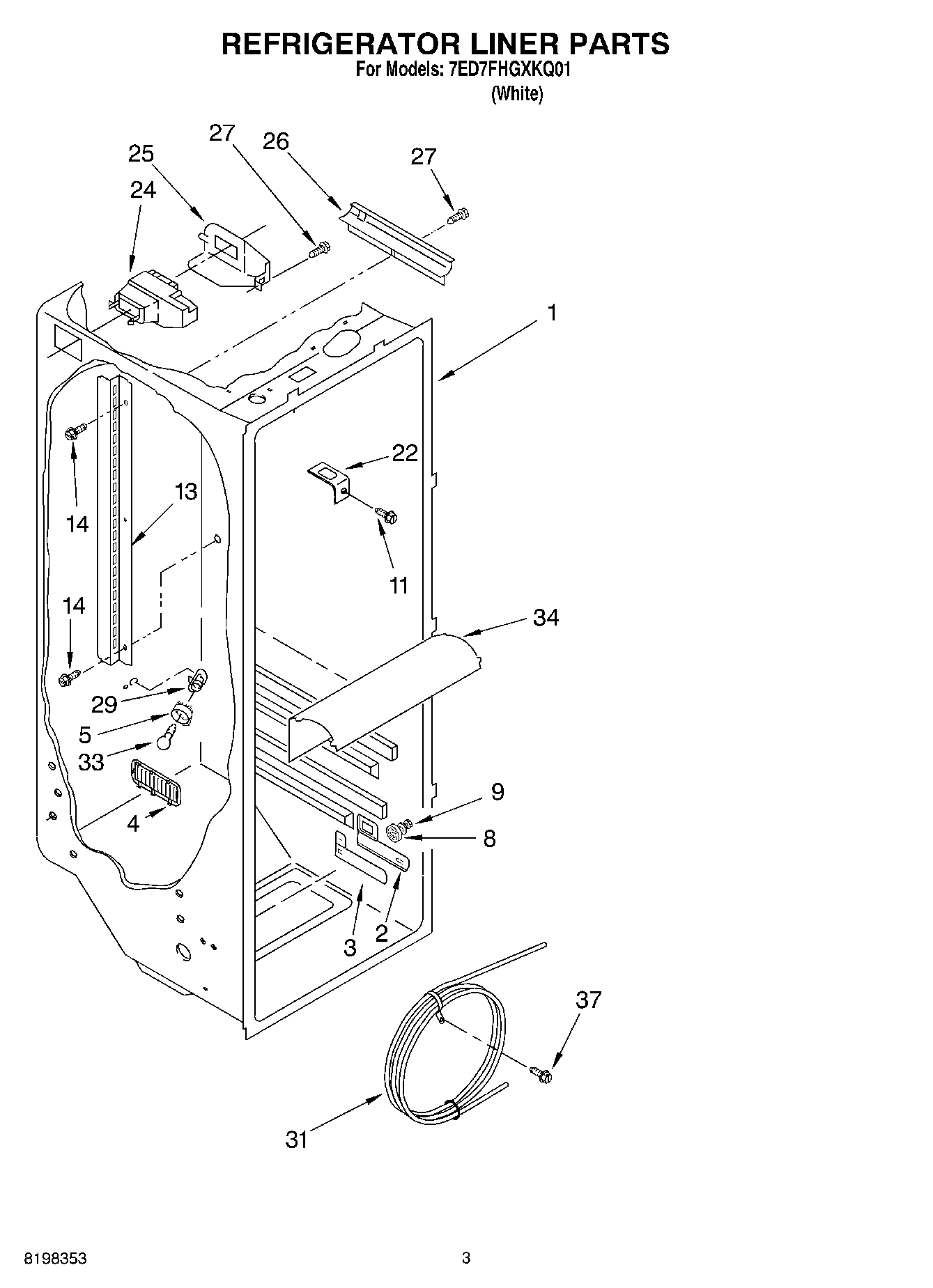

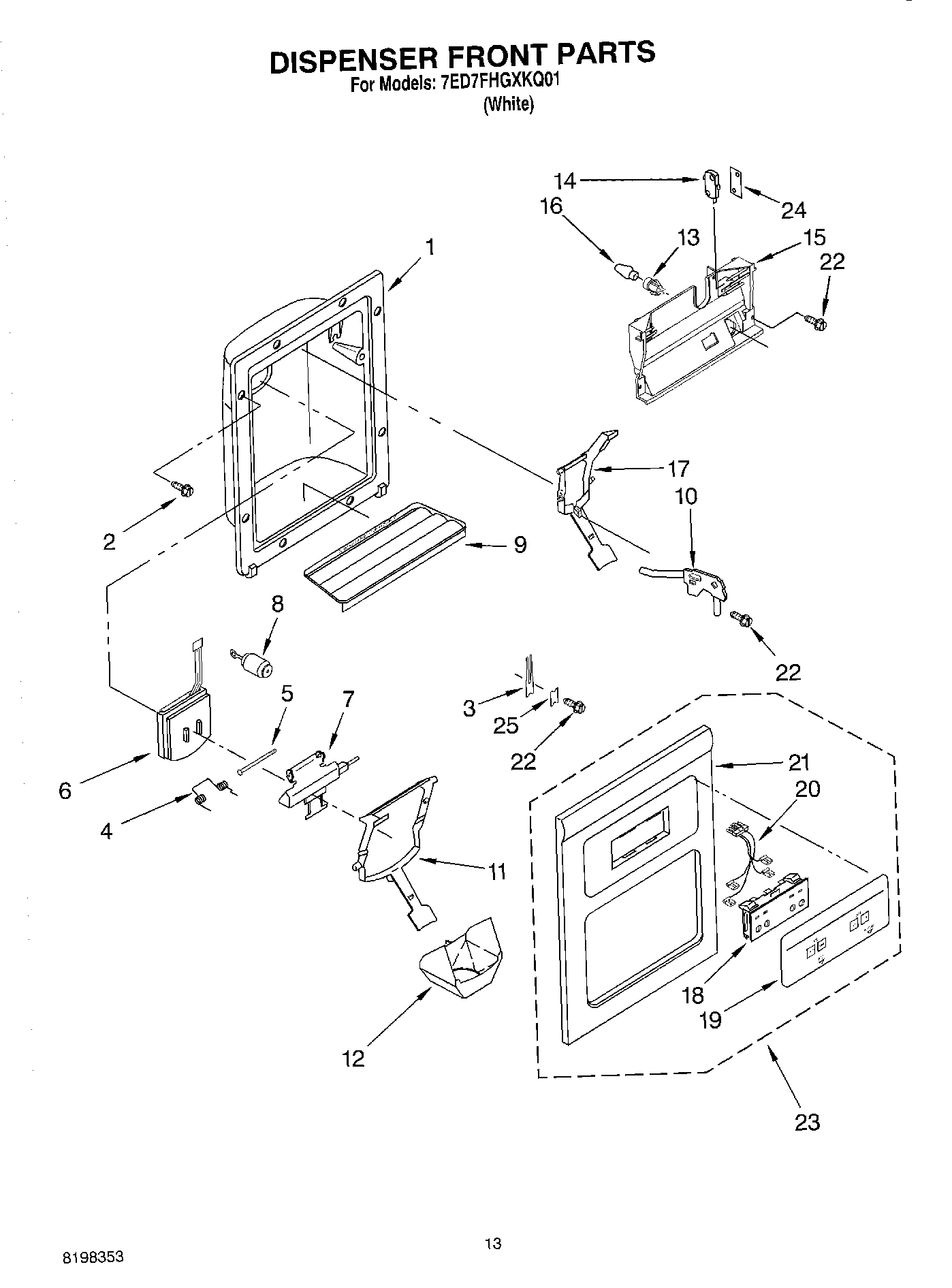

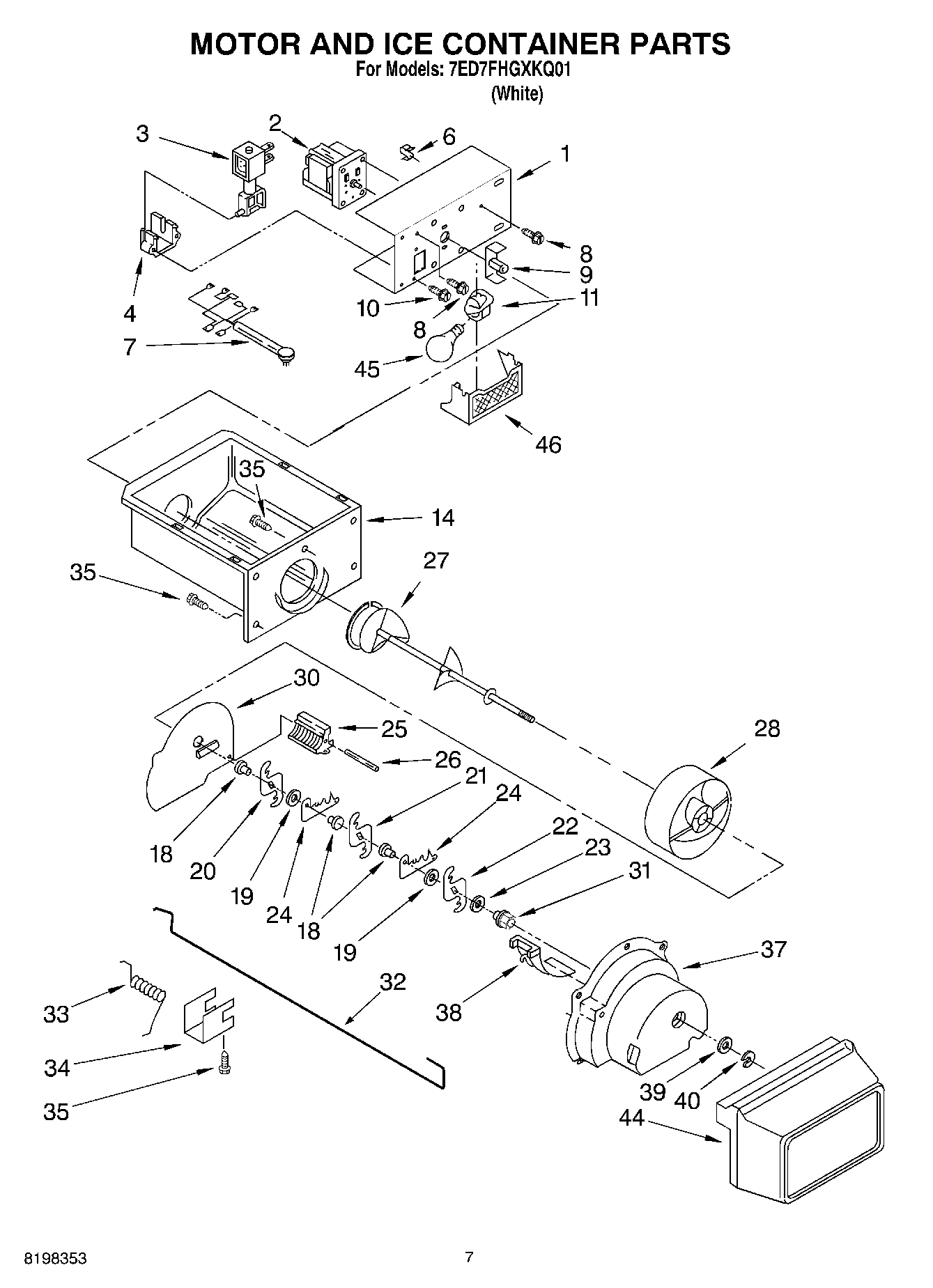

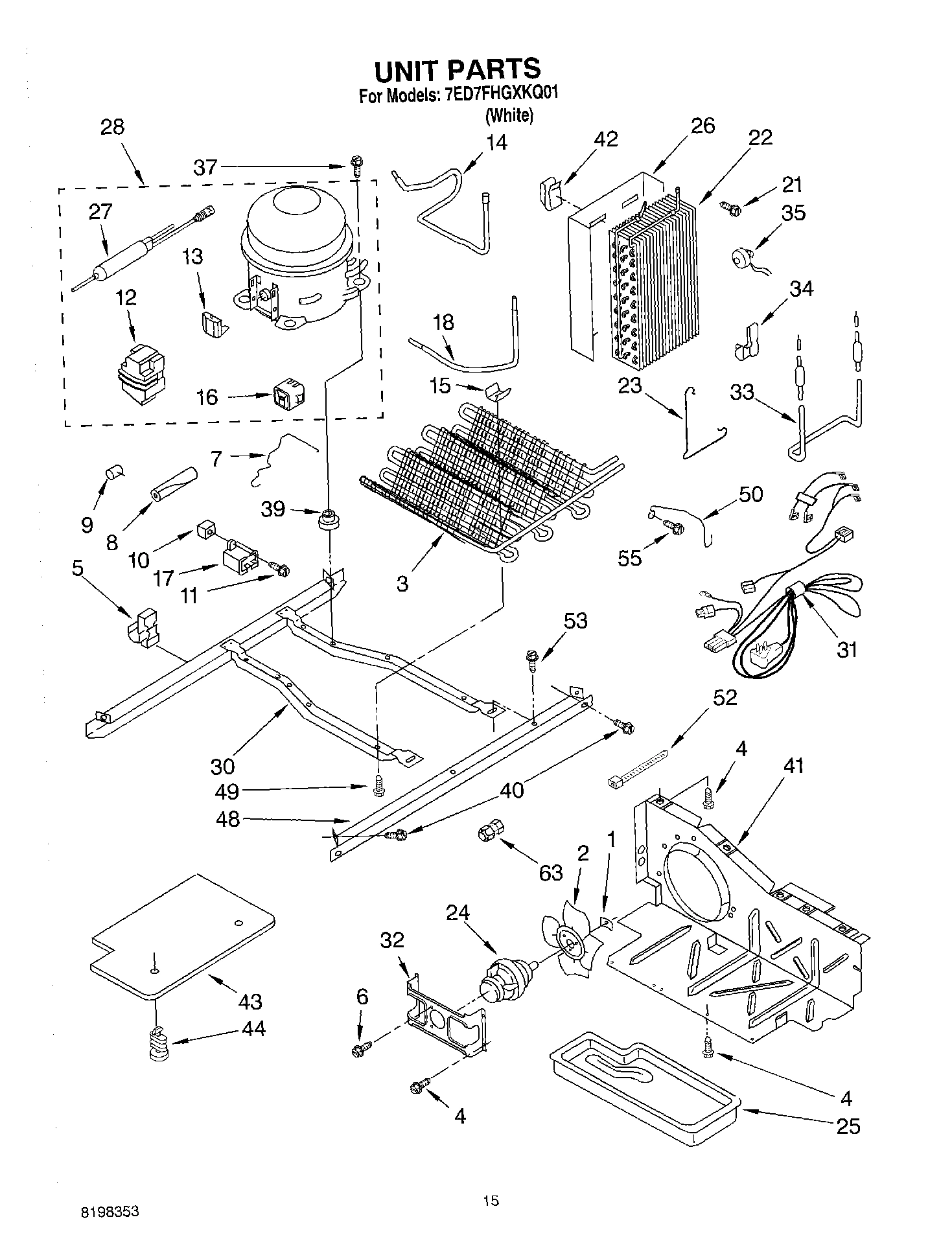

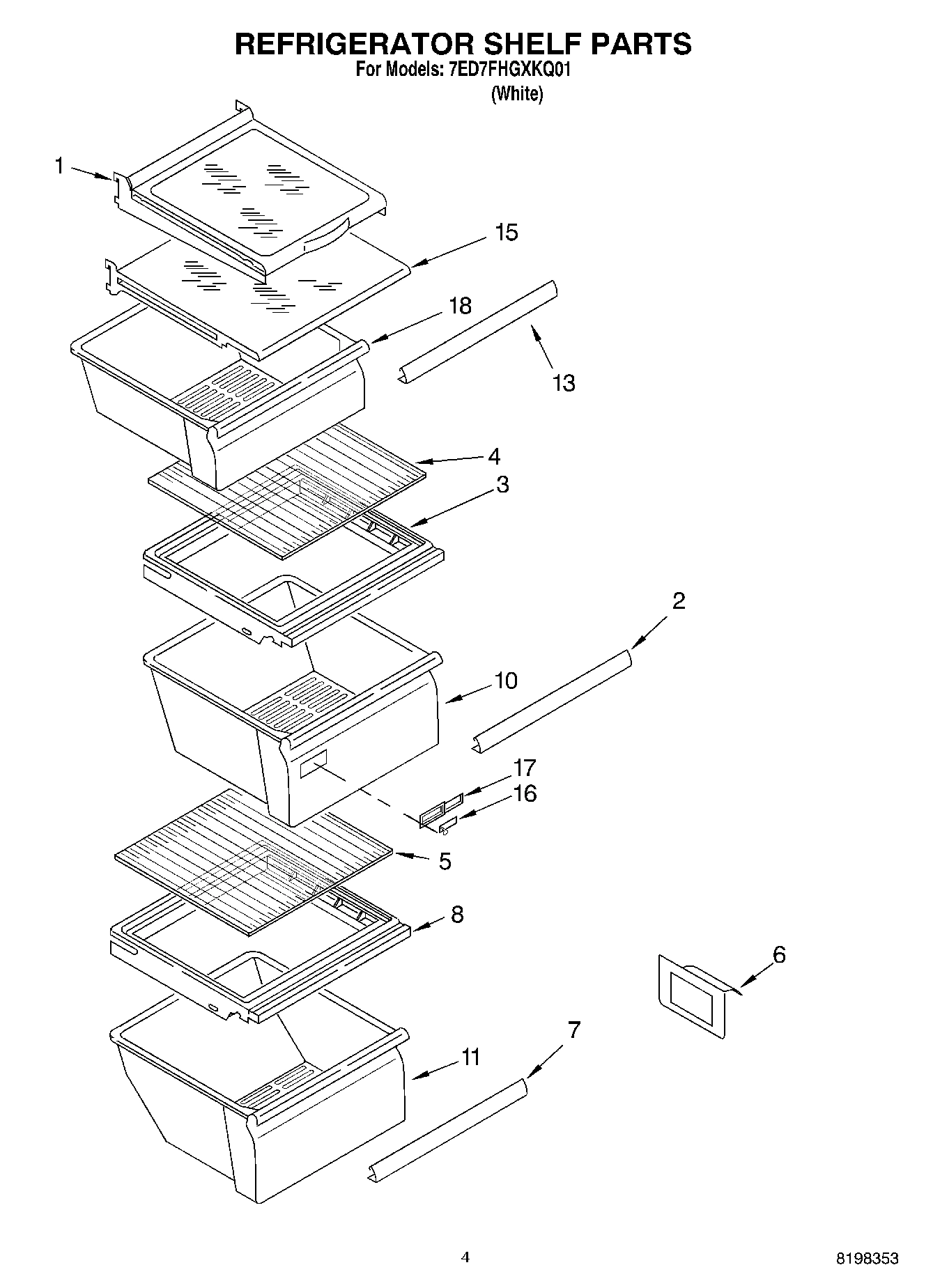

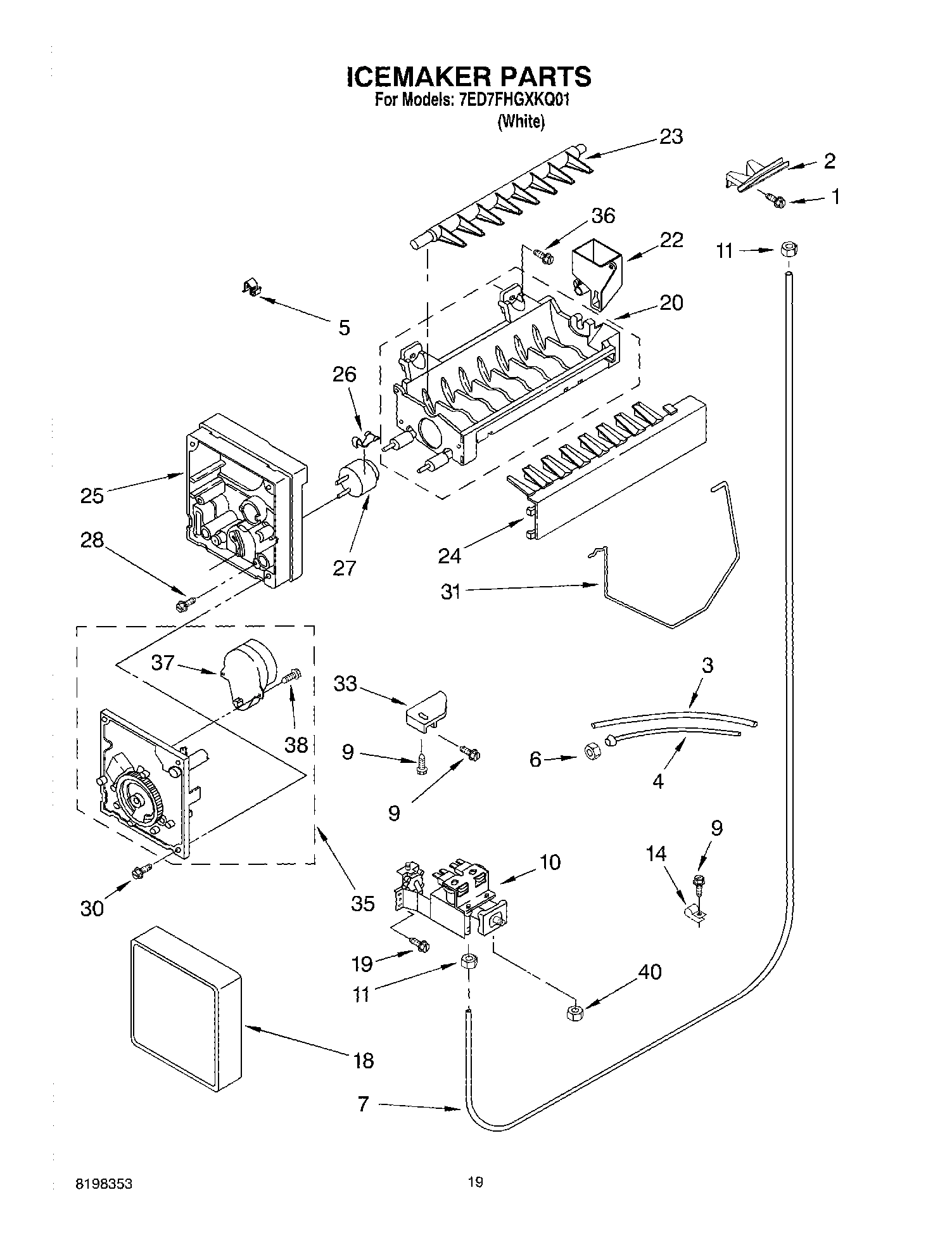

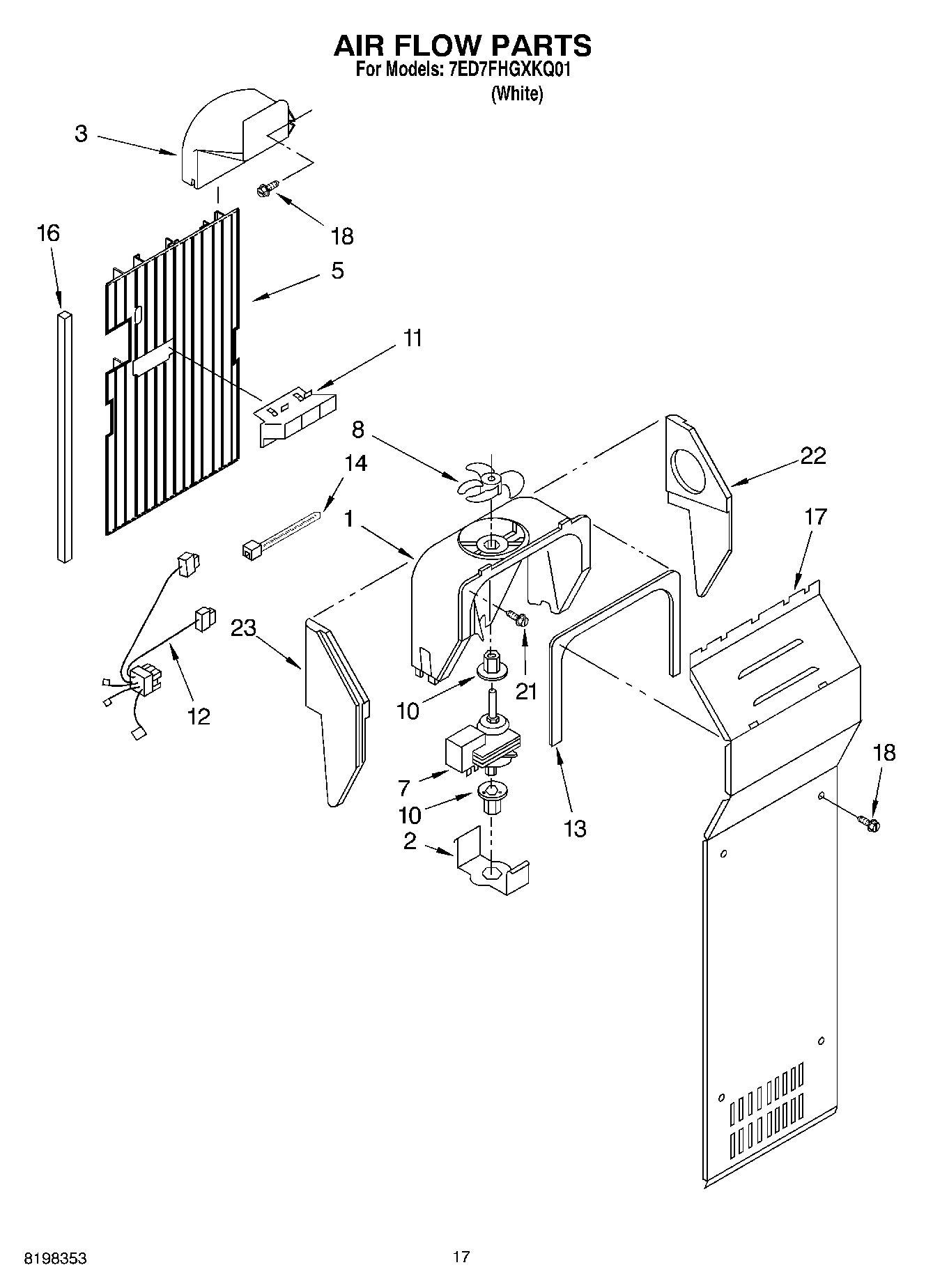

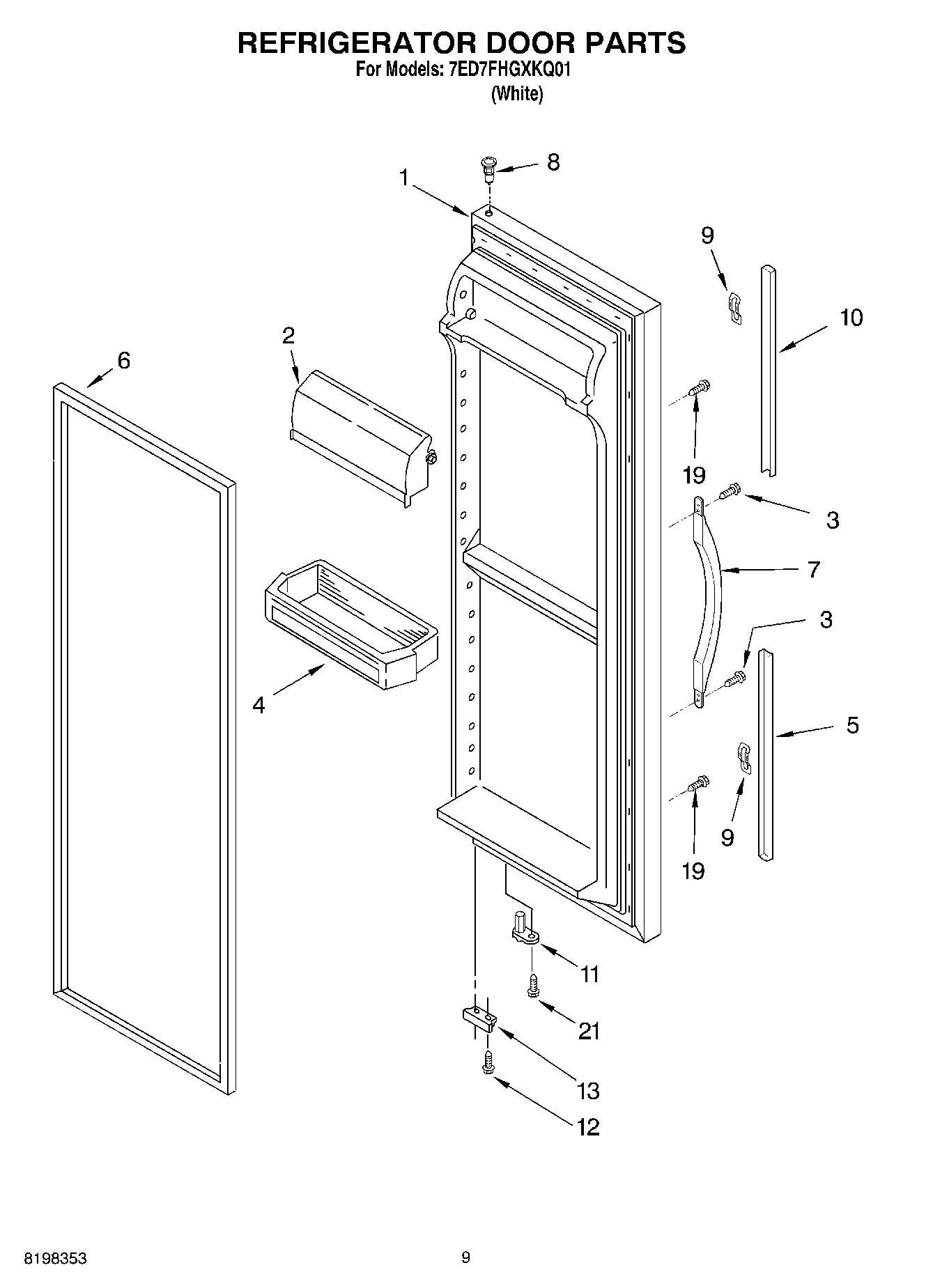

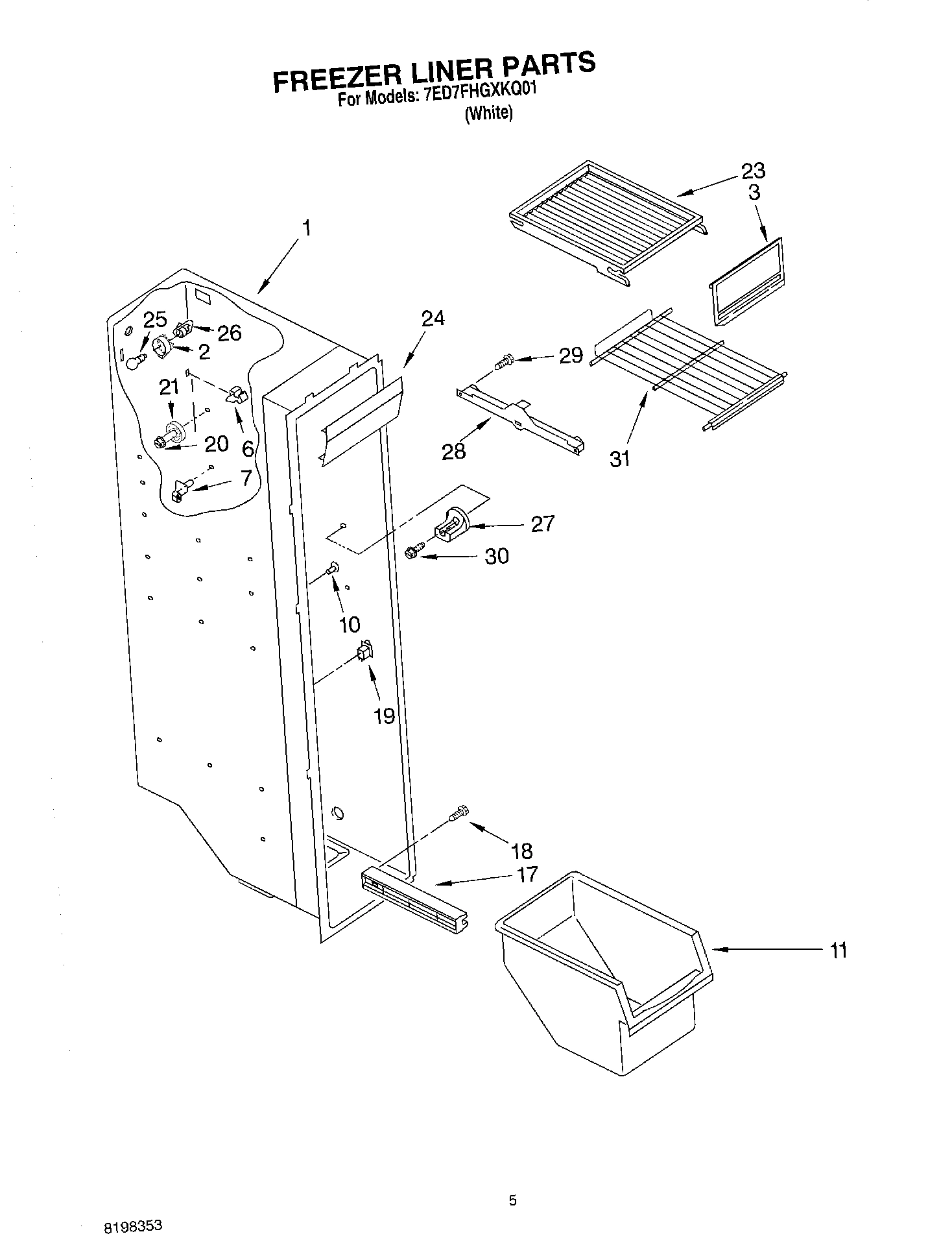

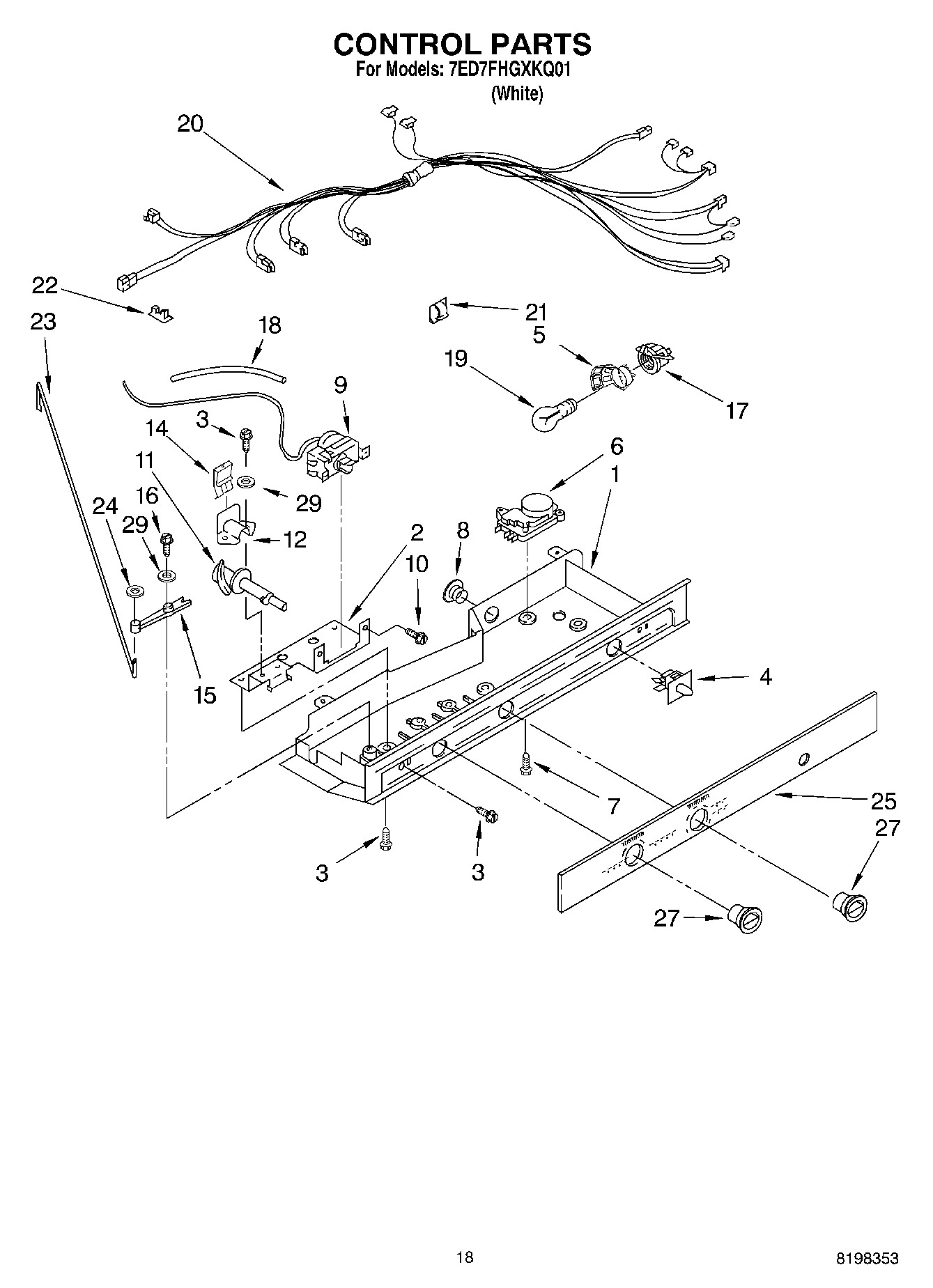

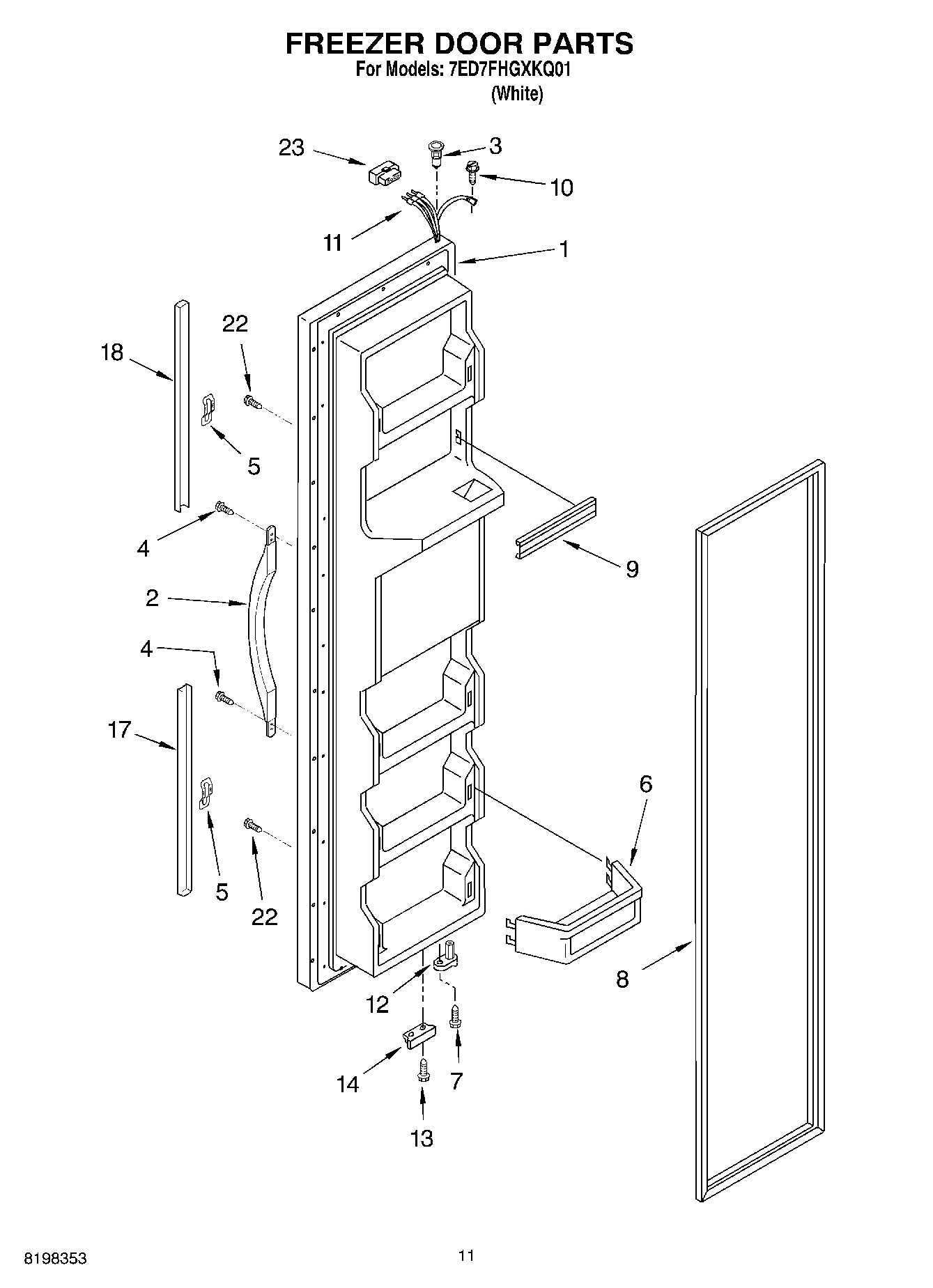

Model Whirlpool 7ED7FHGXKQ01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216319W Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI16768A5 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2206691W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Shelf Bin (4) WPL 2203872 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $43.33

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.34

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $152.63

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $89.22

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

Bracket, Door Stop WPL 2206630 Contact Us For Availability

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

14

TUBE, SUCTION WPL 2205765 Contact Us For Availability

14

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

21

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

21

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

22

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

Knob, Control WPL 2197871 Contact Us For Availability

27

Stud WPL 2196207 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

8201633 Whirlpool Wire Harness Backorder WPL 8201633 $122.84

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
