Whirlpool 665.17731790 Portable Dishwasher (Kenmore 66517731790) Parts List

1

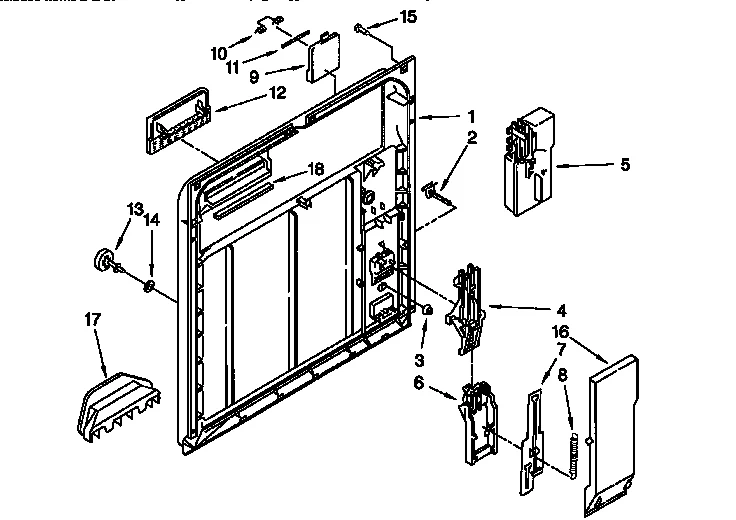

Dishwasher Door Inner Panel WPL 3371435 Contact Us For Availability

View on Model

1

Clip WPL 303722 Contact Us For Availability

View on Model

1

Perforated Plate WPL 9740982 Contact Us For Availability

View on Model

1

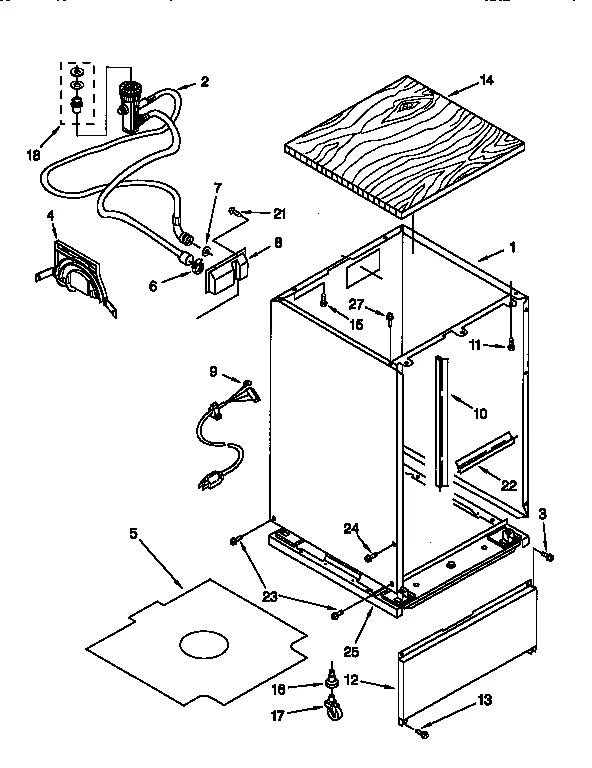

Dishwasher Tub WPL 3379349 Contact Us For Availability

View on Model

2

Tub Wheel WPL 3380371 Contact Us For Availability

View on Model

2

Dishwasher Upper Spray Arm Support WPL 3368290 Contact Us For Availability

View on Model

2

Inlet Base WPL 3367173 Contact Us For Availability

View on Model

3

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.92

View on Model

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

View on Model

3

Dishwasher Base Support WPL 3368933 Contact Us For Availability

View on Model

4

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $61.35

View on Model

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

View on Model

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $45.22

View on Model

5

Ball WPL 302709 Contact Us For Availability

View on Model

5

Screw WPL 3370389 Contact Us For Availability

View on Model

6

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

View on Model

6

Draw Bar WPL 3369000 Contact Us For Availability

View on Model

6

Dishwasher Wheel WPL 302819 Contact Us For Availability

View on Model

6

Cam WPL 3378124 Contact Us For Availability

View on Model

6

O-Ring WPL 95080 Contact Us For Availability

View on Model

7

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

View on Model

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

View on Model

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $5.30

View on Model

8

Dishwasher Dishrack Spray Arm Mount Lock WPL 3374702 Contact Us For Availability

View on Model

8

Housing WPL 3371343 Contact Us For Availability

View on Model

8

Strike WPL 3374719 Contact Us For Availability

View on Model

9

WP3378138 Whirlpool Cover Assembly In Stock WPL WP3378138 $20.85

View on Model

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $37.43

View on Model

9

Dishwasher Filter Assembly WPL 9742968 Contact Us For Availability

View on Model

9

Screw WPL 3374720 Contact Us For Availability

View on Model

10

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $53.13

View on Model

10

Dishwasher Screw WPL 3400001 Contact Us For Availability

View on Model

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $5.69

View on Model

11

Dishwasher Dishrack Slide Rail Stop WPL 3379941 Contact Us For Availability

View on Model

12

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

View on Model

12

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $4.82

View on Model

12

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $47.95

View on Model

12

Pin WPL 3368955 Contact Us For Availability

View on Model

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

View on Model

13

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $7.72

View on Model

13

WPW10082896 Whirlpool Dishwasher Heater Backorder WPL WPW10082896 $99.44

View on Model

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

View on Model

14

Dishwasher Wire Harness Retainer WPL 3376405 Contact Us For Availability

View on Model

14

Outlet Pump WPL 3376844 Contact Us For Availability

View on Model

15

675238 Whirlpool Check Valve In Stock WPL 675238 $62.57

View on Model

15

Nut WPL 3378706 Contact Us For Availability

View on Model

16

W10539489 Whirlpool Dishwasher Bracket-Stat Backorder WPL W10539489 $12.73

View on Model

16

Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability

View on Model

16

Dishwasher Rinse-Aid Dispenser Drip Cover WPL 3371569 Contact Us For Availability

View on Model

16

Castr Socket WPL 300450 Contact Us For Availability

View on Model

17

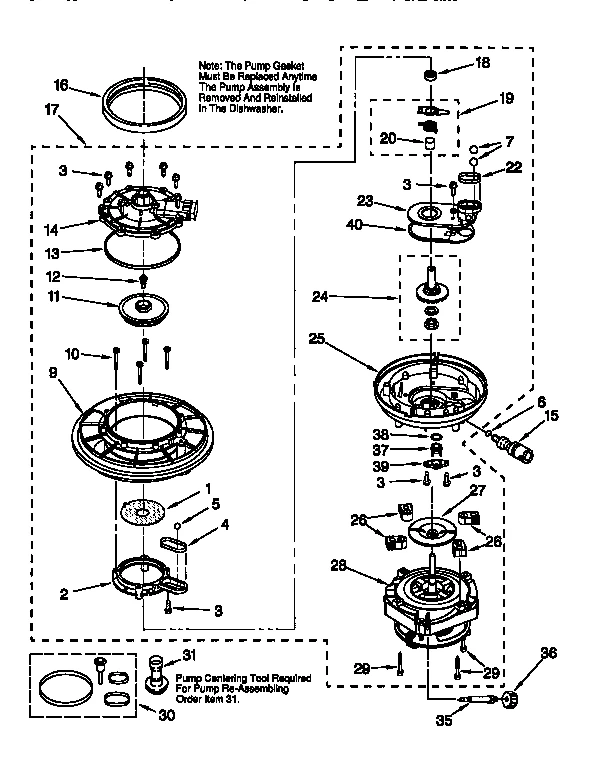

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $371.04

View on Model

17

WP3379674 Whirlpool Dishwasher Vent Assembly Backorder WPL WP3379674 $90.73

View on Model

17

Dishwasher Heating Element Support Bracket WPL 3379740 Contact Us For Availability

View on Model

18

WP3379673 Whirlpool Dishwasher Seal Backorder WPL WP3379673 $7.99

View on Model

18

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $23.46

View on Model

18

Bushing WPL 302707 Contact Us For Availability

View on Model

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $88.63

View on Model

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $28.60

View on Model

20

WP8274220 Whirlpool Dishwasher Inlet Valve Backorder WPL WP8274220 $139.11

View on Model

20

Dishwasher Door Outer Panel Retainer WPL 3374011 Contact Us For Availability

View on Model

20

Sleeve WPL 3378139 Contact Us For Availability

View on Model

21

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

View on Model

22

Seal WPL 302704 Contact Us For Availability

View on Model

22

Shield WPL 3378959 Contact Us For Availability

View on Model

23

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

View on Model

23

Dishwasher Nozzle Cap WPL 3367910 Contact Us For Availability

View on Model

23

Dishwasher Sump Cap Cover WPL 3376845 Contact Us For Availability

View on Model

24

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

View on Model

24

Bearing WPL 719576 Contact Us For Availability

View on Model

24

Dishwasher Motor Start Relay WPL 3369447 Contact Us For Availability

View on Model

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

View on Model

25

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $69.16

View on Model

25

Base Pump WPL 3376157 Contact Us For Availability

View on Model

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

View on Model

26

Dishwasher Sump Mounting Support WPL 3367197 Contact Us For Availability

View on Model

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

View on Model

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $21.08

View on Model

28

Pump Motor WPL 3379364 Contact Us For Availability

View on Model

29

Dishwasher Float Switch Housing WPL 3369048 Contact Us For Availability

View on Model

29

Screw WPL 3369331 Contact Us For Availability

View on Model

30

Pump Seal WPL 675505 Contact Us For Availability

View on Model

30

Dishwasher Float Switch WPL 3369067 Contact Us For Availability

View on Model

31

Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability

View on Model

31

Housing Cover WPL 3369049 Contact Us For Availability

View on Model

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $87.54

View on Model

33

Dishwasher Self Threading Nut, 1/8-in WPL 717488 Contact Us For Availability

View on Model

35

Stud WPL 3374757 Contact Us For Availability

View on Model

36

Weight WPL 3378202 Contact Us For Availability

View on Model

37

Thermostat WPL 3378083 Contact Us For Availability

View on Model

37

Fill Hose WPL 3371030 Contact Us For Availability

View on Model

38

Seal WPL 3376723 Contact Us For Availability

View on Model

39

Retainer WPL 3376358 Contact Us For Availability

View on Model

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $18.84

View on Model

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82

View on Model

45

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

View on Model

NI

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $21.98

View on Model

NI

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $26.24

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

View on Model

NI

W10840471 Whirlpool Dishwasher Touch Up Backorder WPL W10840471 $25.17

View on Model

NI

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $16.11

View on Model

NI

WP300096 Whirlpool Dishwasher Air Gap Backorder WPL WP300096 $37.79

View on Model

NI

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $24.99

View on Model

NI

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.06

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Paint 1qt WPL 799340 Contact Us For Availability

View on Model

NI

Paint WPL 978883 Contact Us For Availability

View on Model
