Model Whirlpool 665.15973991 Dishwasher (Kenmore 66515973991) – Common Parts &amp; Diagrams

1

WPW10253040 Whirlpool Dishwasher Dish Rack In Stock WPL WPW10253040 $242.20

1

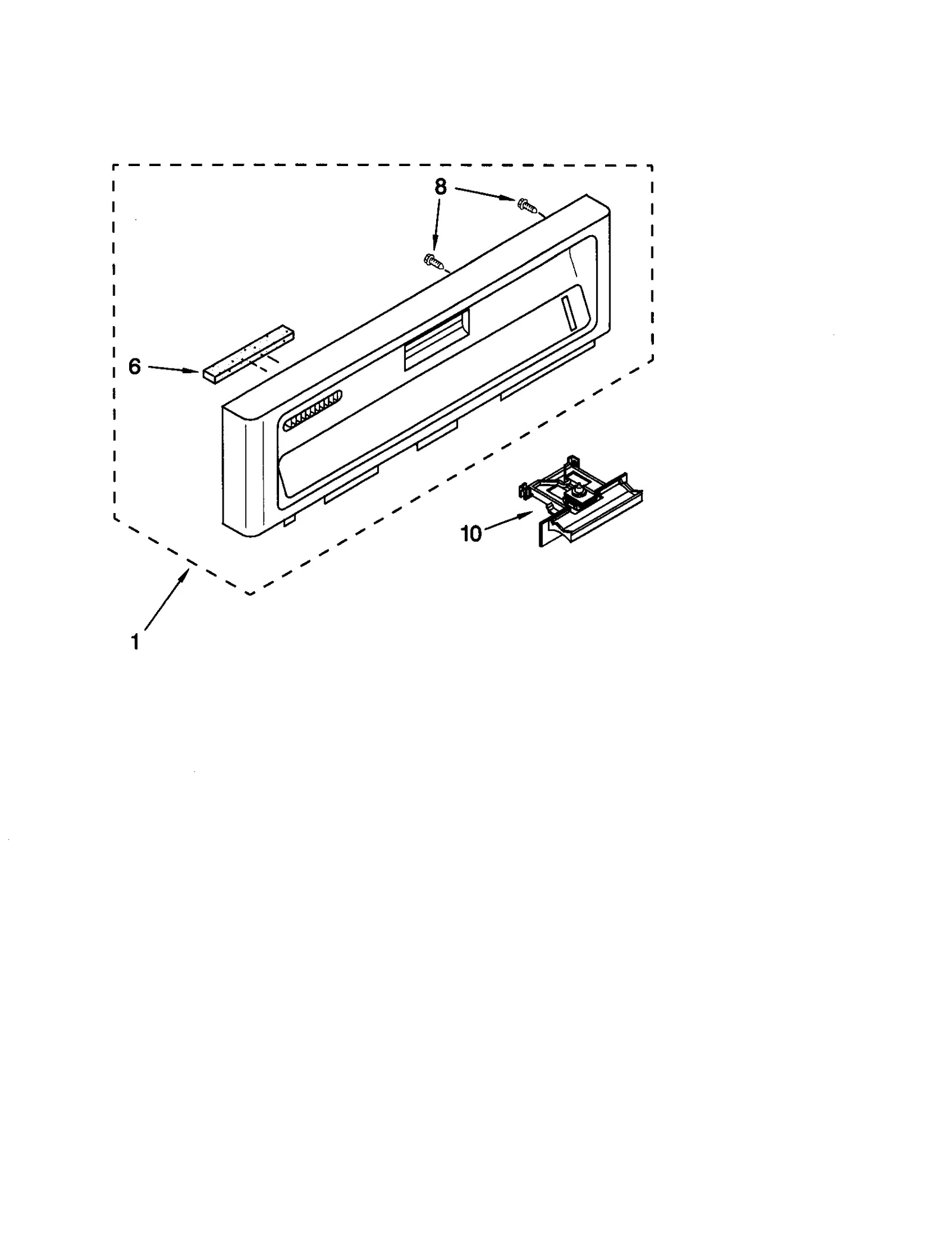

Dishwasher Control Panel WPL 9744497 Contact Us For Availability

1

Dispenser Knob WPL 9744334 Contact Us For Availability

1

Switch WPL 9741999 Contact Us For Availability

1

Perforated Plate WPL 9740982 Contact Us For Availability

1

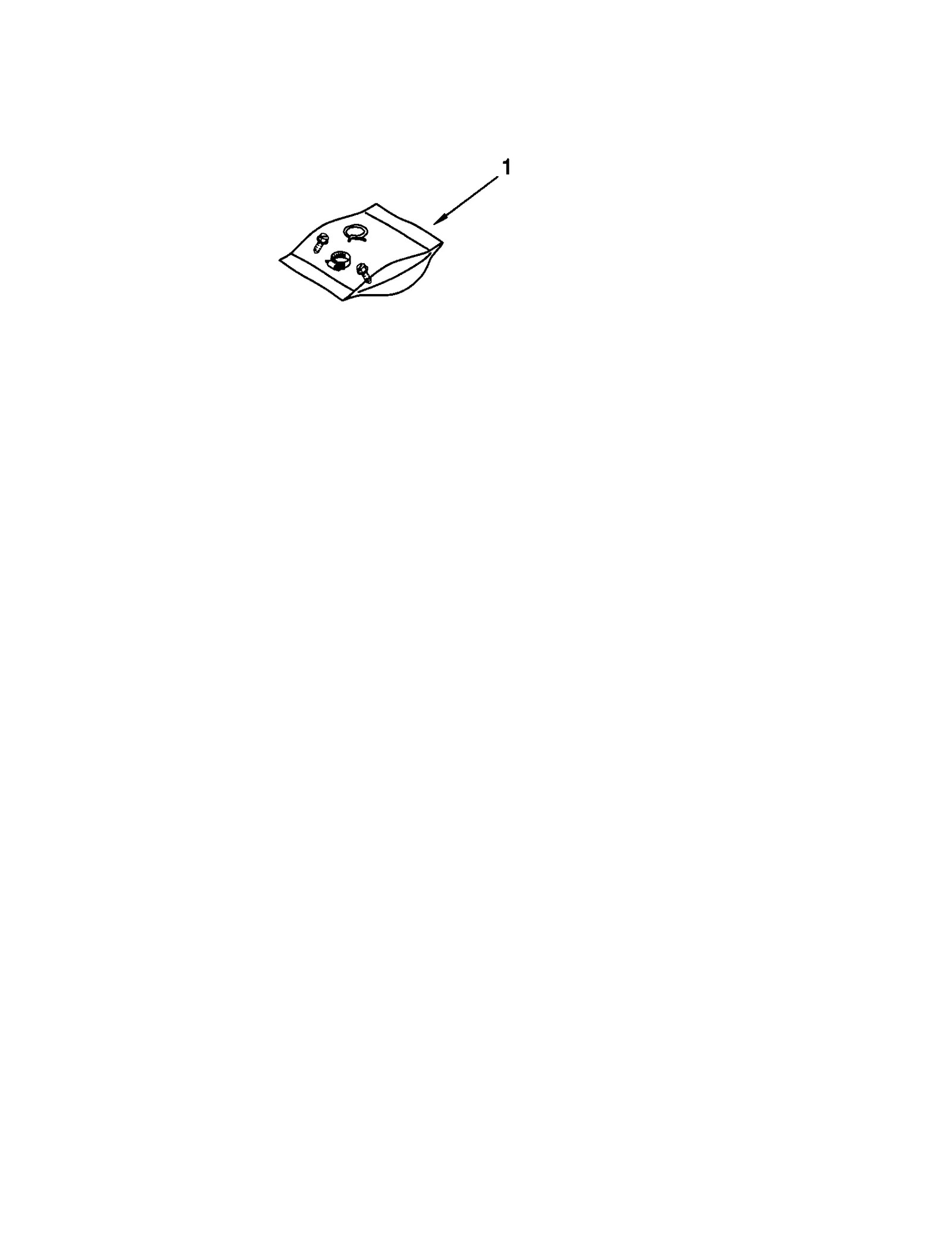

Miscellaneous Parts WPL 3369816 Contact Us For Availability

1

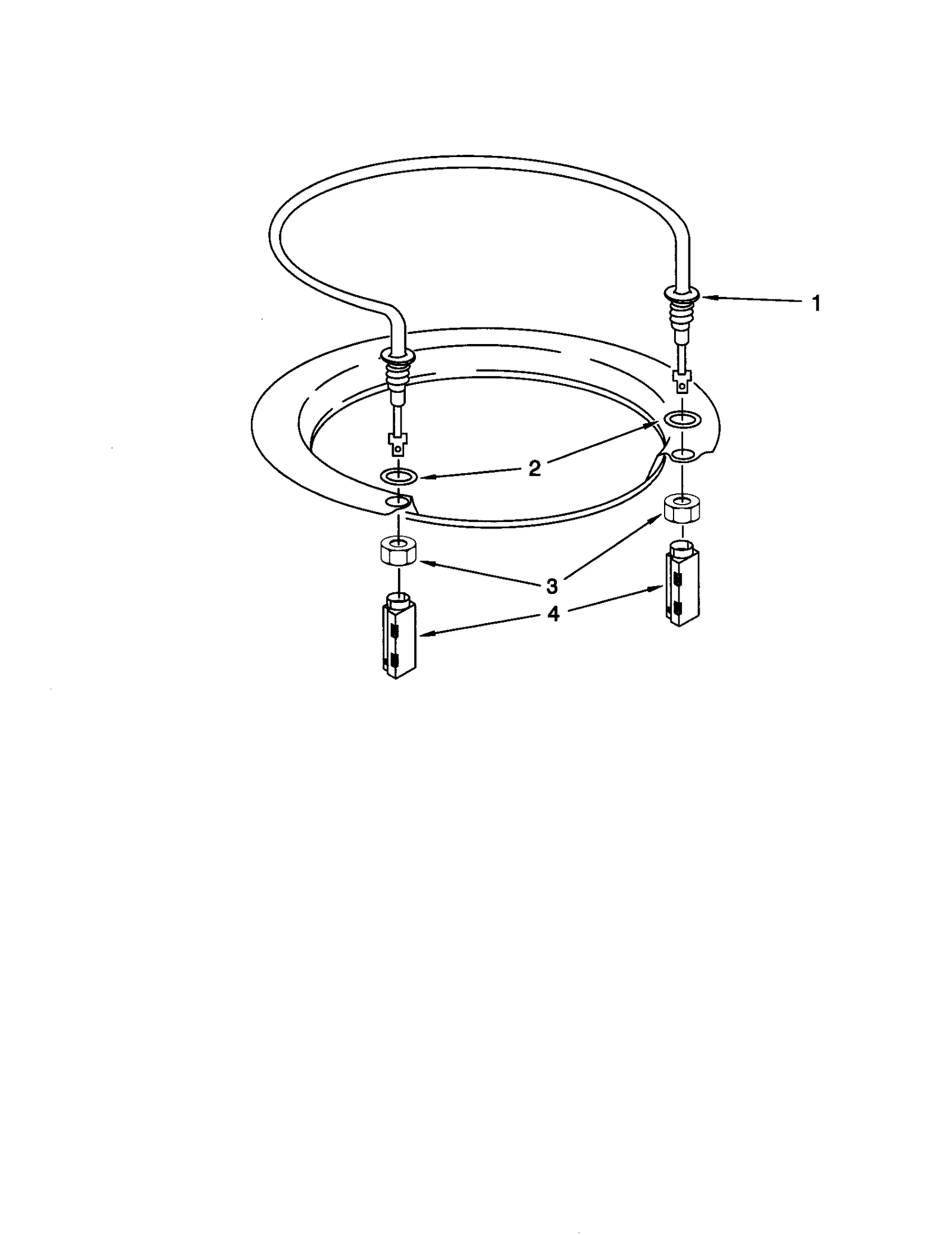

Dishwasher Heater WPL 9743495 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.92

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $5.35

2

Dishwasher Fill Hose WPL 9742727 Contact Us For Availability

2

Handle WPL 9744208 Contact Us For Availability

2

Dishwasher Switch WPL 3369325 Contact Us For Availability

2

Inlet Base WPL 3367173 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

3

Dishwasher Door Seal WPL 9743590 Contact Us For Availability

3

Dishwasher Lower Dishrack Wheel and Transport WPL 8051252 Contact Us For Availability

3

Hndle-rack WPL 9744209 Contact Us For Availability

3

Screen WPL 9742646 Contact Us For Availability

3

Air Inlet WPL 9744288 Contact Us For Availability

3

Terminal Nut WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $8.80

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $16.07

4

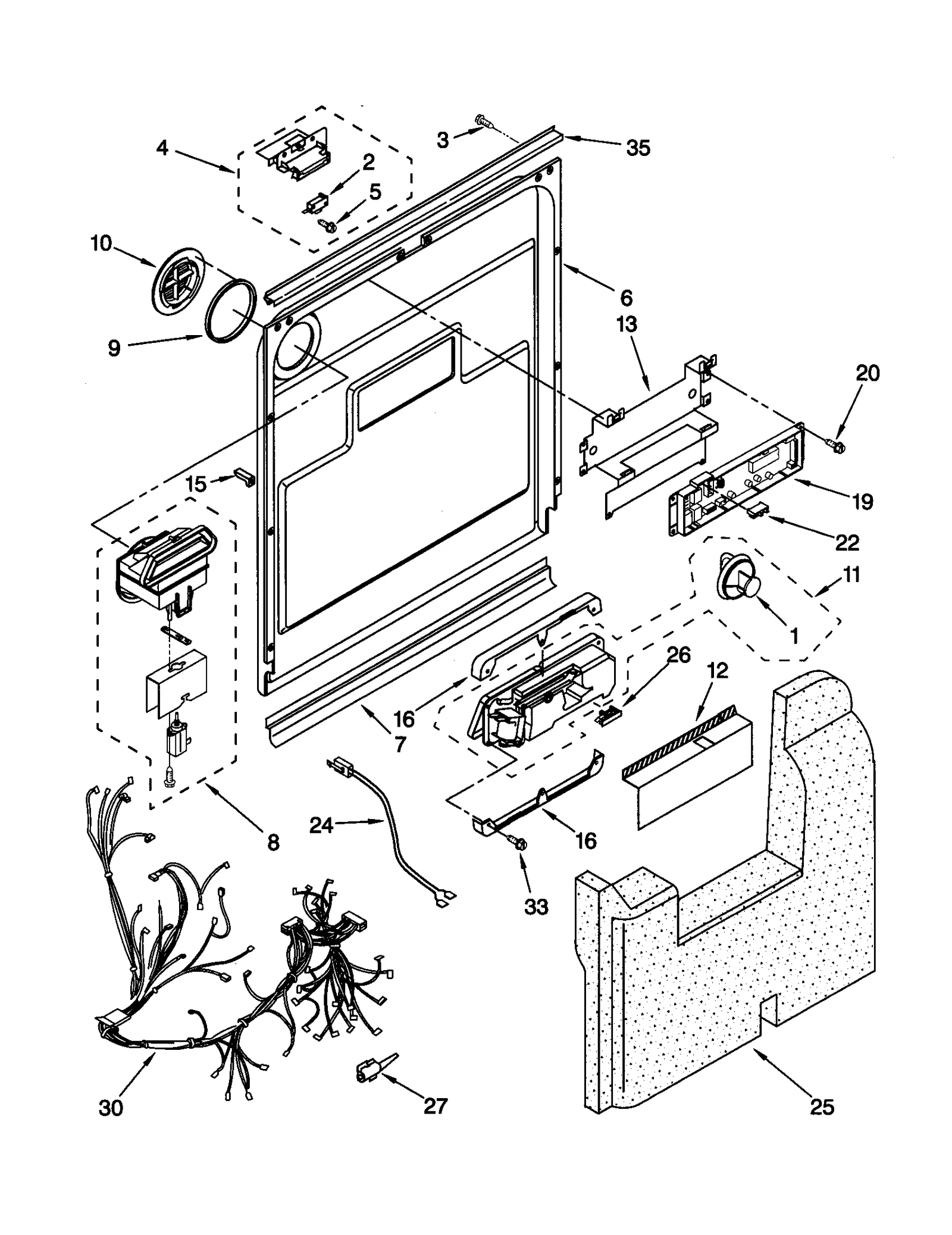

Dishwasher Door Latch WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Dishwasher Door Panel WPL 3379375 Contact Us For Availability

4

Cover WPL 9743166 Contact Us For Availability

4A

Dishwasher Door Panel WPL 3379376 Contact Us For Availability

4B

Dishwasher Door Panel WPL 8054178 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $7.72

5

Tub Wheel WPL 9743468 Contact Us For Availability

5

Screw WPL 3400404 Contact Us For Availability

5

Inlet Bezel WPL 9742786 Contact Us For Availability

5

Ball WPL 302709 Contact Us For Availability

6

WP3378144 Whirlpool Dishwasher Tube Backorder WPL WP3378144 $62.14

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $48.50

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $6.57

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $17.70

6

Door WPL 9742353 Contact Us For Availability

6

O-Ring WPL 95080 Contact Us For Availability

7

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $45.95

7

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $36.71

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $22.85

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

7

WP8268816 Whirlpool Tine Row Clip In Stock WPL WP8268816 $5.30

7

Dishwasher Tine Row Pivot Clip WPL 3379955 Contact Us For Availability

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

8

Tine Row WPL 3379717 Contact Us For Availability

8

Vent WPL 9742770 Contact Us For Availability

9

Dishwasher Door Vent Seal WPL 9742782 Contact Us For Availability

9

Cup Shelf WPL 9744210 Contact Us For Availability

9

Baffle WPL 9744360 Contact Us For Availability

9

Filtr-pump WPL 3380788 Contact Us For Availability

Handle WPL 3380655 Contact Us For Availability

Insert WPL 9744365 Contact Us For Availability

Deflector WPL 9742780 Contact Us For Availability

Screw WPL 3935667 Contact Us For Availability

Dishwasher Screw WPL 3400001 Contact Us For Availability

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $246.16

Retainer WPL 3368629 Contact Us For Availability

Dishwasher Float Switch WPL 9743413 Contact Us For Availability

Silverware Basket WPL 9744211 Contact Us For Availability

IMPELLER, WASH (INCLUDES ITEMS 12 AND 13) WPL 3387176 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

Shield WPL 9743450 Contact Us For Availability

Standpipe WPL 9741997 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $25.89

Dishwasher Dishrack Slide Rail Stop WPL 3379941 Contact Us For Availability

Control Bracket WPL 9742623 Contact Us For Availability

14

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $75.56

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.82

675238 Whirlpool Check Valve In Stock WPL 675238 $62.57

Dishwasher Float Dome WPL 9743070 Contact Us For Availability

Dishwasher Wheel WPL 302819 Contact Us For Availability

Door Guide WPL 9743487 Contact Us For Availability

Dishwasher Water Feed Tube Seal WPL 9742953 Contact Us For Availability

Clip WPL 3377464 Contact Us For Availability

Dispenser Bracket WPL 9743486 Contact Us For Availability

Lever WPL 4171116 Contact Us For Availability

17

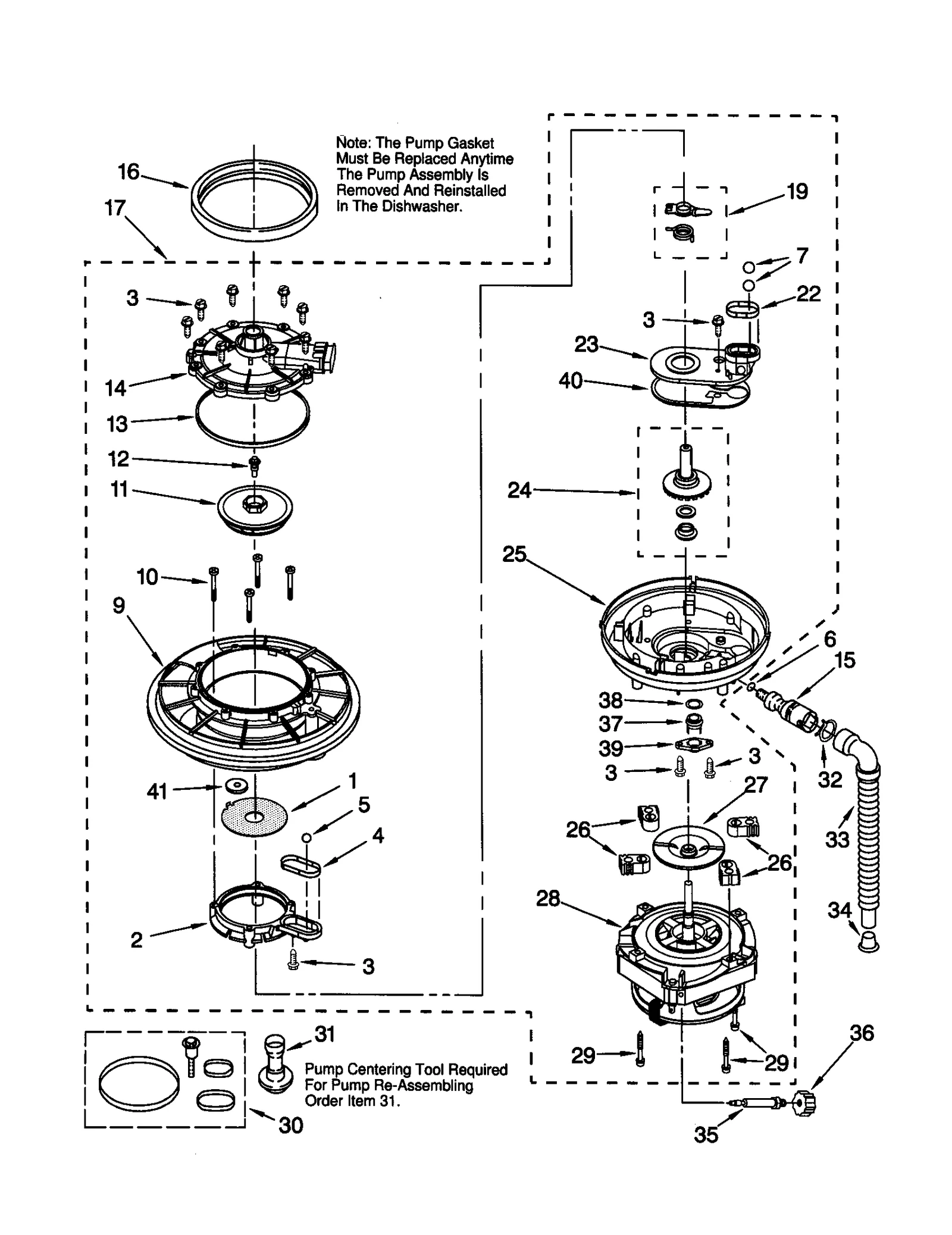

W10428168 Whirlpool Dishwasher Pump and Motor In Stock WPL W10428168 $487.86

17

Protector WPL 9742999 Contact Us For Availability

19

Microcomputer WPL 9744483 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

21

Dishwasher Terminal Block Cover WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

22

FUSE THERMAL ELECTRONIC WPL 974351 Contact Us For Availability

22

Seal WPL 302704 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

23

Dishwasher Sump Cap Cover WPL 3376845 Contact Us For Availability

24

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $88.63

24

Dishwasher Water Feed Tube WPL 9743958 Contact Us For Availability

24

Wire Harness WPL 9743154 Contact Us For Availability

25

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $42.84

25

Pad Insert WPL 9742397 Contact Us For Availability

25

Dishwasher Pump Base WPL 3379336 Contact Us For Availability

26

Sensor WPL 9742852 Contact Us For Availability

26

Dishwasher Sump Mounting Support WPL 3367197 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

27

Dishwasher Wire Harness Retainer WPL 3376405 Contact Us For Availability

28

Motorforpump WPL 3377333 Contact Us For Availability

29

Dishwasher Thermostat Retainer WPL 9742648 Contact Us For Availability

29

Screw WPL 3369331 Contact Us For Availability

30

Dishwasher Pump Seal Kit WPL 675703 Contact Us For Availability

30

Dishwasher Wire Harness WPL 9744027 Contact Us For Availability

31

Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $62.78

33

Screw WPL 3400700 Contact Us For Availability

34

Dishwasher Drain Hose Cap WPL 3371748 Contact Us For Availability

35

Seal WPL 9743806 Contact Us For Availability

35

Stud WPL 3374757 Contact Us For Availability

36

Weight WPL 3378202 Contact Us For Availability

37

Thermistor WPL 9743158 Contact Us For Availability

38

Seal WPL 3376723 Contact Us For Availability

39

Retainer WPL 3376358 Contact Us For Availability

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82

41

Seal WPL 3379340 Contact Us For Availability

47

Dishwasher Water-Level Pressure Switch Hose WPL 3380785 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $17.59

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $230.99

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint 1qt WPL 799344 Contact Us For Availability

Glisten WPL 4319102 Contact Us For Availability

Outer Door WPL 4378861 Contact Us For Availability

Outer Door WPL 4378862 Contact Us For Availability

Outer Door WPL 4378863 Contact Us For Availability

Panel (White) WPL 4378864 Contact Us For Availability

Panl Blk WPL 4378865 Contact Us For Availability

Panl Al WPL 4378866 Contact Us For Availability

Panl Blk WPL 4378868 Contact Us For Availability

Panl Al WPL 4378869 Contact Us For Availability

Paint WPL 978883 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
