Whirlpool 665.15955790 Dishwasher (Kenmore 66515955790) Parts List

1

Dishwasher Water Feed Tube Seal WPL 9742953 Contact Us For Availability

View on Model

1

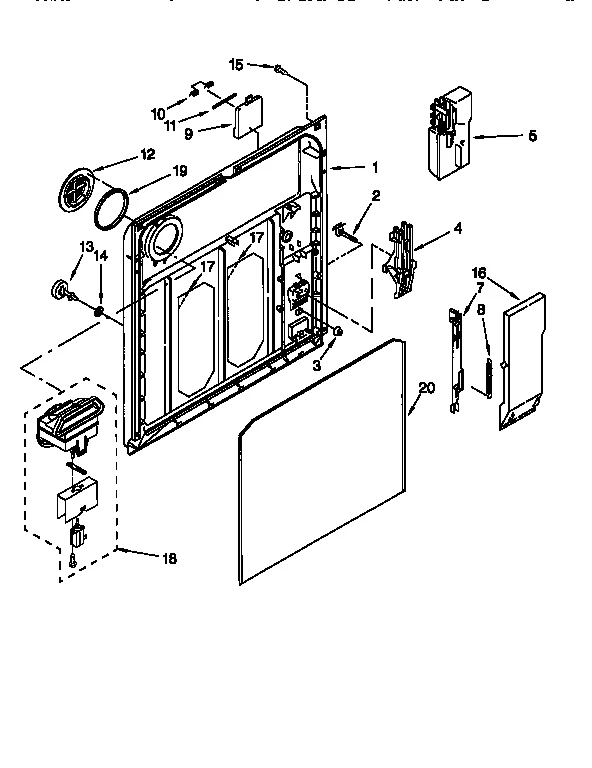

Inner Door WPL 3379323 Contact Us For Availability

View on Model

1

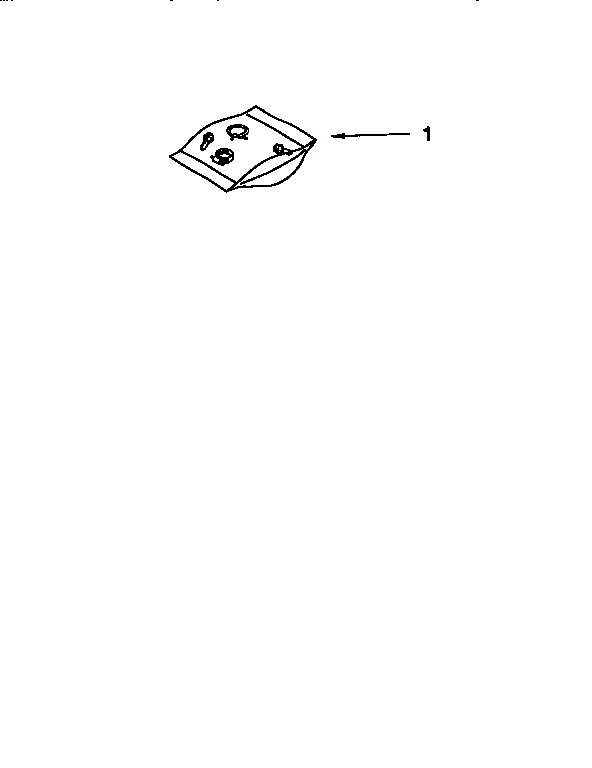

Miscellaneous Parts WPL 3369816 Contact Us For Availability

View on Model

1

Energy Guide WPL LIT3379881 Contact Us For Availability

View on Model

1A

Installation Instructions WPL LIT3373979 Contact Us For Availability

View on Model

1B

Technical Sheet WPL LIT3379893 Contact Us For Availability

View on Model

1C

Technical Sheet WPL LIT3379894 Contact Us For Availability

View on Model

1D

Parts List WPL LIT3378851 Contact Us For Availability

View on Model

1E

Owner's Manual WPL LIT3378927 Contact Us For Availability

View on Model

1F

Dishwasher Owner's Manual WPL LIT4321605 Contact Us For Availability

View on Model

2

Tub Wheel WPL 3380371 Contact Us For Availability

View on Model

2

Insert WPL 3379668 Contact Us For Availability

View on Model

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $4.36

View on Model

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

View on Model

4

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

View on Model

4

WP3369505 Whirlpool Dishwasher Actuator Backorder WPL WP3369505 $33.84

View on Model

5

WP8052028 Whirlpool Dishwasher Dispenser Backorder WPL WP8052028 $81.02

View on Model

5

Dishwasher Detergent Dispenser Actuator WPL 3374501 Contact Us For Availability

View on Model

5

Dishwasher Tine Row Pivot Clip WPL 3379955 Contact Us For Availability

View on Model

6

Retainer WPL 3368629 Contact Us For Availability

View on Model

6

Dishwasher Wheel WPL 302819 Contact Us For Availability

View on Model

6

Microcomputer WPL 3379317 Contact Us For Availability

View on Model

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

View on Model

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

View on Model

7

Draw Bar WPL 3369448 Contact Us For Availability

View on Model

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $5.30

View on Model

8

Frame (Black) WPL 9743028 Contact Us For Availability

View on Model

9

WP3378138 Whirlpool Cover Assembly In Stock WPL WP3378138 $20.85

View on Model

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $40.69

View on Model

10

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $5.30

View on Model

10

Dishwasher Door Latch Handle (Black) WPL 3380778 Contact Us For Availability

View on Model

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $6.19

View on Model

11

Dishwasher Switch WPL 3369325 Contact Us For Availability

View on Model

12

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $7.72

View on Model

12

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $5.35

View on Model

12

Pin WPL 3368955 Contact Us For Availability

View on Model

12

Vent WPL 3379959 Contact Us For Availability

View on Model

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

View on Model

13

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $16.07

View on Model

13

Wire Harness WPL 3379646 Contact Us For Availability

View on Model

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $5.30

View on Model

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

View on Model

14

Dishwasher Wire Harness Retainer WPL 3376405 Contact Us For Availability

View on Model

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

View on Model

15

WPW10348413 Whirlpool Dishwasher Screw In Stock WPL WPW10348413 $4.99

View on Model

16

Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability

View on Model

16

Dishwasher Rinse-Aid Dispenser Drip Cover WPL 3371569 Contact Us For Availability

View on Model

16

Console WPL 3380210 Contact Us For Availability

View on Model

17

Dishwasher Dishrack Slide Rail Stop WPL 3379941 Contact Us For Availability

View on Model

17

Damper WPL 3374772 Contact Us For Availability

View on Model

17

Barrier WPL 3380944 Contact Us For Availability

View on Model

18

675813 Whirlpool Thermal Fuse Kit In Stock WPL 675813 $48.83

View on Model

18

Vent WPL 9742770 Contact Us For Availability

View on Model

19

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

View on Model

19

Dishwasher Door Vent Seal WPL 9742782 Contact Us For Availability

View on Model

19

Dishwasher Door Panel WPL 3379375 Contact Us For Availability

View on Model

20

Abosrber WPL 3380629 Contact Us For Availability

View on Model

21

Clip WPL 3377464 Contact Us For Availability

View on Model

21

Switch WPL 3379318 Contact Us For Availability

View on Model

23

Clip WPL 9743019 Contact Us For Availability

View on Model

23

Dishwasher Sump Cap Cover WPL 3376845 Contact Us For Availability

View on Model

23

Cover WPL 3379321 Contact Us For Availability

View on Model

24

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

View on Model

25

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $42.84

View on Model

26

WP3379383 Whirlpool Dishwasher Spring In Stock WPL WP3379383 $14.42

View on Model

27

675782 Whirlpool Dishwasher Catch Backorder WPL 675782 $4.82

View on Model

27

Gasket WPL 3379958 Contact Us For Availability

View on Model

28

Screw WPL 3400851 Contact Us For Availability

View on Model

29

Dishwasher Float Switch Housing WPL 3369048 Contact Us For Availability

View on Model

30

Dishwasher Float Switch WPL 3369067 Contact Us For Availability

View on Model

31

Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability

View on Model

31

Housing Cover WPL 3369049 Contact Us For Availability

View on Model

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $87.54

View on Model

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

View on Model

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $68.24

View on Model

33

Dishwasher Self Threading Nut, 1/8-in WPL 717488 Contact Us For Availability

View on Model

34

Dishwasher Toe Panel WPL 3379920 Contact Us For Availability

View on Model

34

Dishwasher Drain Hose Cap WPL 3371748 Contact Us For Availability

View on Model

35

Panel WPL 3379911 Contact Us For Availability

View on Model

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $4.27

View on Model

37

Inlet Hose WPL 3369414 Contact Us For Availability

View on Model

38

Gasket WPL 9742787 Contact Us For Availability

View on Model

38

Seal WPL 3376723 Contact Us For Availability

View on Model

39

Clip WPL 3378123 Contact Us For Availability

View on Model

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $20.48

View on Model

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82

View on Model

41

Terminal Box WPL 3378131 Contact Us For Availability

View on Model

42

Dishwasher Terminal Block Cover WPL 300068 Contact Us For Availability

View on Model

43

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

View on Model

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

View on Model

45

Seal WPL 3380885 Contact Us For Availability

View on Model

46

Seal WPL 3380884 Contact Us For Availability

View on Model

47

W10539489 Whirlpool Dishwasher Bracket-Stat Backorder WPL W10539489 $12.73

View on Model

48

Dishwasher Heating Element Support Bracket WPL 3379740 Contact Us For Availability

View on Model

49

Damper WPL 3374774 Contact Us For Availability

View on Model

49A

Damper WPL 3374773 Contact Us For Availability

View on Model

50

Dishwasher Sound Barrier WPL 3379326 Contact Us For Availability

View on Model

51

Water-Level Switch WPL 3380871 Contact Us For Availability

View on Model

52

Dishwasher Water-Level Pressure Switch Hose WPL 3380785 Contact Us For Availability

View on Model

53

Hose Clamp WPL 3380943 Contact Us For Availability

View on Model

54

Relief WPL 3370307 Contact Us For Availability

View on Model

55

Damper WPL 3379380 Contact Us For Availability

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $19.12

View on Model

NI

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $230.99

View on Model

NI

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

View on Model

NI

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $21.98

View on Model

NI

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $26.24

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.04

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $13.78

View on Model

NI

W10840471 Whirlpool Dishwasher Touch Up Backorder WPL W10840471 $25.17

View on Model

NI

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $17.52

View on Model

NI

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $24.99

View on Model

NI

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $17.46

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Dishwasher Outer Panel Kit (Black) WPL 675775 Contact Us For Availability

View on Model

NI

Glisten WPL 4319102 Contact Us For Availability

View on Model

NI

Panl Blk WPL 4378868 Contact Us For Availability

View on Model

NI

Panl Al WPL 4378869 Contact Us For Availability

View on Model

NI

Tip-tines-bl WPL 675677 Contact Us For Availability

View on Model

NI

Panel (White) WPL 675773 Contact Us For Availability

View on Model

NI

Panl Al WPL 675774 Contact Us For Availability

View on Model

NI

Outer Door WPL 675776 Contact Us For Availability

View on Model

NI

Outer Door WPL 675777 Contact Us For Availability

View on Model

NI

Paint 1qt WPL 799340 Contact Us For Availability

View on Model

NI

Paint WPL 978883 Contact Us For Availability

View on Model
