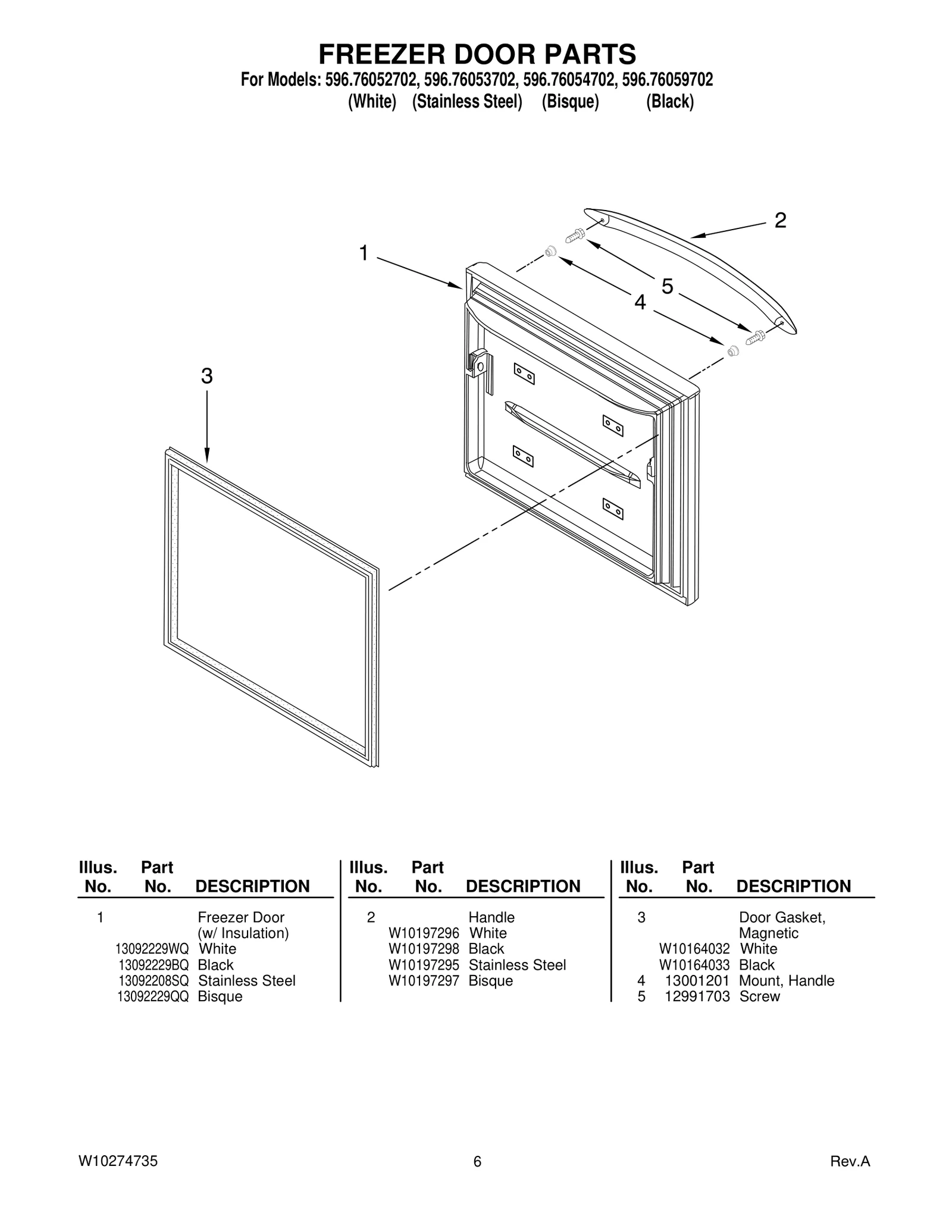

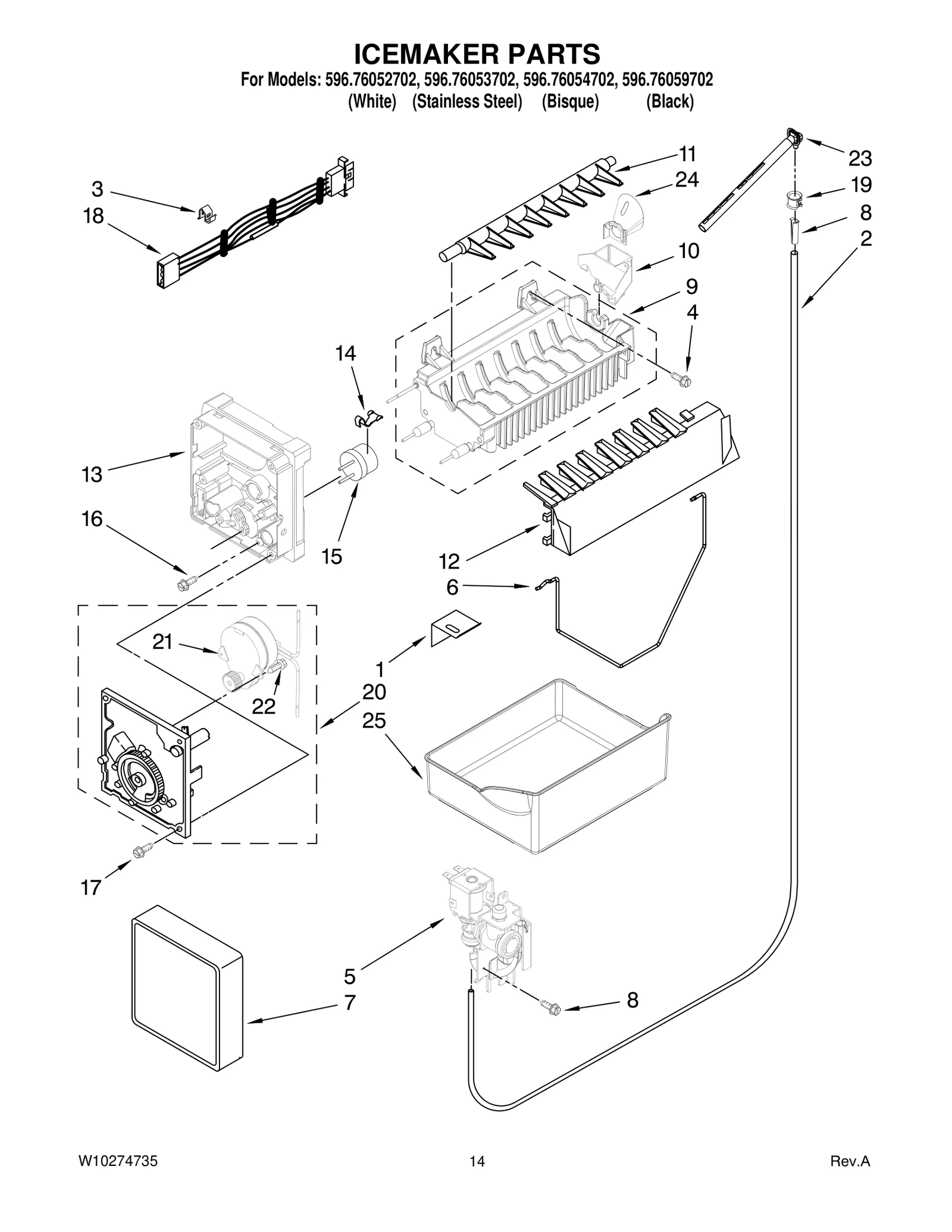

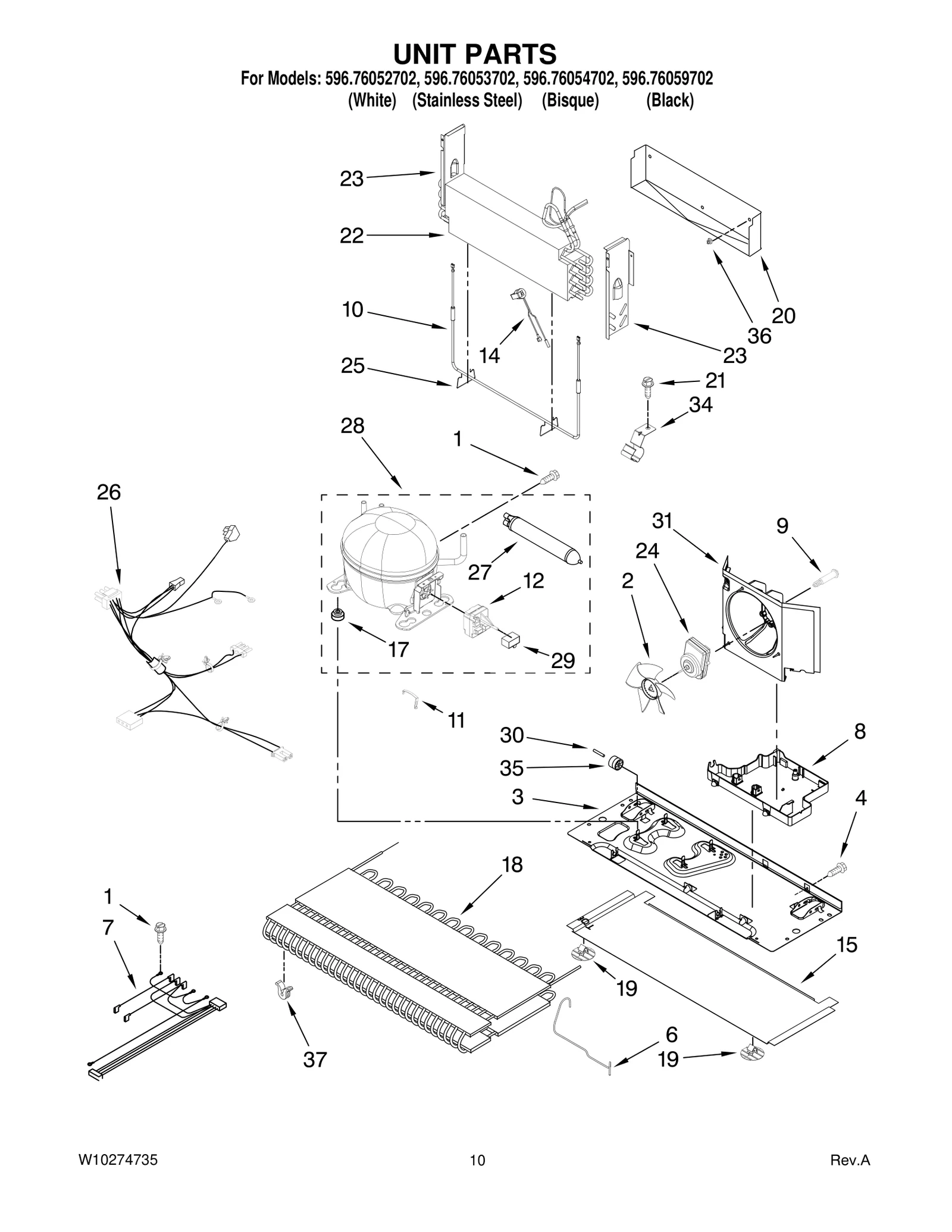

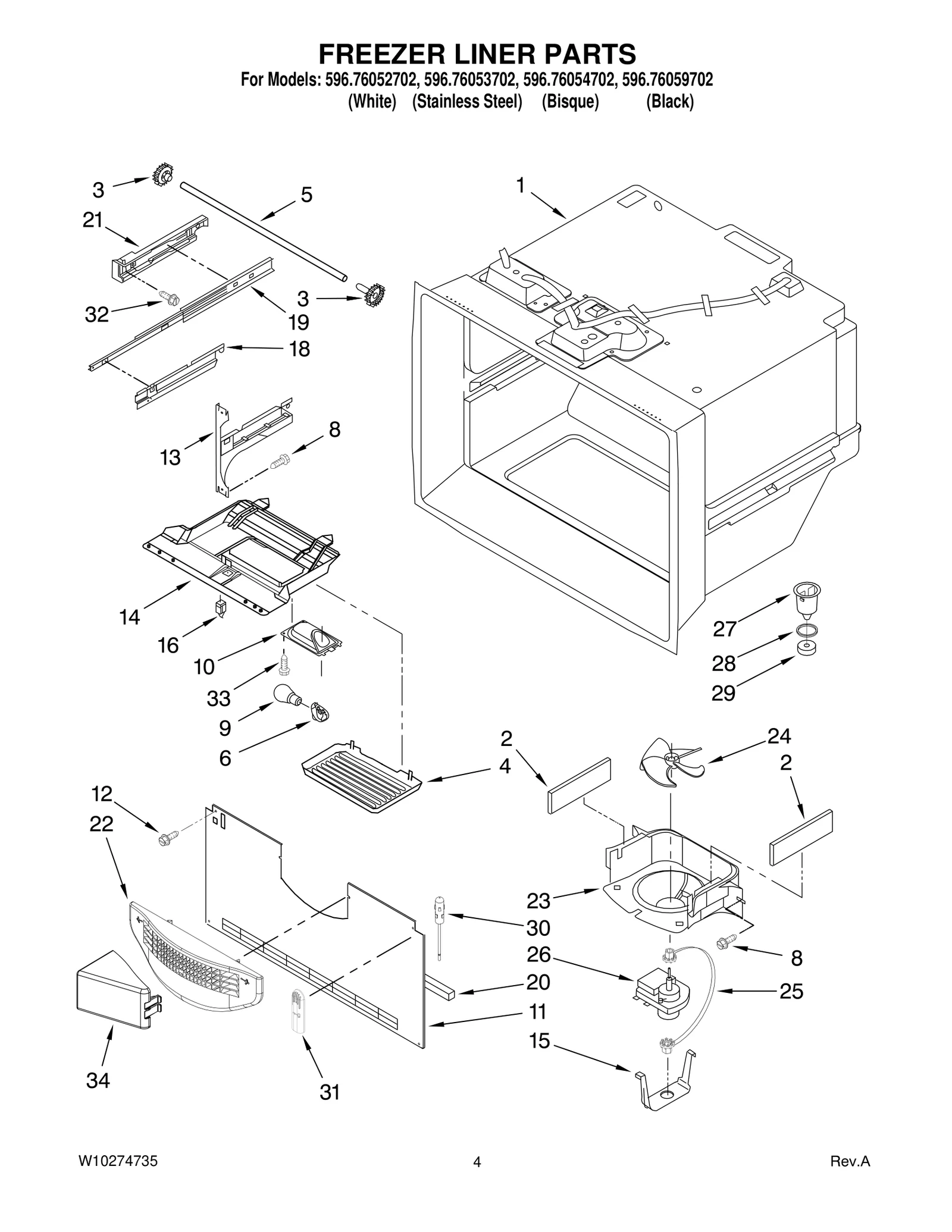

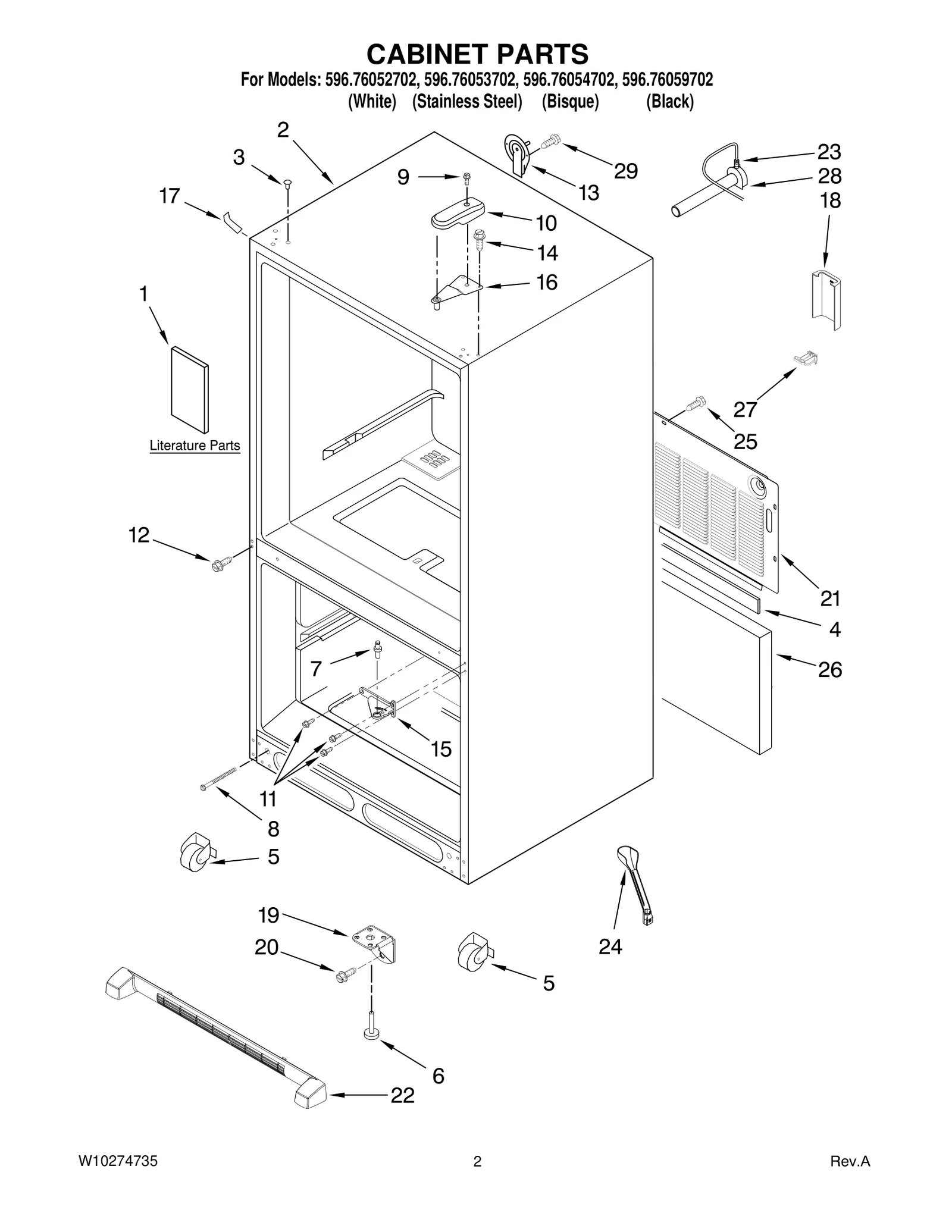

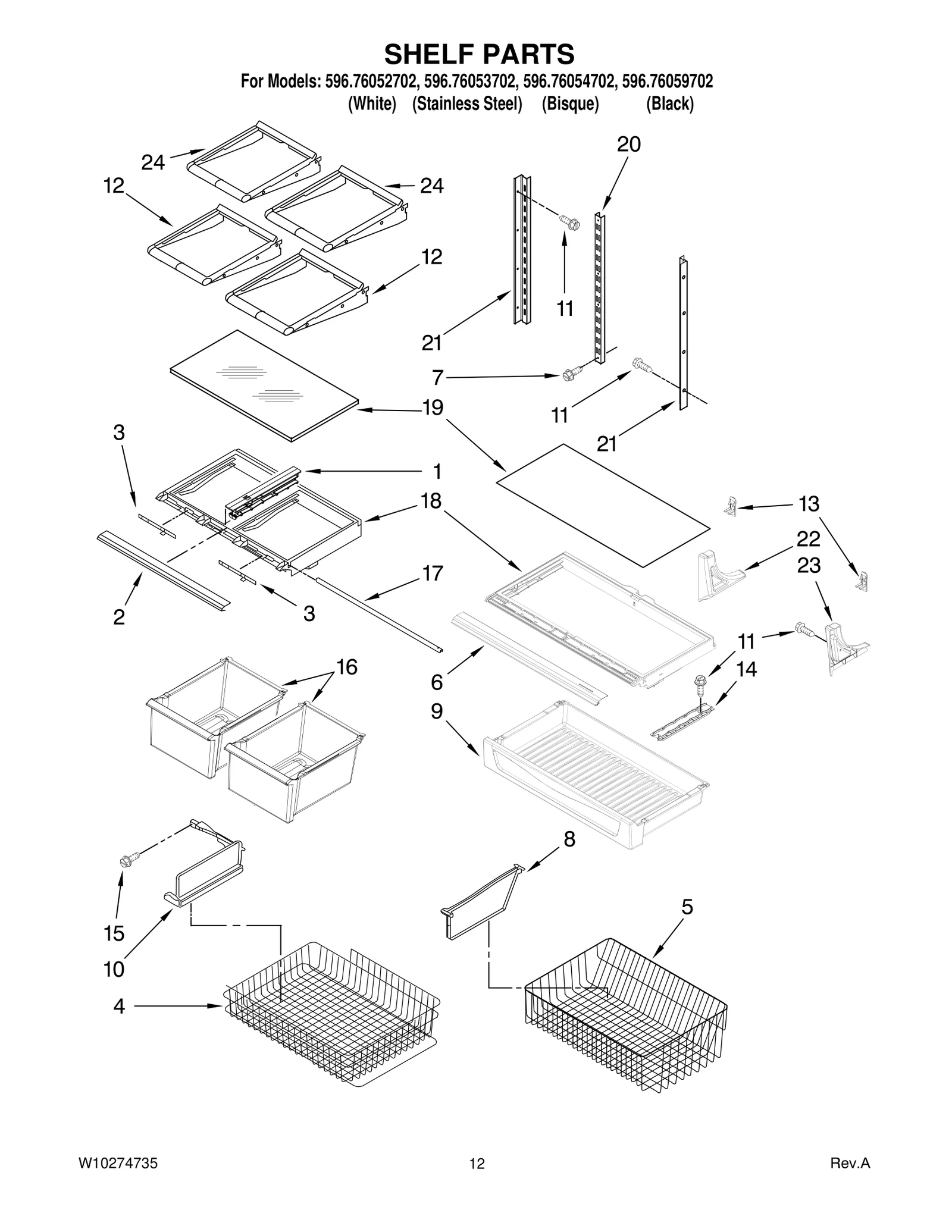

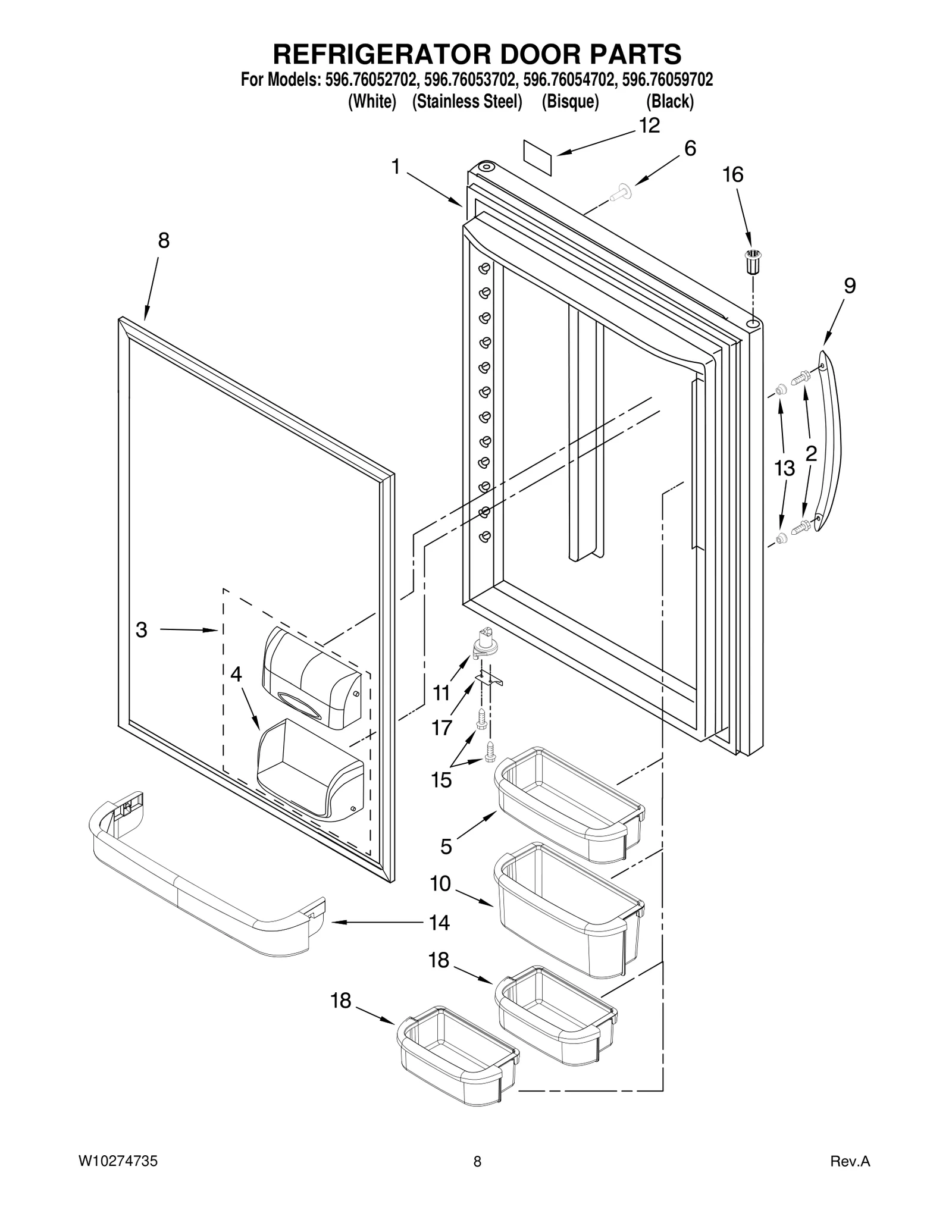

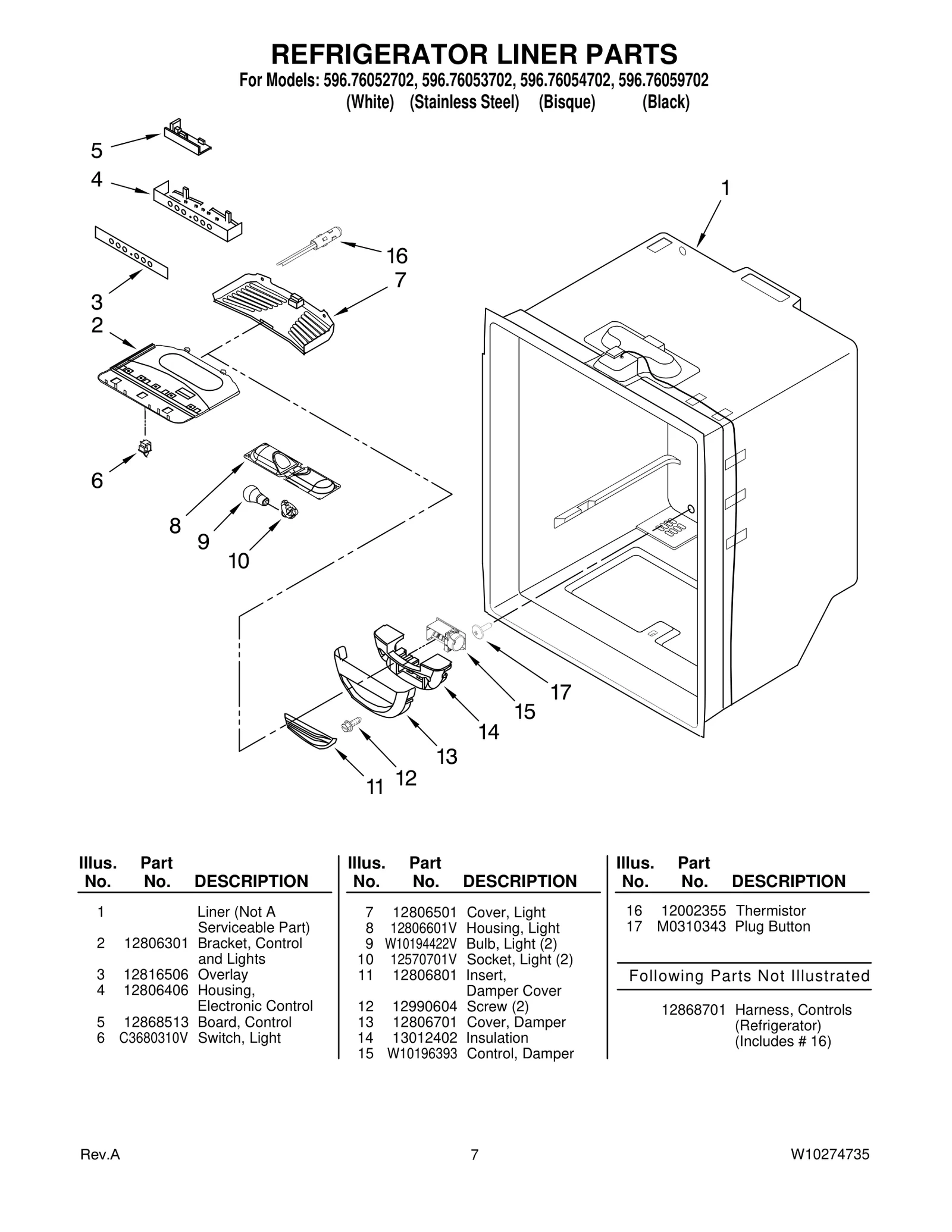

Model Whirlpool 596.76054702 Refrigerator – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

13092229WQ Whirlpool Refrigerator Door Backorder WPL 13092229WQ $458.96

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

1

Refrigerator Door — Black WPL 12658573BQ Contact Us For Availability

1

Refrigerator Door — Bisque WPL 12658573QQ Contact Us For Availability

1

Refrigerator Door — Stainless Steel WPL 13023852SQ Contact Us For Availability

2

67006901 Whirlpool Refrigerator Screw In Stock WPL 67006901 $4.82

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $83.12

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.44

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $99.74

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

3

Clamp WPL 10526702 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

4

Basket, Freezer WPL 12896401 Contact Us For Availability

5

W10503182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10503182 $162.75

5

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $77.39

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $45.27

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $43.13

5

Roller Assembly WPL 12580304 Contact Us For Availability

6

W10656984 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656984 $56.31

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

6

WP12246610 Whirlpool Refrigerator Handle Plug In Stock WPL WP12246610 $5.30

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

6

Tube, Discharge WPL W10217744 Contact Us For Availability

7

W10224241 Whirlpool Refrigerator Wire Harness Backorder WPL W10224241 $96.51

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $60.16

8

Divider, Basket WPL 12659608 Contact Us For Availability

9

13004701W Whirlpool Refrigerator Handle Backorder WPL 13004701W $127.56

9

67006982 Whirlpool Refrigerator Handle Assemb Backorder WPL 67006982 $133.79

9

W10328331 Whirlpool Refrigerator Utility Pan Backorder WPL W10328331 $97.72

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

W11690159 Whirlpool Handle Backorder WPL W11690159 $104.21

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

9

Door Handle — Black WPL W10197298 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $126.57

Bucket, Tall WPL 12846501V Contact Us For Availability

Divider, Basket WPL 12693802 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $7.27

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $43.23

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $69.95

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $114.84

Nameplate WPL 2323099 Contact Us For Availability

Shelf, Fixed (2) WPL 12463607 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $7.14

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

Backorder WPL W11750607 $32.09

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $4.82

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $48.68

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $53.08

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $102.24

Clip, Evap. Motor WPL 13058002 Contact Us For Availability

Screw WPL 12990601 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $93.93

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.96

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

Cover, Corner — Biscuit WPL 12587703C Contact Us For Availability

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $60.90

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $53.85

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $91.92

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $59.38

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $87.28

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

20

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

20

Tray, Drip WPL 12225401WD Contact Us For Availability

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $134.45

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

Ladder, Side WPL 12710606 Contact Us For Availability

Motor (Not Available, Order #20) WPL N/S Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $5.99

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $76.18

Evaporator WPL 12726401 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $4.82

Dam — Left Side WPL 12225602 Contact Us For Availability

Dam — Right Side WPL 12225702 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $60.95

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

Shelf, Glide (2) WPL 12463402V Contact Us For Availability

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

28

Compressor Kit (Contains Items 12, 17, 27, & WPL W10130129 Contact Us For Availability

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.77

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

34

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $62.53

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

Clip, Evap (2) WPL 10623002 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

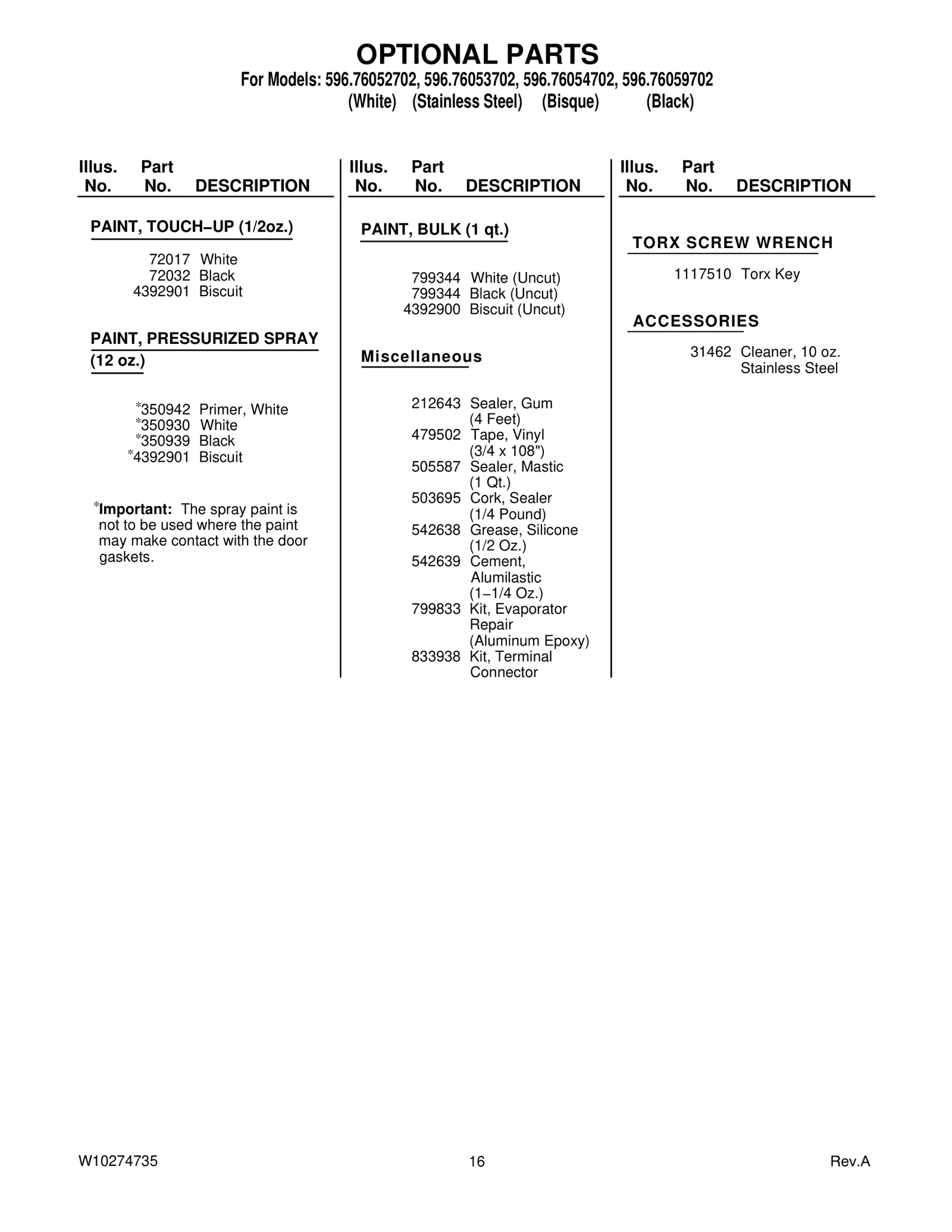

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-4

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-6

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-9

Black (Uncut) WPL 799344 Contact Us For Availability

OPT-10

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-13

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-15

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-16

Cement, WPL 542639 Contact Us For Availability

OPT-17

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-18

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-19

Torx Key WPL 1117510 Contact Us For Availability

OPT-20

Cleaner, 10 oz. WPL 31462 Contact Us For Availability
