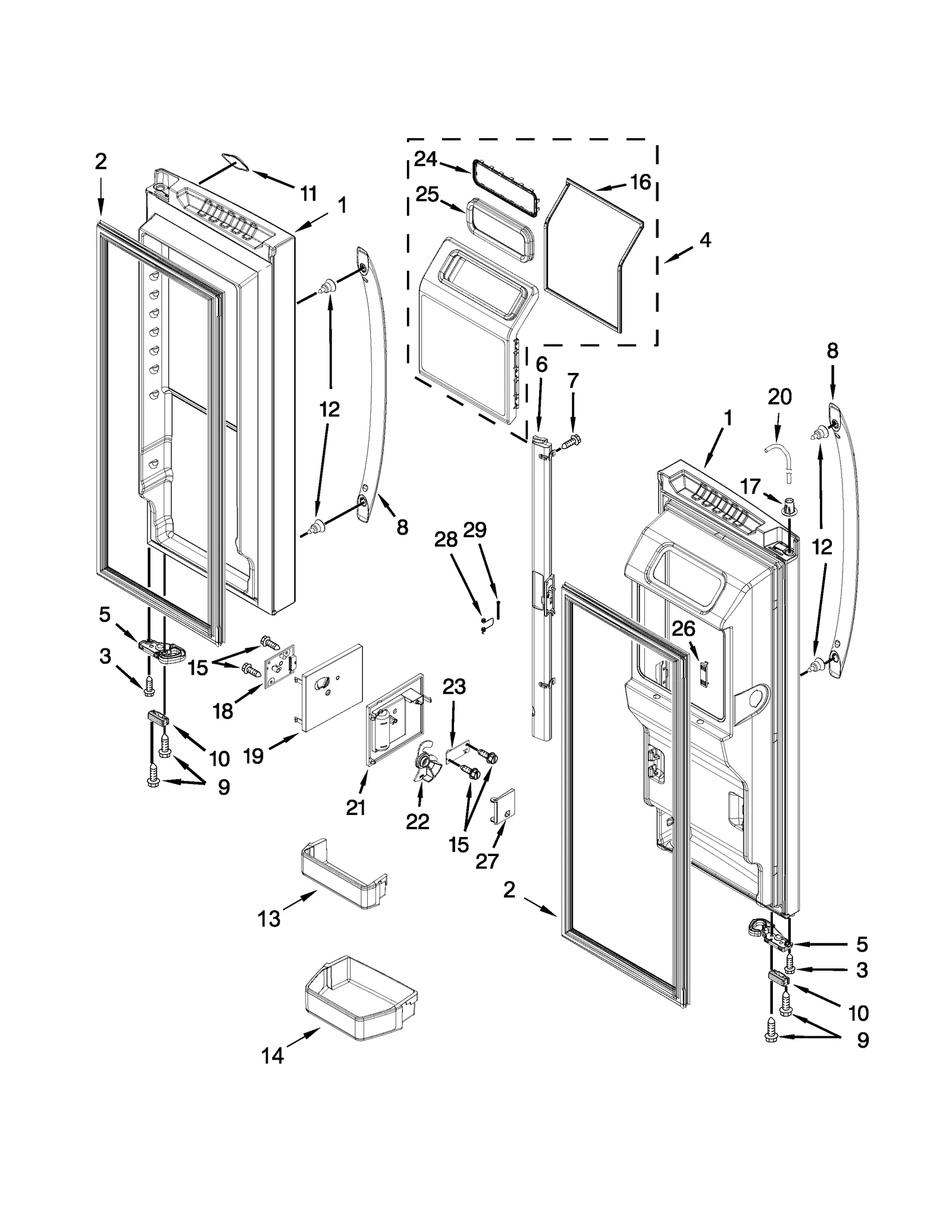

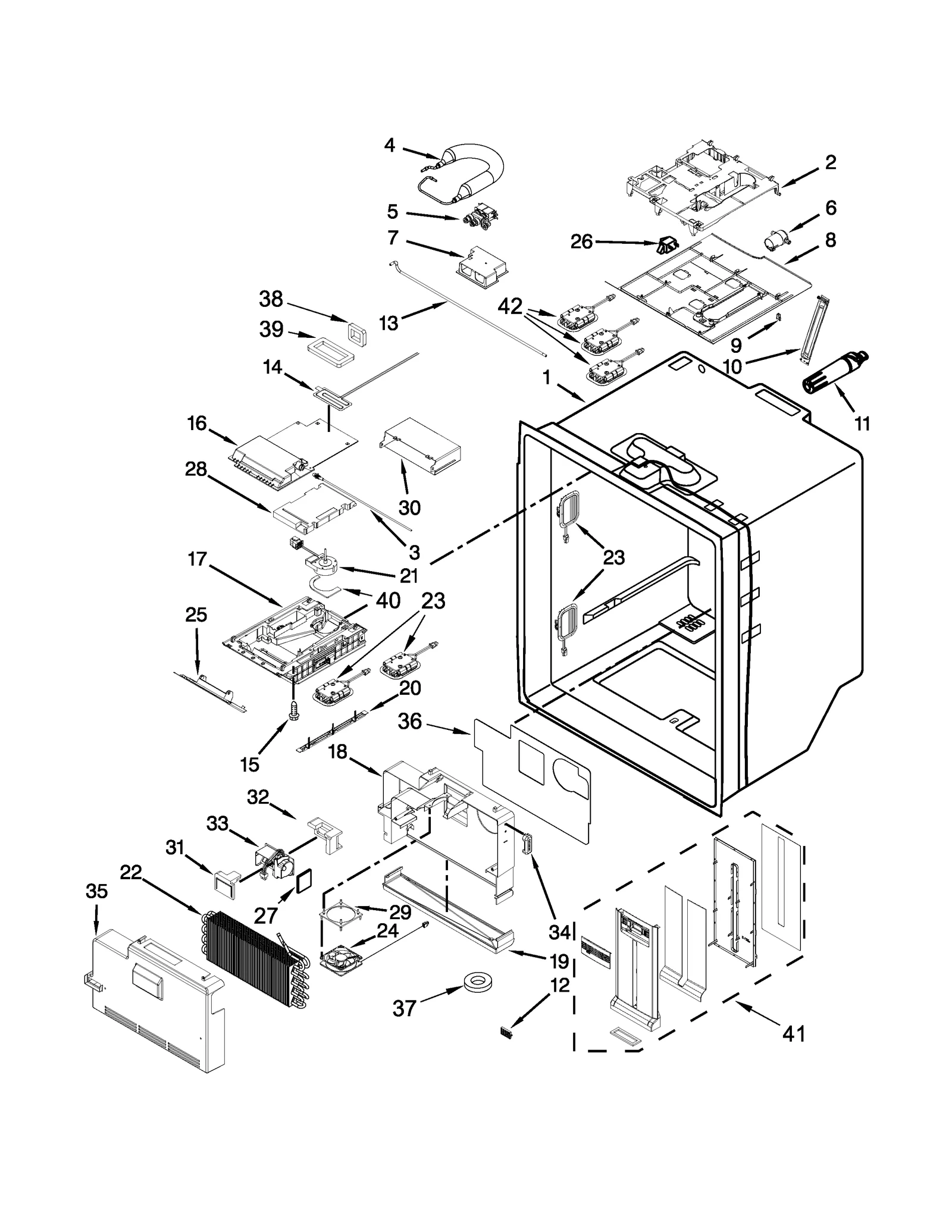

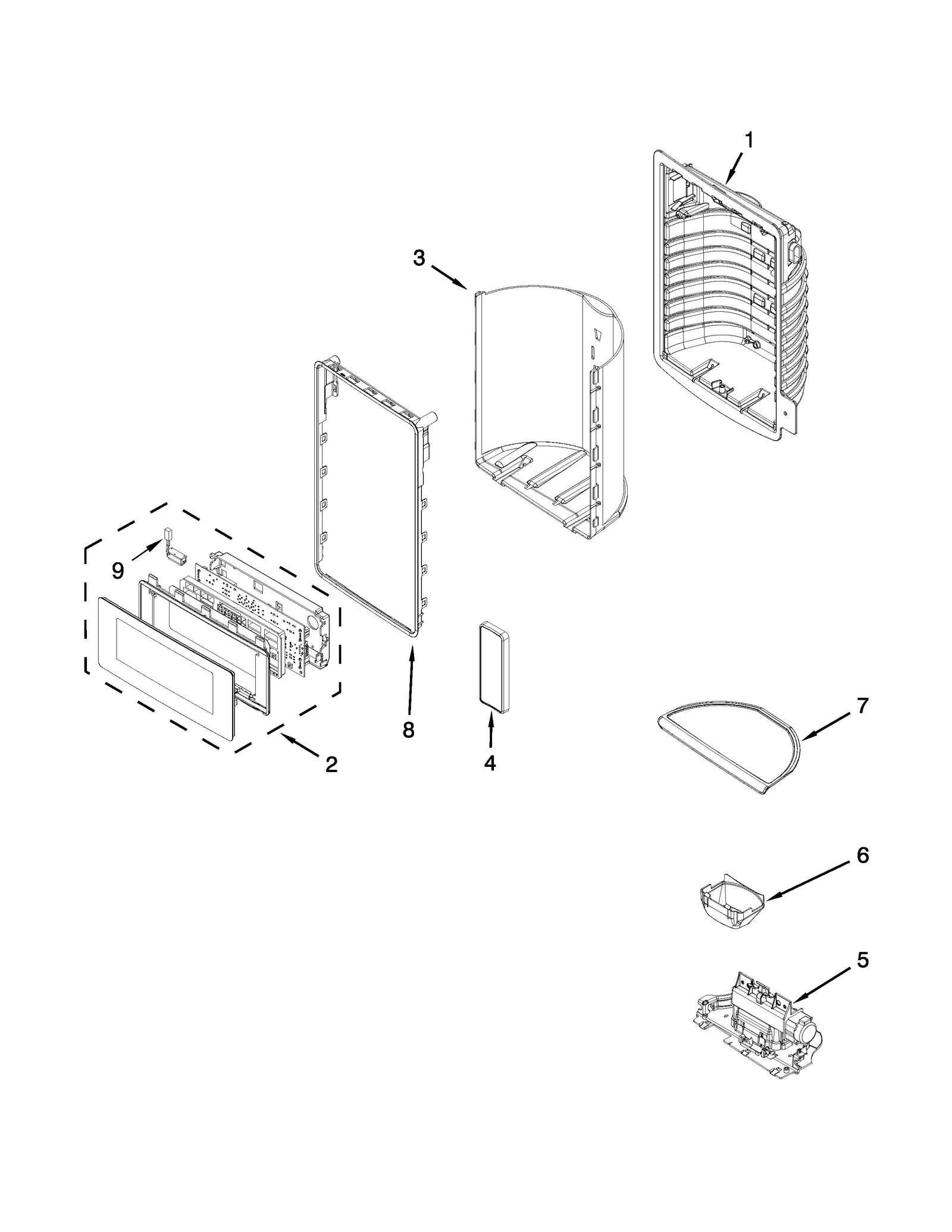

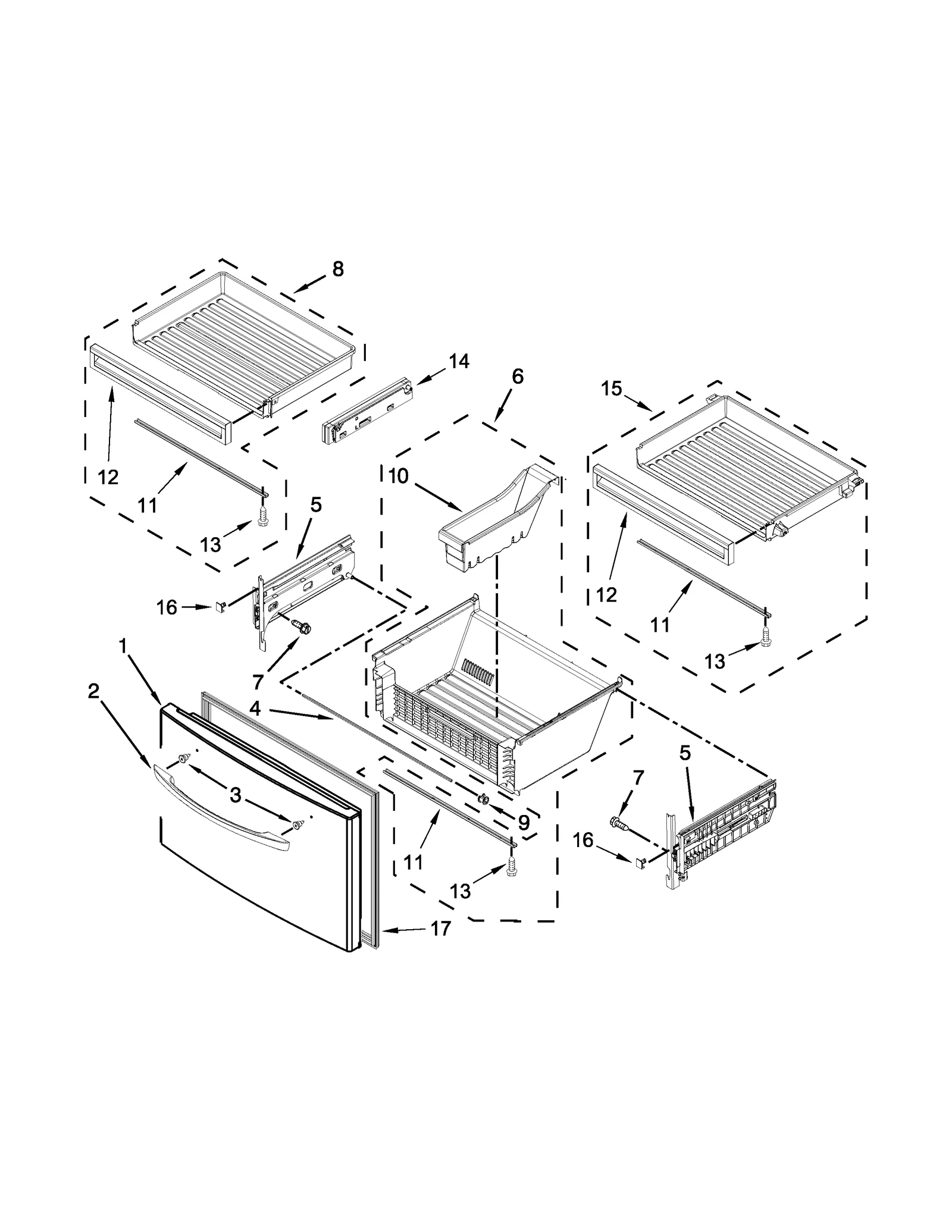

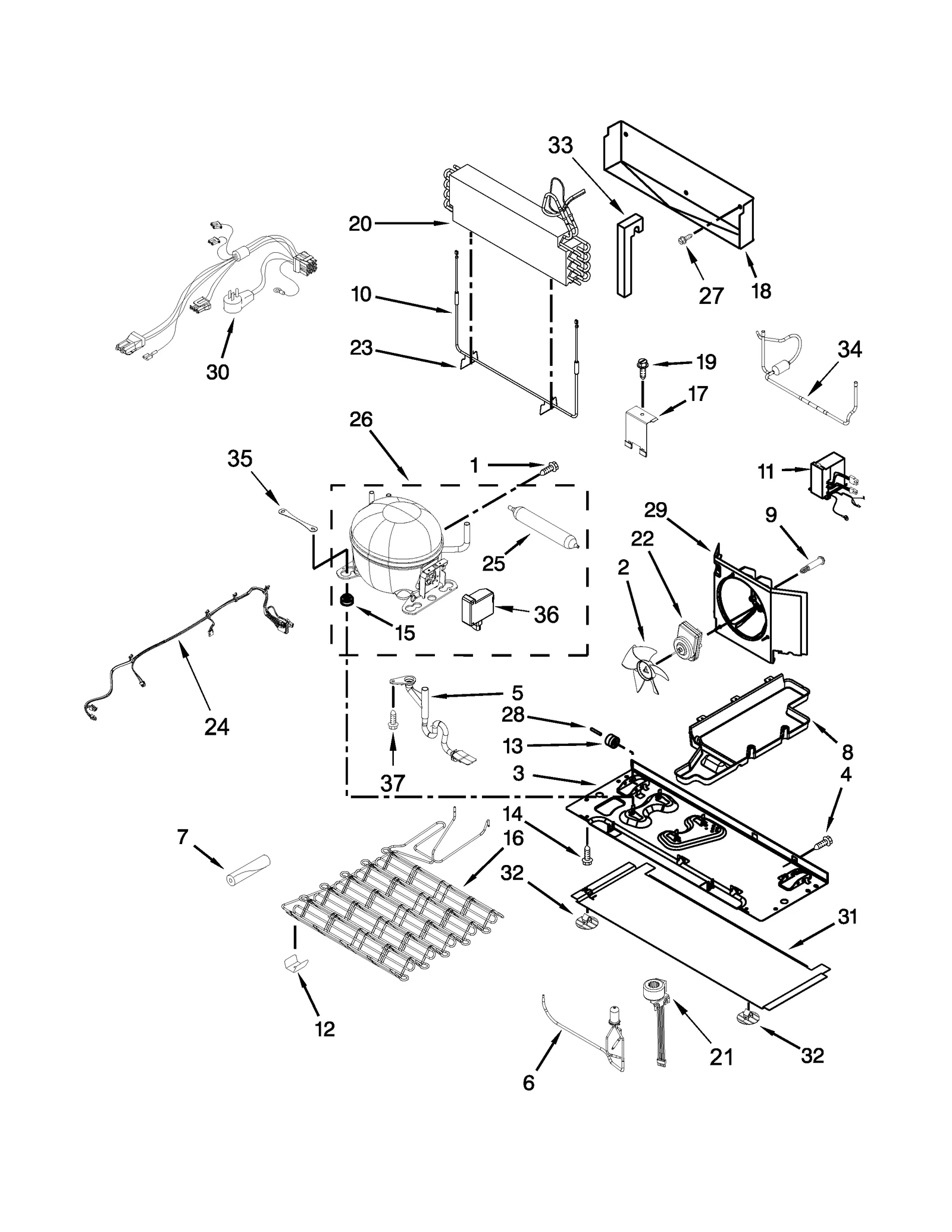

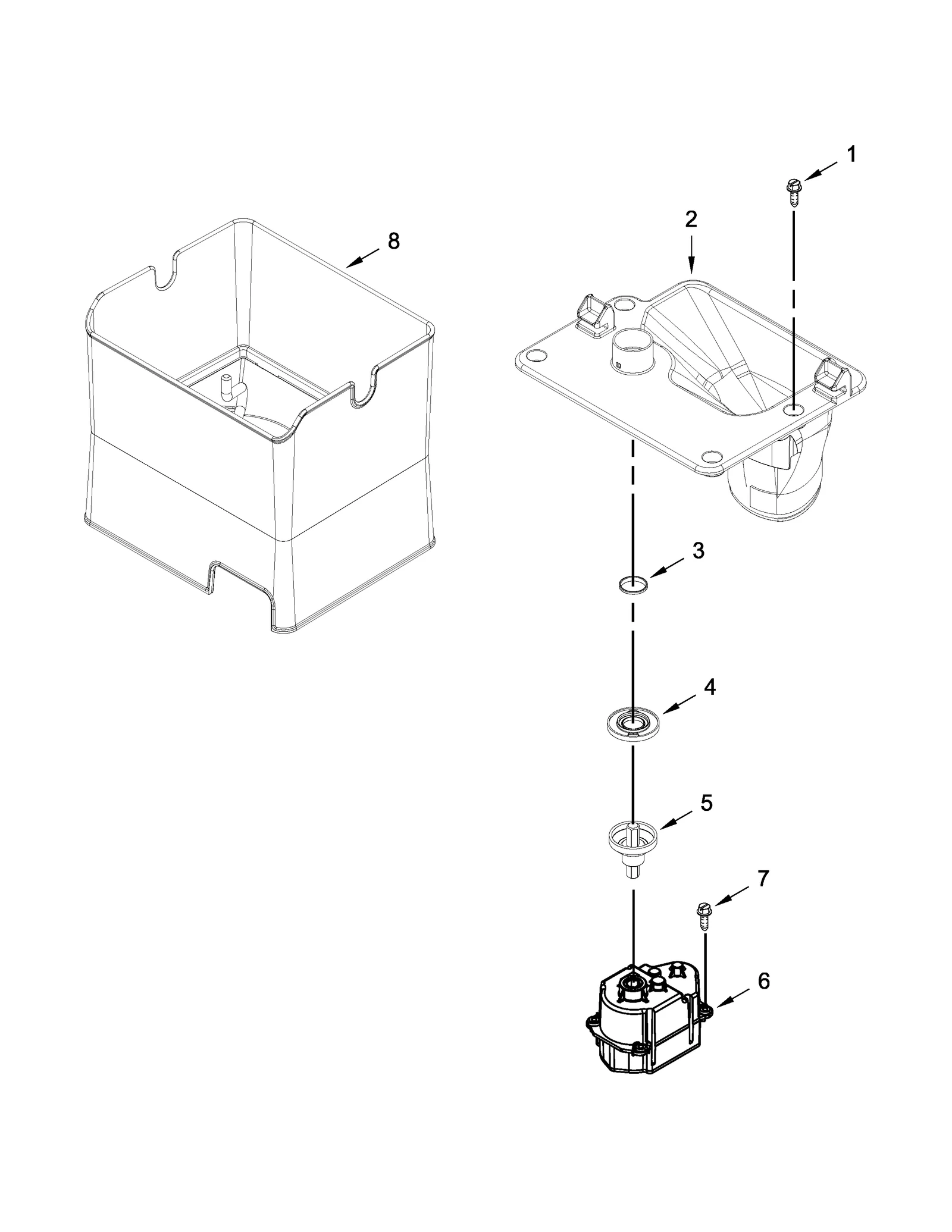

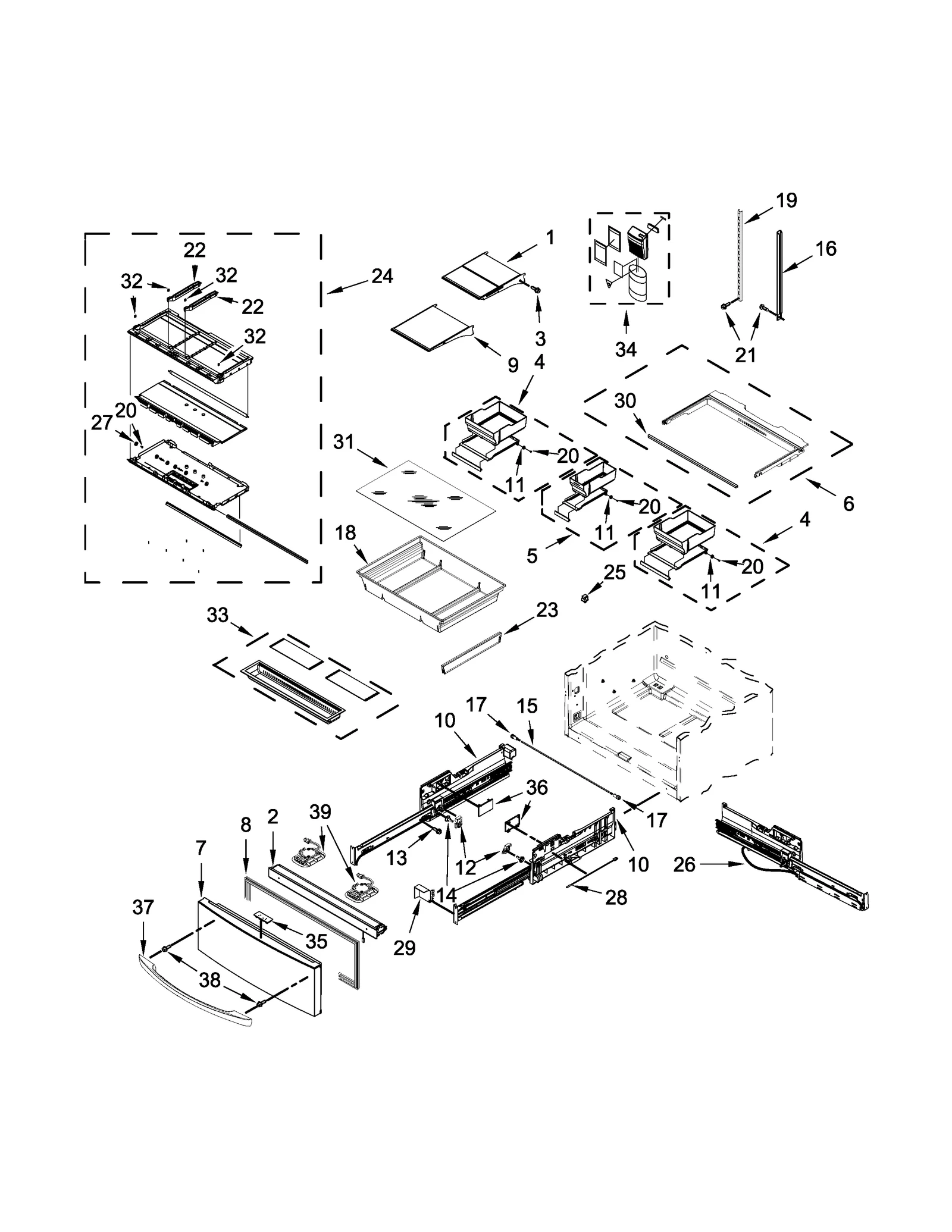

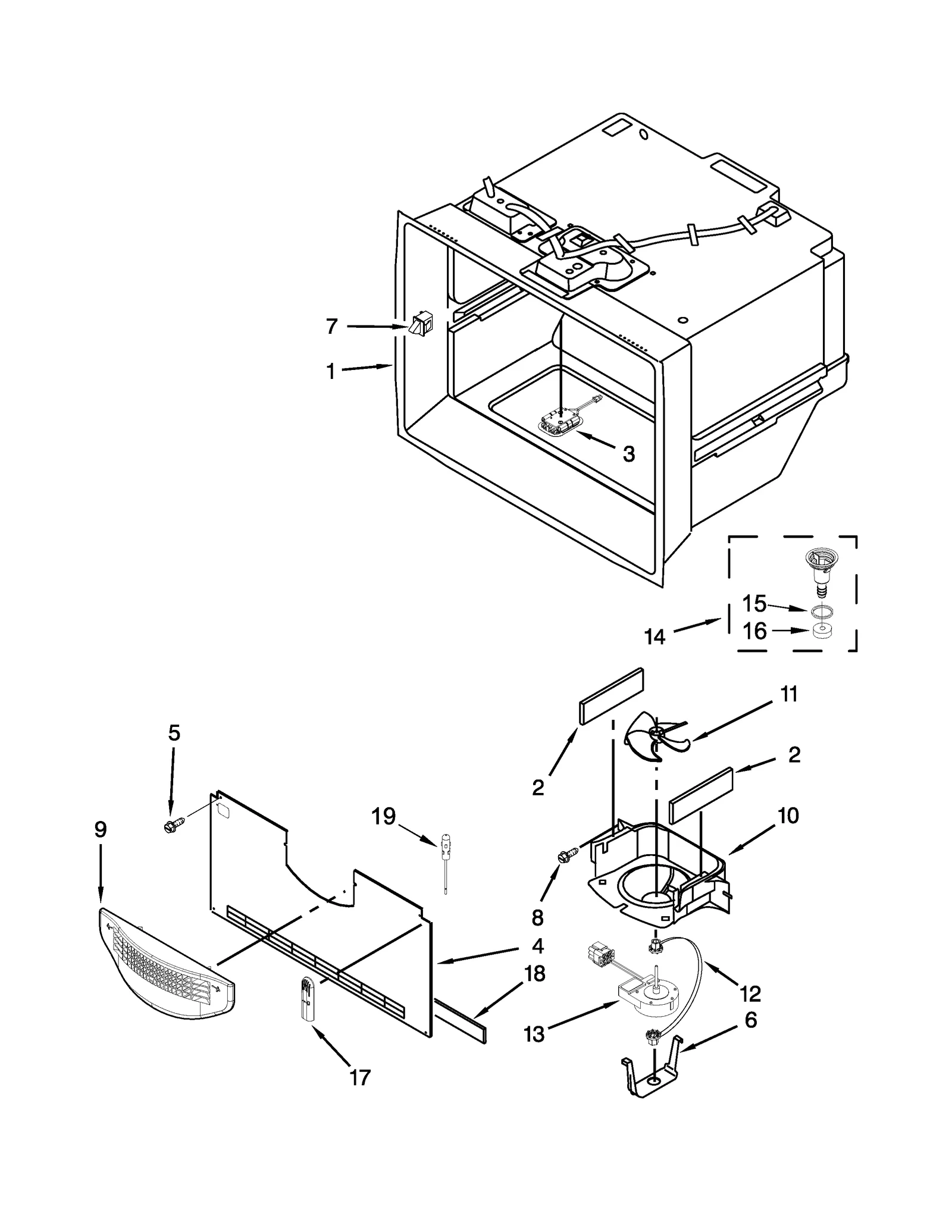

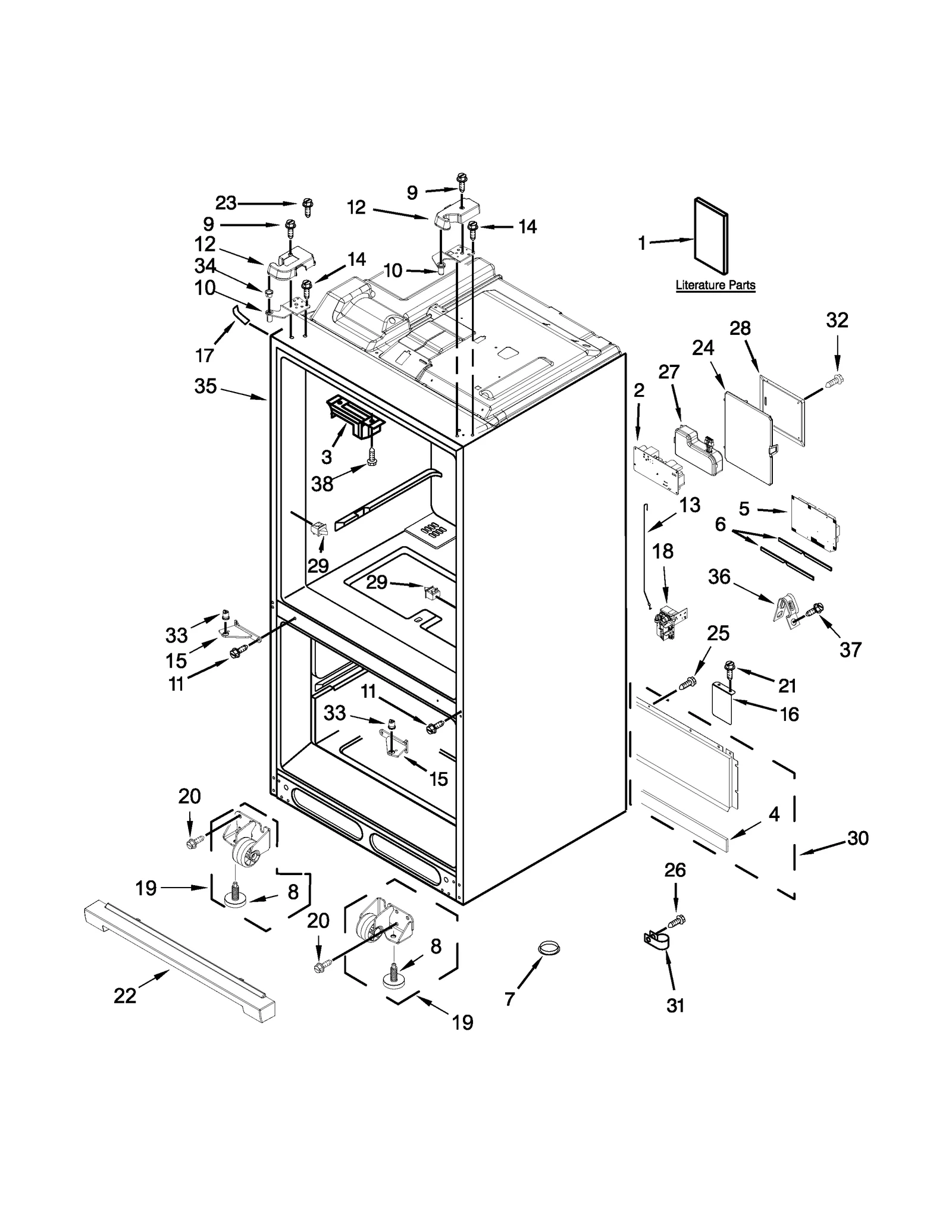

Model Whirlpool 596.72382411 Refrigerator (Kenmore 59672382411) – Common Parts &amp; Diagrams

1

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $6.83

2

W10698206 Whirlpool Refrigerator Mullion Rail Backorder WPL W10698206 $138.68

2

W10837274 Whirlpool Refrigerator Plate Backorder WPL W10837274 $55.98

2

W10842950 Whirlpool Refrigerator Housing Backorder WPL W10842950 $30.45

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $46.95

2

WPW10453401 Whirlpool Refrigerator Electronic In Stock WPL WPW10453401 $145.69

3

W10421495 Whirlpool Refrigerator Screw Backorder WPL W10421495 $12.04

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $99.48

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.77

3

WPW10344432 Whirlpool Pivot Block Backorder WPL WPW10344432 $11.48

3

WPW10464016 Whirlpool Refrigerator Screw Backorder WPL WPW10464016 $8.04

3

False Wall C WPL W10606658 Contact Us For Availability

3A

W10606657 Whirlpool Refrigerator Shield Backorder WPL W10606657 $60.24

3B

W10819058 Whirlpool Refrigerator Shield Backorder WPL W10819058 $92.13

4

W10460951 Whirlpool Refrigerator Pad In Stock WPL W10460951 $49.39

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $17.25

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $8.89

4

W11690163 Whirlpool Refrigerator Evaporator C Backorder WPL W11690163 $143.39

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $63.85

4

Refrigerator Dispenser Ice Chute Door Kit WPL W10670867 Contact Us For Availability

4A

Refrigerator Pad WPL W10460950 Contact Us For Availability

4B

W11684618 Whirlpool Pad Backorder WPL W11684618 $41.08

5

W10509275 Whirlpool Refrigerator Crisper Pan Backorder WPL W10509275 $109.19

5

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $10.45

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $19.79

5

W11668671 Whirlpool Refrigerator Left-Hand & In Stock WPL W11668671 $248.75

5

W11745092 Whirlpool Dual Evaporator Drain Ext In Stock WPL W11745092 $51.03

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $56.56

5

WPW10577864 Whirlpool Refrigerator Ice Door In Stock WPL WPW10577864 $72.58

5A

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $10.51

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $23.40

6

W11127833 Whirlpool Refrigerator Crisper Draw In Stock WPL W11127833 $89.95

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $79.85

6

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $16.81

6

Refrigerator Flipper Assembly WPL W10698202 Contact Us For Availability

6A

W11690637 Whirlpool Refrigerator Mullion Rail Backorder WPL W11690637 $83.42

6B

W11025614 Whirlpool Door Support In Stock WPL W11025614 $82.65

7

W10606644 Whirlpool Refrigerator Drip Tray Backorder WPL W10606644 $29.40

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $74.84

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

7A

Refrigerator Dispenser Drip Tray (Black) WPL W10606643 Contact Us For Availability

7B

W11448765 Whirlpool Drip Tray In Stock WPL W11448765 $8.01

8

W10462438 Whirlpool Refrigerator Ring Connect Backorder WPL W10462438 $23.46

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $74.84

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $103.78

8

W11670953 Whirlpool Refrigerator Ice Bin Asse In Stock WPL W11670953 $91.15

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.30

8

WPW10493169 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10493169 $98.93

8A

W10462439 Whirlpool Refrigerator Trim Backorder WPL W10462439 $23.38

8B

WPW10402180 Whirlpool Refrigerator Trim Backorder WPL WPW10402180 $42.84

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $6.79

9

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $39.63

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $59.53

W11215629 Whirlpool Refrigerator Adapter Backorder WPL W11215629 $125.55

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $16.65

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $73.37

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $69.63

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $55.98

Bumper-dor WPL W10407175 Contact Us For Availability

10A

W10407187 Whirlpool Refrigerator Door Bumper Backorder WPL W10407187 $32.45

10A

W11093718 Whirlpool Refrigerator Adapter Backorder WPL W11093718 $102.31

10A

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $14.13

10B

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $14.02

11

W11677723 Whirlpool Support Backorder WPL W11677723 $102.46

11

WPW10154805 Whirlpool Refrigerator Inverter B In Stock WPL WPW10154805 $265.95

11A

Refrigerator Nameplate WPL W10337741 Contact Us For Availability

11B

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

12

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $50.57

12

W11175811 Whirlpool Refrigerator Front Panel Backorder WPL W11175811 $217.12

12

Refrigerator Cover WPL W10471615 Contact Us For Availability

12A

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $58.12

12A

W10471617 Whirlpool Refrigerator Cover Backorder WPL W10471617 $14.97

12C

W10248562 Whirlpool Refrigerator Cover Backorder WPL W10248562 $9.45

12D

Refrigerator Cover WPL W10407157 Contact Us For Availability

12E

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.33

13

W11209890 Whirlpool Refrigerator Water Tube Backorder WPL W11209890 $77.32

13

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $129.96

13

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $52.71

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $11.21

W10850332 Whirlpool Refrigerator Bracket Backorder WPL W10850332 $88.22

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $64.78

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $5.24

WPW10674770 Whirlpool Refrigerator Cantilever Backorder WPL WPW10674770 $194.60

Refrigerator Freezer Drawer Gear WPL W10277360 Contact Us For Availability

14A

W10858092 Whirlpool Refrigerator Bracket Backorder WPL W10858092 $92.83

15

W10248434 Whirlpool Refrigerator Door Hinge Backorder WPL W10248434 $57.81

15

W10802341 Whirlpool Refrigerator Shaft Backorder WPL W10802341 $62.86

15

W10858802 Whirlpool Refrigerator Freezer Bin Backorder WPL W10858802 $192.19

15A

W10407279 Whirlpool Refrigerator Door Hinge Backorder WPL W10407279 $54.31

15B

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $50.12

15C

W10248433 Whirlpool Refrigerator Door Hinge Backorder WPL W10248433 $58.05

15D

W10407275 Whirlpool Refrigerator Door Hinge Backorder WPL W10407275 $54.31

15E

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $50.70

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $44.13

W11690684 Whirlpool Ladder Backorder WPL W11690684 $33.26

W11760073 Whirlpool Condenser Backorder WPL W11760073 $122.87

WPW10485096 Whirlpool Refrigerator Pan Stop In Stock WPL WPW10485096 $58.16

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $66.95

16A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $58.16

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $14.02

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $7.18

Ice Box WPL W10492817 Contact Us For Availability

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $70.54

W11435997 Whirlpool Refrigerator Housing Backorder WPL W11435997 $155.81

CNTRL-ELEC+CORE Backorder WPL W11813704-includeCORE $261.41

WPW10530656 Whirlpool Refrigerator Utility Pa Backorder WPL WPW10530656 $150.10

Refrigerator Evaporator Drip Pan WPL W10342573 Contact Us For Availability

W11457241 Whirlpool Drip Pan Kit In Stock WPL W11457241 $49.83

WPW10248516 Whirlpool Ladder Backorder WPL WPW10248516 $17.79

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $40.16

Refrigerator Receiver Control Board Cover WPL W10258510 Contact Us For Availability

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $47.89

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $22.21

20

WPW10499015 Whirlpool Refrigerator Water Tube Backorder WPL WPW10499015 $84.39

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $58.57

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $8.89

W10846539 Whirlpool Fan Motor In Stock WPL W10846539 $145.68

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $85.95

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.90

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $103.74

W11492867 Whirlpool Evaporator In Stock WPL W11492867 $133.80

WPW10637668 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637668 $93.99

22A

WPW10637669 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637669 $87.45

22B

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $66.65

23

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $134.01

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $50.61

W10782690 Whirlpool Refrigerator Floor Backorder WPL W10782690 $173.11

W11189618 Whirlpool Refrigerator Wire Harness Backorder WPL W11189618 $99.08

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $19.48

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $50.23

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $29.10

26

W11170612 Whirlpool Refrigerator Wire Harness In Stock WPL W11170612 $63.95

27

W10470981 Whirlpool Refrigerator Gasket Backorder WPL W10470981 $16.81

27

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $53.58

27

WPW10306786 Whirlpool Refrigerator Inverter B Backorder WPL WPW10306786 $224.60

28

W11168403 Whirlpool Refrigerator Thermistor In Stock WPL W11168403 $57.97

28

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $61.76

W10518378 Whirlpool Refrigerator Cover Backorder WPL W10518378 $16.95

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $12.78

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $52.27

30

W10530297 Whirlpool Drawer Support Backorder WPL W10530297 $104.54

30

W11482027 Whirlpool Refrigerator Back Cover In Stock WPL W11482027 $75.77

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $68.31

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $68.46

31

W11038526 Whirlpool Shelf Glass Backorder WPL W11038526 $191.11

31

W11225849 Whirlpool Refrigerator Retainer Backorder WPL W11225849 $14.02

32

12702901 Whirlpool Refrigerator Pad Backorder WPL 12702901 $11.36

32

W11230117 Whirlpool Refrigerator Support Backorder WPL W11230117 $111.06

32

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

33

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $15.89

33

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $134.21

33

Refrigerator Door Cam WPL W10505294 Contact Us For Availability

34

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $8.35

34

W11238397 Whirlpool Refrigerator Cover Backorder WPL W11238397 $14.02

34

WPW10626970 Whirlpool Refrigerator Tube Backorder WPL WPW10626970 $117.39

35

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

35

W11188493 Whirlpool Refrigerator Evaporator C In Stock WPL W11188493 $138.85

36

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $65.65

36

W10518036 Whirlpool Refrigerator Cover Backorder WPL W10518036 $14.33

36

W11435996 Whirlpool Gasket Backorder WPL W11435996 $15.78

37

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.85

37

W11568592 Whirlpool Refrigerator Gasket Backorder WPL W11568592 $7.62

38

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $4.80

38

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $16.99

39

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $5.30

40

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $16.84

42

W11683241 Whirlpool Module In Stock WPL W11683241 $138.39

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $33.13

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10578603 Whirlpool Refrigerator Wire Harness Backorder WPL W10578603 $98.12

W10837236 Whirlpool Refrigerator Wire Harness In Stock WPL W10837236 $47.70

W10859326 Whirlpool Refrigerator Wire Harness Backorder WPL W10859326 $85.22

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
