Model Whirlpool 3XKVN600F02 REFRIGERATOR – Common Parts & Diagrams

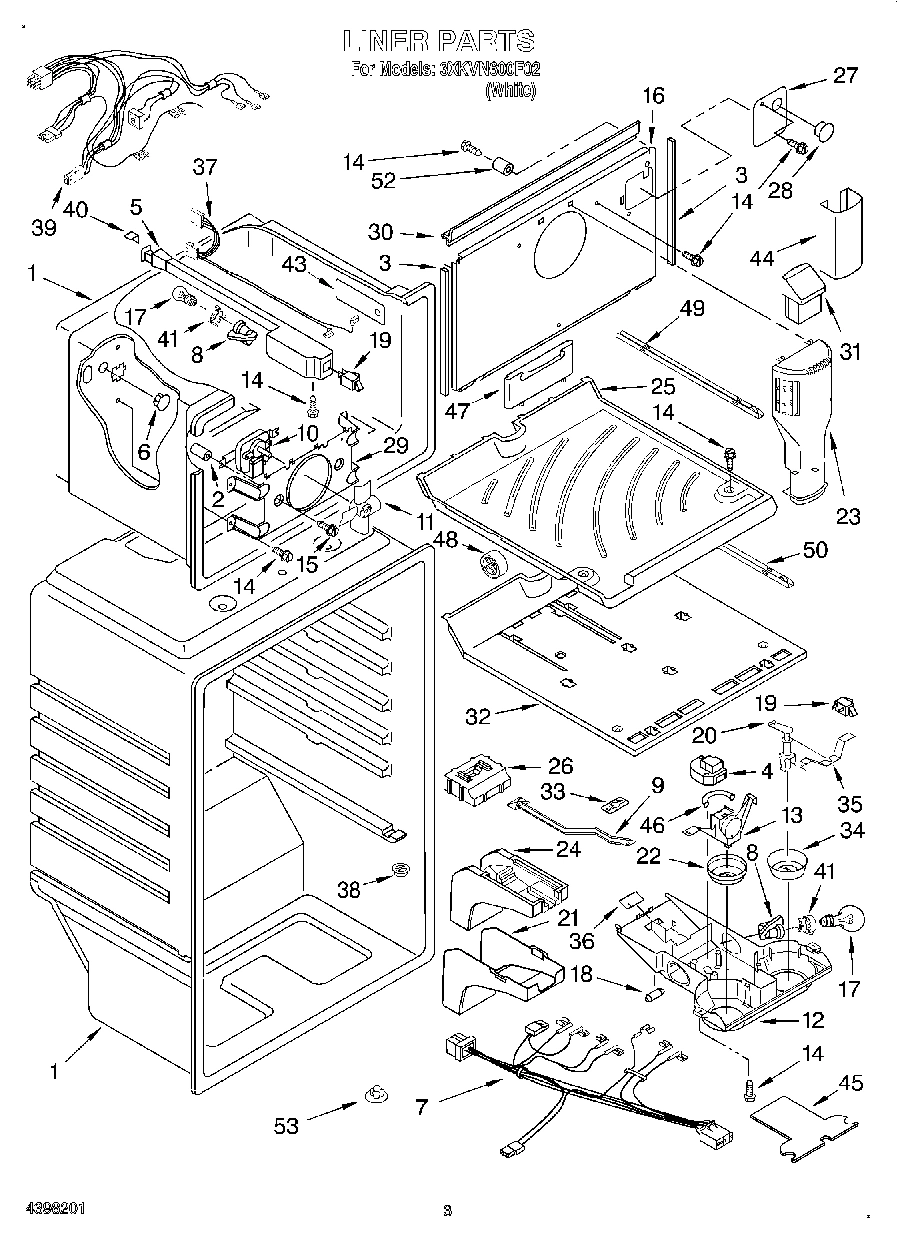

02 - LINER

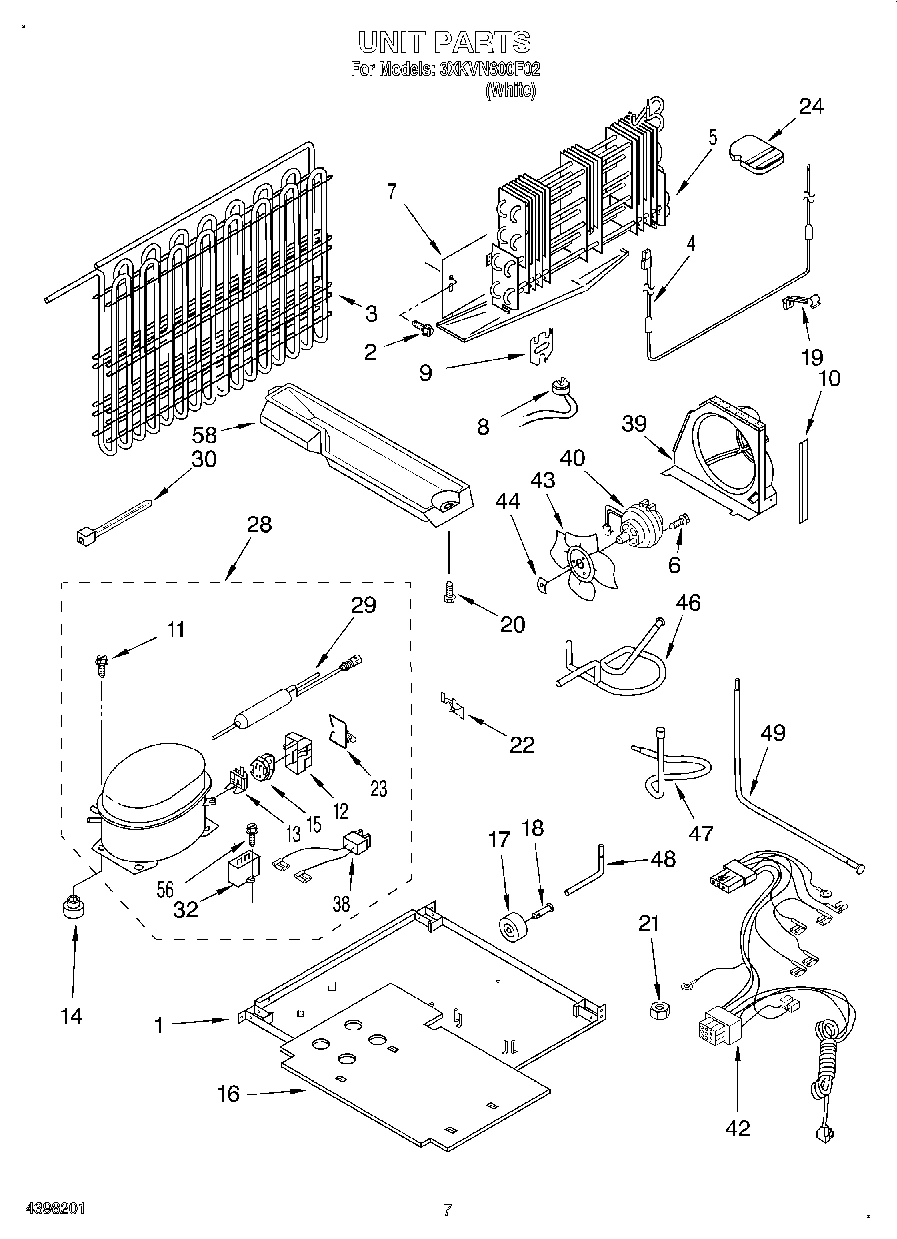

04 - UNIT

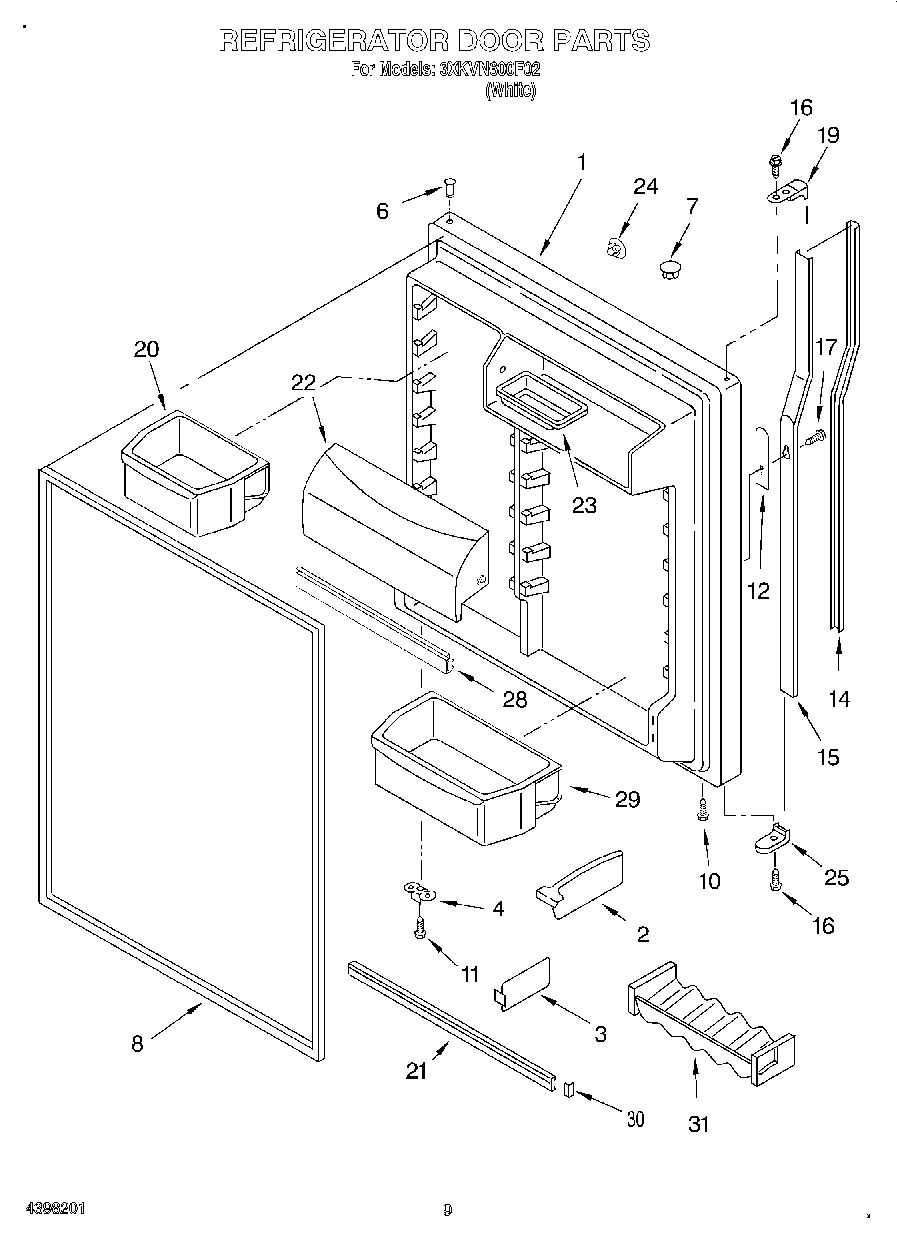

05 - REFRIGERATOR DOOR

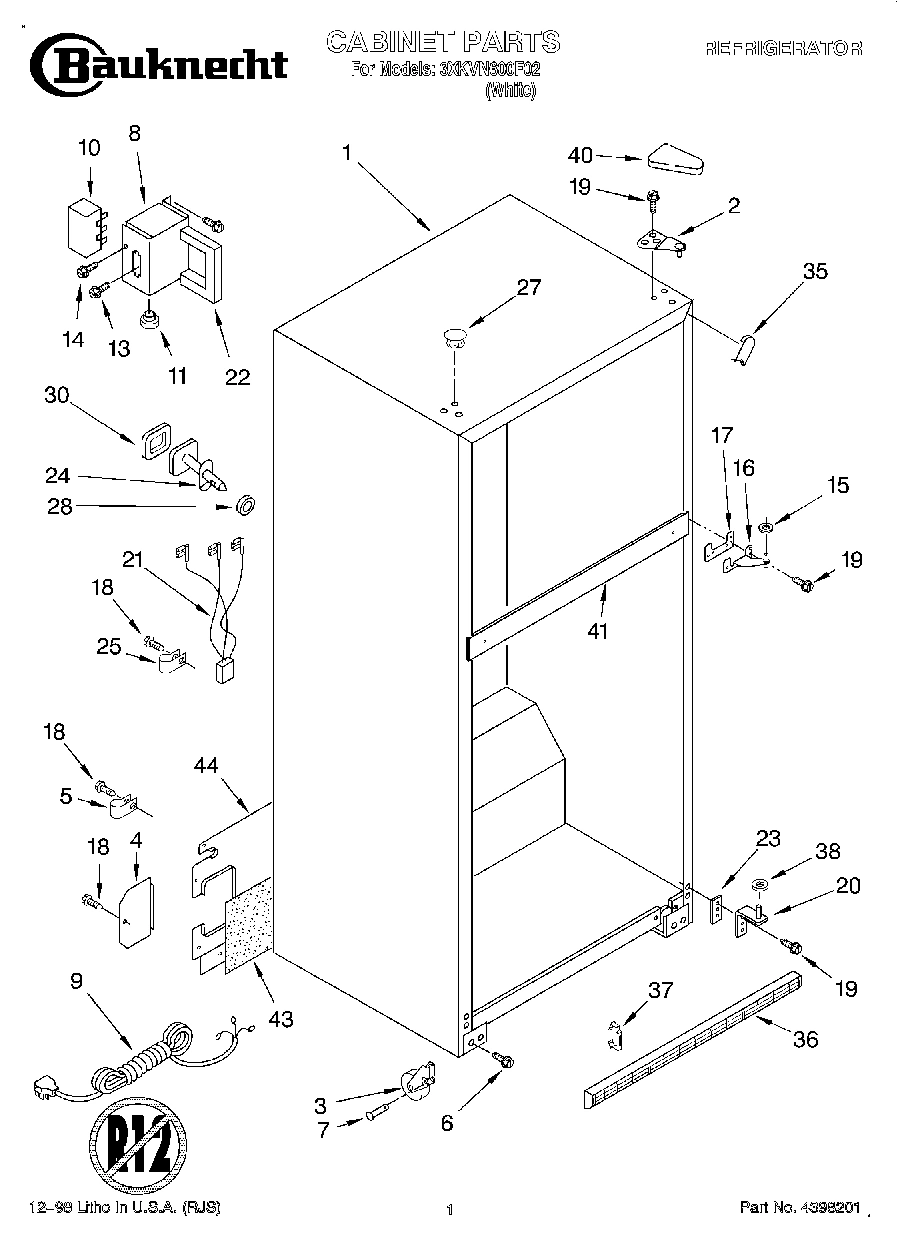

01 - CABINET

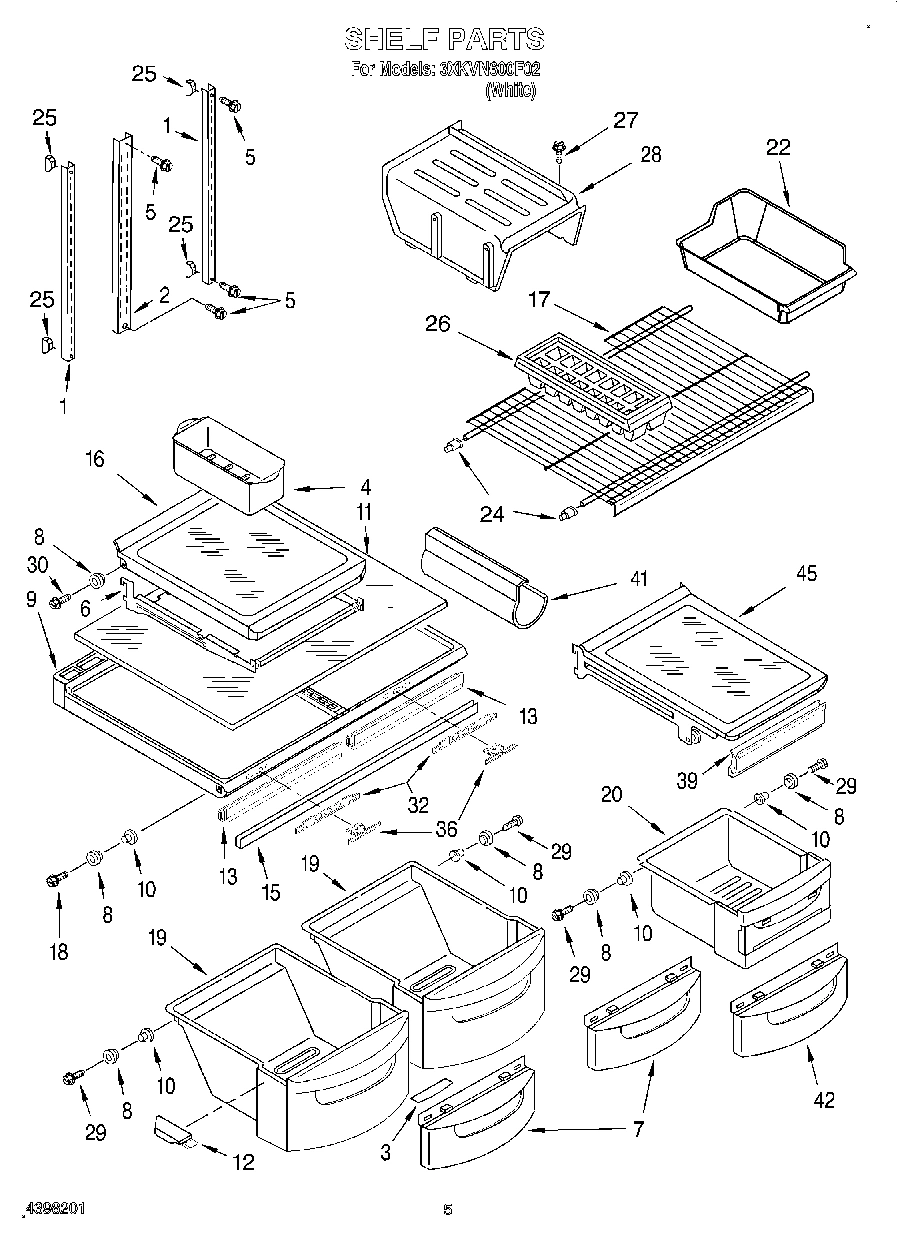

03 - SHELF

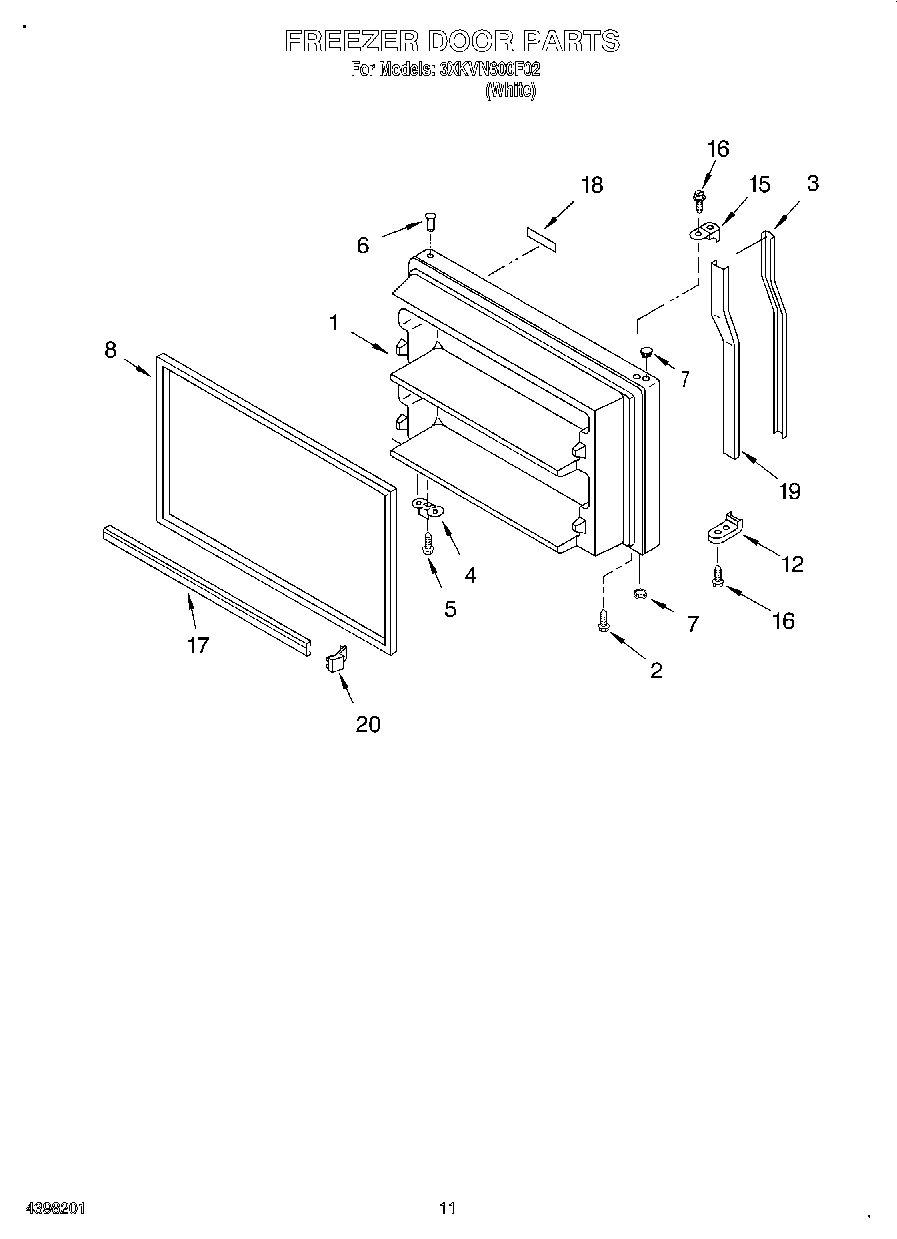

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool 3XKVN600F02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2183770 WPL LIT2183770 Contact Us For Availability
WPL LIT2195676 WPL LIT2195676 Contact Us For Availability
WPL LIT2198830 WPL LIT2198830 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13294A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Nameplate WPL 2166897 Contact Us For Availability
3
Insert, Handle WPL 2195984 Contact Us For Availability
4
Cover, Water Valve WPL 2166251 Contact Us For Availability
6
Screw WPL 2174650 Contact Us For Availability
6
Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability
7
Window WPL 2175373 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2188194 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Service Cord WPL 1129332 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198961 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Spacer, Door Handle WPL 2188146 Contact Us For Availability
12
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
12
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
14
Insert, Handle WPL 2195986 Contact Us For Availability
15
Endcap, Top WPL 2195994W Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Screw WPL 3400873 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Nameplate WPL 2195062 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap, Top WPL 2195995W Contact Us For Availability
19
Pan, Crisper (Includes 3, 7, 8, 10, 12, 29) WPL 2175430 Contact Us For Availability
19
Retainer, Insert WPL 2195992W Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171066 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Wire Assembly WPL 2166651 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Featurepak (Includes 20, 17. See also Shelf P WPL 2200791 Contact Us For Availability
22
Gasket WPL 2167227 Contact Us For Availability
22
Door Reversal Instructions WPL 2172516 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI13295A9 Contact Us For Availability
25
Endcap, Bottom WPL 2195990 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI13296A6 Contact Us For Availability
28
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI13297A3 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Grille WPL 2201006 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13298A9 Contact Us For Availability
42
Window, Meat Pan WPL 2175445 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
47
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
× ![]()
