Model Whirlpool 3XART722F00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - REFRIGERATOR SHELF

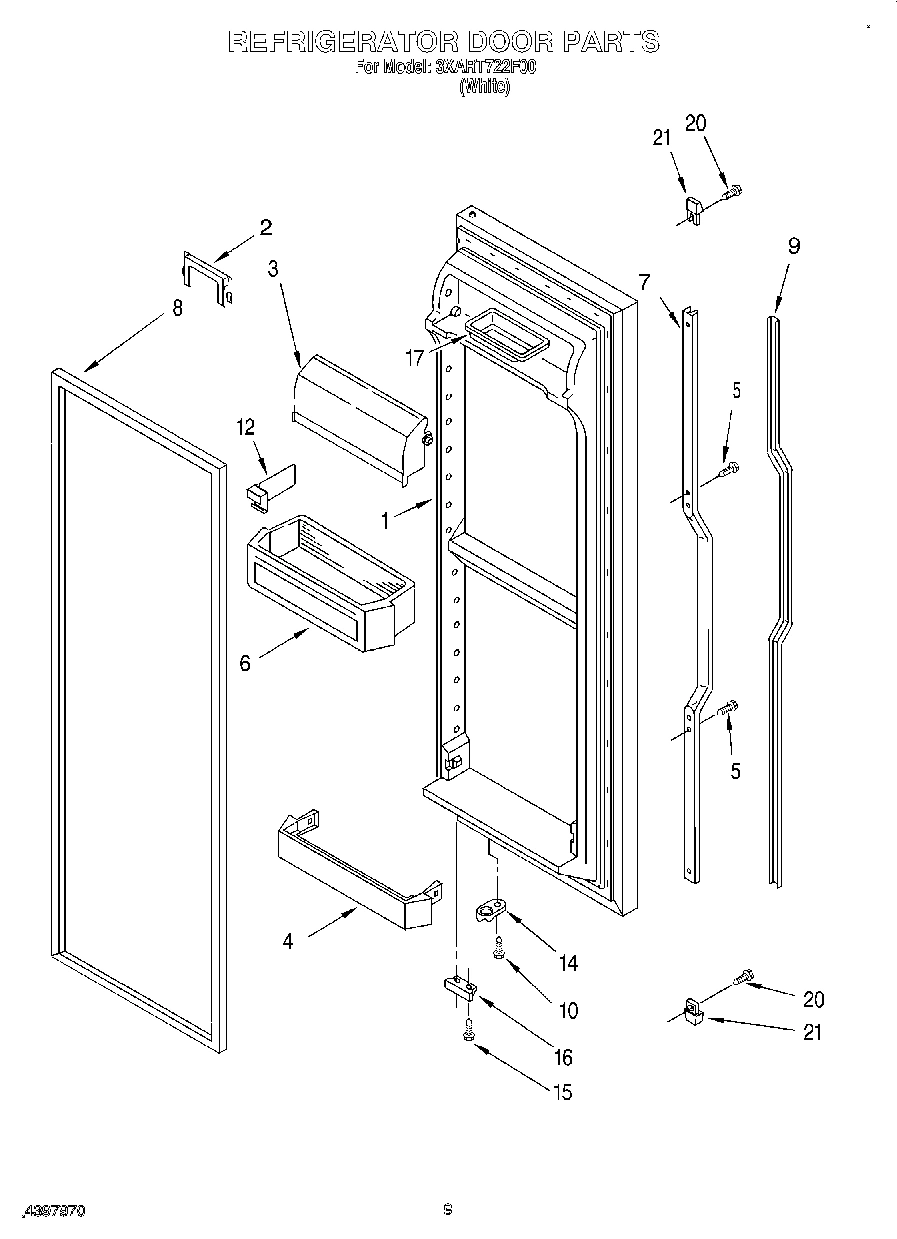

07 - REFRIGERATOR DOOR

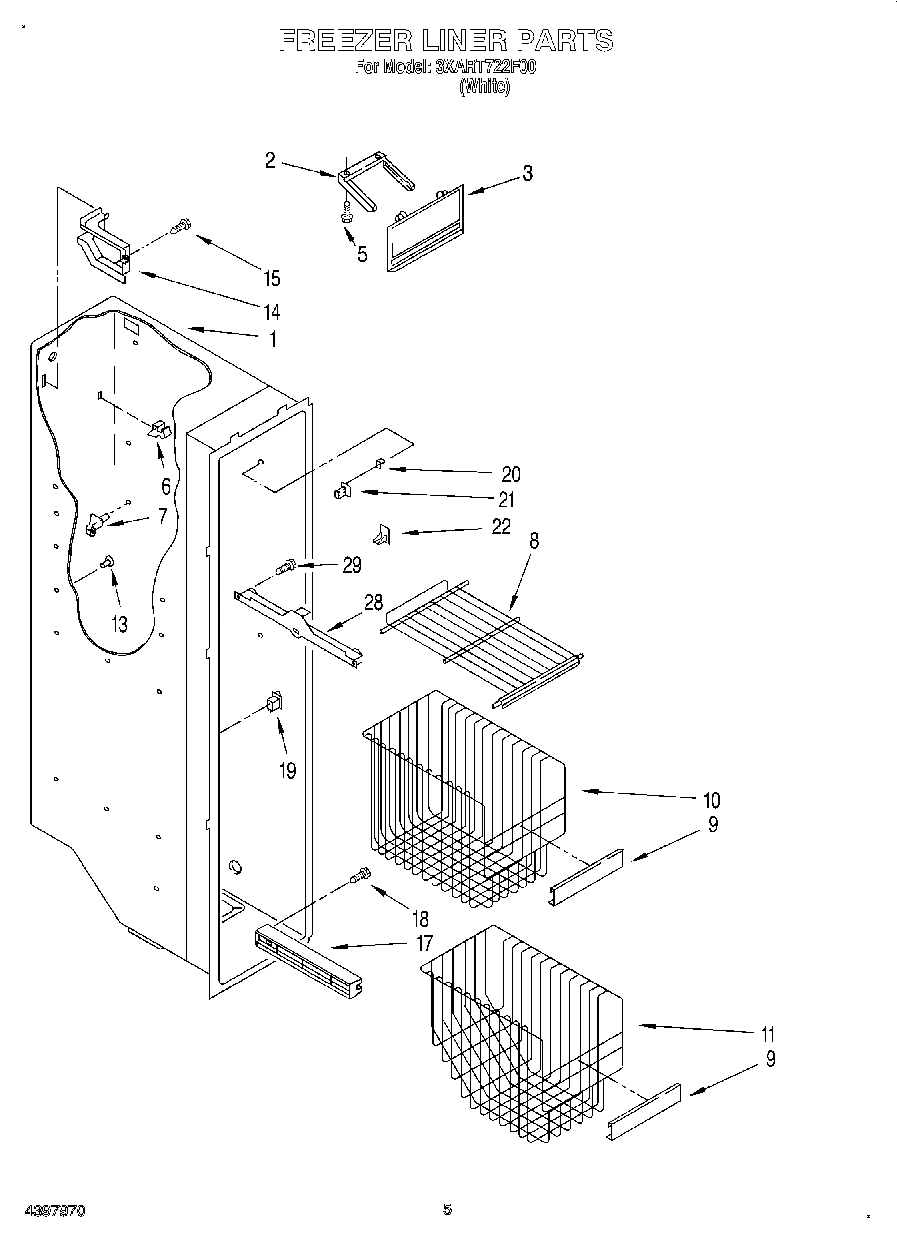

04 - FREEZER LINER

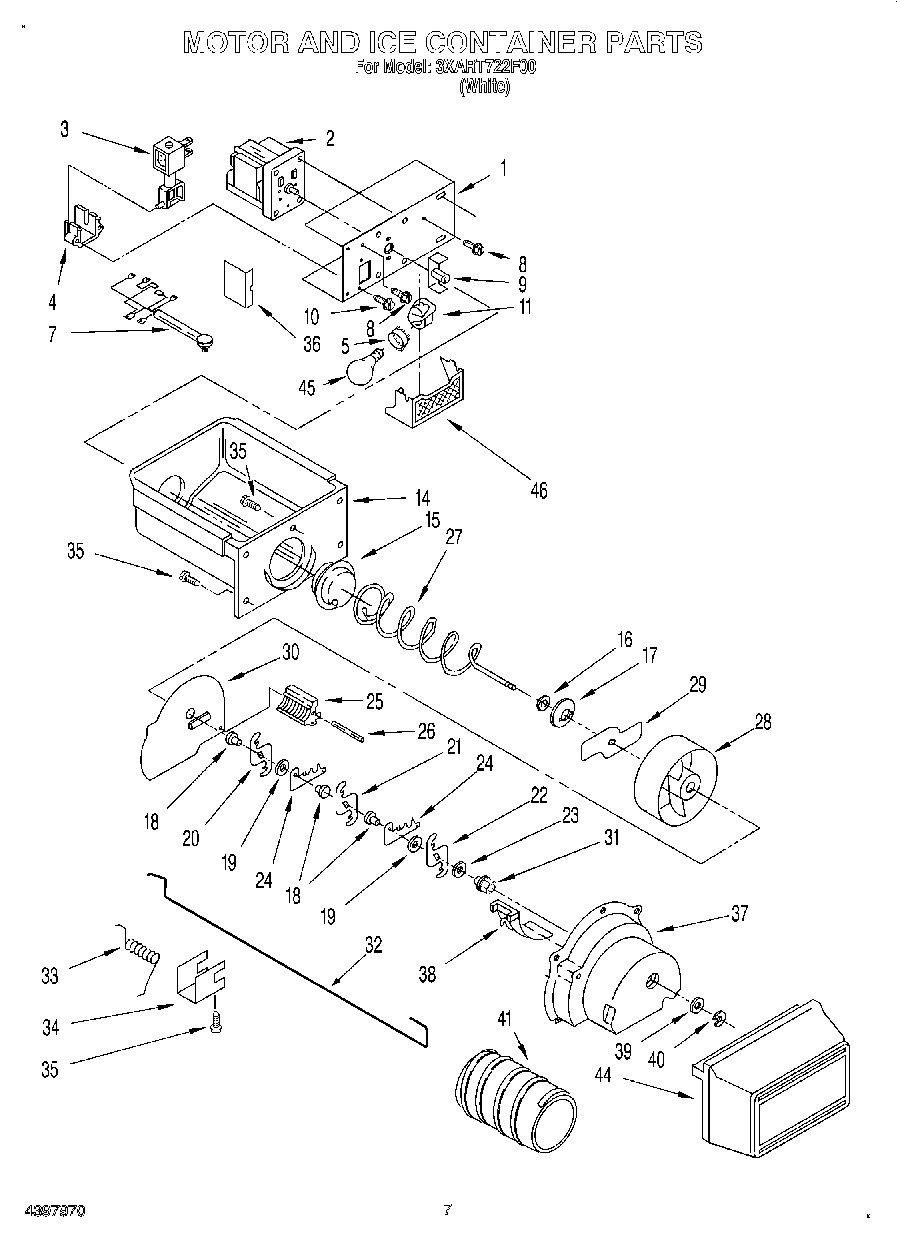

06 - MOTOR AND ICE CONTAINER

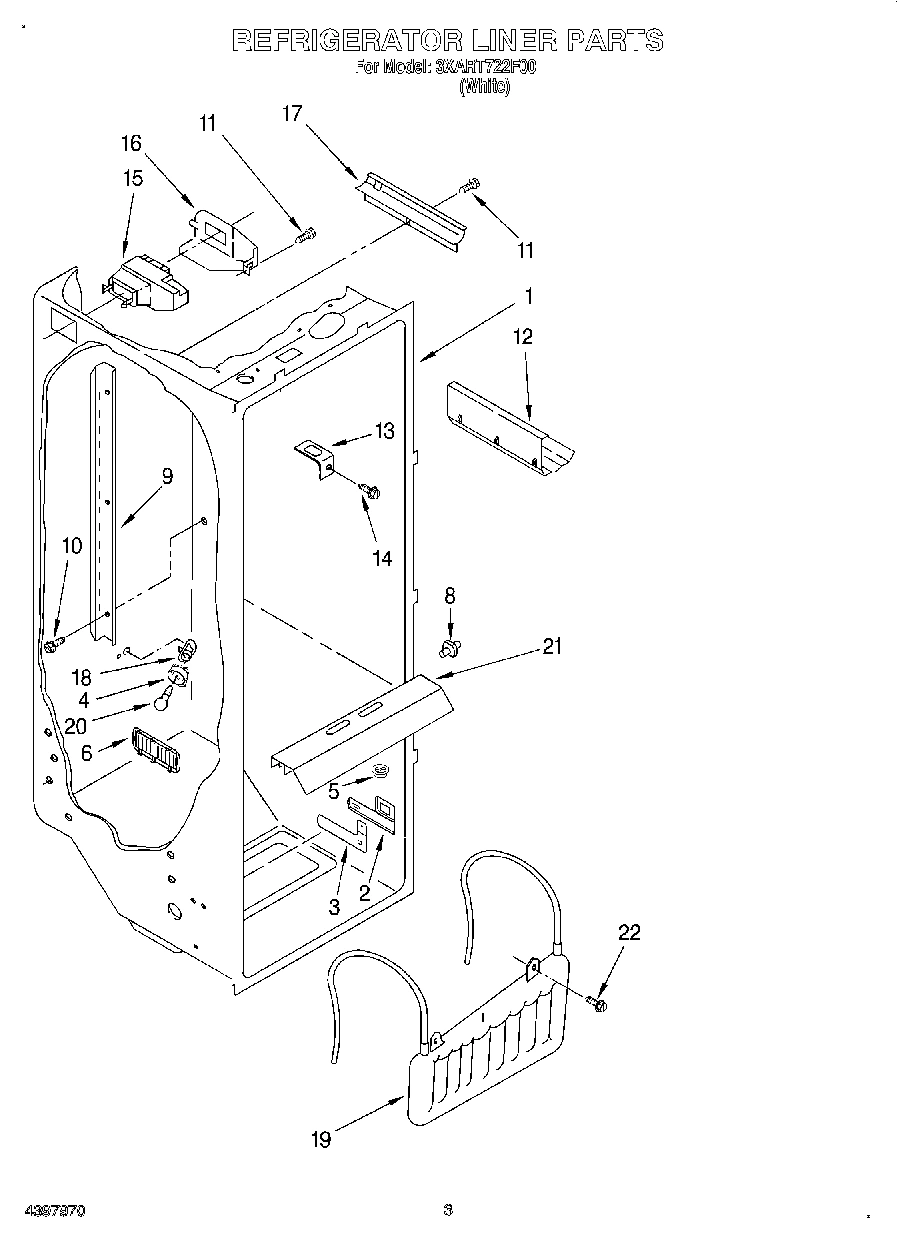

02 - REFRIGERATOR LINER

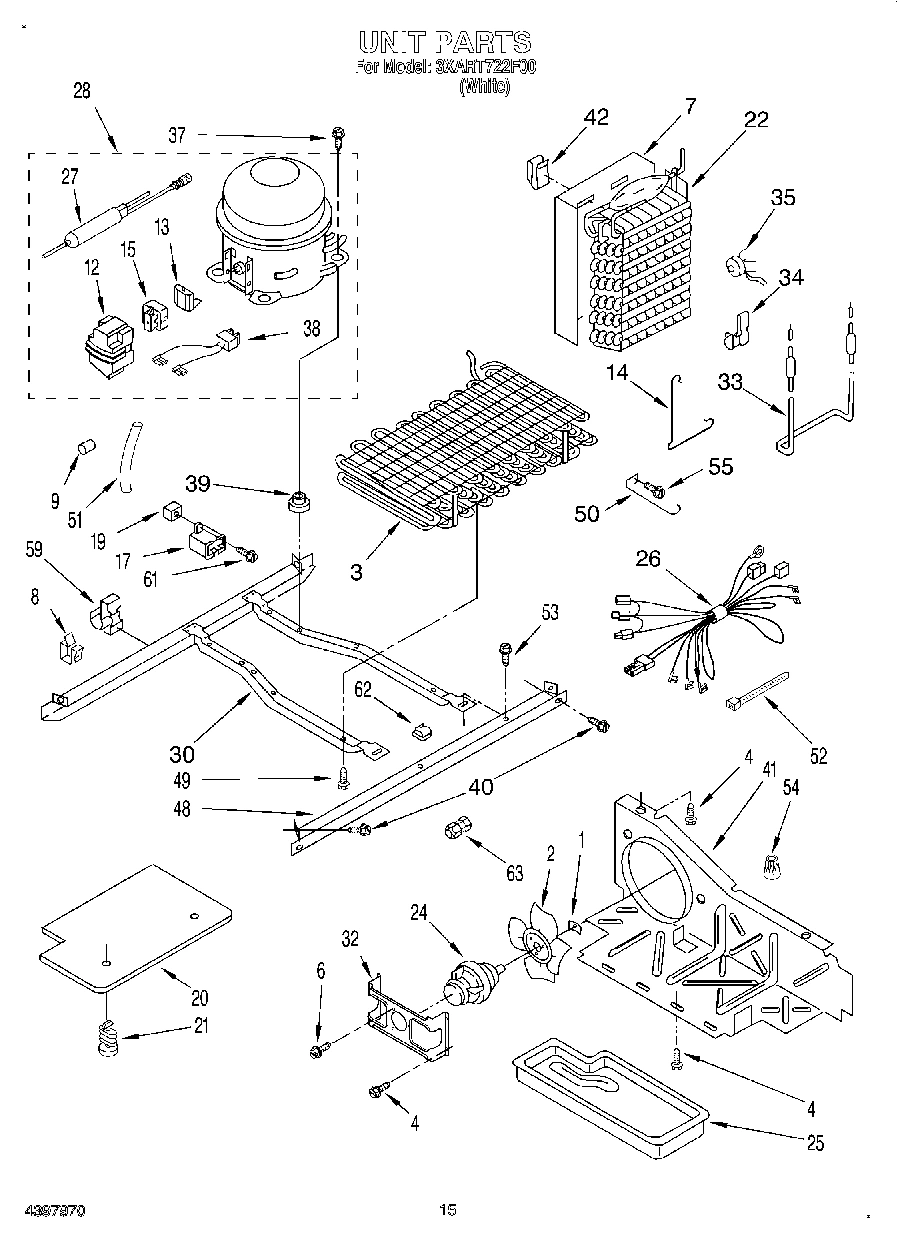

10 - UNIT
11 - ICE MAKER

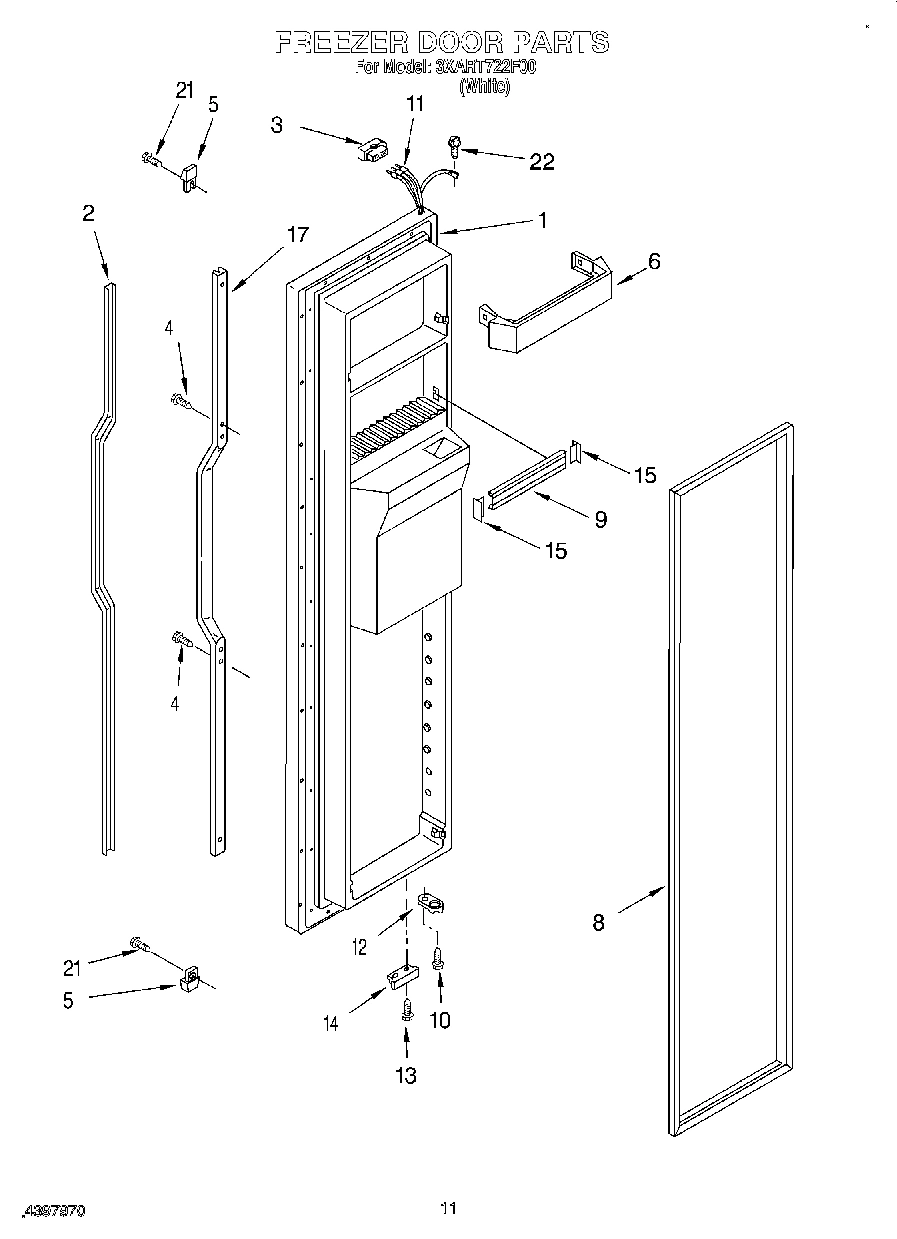

08 - FREEZER DOOR
09 - DISPENSER FRONT
05 - AIR FLOW

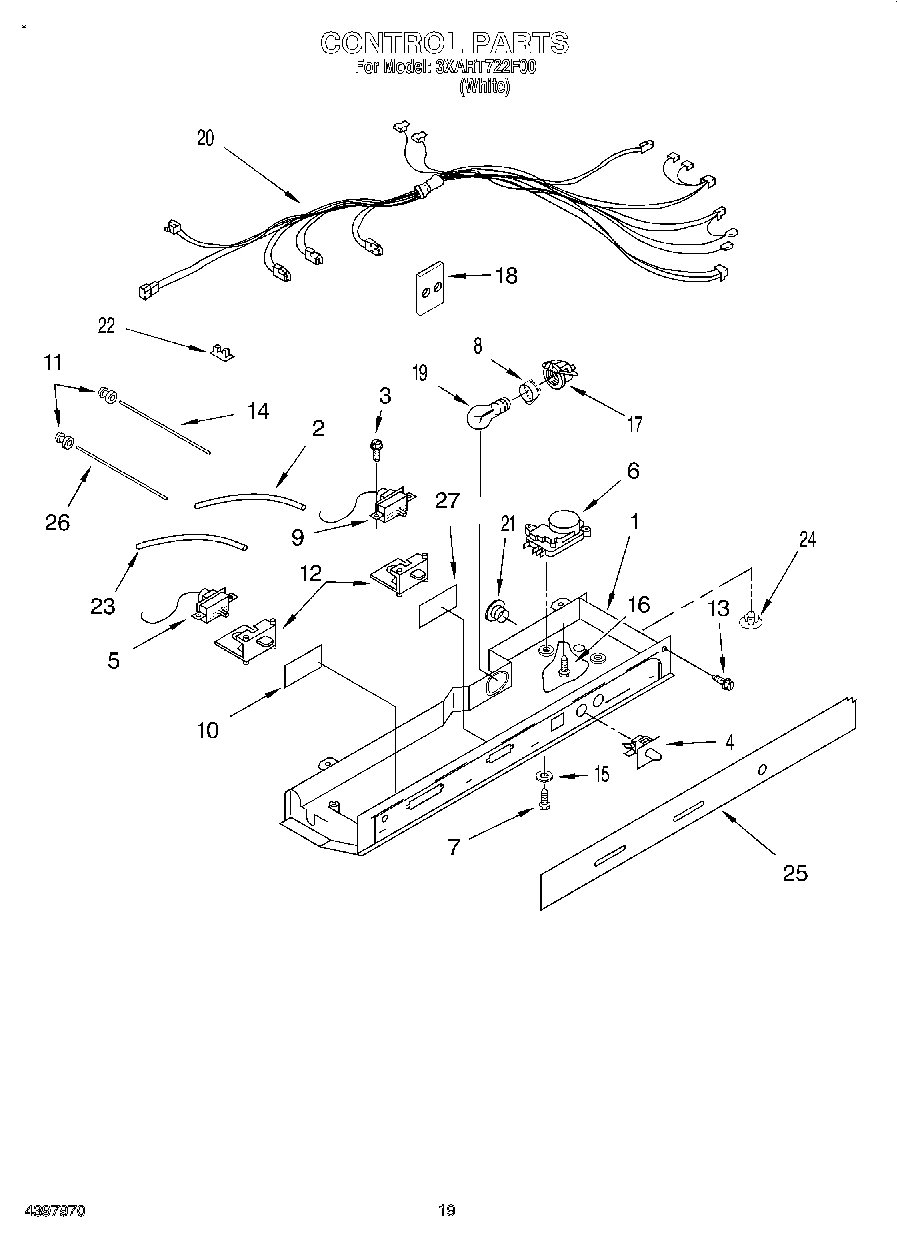

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool 3XART722F00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2187054 WPL LIT2187054 Contact Us For Availability
WPL LIT2197732 WPL LIT2197732 Contact Us For Availability
WPL LIT2198355 WPL LIT2198355 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197743W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Insert, Handle WPL 2173830 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12901A8 Contact Us For Availability
5
End Cap, Handle WPL 2194778W Contact Us For Availability
6
Spacer, Switch (2) WPL 625834 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
11
Wire Assembly WPL 2198271 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Washer (2) WPL 1129722 Contact Us For Availability
12
Delay Mechanism WPL 2180223 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Grille, Overflow WPL 2180323 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Retainer, Handle WPL 2194776W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2180256 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
KIT WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
34
European Water Connection Tube WPL 1129723 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
39
Overlay, Front Cover WPL 2187029W Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197745W Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
