Model Whirlpool 3RAWZ480ESQ0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

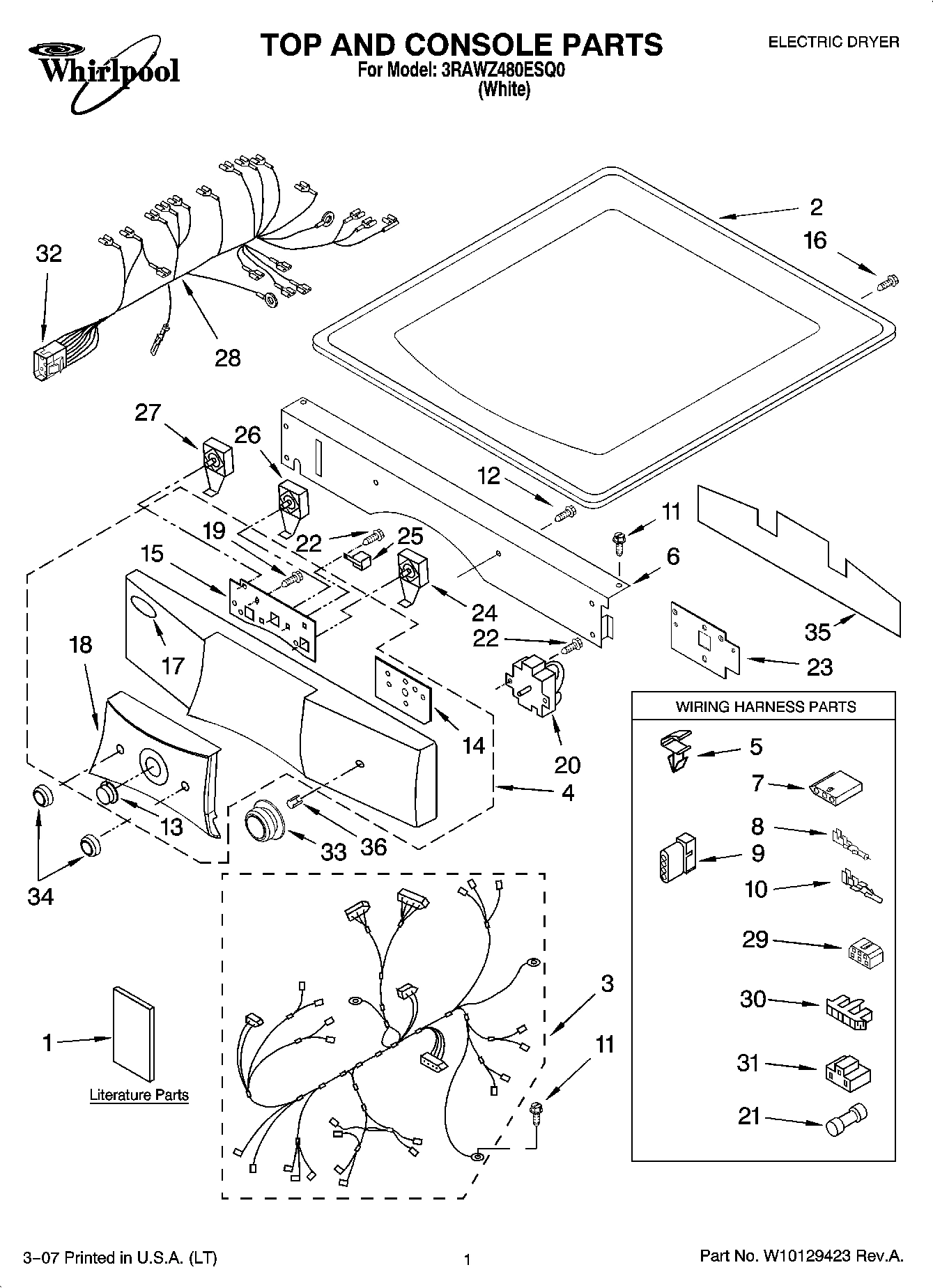

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $84.62

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.48

1

Installation & User Guide WPL 8315975 Contact Us For Availability

1

Label, Wiring Diagram WPL 8545902 Contact Us For Availability

1

Installation Instructions WPL 8563878 Contact Us For Availability

1

Use & Care Guide WPL 8577079 Contact Us For Availability

2

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

2

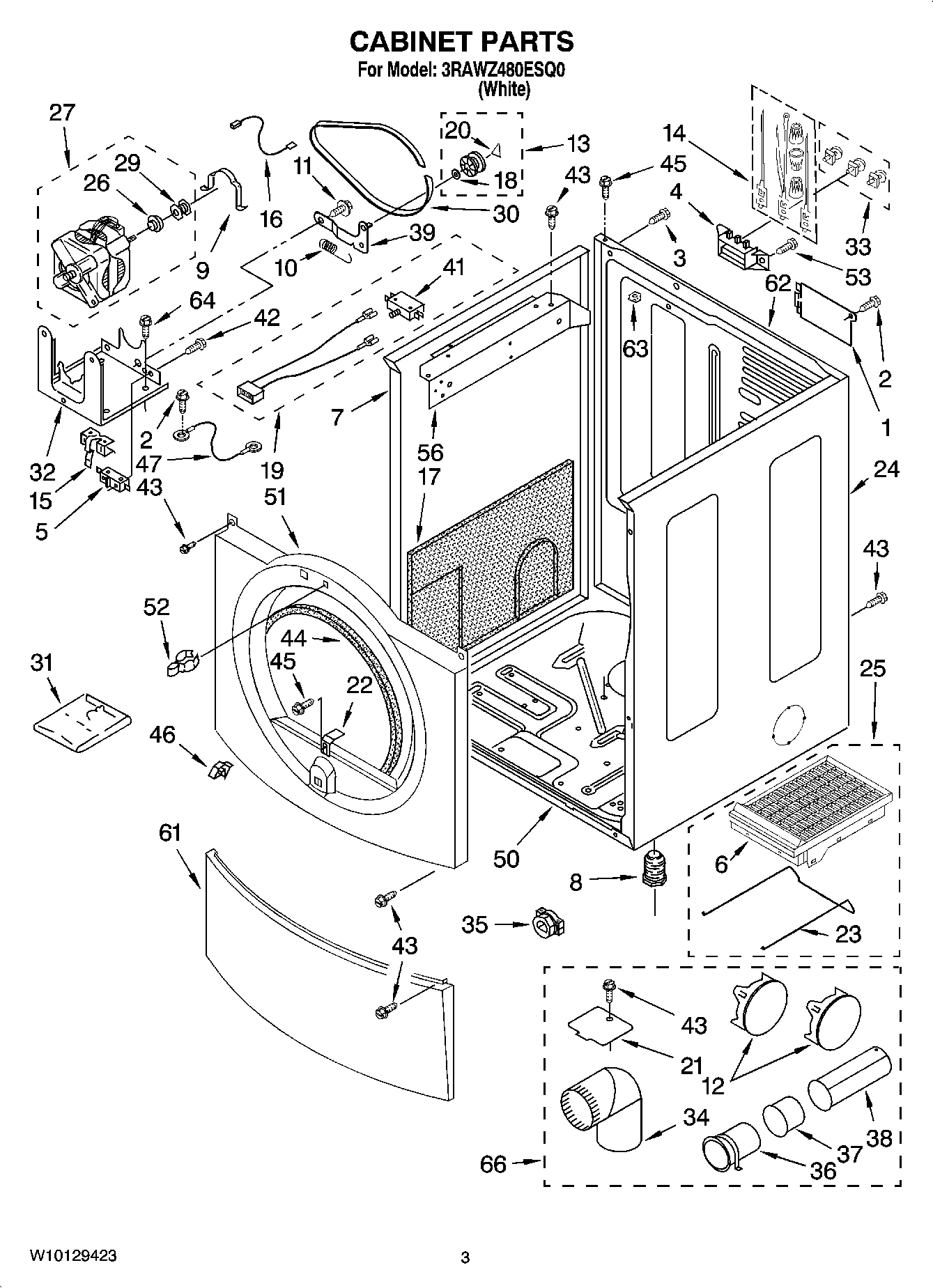

Top WPL 8519251 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

Cover, Door Hinge WPL 3980214 Contact Us For Availability

3

Harness, Main WPL W10110980 Contact Us For Availability

4

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

4

Screw, 8-18 x 5/8 WPL W10080840 Contact Us For Availability

4

Panel, Console (Includes Illus. 13, 14, 15, 1 WPL W10118062 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $213.56

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Screw, 10-32 x 3/8 WPL 342043 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

Bracket, Console WPL W10118067 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

7

Handle, Door WPL 8559752 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $4.82

8

Screw, 1/4-20 x 1/2 WPL W10080770 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

10

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

10

Door Assembly (Inner) (Includes Illus. 14 & 1 WPL W10118207 Contact Us For Availability

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

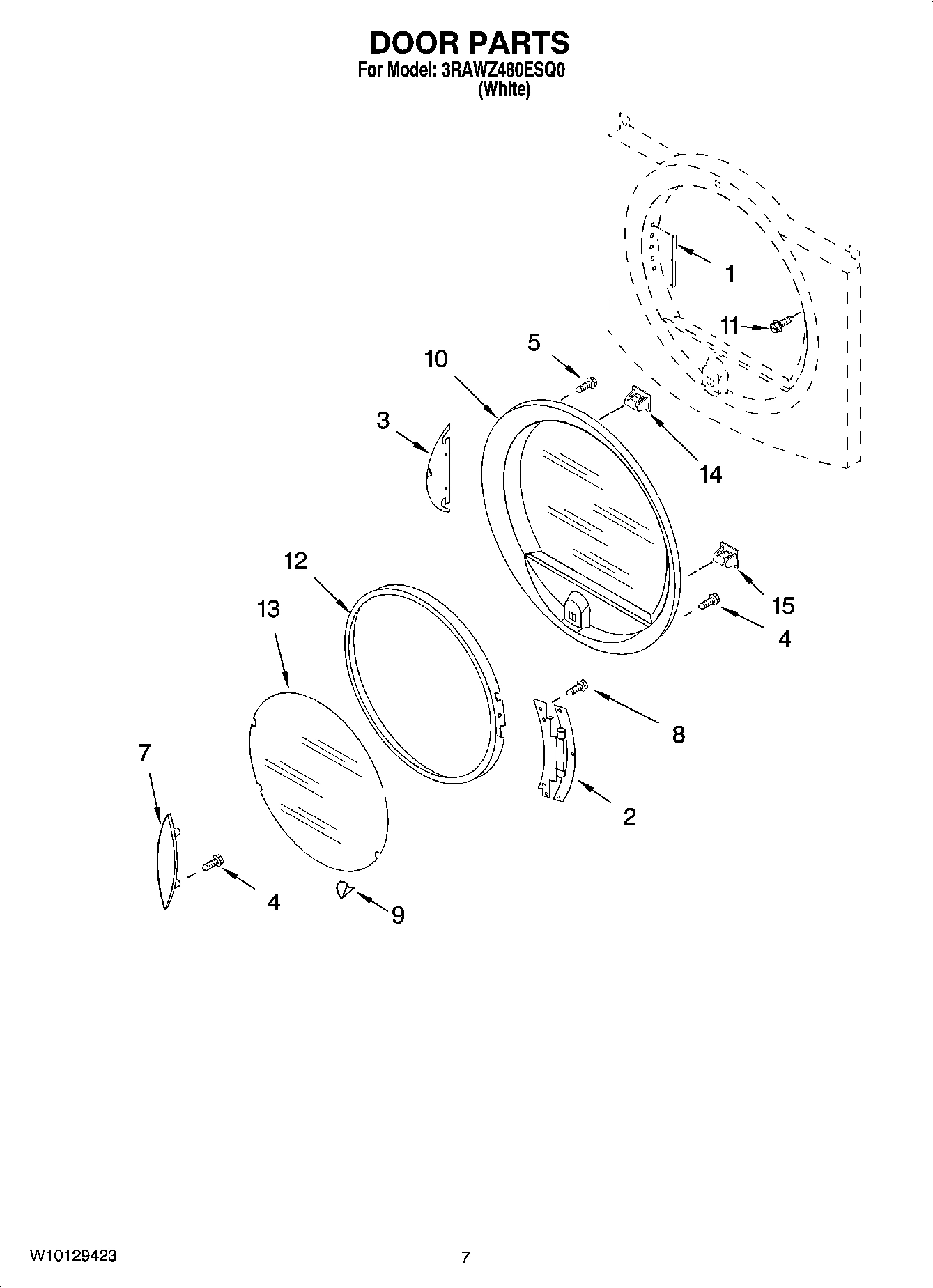

Door, Outer WPL 3980213 Contact Us For Availability

12

Screw, 8-18 x 1/2 WPL W10080370 Contact Us For Availability

13

WINDOW WPL 8545879 Contact Us For Availability

13

Button, Push-To-Start WPL 3980121 Contact Us For Availability

13

Screw, 8-18 x 5/16 WPL W10080820 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

WP3387749 Whirlpool Heating Element In Stock WPL WP3387749 $215.99

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

Bracket, Timer WPL W10118063 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Bracket, Switch Mounting WPL W10118064 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw, 8-18 x 1/2 WPL W10080930 Contact Us For Availability

17

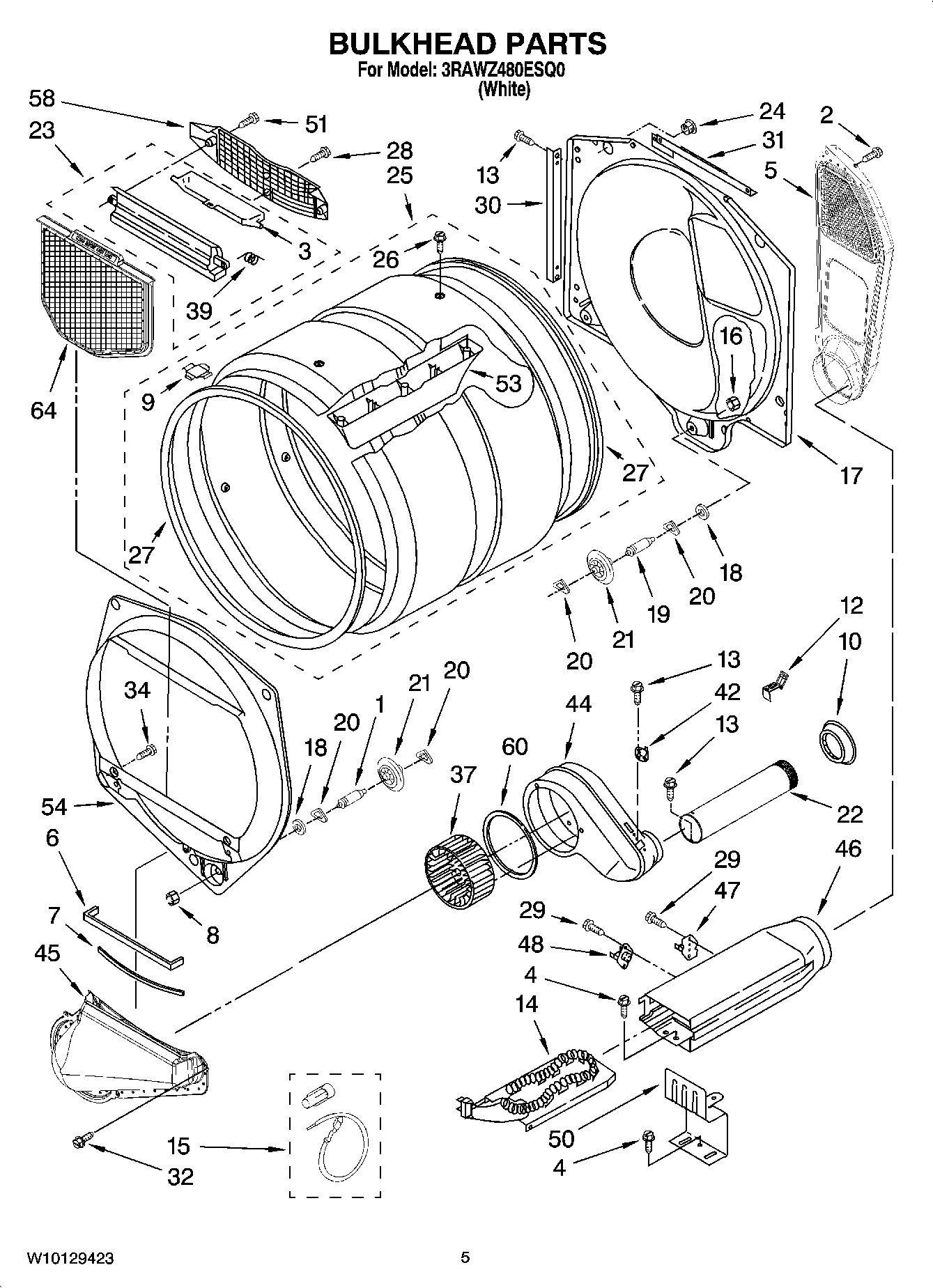

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $186.88

17

Medallion WPL 3400981 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

Console, Center WPL 3956540 Contact Us For Availability

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

19

Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

TIMER WPL W10116280 Contact Us For Availability

21

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $19.64

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

Exhaust Pipe WPL W10119260 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

Dry Rack Support WPL 8521961 Contact Us For Availability

23

Spacer Plate (Timer) WPL 3980421 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $51.53

24

W10168170 Whirlpool Switch Backorder WPL W10168170 $133.07

25

BUZZER-NON Backorder WPL 8522378 $70.00

25

Complete Drum Assembly WPL 8543082 Contact Us For Availability

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

26

WPW10112668 Whirlpool Relay Push to Start Backorder WPL WPW10112668 $77.29

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

W10168169 Whirlpool Switch Backorder WPL W10168169 $59.09

28

Harness, Console WPL W10110978 Contact Us For Availability

28

Screw, 8-18 x 1/2 WPL W10080400 Contact Us For Availability

29

Connector 6-Circuit WPL 3347243 Contact Us For Availability

29

Screw, 8-18 x 3/8 WPL W10080280 Contact Us For Availability

30

Connector, Timer WPL 3397269 Contact Us For Availability

30

Channel Bracket, Rear Bulkhead (2) WPL W10118335 Contact Us For Availability

31

3401144 Whirlpool Connector Backorder WPL 3401144 $8.46

31

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $60.53

32

Connector WPL 692997 Contact Us For Availability

32

Screw, 8-18 x 5/8 WPL W10080380 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

33

Knob, Timer Assembly WPL 3957756 Contact Us For Availability

34

Knob, Control (2) WPL 3957803 Contact Us For Availability

34

Screw, 10-16 x 1/2 WPL W10080590 Contact Us For Availability

35

Shield, Drip WPL 3980339 Contact Us For Availability

36

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

42

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $88.77

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $85.99

47

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $42.70

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $51.83

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

51

Screw, 10-16 x 1 WPL W10080640 Contact Us For Availability

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95
