Model Whirlpool 3LA5700XMW0 WASHER – Common Parts &amp; Diagrams

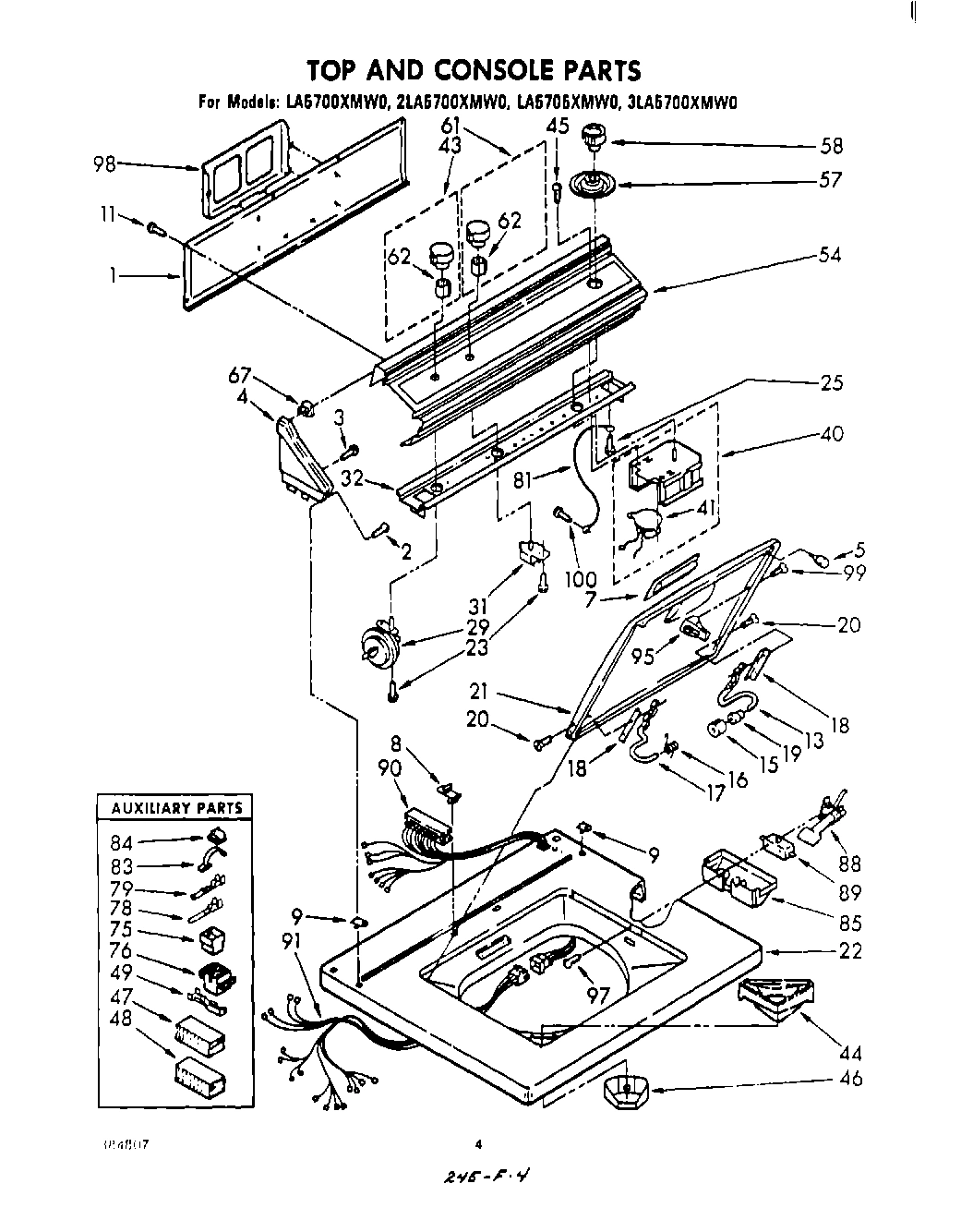

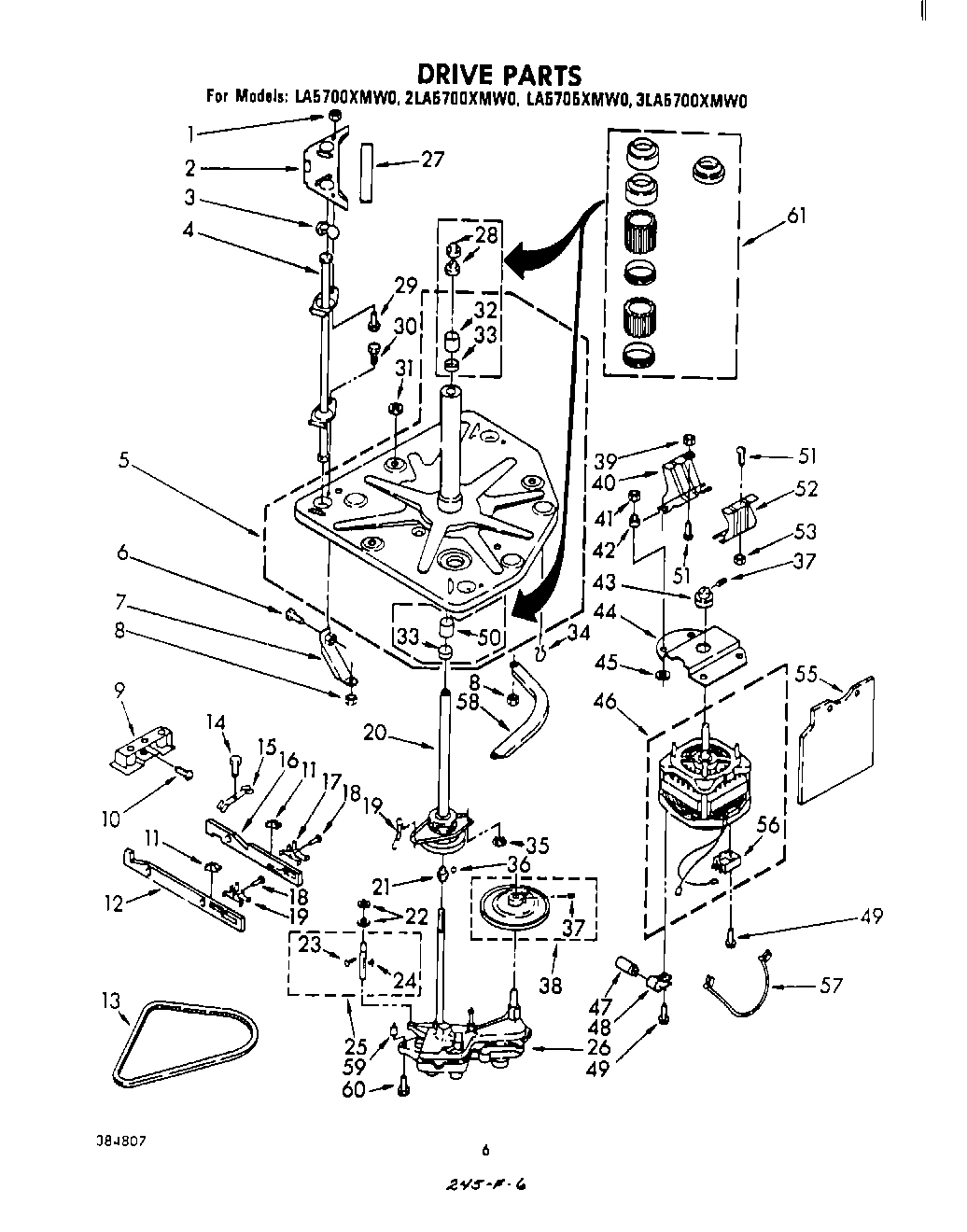

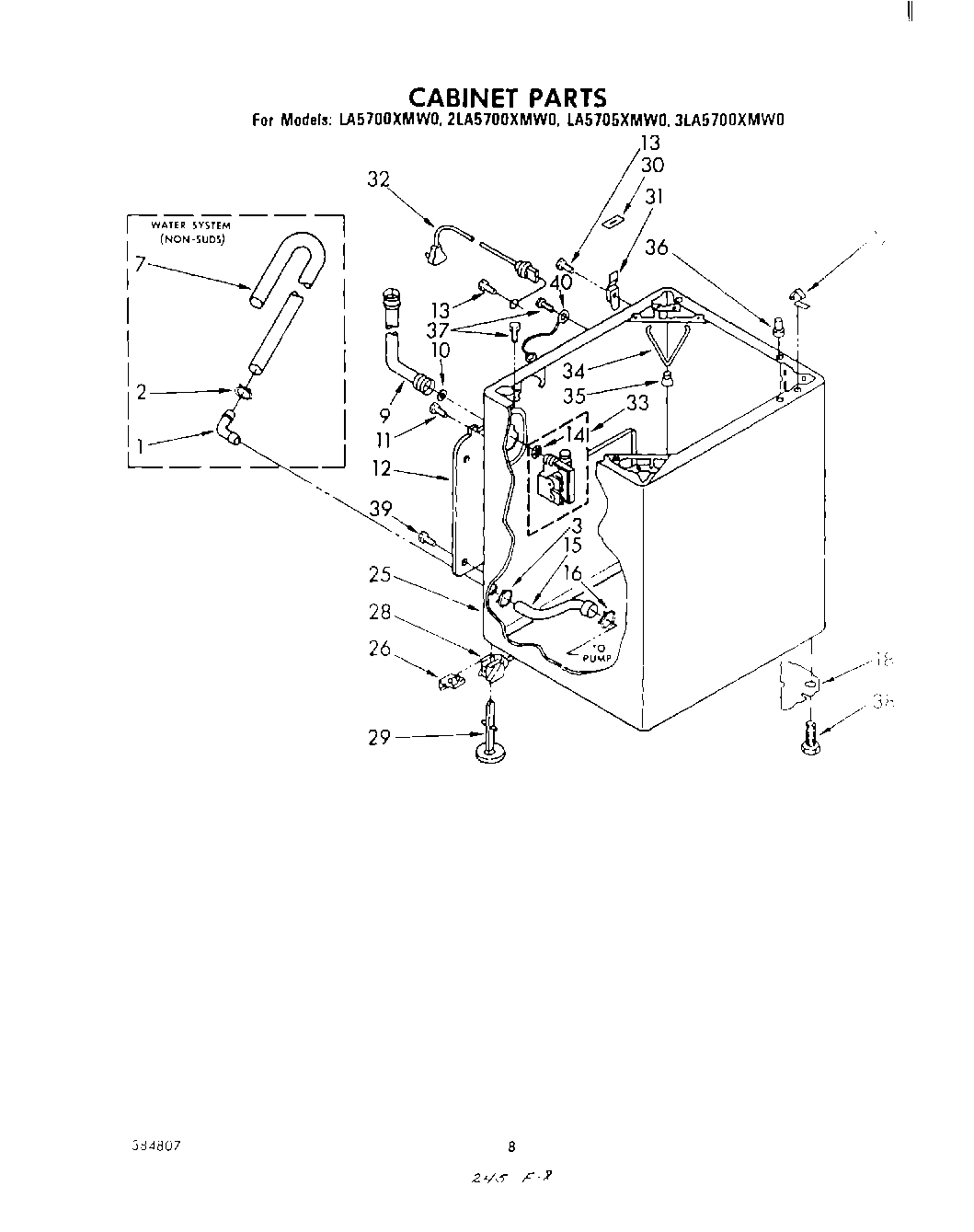

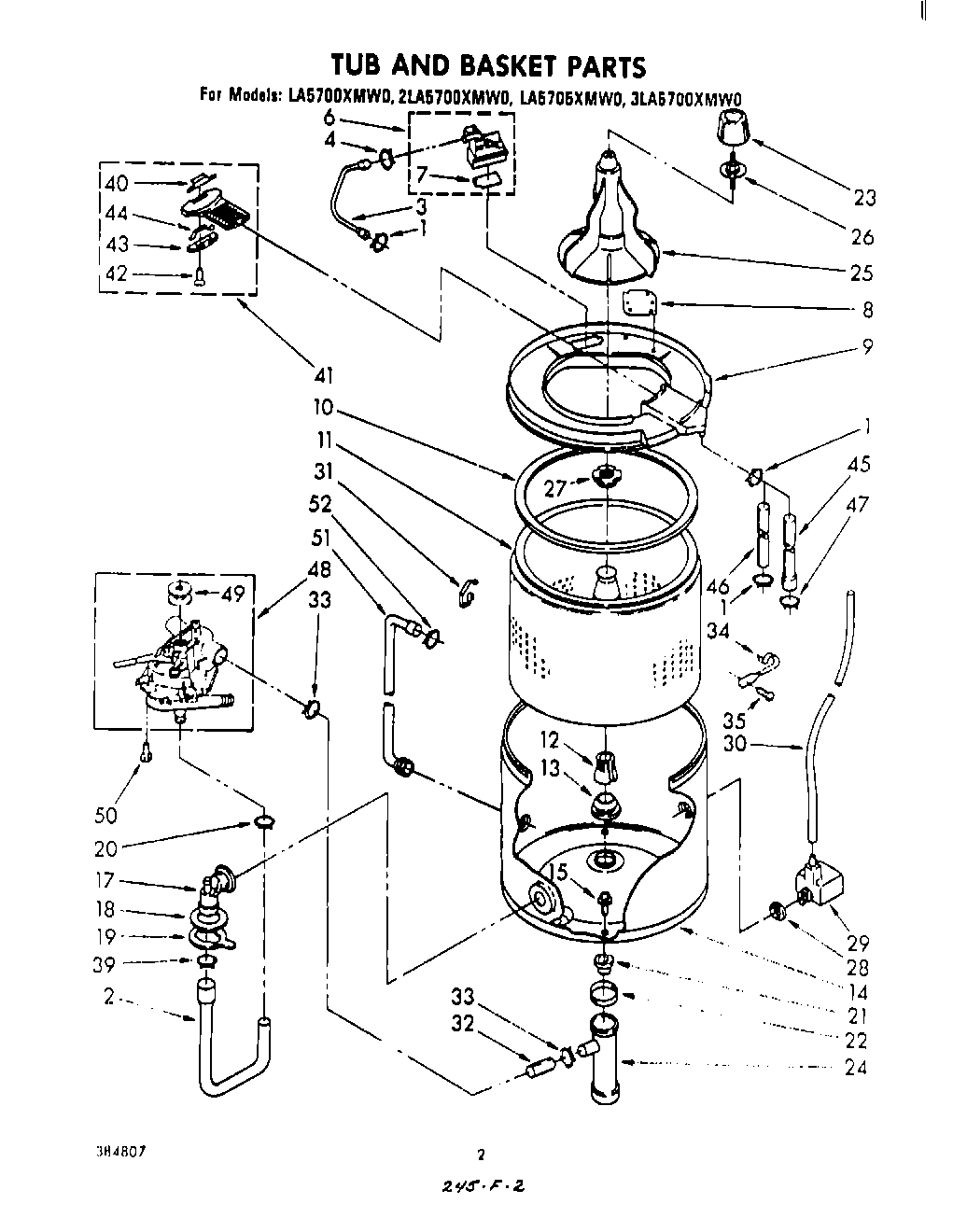

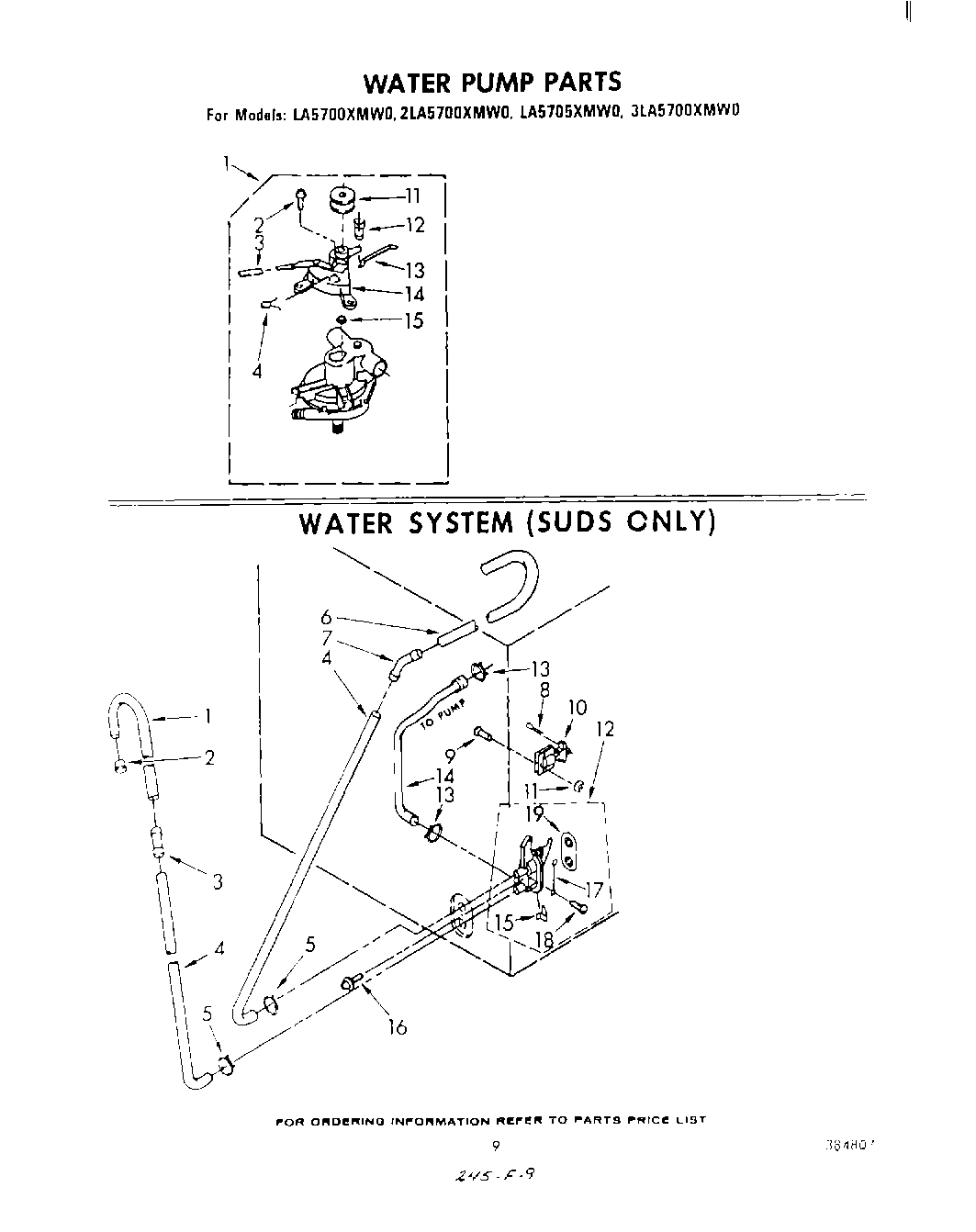

WPL 385336 WPL 385336 Contact Us For Availability

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

1

Connector, Hose WPL 95440 Contact Us For Availability

1

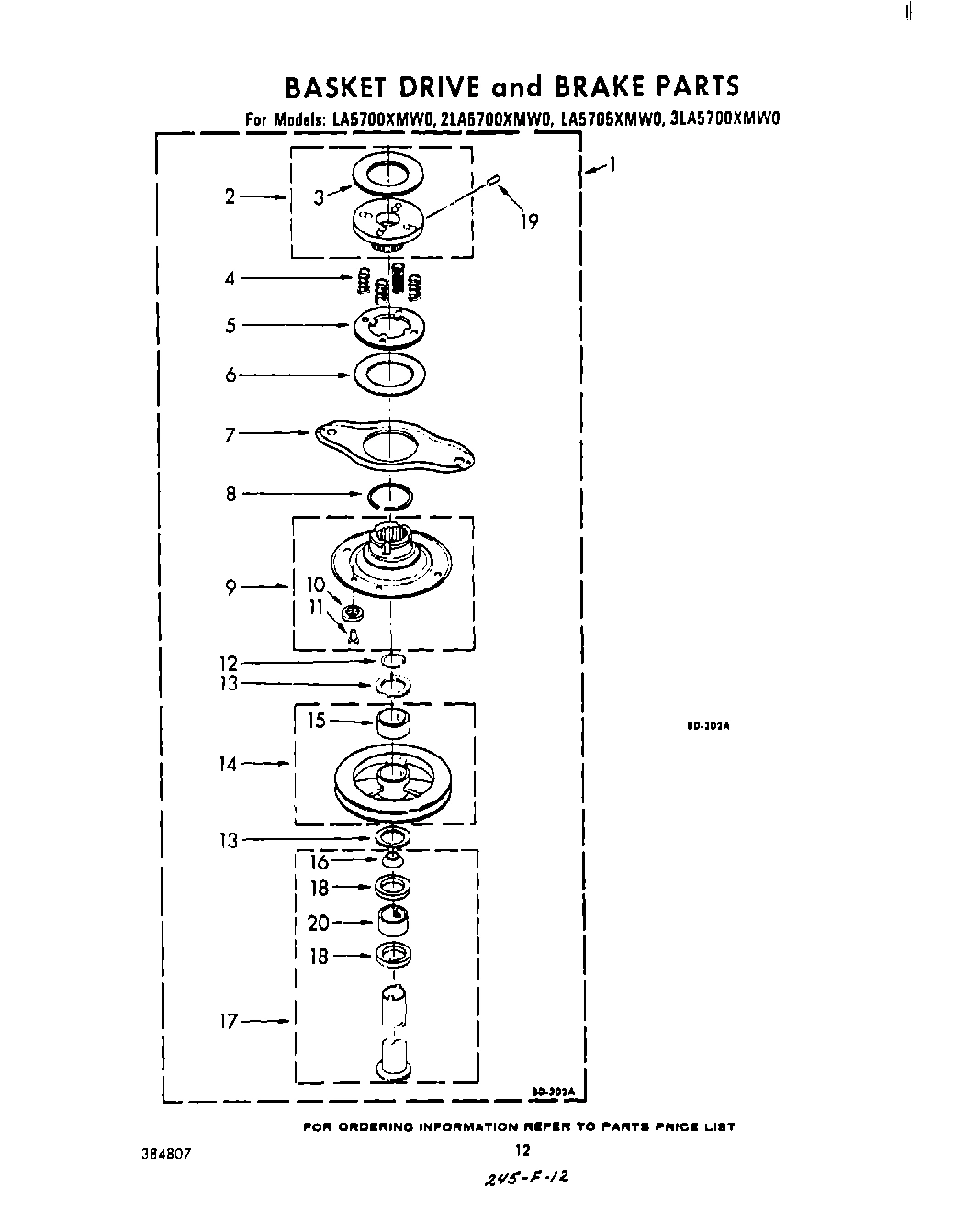

Basket Drive & Brake WPL 358364 Contact Us For Availability

1

Hose, Gooseneck WPL 91273 Contact Us For Availability

1

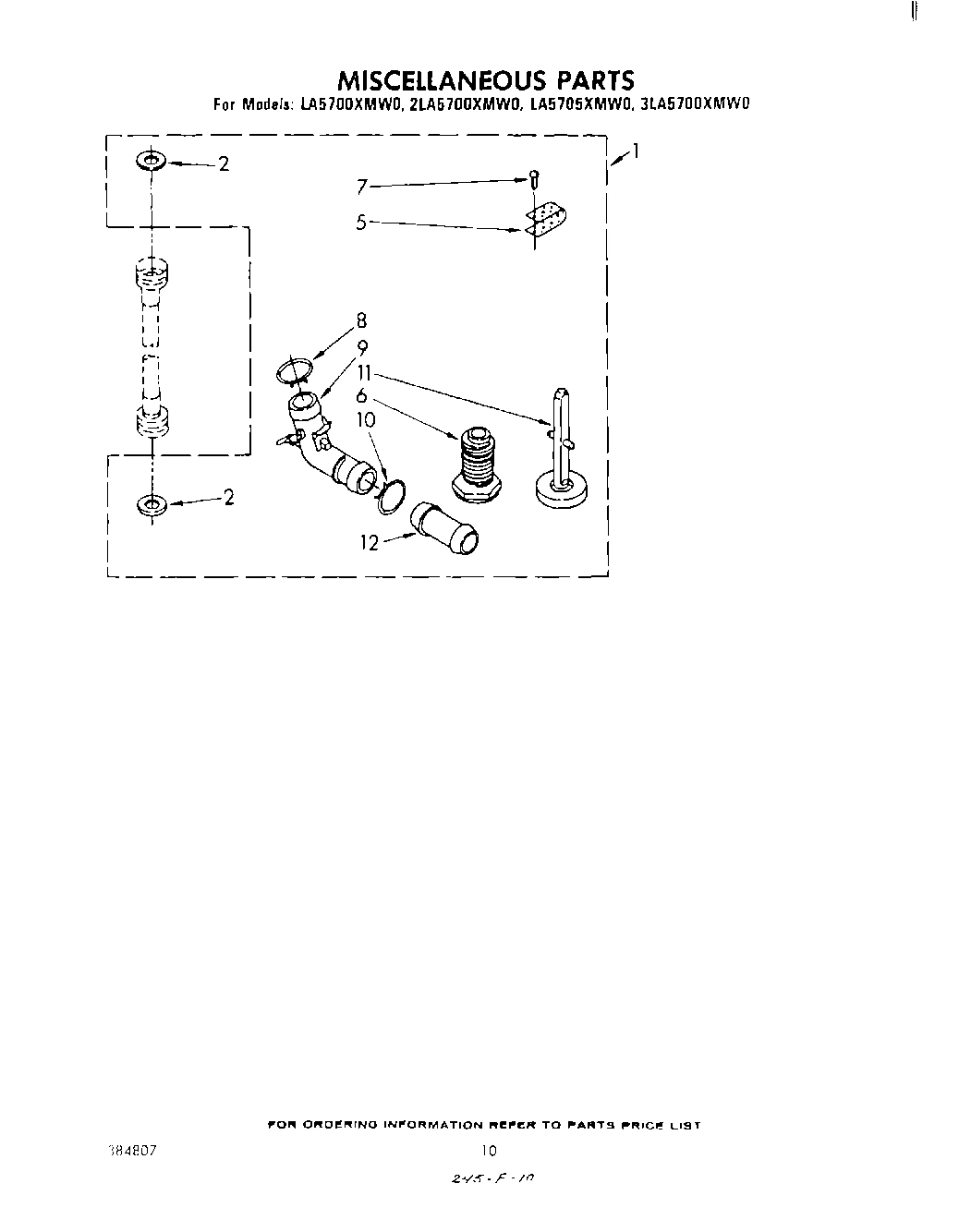

Miscellaneous Parts Bag (Use W/Models 2LA5700 WPL 375966 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 375976 Contact Us For Availability

1

Miscellaneous Parts Bag (Suds) WPL 375977 Contact Us For Availability

1

Panel, Rear WPL 359372 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Strainer, Hose WPL 352833 Contact Us For Availability

2

Hose, Recirculating WPL 92272 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Screw, 8-18 x 1 WPL 358225 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $52.99

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

4

Cap, End (L.H.) (Toast) WPL 377284 Contact Us For Availability

4

Cap, End (L.H.) (Platinum Cap, End (R.H.)) WPL 377285 Contact Us For Availability

4

Cap, End L.H. (Toast) WPL 377286 Contact Us For Availability

4

Cap, End L.H. (Platinum) WPL 377287 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

8

Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability

8

Plate, Snubber WPL 355852 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Rivet WPL 359089 Contact Us For Availability

9

Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381978 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

Solenoid WPL 86798 Contact Us For Availability

Seal, Tub Ring WPL 383553 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

Basket WPL 383960 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Block, Drive WPL 96384 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

Two-Way Valve WPL 359634 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL 378953 Contact Us For Availability

Instructions, Installation (Use W/Models 2LA5 WPL 383975 Contact Us For Availability

List, Repair Parts WPL 384807 Contact Us For Availability

Guide, Use & Care WPL 385025 Contact Us For Availability

Guide, Use & Care (Use W/Models 2LA5700XMW0 & WPL 385026 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

Label, Energy Guide (Non-Suds) WPL 386164 Contact Us For Availability

Label, Energy Guide (Suds) WPL 386179 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WP95405 Whirlpool Belt In Stock WPL WP95405 $30.67

Rod, Connecting WPL 96264 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Hose, Pump To Valve WPL 21115 Contact Us For Availability

Bearing Block Assembly WPL 383750 Contact Us For Availability

Tub (Suds) WPL 359591 Contact Us For Availability

Tub (Non-Suds) WPL 384125 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Clip, Retainer (8) WPL 96262 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

Hose, Pump Discharge WPL 21114 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

16

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

16

Screw & Washer WPL 190575 Contact Us For Availability

16

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Strap, Ground WPL 358343 Contact Us For Availability

Funnel, Drain WPL 92555 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Gasket WPL 50909 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Diaphragm, Valve WPL 358317 Contact Us For Availability

Lockwasher WPL 50926 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Lid (White) WPL 379959 Contact Us For Availability

Lid (Almond) WPL 379960 Contact Us For Availability

Lid (Golden Harvest) WPL 379963 Contact Us For Availability

Lid (Toast) WPL 382796 Contact Us For Availability

Lid (Platinum) WPL 382797 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $4.55

Clip, Hose WPL 9421321 Contact Us For Availability

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Top (Toast) WPL 386483 Contact Us For Availability

Top (Platinum) WPL 386484 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Cap, Agitator WPL 358431 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Manifold WPL 84091 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Agitator WPL 363633 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

26

Gearcase (For Further Breakdown Refer To Page WPL 362901 Contact Us For Availability

26

Stud, Agitator Shaft WPL 358440 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

28

Seal WPL 351830 Contact Us For Availability

28

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level (Alt.) WPL 363301 Contact Us For Availability

Switch, Water Level WPL 660930 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $13.10

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370146 Contact Us For Availability

Switch, Water Temperature WPL 660393 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

Cord, Power (240 Volt) (Use W/Model 3LA5700XM WPL 83742 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

Bracket, Control WPL 359708 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As A Comp WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

Spring, Snubber WPL 357977 Contact Us For Availability

Bracket, Hose WPL 358339 Contact Us For Availability

35

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.84

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Latch WPL 357249 Contact Us For Availability

Timer, 60 Hz. (Alt.) (Non-Suds) (C.C.A.) WPL 385344 Contact Us For Availability

Timer, 50 Hz. WPL 385345 Contact Us For Availability

WPL 385347 WPL 385347 Contact Us For Availability

WPL 385348 WPL 385348 Contact Us For Availability

WPL 660973 WPL 660973 Contact Us For Availability

Nut (4) WPL 98023 Contact Us For Availability

Filter WPL 359785 Contact Us For Availability

WPL 357915 WPL 357915 Contact Us For Availability

WPL 362681 WPL 362681 Contact Us For Availability

WPL 362682 WPL 362682 Contact Us For Availability

WPL 365941 WPL 365941 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

Pulley, Motor (50 Hz.) WPL 93219 Contact Us For Availability

Retainer WPL 357250 Contact Us For Availability

WPL 690297 WPL 690297 Contact Us For Availability

44

Shield, M WPL 356217 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

44

WPL 352821 WPL 352821 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

45

WPL 92217 WPL 92217 Contact Us For Availability

45

Hose, Pump To Filter (Suds) WPL 357345 Contact Us For Availability

WPL 357282 WPL 357282 Contact Us For Availability

WPL 357875 WPL 357875 Contact Us For Availability

WPL 362856 WPL 362856 Contact Us For Availability

WPL 660198 WPL 660198 Contact Us For Availability

Hose, Pump To Filter (Non-Suds) WPL 357346 Contact Us For Availability

WPL 352827 WPL 352827 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

47

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

Pump, Complete (Non-Suds) (Refer To Page 8 Fo WPL 357729 Contact Us For Availability

Pump, Complete (Suds) WPL 362175 Contact Us For Availability

WPL 352090 WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

49

WPL 352088 WPL 352088 Contact Us For Availability

49

Pulley, Pump WPL 359630 Contact Us For Availability

50

386011 Whirlpool Screw Backorder WPL 386011 $30.26

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

51

Hose, Dispenser WPL 352818 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 384765 WPL 384765 Contact Us For Availability

54

WPL 384766 WPL 384766 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

WPL 359206 WPL 359206 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 690300 WPL 690300 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

67

WPL 689559 WPL 689559 Contact Us For Availability

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $59.13

83

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

89

WPL 359327 WPL 359327 Contact Us For Availability

90

WPL 359383 WPL 359383 Contact Us For Availability

91

WPL 358115 WPL 358115 Contact Us For Availability

91

WPL 88401 WPL 88401 Contact Us For Availability

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 357645 WPL 357645 Contact Us For Availability

99

WPL 354975 WPL 354975 Contact Us For Availability

100

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91
