Model Whirlpool 3ET18NMXFW01 REFRIGERATOR – Common Parts & Diagrams

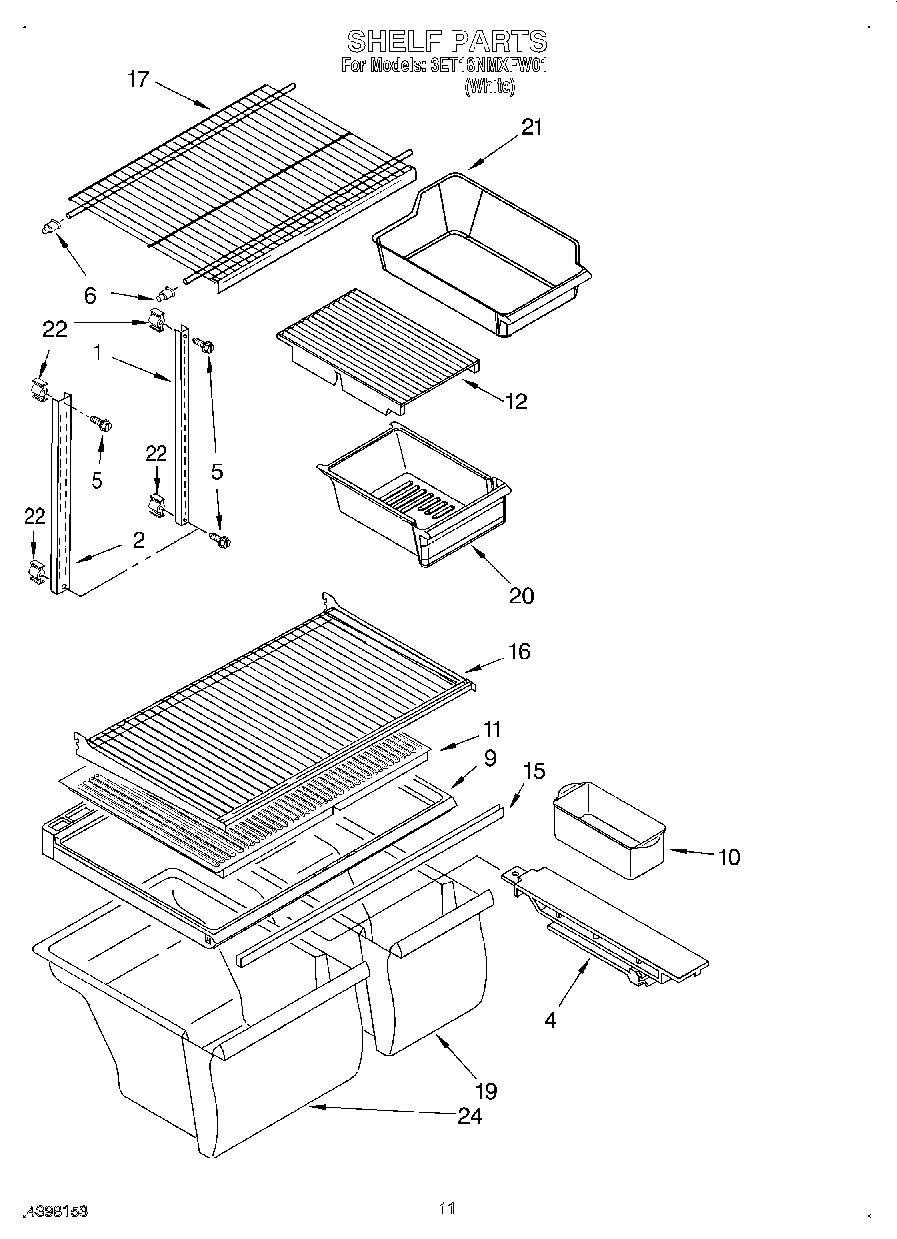

06 - SHELF, LIT/OPTIONAL

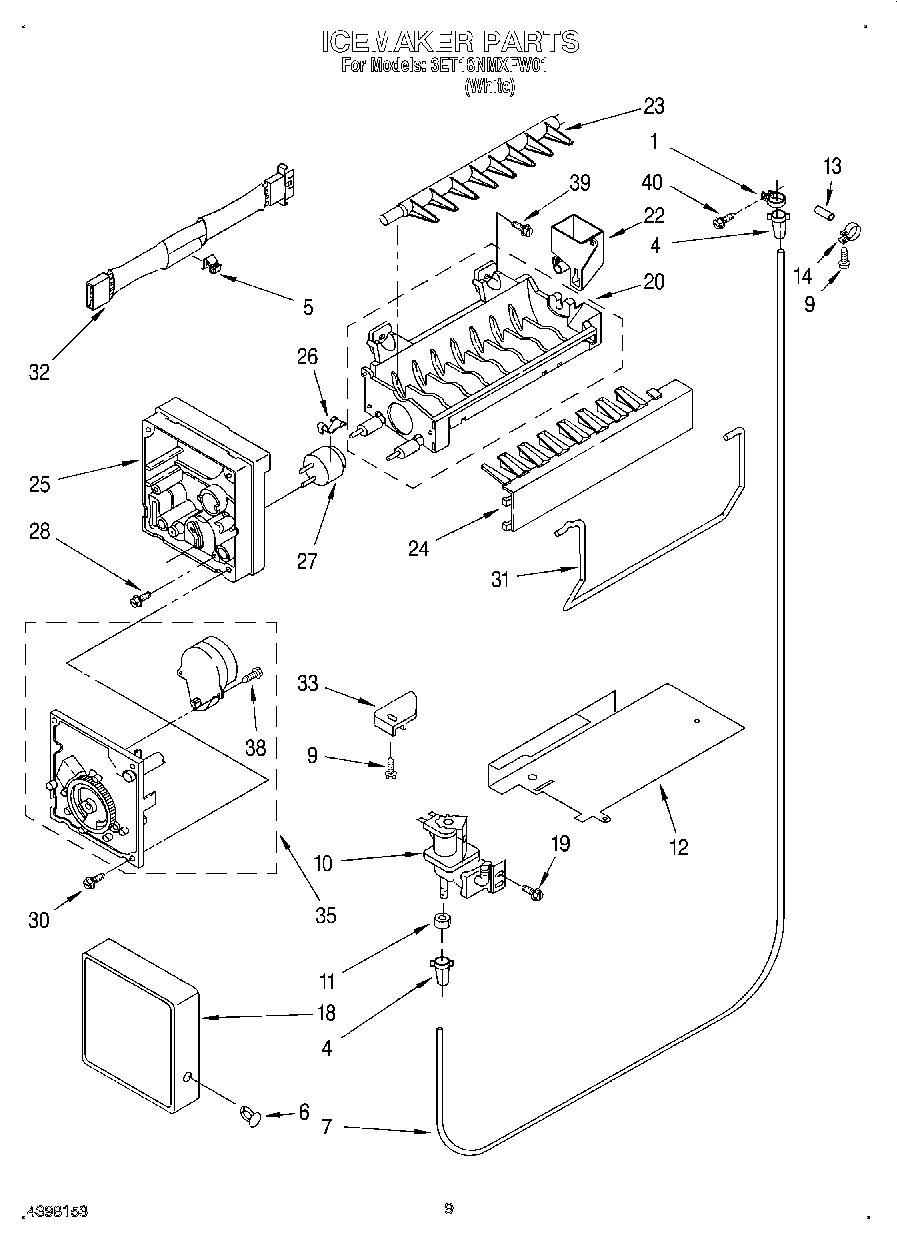

05 - ICEMAKER

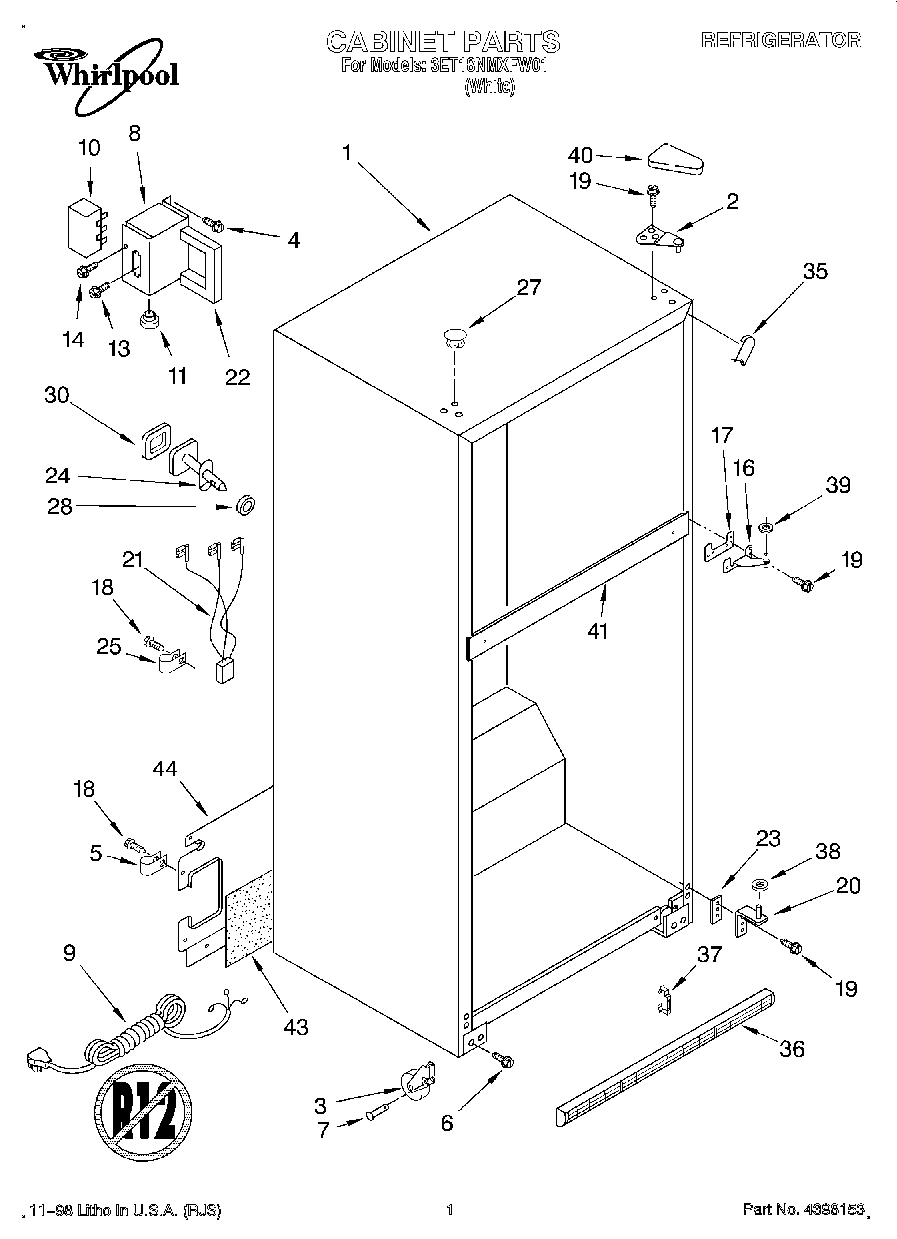

01 - CABINET

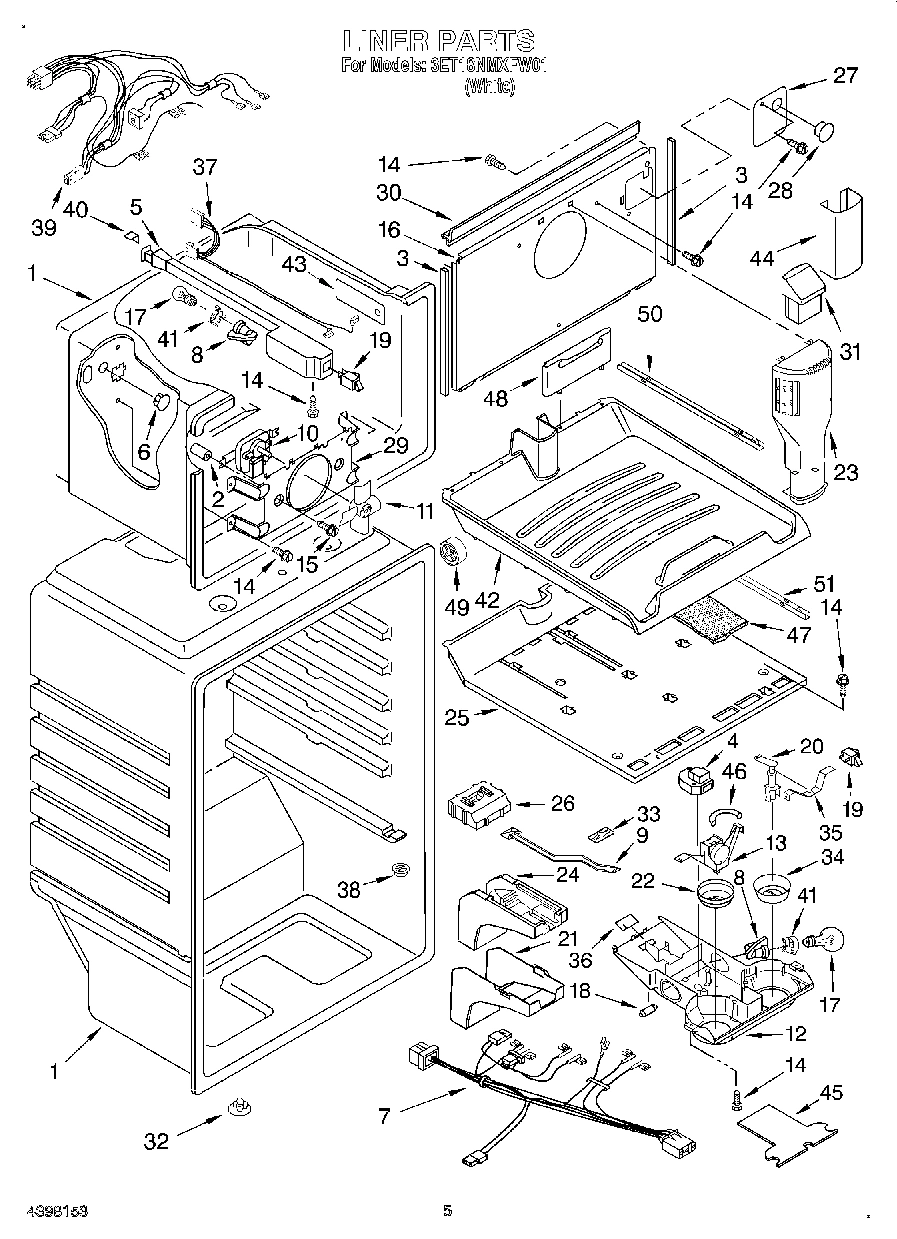

03 - LINER

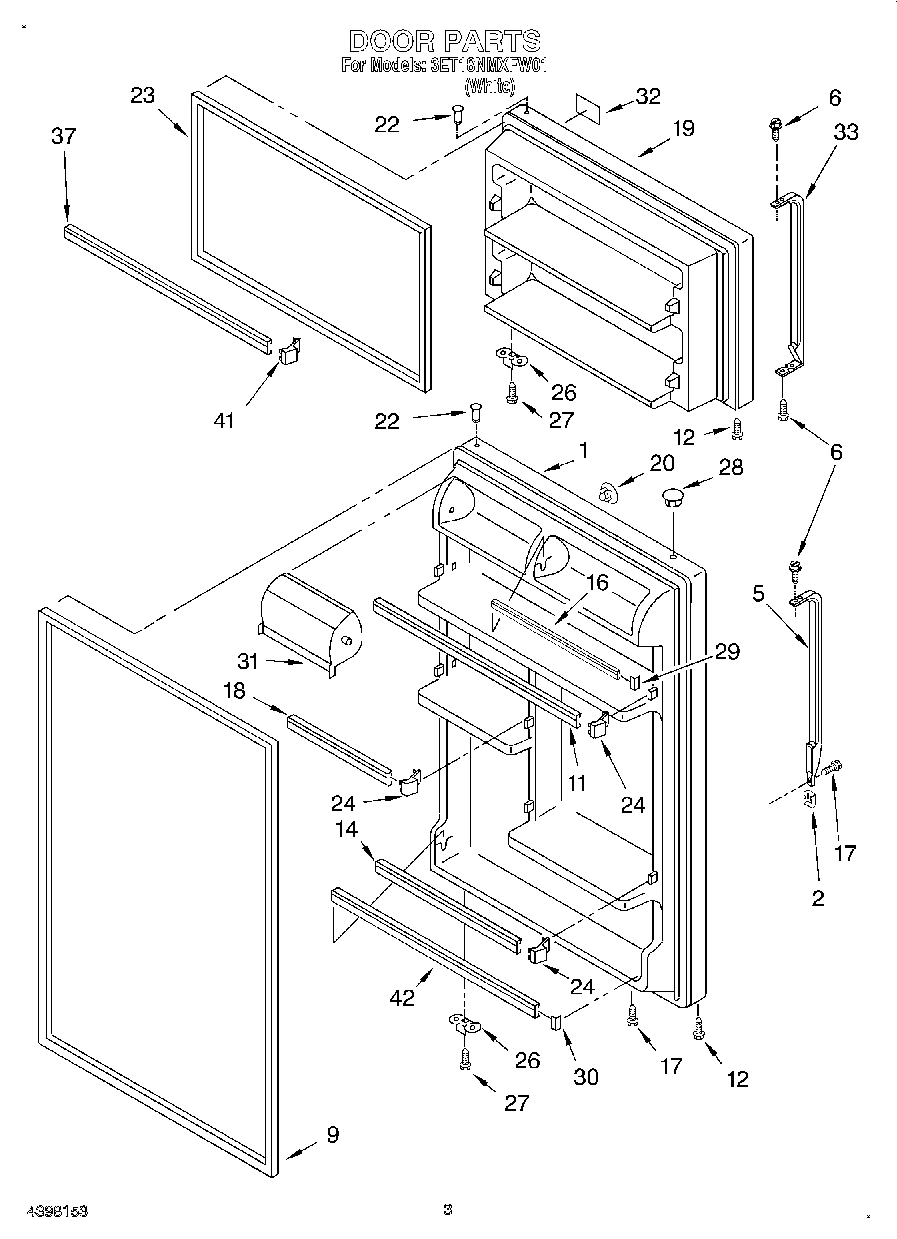

02 - DOOR

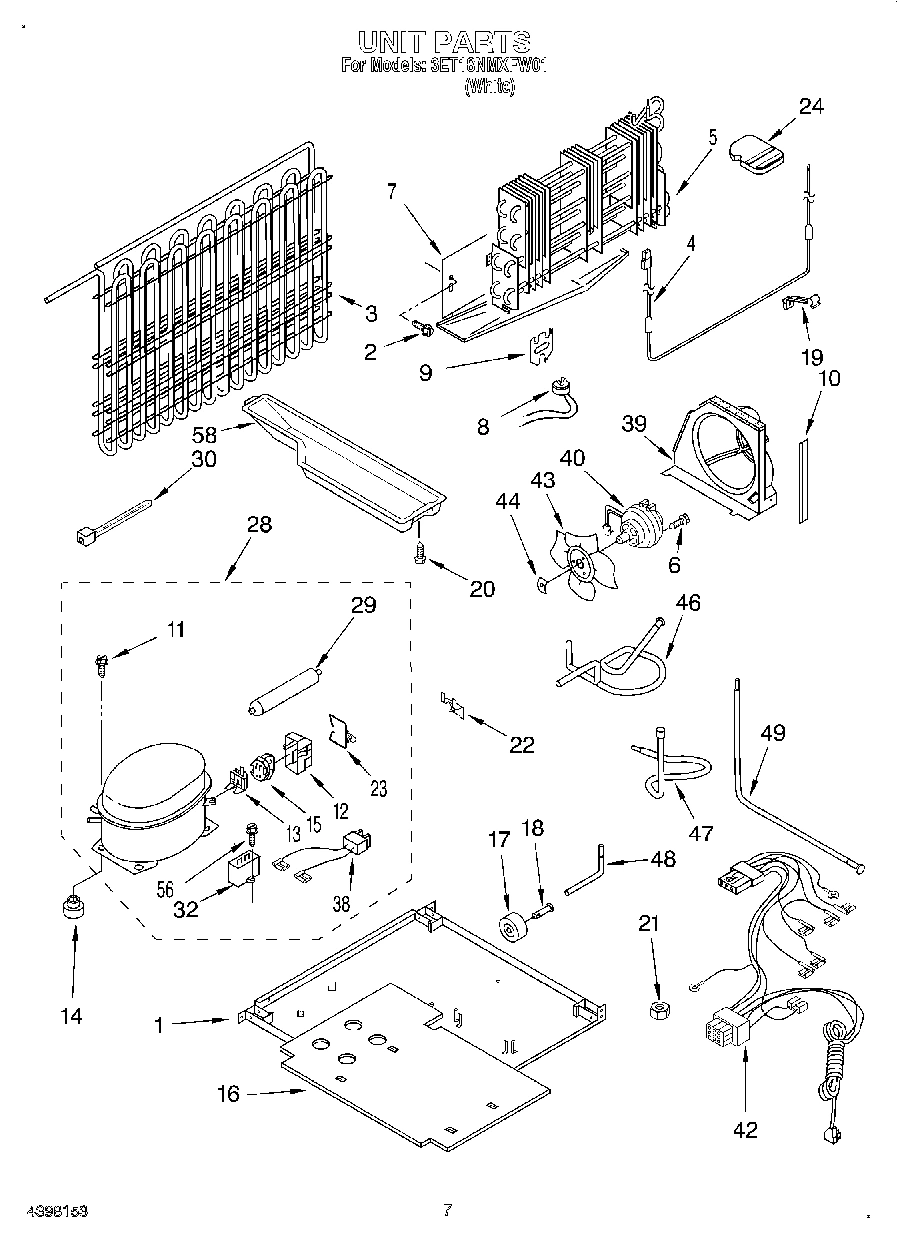

04 - UNIT
Common parts from model Whirlpool 3ET18NMXFW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) WPL 2183948 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195941 Contact Us For Availability
11
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Overload (Production) WPL 2169411 Contact Us For Availability
13
Overload (Service) WPL 4387961 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
18
Trim, Door WPL 2195942 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) WPL 2182487 Contact Us For Availability
20
Screw WPL 489462 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI11986A7 Contact Us For Availability
22
Screw Support WPL 2189314 Contact Us For Availability
22
Clip WPL 2166683 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Clip, Wire WPL 489435 Contact Us For Availability
24
Support Block WPL 2176302 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
32
Nameplate WPL 2175383 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Trim-Door (2) WPL 2195946 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2199112 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Gasket, Rear WPL 2166284 Contact Us For Availability
42
Pullout, Freezer Floor WPL 2201045 Contact Us For Availability
42
Wire Assy. Unit WPL 2200841 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Electric Shield WPL 2193491 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Shield WPL 2190519 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Insulation WPL 2179772 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Rear Fence WPL 2198768 Contact Us For Availability
49
Roller, Slide WPL 2176246 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
Side Support WPL 2179713 Contact Us For Availability
51
Center Support WPL 2179714 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,24,29,30, 3 WPL 2200787 Contact Us For Availability
× ![]()
