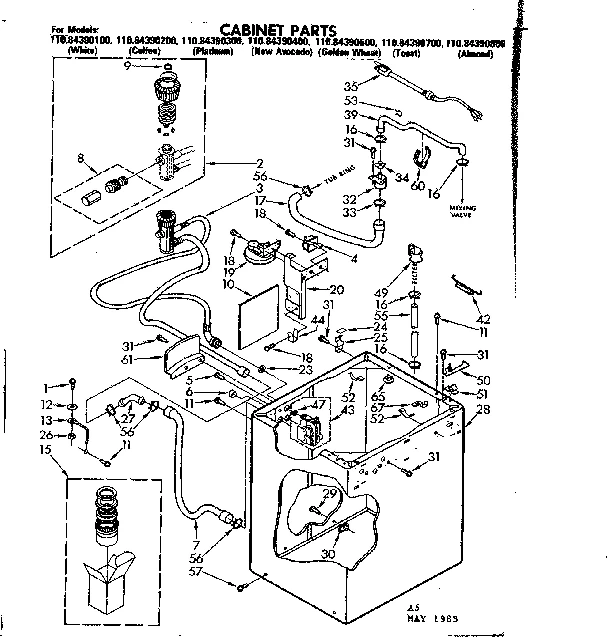

Model Whirlpool 110.84390200 Electric Washer (Kenmore 11084390200) – Common Parts &amp; Diagrams

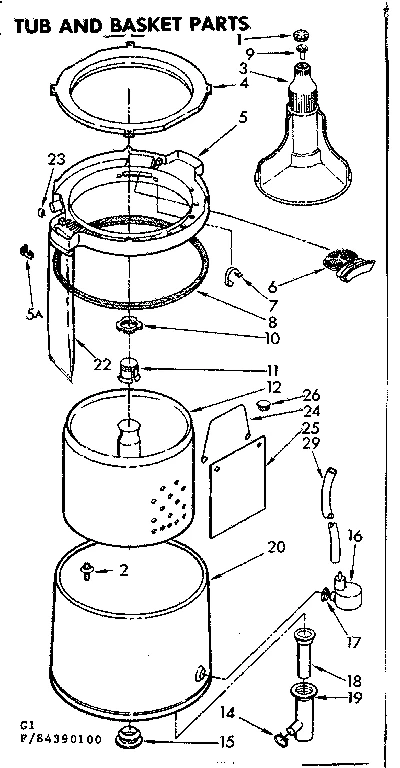

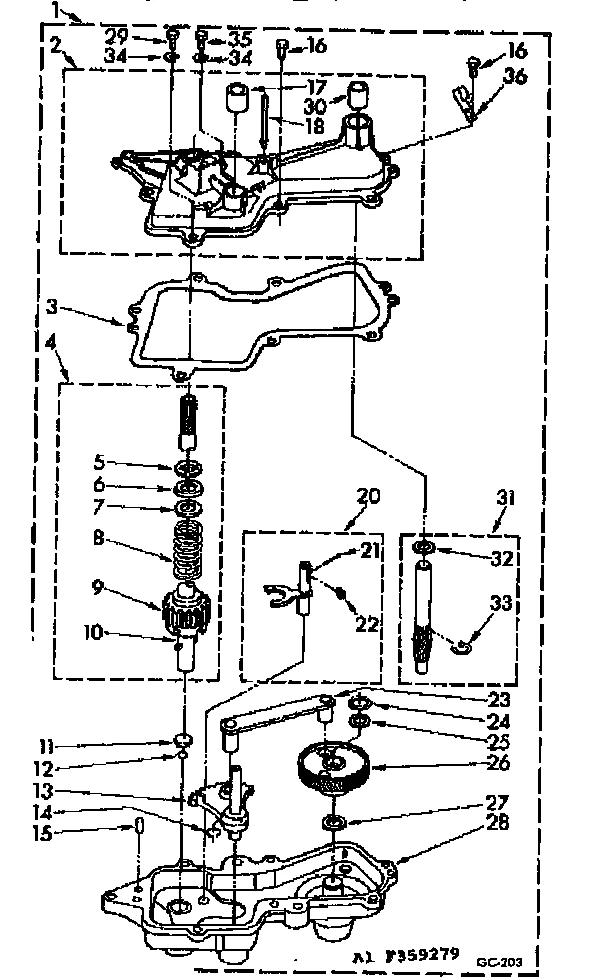

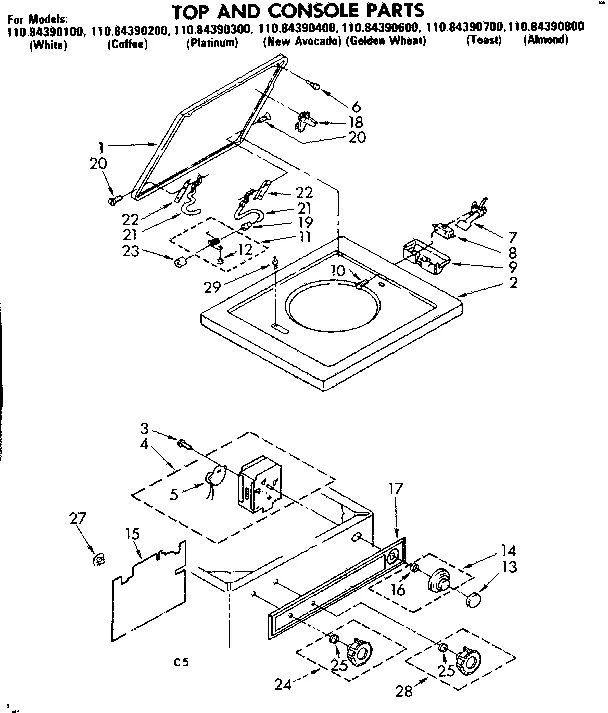

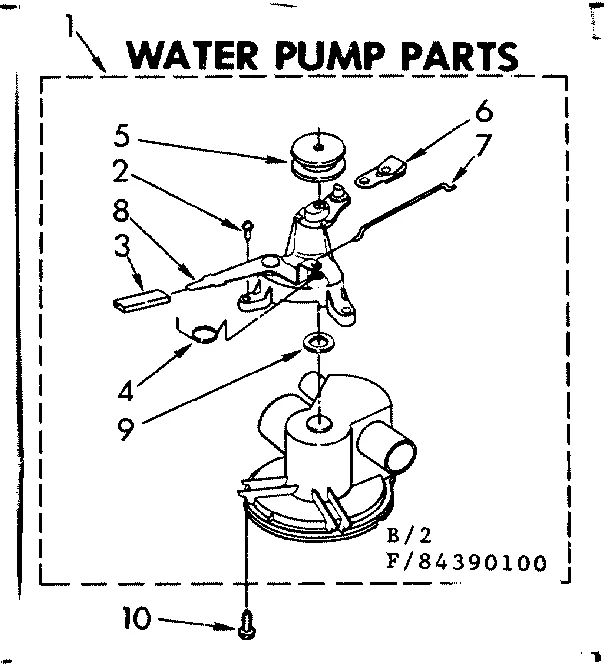

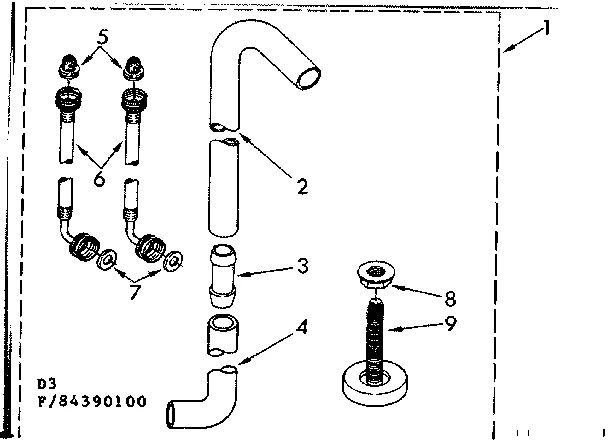

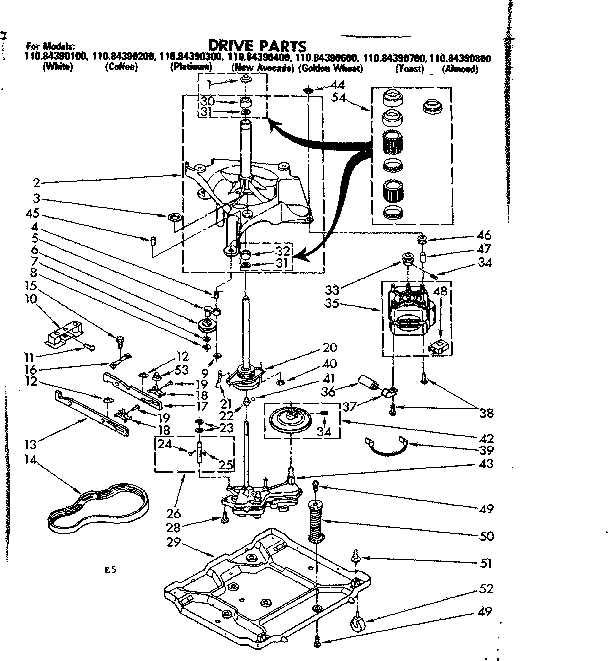

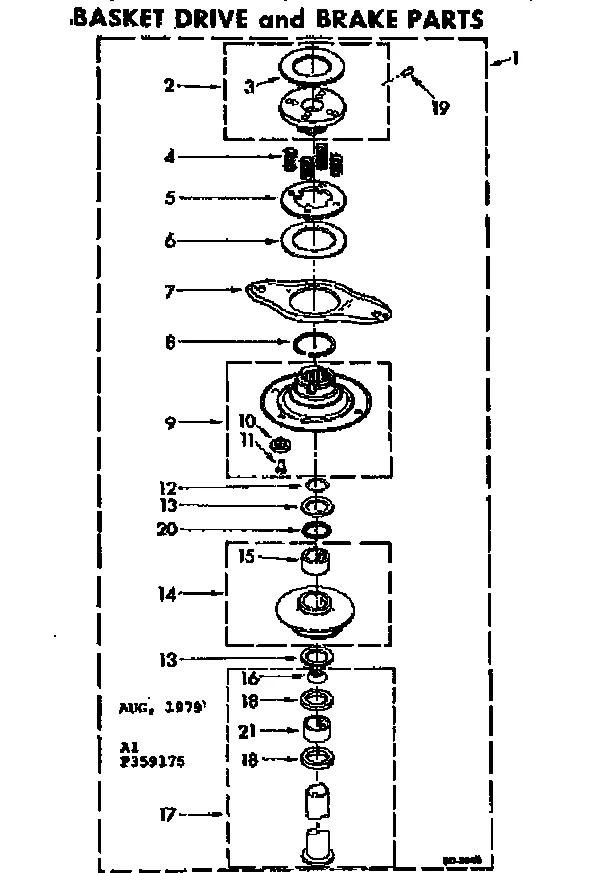

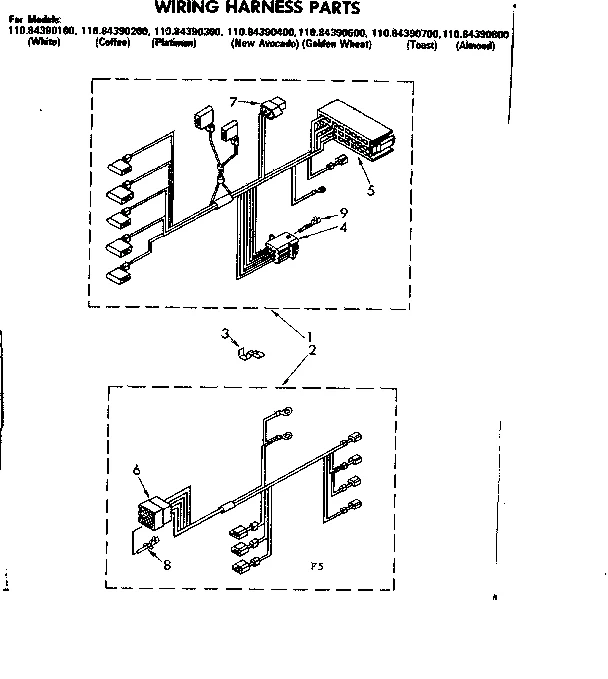

1

Harness WPL 385570 Contact Us For Availability

1

Cap WPL 356786 Contact Us For Availability

1A

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $227.55

1B

Lid Assembly (Almond) WPL 384332 Contact Us For Availability

1C

Lid WPL 384333 Contact Us For Availability

1D

New Avocado WPL 384334 Contact Us For Availability

1E

Lid WPL 384335 Contact Us For Availability

1F

Lid WPL 385853 Contact Us For Availability

1G

Lid (Platinum) WPL 385854 Contact Us For Availability

2

WP285170 Whirlpool Collar In Stock WPL WP285170 $54.99

2

Harness WPL 358100 Contact Us For Availability

2

Screw WPL 370571 Contact Us For Availability

2

Cover WPL 367552 Contact Us For Availability

2

Base Plate WPL 359179 Contact Us For Availability

2A

WP384693 Whirlpool Top Backorder WPL WP384693 $202.20

2B

Top (Almond) WPL 384210 Contact Us For Availability

2C

Top WPL 384211 Contact Us For Availability

2D

New Avocado WPL 384212 Contact Us For Availability

2E

Top WPL 384213 Contact Us For Availability

2F

Top WPL 386544 Contact Us For Availability

2G

Top (Platinum) WPL 386545 Contact Us For Availability

3

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Clip WPL 356327 Contact Us For Availability

3

Agitator WPL 369629 Contact Us For Availability

3

Gasket WPL 17235 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $56.97

4

Connector WPL 94612 Contact Us For Availability

4

Shield WPL 384453 Contact Us For Availability

4

Shaft WPL 362642 Contact Us For Availability

4

Washer Timer WPL 358604 Contact Us For Availability

4

Spring WPL 356137 Contact Us For Availability

5

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

5

Tub Ring WPL 384676 Contact Us For Availability

5

Ring WPL 352430 Contact Us For Availability

5

Motor WPL 365941 Contact Us For Availability

5

Shaft WPL 366856 Contact Us For Availability

5A

Clip WPL 350987 Contact Us For Availability

6

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $6.91

6

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $6.77

6

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

6

Plug WPL 94611 Contact Us For Availability

6

Laundry Center Washer Lint Filter WPL 384477 Contact Us For Availability

6

Shaft Seal WPL 92814 Contact Us For Availability

6

Pulley WPL 366855 Contact Us For Availability

7

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

7

Hose WPL 356727 Contact Us For Availability

7

Tub Ring Clip WPL 356141 Contact Us For Availability

7

Shield WPL 94276 Contact Us For Availability

7

Actuator WPL 357347 Contact Us For Availability

7

Washer WPL 356133 Contact Us For Availability

8

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

8

Relief Valve WPL 285171 Contact Us For Availability

8

Gasket WPL 356380 Contact Us For Availability

8

Spring WPL 92815 Contact Us For Availability

8

Ring WPL 356087 Contact Us For Availability

9

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

9

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

9

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

Seal WPL 711696 Contact Us For Availability

9

Gear WPL 355469 Contact Us For Availability

9

Ring WPL 356088 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $32.38

Barrier WPL 353885 Contact Us For Availability

Nut WPL 356995 Contact Us For Availability

Shaft WPL 362098 Contact Us For Availability

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

Wig Way Ay WPL 365998 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

Block WPL 357836 Contact Us For Availability

Tap End Scr WPL 16135 Contact Us For Availability

11A

Spring WPL 384463 Contact Us For Availability

11B

Spring WPL 384462 Contact Us For Availability

Lock Washer WPL 90918 Contact Us For Availability

Basket WPL 359174 Contact Us For Availability

Plug WPL 54690 Contact Us For Availability

Cam Bar Guide WPL 95462 Contact Us For Availability

Wire WPL 368715 Contact Us For Availability

Gr Sec/shaft WPL 75073 Contact Us For Availability

Knob WPL 385480 Contact Us For Availability

Cam Bar WPL 354838 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

Washer Drive Belt WPL 356402 Contact Us For Availability

Ring WPL 52083 Contact Us For Availability

Dial WPL 385463 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $32.46

Pin WPL 5018 Contact Us For Availability

Shield WPL 357901 Contact Us For Availability

Bolt WPL 98001 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

Bolt WPL 356599 Contact Us For Availability

Clip WPL 384710 Contact Us For Availability

Washer Seal WPL 351830 Contact Us For Availability

Inlet Hose WPL 356314 Contact Us For Availability

Bearing WPL 96853 Contact Us For Availability

Panel WPL 384504 Contact Us For Availability

Bar Cam WPL 18642 Contact Us For Availability

17A

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $42.88

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

Screw WPL 98520 Contact Us For Availability

Funnel WPL 356201 Contact Us For Availability

Support WPL 356445 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

Switch WPL 367610 Contact Us For Availability

Manifold WPL 357160 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Bracket WPL 357174 Contact Us For Availability

Tub WPL 367162 Contact Us For Availability

Fork Gear WPL 80398 Contact Us For Availability

Drive Basket WPL 359175 Contact Us For Availability

21

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $61.94

21

Spring WPL 17261 Contact Us For Availability

21A

384459 Whirlpool Hinge Backorder WPL 384459 $62.36

22

356398 Whirlpool Tube Backorder WPL 356398 $58.38

22

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

22

Bearing WPL 358586 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Cnnctng Rod WPL 76577 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $13.10

Support WPL 357622 Contact Us For Availability

Pin WPL 90532 Contact Us For Availability

Ring WPL 95082 Contact Us For Availability

Knob WPL 385482 Contact Us For Availability

Hinge WPL 356606 Contact Us For Availability

Roller WPL 92119 Contact Us For Availability

Washer WPL 95083 Contact Us For Availability

Compression Ring WPL 90015 Contact Us For Availability

25A

Hinge WPL 356740 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

Shield WPL 357623 Contact Us For Availability

Drive Gear WPL 359273 Contact Us For Availability

Shaft WPL 359460 Contact Us For Availability

27

W11213338 Whirlpool Connector Backorder WPL W11213338 $51.27

27

Clip WPL 356288 Contact Us For Availability

27

Washer WPL 363362 Contact Us For Availability

28

Gear Case WPL 362906 Contact Us For Availability

28

Knob WPL 385483 Contact Us For Availability

28

Screw WPL 356154 Contact Us For Availability

28A

Cabinet (White) WPL 369281 Contact Us For Availability

28B

Cabinet (Almond) WPL 376960 Contact Us For Availability

28C

Cabinet WPL 376961 Contact Us For Availability

28D

Cabinet WPL 376962 Contact Us For Availability

28E

Cabinet (Gold) WPL 376963 Contact Us For Availability

28F

Cabinet WPL 386560 Contact Us For Availability

28G

Cabinet (Platinum) WPL 386561 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

Screw WPL 9426223 Contact Us For Availability

Screw WPL 356512 Contact Us For Availability

Rivet WPL 354239 Contact Us For Availability

Base Plate WPL 359321 Contact Us For Availability

30

Spacer WPL 357043 Contact Us For Availability

30

Bearing WPL 354513 Contact Us For Availability

30

Bearing WPL 356993 Contact Us For Availability

31

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

31

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

31

Drive Pinion WPL 84467 Contact Us For Availability

32

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

32

Washer WPL 16024 Contact Us For Availability

32

Bearing WPL 354195 Contact Us For Availability

33

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

33

Ring WPL 90094 Contact Us For Availability

33

Pulley WPL 356939 Contact Us For Availability

34

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

34

Lock Washer WPL 138485 Contact Us For Availability

34

Screw WPL 355345 Contact Us For Availability

35

Cord WPL 357566 Contact Us For Availability

35

Screw WPL 355613 Contact Us For Availability

35

Motor WPL 358816 Contact Us For Availability

36

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

36

Bracket WPL 357172 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

39

Hose WPL 357048 Contact Us For Availability

39

Wire WPL 370950 Contact Us For Availability

40

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

41

Ball WPL 358585 Contact Us For Availability

42

Spring WPL 356887 Contact Us For Availability

42

Pulley WPL 356155 Contact Us For Availability

43

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

43

Gear Case WPL 359279 Contact Us For Availability

44

Clamp WPL 357171 Contact Us For Availability

44

Nut WPL 98023 Contact Us For Availability

45

Sleeve WPL 356638 Contact Us For Availability

46

Grommet WPL 356322 Contact Us For Availability

47

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

47

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

48

Motor Switch WPL 362738 Contact Us For Availability

49

Hose Clamp WPL 356982 Contact Us For Availability

49

Screw WPL 425583 Contact Us For Availability

50

Pad WPL 356916 Contact Us For Availability

50

Sprg-#1-rear WPL 367011 Contact Us For Availability

50A

Pad WPL 356917 Contact Us For Availability

50A

Sprg-#3-frnt WPL 367012 Contact Us For Availability

50B

Sprg-#2-left WPL 367013 Contact Us For Availability

51

Lock WPL 356422 Contact Us For Availability

51

Socket WPL 717588 Contact Us For Availability

52

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

53

Clip WPL 357469 Contact Us For Availability

53

Spring WPL 358354 Contact Us For Availability

54

Bearing Cp WPL 285136 Contact Us For Availability

55

Water Hose WPL 356397 Contact Us For Availability

56

Clamp WPL 272855 Contact Us For Availability

57

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

60

356746 Whirlpool Clip Backorder WPL 356746 $14.02

61

Bracket WPL 356499 Contact Us For Availability

67

Clip WPL 356387 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Spray (Platinum) WPL 285366 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Label WPL LIT359545 Contact Us For Availability

Owner's Manual WPL LIT359691 Contact Us For Availability

Energy Guide WPL LIT383887 Contact Us For Availability

Checklist WPL LIT384368 Contact Us For Availability

Operating Instructions WPL LIT385138 Contact Us For Availability

Parts List WPL LIT386455 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
