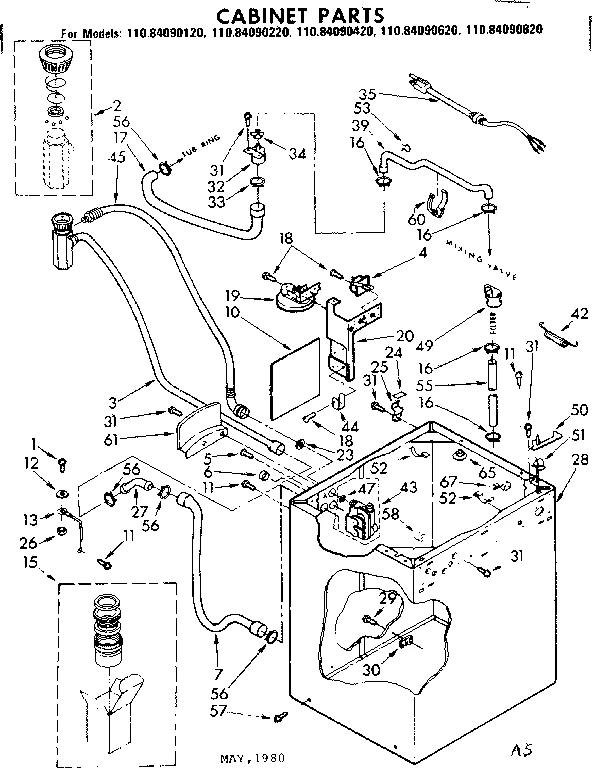

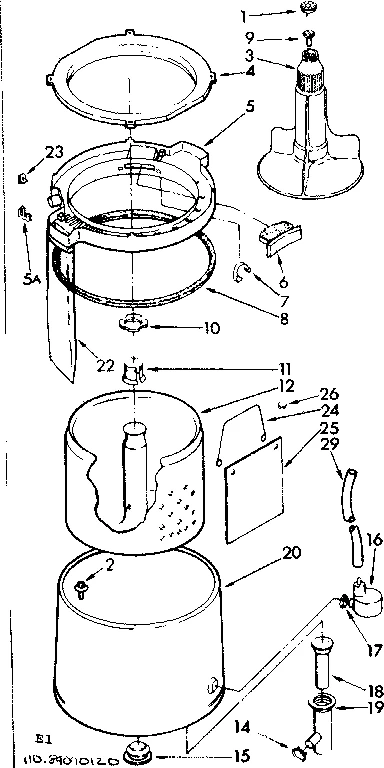

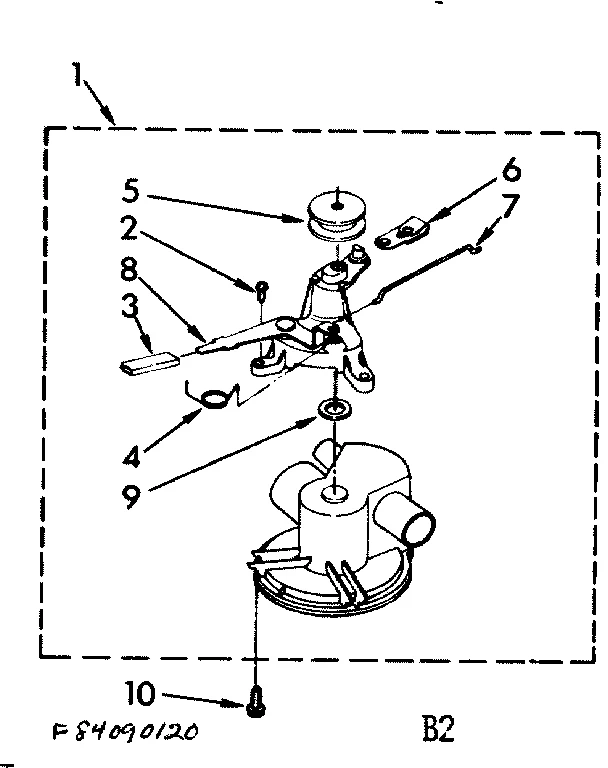

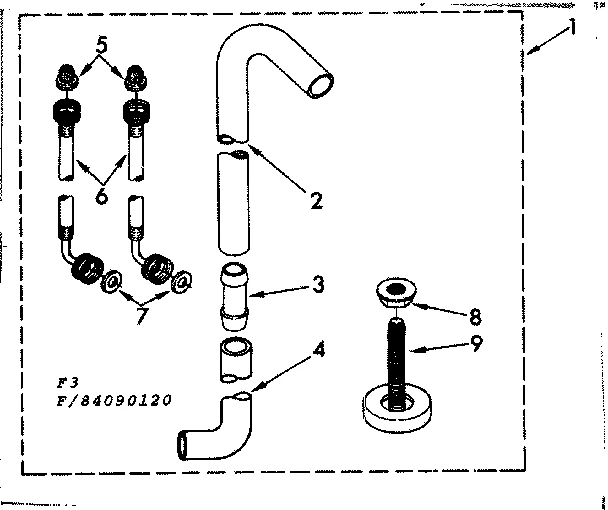

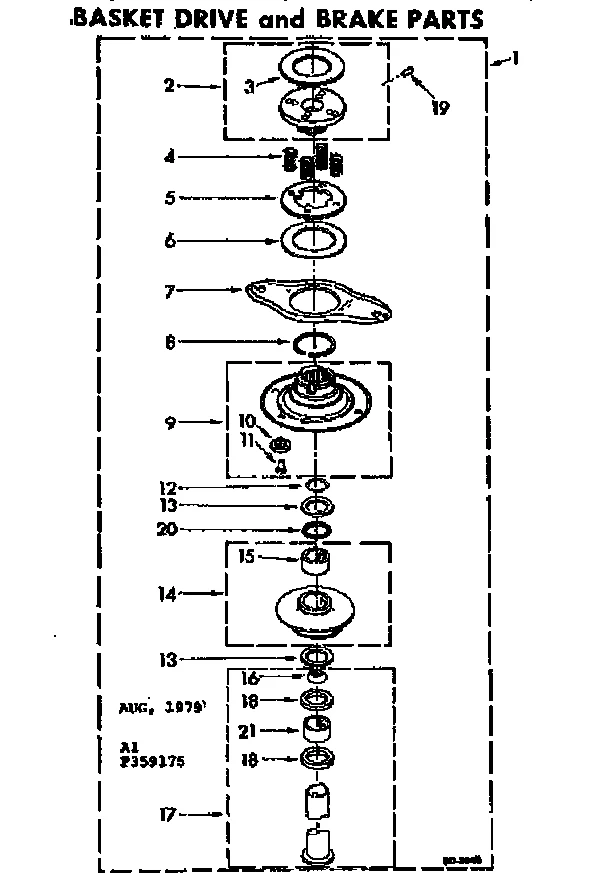

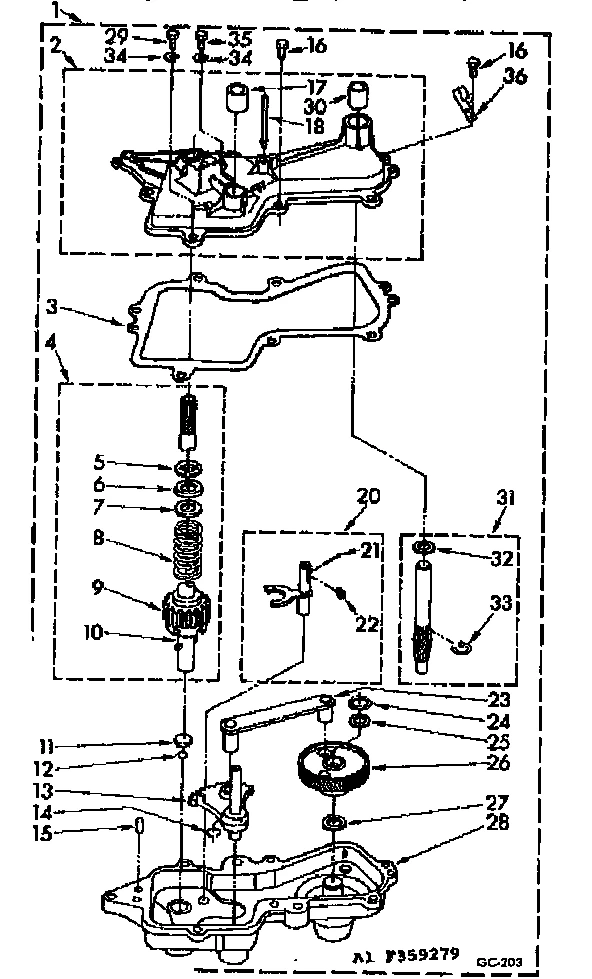

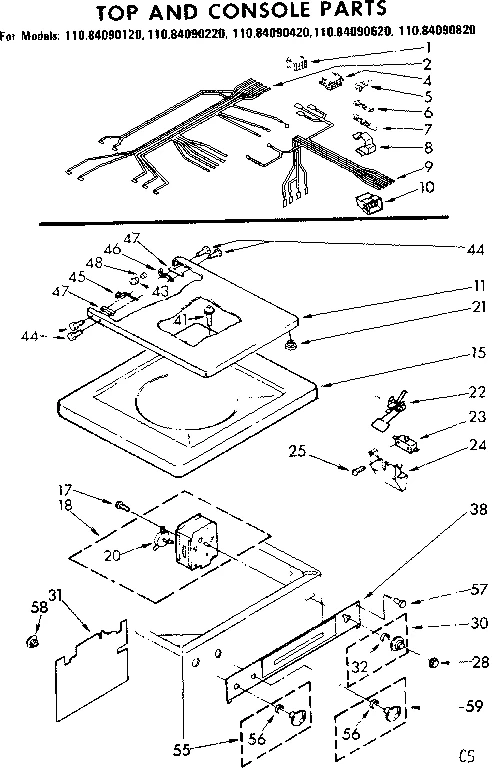

Model Whirlpool 110.84090120 Washer (Kenmore 11084090120) – Common Parts &amp; Diagrams

1

Pump WPL 358258 Contact Us For Availability

1

Plug WPL 94611 Contact Us For Availability

1

Hose Kit WPL 285050 Contact Us For Availability

1

Cap WPL 356786 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Brake Drum WPL 350508 Contact Us For Availability

2

Harness WPL 359563 Contact Us For Availability

2

Base Plate WPL 359179 Contact Us For Availability

2

Hose WPL 96745 Contact Us For Availability

2

Screw WPL 370571 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Lining WPL 354253 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Gasket WPL 17235 Contact Us For Availability

3

Agitator WPL 369629 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $56.97

4

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

4

Spring WPL 356152 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

4

Spring WPL 356137 Contact Us For Availability

4

Shield WPL 356153 Contact Us For Availability

5

Terminal WPL 352088 Contact Us For Availability

5

Drum WPL 97664 Contact Us For Availability

5

Pump Pulley WPL 356926 Contact Us For Availability

5

Shaft WPL 366856 Contact Us For Availability

5

Tub Ring WPL 367315 Contact Us For Availability

5A

Clip WPL 350987 Contact Us For Availability

6

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $5.95

6

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $6.77

6

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

6

Lining WPL 356396 Contact Us For Availability

6

Lever WPL 355538 Contact Us For Availability

6

Pulley WPL 366855 Contact Us For Availability

6

Filtr-lint WPL 356168 Contact Us For Availability

7

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

7

Hose WPL 356727 Contact Us For Availability

7

Brake Yoke WPL 92903 Contact Us For Availability

7

Rod WPL 96264 Contact Us For Availability

7

Washer WPL 356133 Contact Us For Availability

7

Tub Ring Clip WPL 356141 Contact Us For Availability

8

Ring WPL 16049 Contact Us For Availability

8

Bearng Blck WPL 87290 Contact Us For Availability

8

Clip WPL 356327 Contact Us For Availability

8

Ring WPL 356087 Contact Us For Availability

8

Gasket WPL 356380 Contact Us For Availability

9

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

9

Plate WPL 357716 Contact Us For Availability

9

Wick Oil WPL 96265 Contact Us For Availability

9

Harness WPL 358100 Contact Us For Availability

9

Ring WPL 356088 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $32.38

Barrier WPL 353885 Contact Us For Availability

Lining WPL 356405 Contact Us For Availability

Connector WPL 94612 Contact Us For Availability

Wig Way Ay WPL 365998 Contact Us For Availability

Nut WPL 356995 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

Eyelet WPL 98281 Contact Us For Availability

Tap End Scr WPL 16135 Contact Us For Availability

Block WPL 357836 Contact Us For Availability

11A

Lid (White) WPL 375982 Contact Us For Availability

11B

Lid (Almond) WPL 375990 Contact Us For Availability

11C

Lid WPL 375991 Contact Us For Availability

11D

Lid WPL 375992 Contact Us For Availability

11E

Lid WPL 375993 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Lock Washer WPL 90918 Contact Us For Availability

Cam Bar Guide WPL 95462 Contact Us For Availability

Basket WPL 359174 Contact Us For Availability

13

Wire WPL 368715 Contact Us For Availability

13

Washer WPL 353320 Contact Us For Availability

13

Cam Bar WPL 354838 Contact Us For Availability

14

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

14

Washer Drive Belt WPL 356402 Contact Us For Availability

14

Pulley WPL 366948 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $32.46

Bearing WPL 16033 Contact Us For Availability

Bolt WPL 98001 Contact Us For Availability

15A

Top (White) WPL 375514 Contact Us For Availability

15B

Top (Almond) WPL 377951 Contact Us For Availability

15C

Top WPL 377952 Contact Us For Availability

15D

Top WPL 377953 Contact Us For Availability

15E

Top (Gold) WPL 377954 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

Washer Seal WPL 351830 Contact Us For Availability

Inlet Hose WPL 356314 Contact Us For Availability

Tube WPL 357965 Contact Us For Availability

Bar Cam WPL 18642 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

Screw WPL 98520 Contact Us For Availability

Washer Timer WPL 358604 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Funnel WPL 356201 Contact Us For Availability

Switch WPL 367610 Contact Us For Availability

Screw WPL 358931 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Manifold WPL 357160 Contact Us For Availability

Bracket WPL 357174 Contact Us For Availability

Drive Basket WPL 359175 Contact Us For Availability

Retainer WPL 354319 Contact Us For Availability

Motor WPL 365941 Contact Us For Availability

Tub WPL 367162 Contact Us For Availability

21

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

21

Spacer WPL 356937 Contact Us For Availability

21

Spring WPL 17261 Contact Us For Availability

22

356398 Whirlpool Tube Backorder WPL 356398 $58.38

22

Actuator WPL 357347 Contact Us For Availability

22

Bearing WPL 358586 Contact Us For Availability

23

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

23

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

18849 Whirlpool Pad Backorder WPL 18849 $13.10

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Pin WPL 90532 Contact Us For Availability

Support WPL 357622 Contact Us For Availability

25

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

25

Roller WPL 92119 Contact Us For Availability

25

Shield WPL 357623 Contact Us For Availability

25A

Hinge WPL 356606 Contact Us For Availability

25B

Hinge WPL 356740 Contact Us For Availability

26

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

26

Clip WPL 356288 Contact Us For Availability

26

Shaft WPL 359460 Contact Us For Availability

27

W11213338 Whirlpool Connector Backorder WPL W11213338 $51.27

28

Knob WPL 352798 Contact Us For Availability

28

Screw WPL 356154 Contact Us For Availability

28A

Cabinet (White) WPL 369281 Contact Us For Availability

28B

Cabinet (Almond) WPL 376960 Contact Us For Availability

28C

Cabinet WPL 376961 Contact Us For Availability

28D

Cabinet WPL 376962 Contact Us For Availability

28E

Cabinet (Gold) WPL 376963 Contact Us For Availability

29

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

29

Screw WPL 9426223 Contact Us For Availability

29

Base Plate WPL 359321 Contact Us For Availability

30

Spacer WPL 357043 Contact Us For Availability

30

Dial WPL 381518 Contact Us For Availability

30

Bearing WPL 356993 Contact Us For Availability

31

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

31

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

31

Shield WPL 357901 Contact Us For Availability

32

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

32

Clip WPL 354555 Contact Us For Availability

32

Bearing WPL 354195 Contact Us For Availability

33

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

33

Pulley WPL 356939 Contact Us For Availability

34

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

34

Screw WPL 355345 Contact Us For Availability

35

Cord WPL 357566 Contact Us For Availability

35

Motor WPL 358816 Contact Us For Availability

36

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

38

Panel WPL 359554 Contact Us For Availability

38A

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $42.88

39

Hose WPL 357048 Contact Us For Availability

39

Wire WPL 370950 Contact Us For Availability

40

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

41

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

41

Ball WPL 358585 Contact Us For Availability

42

Spring WPL 356887 Contact Us For Availability

42

Pulley WPL 356155 Contact Us For Availability

43

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

43

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

43

Gear Case WPL 359279 Contact Us For Availability

44

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

44

Clamp WPL 357171 Contact Us For Availability

44

Nut WPL 98023 Contact Us For Availability

45

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

45

Hose WPL 358202 Contact Us For Availability

45

Sleeve WPL 356638 Contact Us For Availability

46

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

46

Grommet WPL 356322 Contact Us For Availability

47

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

47

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

47

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

48

Motor Switch WPL 362738 Contact Us For Availability

49

Hose Clamp WPL 356982 Contact Us For Availability

49

Screw WPL 425583 Contact Us For Availability

50

(338471) (ALT.) WPL N/P Contact Us For Availability

50A

Pad WPL 356916 Contact Us For Availability

50A

Sprg-#1-rear WPL 367011 Contact Us For Availability

50B

Pad WPL 356917 Contact Us For Availability

50B

Sprg-#3-frnt WPL 367012 Contact Us For Availability

50C

Sprg-#2-left WPL 367013 Contact Us For Availability

51

Lock WPL 356422 Contact Us For Availability

51

Socket WPL 717588 Contact Us For Availability

52

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

53

Clip WPL 357469 Contact Us For Availability

53

Spring WPL 358354 Contact Us For Availability

55

Water Hose WPL 356397 Contact Us For Availability

55

Washer Knob WPL 358602 Contact Us For Availability

56

Clamp WPL 272855 Contact Us For Availability

56

Compression Ring WPL 90015 Contact Us For Availability

57

Rivet WPL 356388 Contact Us For Availability

58

Bumper WPL 91605 Contact Us For Availability

59

Knob WPL 359621 Contact Us For Availability

60

356746 Whirlpool Clip Backorder WPL 356746 $14.02

61

Bracket WPL 356499 Contact Us For Availability

67

Clip WPL 356387 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Parts Bag WPL 370579 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Label WPL LIT359545 Contact Us For Availability

Owner's Manual WPL LIT359570 Contact Us For Availability

Operating Instructions WPL LIT380355 Contact Us For Availability

Checklist WPL LIT380378 Contact Us For Availability

Parts List WPL LIT381886 Contact Us For Availability

Energy Guide WPL LIT382142 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
