Model Whirlpool 110.83380800 Electric Washer (Kenmore 11083380800) – Common Parts &amp; Diagrams

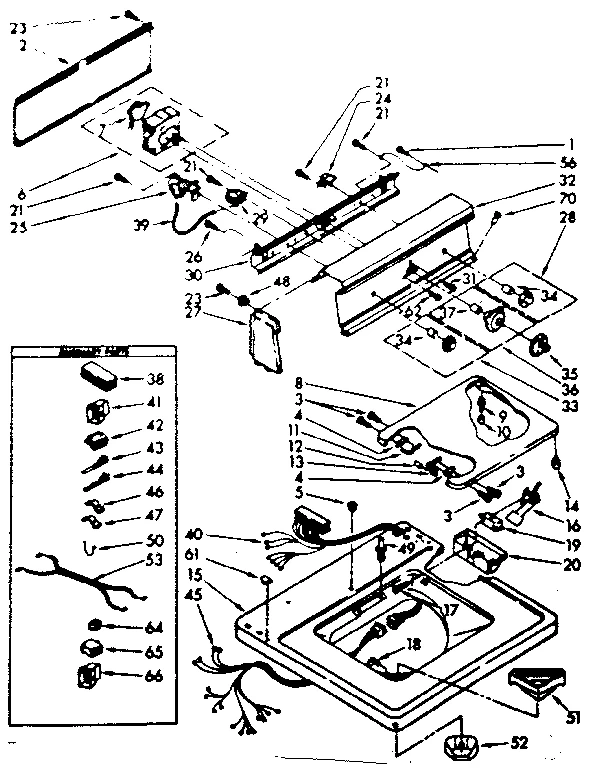

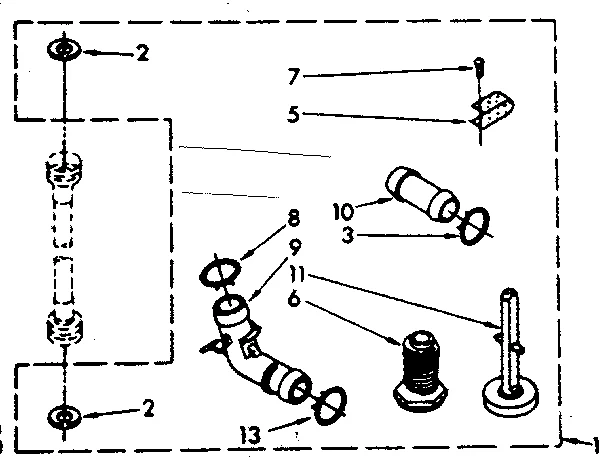

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

1

Replacement Part WPL 375976 Contact Us For Availability

1

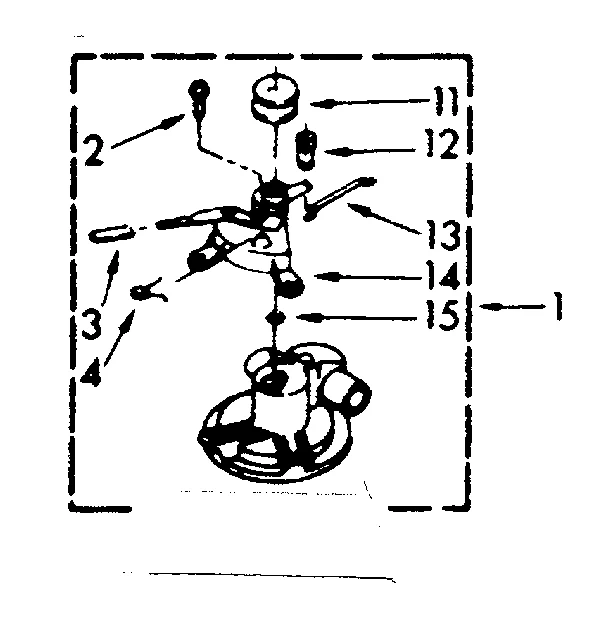

Pump WPL 383957 Contact Us For Availability

1A

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $122.43

1A

Replacement Part WPL 375975 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Cover WPL 352143 Contact Us For Availability

2

Panel WPL 359374 Contact Us For Availability

2A

Cover WPL 353230 Contact Us For Availability

3

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

3

Ball WPL 91073 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $56.97

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

Rod WPL 359678 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $8.89

5

Base Plate WPL 359721 Contact Us For Availability

5

Ground Strap WPL 22965 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

6A

Timer WPL 376012 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

7

Brace WPL 353301 Contact Us For Availability

7

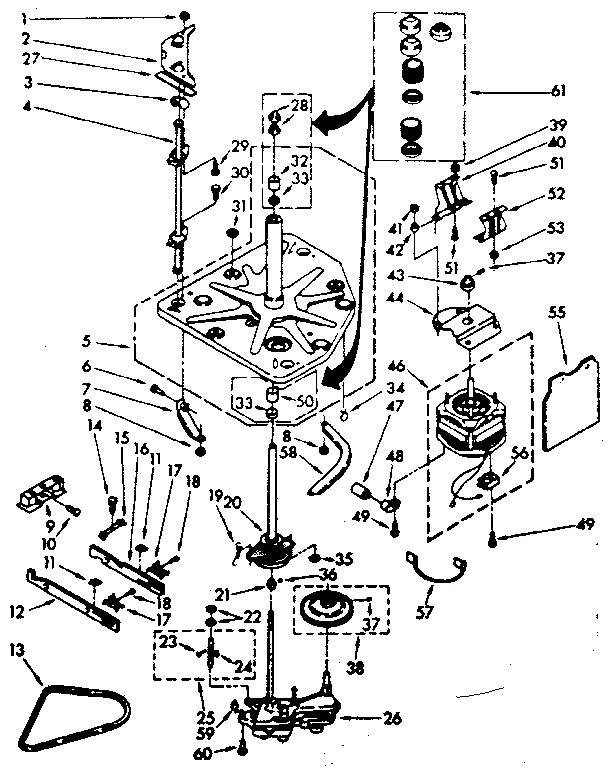

Washer Motor WPL 362681 Contact Us For Availability

7

Screw WPL 132848 Contact Us For Availability

7A

Motor WPL 365941 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

8

Nut WPL 96101 Contact Us For Availability

8A

Lid (White) WPL 371378 Contact Us For Availability

8B

Lid (Almond) WPL 371385 Contact Us For Availability

8C

Lid WPL 371386 Contact Us For Availability

8D

Lid WPL 371387 Contact Us For Availability

8E

Lid WPL 371388 Contact Us For Availability

8F

Lid WPL 371402 Contact Us For Availability

8G

Lid (Platinum) WPL 371403 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

9

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

9

Wig Way Ay WPL 365998 Contact Us For Availability

9

Strike WPL 357141 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

Tap End Scr WPL 16135 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

Pulley WPL 359630 Contact Us For Availability

Cam Bar Guide WPL 95462 Contact Us For Availability

Washer Lid Hinge WPL 91367 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

Cam Bar WPL 354838 Contact Us For Availability

Lever WPL 355538 Contact Us For Availability

12A

Panel WPL 357335 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WP95405 Whirlpool Belt In Stock WPL WP95405 $35.33

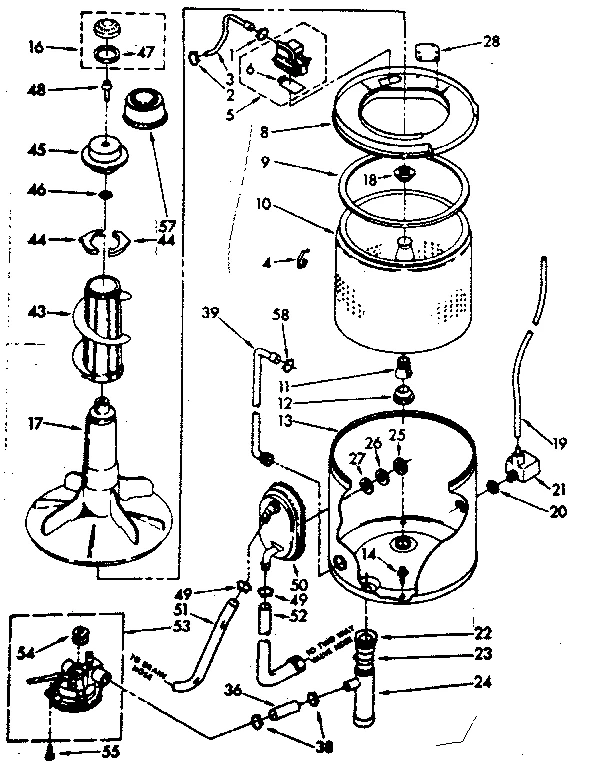

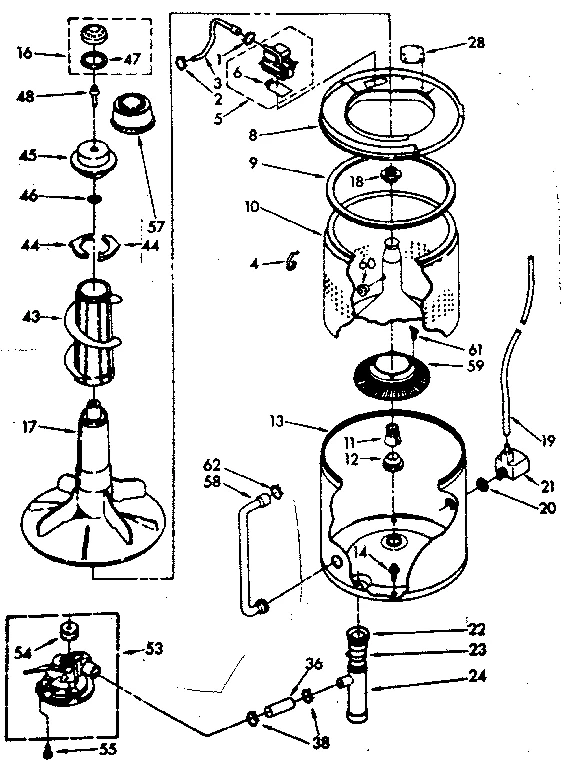

Tub WPL 359668 Contact Us For Availability

Rod WPL 96264 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

Screw WPL 370571 Contact Us For Availability

Bolt WPL 98001 Contact Us For Availability

Block WPL 383750 Contact Us For Availability

15

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

15

Wick Oil WPL 96265 Contact Us For Availability

15A

Top (White) WPL 385094 Contact Us For Availability

15B

Top (Almond) WPL 385095 Contact Us For Availability

15C

Top WPL 385096 Contact Us For Availability

15D

New Avocado WPL 385097 Contact Us For Availability

15E

Top WPL 385098 Contact Us For Availability

15F

Top WPL 386546 Contact Us For Availability

15G

Top (Platinum) WPL 386547 Contact Us For Availability

16

Actuator WPL 370959 Contact Us For Availability

16

Washer Agitator Cap WPL 358348 Contact Us For Availability

16

Bar Cam WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

Agitator WPL 383950 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

Gusset WPL 356459 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

19

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

19

Spring WPL 17261 Contact Us For Availability

20

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

20

Washer Seal WPL 351830 Contact Us For Availability

20

Drive Basket WPL 359699 Contact Us For Availability

21

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

21

Air Dome WPL 360804 Contact Us For Availability

21

Bearing WPL 358586 Contact Us For Availability

22

Washer Outer Tub Grommet WPL 93553 Contact Us For Availability

23

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

23

Clamp WPL 9421321 Contact Us For Availability

23

Pin WPL 90532 Contact Us For Availability

24

Manifold WPL 84091 Contact Us For Availability

24

Roller WPL 92119 Contact Us For Availability

24

Switch WPL 358029 Contact Us For Availability

25

Nut WPL 92229 Contact Us For Availability

25

Shaft WPL 359460 Contact Us For Availability

25

Switch WPL 660940 Contact Us For Availability

25A

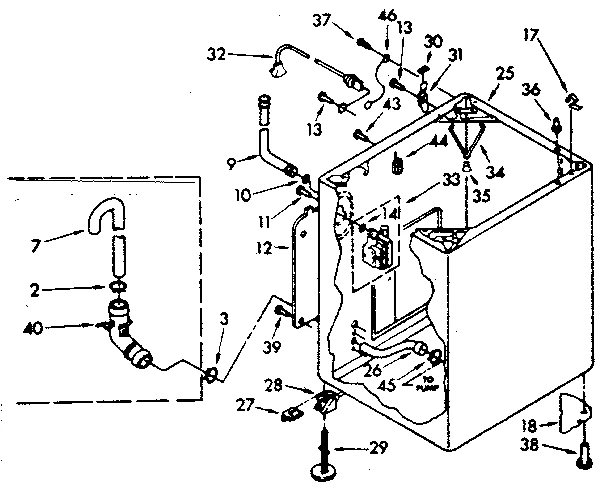

Cabinet (White) WPL 384793 Contact Us For Availability

25B

Cabinet (Almond) WPL 384794 Contact Us For Availability

25C

Cabinet WPL 384795 Contact Us For Availability

25D

Cabinet WPL 384796 Contact Us For Availability

25E

Cabinet WPL 384797 Contact Us For Availability

25F

Cabinet WPL 386477 Contact Us For Availability

25G

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Washer WPL 92232 Contact Us For Availability

Hose WPL 358560 Contact Us For Availability

Gear Case WPL 362901 Contact Us For Availability

Screw WPL 355326 Contact Us For Availability

27

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

27

Washer WPL 92235 Contact Us For Availability

27

Pad WPL 352434 Contact Us For Availability

27A

Cap (Chestnut) WPL 372127 Contact Us For Availability

27B

Cap (Chestnut) WPL 372134 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

Washer Snubber Plate WPL 355852 Contact Us For Availability

Link WPL 359059 Contact Us For Availability

Knob WPL 382823 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

29

Bolt WPL 126358 Contact Us For Availability

29

Switch WPL 359712 Contact Us For Availability

29A

Carriage Bolt WPL 126211 Contact Us For Availability

29B

Bolt WPL 353770 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $13.10

30

Screw WPL 98048 Contact Us For Availability

30

Bracket WPL 381473 Contact Us For Availability

31

Hinge WPL 92657 Contact Us For Availability

31

Gasket WPL 17235 Contact Us For Availability

31

Screw, Nibbed WPL 339607 Contact Us For Availability

31A

Hinge WPL 18775 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

32

Power Cord WPL 92667 Contact Us For Availability

32

Panel WPL 383815 Contact Us For Availability

32A

Panel WPL 383816 Contact Us For Availability

33

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

33

Valve WPL 660749 Contact Us For Availability

33

Washer Control Knob WPL 382825 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $12.46

34

Spring WPL 357977 Contact Us For Availability

34

Compression Ring WPL 90015 Contact Us For Availability

35

Washer Snubber Pad WPL 358336 Contact Us For Availability

35

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

35

Washer Timer Knob WPL 359507 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

Ball WPL 358585 Contact Us For Availability

Pointer WPL 359505 Contact Us For Availability

37

Screw WPL 355345 Contact Us For Availability

37

Clip WPL 384710 Contact Us For Availability

38

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Washer Transmission Pulley WPL 360840 Contact Us For Availability

38A

Block (White) WPL 352090 Contact Us For Availability

39

Washer Exhaust Hose WPL 352978 Contact Us For Availability

40

Bracket WPL 85286 Contact Us For Availability

40

Harness WPL 359926 Contact Us For Availability

40A

Harness WPL 359927 Contact Us For Availability

41

Nut WPL 98023 Contact Us For Availability

41

Connector WPL 94612 Contact Us For Availability

42

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

42

Plug WPL 94611 Contact Us For Availability

43

Auger WPL 660761 Contact Us For Availability

43

Screw WPL 98853 Contact Us For Availability

43

Motor Pulley WPL 92216 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Washer Agitator Dog WPL 358692 Contact Us For Availability

Relay WPL 365956 Contact Us For Availability

Shield WPL 356217 Contact Us For Availability

45

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

45

Cam WPL 358691 Contact Us For Availability

45

Harness WPL 358711 Contact Us For Availability

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

Appliance O-Ring WPL 357574 Contact Us For Availability

Ground Wire WPL 354089 Contact Us For Availability

Motor WPL 660604 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

47

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

End Cap Clip WPL 689559 Contact Us For Availability

Screw and Washer WPL 356237 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

49

Clamp WPL 353096 Contact Us For Availability

49

Rivet WPL 354239 Contact Us For Availability

50

Washer Lint Filter WPL 368772 Contact Us For Availability

50

Bearing WPL 354195 Contact Us For Availability

50

Clip WPL 357469 Contact Us For Availability

51

Hose WPL 359798 Contact Us For Availability

51

Bolt WPL 98537 Contact Us For Availability

51A

Bezel (White) WPL 355823 Contact Us For Availability

51B

Bezel (Almond) WPL 376975 Contact Us For Availability

51C

Bezel WPL 376976 Contact Us For Availability

51D

Bezel WPL 376977 Contact Us For Availability

51E

Bezel WPL 376978 Contact Us For Availability

51F

Bezel WPL 386491 Contact Us For Availability

52

Hose WPL 357052 Contact Us For Availability

52

Bracket WPL 93549 Contact Us For Availability

52

Tray WPL 352827 Contact Us For Availability

53

Nut WPL 95721 Contact Us For Availability

53

Harness WPL 359587 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $32.38

55

Shield WPL 359719 Contact Us For Availability

56

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $63.26

56

Motor Switch WPL 362738 Contact Us For Availability

56A

Switch WPL 359642 Contact Us For Availability

57

Washer Fabric Softener Dispenser WPL 359163 Contact Us For Availability

57

Wire WPL 370950 Contact Us For Availability

58

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

58

Brace WPL 351500 Contact Us For Availability

58A

Brace WPL 351499 Contact Us For Availability

59

Spacer WPL 16062 Contact Us For Availability

60

Hex Screw WPL 90877 Contact Us For Availability

61

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

61

Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability

62

Screw WPL 359504 Contact Us For Availability

64

Ring WPL 357695 Contact Us For Availability

65

Plug WPL 94696 Contact Us For Availability

66

Cap WPL 94697 Contact Us For Availability

70

Screw WPL 358225 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Washer Agitator Grease WPL 350849 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Spray C WPL 350931 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Case Al WPL 385366 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Label WPL LIT379385 Contact Us For Availability

Installation Instructions WPL LIT383541 Contact Us For Availability

Installation Instructions WPL LIT383542 Contact Us For Availability

Operating Instructions WPL LIT383544 Contact Us For Availability

Energy Guide WPL LIT383873 Contact Us For Availability

Energy Guide WPL LIT383874 Contact Us For Availability

Checklist WPL LIT384383 Contact Us For Availability

Operating Instructions WPL LIT385153 Contact Us For Availability

Guide WPL LIT386315 Contact Us For Availability

Parts List WPL LIT386462 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
